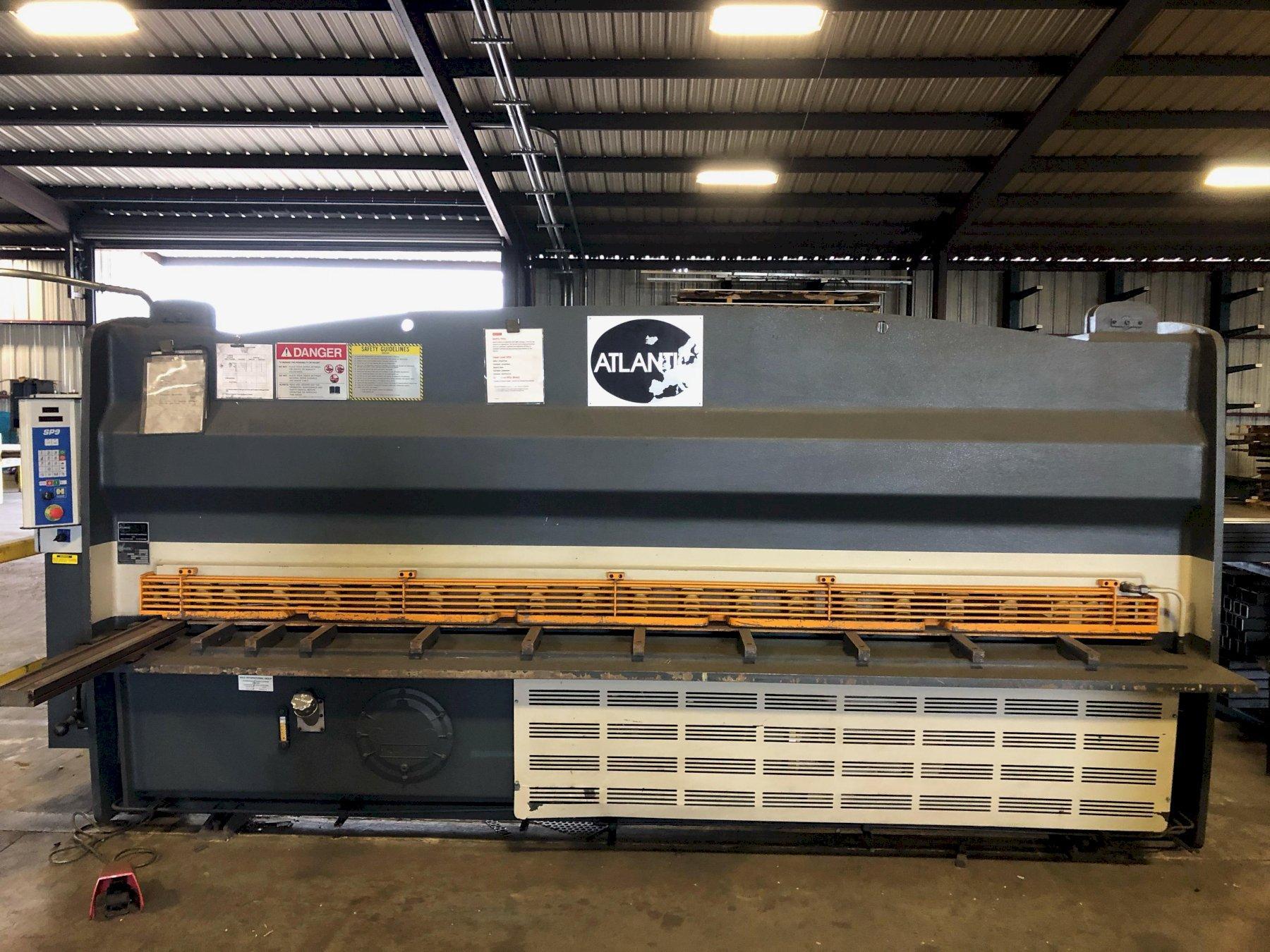

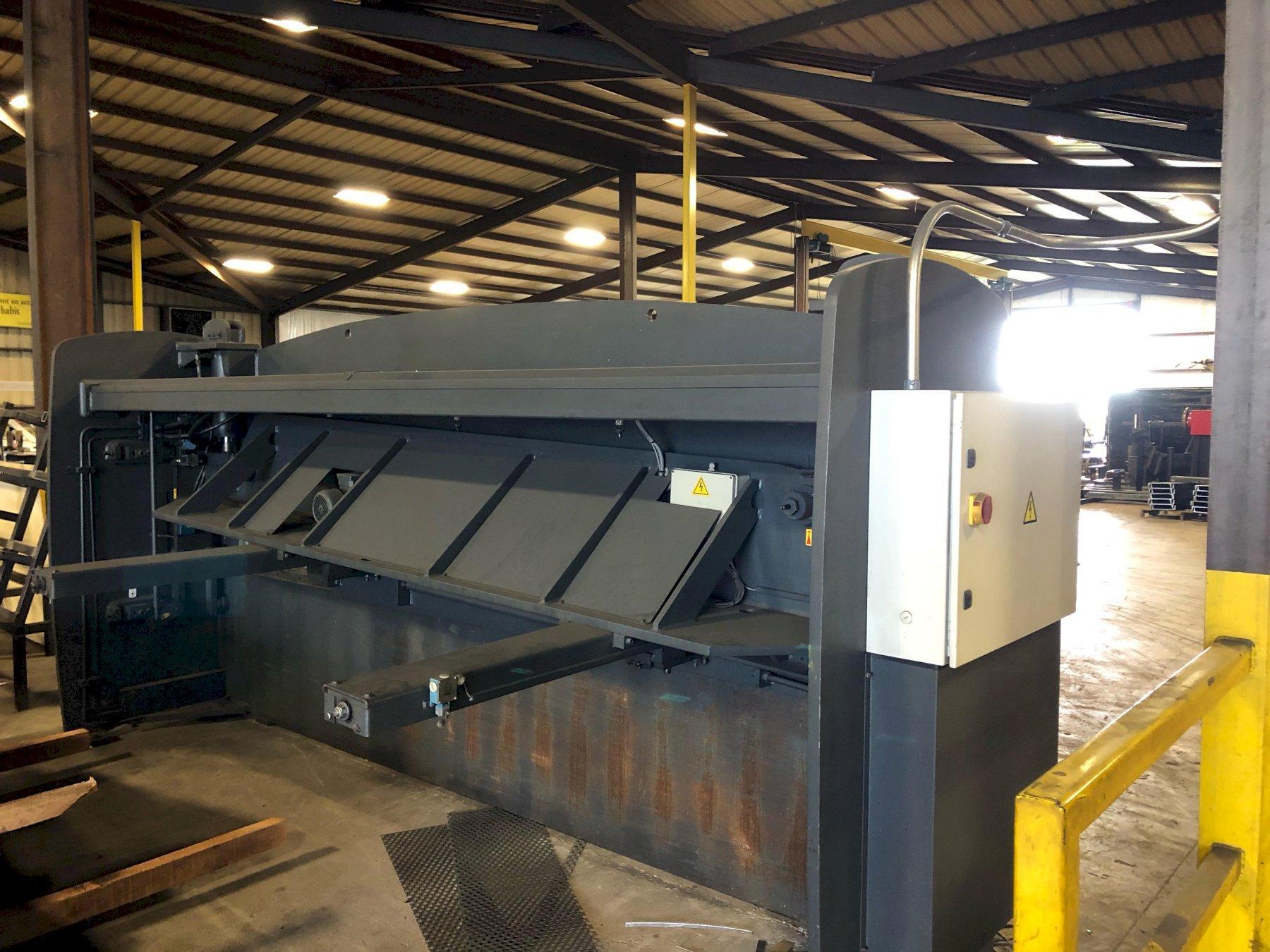

2008 Haco HD1214 Hydraulic Shear (#4109)

Manufacturer

Stock

None

Model

None listed

Dealer Location

Florida

Spec Sheet

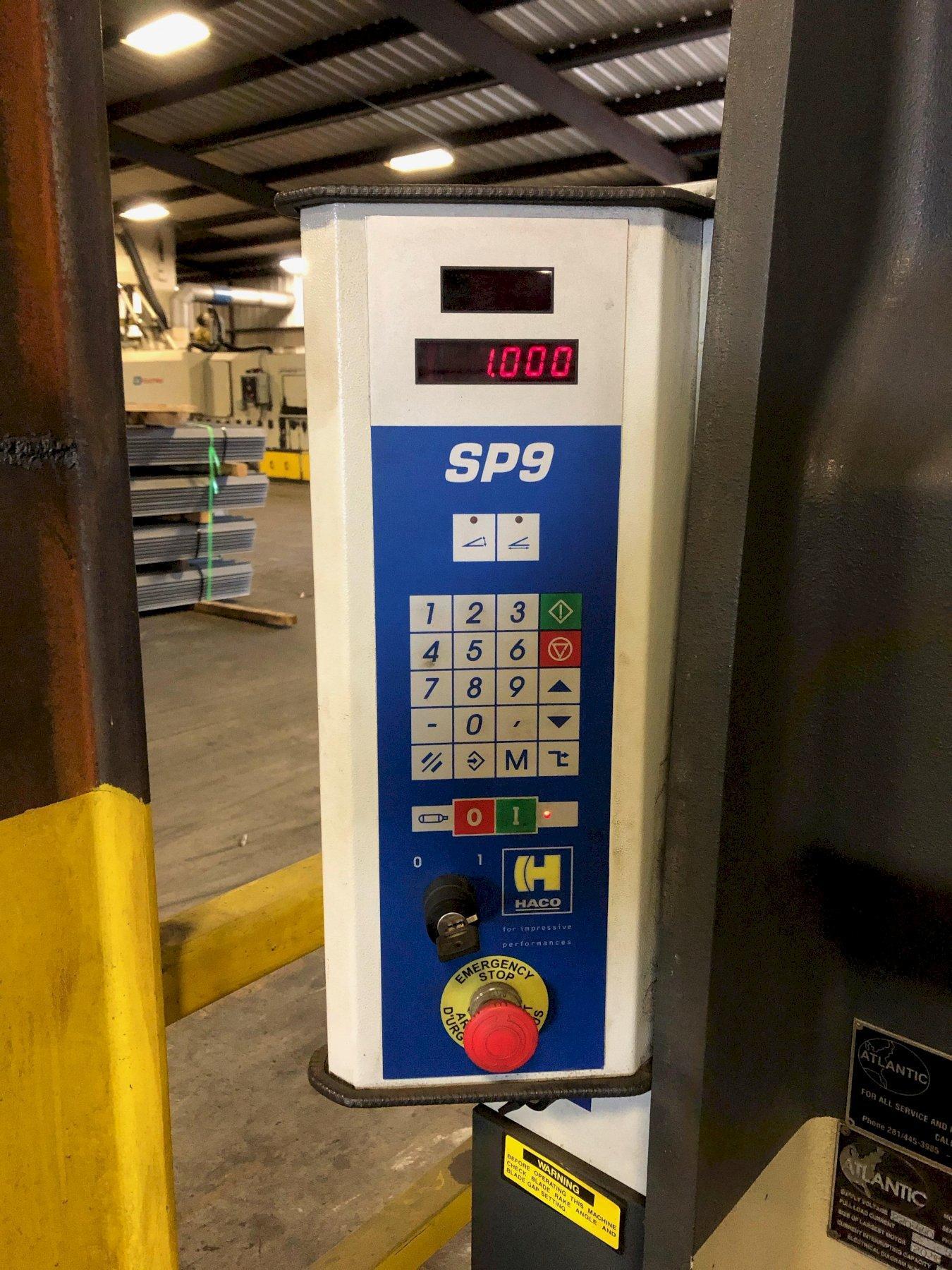

¼” X 12’ Power Squaring Shear with Front Operated Power Back Gauge, Power Length of Stroke Control, Quick Adjustments Blade Gap Control, Front Material Support and Electric Foot Pedal

GENERAL SPECIFICATIONS


  • Mild Steel Capacity: 1/4"

  • Maximum Cutting Length: 12’

  • Rake Angle: 1 - 3 Degrees

  • Number of Hold Downs (Hydraulic): 21

  • Back Gauge Range: 34”

  • Strokes per Min: 10 - 17

  • Overall Machine Dimensions: 180” X 82” X 73”

  • Horsepower: 20 HP

  • Approximate Weight: 21,500 LBS

  • Current Electrics: 220 / 400 / 3 / 60


INCLUDES: Front Operated Power Back Gauge, Power Length of Stroke Control, Quick Adjustments Blade Gap Control, Front Material Support and Electric Foot Pedal


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
