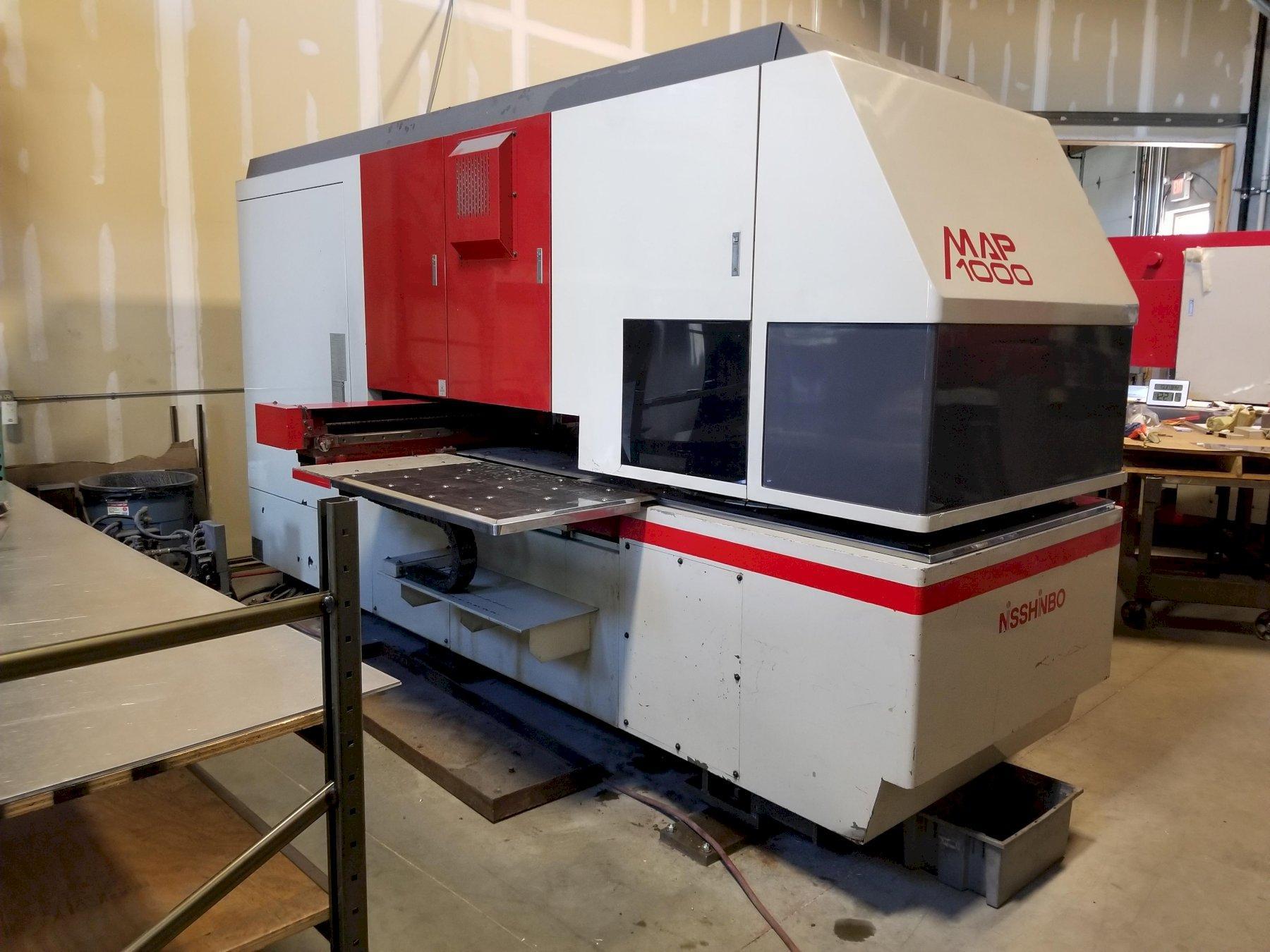

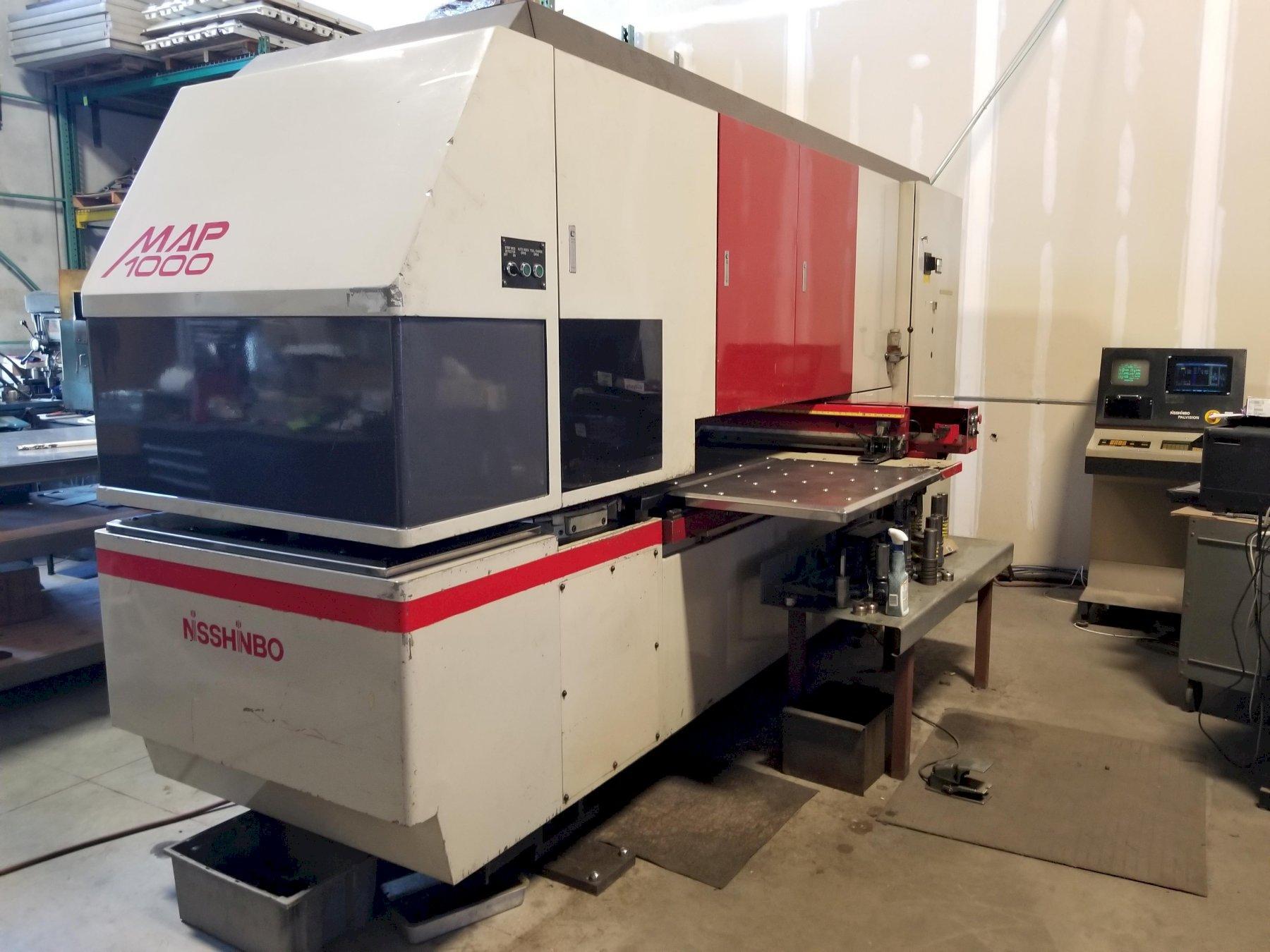

1994 Nisshinbo Map 1000 Turret Punch (#4254)

Manufacturer

Category

Punches

Type

PUNCHES, TURRET

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



39.37” X 99.2” X 22 TON CNC Turret Punching System with Nsshinbo Palvision CNC Control System, Bi-Directional 22 Position Thick Style Turret, 2 Auto Index Stations, Multi Tool Capable, Ball Transfer Table, Auto Repositioning, Fully Capable Machine in Compact Design.

GENERAL FEATURES:


  • Maximum Traverse: 39.37” X 99.2”

  • Maximum Sheet Size (with Repositioning): 39.37 X 99.2”

  • Maximum Punching Capacity (mild Steel): ¼”

  • Maximum Hits Per Minute: 180

  • Nibbling Rate Per Minute: 280

  • Maximum Sheet Weight: 175 LBS

  • Maximum Positioning Speed: 2820 IPM (Simultaneous)

  • Turret: 22 Stations

  • Auto Index: 2

  • Station Sizes: 1/2” - 8

  • 1 1/2” - 8

  • 2” - 2

  • 2 1/2” - 2

  • Auto-index: 3 1/2” - 2

  • Turret Speed: 30 RPM Bi-directional

  • Air Requirement: 80 Psi

  • Main Motor Horsepower: 8 Kva



INCLUDES: 39.37” X 99.2” X 22 TON CNC Turret Punching System with Nsshinbo Palvision CNC Control System, Bi-Directional 22 Position Thick Style Turret, 2 Auto Index Stations, Multi Tool Capable, Ball Transfer Table, Auto Repositioning, Fully Capable Machine in Compact Design.
  ***We strongly encourage personal inspection of all pieces of used equipment***
      ***All Price, Location and Specifications Subject to Change without Notice***
