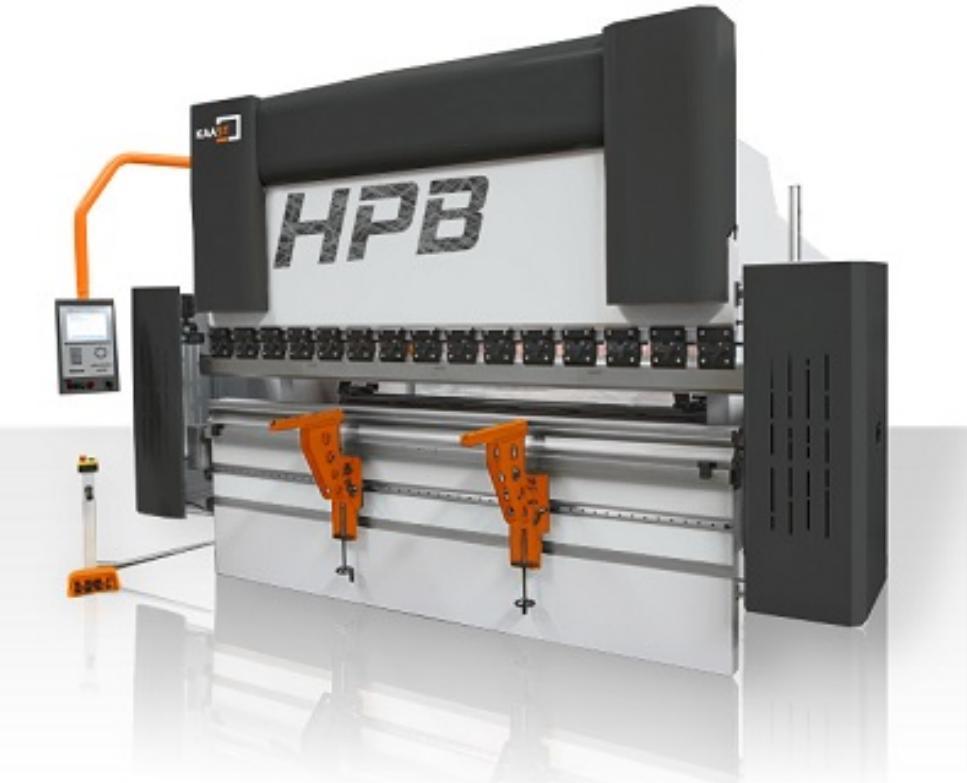

Kaast HPB 37220 Press Brake (#4339)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



242 Ton X 12' Press Brake with Delem DA-58T Controls, CNC Controlled Strong 800 MM Backgauge, Adjustable Height and Sliding Front Support Arms, Top and Bottom Tools are Surface Hardened by Special Treatment, Promecam Quick Clamping System, 2 - Piece Back Gauge Fingers and Scales in Metric and Inches

GENERAL SPECIFICATIONS
Bending Length: 148"
Bending Power: 242 US Tons
Between Columns: 128"
Ram Rapid Speed: 7" / Sec
Ram Working Speed: 0.4" / Sec
Ram Return Speed: 6.3" / Sec
Travel in Backgauge Axis: 31"
Speed of Backgauge Axis: 9" / Sec
Backgauge Finger Blocks: 2
Sheet Support Arms: 2
Oil Capacity: 79 GAL
Motor Power: 25 HP
Stroke: 10.8"
Daylight: 21.6"
Throat Depth: 16"
Table Height: 35"
Table Width: 6.3"
Dimensions (LxWxH): 200" X 114" X 88"
Weight: 27,780 Lbs
Electrics: 230 / 460 / 3 / 60

INCLUDES: Delem DA-58T Controls, CNC Controlled Strong 800 MM Backgauge, Adjustable Height and Sliding Front Support Arms, Top and Bottom Tools are Surface Hardened by Special Treatment, Promecam Quick Clamping System, 2 - Piece Back Gauge Fingers and Scales in Metric and Inches


***All Price, Location and Specifications Subject to Change without Notice***
