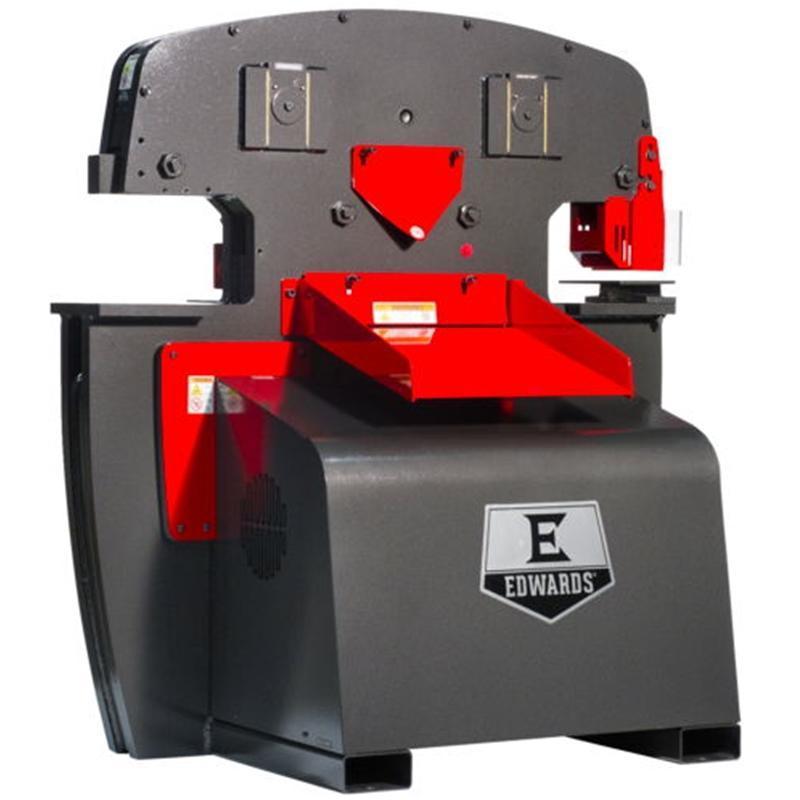

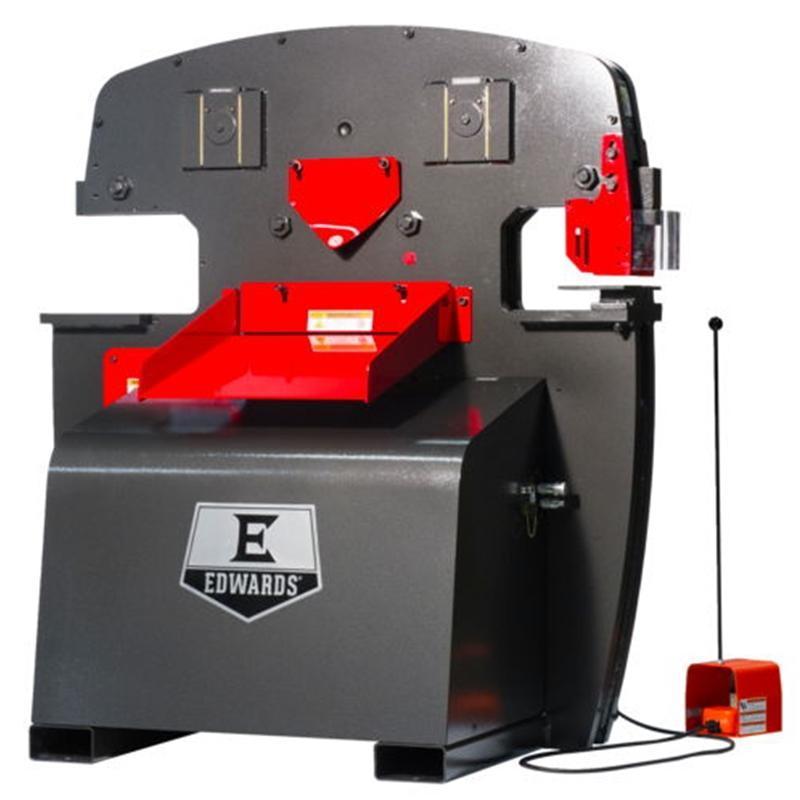

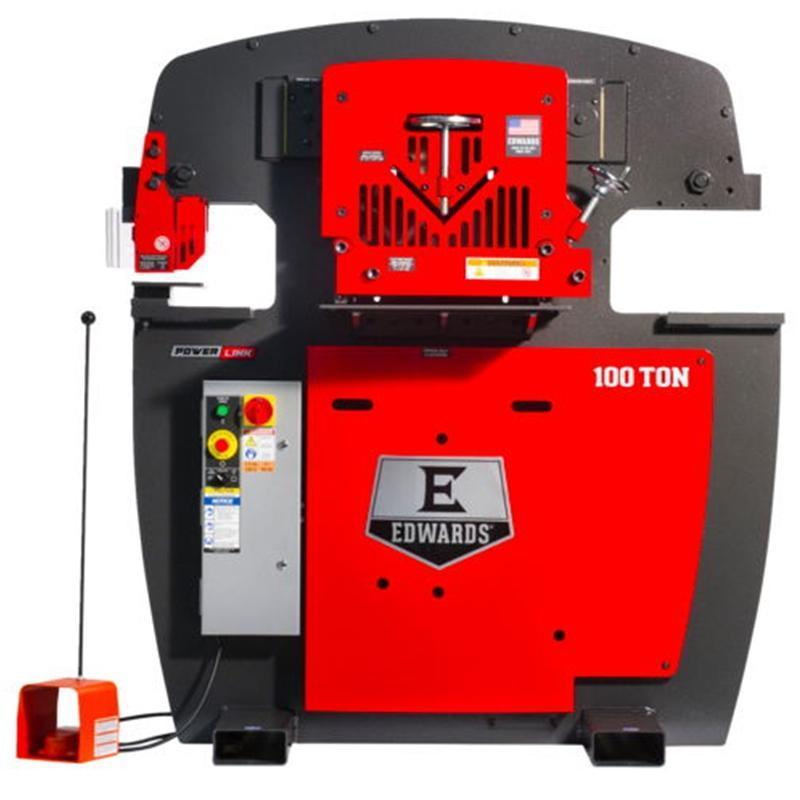

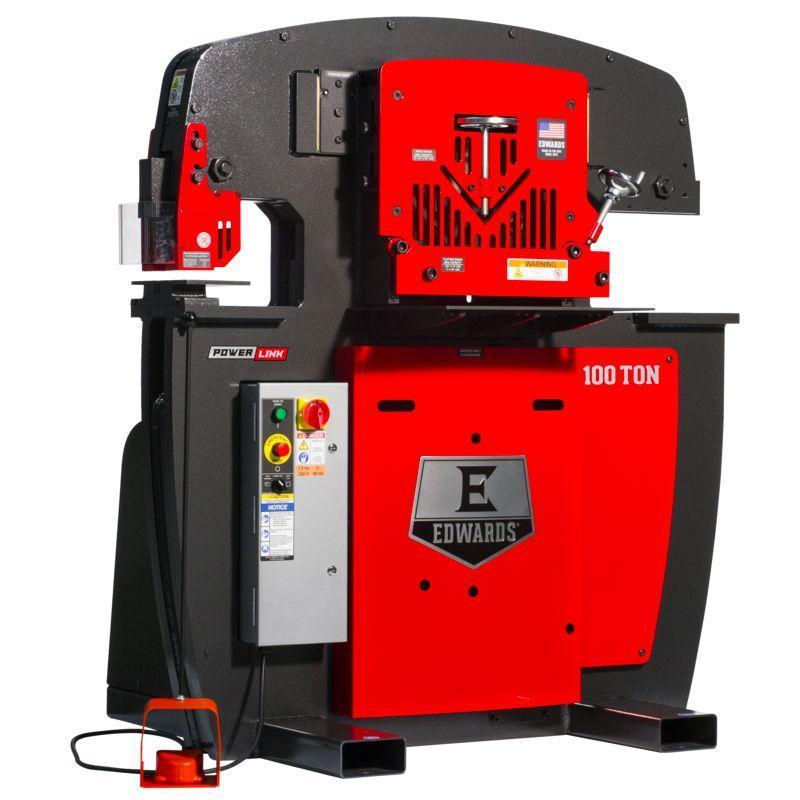

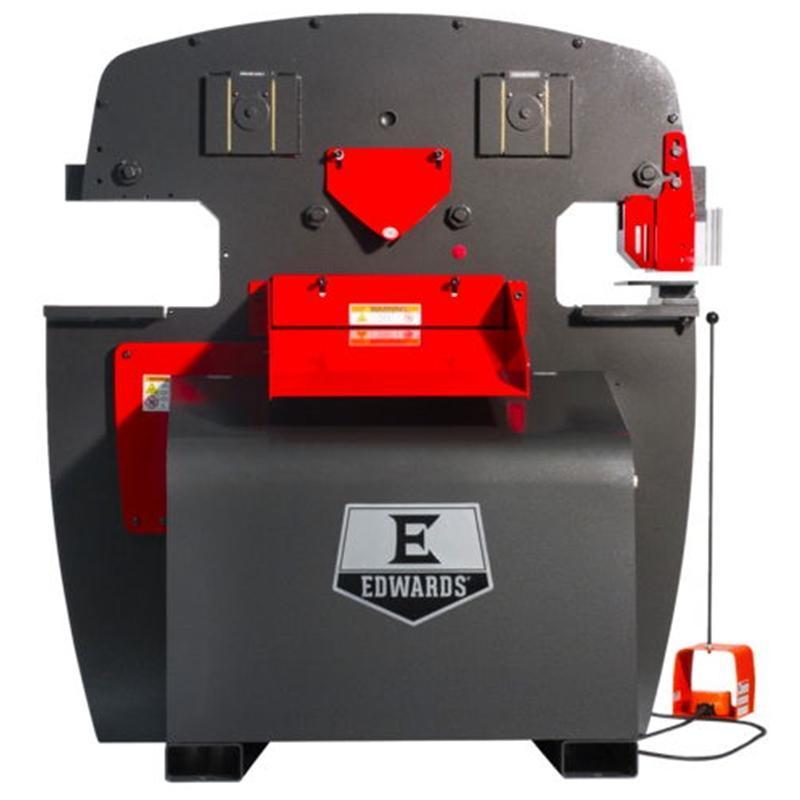

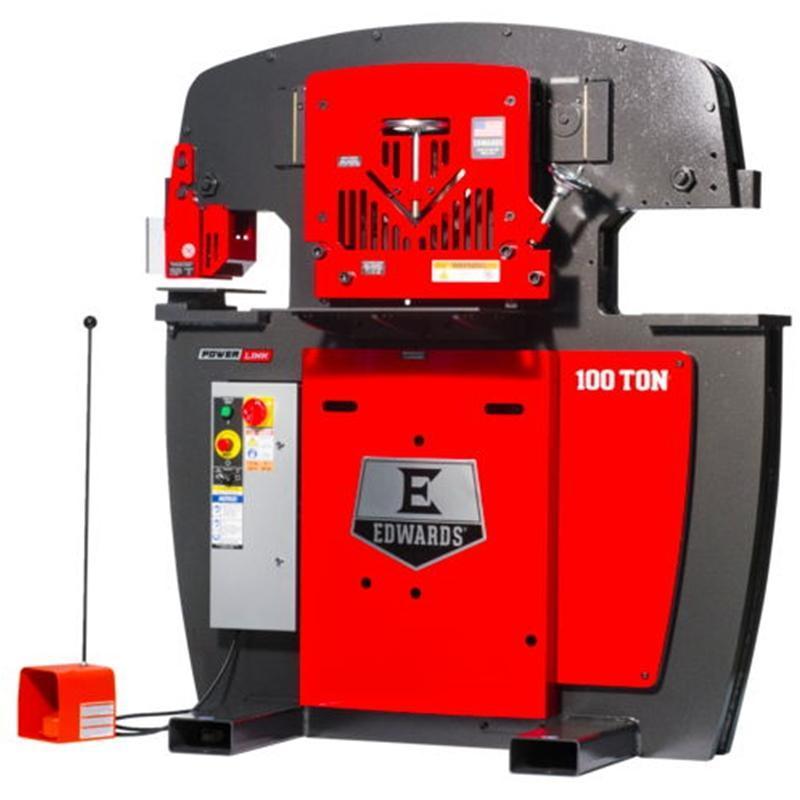

Edwards 100 Ton Ironworker (#4350)

Manufacturer

Category

Punches

Type

IRONWORKERS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



100 Ton Ironworker with Four Available Workstations (Punch, Flat Bar Shear, Angle Shear, 1 Open for Optional Attachments), High Capacity Angle Shear and Electrical Stroke Control

GENERAL SPECIFICATIONS
Punching Tons: 100
Punch Max Capacity: 1-1/16" in 1" Mild Steel
Punch Work Height: 39-1/16"
Punch Throat Depth: 11"
Punch Stroke: 1-13/16"
Flat Bar Shear Capacity: 3/4 X 14" | 1" X 10"
Flat Bar Shear Work Height: 37"
Flat Bar Shear Max Round Capacity: 1-1/4" Dia.
Flat Bar Shear Max Square Capacity: 1-1/4"
Angle Shear Max Capacity: 6" X 6" X 11/2"
Angle Shear Work Height: 43-15/16"
Open Workstation Work Height: 37"
Open Workstation Throat Depth: 14-3/4"
Motor: 5 or 7.5 HP
Amps: 23
Hydraulics: 10-1/2 GPM
Hydraulics: 3,500 PSI
Hydraulic Reservoir: 17 Gal
Machine Dimensions: 45" X 56-1/8" X 61-11/16"
Weight: 4,650

INCLUDES: Four Available Workstations (Punch, Flat Bar Shear, Angle Shear, 1 Open for Optional Attachments), High Capacity Angle Shear and Electrical Stroke Control
