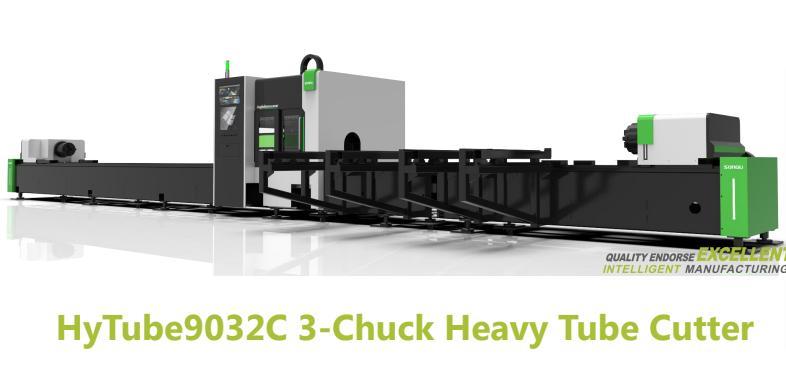

Bescutter Hytube 9032C Heavy Duty Laser (#4338)

Manufacturer

Category

Laser Cutting

Type

LASERS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

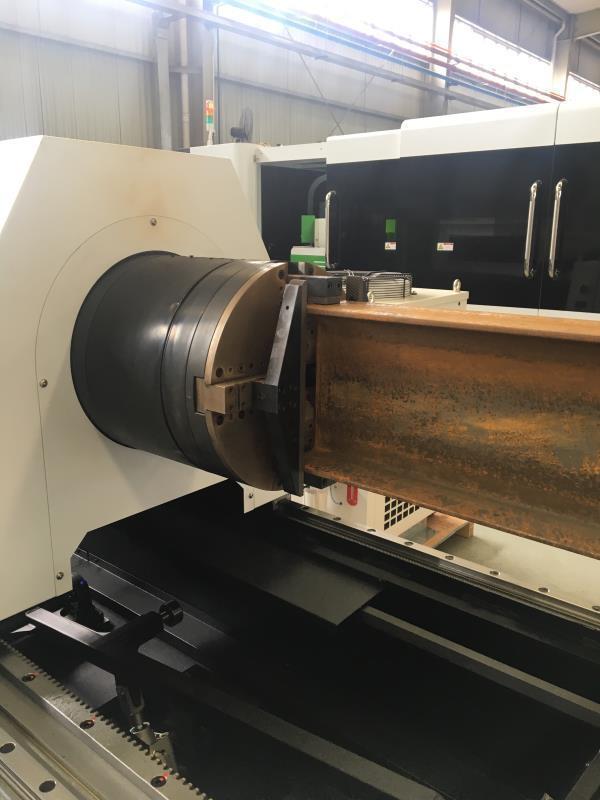

12.6” Diameter X 29.5’ Long Automated Fiber Tube Laser Cutting System with the Fastcut CNC Control System, 2KW, 3KW, 4KW and 6KW IPG Laser Power Source Options, Standard with 3 Chucks Instead provides for additional Length Capability and NO Remnant. Tubes Up To 8.86" and Optional 12.2" Round Tube Diameter and Up to 29.5' Long can easily be processed. Configured with the IPG Laser Resonator and PRECITEC Cutting Head for top of the line performance and serviceability.1102 LBS Loading Ability and Auto Loading/Unloading for complete untended operation.

GENERAL SPECIFICATIONS
Tube Range (length): 29.5' (9000 mm)
Tube Diameter Square Tube Side: 0.78"- 8.86" (20- 225 mm)
Round Tube Dia: 0.59"- 12.2" (15- 310 mm)
X-Axis: 29.5' (9000 mm)
Y-Axis: 8.86" (225 mm)

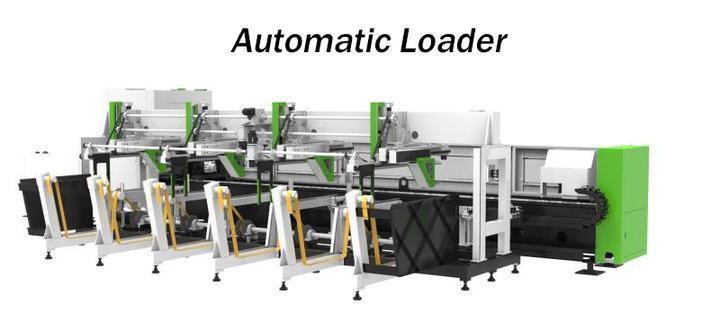

Auto-Loading Tube Length: 157"-354" (4000-9000mm)
Tube Length Detection Unloading Tube Length: 0 - 236" (0-6000mm)
CNC System: FSCUT5000
X, Y-Axis Positioning Accuracy: ±0.05 mm/1000 mm
X, Y-Axis Repositioning Accuracy: ±0.03 mm
A, B-Axis Positioning Accuracy: ±30"
A, B-Axis Repositioning Accuracy: ±10"
X, Y-Axis Max Positioning Speed: 100 m/min
Max Positioning Speed: 60 rpm
Laser Resonator: IPG 2 KW (German Brand)
Optional Laser Wattage: IPG 2 KW/ 3 KW/ 4 KW/ 6 KW
Laser head: PRECITEC (Germany Brand)
Machine Weight: 28,660 lbs
Dimensions (L x W x H) Auto - Loading Not Included: 984"x 169" x 110"
Dimensions (L x W x H) Auto - Loading Included: 984"x 248" x 110"

INCLUDES: Fastcut CNC Control System, 2KW, 3KW, 4KW and 6KW IPG Laser Power
Source Options, Standard with 3 Chucks Instead provides for additional Length Capability and NO Remnant. Tubes Up To 8.86" and Optional 12.2" Round Tube Diameter and Up to 29.5' Long can easily be processed. Configured with the IPG Laser Resonator and PRECITEC Cutting Head for top of the line performance and serviceability. 1102 LBS
Loading Ability and Auto Loading/Unloading for complete untended operation.


***All Price, Location and Specifications Subject to Change without Notice***
