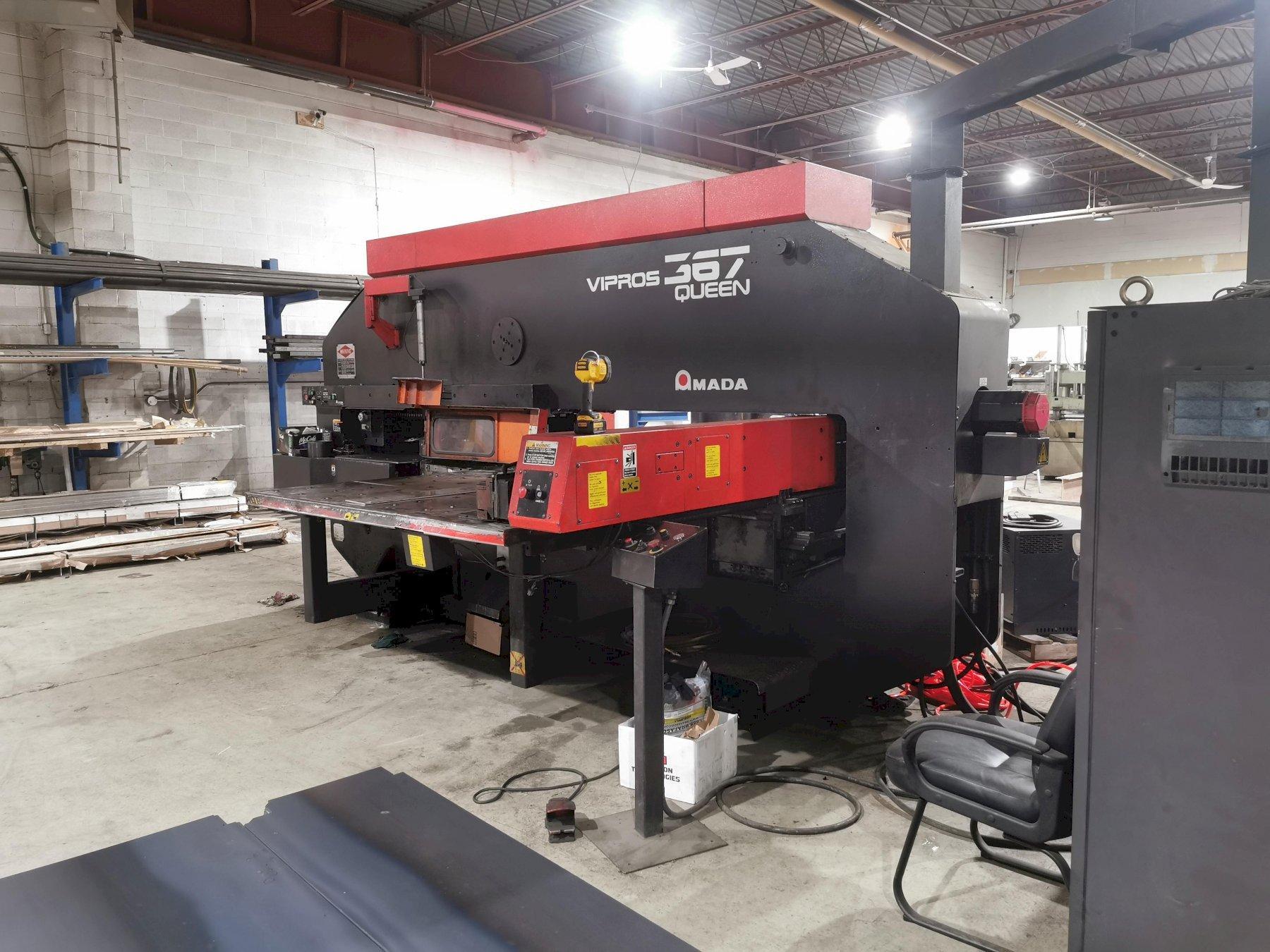

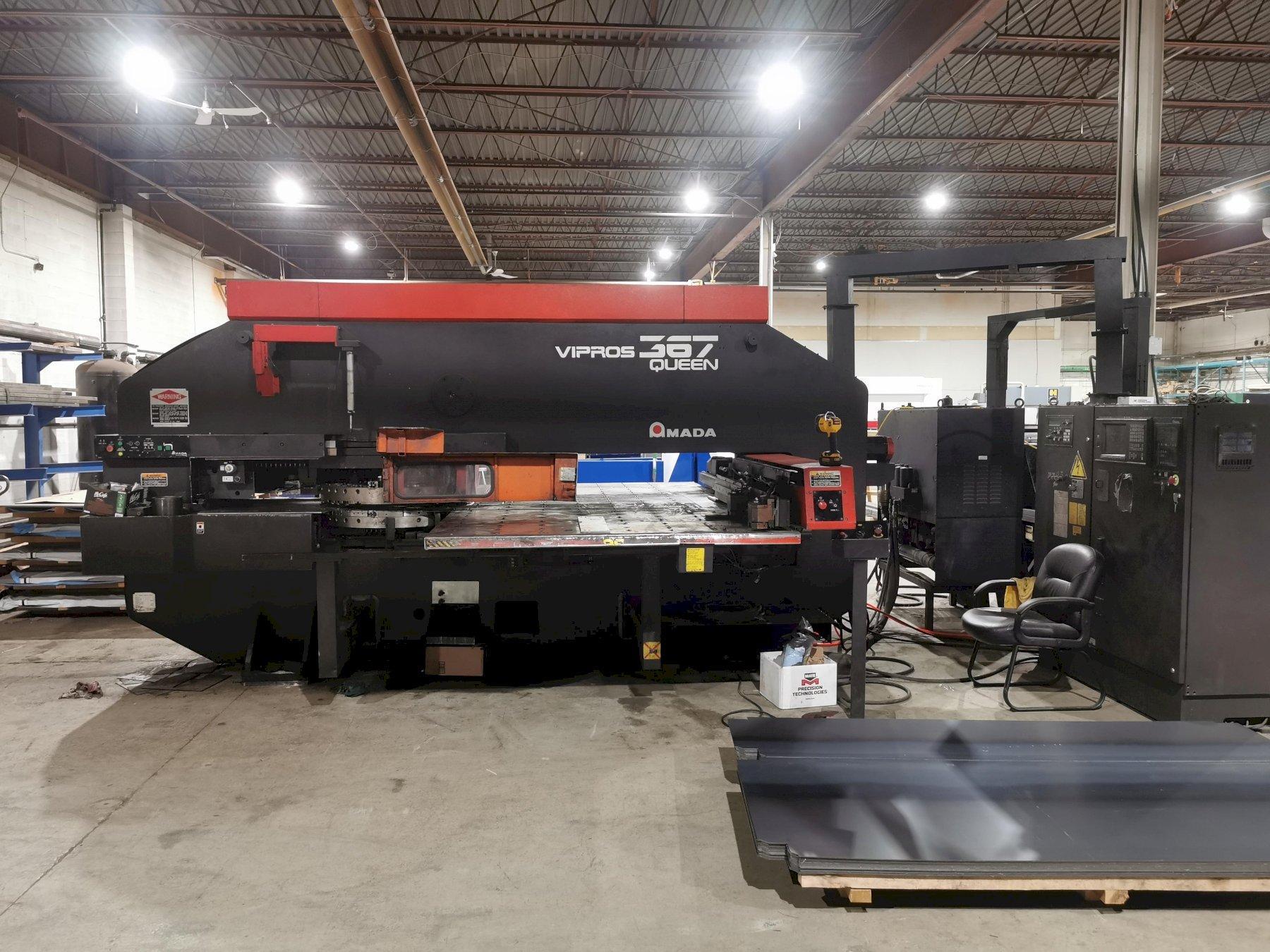

2001 Amada Vipros 3670 Turret Punch (#4247)

Manufacturer

Category

Punches

Type

PUNCHES, TURRET

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



​33 Ton X 60” X 72” CNC Punching System with Amada 18P
Controller, 58 Position Thick Style Turret with (2) Auto­Index Stations, Auto
Repositioning,
GENERAL FEATURES:


  • Capacity: 33 tons

  • Maximum Sheet Size: 60 x 144 (with 1repo)

  • Maximum Axis Travel: 72.0" (X) by 60" (Y)

  • Thickest Material: 1/4 "

  • Max Hole Diameter: 4.5"

  • Number of Turret Stations: 58

  • Number of AI (Auto Index) Stations: 2

  • Turret RPM: 30

  • AI Rotation Speed: 60RPM

  • Strokes Per Minute: 350

  • Stroke: 1.26”

  • Max. Table Speed ( X / Y / Combined ): 1,968 IPM / 1,968 IPM/

  • 2,783 IPM

  • Hits Per Min. 1" centers: 220

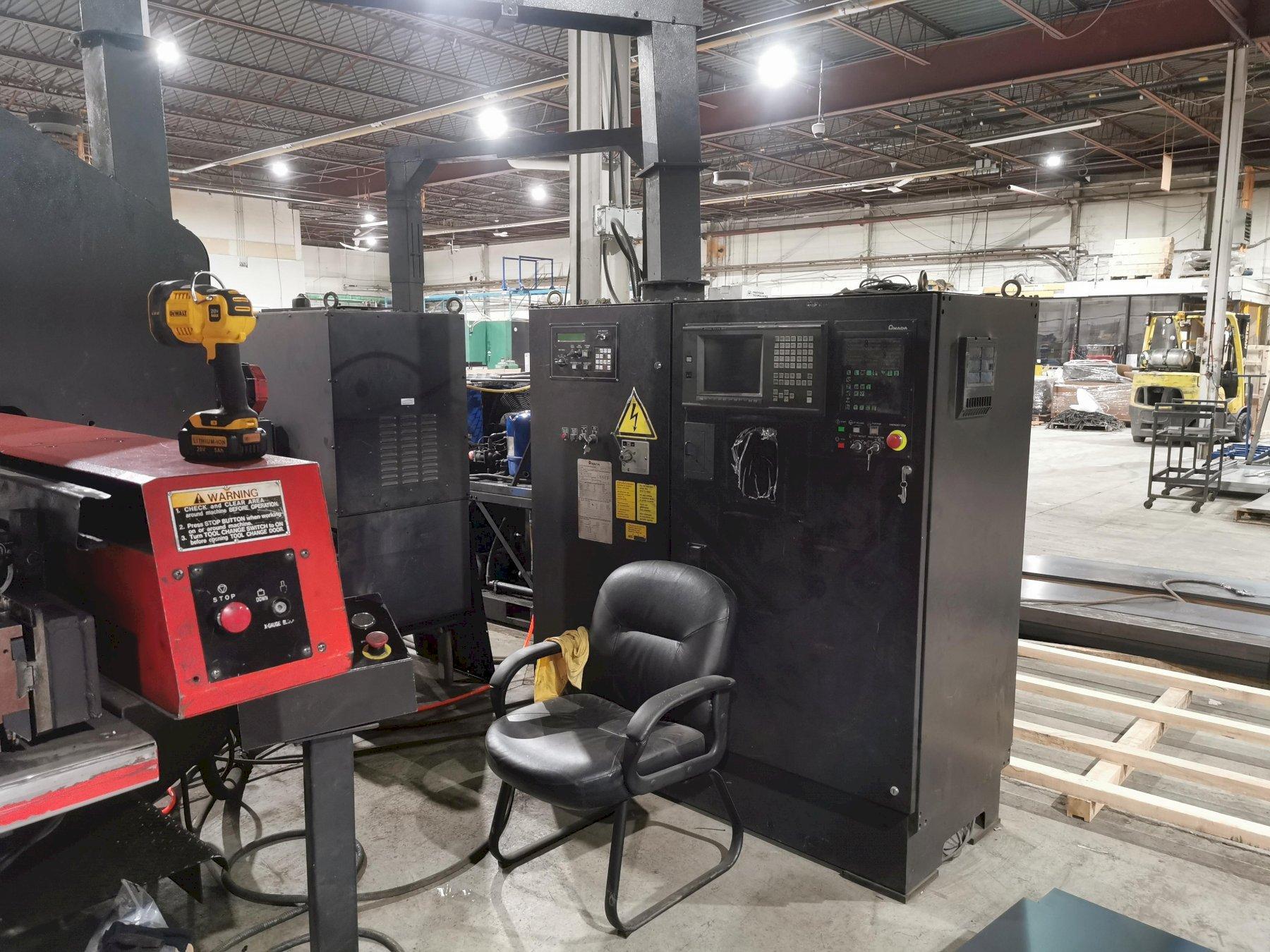

  • Control Model: 18P

  • Control function: X,Y,T & C

  • Input method: MDI, DNC, Paper Tape

  • Minimum command unit: 0.001" (X,Y) .01 degree (C)

  • Minimum travel unit: 0.001" (X,Y) .01 degree (C)

  • Operating modes: Automatic, MDI and Manual

  • Drive motors: AC Servo

  • Power Requirements: 230/460/60/3 phase

  • Machine Weight: 32,000 lbs

  • Approximate dimensions LxWxH: 288" x 199" x 94


INCLUDES:​ 60” X 72” CNC Punching System with Amada 18P
Controller, 58 Position Thick Style Turret with (2) Auto­Index Stations, Auto
Repositioning.

      ***We strongly encourage personal inspection of all pieces of equipment***
     ***All Price, Location and Specifications Subject to Change without Notice***
