2011 Accurshear Model 662520 Hydraulic Power Squaring Shear (#4362)

Manufacturer

Category

Miscellaneous Machines

Type

MISCELLANEOUS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

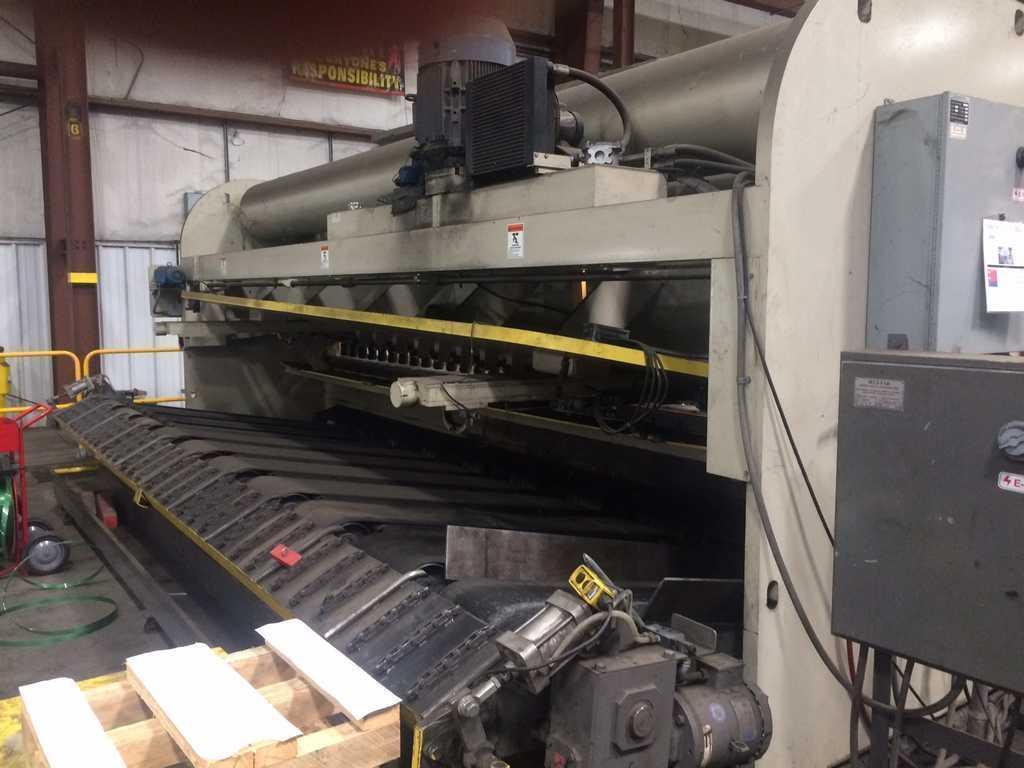

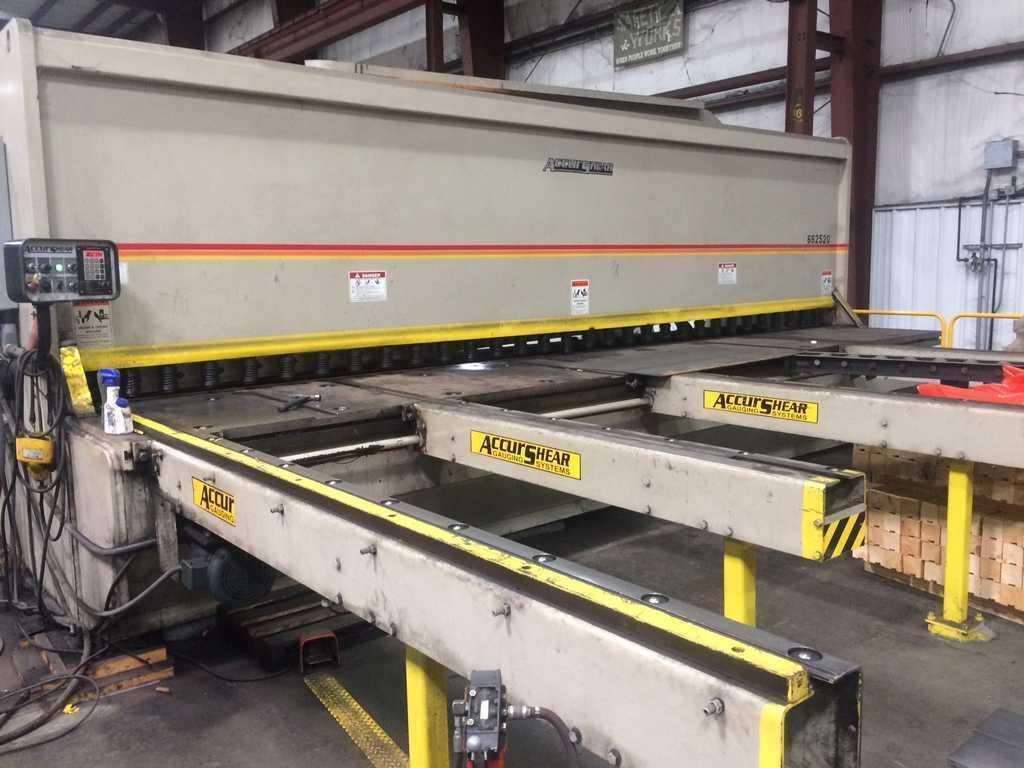

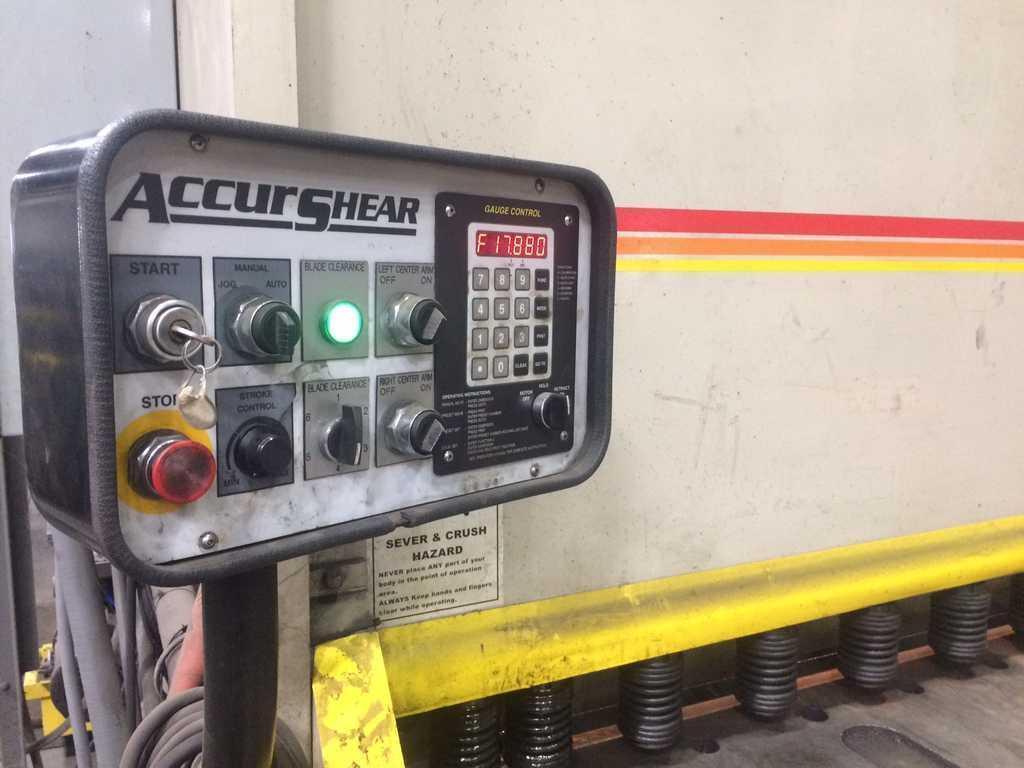

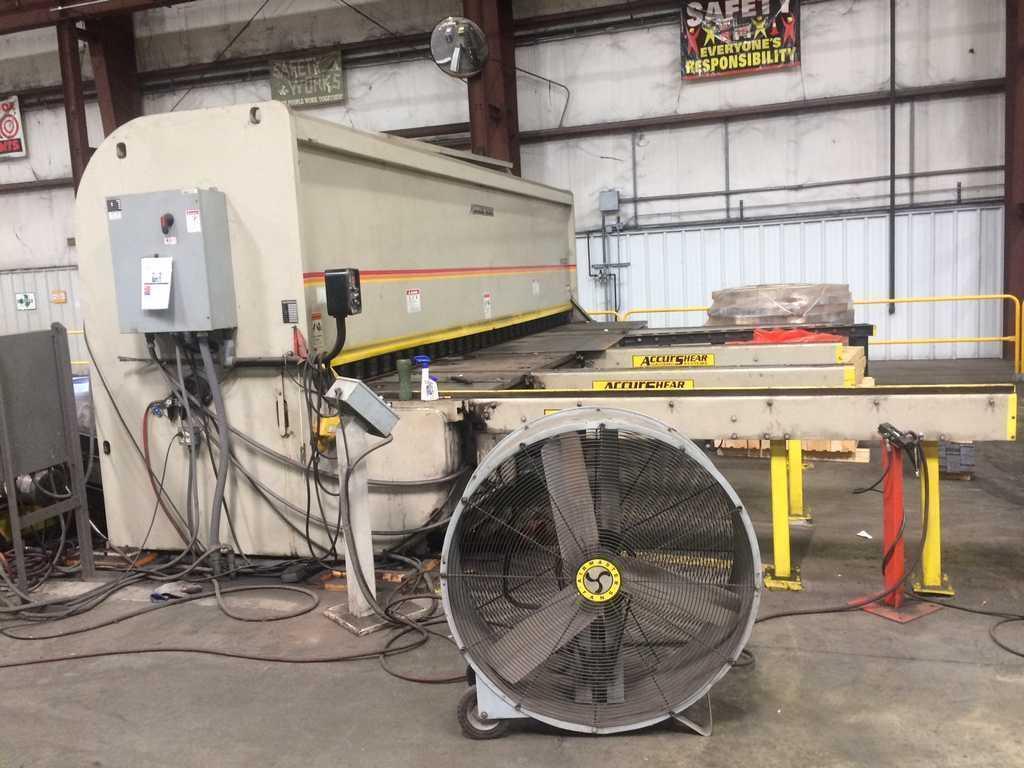

5/8" X 20' Capacity Hydraulic Power Squaring Shear with Programmable Accurshear SC2 Controller with 48" Programmable Backgauge, Accurshear CNC front gauging with 10' Squaring arm and Dual 6' Front Supports, Material Conveyor/Stacker, High Speed Hydraulic System, Light Curtain, Shadow Light, Hand Slots in Table, T-Slot in Table Front, Ball Transfers in Table, Oil Cooler and Power Quick Blade Gap Adjustment.

GENERAL SPECIFICATIONS
Shearing Capacity: 5/8" ().625")
Shearing Length: 20' (244")
Blade/Knife Size: 1.125" X 5" X 244"
Number of Sides Per Blade: 4
Blade Clearance: Powered
Number of Hold downs: 30
Hold Down Tonnage: 60
Cycles Per MInute (High Speed Option): Full Stroke: 9, Short Stroke: 27
Backgauge Travel: 48:
Motor HP: 50
Floor Mounting: Flush Floor Mount (No Pit Required)
Shipping Dimensions (Base Machine Only): 274" Wide X 111" Deep X 110" Tall
Approximate Weight (Base Machines Only): 90,000 LBS

INCLUDES: Programmable Accurshear SC2 Controller with 48" Programmable Backgauge, Accurshear CNC front gauging with 10' Squaring arm and Dual 6' Front Supports, Material Conveyor/Stacker, High Speed Hydraulic System, Light Curtain, Shadow Light, Hand Slots in Table, T-Slot in Table Front, Ball Transfers in Table, Oil Cooler and Power Quick Blade Gap Adjustment


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
