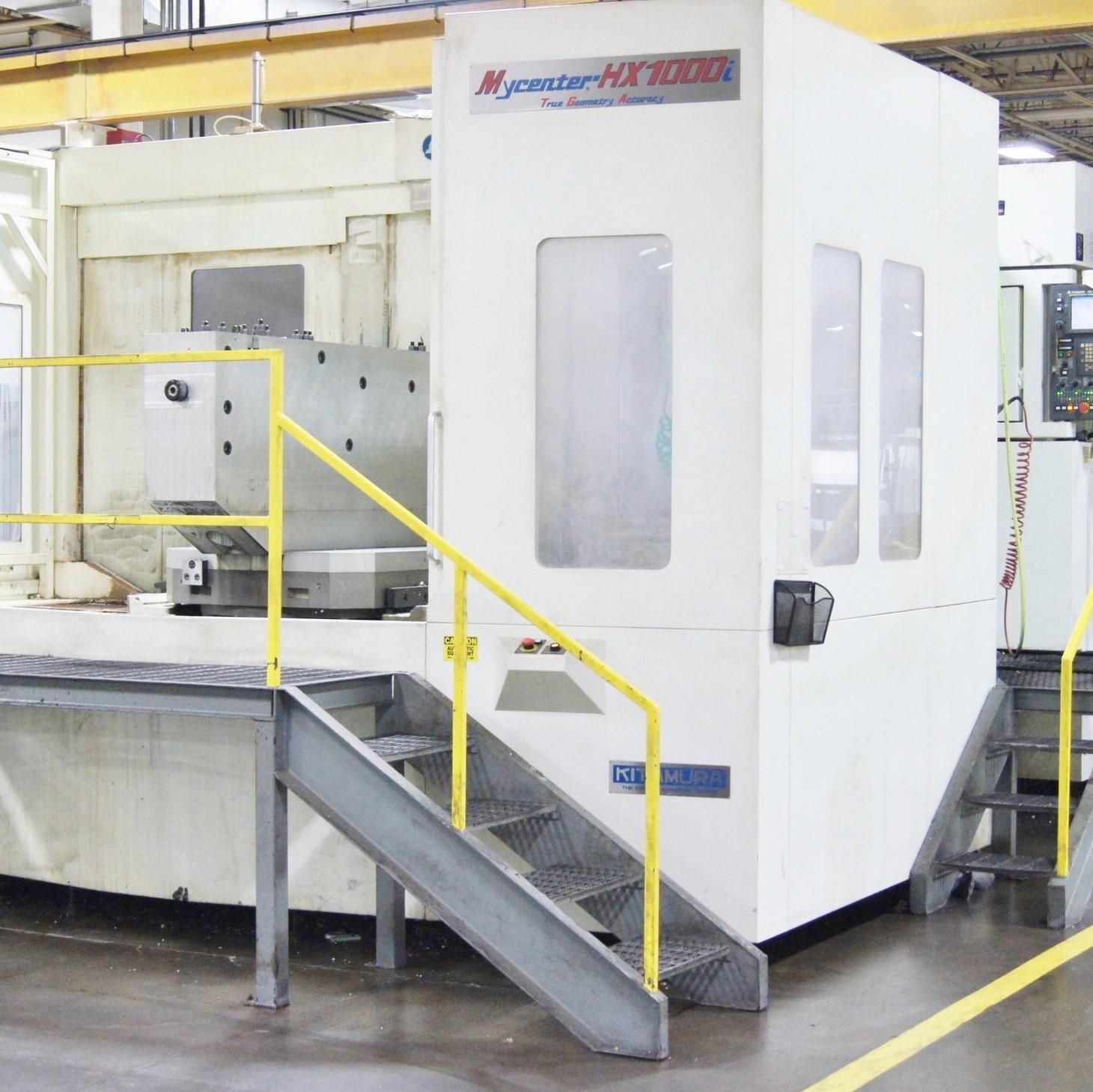

2010 Kitamura Mycenter HX-1000 Horizontal Machining Center (#4237)

Manufacturer

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

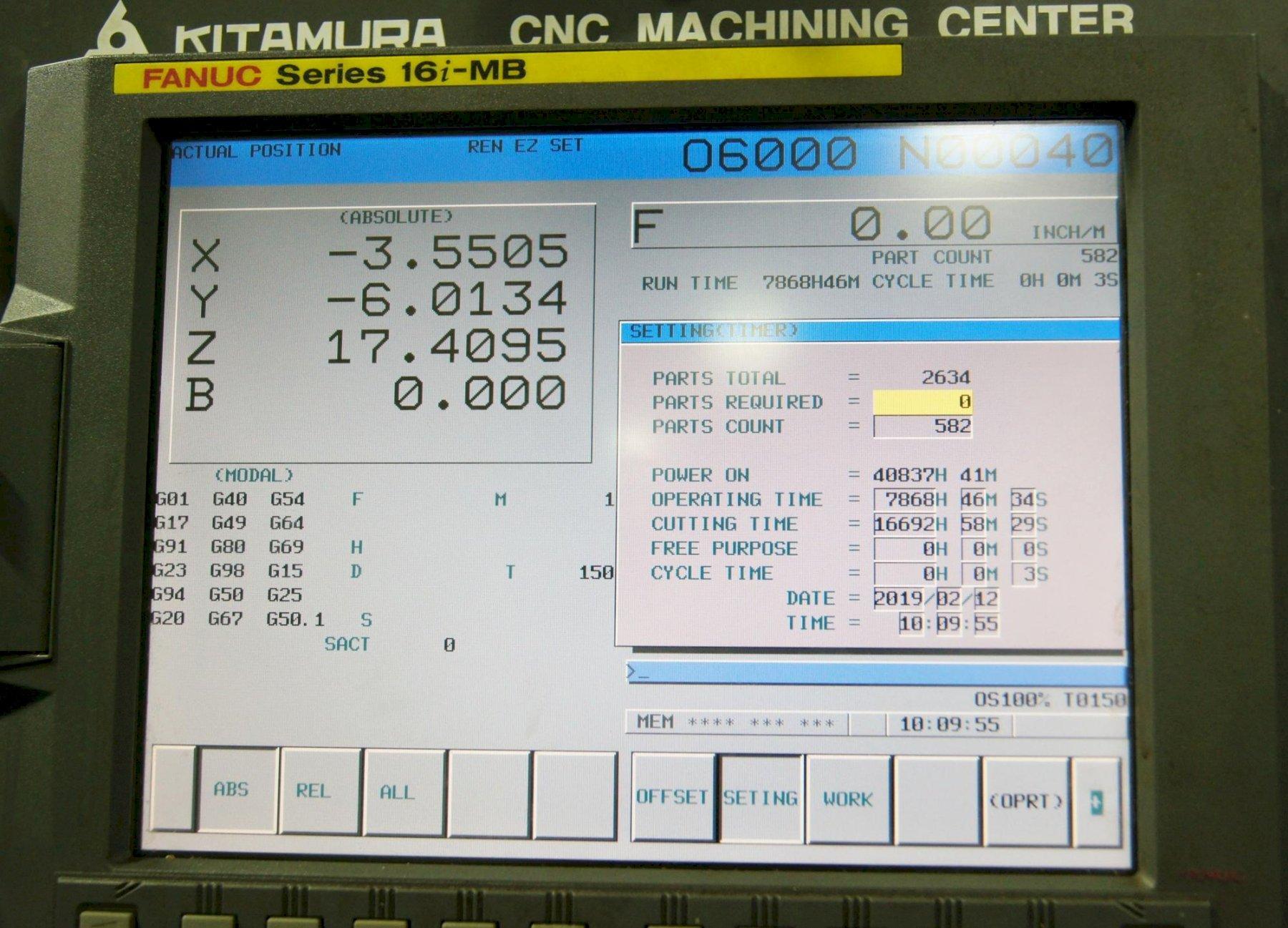

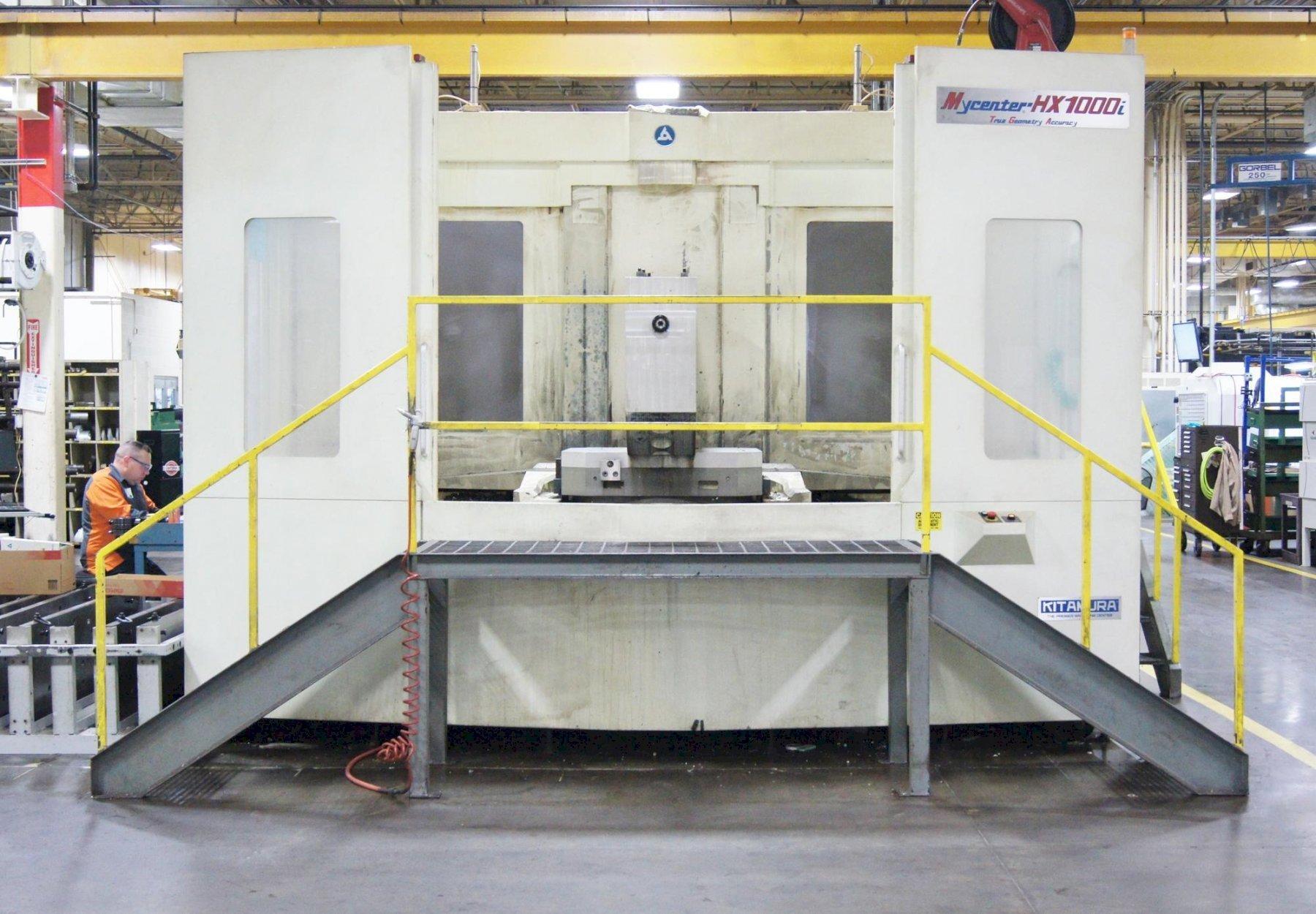

80.31" X 51.97" X 53.94" Travels With Full 4th Axis Pallet Indexing and Pallet Size 39.37" X 39.37". 8,000 RPM, 40 HP and 150 Position ATC for BT 50 Toolholders. Including: Fanuc 16i-MB Control, 1,000 PSI Through Spindle Coolant, Full 4th Axis Contouring, Renishaw Probing System, Chip Conveyor, 4-Step Gearbox, Box Ways, Linear Scale Feedback on All Axes, Twin Ballscrews & Twin Servo Motors. About 70 BT-50 Tool Holders Included. With (2) Heavy Duty fixed Custom Entry Platforms with Handrails.


GENERAL FEATURES:


  • Pallet Width:  39.37"

  • Pallet Length:  39.37"

  • Pallet Indexing:  Full 4th

  • Number Of Pallets:  2

  • Max Workpiece Weight:  6,600 LB

  • X-axis Travel:  80.31"

  • Y-axis Travel:  51.97"

  • Z-axis Travel:  53.94"

  • Spindle Speed:  8,000 RPM

  • Spindle Motor:  40 HP

  • Spindle Taper:  BT 50

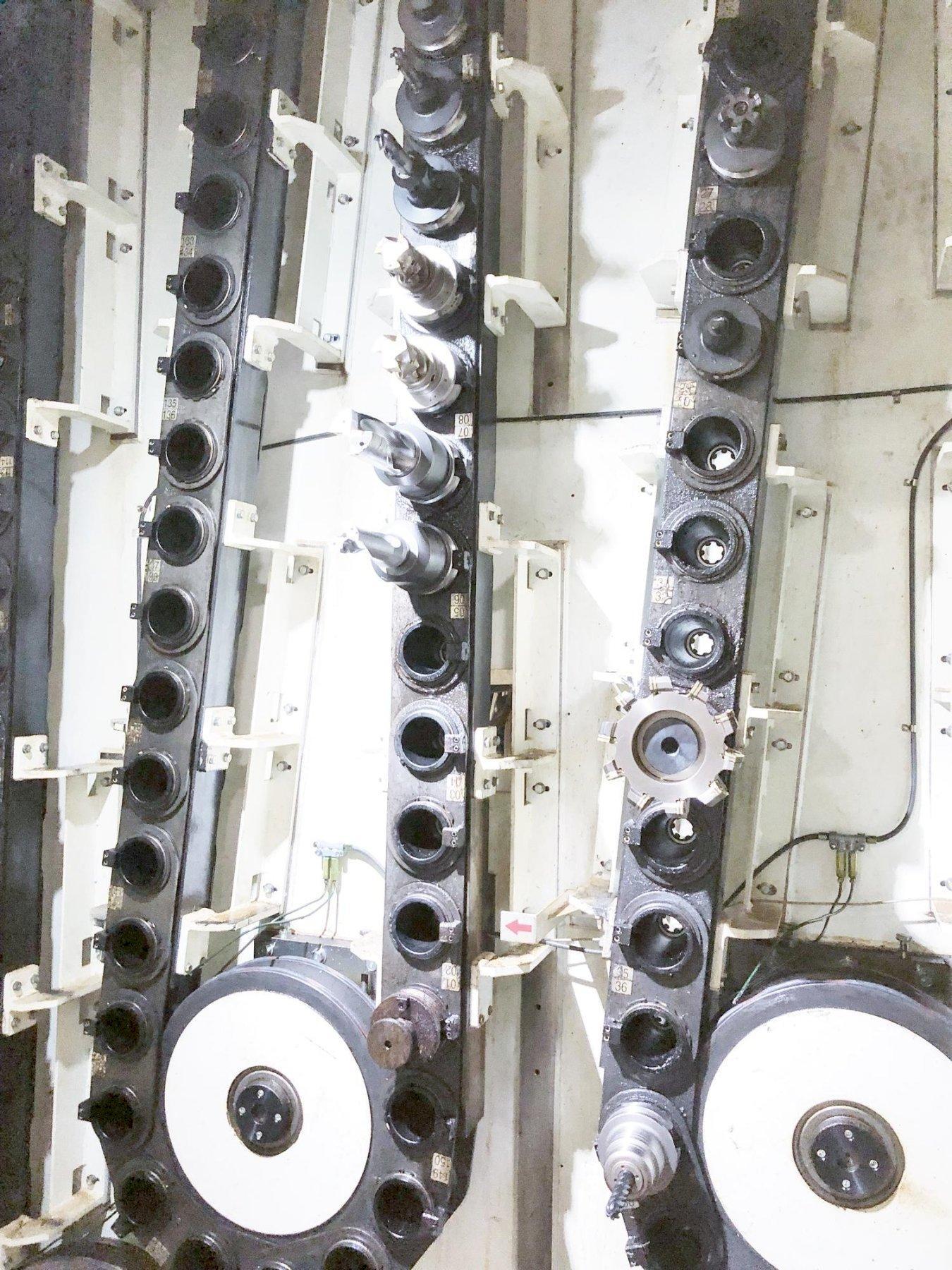

  • Tool Positions (ATC):  150

  • Rapid Traverse Rate:  1,417 In/Min.

  • Cutting Feed Rate:  1,417 In/Min.

  • Dimensions:  20' X 35




INCLUDES:

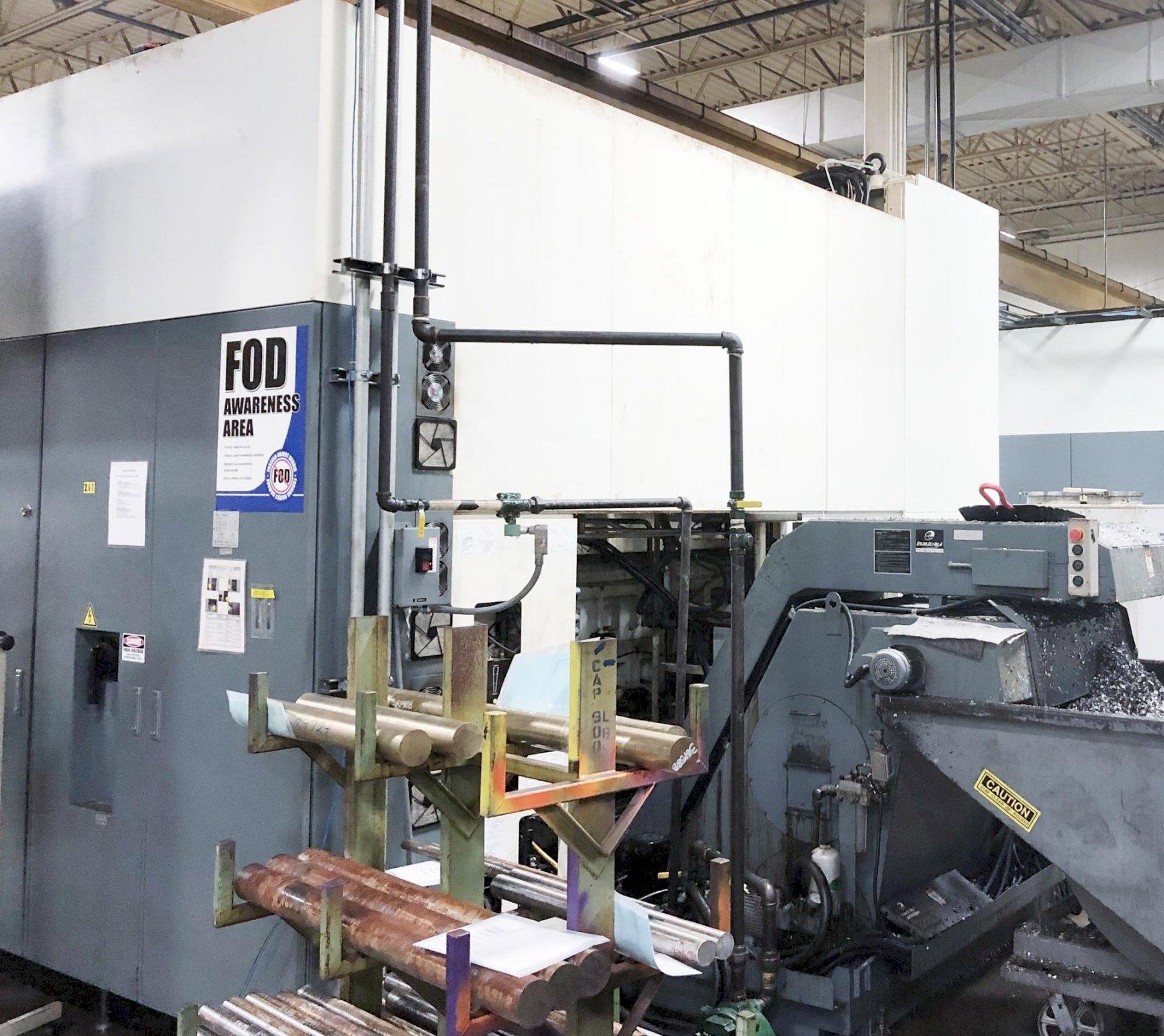

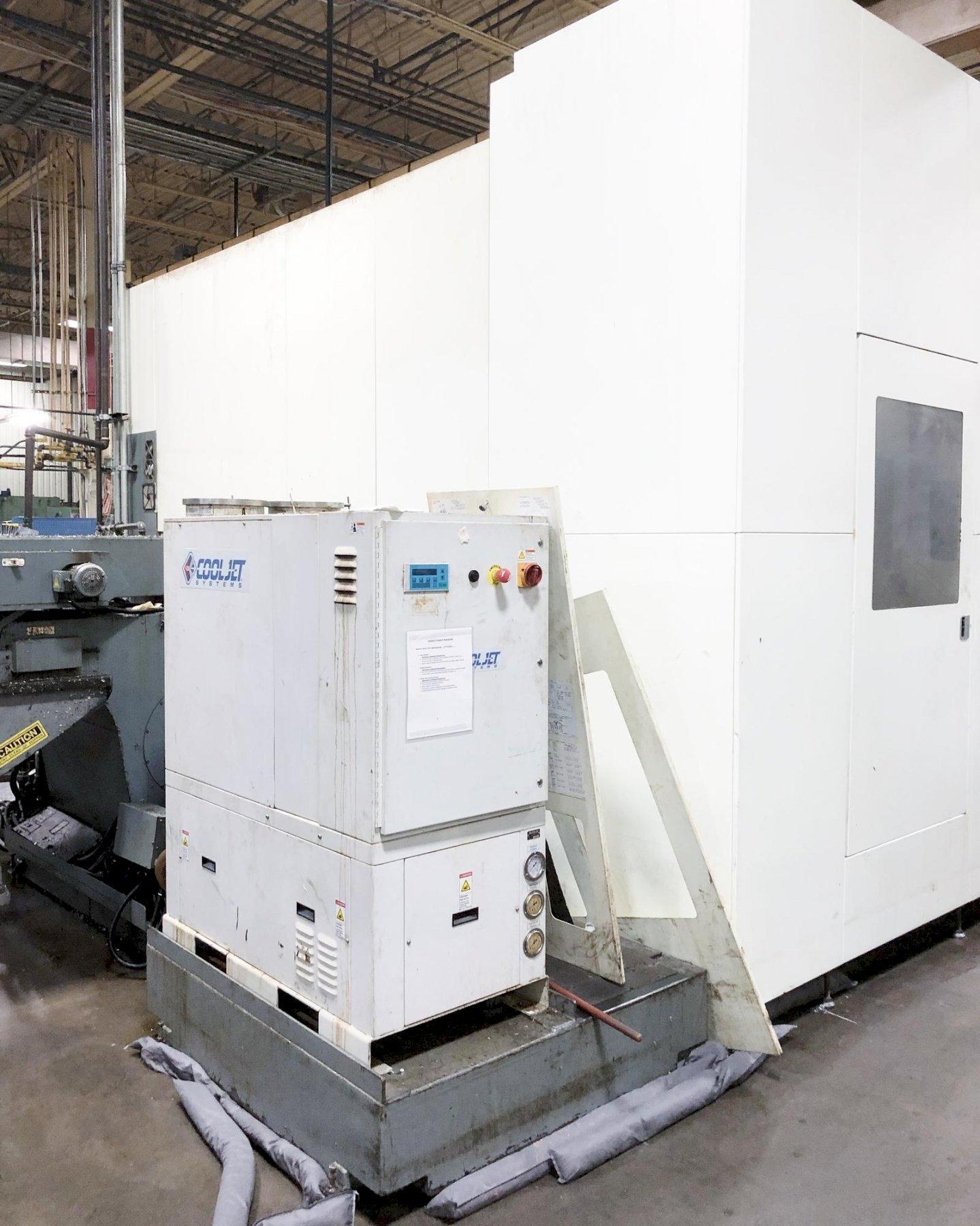

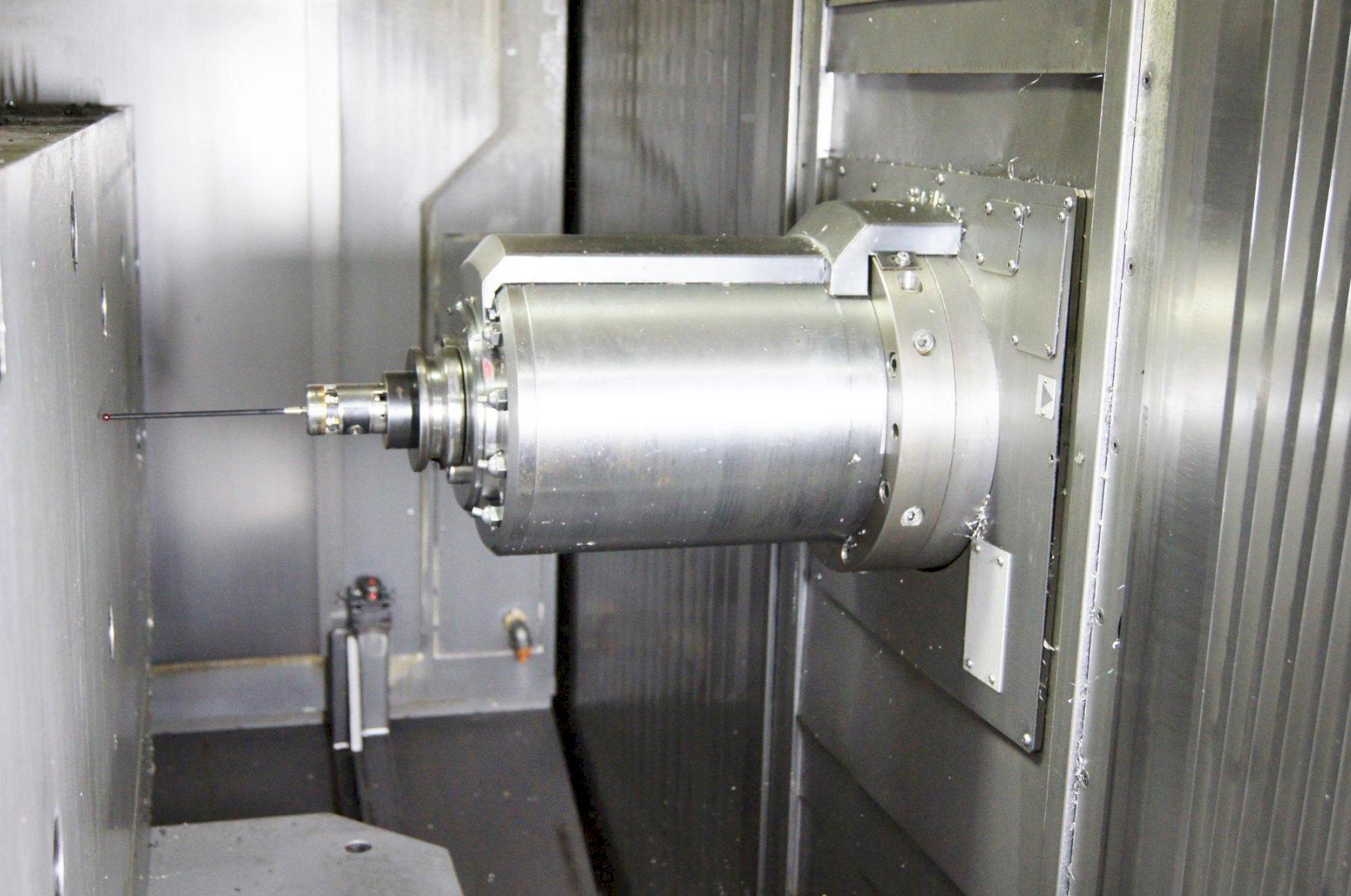

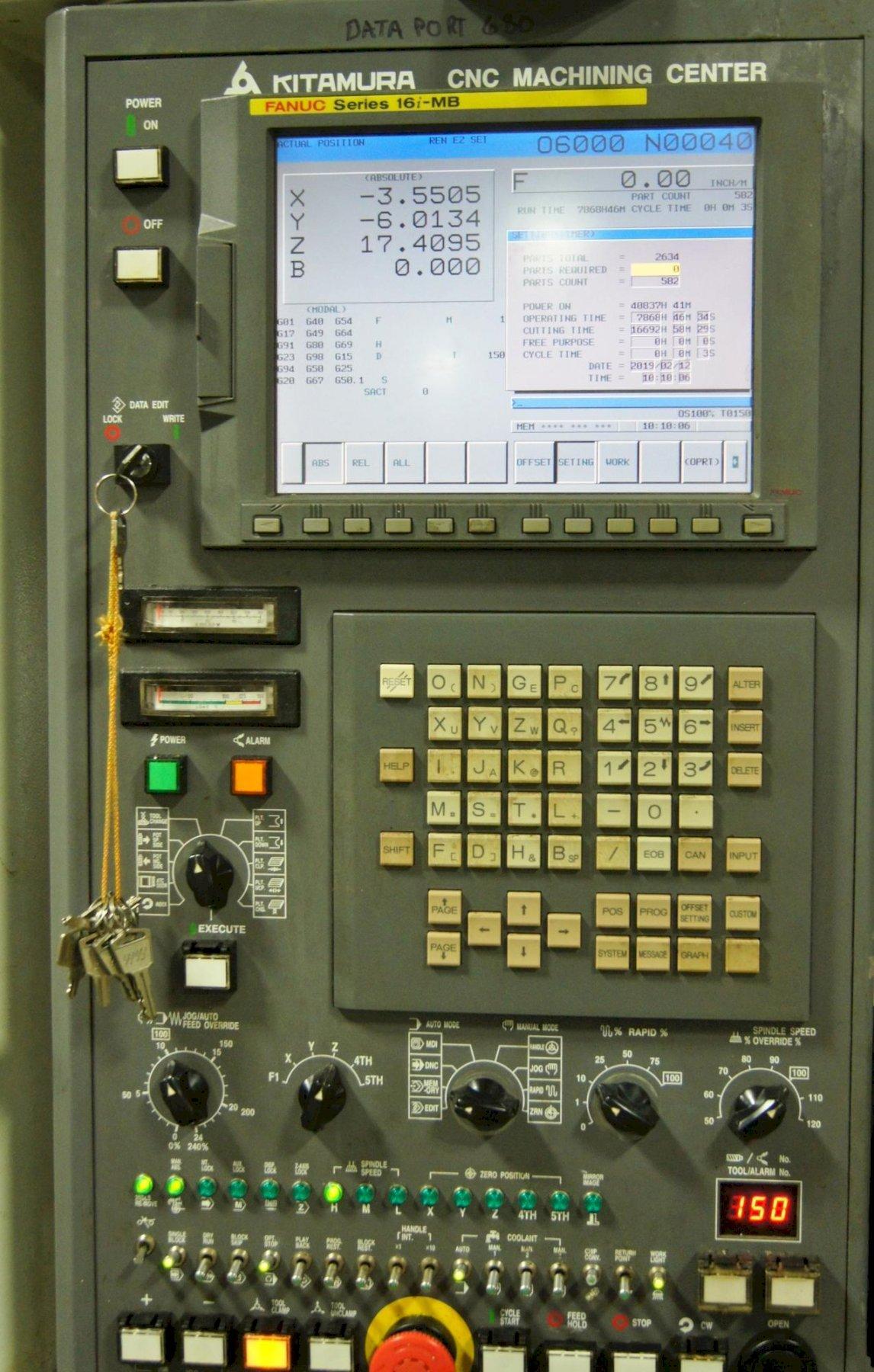

Fanuc 16i-mb Control, 897 Foot-pounds Of Torque, High-pressure Through-spindle Coolant (1,000 Psi), Cooljet High-pressure Coolant System, Full 4th Axis Pallet Contouring, Renishaw Probing System, 150 Tool Positions, Chip Conveyor, Gearbox (4-step, Gear Driven), Box Way, Linear Scale Feedback (All Axes), Twin Ball Screws & Twin Servo Motors, Ai Nano High Precision Contour Control (500 Block Look Ahead), Tool Retract & Recover, Program Restart, Approx (70) Bt50 Tool Holders, (2) Heavy Duty Fixed Custom Entry Platforms With Handrails.

  ***We strongly encourage personal inspection of all pieces of used equipment***
     ***All Price, Location and Specifications Subject to Change without Notice***
