Akyapak ASM-S 190-20/6 Plate Roll (#3463)

Manufacturer

Category

Rolls

Type

ROLLS, PINCH

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

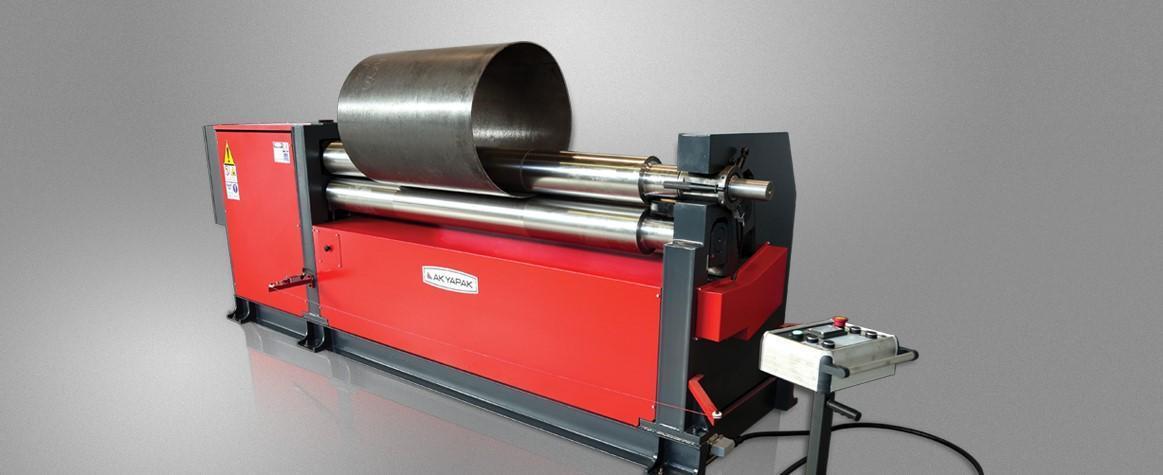

6’ X 9/32" Plate Roll with Separate Moving Control Panel, Induction Hardened Rolls, Motorized Back Roll, Central Rollers Powered by Electric Motor & Gear Box.

GENERAL SPECIFICATIONS
Working Length: 6’
Pre-Bending Thickness: ¼”
Max Thickness: 9/32”
Top Roll Diameter: 7.5”
Min. Bending Diameter: 11.2”
Motor Power: 5.4 HP
Bending Speed: 16.4’ Per Min
Length: 12.5’
Height: 4.4’
Width: 4.3’
Weight: 7,937 LBS

INCLUDES: Separate Moving Control Panel, Induction Hardened Rolls, Motorized Back Roll, Central Rollers Powered by Electric Motor & Gear Box.


***All Price, Location and Specifications Subject to Change without Notice***
