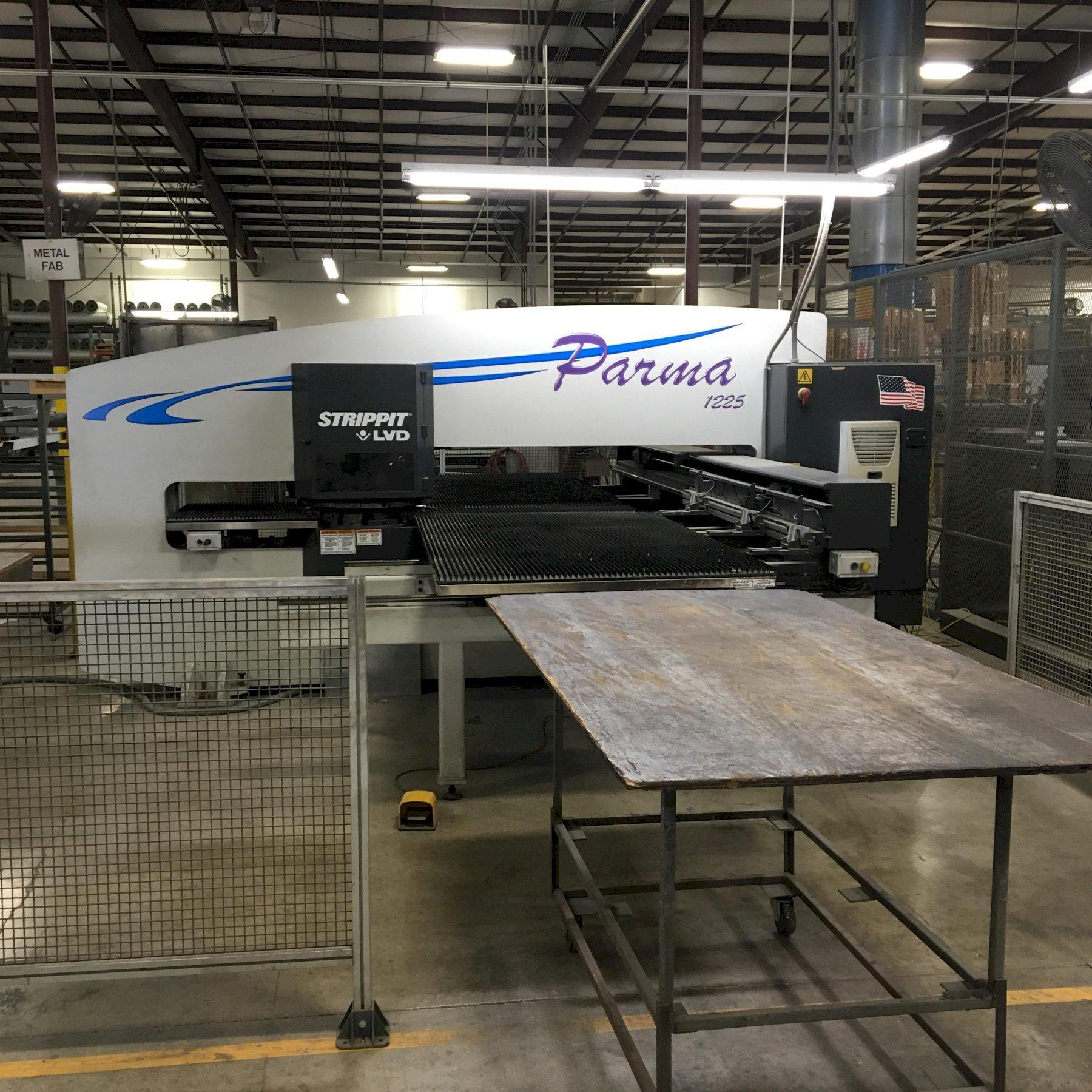

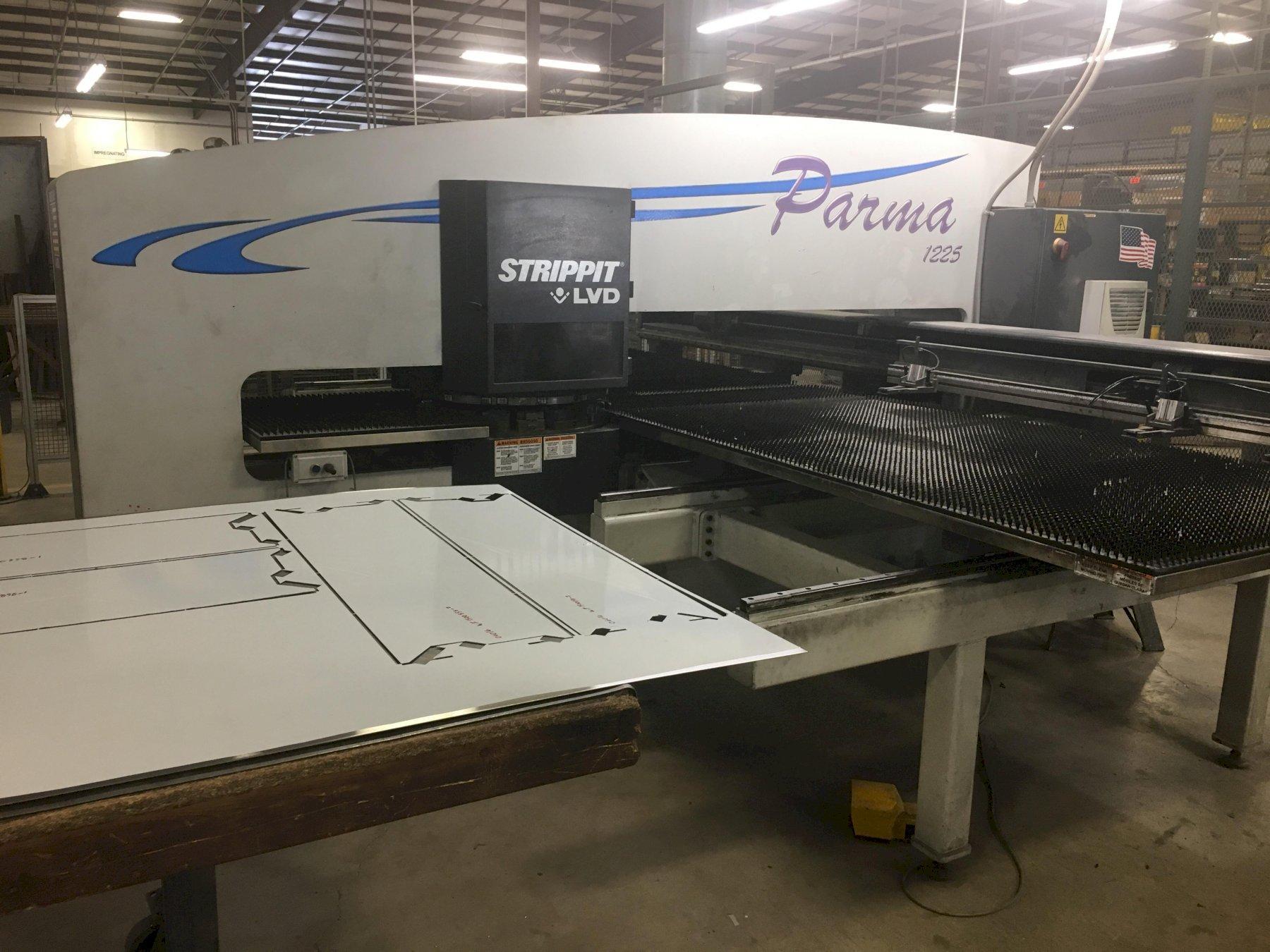

2006 Strippit P1225 CNC Turret Punching System (#4274)

Manufacturer

Category

Punches

Type

PUNCHES, TURRET

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



49.21” X 98.4” X 20 Ton CNC Turret Punching System with Fanuc Series Oi-PC CNC Controller, 21 Station Thick Style Turret with 3 AI (Auto-Index) Stations, Brush Type Table and All Tooling Included.

GENERAL SPECIFICATIONS
Max. Punching Capacity: 20 Metric Ton
Max. Material Thickness: 0.250” (6.35 mm)
Nominal Workpiece Size: (Y,X) 49.21”x 98.4” (1250 x 2500 mm)

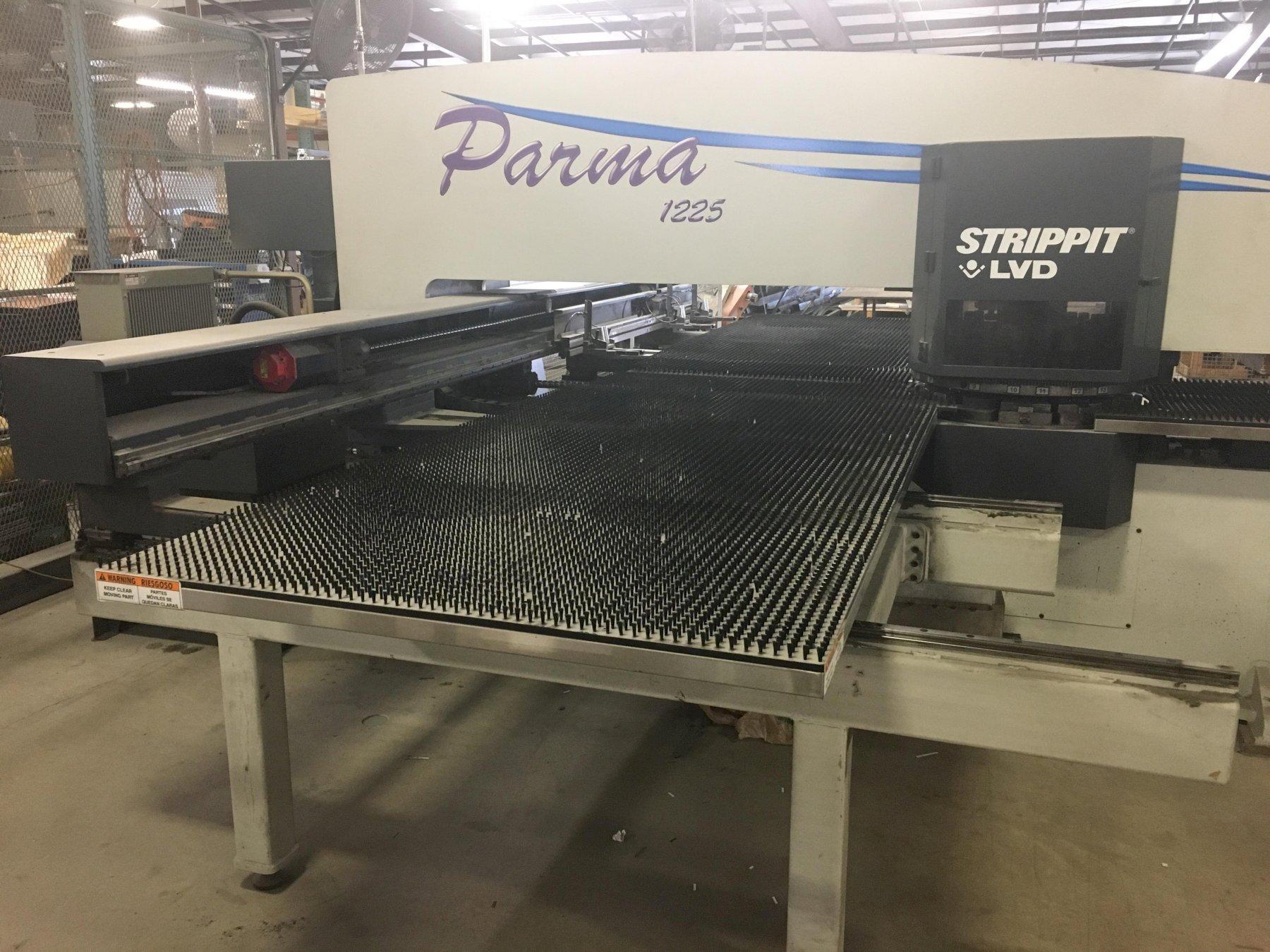

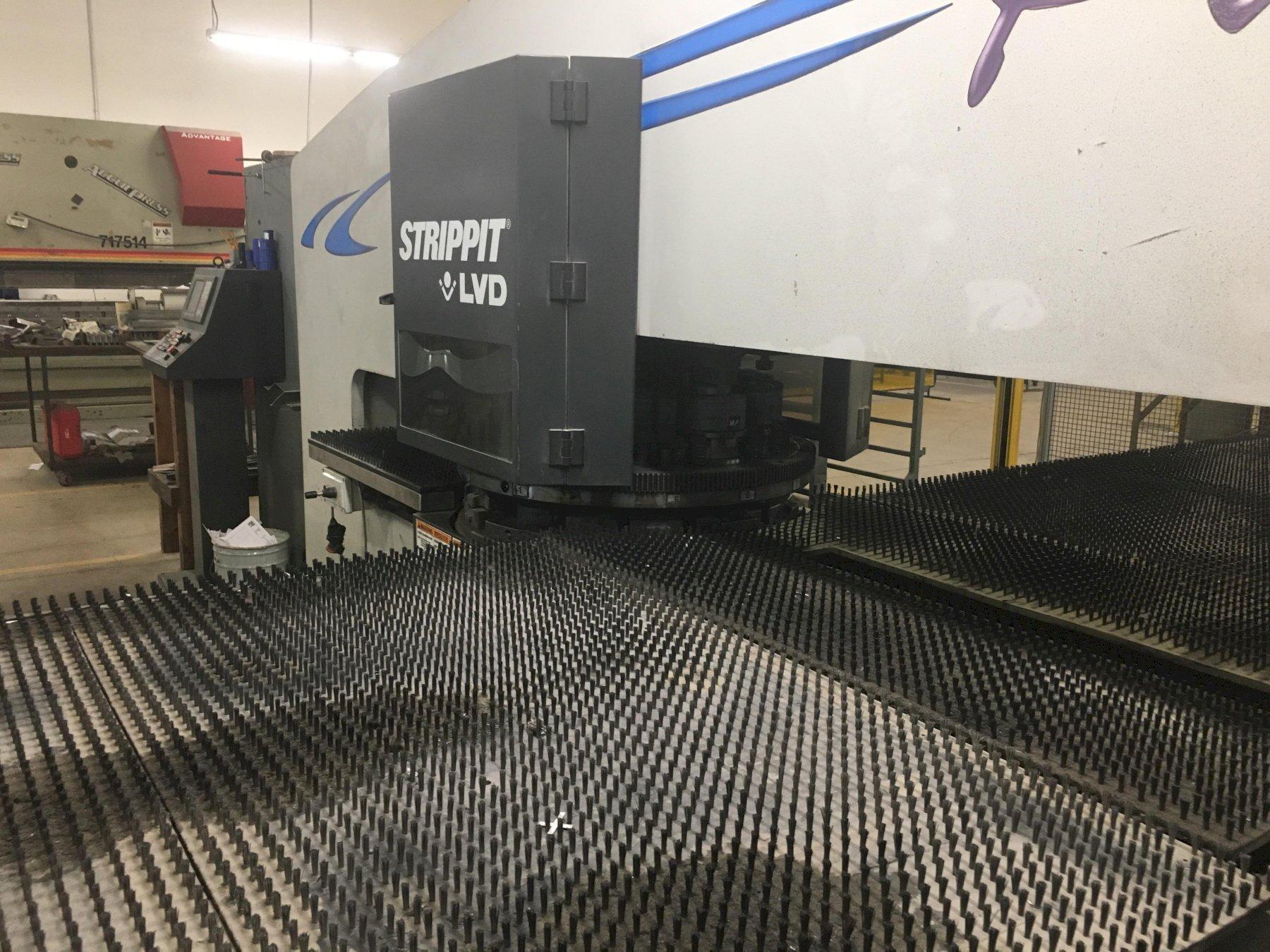

Table Type: Brush table
Table Capacity: 160 lbs. (73 kg)
Clamping Style: Floating Clamps
Number of Clamps: 2 Manual Lock
Maximum Clamp Spread: 74.80” (1900 mm)
Feed Clearance Under Ram: 0.984” (25 mm)

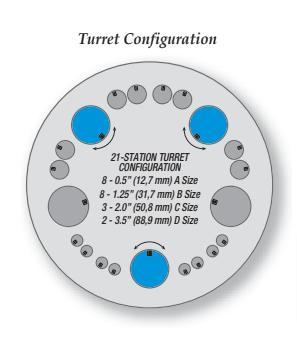

Turret Configuration 21 stations
Turret Layout:
8 ‘A’ - 0.5” (12,7 mm)
8 ‘B’ - 1.25” (31,7 mm)
3 ‘C’ - 2.0” (50,8 mm)
2 ‘D’ - 3.5” (88,9 mm)
*Auto-Index Stations: 3 ‘C’ - 2.0” (50,8 mm)
Axis Traverse Speed: Up to 3385 IPM
combined Axis Travis Speed: (86 m/min.) combined
Maximum Hit Rate at 2 mm: Up to 650 HPM

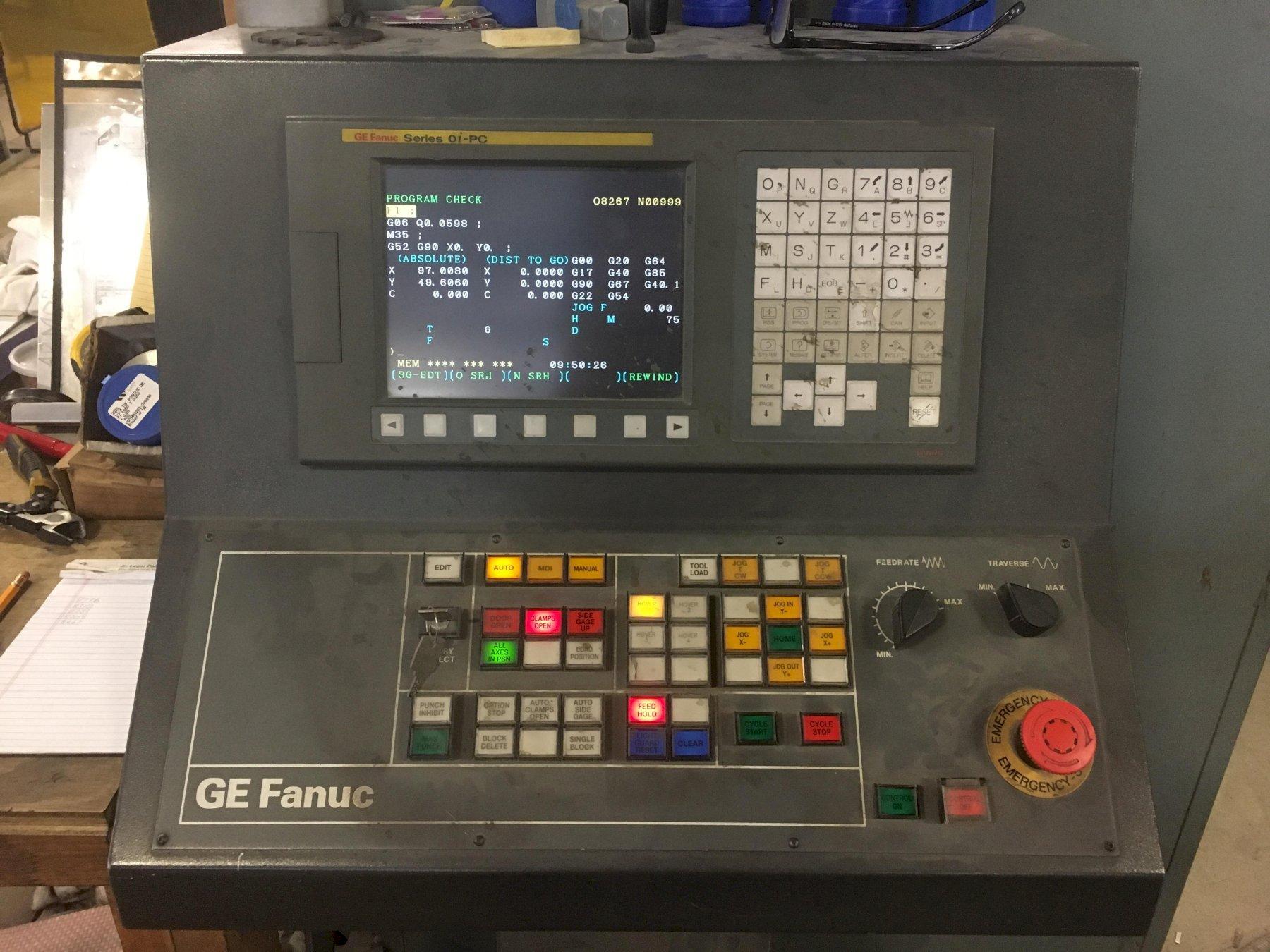

INCLUDES: Fanuc Series Oi-PC CNC Controller, 21 Station Thick Style Turret with 3 AI (Auto-Index) Stations, Replaceable Punch Bore Liners, Brush Type Table and All tooling included.



***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
