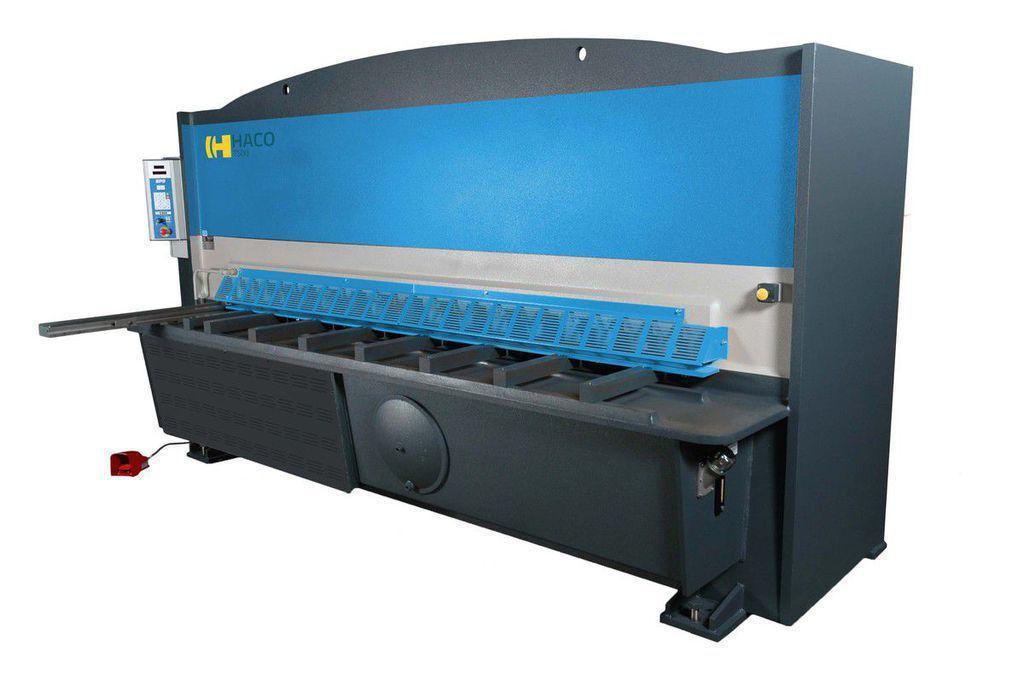

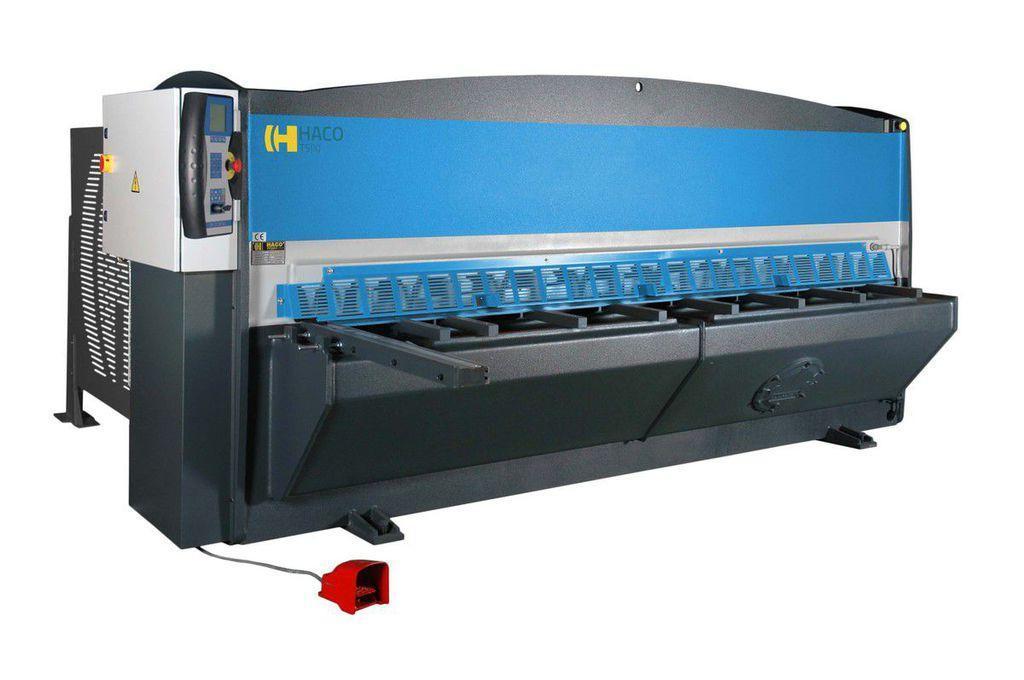

Haco TS 10 x 1/4 Shear (#4337)

Manufacturer

Spec Sheet

1/4" x 10' Shear with SP 9 Front Operated Motorized Back Gauge, Squaring Arm, Hold Downs, Blade Gap Adjustment, 1 Position Pre-Selection Control From the Back Gauge with Digital Readout, 7-Segment LED Displays, Pre-Selection of Electro-Hydraulic Cutting Angle Setting with Read-Out, Pre-Selection of Cutting Length, Programmable Retraction, Manual Blade-Gap Setting, (Preset) Stroke Counter Up Or Down with 0-Stop, Mm or Inch, 18 Hold Downs, Finger Protection with Hand Gaps Guards Between Hold Downs, Motorized Back Gauge 40", 2.1 Inch/Sec Ball Screw Guide Standard Plates Supports 20" and 3 Ball Transfer Units, Cutting Line Illumination and Set of Blades for Stainless Steel

GENERAL SPECIFICATIONS
Capacity: 1/4″ (Mild Steel)
Maximum Cutting Length: 10′
Min. Cutting Angle: 0.5°
Max. Cutting Angle: 3°
Strokes Per Min (Small Angle): 14
Strokes Per Min (Big Angle): 8
Working Height: 30”
Motor: 10HP / 220 V / 240 V / 3PH
Overall Dimensions: 150″ L x 106″ W x 69″ H
Weight: 10,000 LBS

INCLUDES: SP 9 Front Operated Motorized Back Gauge, Squaring Arm, Hold Downs, Blade Gap Adjustment, 1 Position Pre-Selection Control From the Back Gauge with Digital Readout, 7-Segment LED Displays, Pre-Selection of Electro-Hydraulic Cutting Angle Setting with Read-Out, Pre-Selection of Cutting Length, Programmable Retraction, Manual Blade-Gap Setting, (Preset) Stroke Counter Up Or Down with 0-Stop, Mm or Inch, 18 Hold Downs, Finger Protection with Hand Gaps Guards Between Hold Downs, Motorized Back Gauge 40", 2.1 Inch/Sec Ball Screw Guide Standard Plates Supports 20" and 3 Ball Transfer Units, Cutting Line Illumination and Set of Blades for Stainless Steel

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
