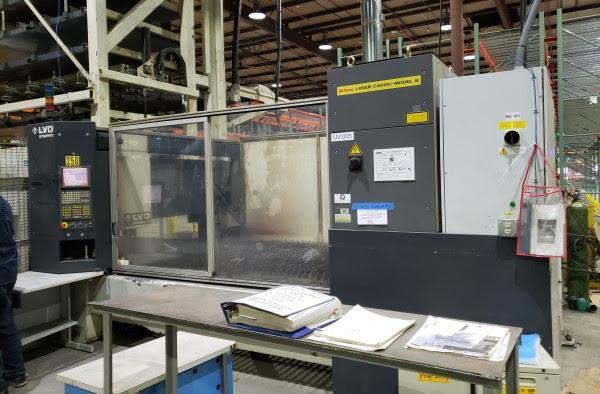

2009 LVD Strippit 3015 Plus Orion Laser Cutting System (#4038)

Manufacturer

Category

Laser Cutting

Type

LASERS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



5' X 10' 4,000 Watt Laser Cutting System with GE / Fanuc 16I-LB CNC Control, Automatic Load / Unload Device, 10 Pallet Gantry Type Compact Pallet System

GENERAL SPECIFICATIONS


  • Max Sheet Size: 120” X 60”

  • Max Sheet Wight: 1,250 LBS

  • Laser Output: 4,000 Watts

  • X - Axis Travel: 121”

  • Y - Axis Travels: 61”

  • Z - Axis Travels: 3.9”

  • Max Mild Steel Thickness: ¾”

  • Max Stainless Steel Thickness: ½”

  • Max Aluminum Thickness: 7/32”

  • Position Speed Maximum, X/Y: 3,935 IPM

  • Positioning Speed Maximum, Z: 700 IPM

  • Laser Only: 9’4”W X 27’8”L X 8’H

  • Footprint with Tower: 348”L X 283”W

  • Height of Tower: 260”

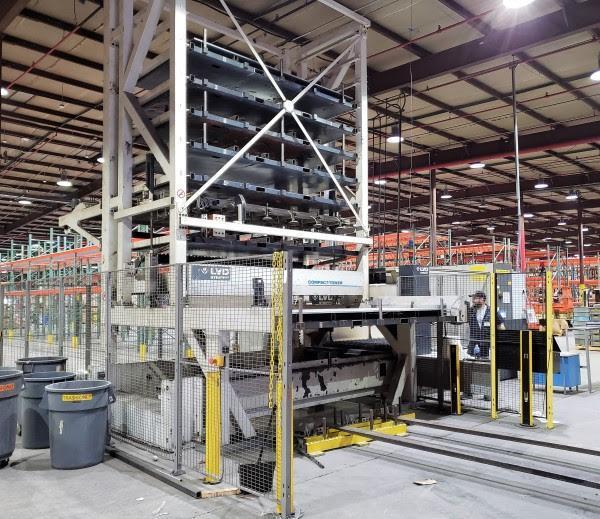

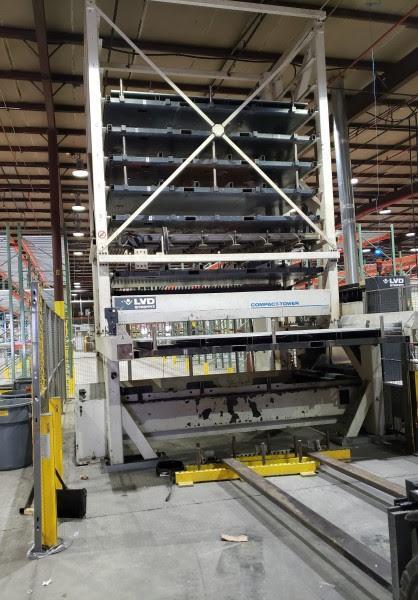

INCLUDES: GE / Fanuc 16I-LB CNC Control, Automatic Load / Unload Device, 10 Pallet Gantry Type Compact Pallet System


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
