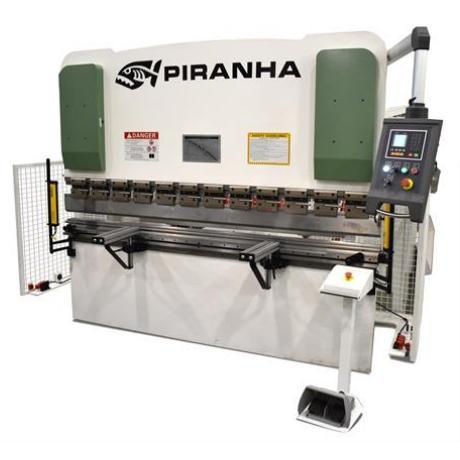

Piranha 135-13 T-Series Press Brake (#4395)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



135 Tons X 13’ Press Brake with ESTUN E21 CNC Controller, Front Sheet Support, European Precision Style Manual Tool Clamps, Light Curtain System, Piranha X and Manual R Back Gauge System, Precision Ground Die Rail with Hold Down Bolts.

GENERAL SPECIFICATIONS
Tonnage: 135
Length of Work Table: 157.5”
Die Rail Height: 2.36”
Distance Between Uprights: 122”
Ram Stroke: 6.5”
Max Open Height (W/ Die Rail, w/o Clamps): 16.9”
Throat Depth: 16.93”
CNC Axis w/ ESTUN: Y & X Axis Only



Ram Speed
Approach: 212 IPM
Work: 18.9 IPM
Return: 177 IPM


Back Gauge X
Stroke: 23.6”
Work Piece Size: 23.6”
Max Running Speed: 38.4 IPM


Machine Dimensions: 173” X 83” 104”H
Oil Capacity: 75 Gallons
Motor: 10 HP
Machine Weight: 21,750 Lbs

INCLUDES: ESTUN E21 CNC Controller, Front Sheet Support, European Precision Style Manual Tool Clamps, Light Curtain System, Piranha X and Manual R Back Gauge System, Precision Ground Die Rail with Hold Down Bolts.


***All Price, Location and Specifications Subject to Change without Notice***
