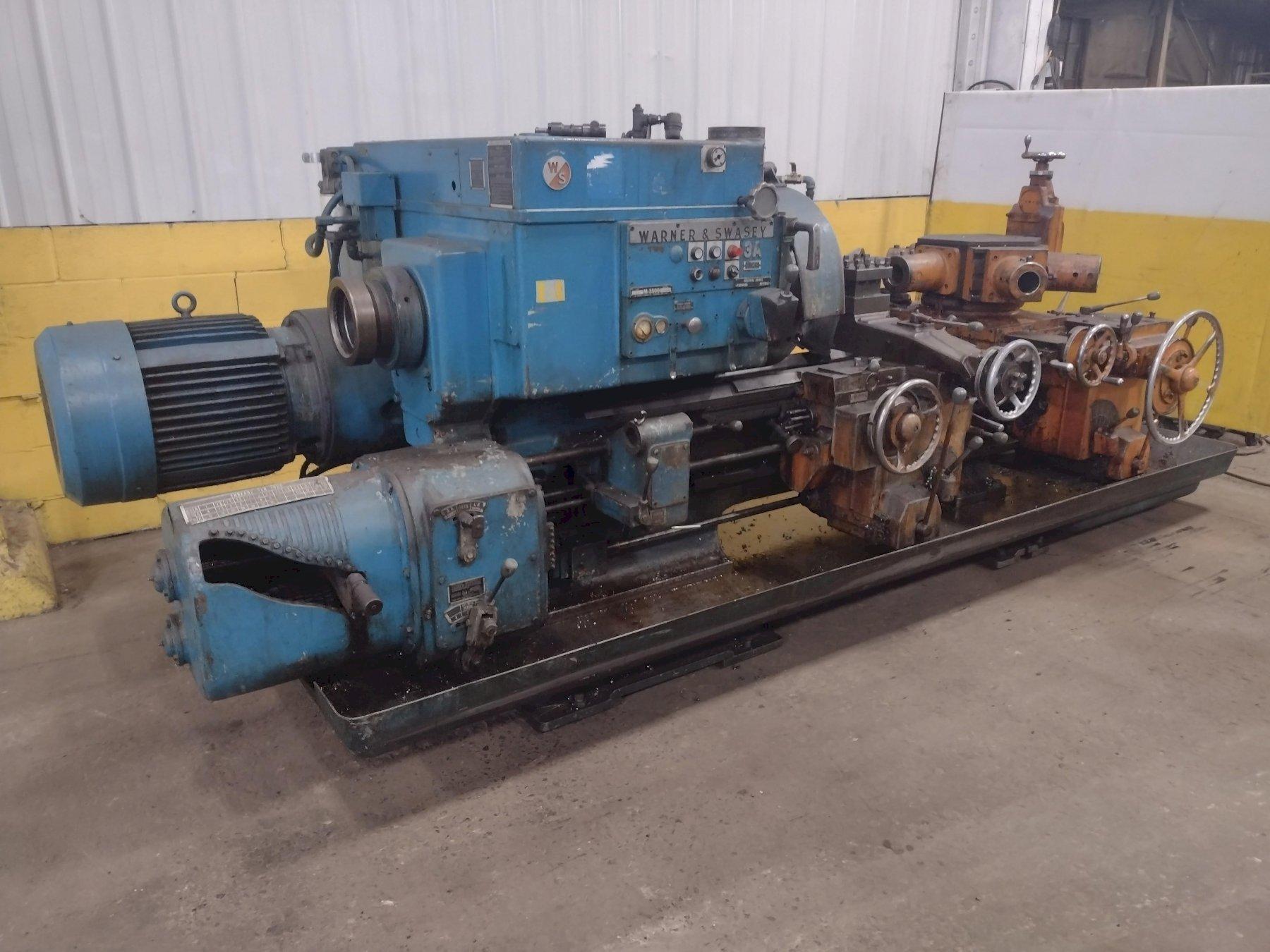

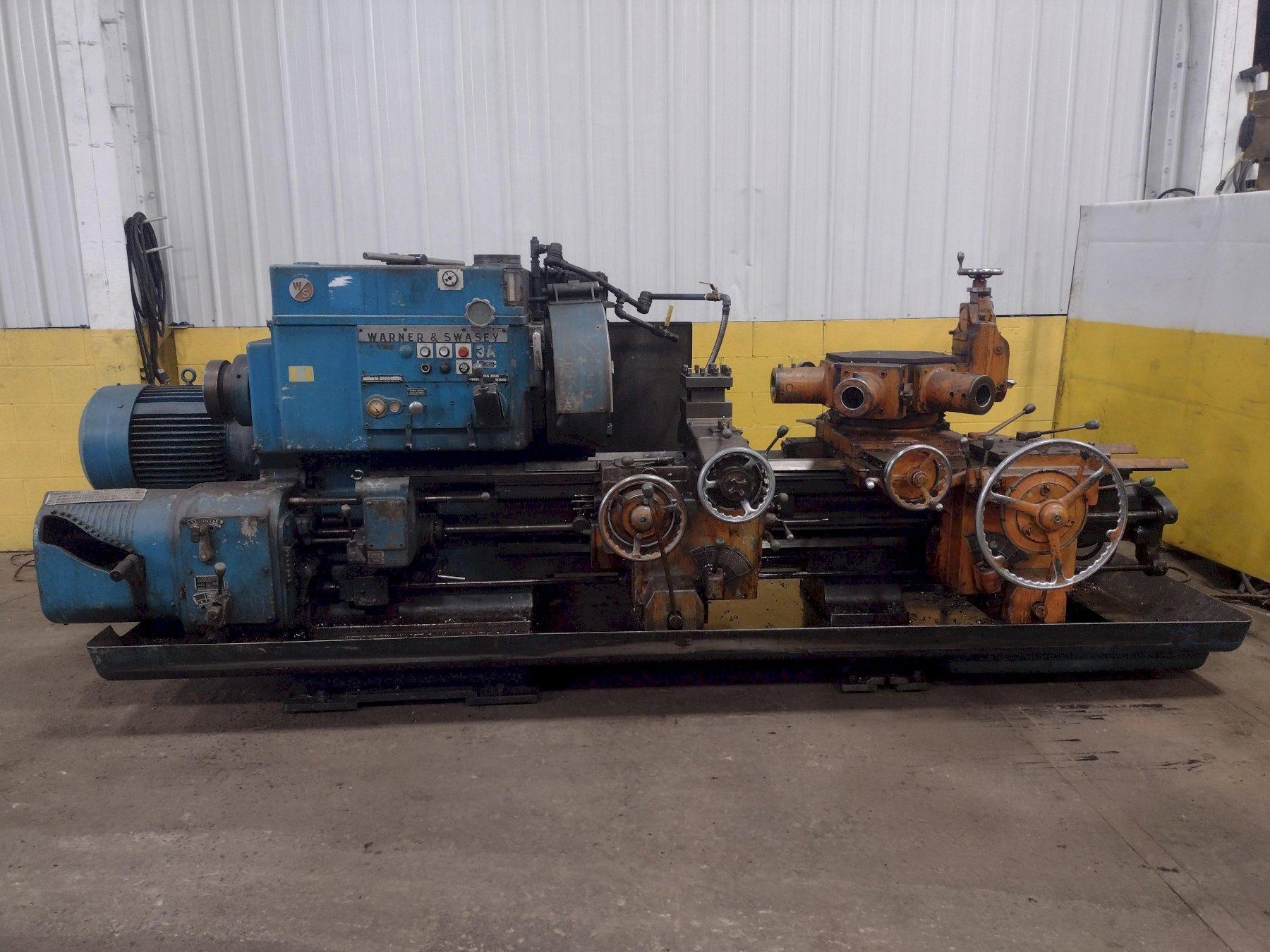

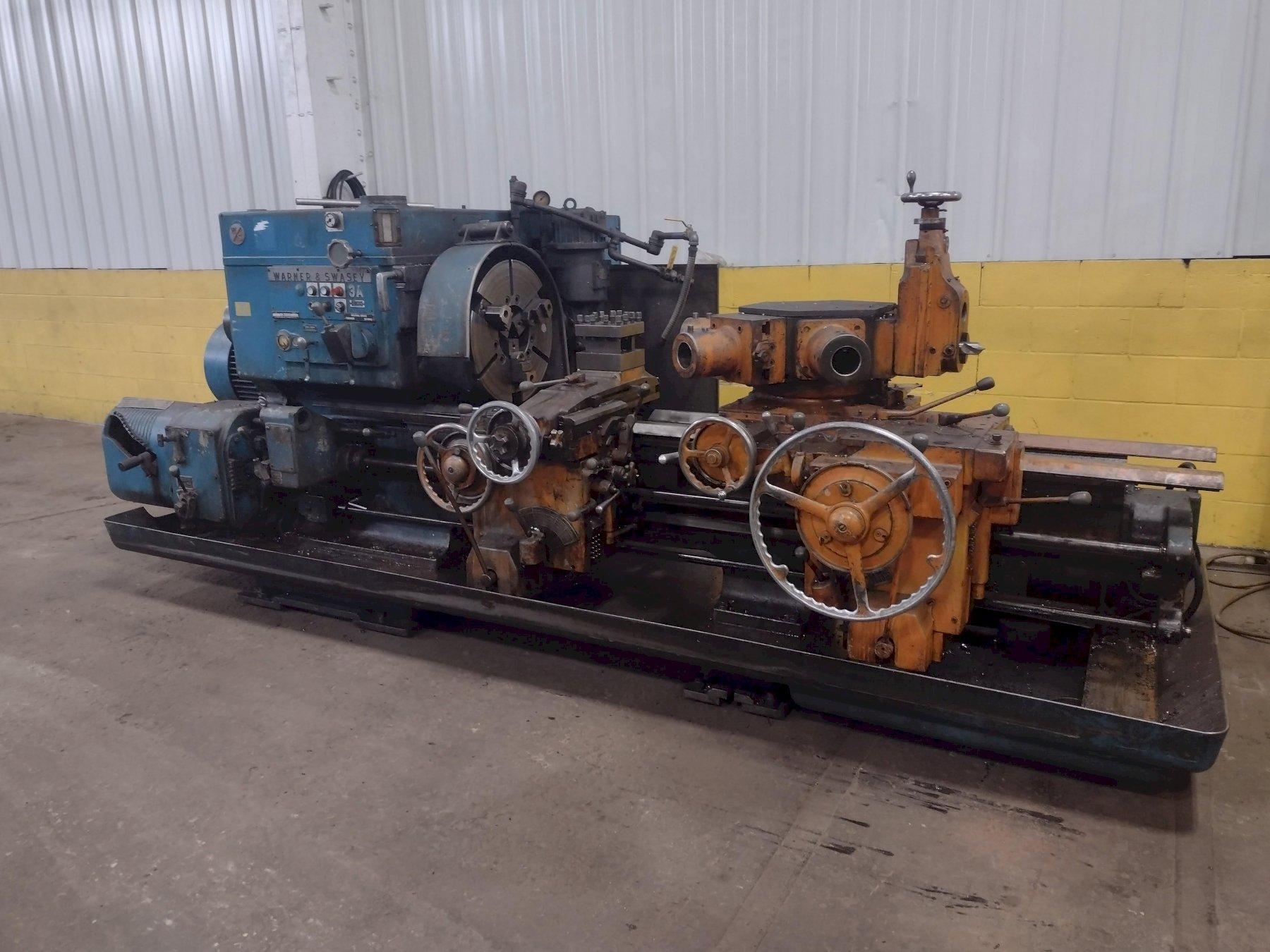

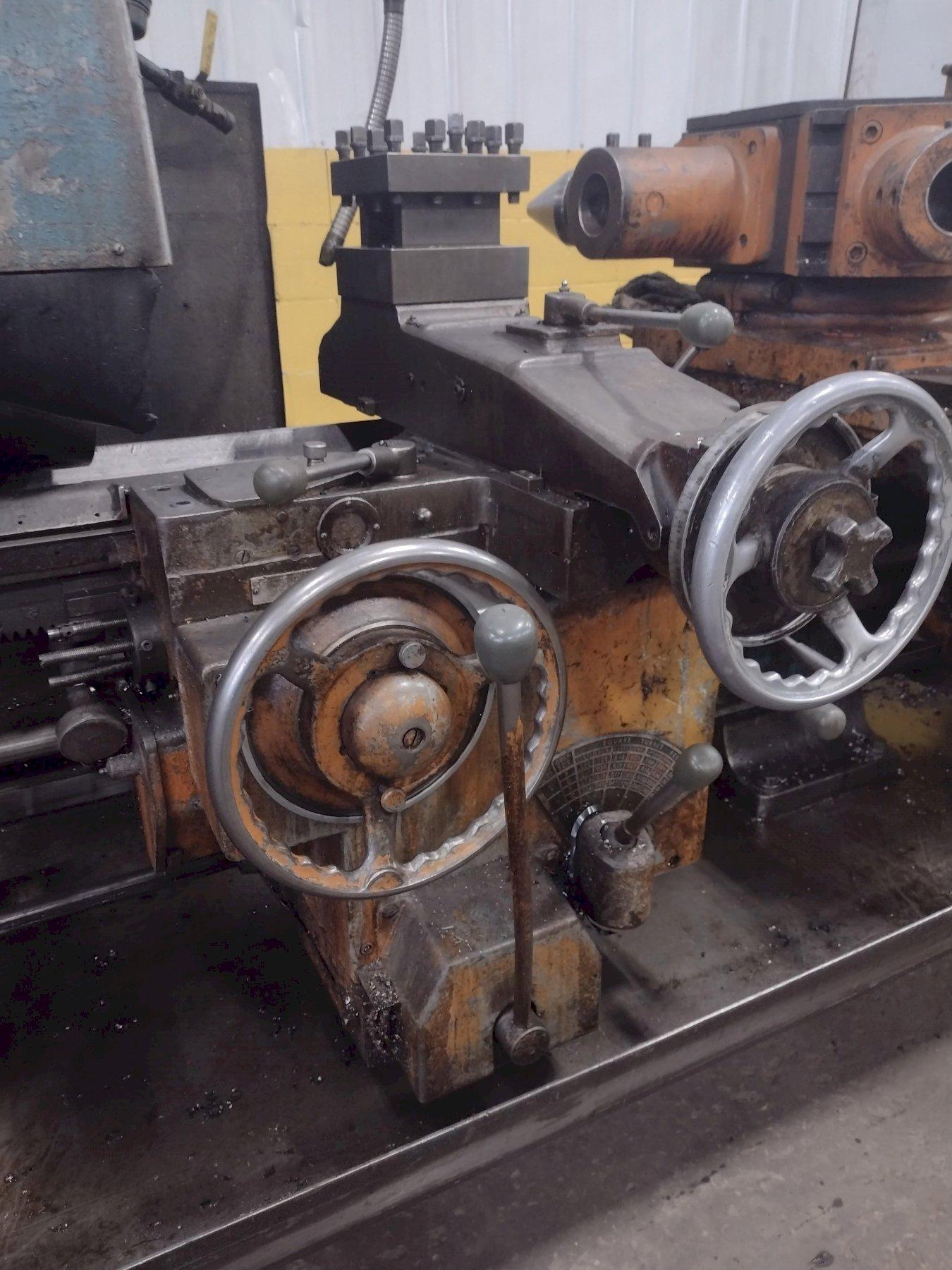

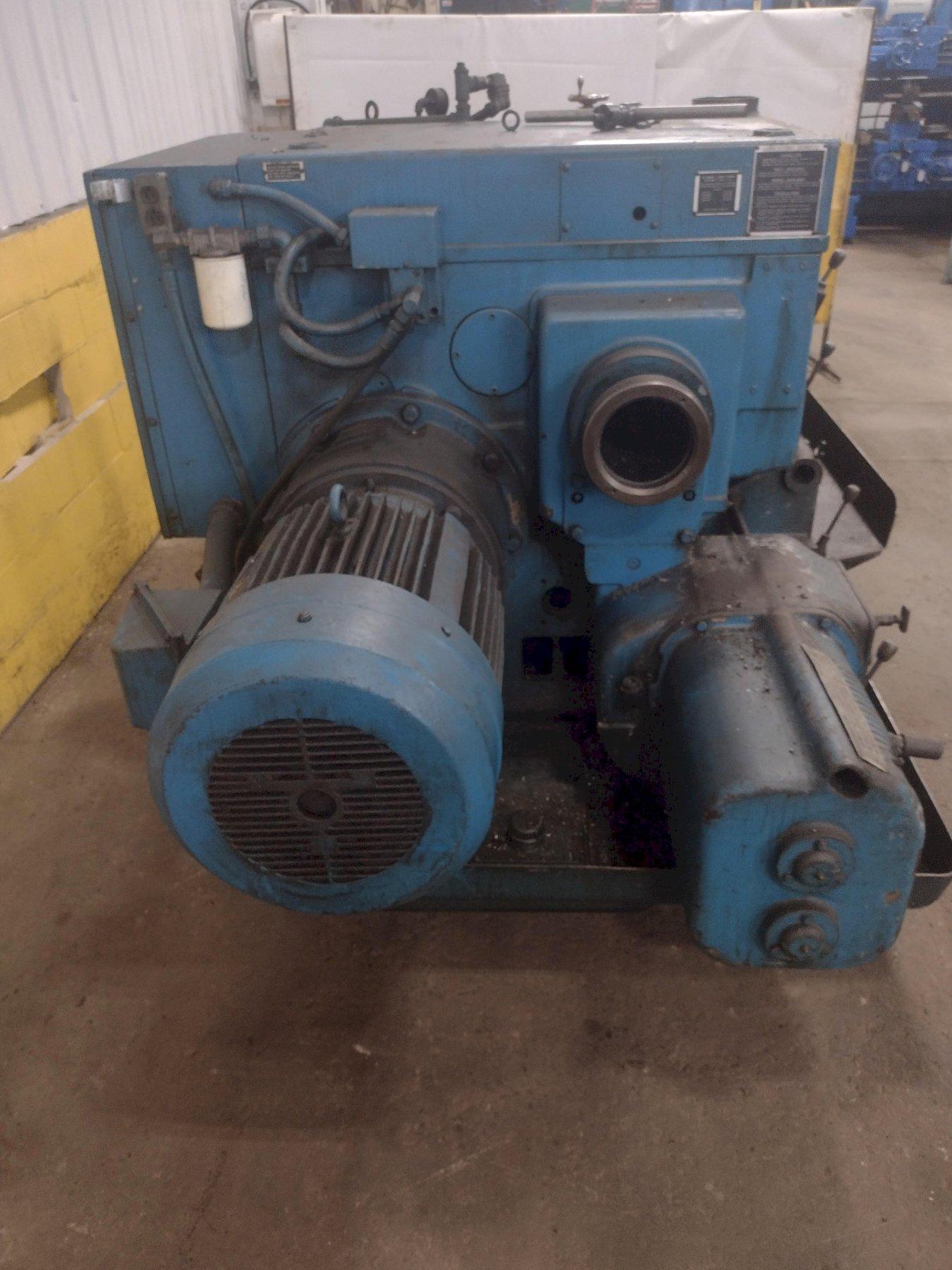

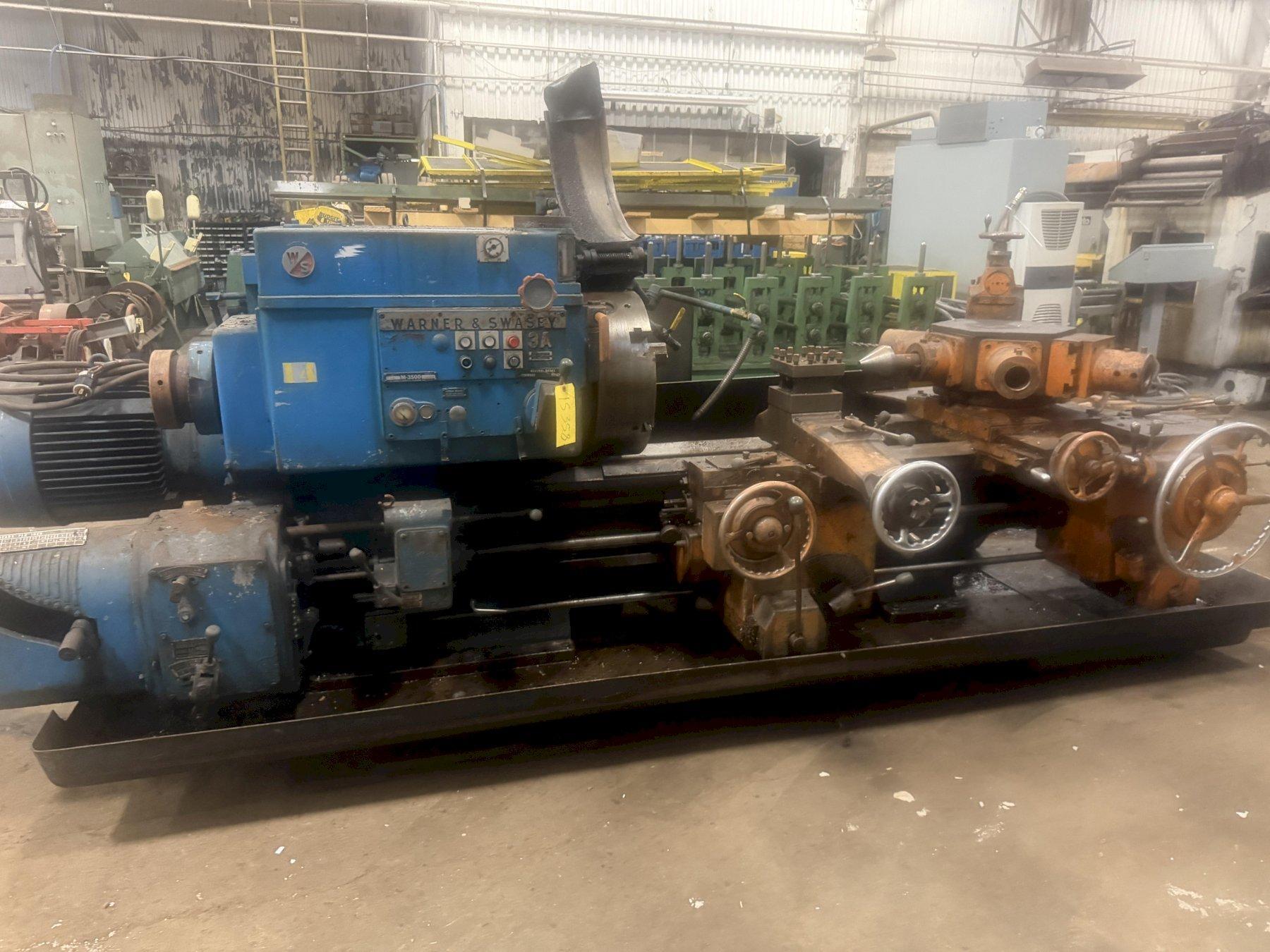

3A WARNER & SWASEY MODEL #M3500 CROSS SLIDING TURRET LATHE: STOCK #15358

Manufacturer

WARNER & SWASEY

Category

Lathes

Type

LATHES, TURRET, SADDLE TYPE

Stock

15358

Model

3A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 180" x 84" x 70" high
Weight - 16200 pounds

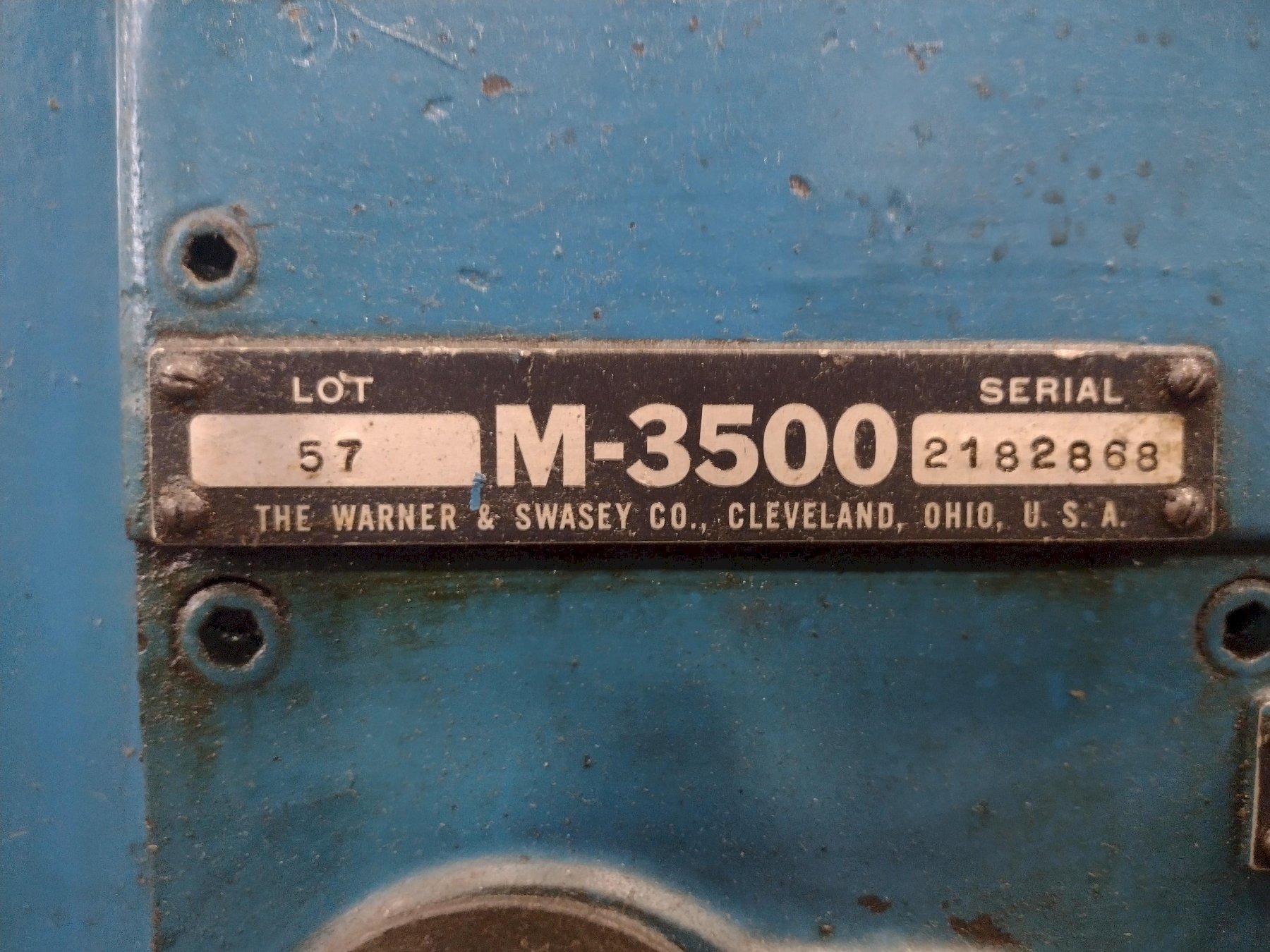

SERIAL ............................ 2182868

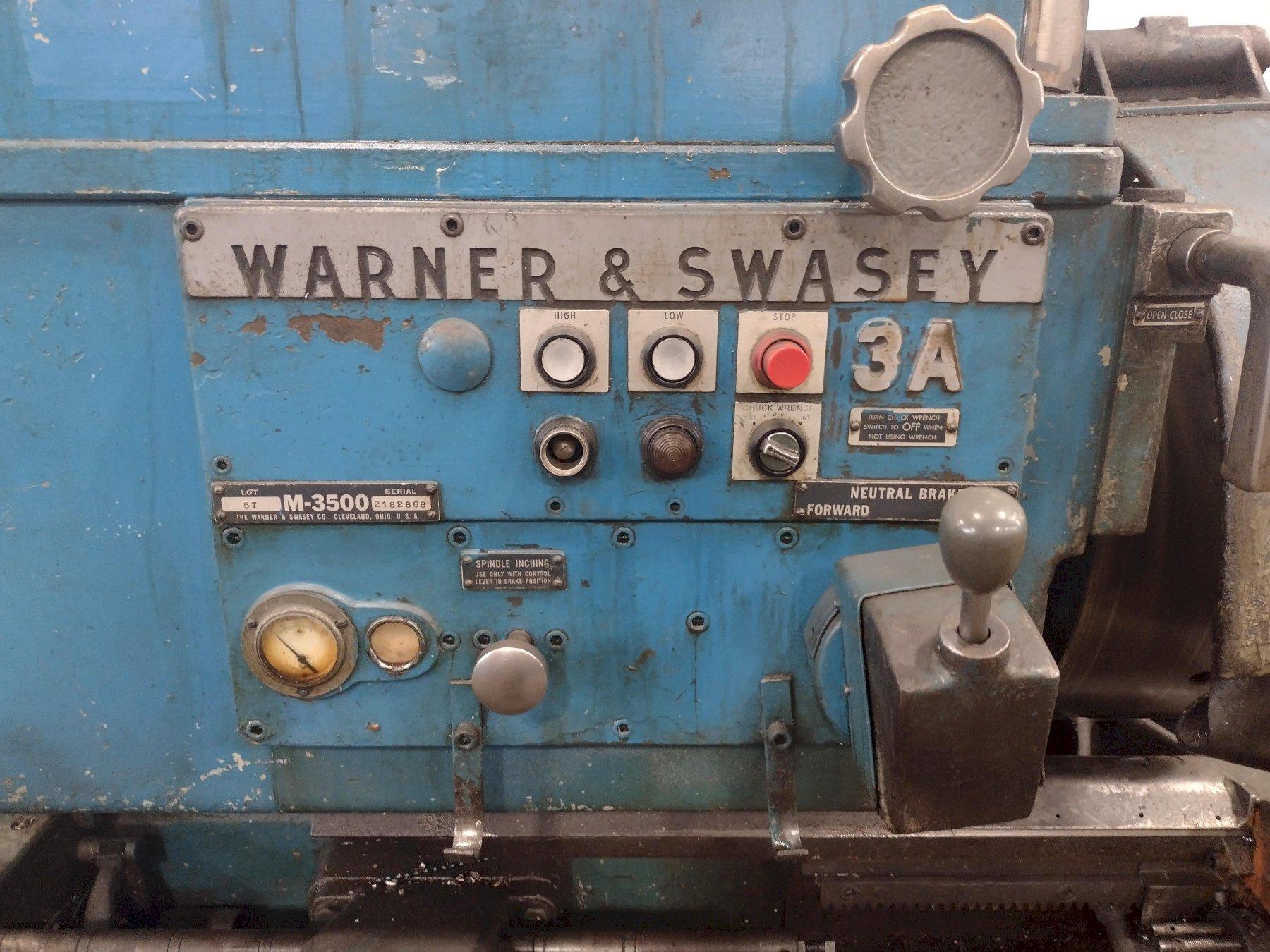

MODEL ............................. 3A (M-3500) SQUARE HEAD
SWING OVER BED .................... 24-1/2"
SWING OVER CARRIAGE HORN .......... 18"
SPINDLE NOSE TO TURRET ............ 58-3/4"

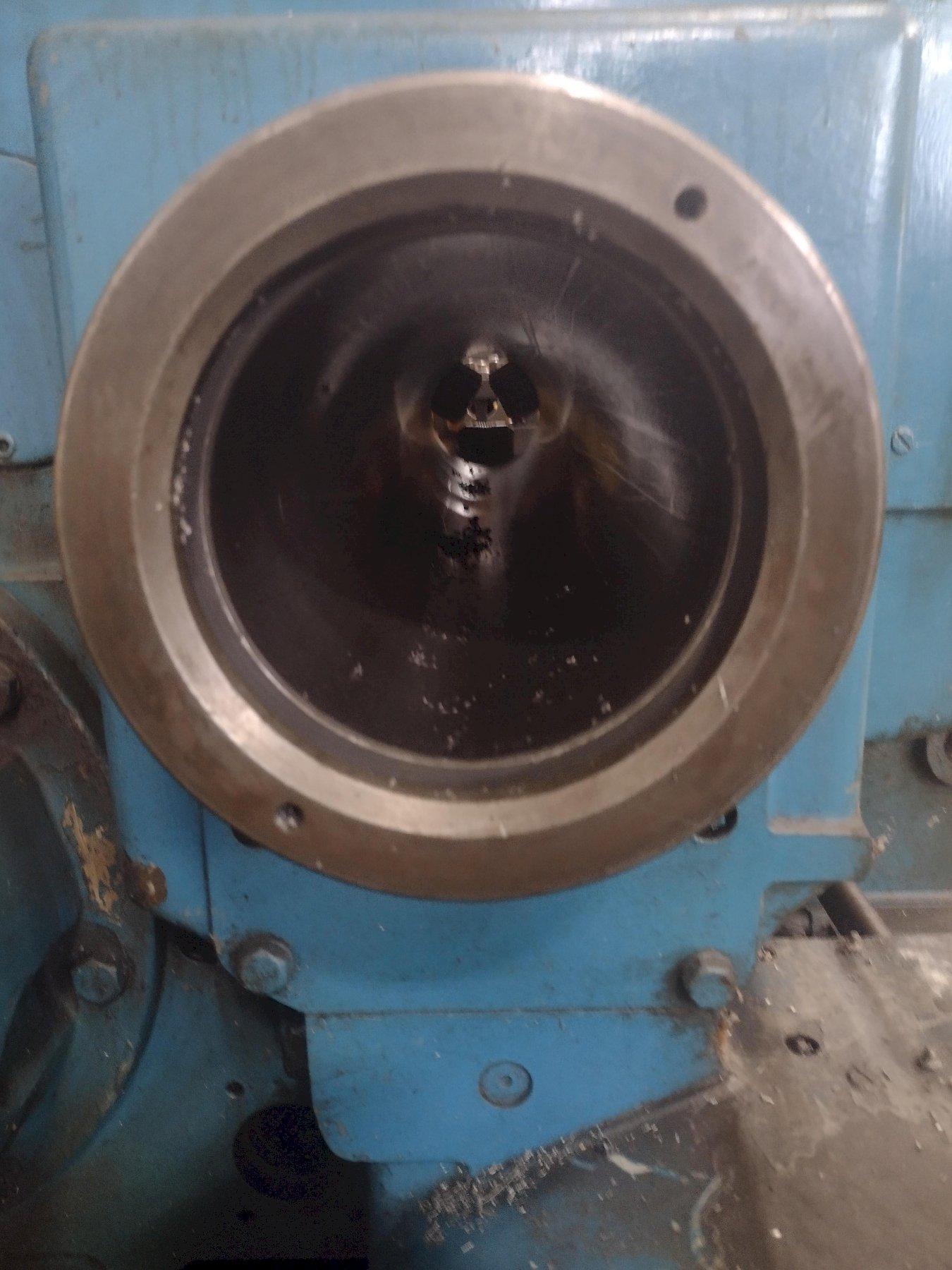

SPINDLE HOLE ...................... 6-1/8"

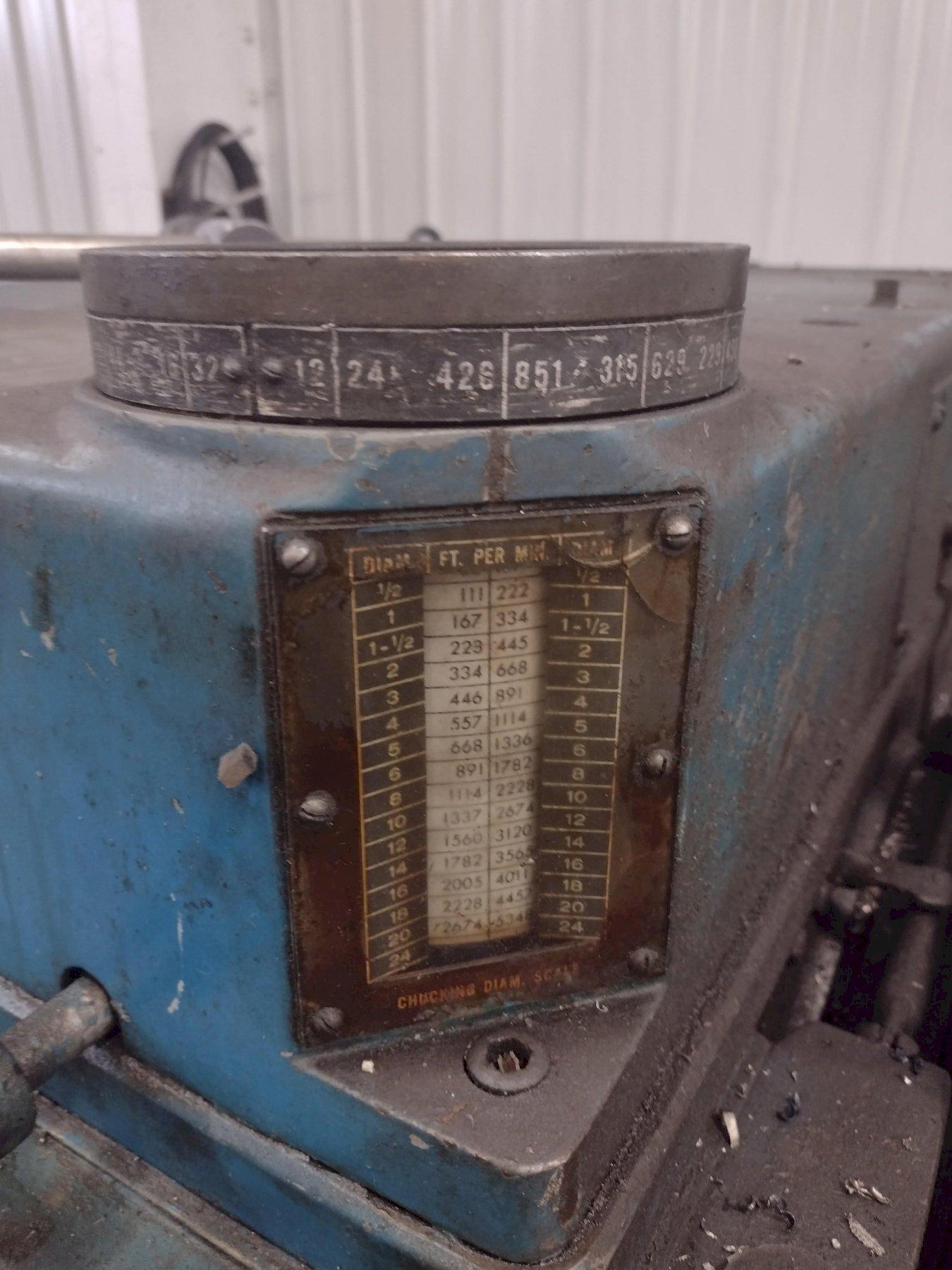

SPINDLE SPEEDS .................... (32) 18 TO 639 RPM

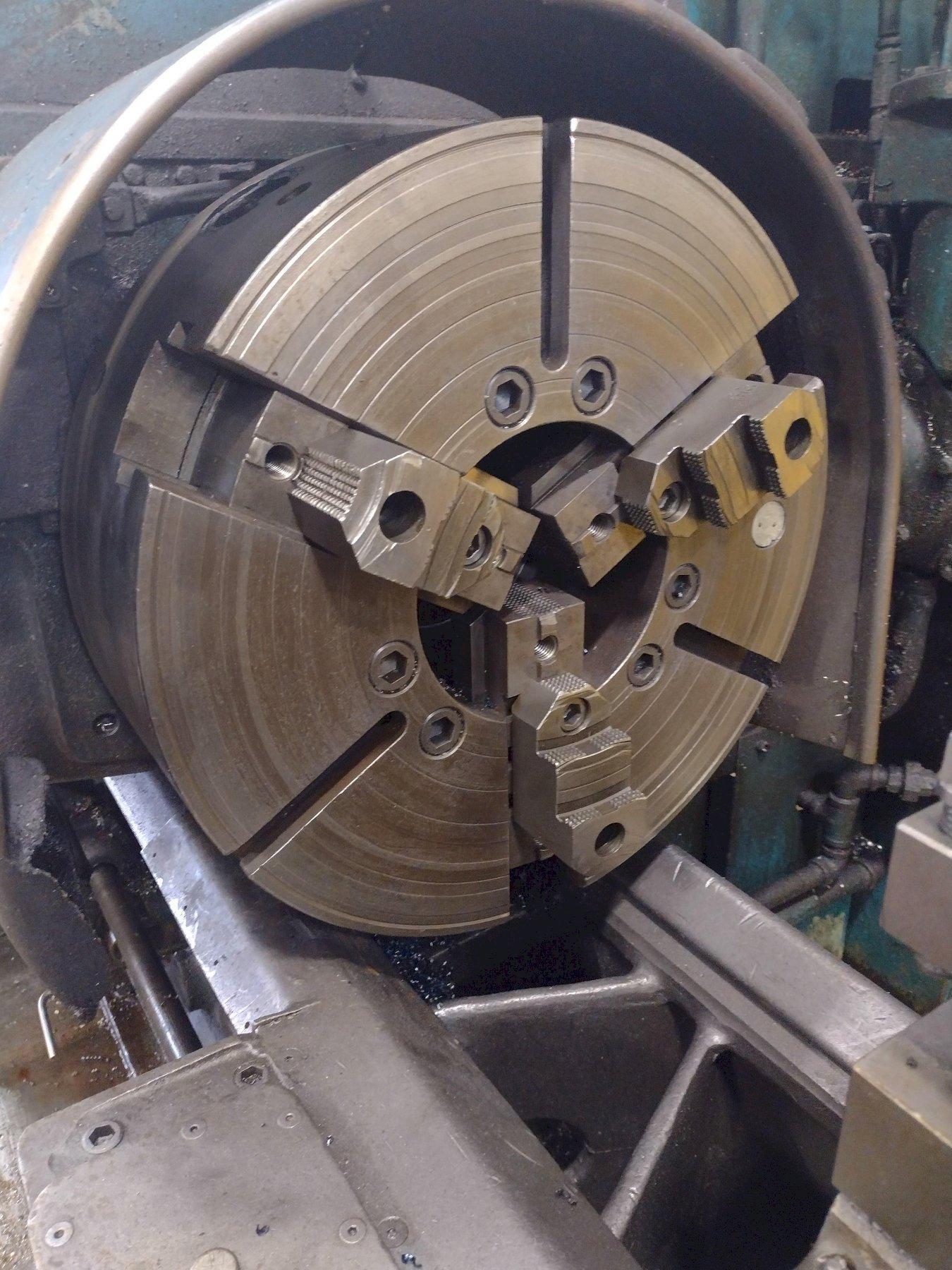

CHUCK ............................. 21" 3 JAW
POWER CHUCK WRENCH ................ YES
CARRIAGE LONGITUDINAL FEEDS ....... (16) .0029 TO .187 IPR
CARRIAGE CROSS FEEDS .............. (16) .002 TO .082 IPR
TURRET LONGITUDINAL FEEDS ......... (16) .005 TO .167 IPR
TURRET CROSS FEEDS ................ (16) .003 TO .096 IPR

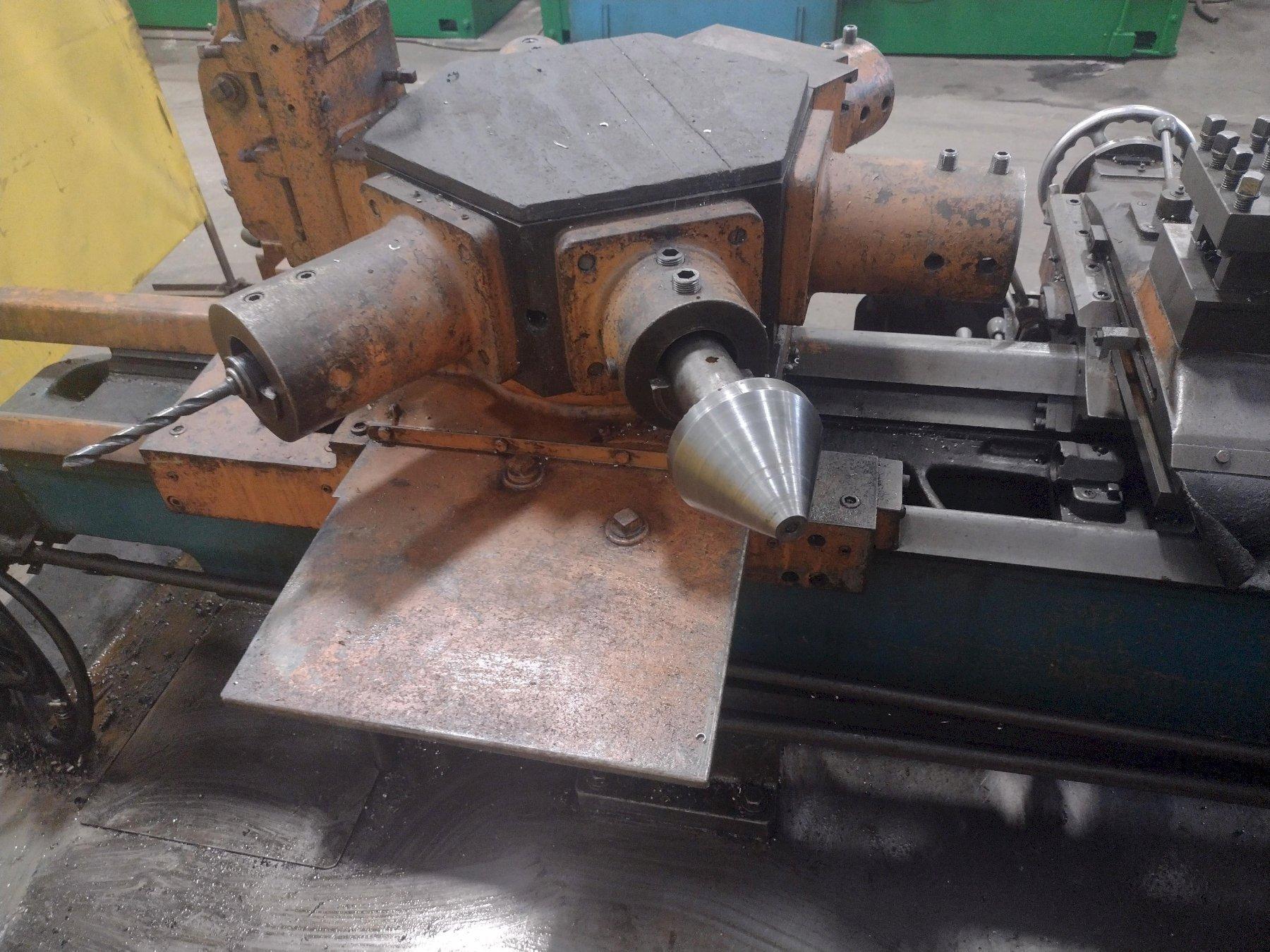

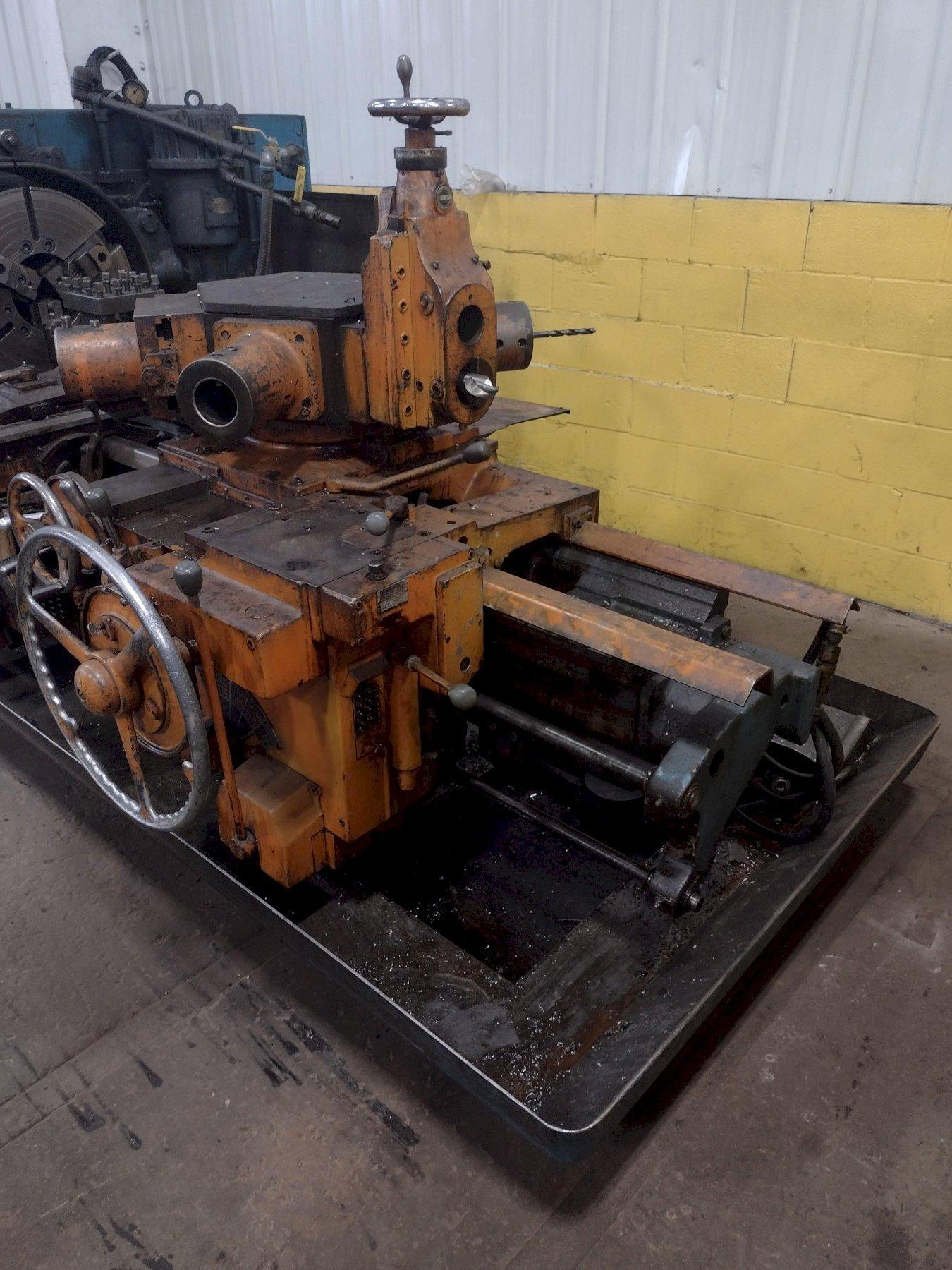

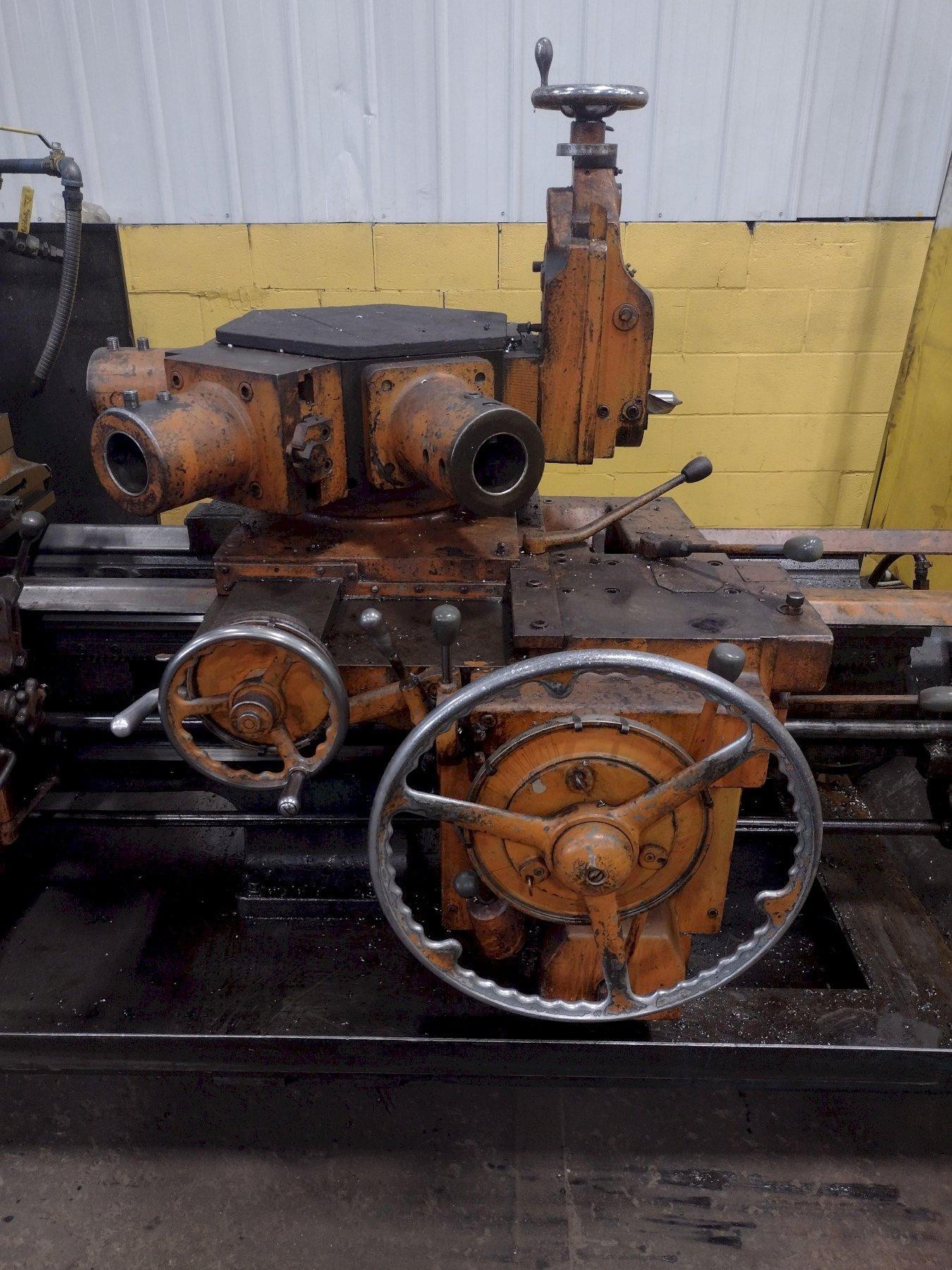

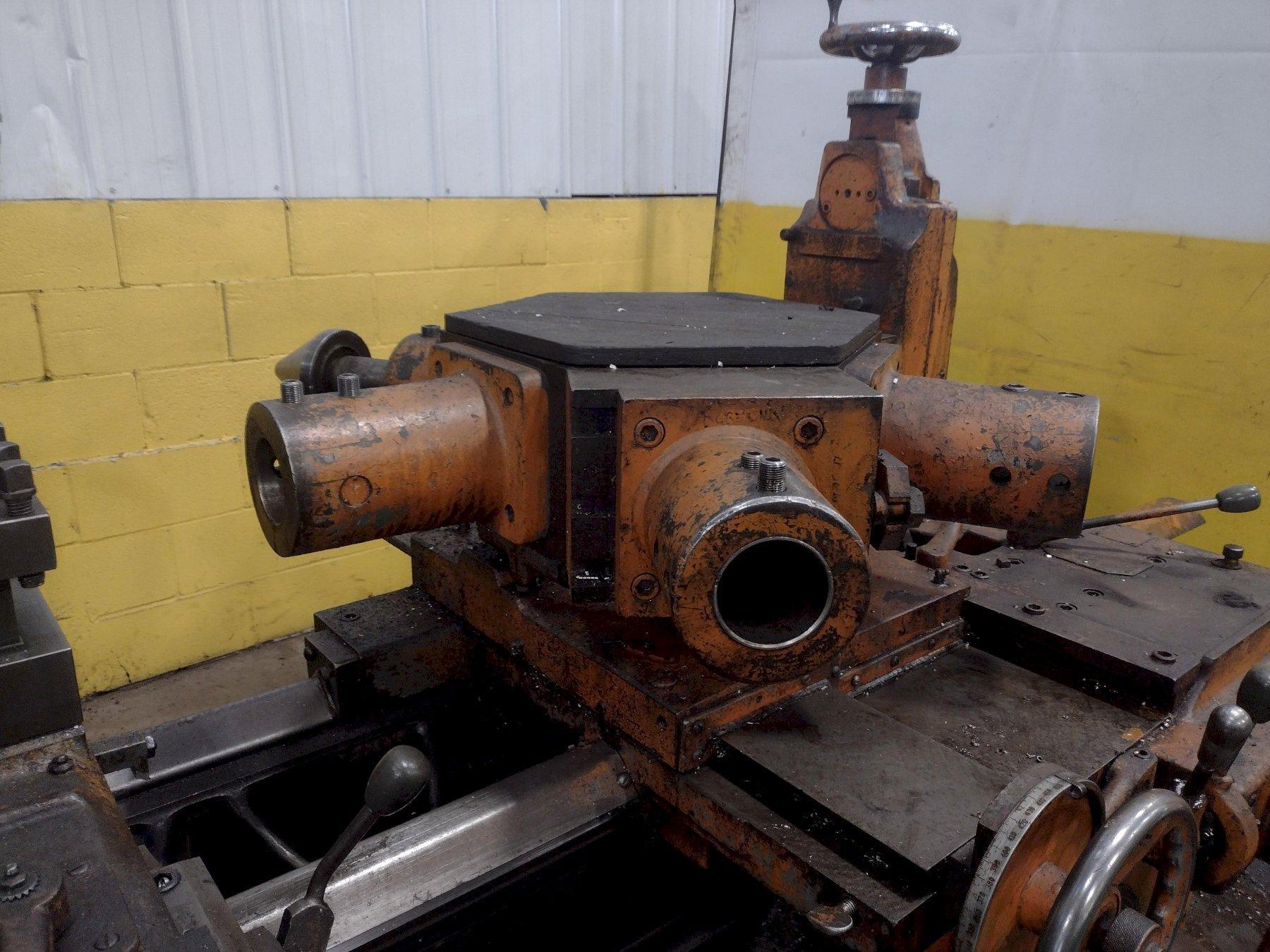

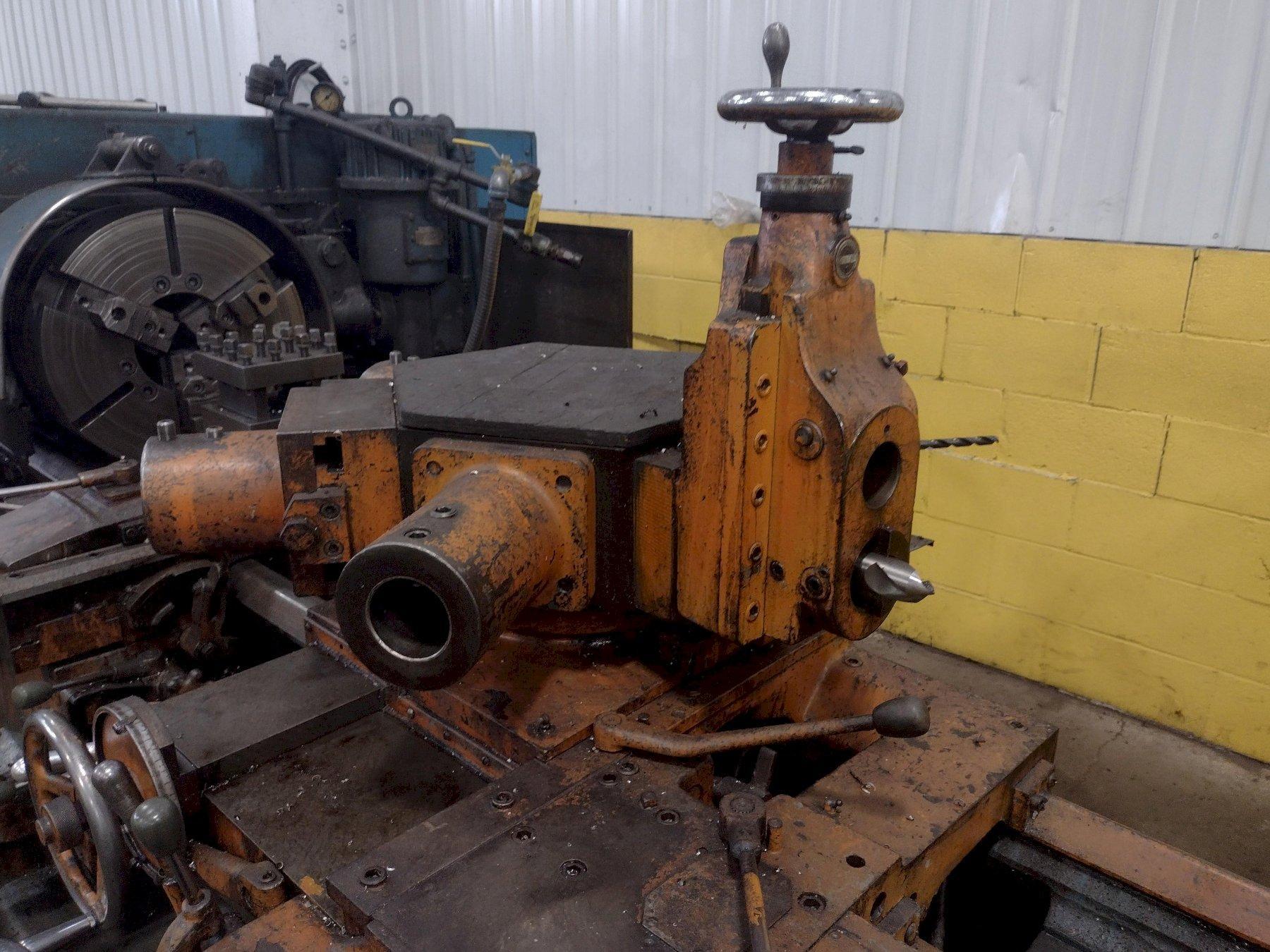

CROSS SLIDING TURRET .............. YES

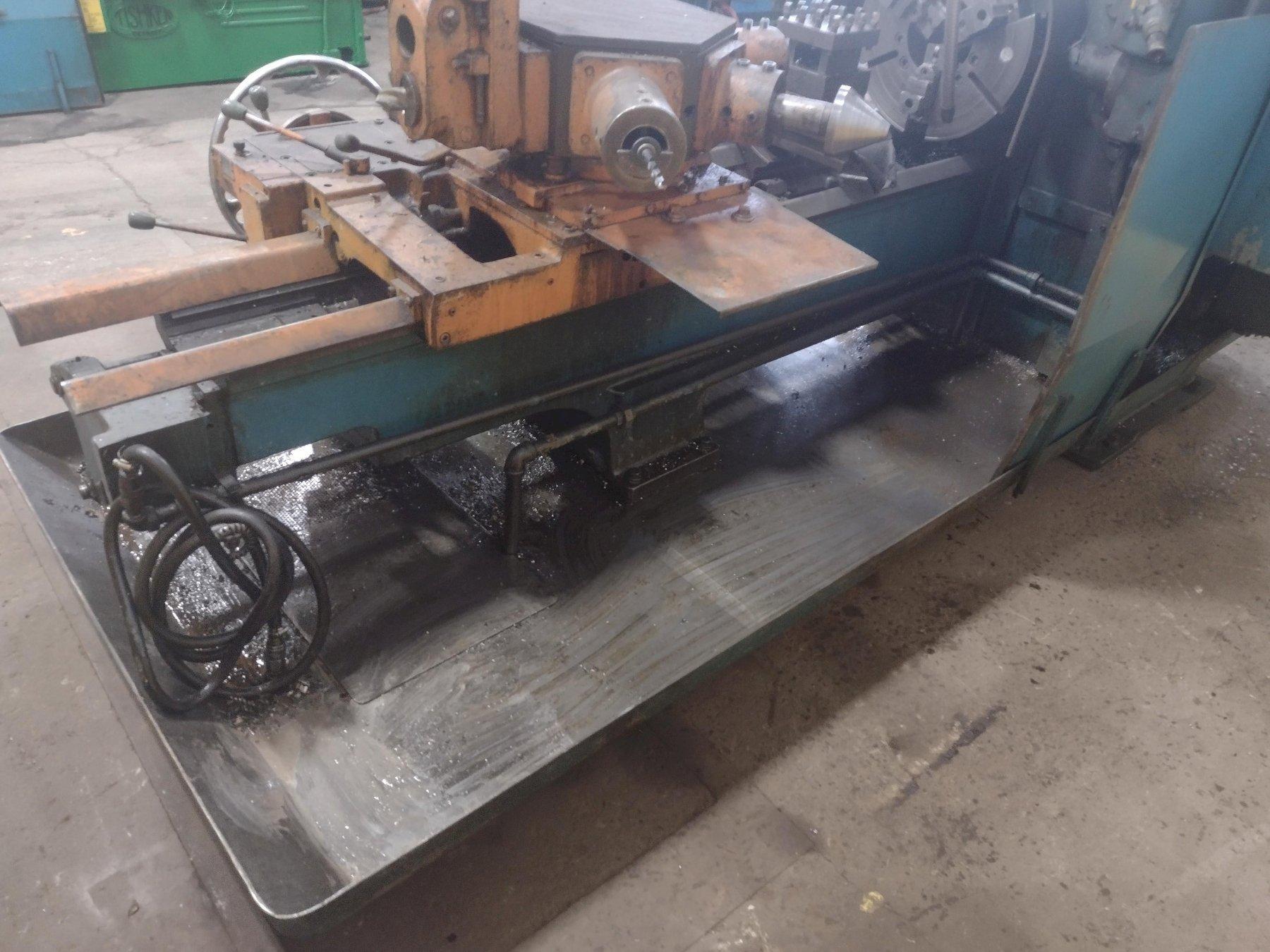

CHIP PAN WITH COOLANT ............. YES

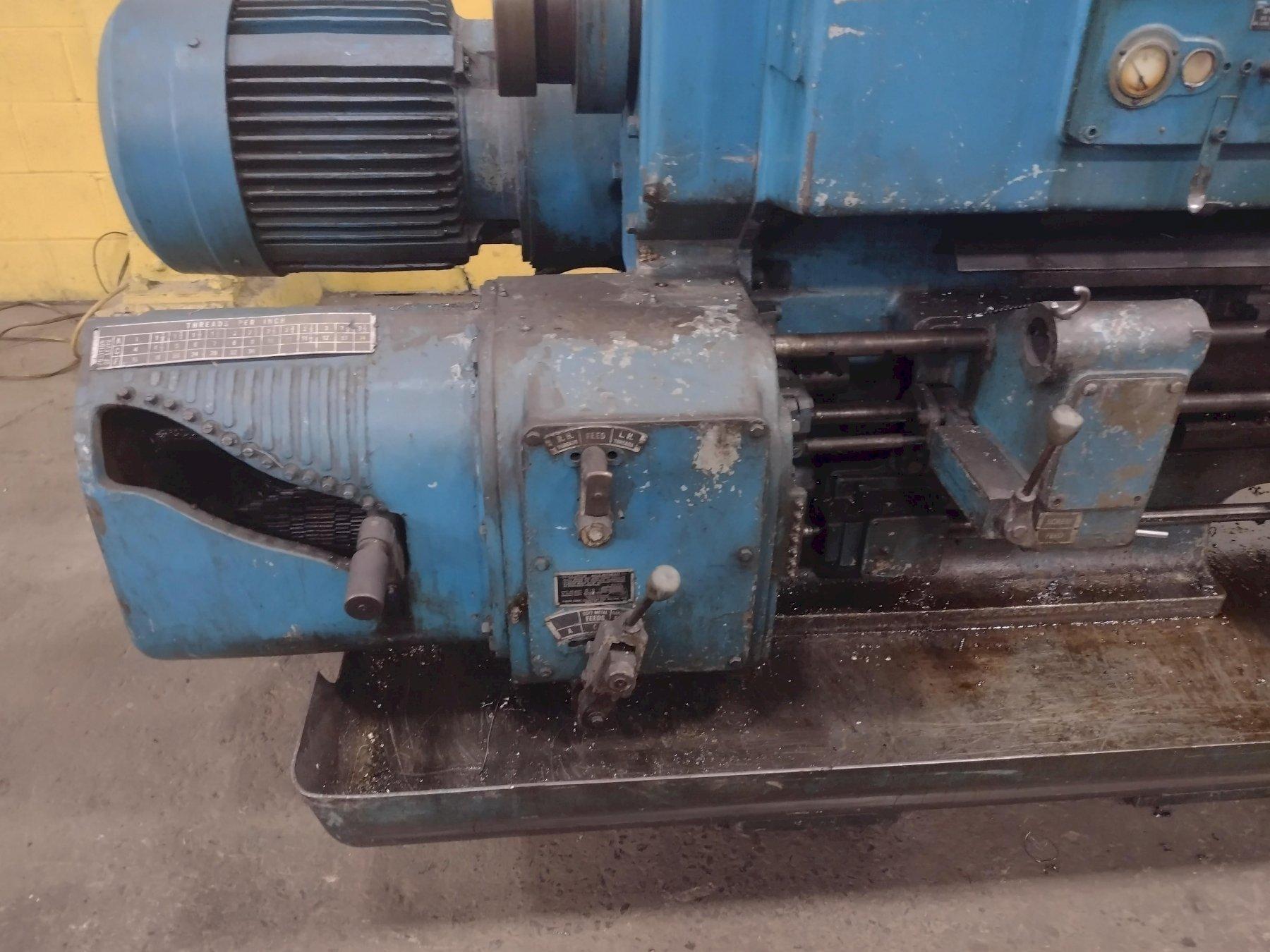

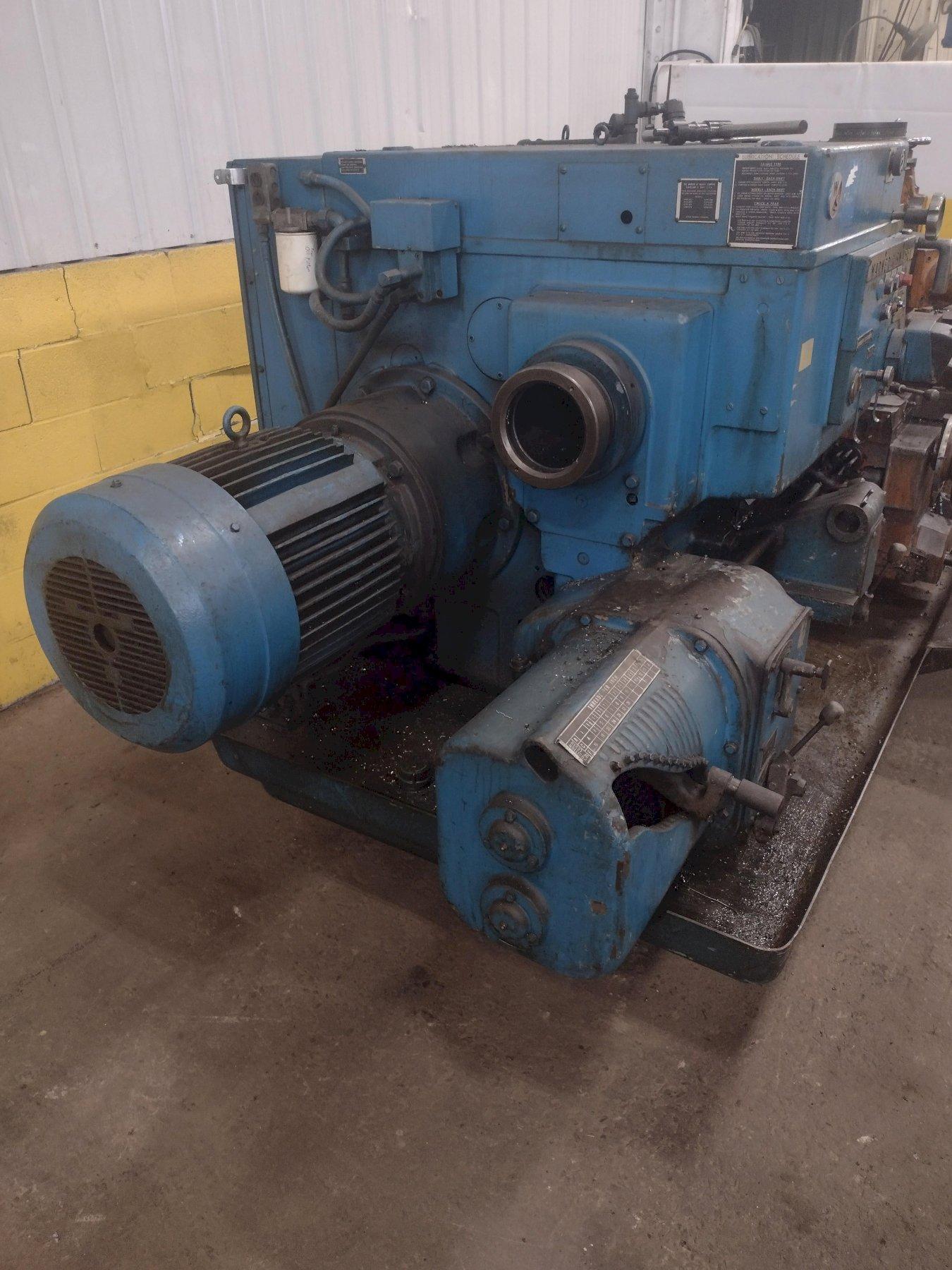

MAIN MOTOR ........................ 40 HORSEPOWER
