400 ton Bliss SC2-400-84-48 Used Straight Side Mechanical Metal Stamping Press For Sale, Year 19

Stock

2761

Model

SC2-400-84-48

Dealer Location

Michigan

Spec Sheet

Tonnage - 400
Stroke - 12 inches
Shut Height - 30.5 inches
Adjustment - 10 inches
Bed Size - 84" LR x 48" FB
Ram Area - 84" LR x 48" FB
SPM - 30 SPM


Standard Specifications
Used Bliss Press Model# SC2-400-84-48
Straight Side Mechanical Metal Stamping  Press
400 ton Capacity
12" Stroke
30.5" Shut Height
84" LR x 48" FB Bed Area
84" LR x 48" FB Slide Area
30 SPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
6.5" Bolster Plate Thickness

40 HP, 1125 RPM Main Drive Motor
Air Cushions in Bed
Motors and Controls
Imco Tonnage Monitor

25" Wide Windows
Vibro Dynamic Floor Pads
Light Curtains
Floor Standing

Overall Weight 118,000 lbs.
230" Overall Height
116.75" Wide  x  80" Depth Footprint
42.5" Floor to Top of Bolster

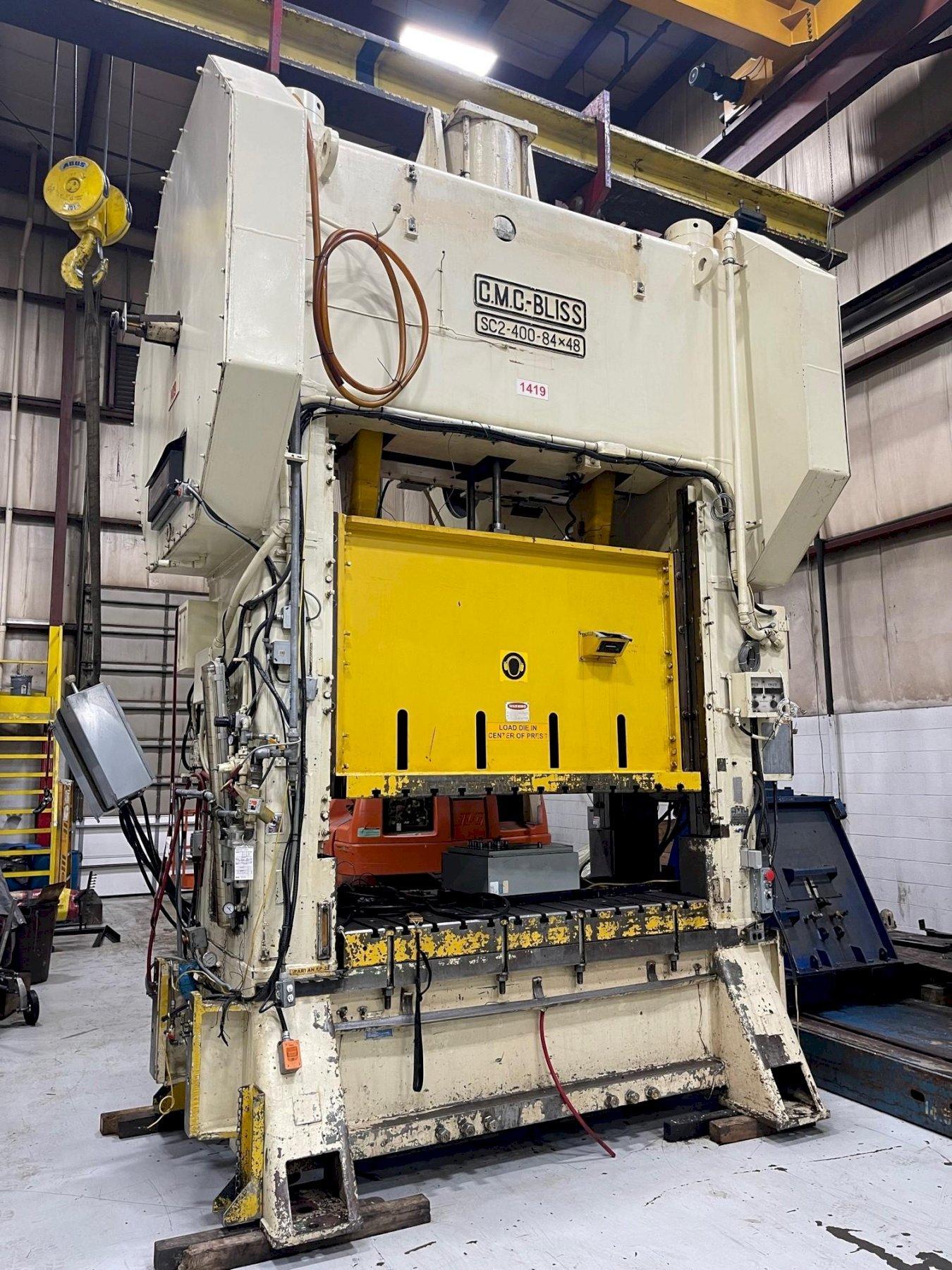

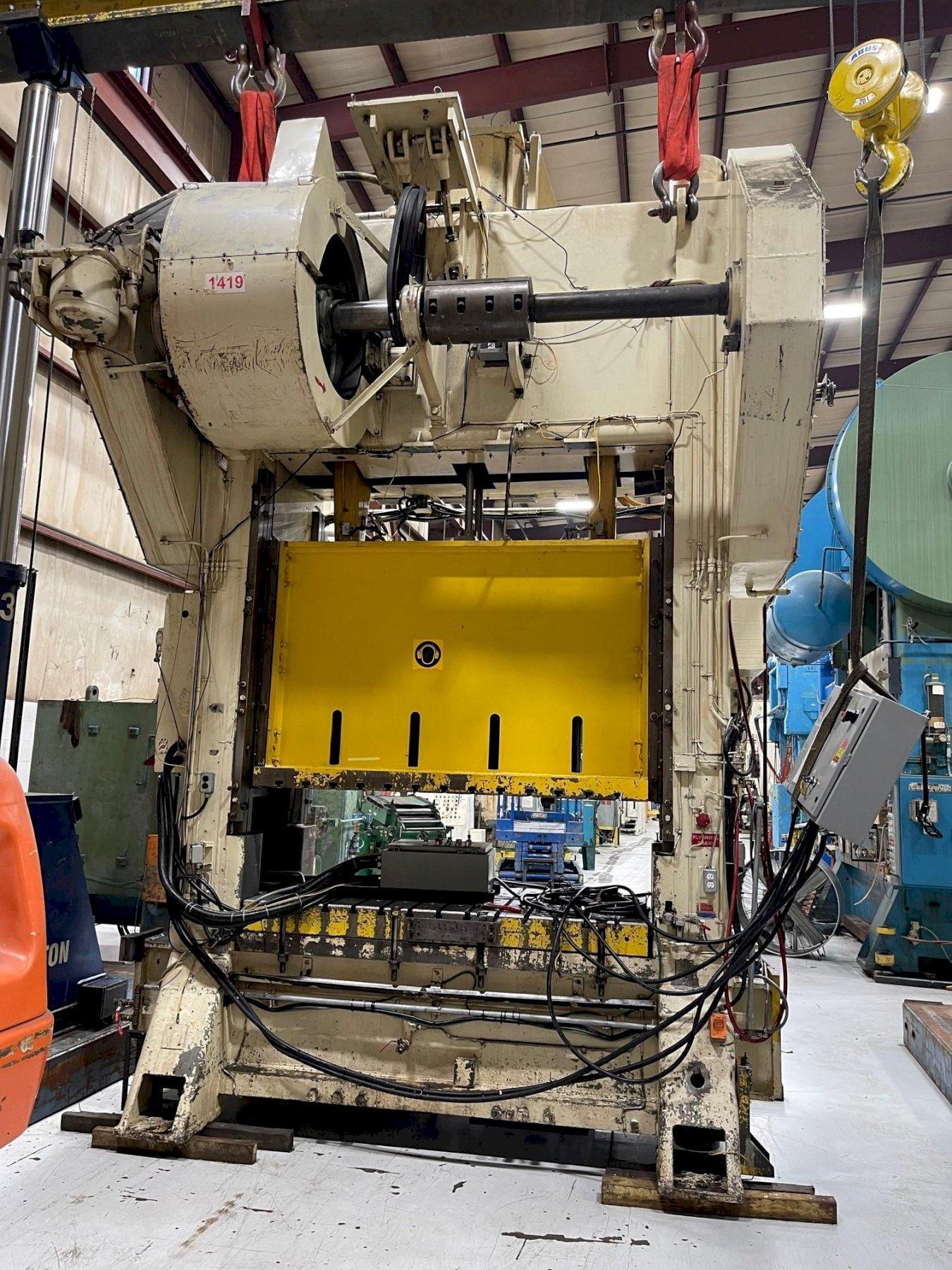

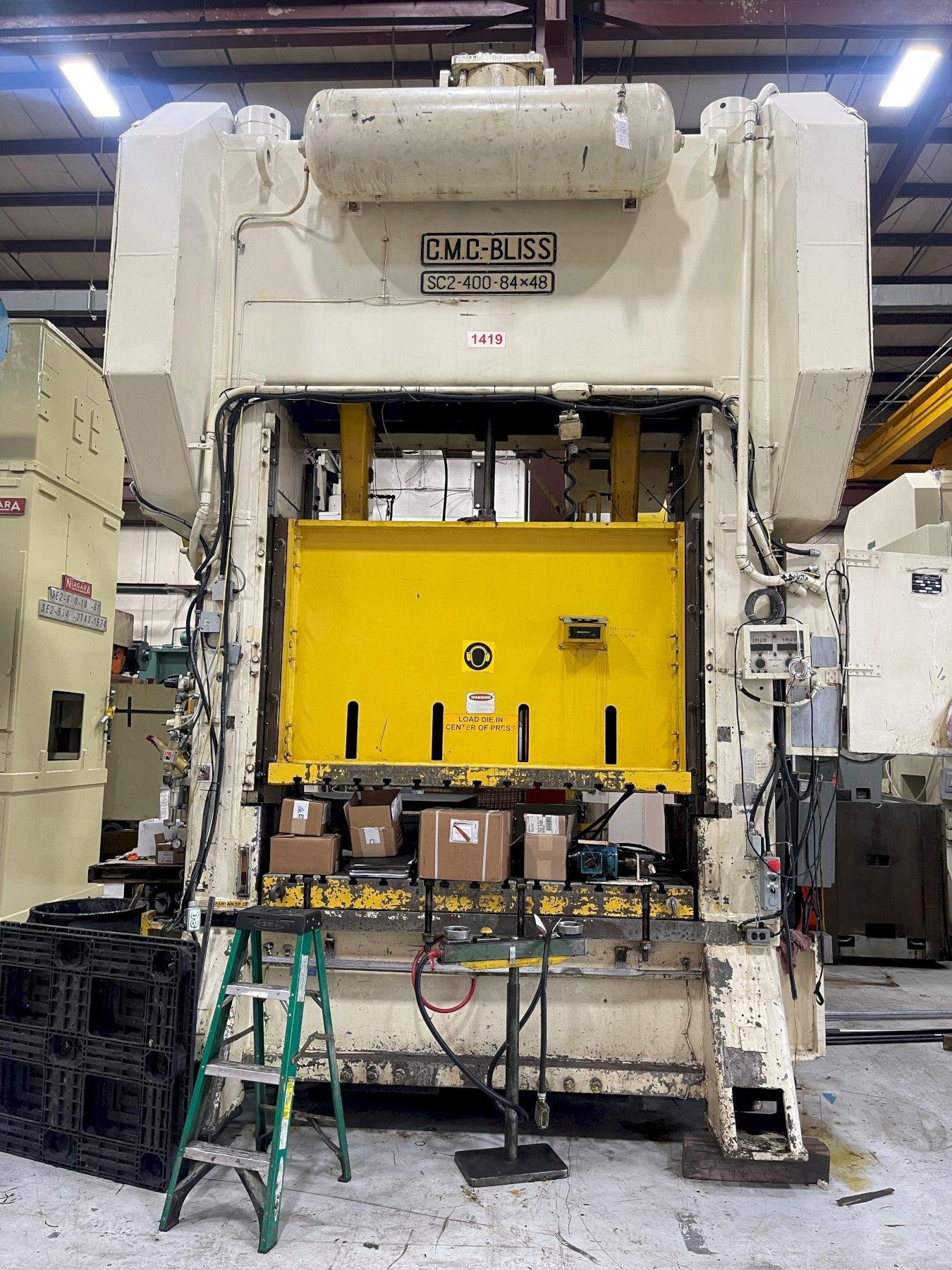

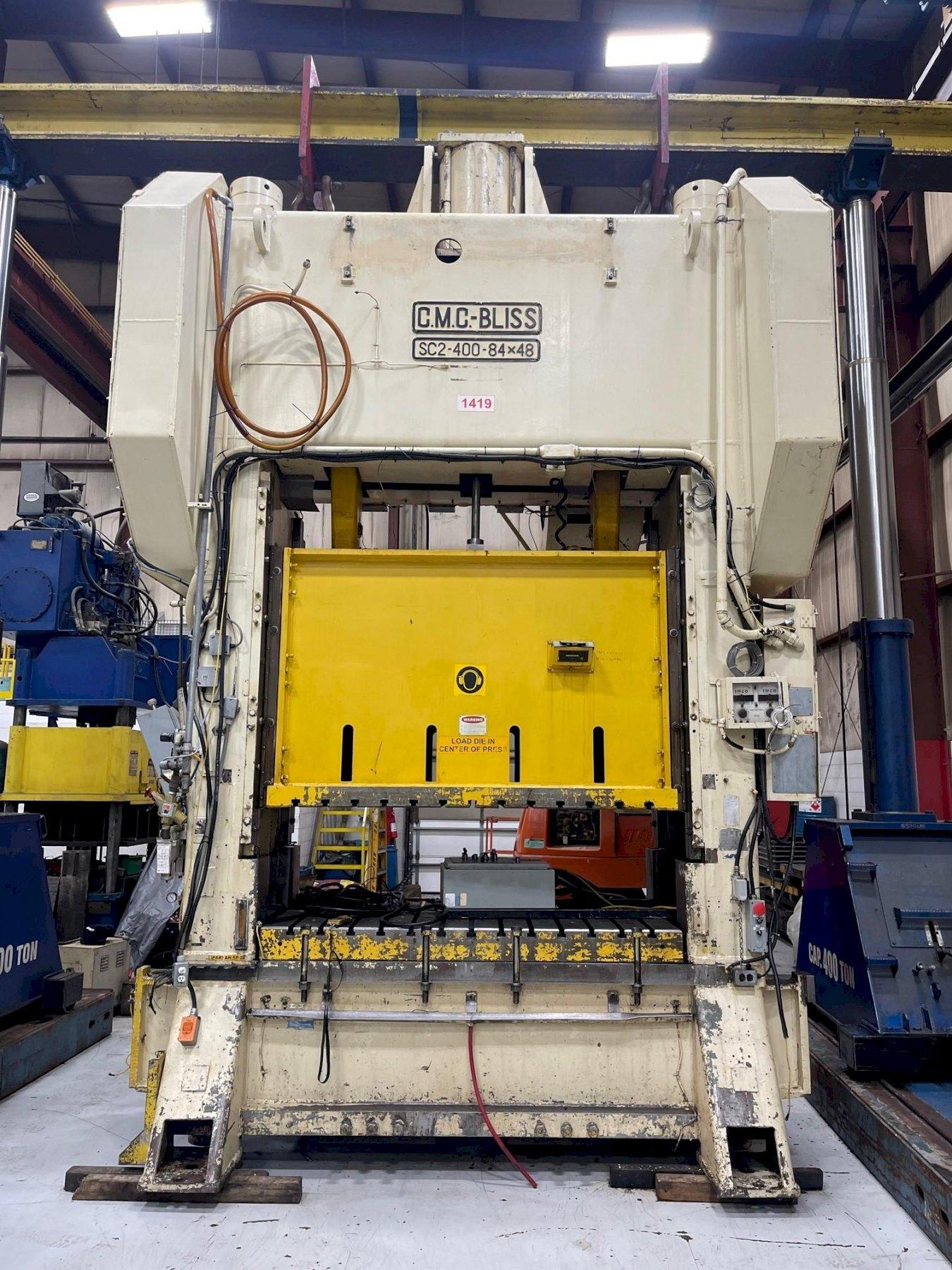

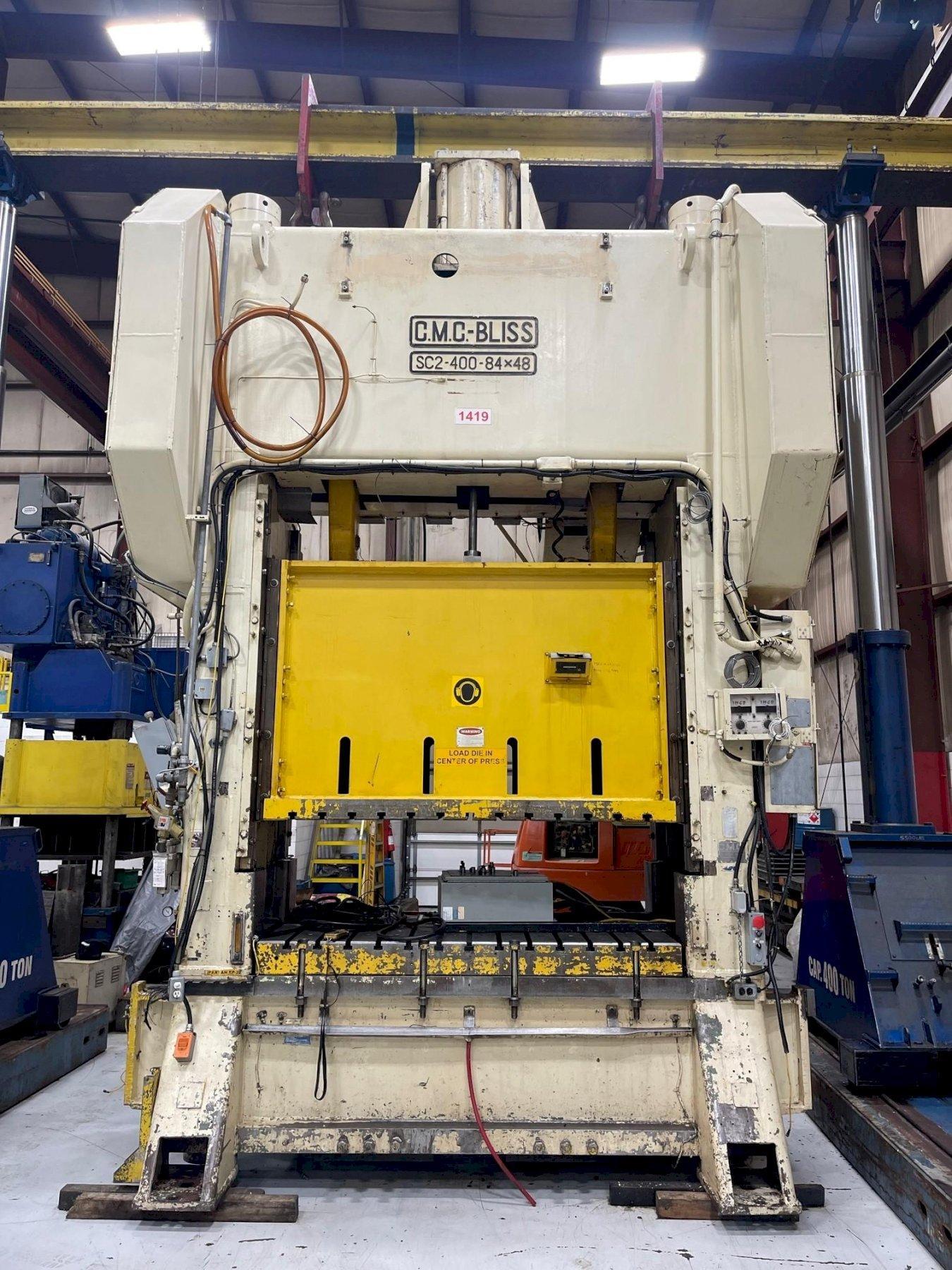

This Used 400-ton Bliss Press can be seen under power in the S&G Press Livonia Michigan Warehouse!

Used 400-ton Bliss Mechanical Metal Stamping Straight Side Press For Sale
