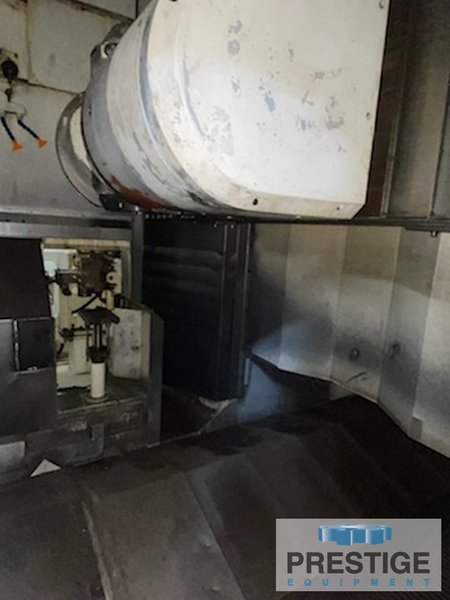

Mazak Integrex E1060V,5-Axis,X-73.8",Y-41.7",160 ATC,2APC,Spdl 10K RPM,Table 500 RPM, Mazatrol PC Fusion 640M CNC #31946

Manufacturer

MAZAK

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

31946

Model

e1060

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31946
Mazak Integrex E-1060V/8 5-Axis CNC Turning and Milling Center

FEATURES:
MAZATROL PC Fusion 640M Pro CNC Control with E-Tower
160 Station Automatic Tool Changer
2-Station Automatic Tool Changer
E-Machine Die Mold Package

CAPACITY:
X-Axis, Table Travel .................. 73.82"
Y-Axis, Spindle Head Horiz Travel ..... 41.73"
Z-Axis, Spindle Head Vertical Travel .. 52.95"
B-Axis, Spindle Head Tilt ............. -30/+120 (150 Deg.)
C-Axis, Table Rotation ................ 360,000 Position
Maximum Machining Diameter ............ 49.21"
Maximum Workpiece Size ................ 49.21" x 49.21"
Pallet Size, Square ................... 39.37" x 39.37"
Pallet Size, Round .................... 39.4" Diameter
Machining Spindle Speed Range ......... 35-10,000 RPM
Spindle Taper ......................... CAT 50
Spindle Motor ......................... 50 HP / 40 HP
Turning, Maximum Table Speed Range .... 500 RPM
C-Axis Indexing ....................... 0.0001 Degrees
Table Motor ........................... 50 HP / 40 HP
Rapid & Cutting Feed Rates, X,Y,Z ..... 1654 IPM
Electrics ............................. 230/460/3/60
Machine Footprint L X D ............... 409" x 303"
Machine Weight ........................ 81,600 lbs

EQUIPPED WITH:

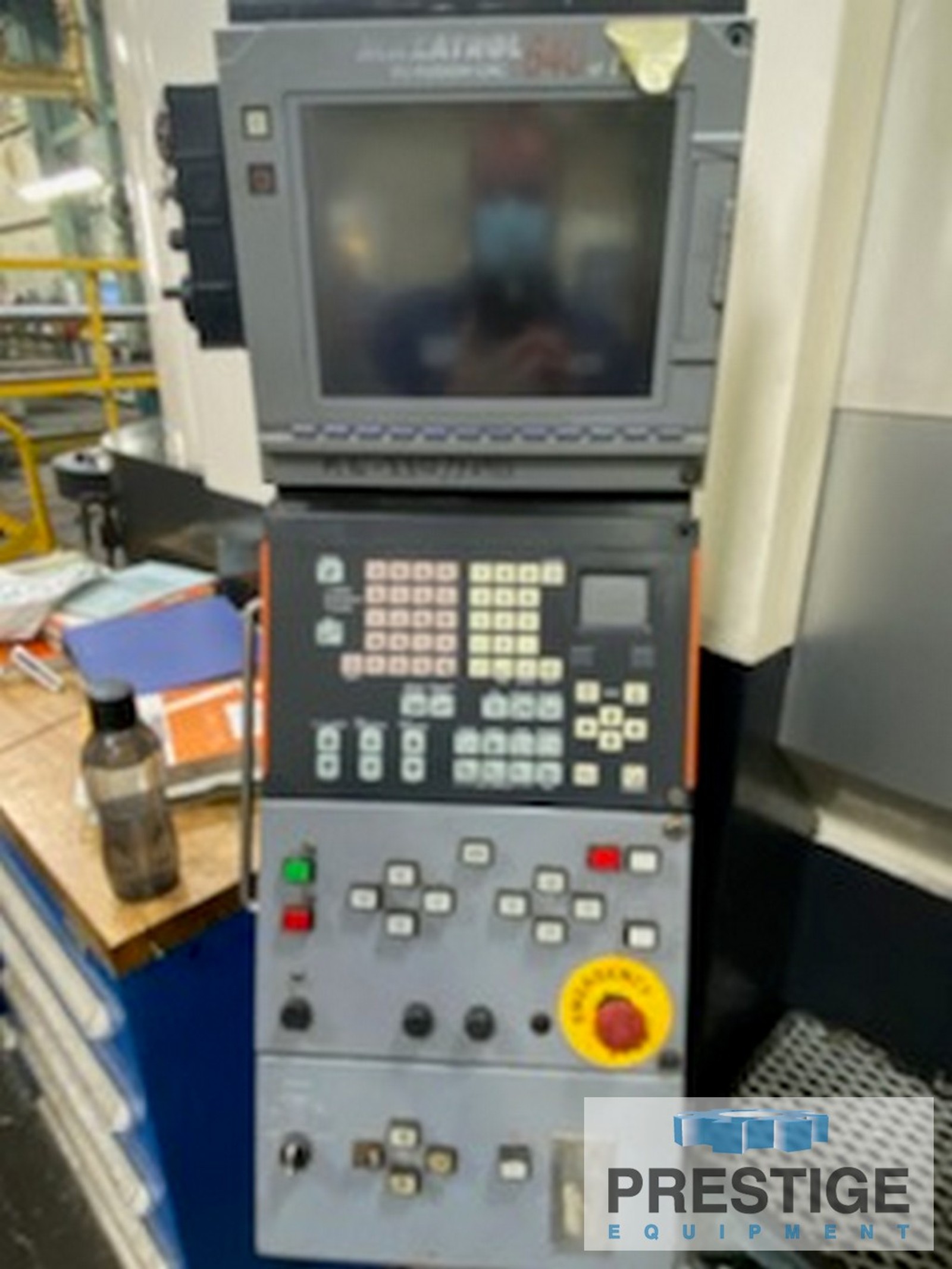

Mazatrol PC Fusion 640M Pro CNC Control with E-Tower

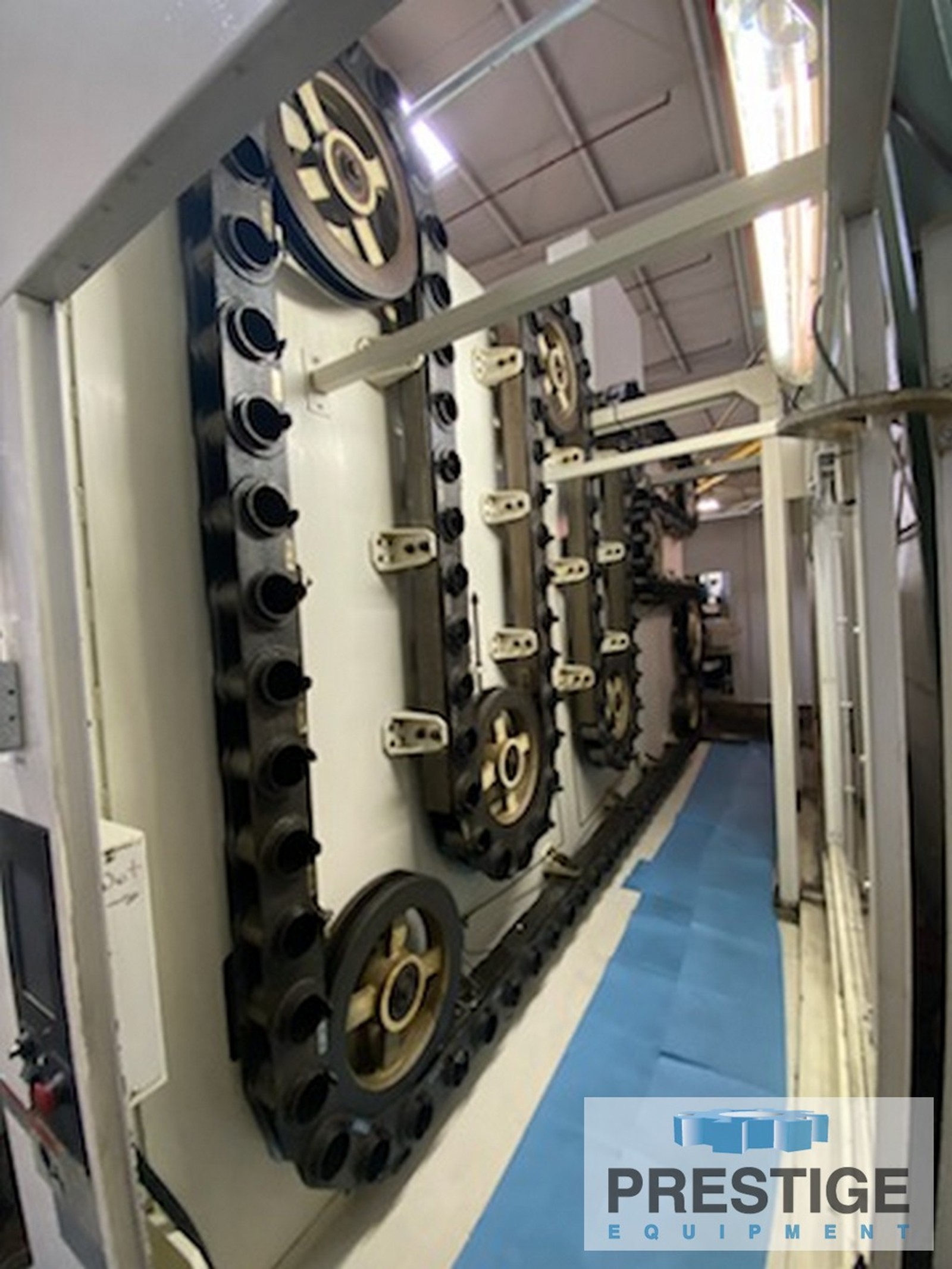

160-Station Automatic Tool Changer

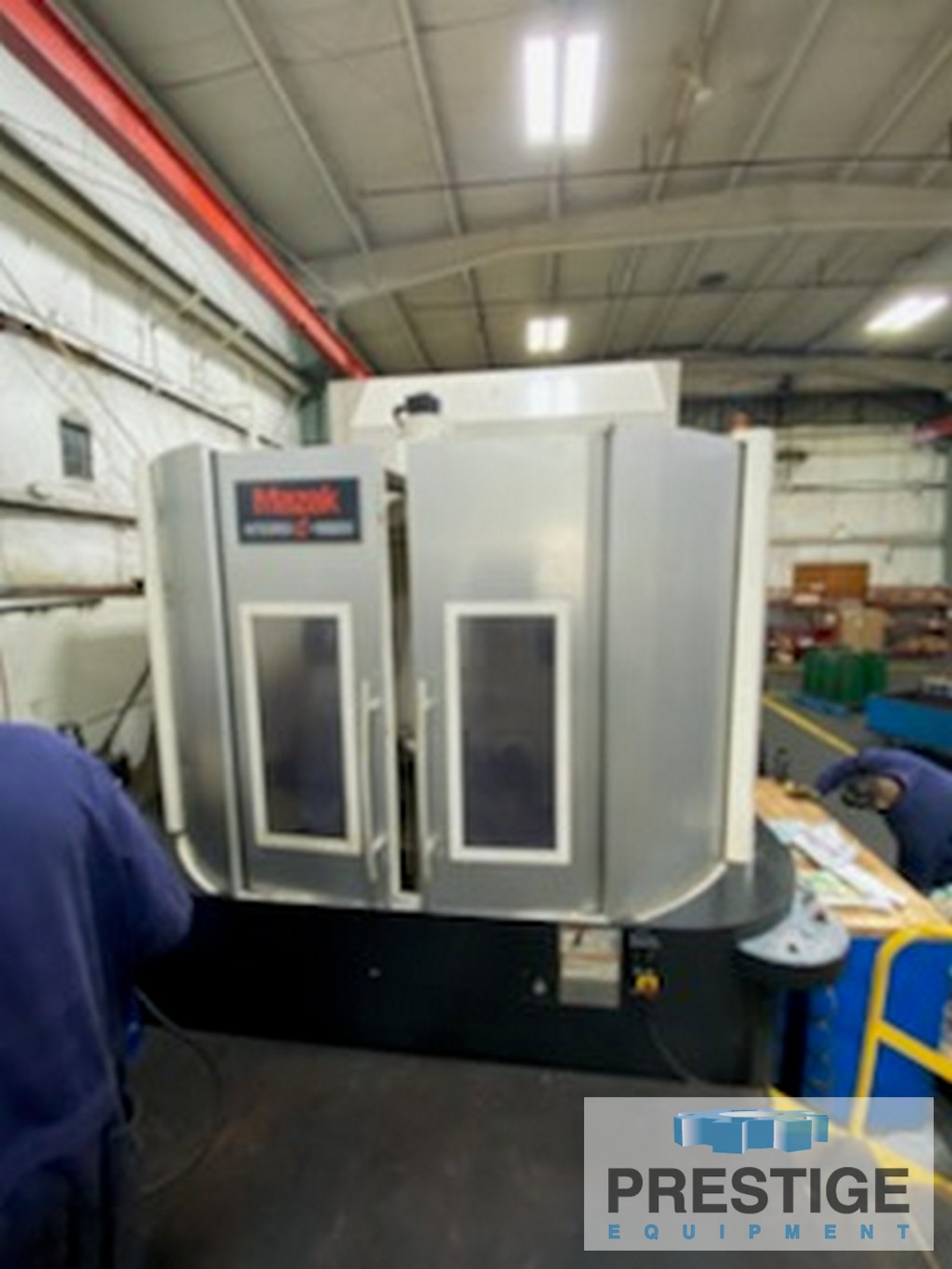

2-Station Automatic Pallet Shuttle
E-Machine Cybertec CNC Option
Inch/Metrc Conversion
Network Interface for LAN & Modem
E-Mach Die Mold Package
1000 PSI High Pressure Coolant Through Spindle w / Mazak Superflow V8M
Manual Pulse Generator (Detachable)

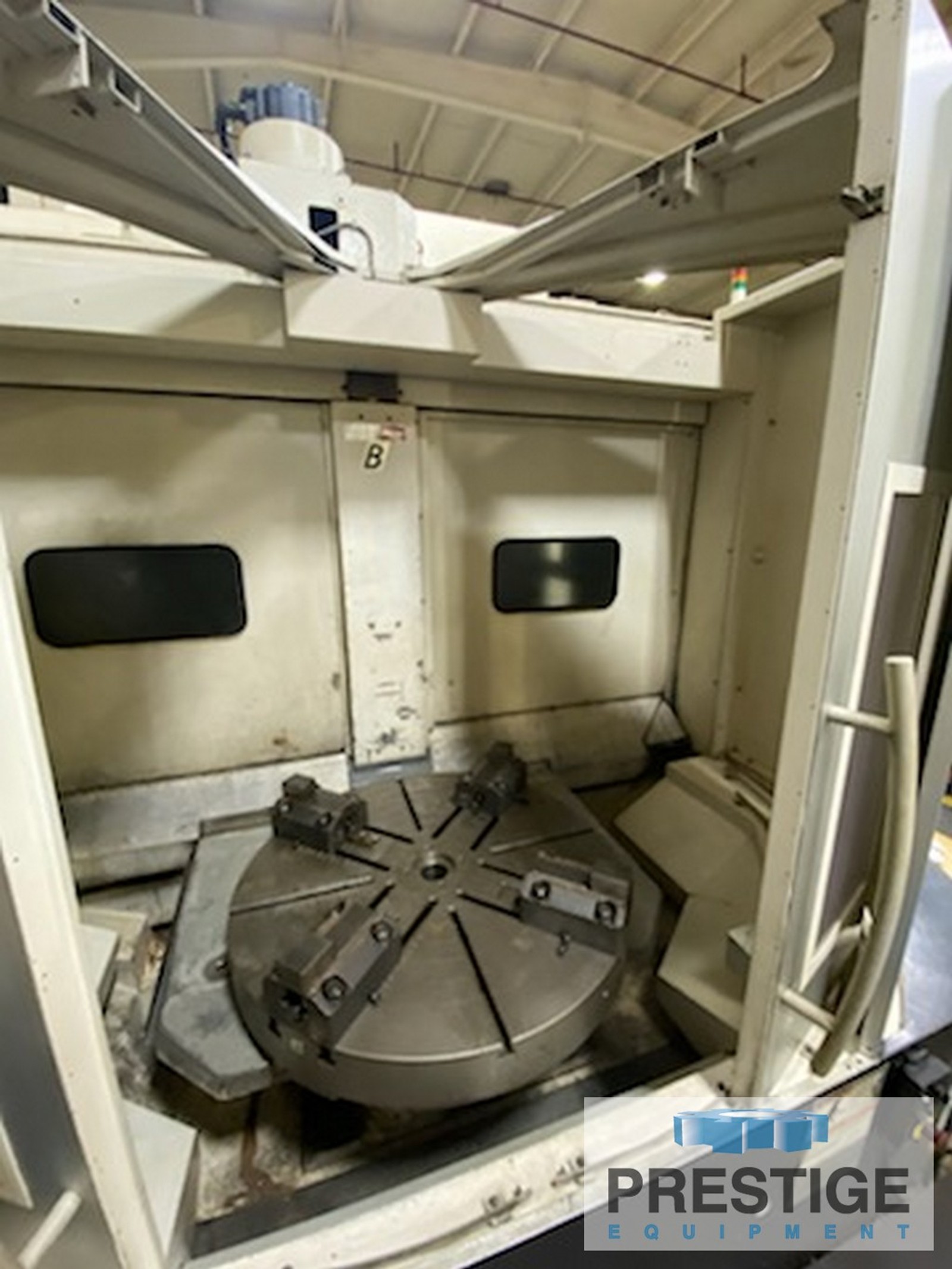

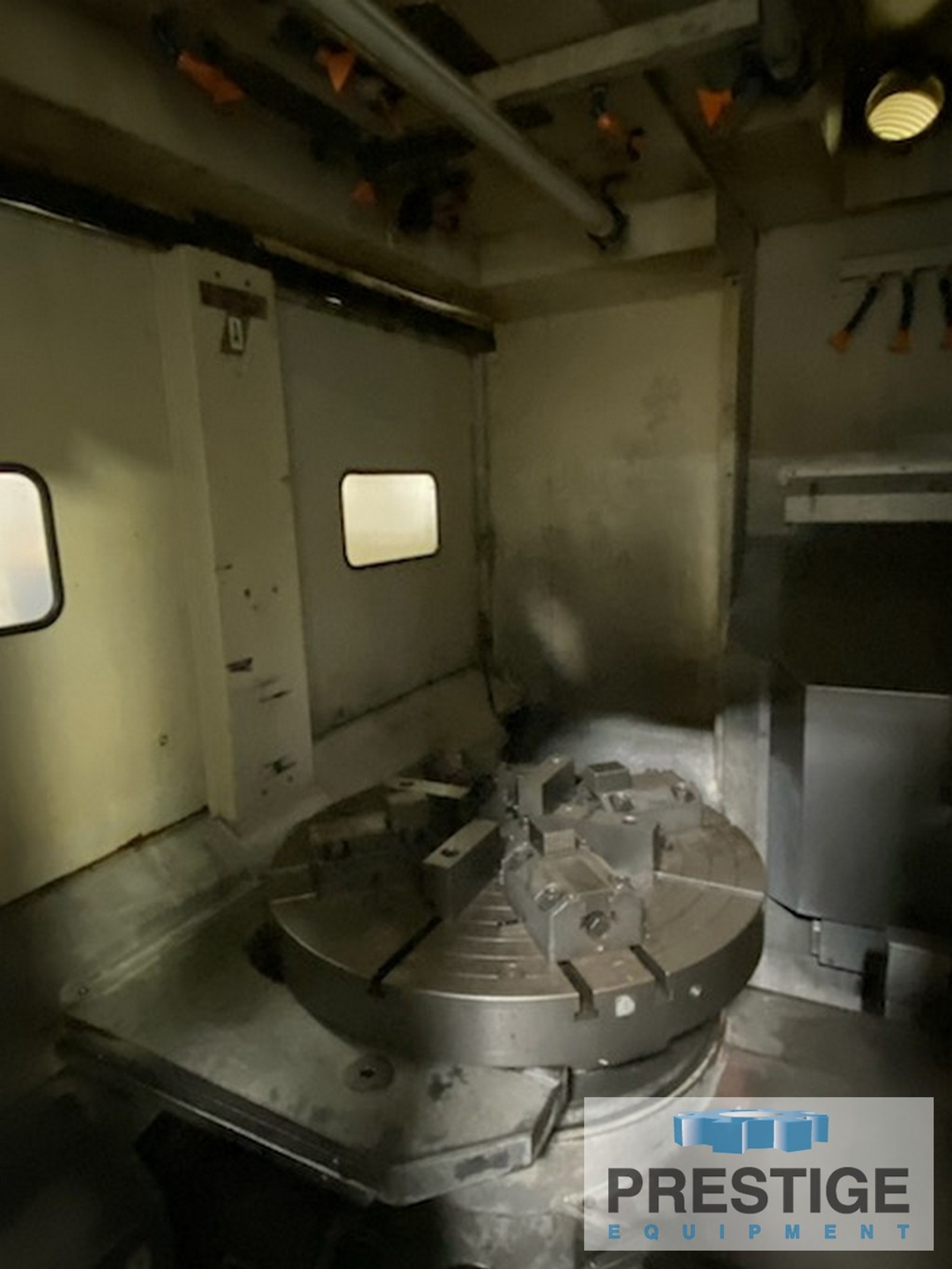

(2) 39.4" Diameter Pallets w/ 4-Top Jaws Each
(2) 39.4" Square Pallets
Tool Eye Automatic
Chip Conveyor System
Coolant washdown at operator and pallet load stations
Heidenhein linear scales X, Y, Z
Spindle Air Blow
Power Indexing At Work Load Station
Renishaw NC4 laser tool measurement
Renishaw Probe
Hydraulic pressure interlock
Auto power on/off/warm-up
8MB program storage
Mill spindle synchronous tapping
Background tool path check
Tool breakage detection
Adaptive feedrate control
Tool life monitoring
Renishaw advanced probe macros / Inspection plus
3D coordinate rotation G68.2
EIA simultaneous 5-axis
Tool tip point control 5-axis
Simultaneous 5-axis tool radius comp.
G00 slope constant
Cylindrical G07
Mazacc-3D high speed software package
Additional EIA / ISO function
