250 TON WATSON STILLMAN INCLINED HYDRAULIC WHEEL / BEARING PRESS: STOCK #15913

Manufacturer

WATSON STILLMAN

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

15913

Model

250 TON

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

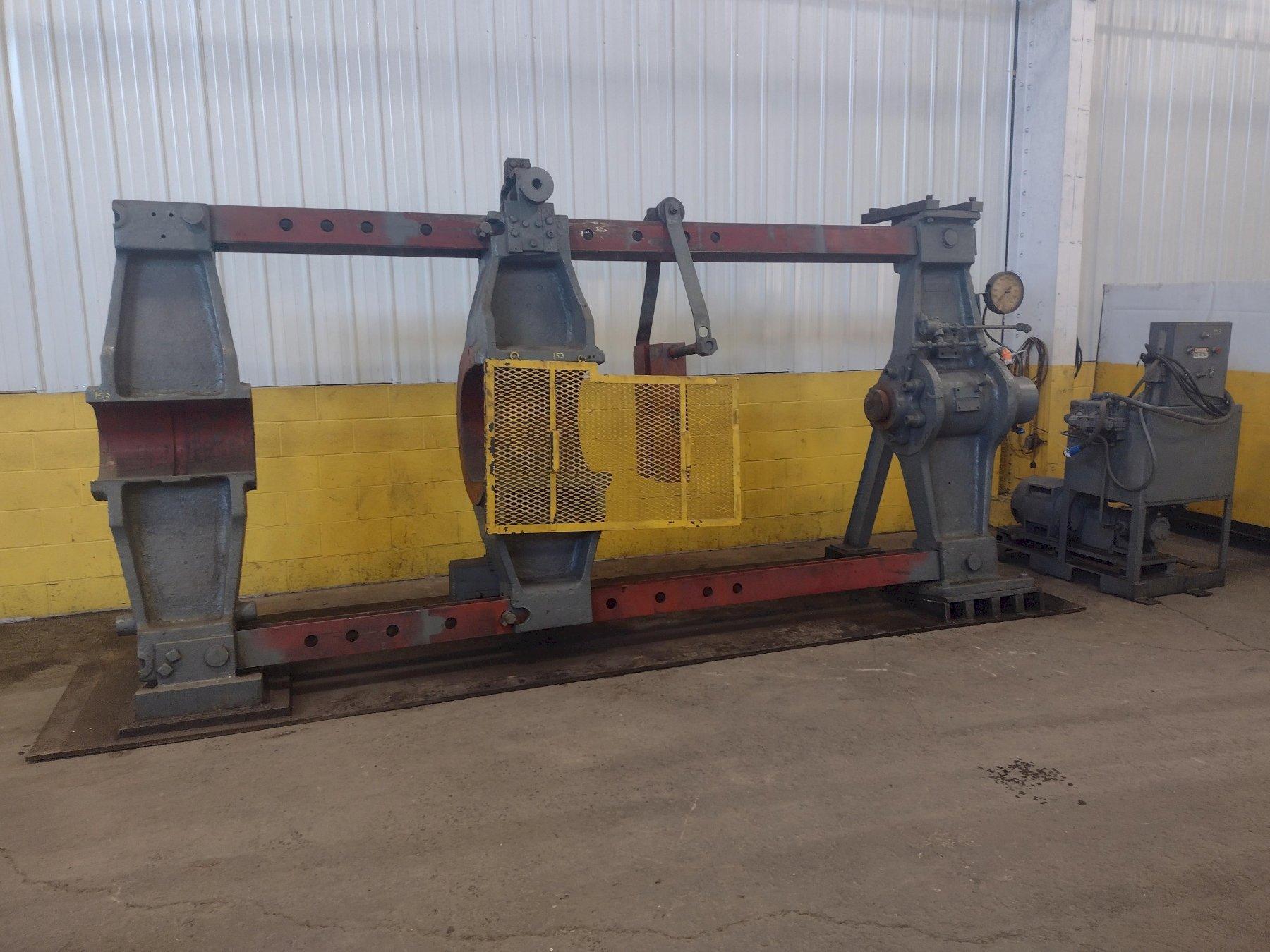

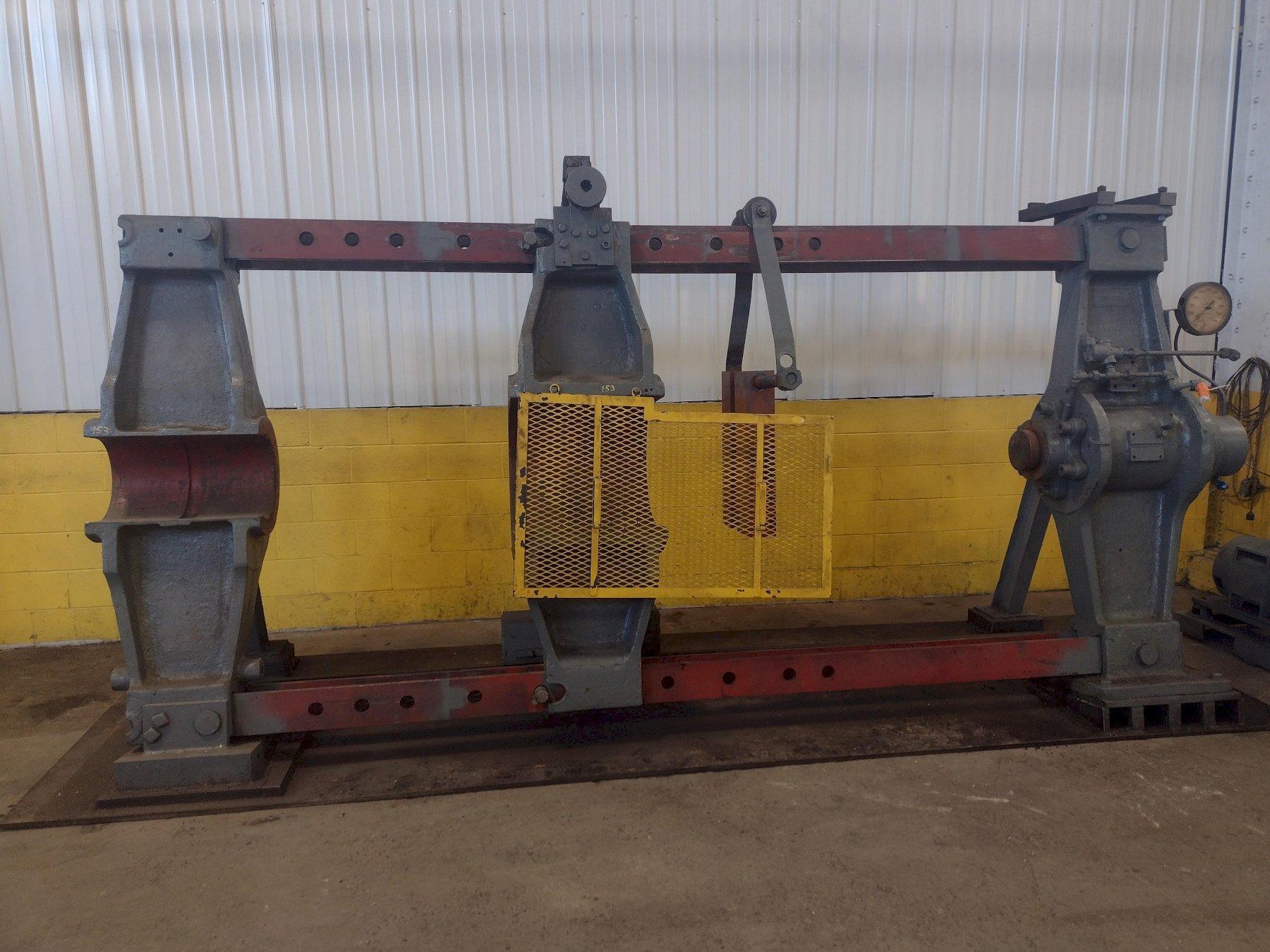

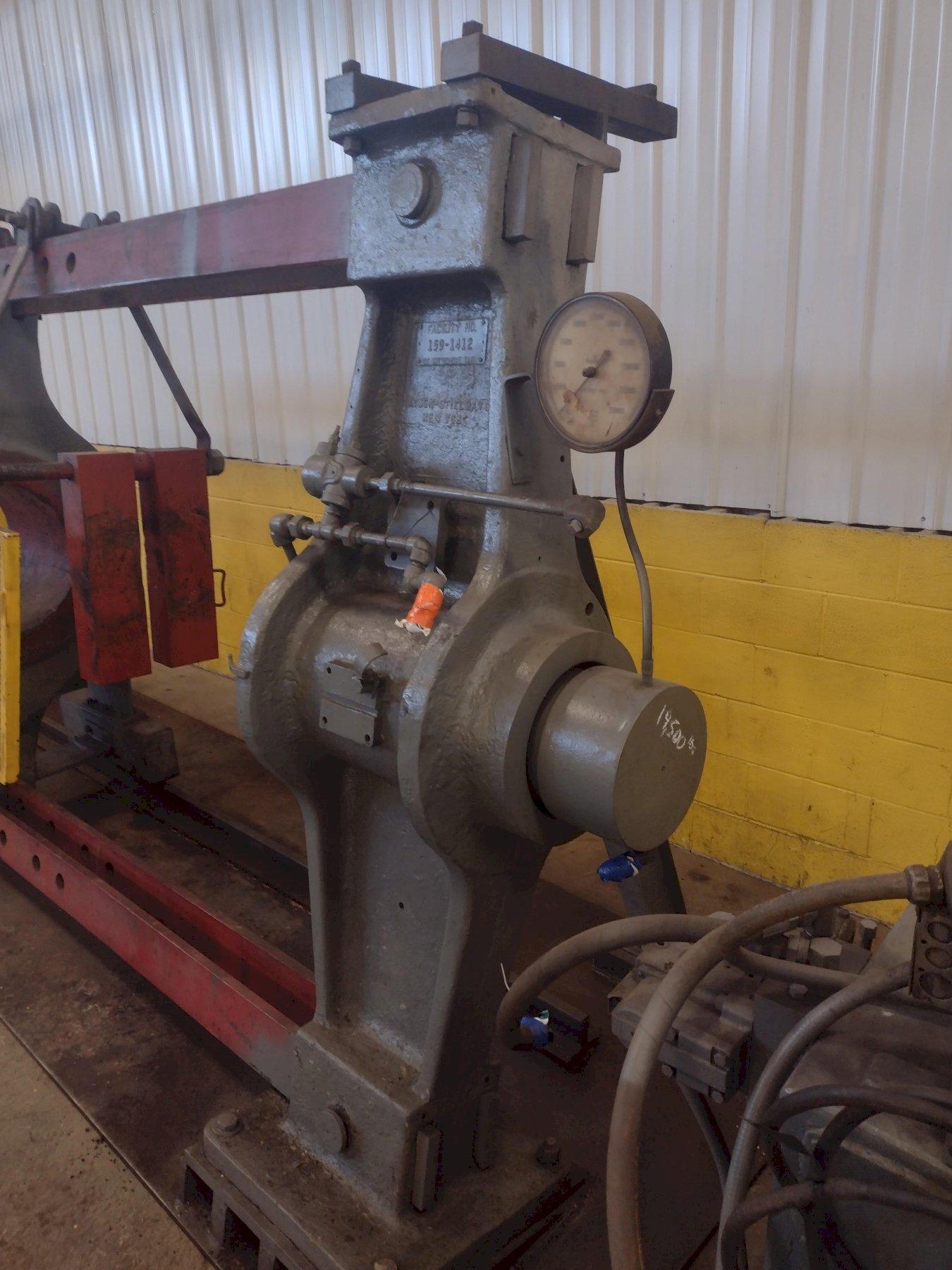

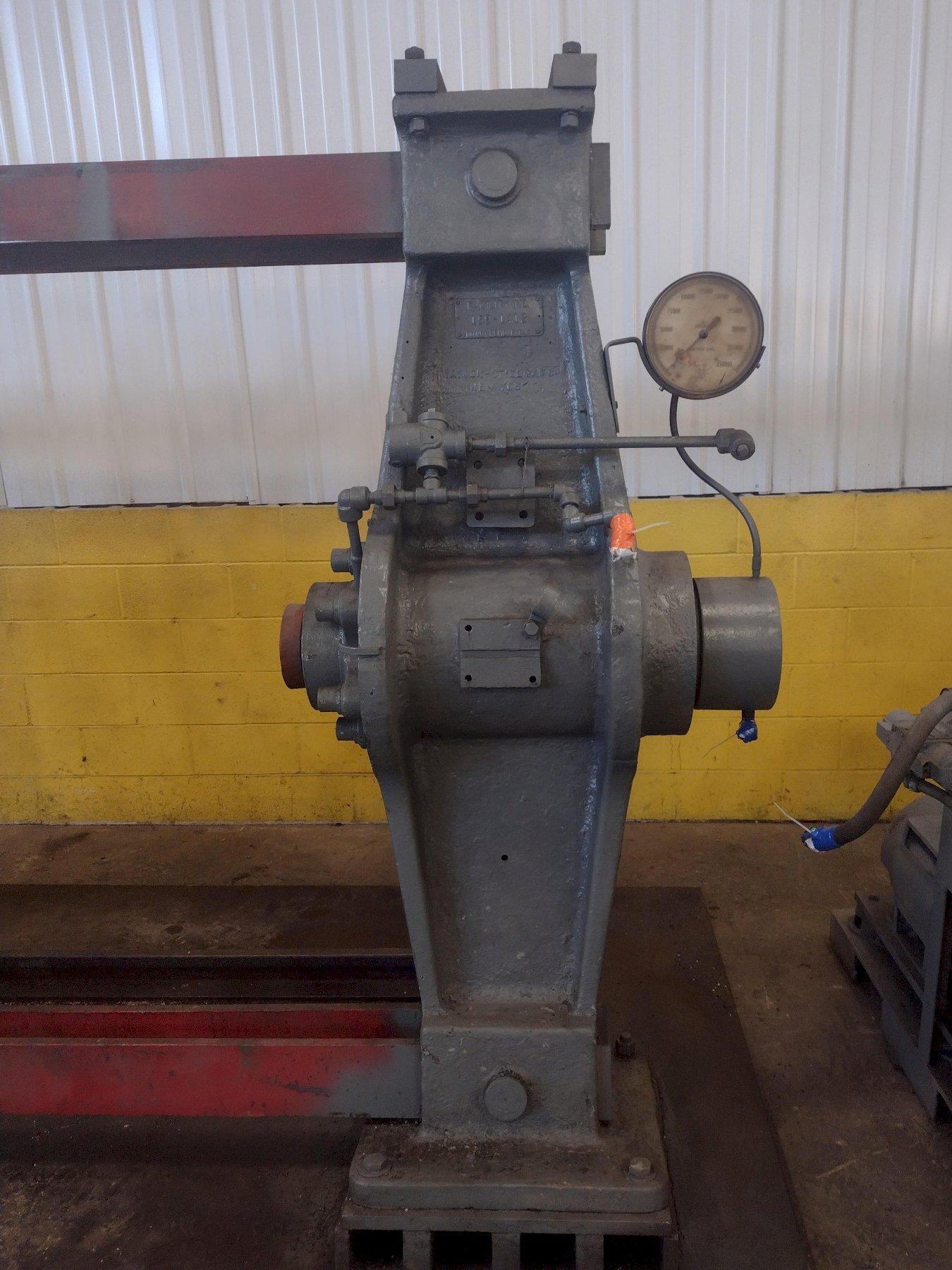

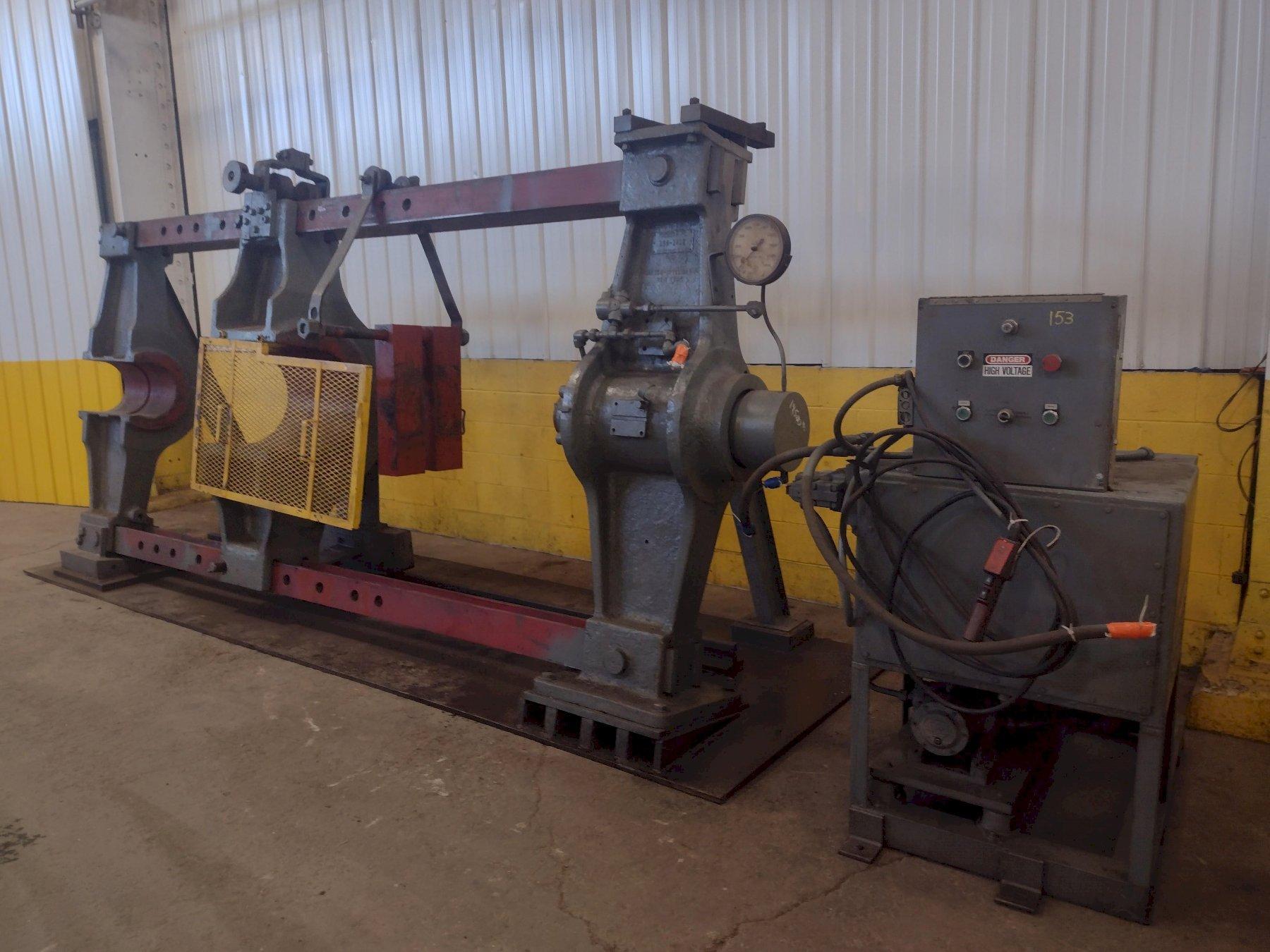

WATSON STILLMAN HORIZONTAL HYDRAULIC WHEEL PRESS

INCLINED CONTRUCTION .......... YES
ONE PIECE STEEL BASE .......... YES
CAPACITY ...................... 250 TONS
RAM DIAMETER .................. 7"
STROKE OF RAM ................. 16"
VERTICAL BETWEEN STRAIN BARS .. 64"
HORIZONTAL BETWEEN BARS ....... 6.25"
FLOOR TO CENTER LINE OF RAM ... 43"

RESISTANCE BLOCK #1 HOLE ...... 20" OD X 20" WIDE
DISTANCE RAM TO BLOCK #1 ...... 20" TO 100" TO FRONT
RAIL ADJUSTMENT POINTS ........ 2" HOLES ON 6.5" CENTERS

DISTANCE RAM TO BLOCK #2 ...... 124" TO FRONT; 138" TO CENTER
RESISTANCE BLOCK #2 HOLE ...... 12" OD x 24" WIDE

HYDRAULIC UNIT MOTOR .......... 30 HP
