16261
None listed
Ohio

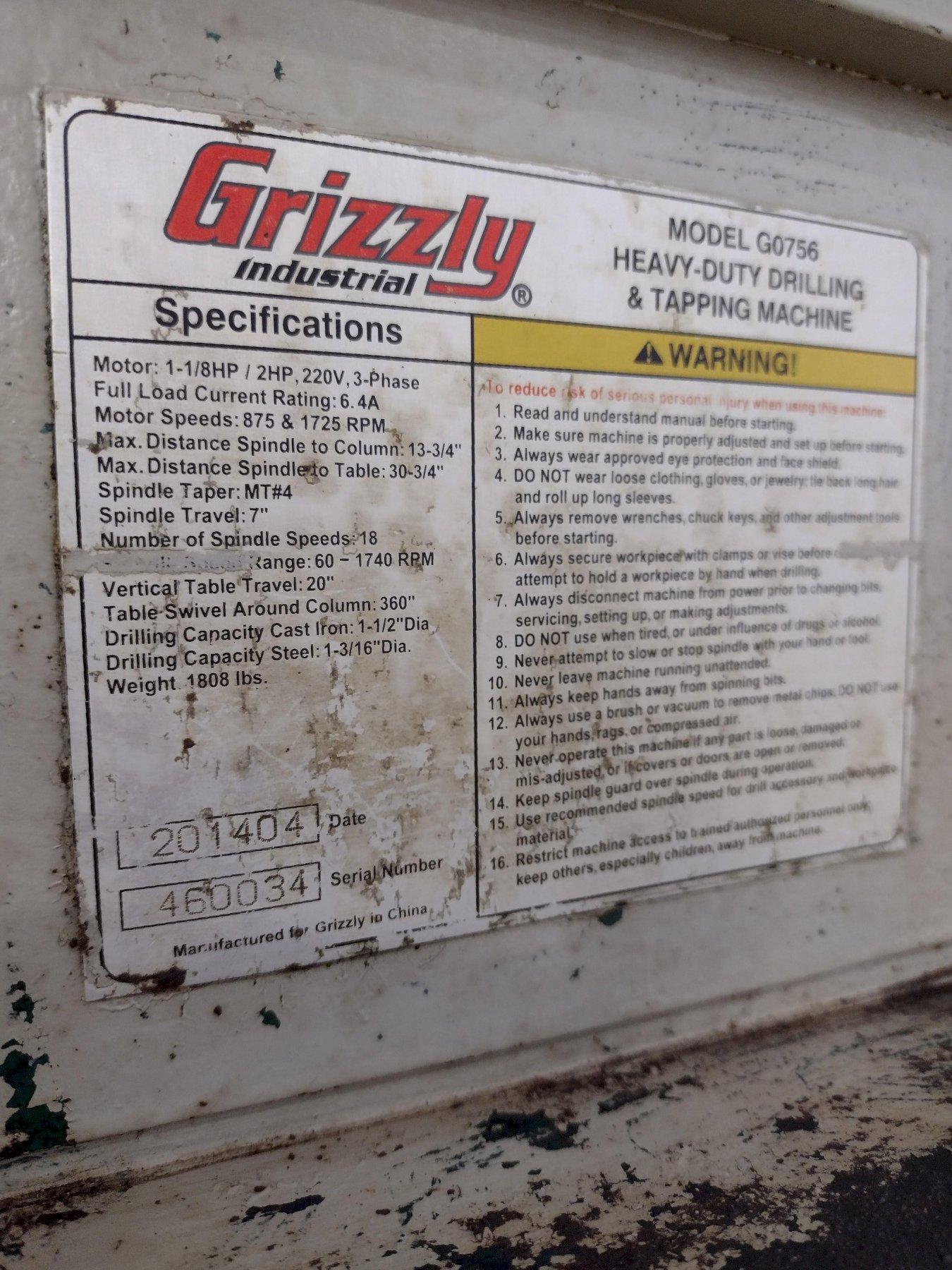

SERIAL .............. 460034
NEW ................. 2014.04

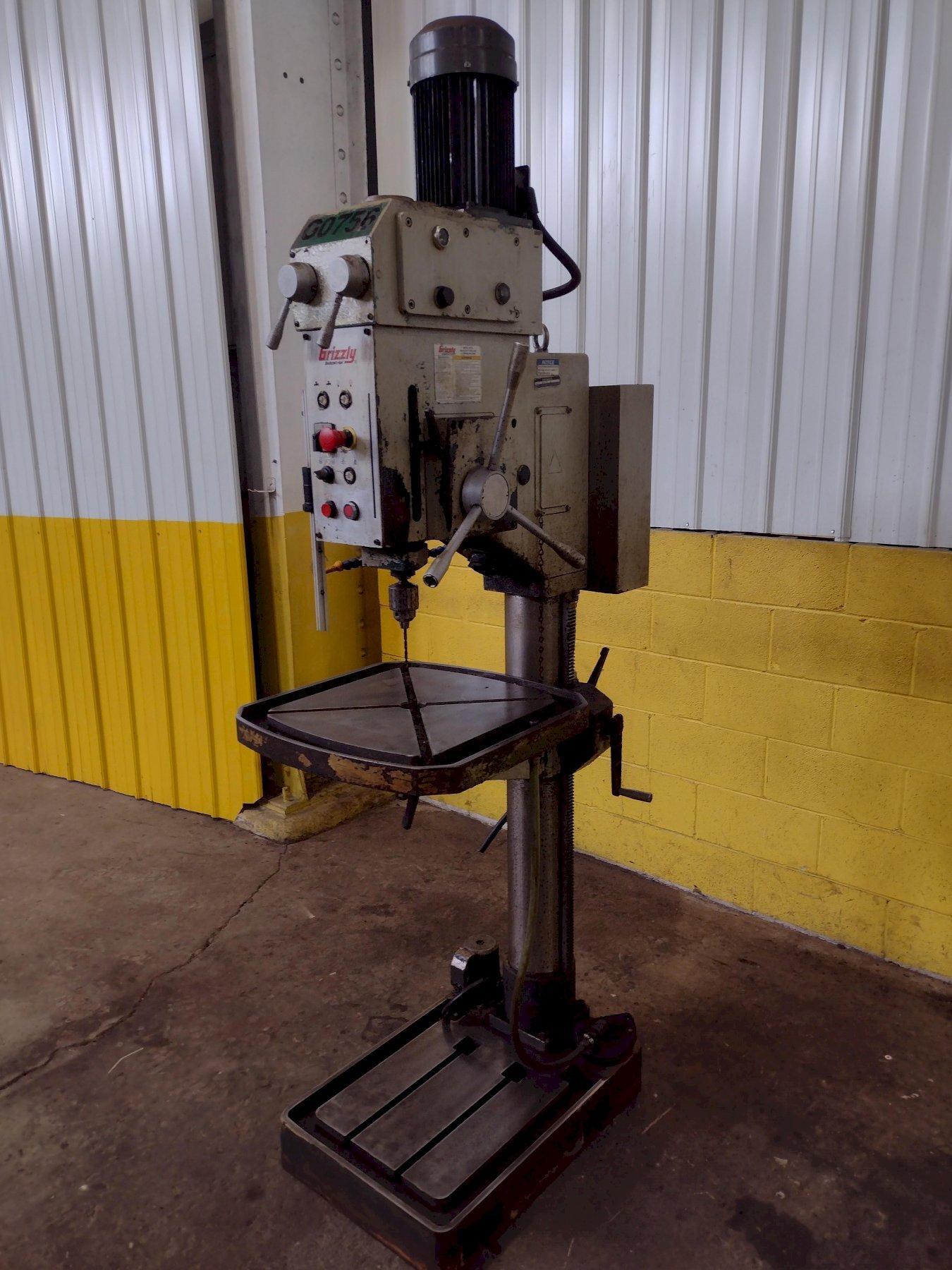

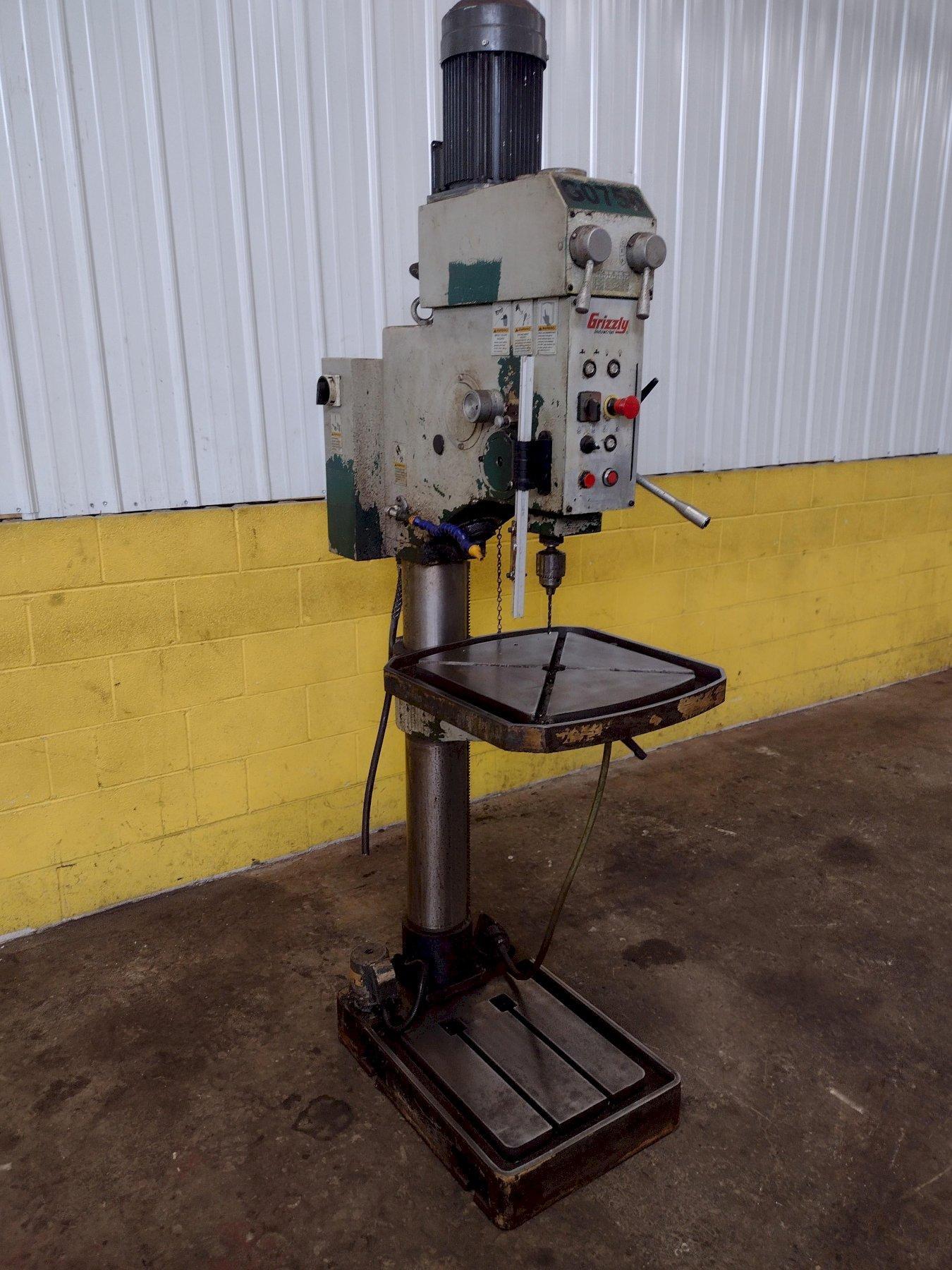

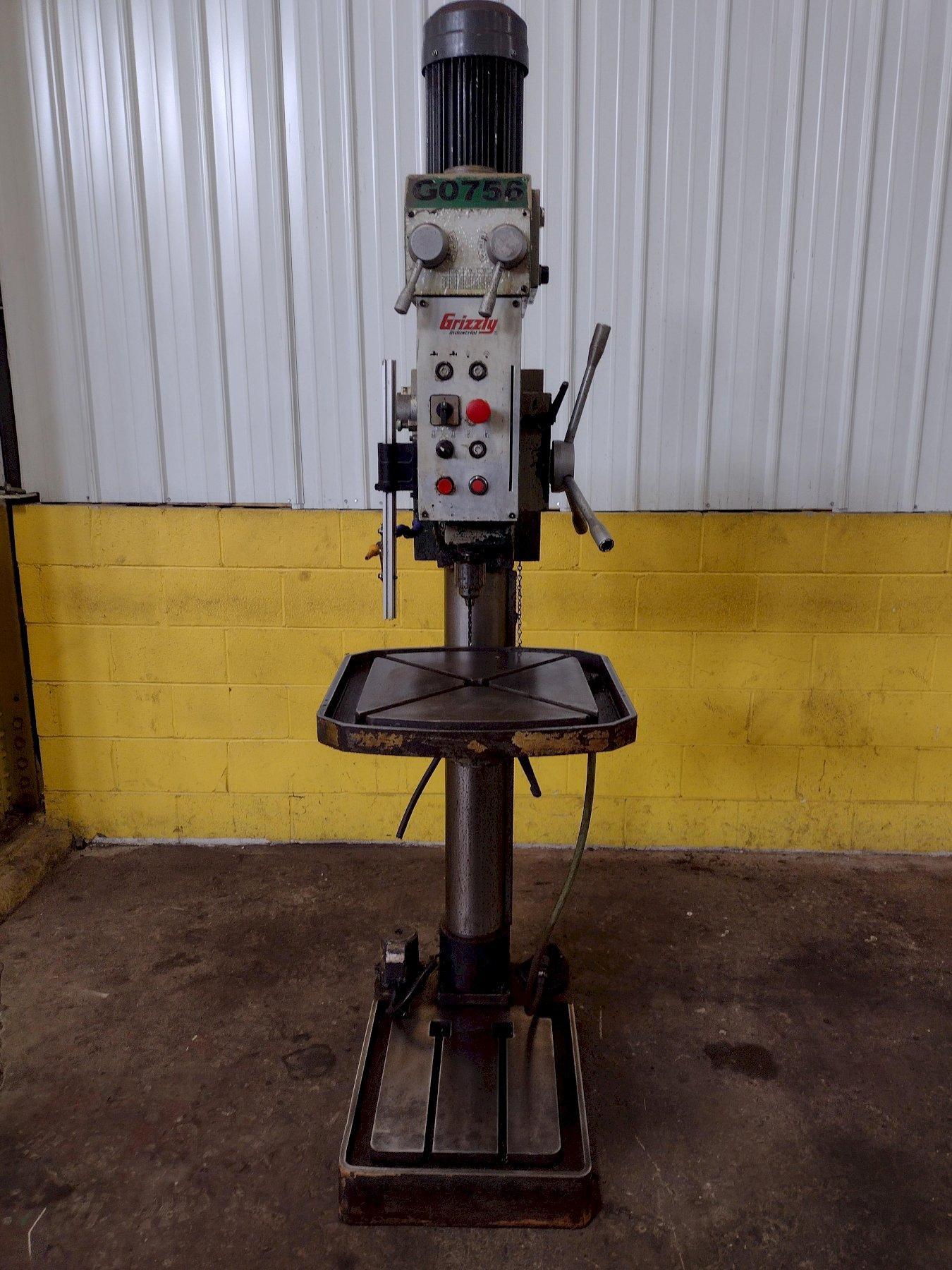

MODEL ............... G0756 HEAVY DUTY
TYPE ................ DRILLING & TAPPING
SPINDLE TO COLUMN ... 13.75"
SWING ............... 27.5"

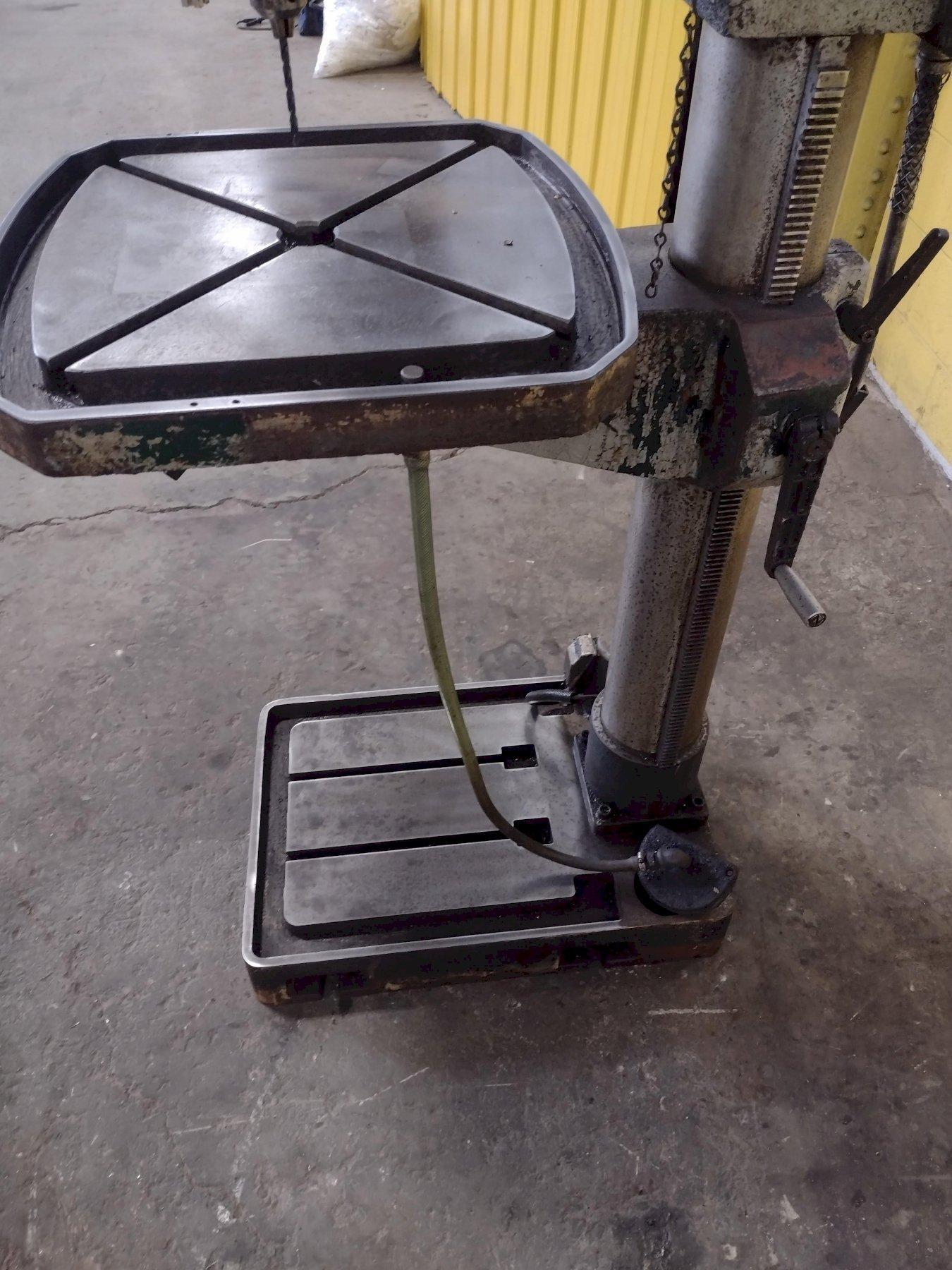

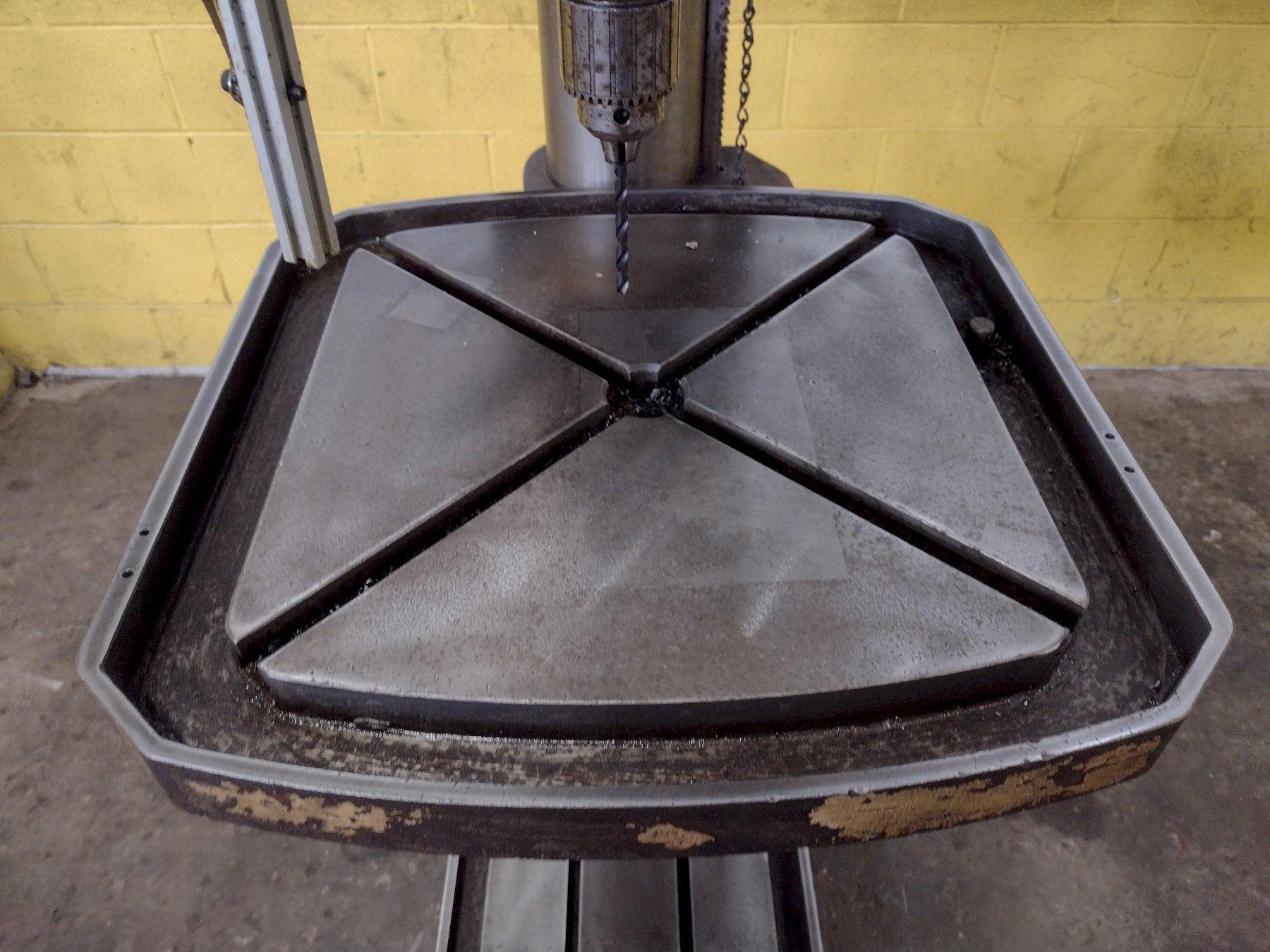

TABLE SIZE .......... 22" X 22"
SPINDLE TO TABLE .... 30.75" MAX
TABLE TRAVEL ........ 20" VERTICAL
TABLE SWING ......... 360 DEGREES

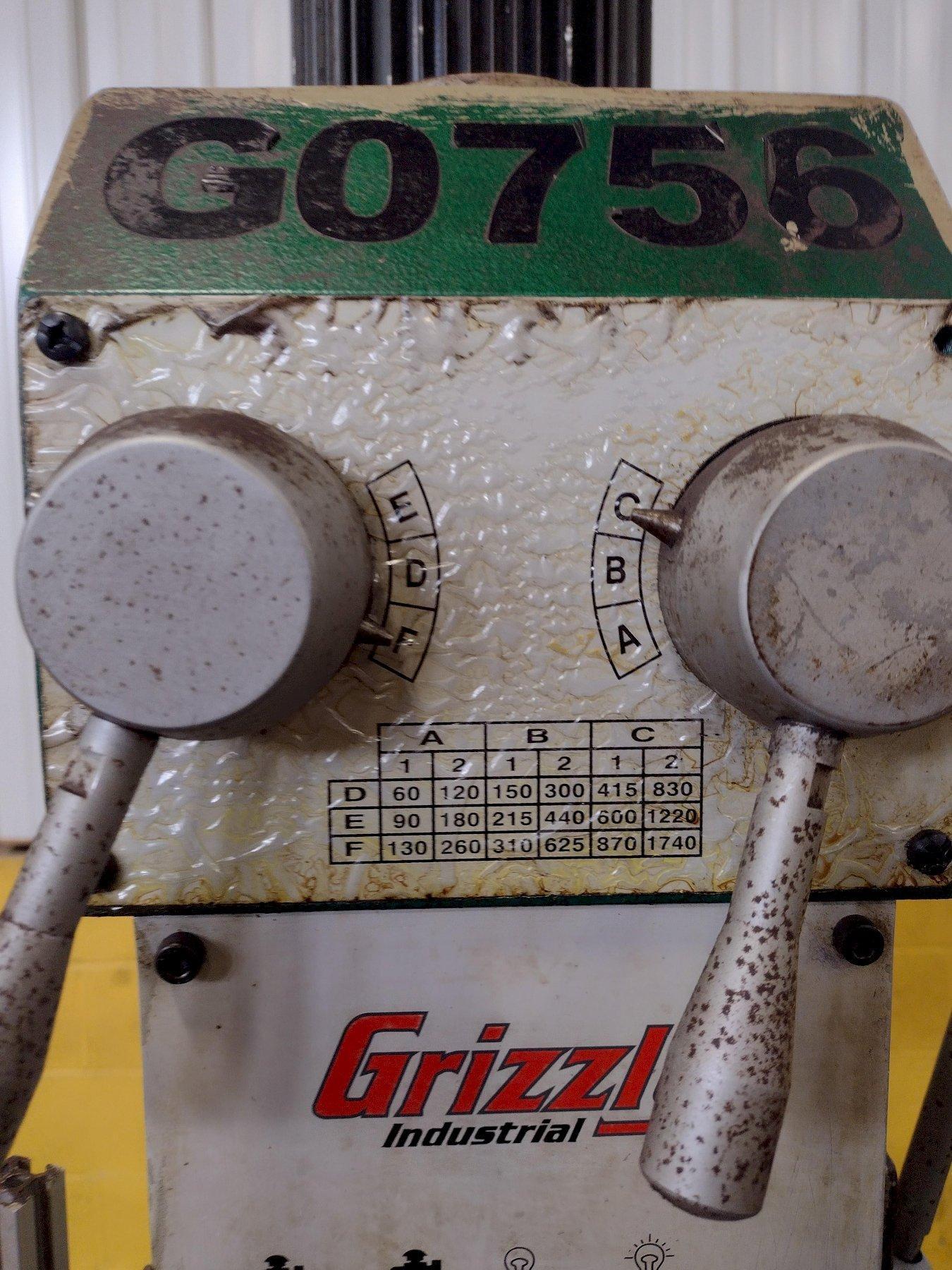

SPINDLE SPEEDS ...... (18) 16 TO 1740 RPM

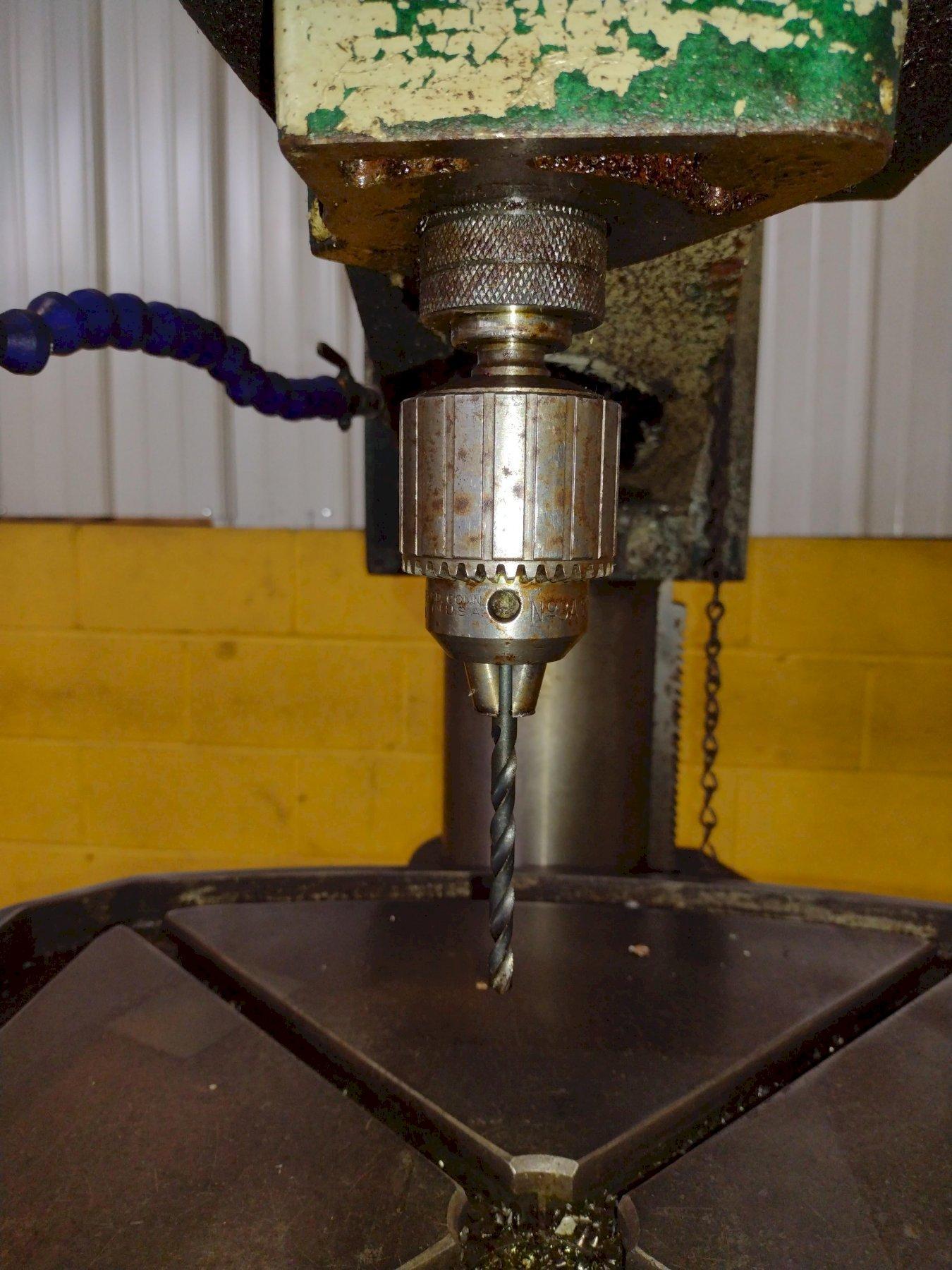

SPINDLE TAPER ....... #4 MT
SPINDLE TRAVEL ...... 7"
QUILL DIAMETER ...... 3"
QUILL FEED RATE ..... 0.004, 0.008 in./rev.
COOLANT PUMP ........ IN BASE

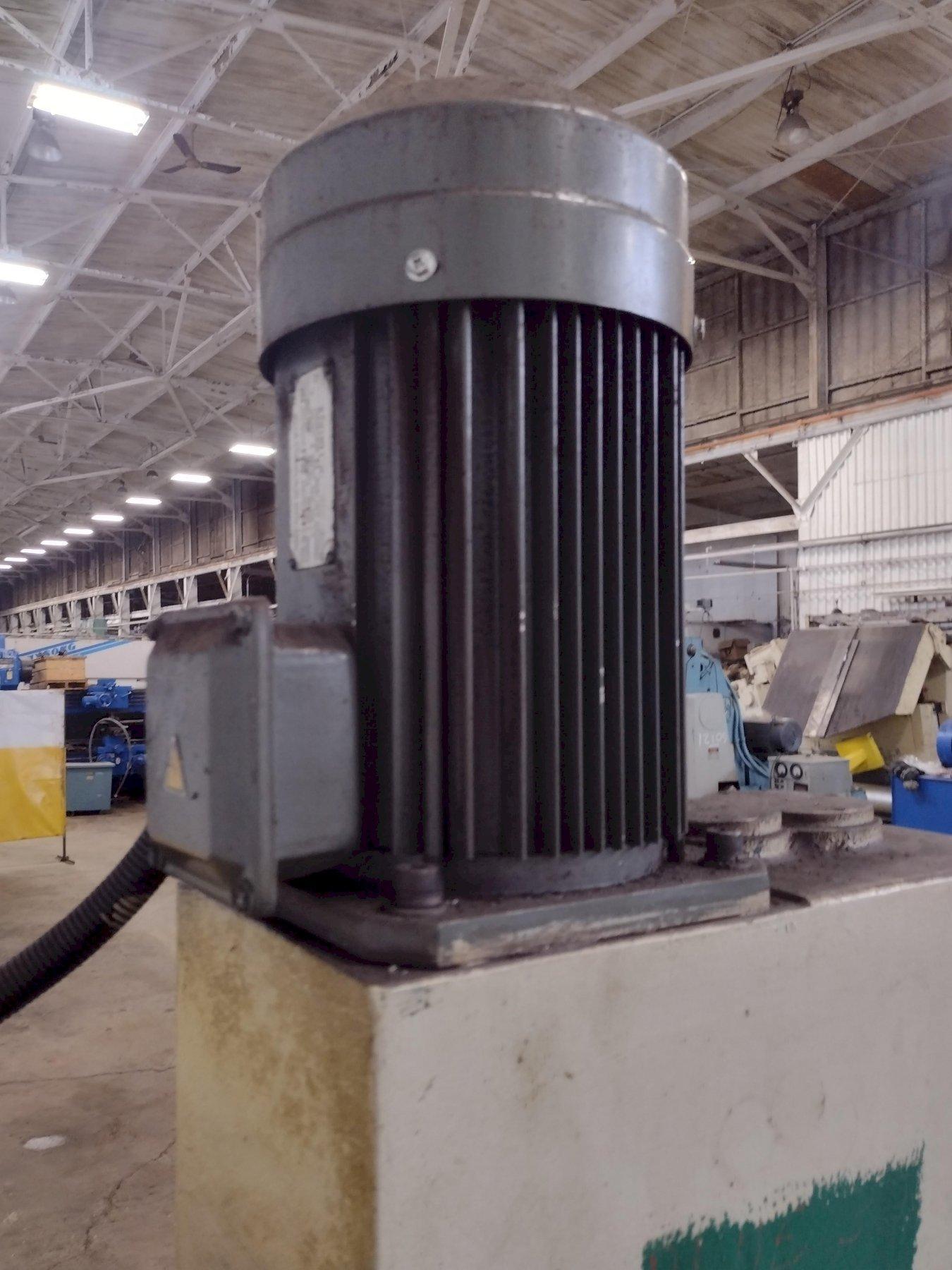

MOTOR ............... 1.8/2 HP
