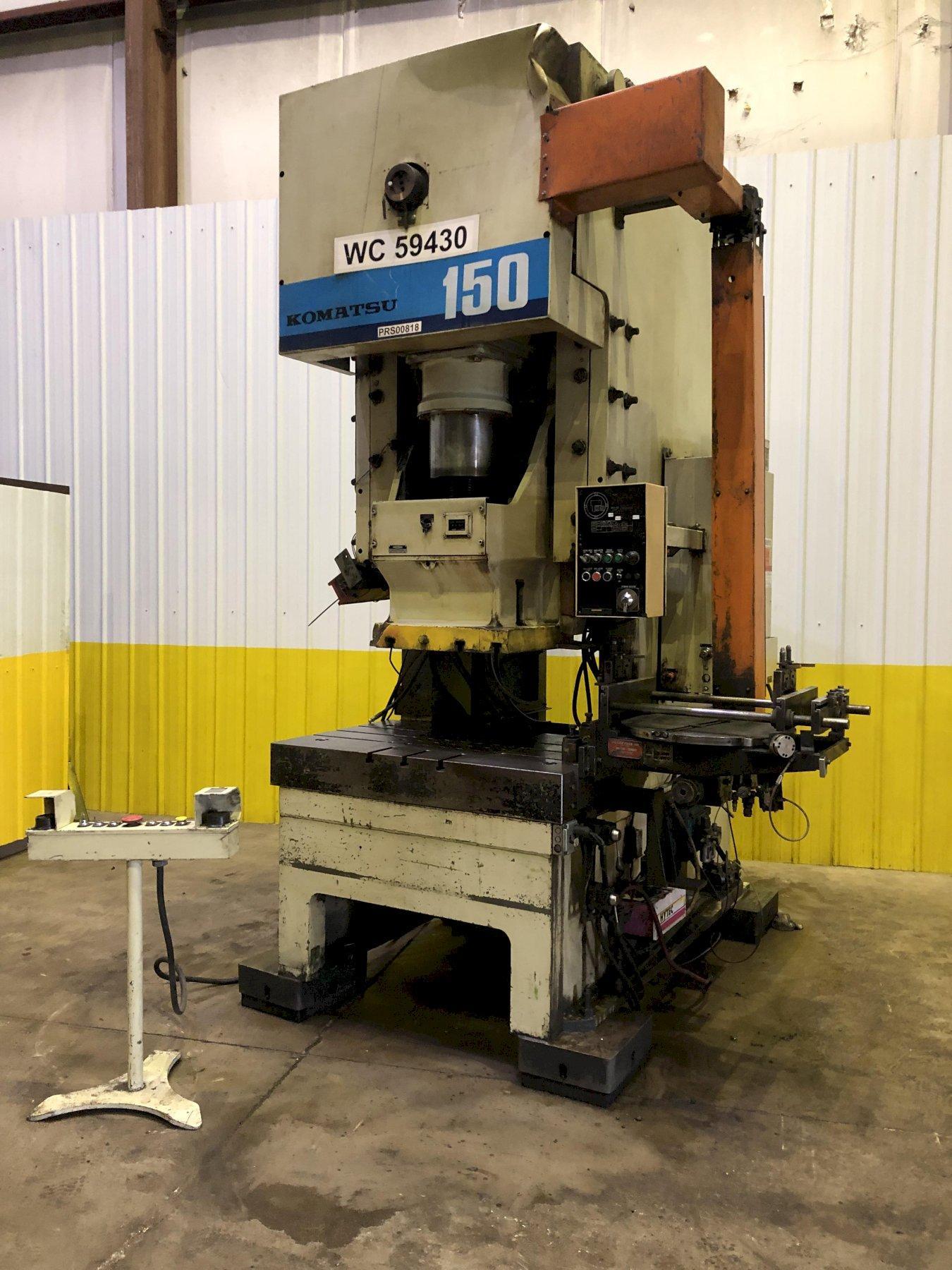

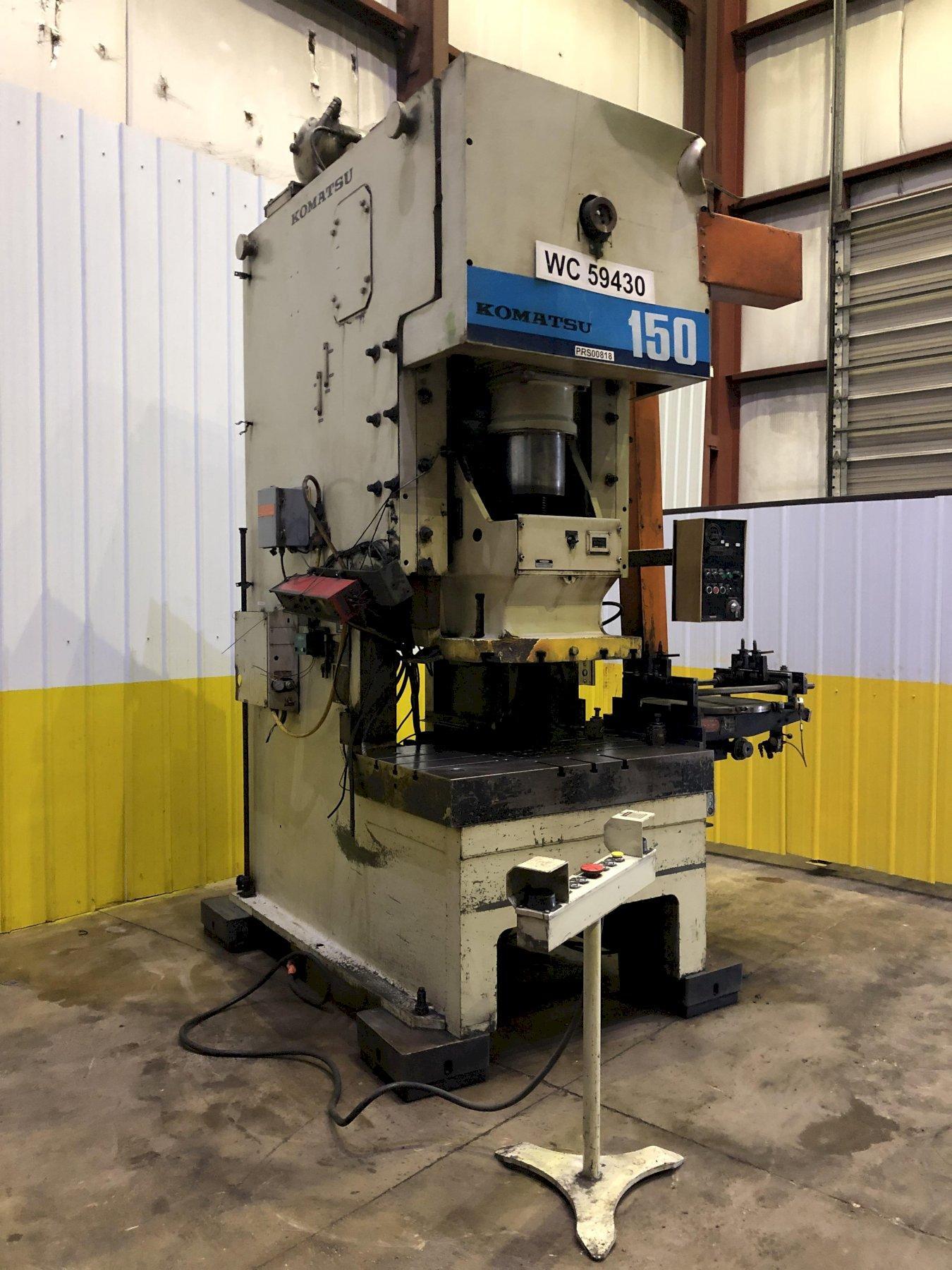

150 TON KOMATSU OBS GAP FRAME PRESS, 7.87" STROKE: STOCK 16340

Manufacturer

KOMATSU

Category

Presses

Type

PRESSES, GAP FRAME, (Double Crank)

Stock

16340

Model

150 TON

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

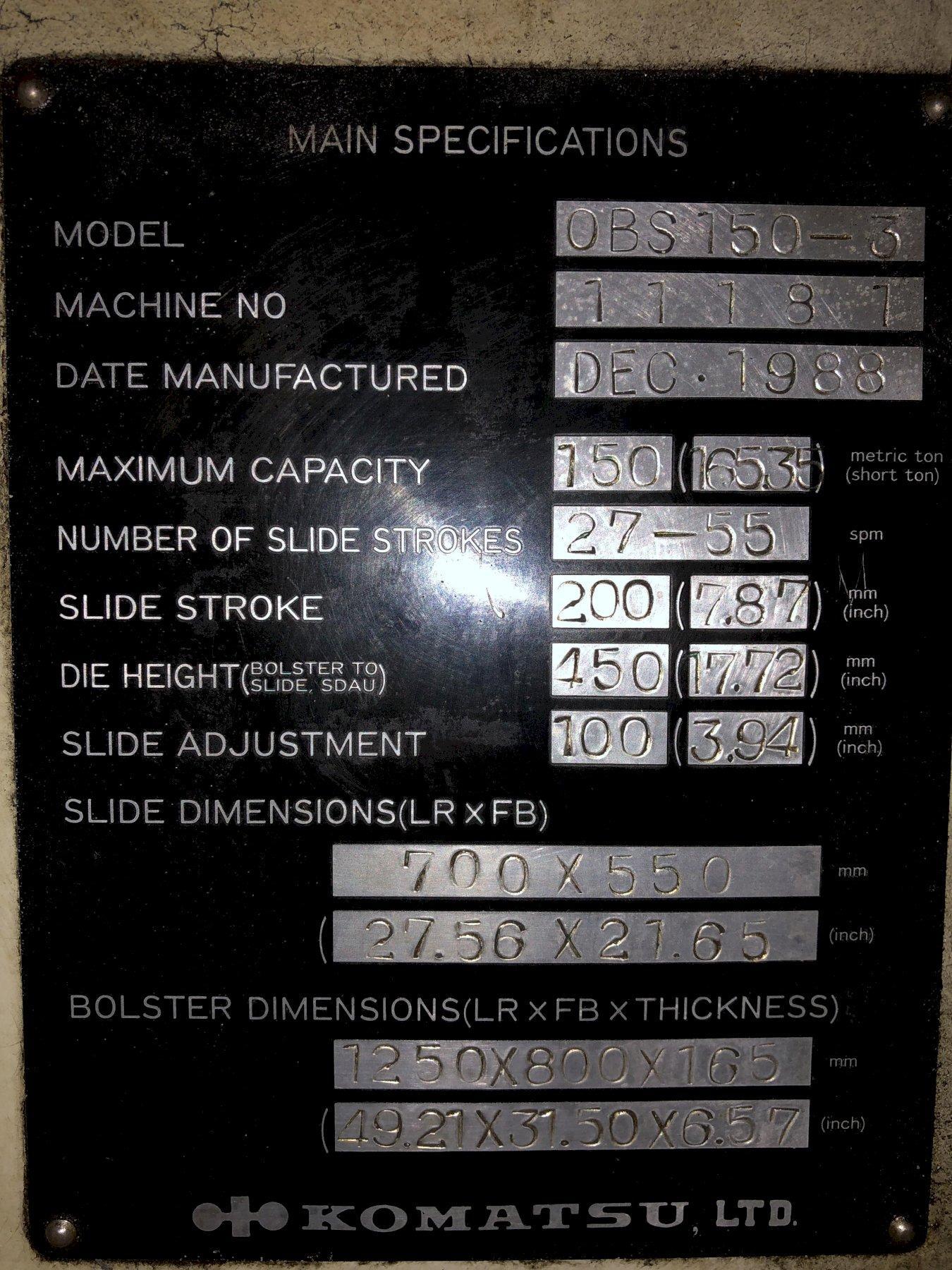

SERIAL ...................... 11181
MODEL ....................... OBS150-3
NEW ......................... 12-1988
CAPACITY .................... 165 TONS
STROKE ...................... 7.87" (200 MM)
ADJUSTMENT, MOTORIZED ....... 3.94" (100 MM)
SHUT HEIGHT OVER BOLSTER .... 17.72" (450 MM)
SHUT HEIGHT OVER BED ........ 21.29" (615 MM)
BOLSTER AREA ................ 49.2" L-R x 31.5" F-B (1250 X 800 MM)
BOLSTER THICKNESS ........... 6.57" (165 MM)
T SLOTTED RAM AREA .......... 27.5" L-R x 21.7" F-B (700 X 550 MM)
SPEED, VARIABLE ............. 27 TO 55 SPM
AIR CLUTCH & BRAKE .......... YES
MECHANICAL FEED ............. YES

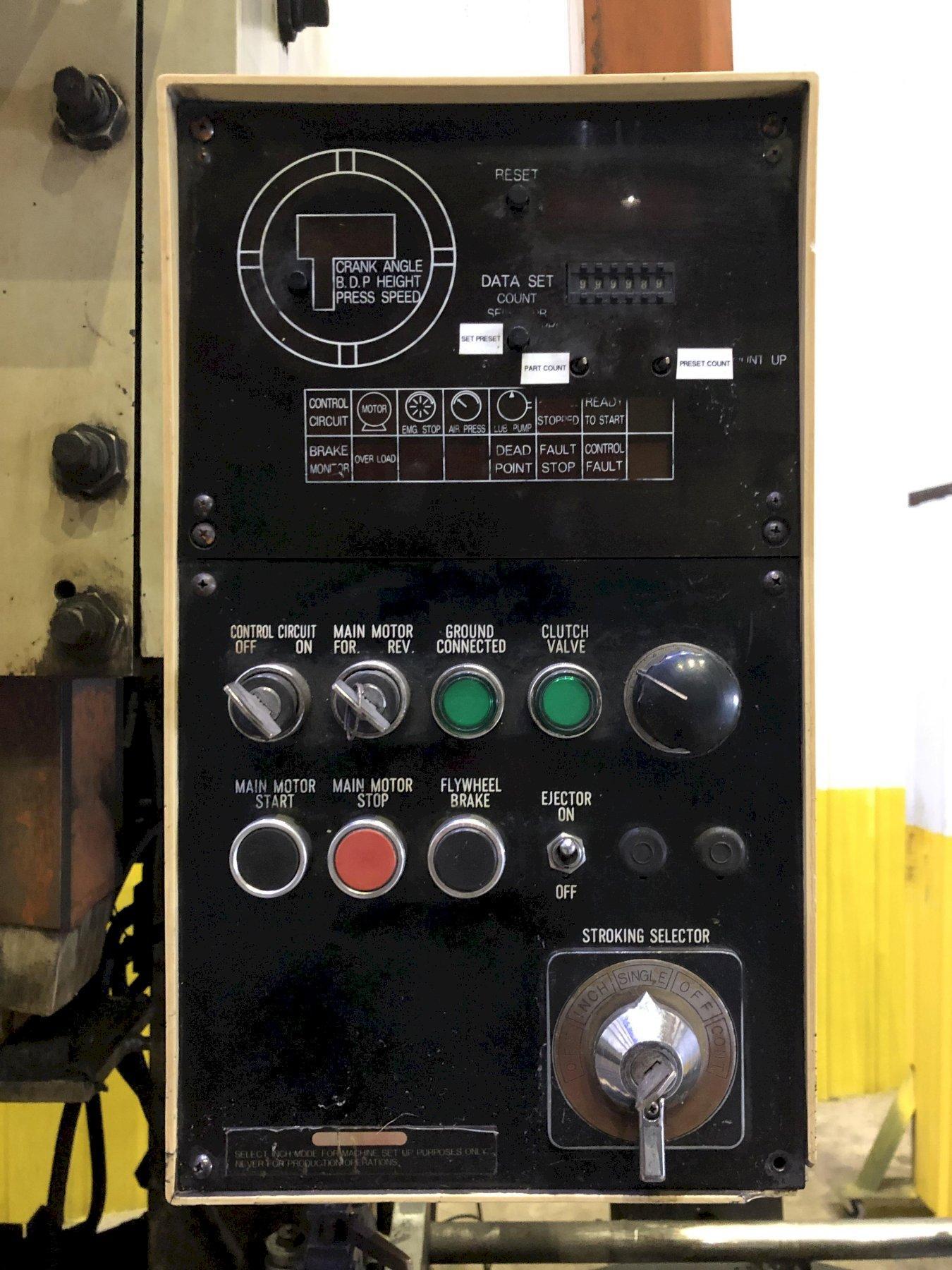

CONROLS ..................... YES
OPENING THROUGH BACK ........ 28.4"
THROAT DEPTH ................ 14.8"
