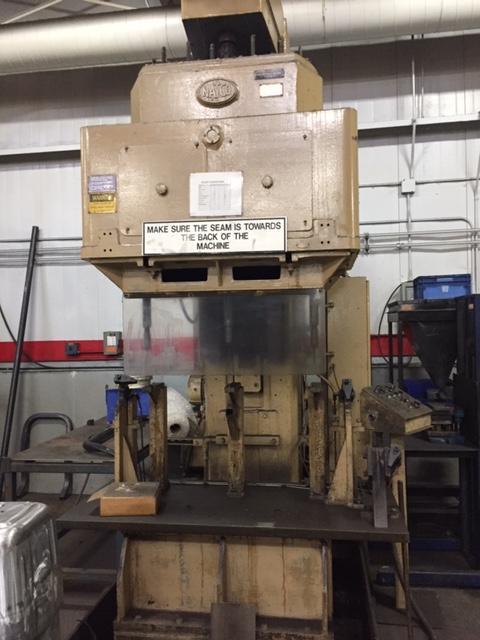

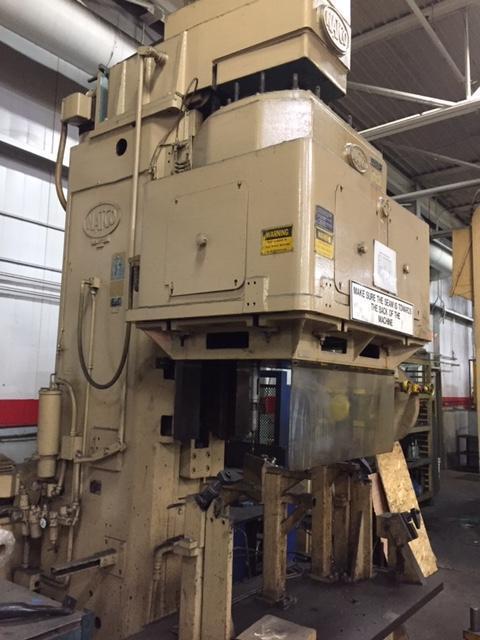

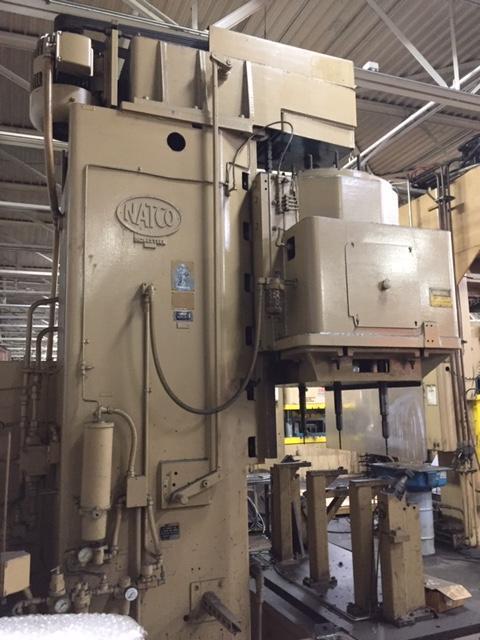

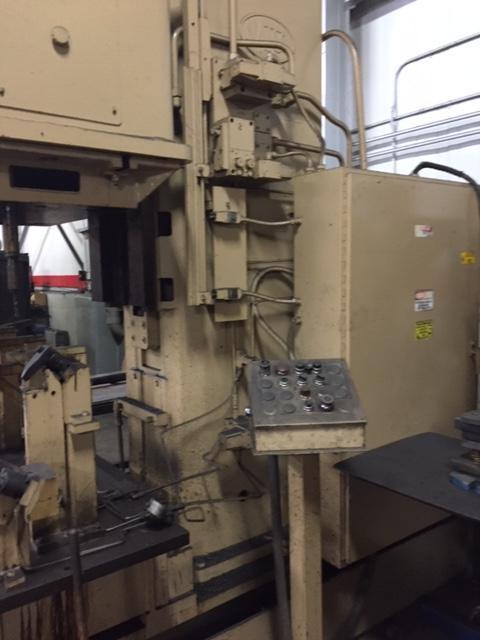

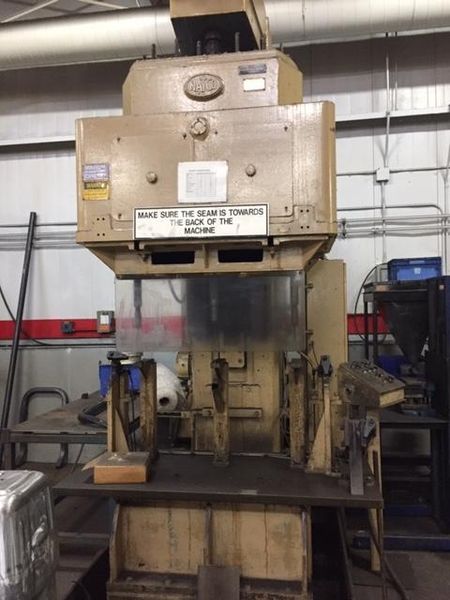

24 SPINDLE NATCO MODEL #G316 MULTI SPINDLE POWER DRILL: STOCK 16433

Manufacturer

NATCO

Category

Drilling Machines

Type

DRILLS, MULTIPLE SPINDLE, CNC

Stock

16433

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ......................... G316-277
MODEL .......................... G316
DRILLING CAPACITY .............. (24) .4375" DIA. @ 437 RPM X .0063 IPR
TAPPING CAPACITY ............... (24) .375" DIA. X 16
NUMBER OF SPINDLES ............. 24
UPPER DRIVER DIAMETER .......... 1-1/2"
HEAD FLANGE TO TABLE TOP ....... 41" MAX. / 13" MIN.
DRILLING AREA OF HEAD .......... 19" X 32"
CENTER OF HEAD TO COLUMN WAYS .. 15.5"
TABLE WORK AREA ................ 40" X 30"
VERTICAL HEAD STROKE ........... 18"
VERTICAL TABLE ADJUSTMENT ...... 10"
FEED RATE RANGE ................ 1 - 20 IPM
SPINDLE SPEEDS ................. (36) 140-2376 RPM
LUBE SYSTEM .................... YES
COOLANT ........................ YES
SPINDLE MOTOR .................. 15 HORSEPOWER
HYDRAULIC UNIT ................. 5 HORSEPOWER
