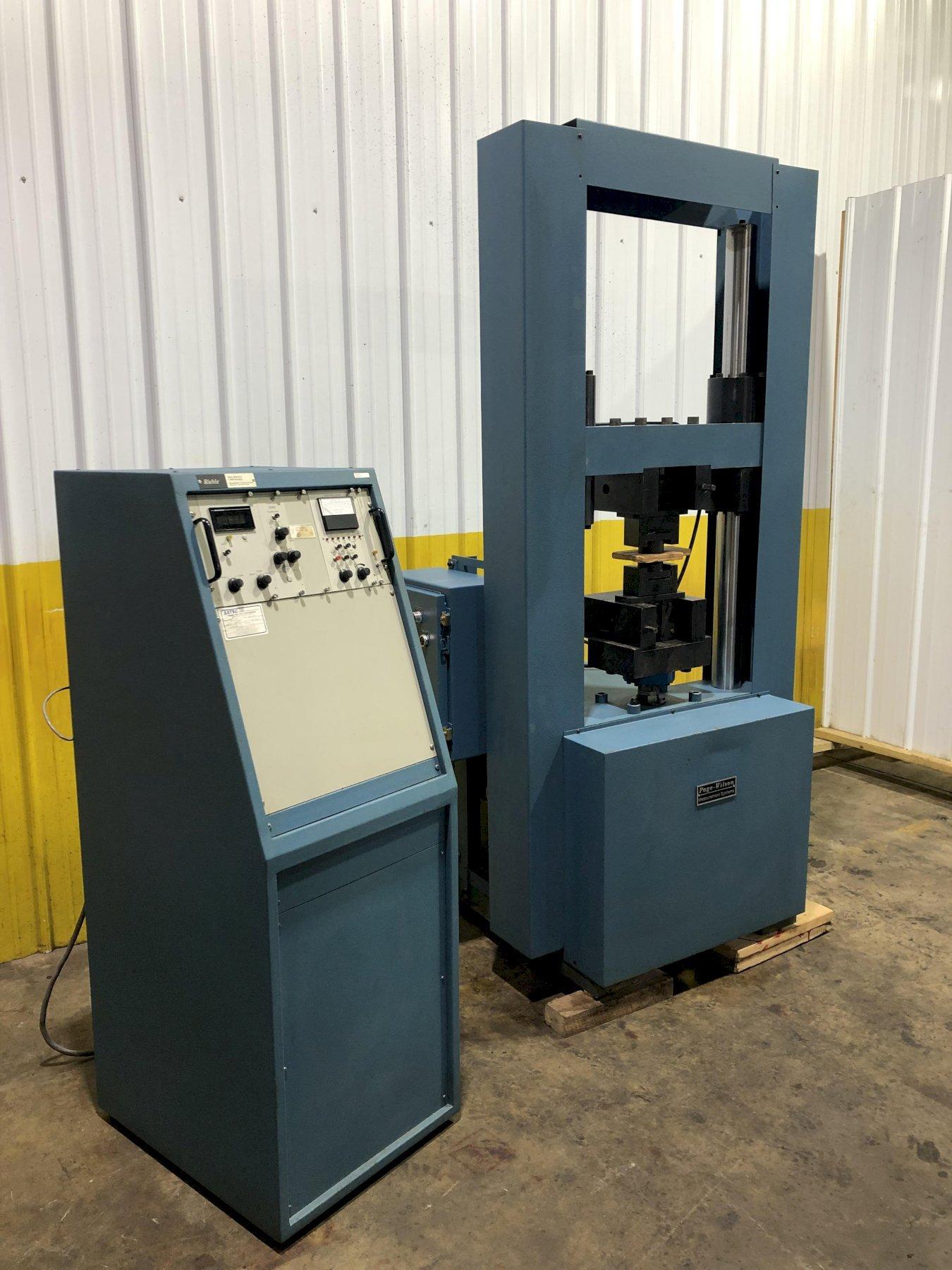

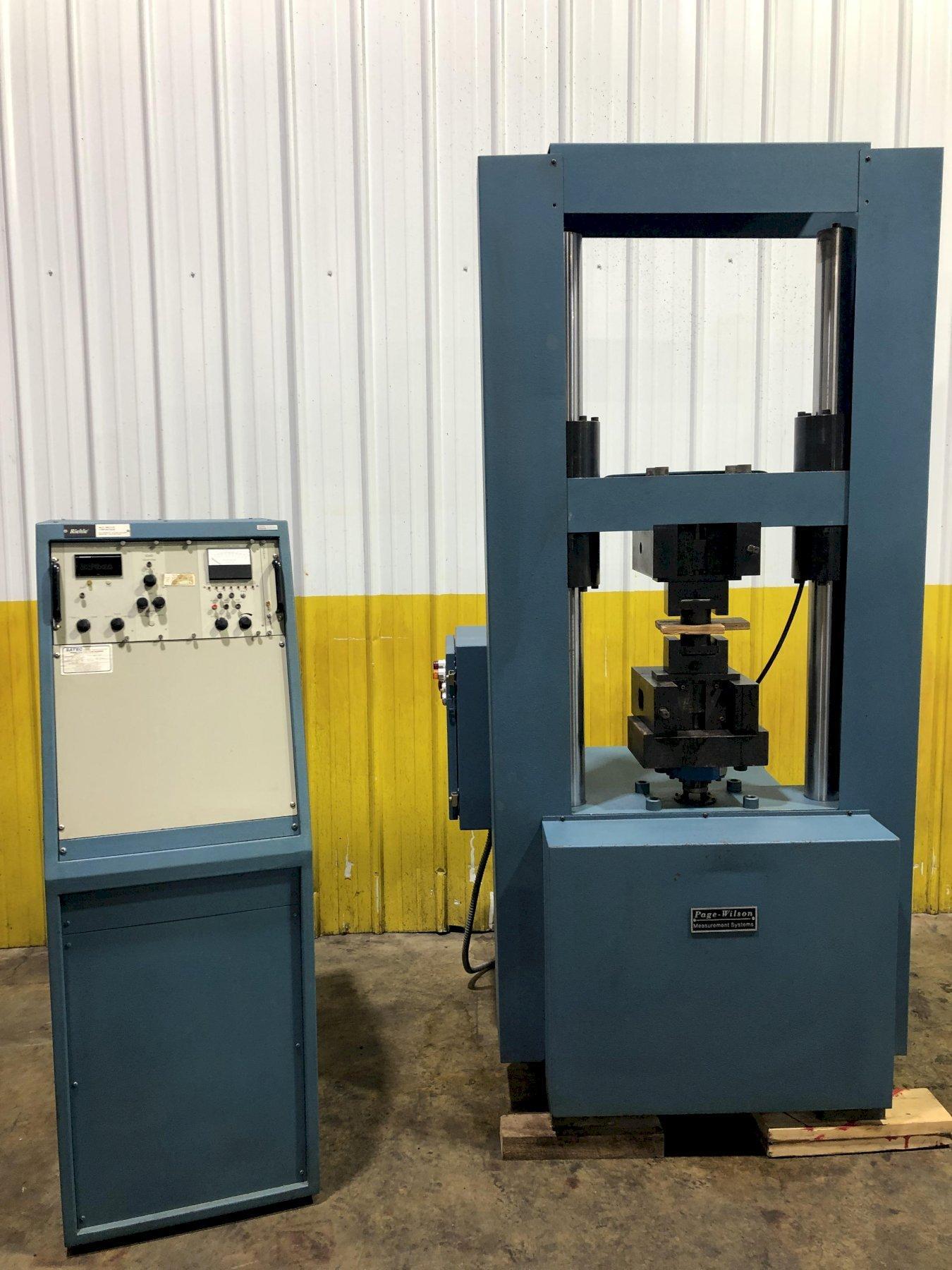

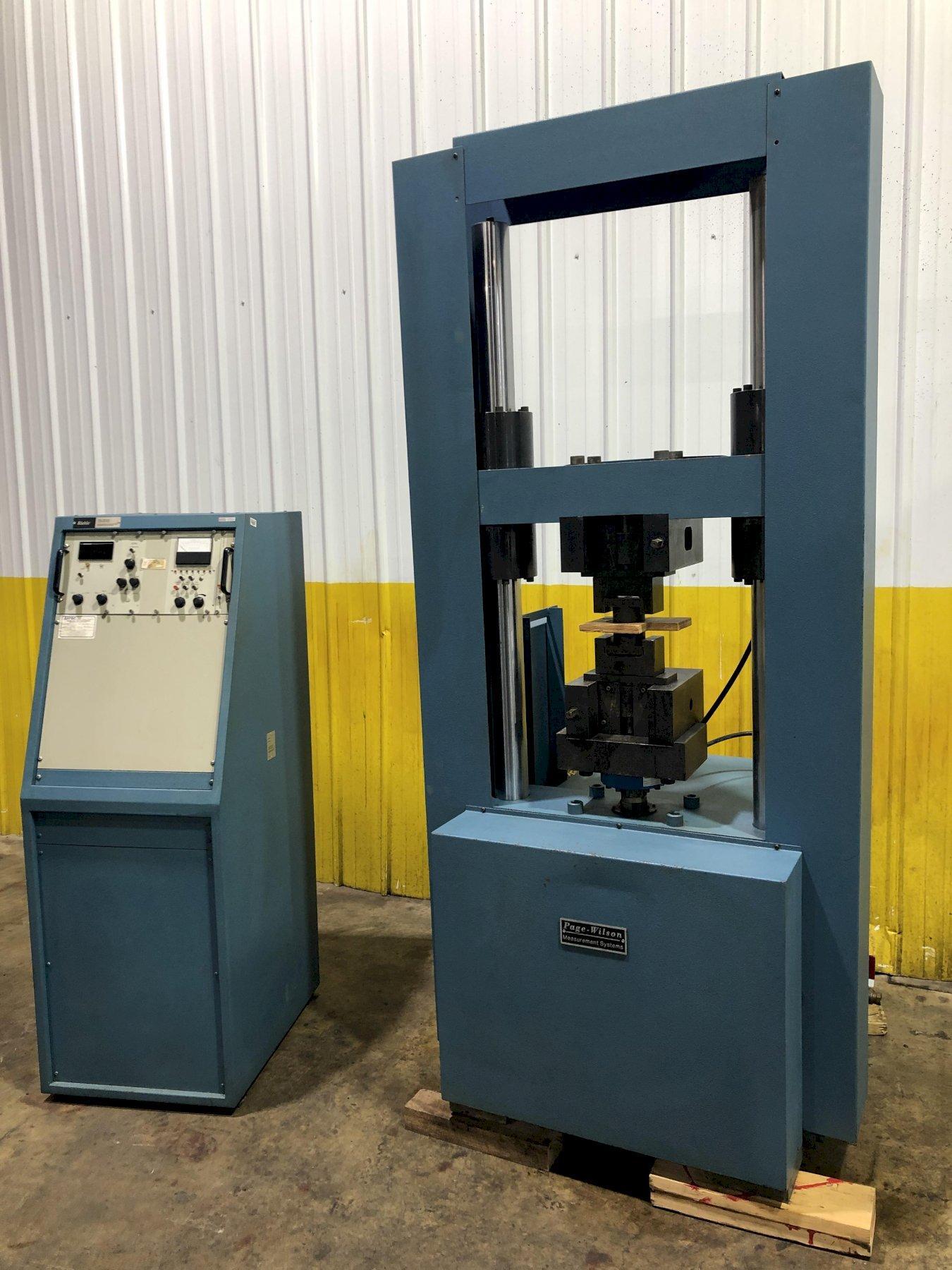

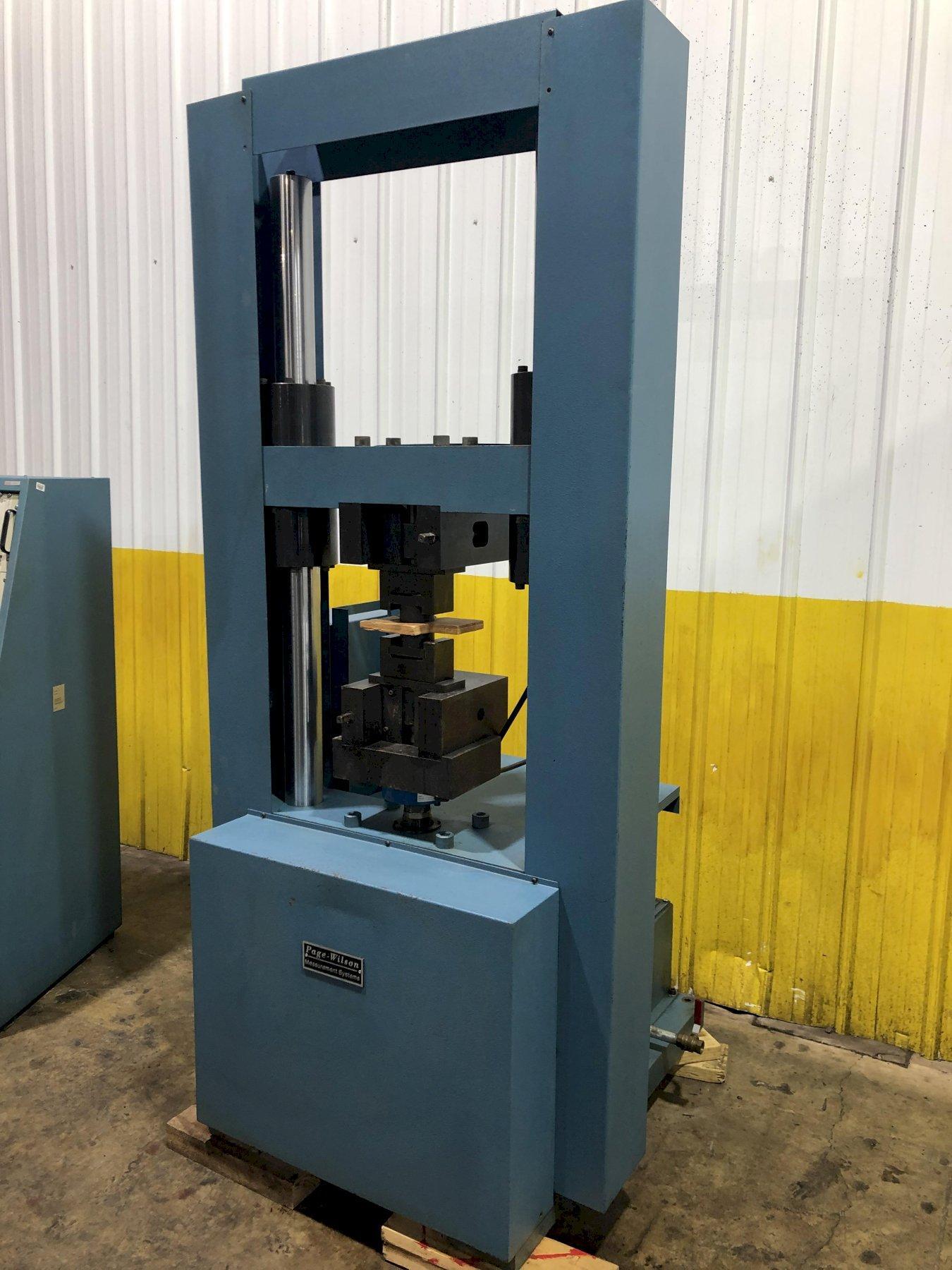

60,000 LBS RIEHLE MODEL #60-HD SERIES UNIVERSAL HYDRAULIC TESTER: STOCK #16726

Manufacturer

WILSON

Stock

16726

Model

None listed

Dealer Location

Ohio

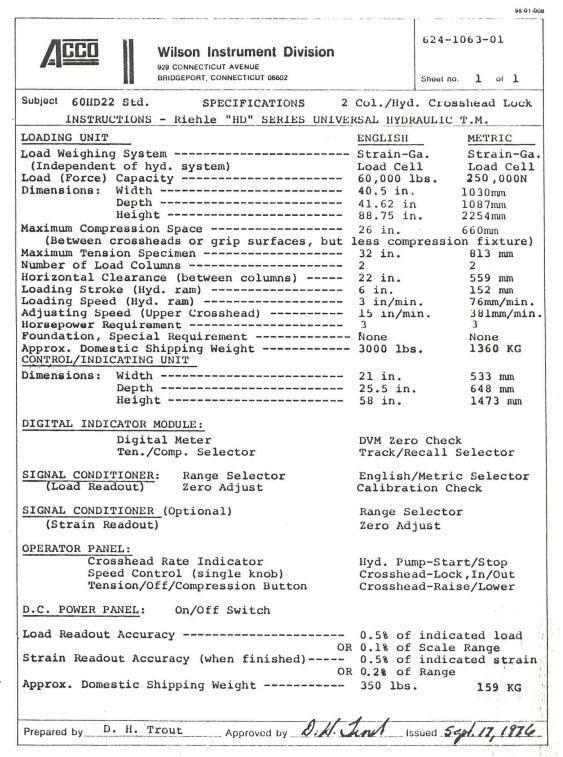

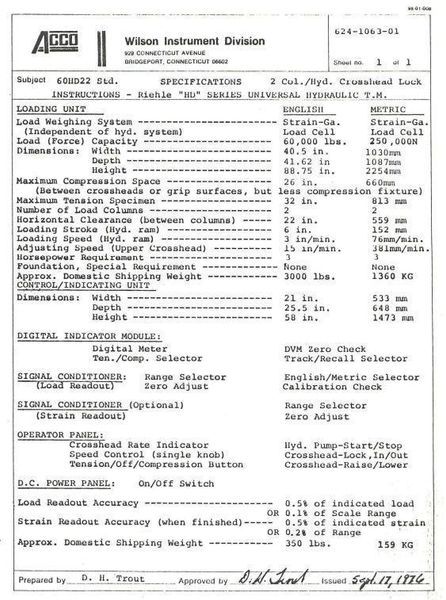

Spec Sheet

Dimensions - 21" X 25.5" X 58" HIGH
Weight - 3000 pounds

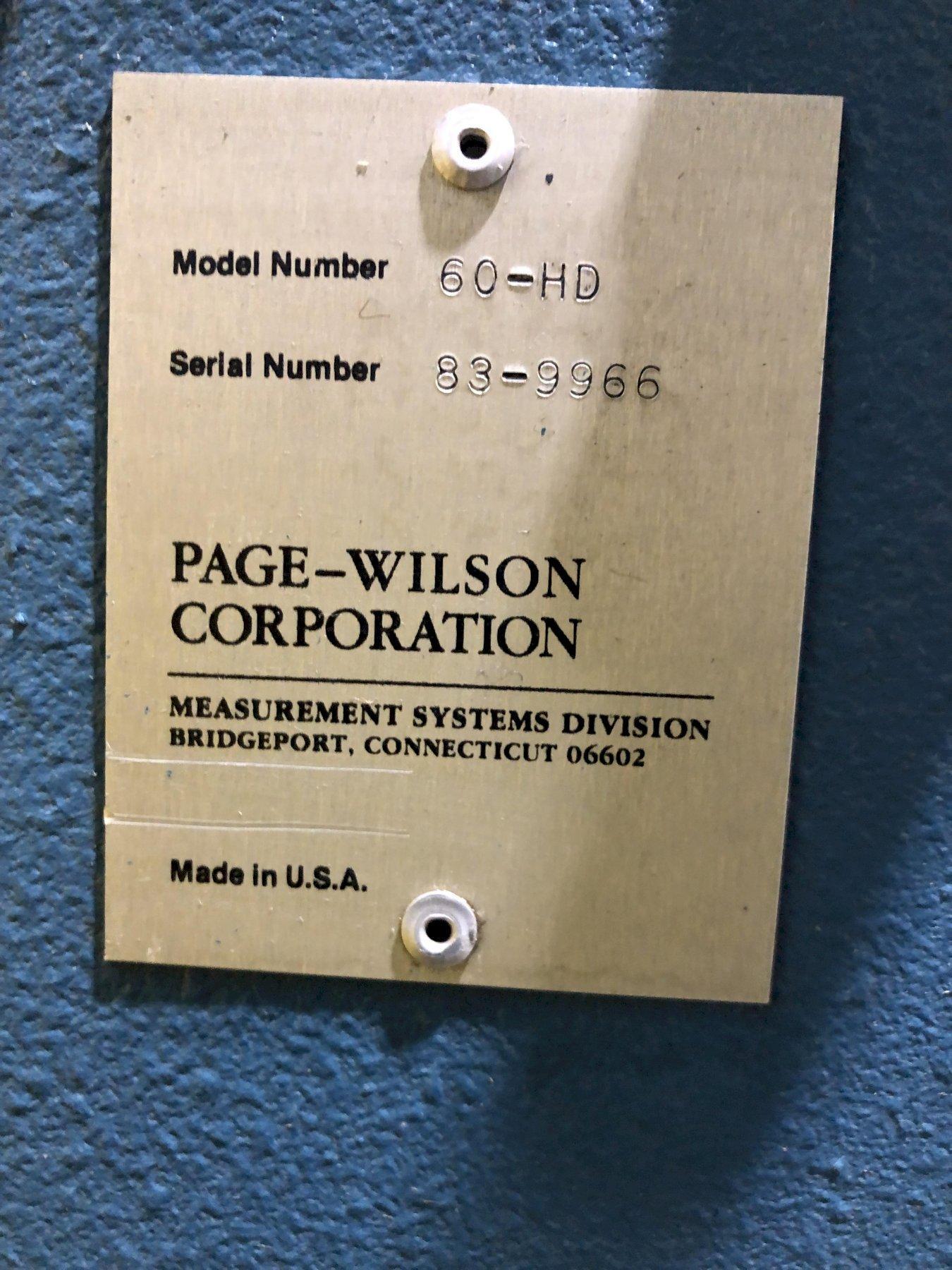

SERIAL ............................ 83-9966
MODEL ............................. 60-HD-22
LOAD FORCE CAPACITY ............... 60,000 LB
TESTING ........................... TENSION, COMPRESSON, TRANSVERSE
LOAD READ OUT ..................... DIGITAL INDICATOR
LOAD SIGNAL CONDITIONER ........... YES
OPERATORS PANEL ................... YES

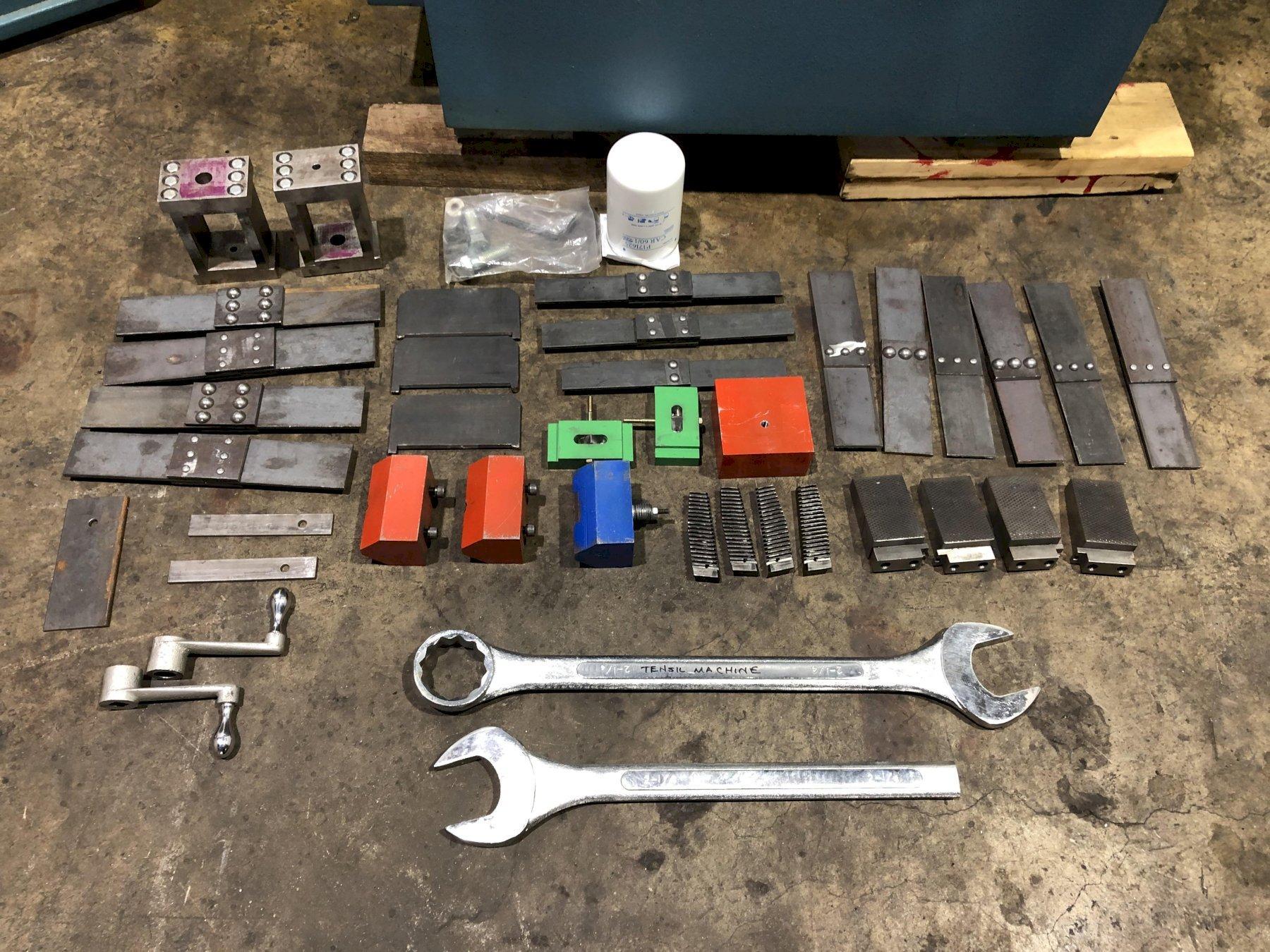

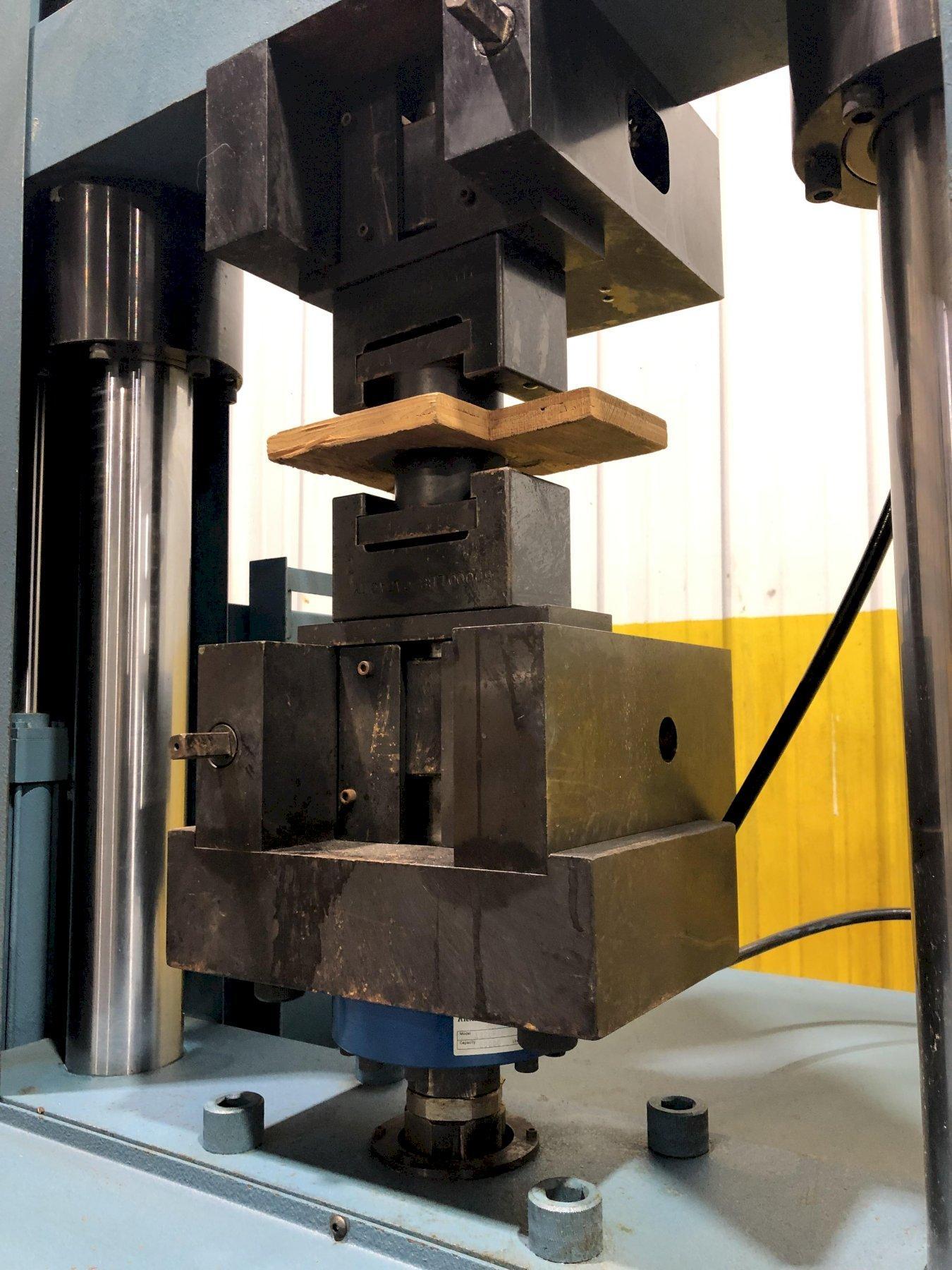

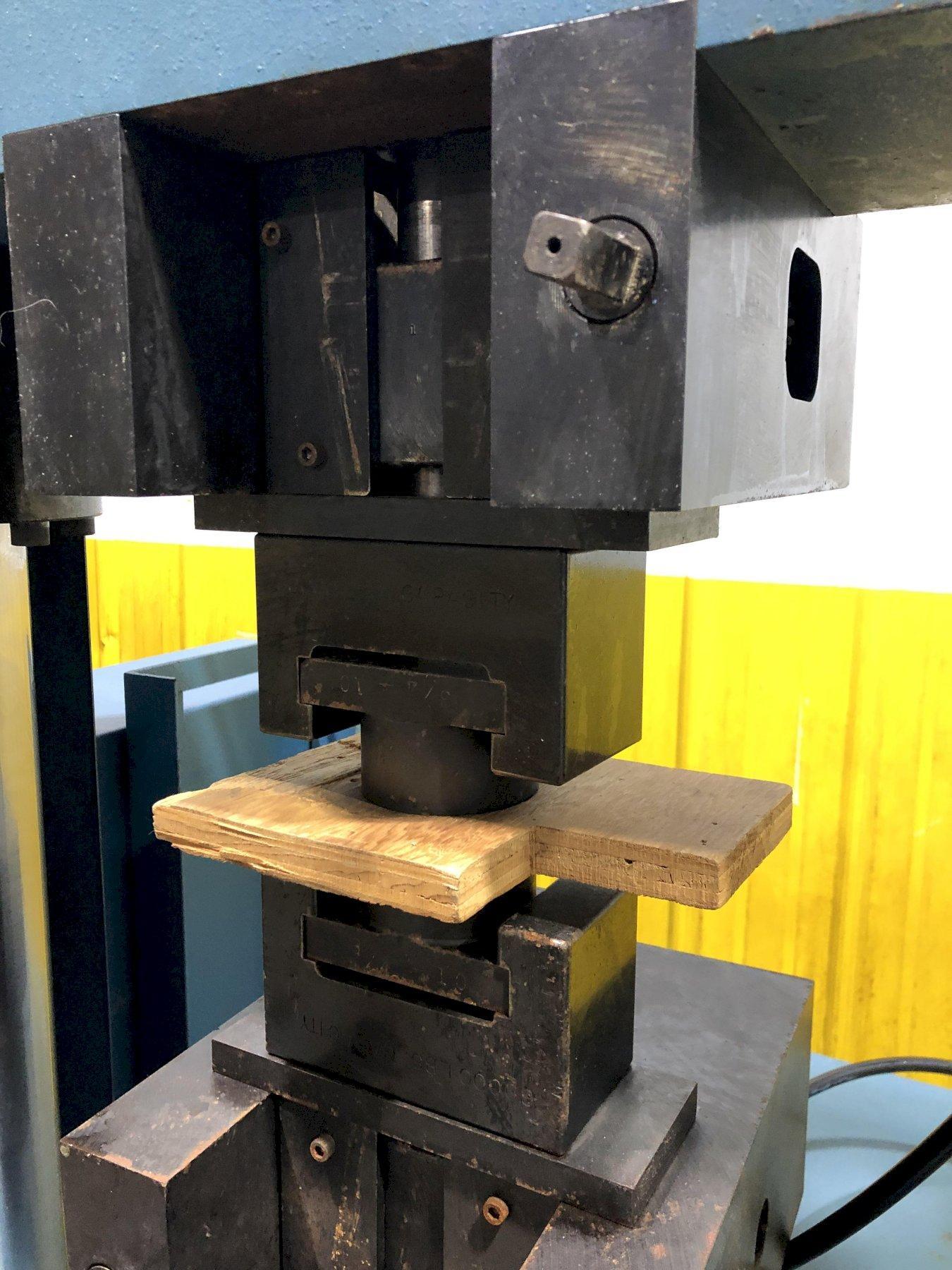

GRIPS ............................. TOP & BOTTOM

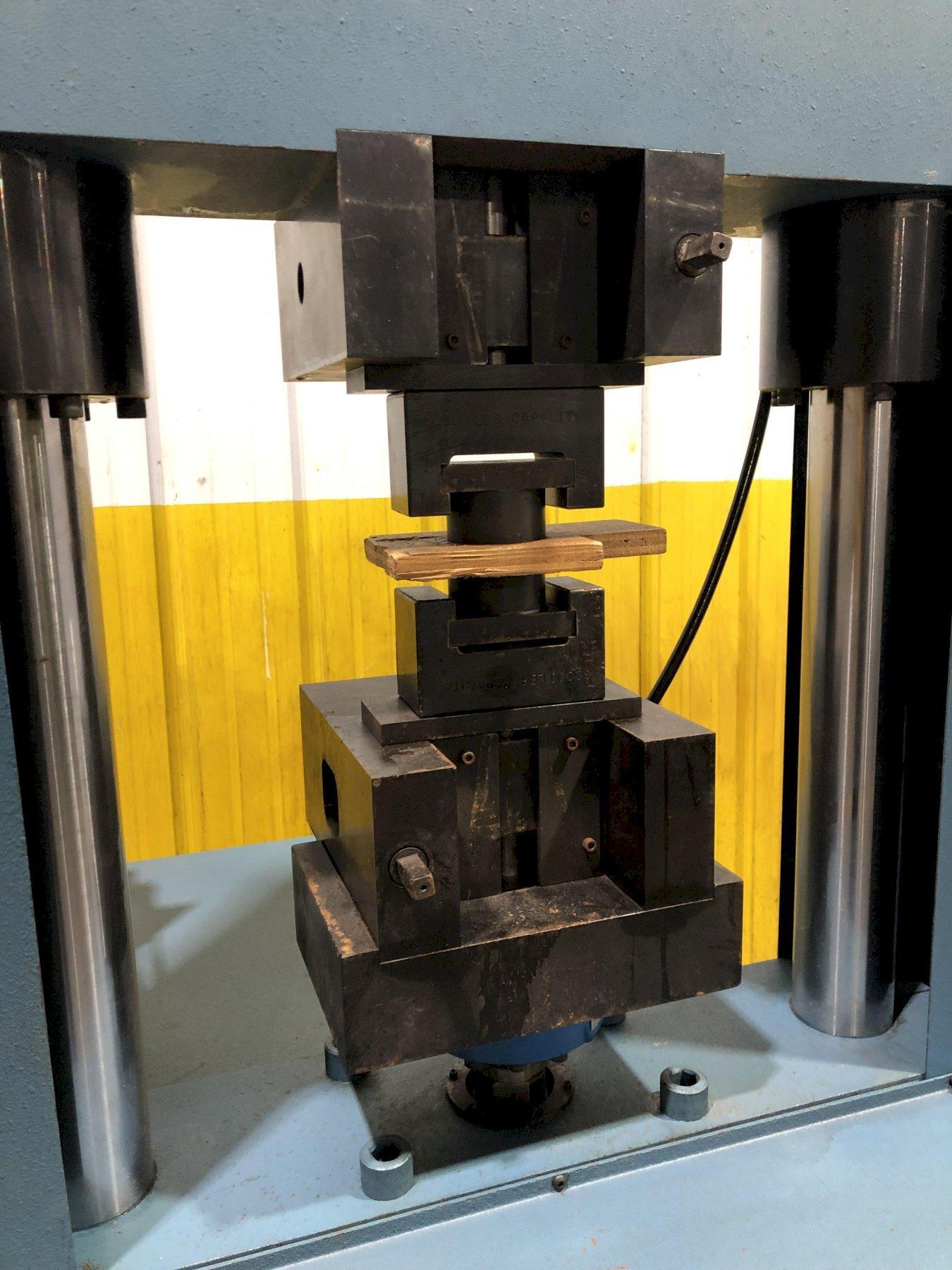

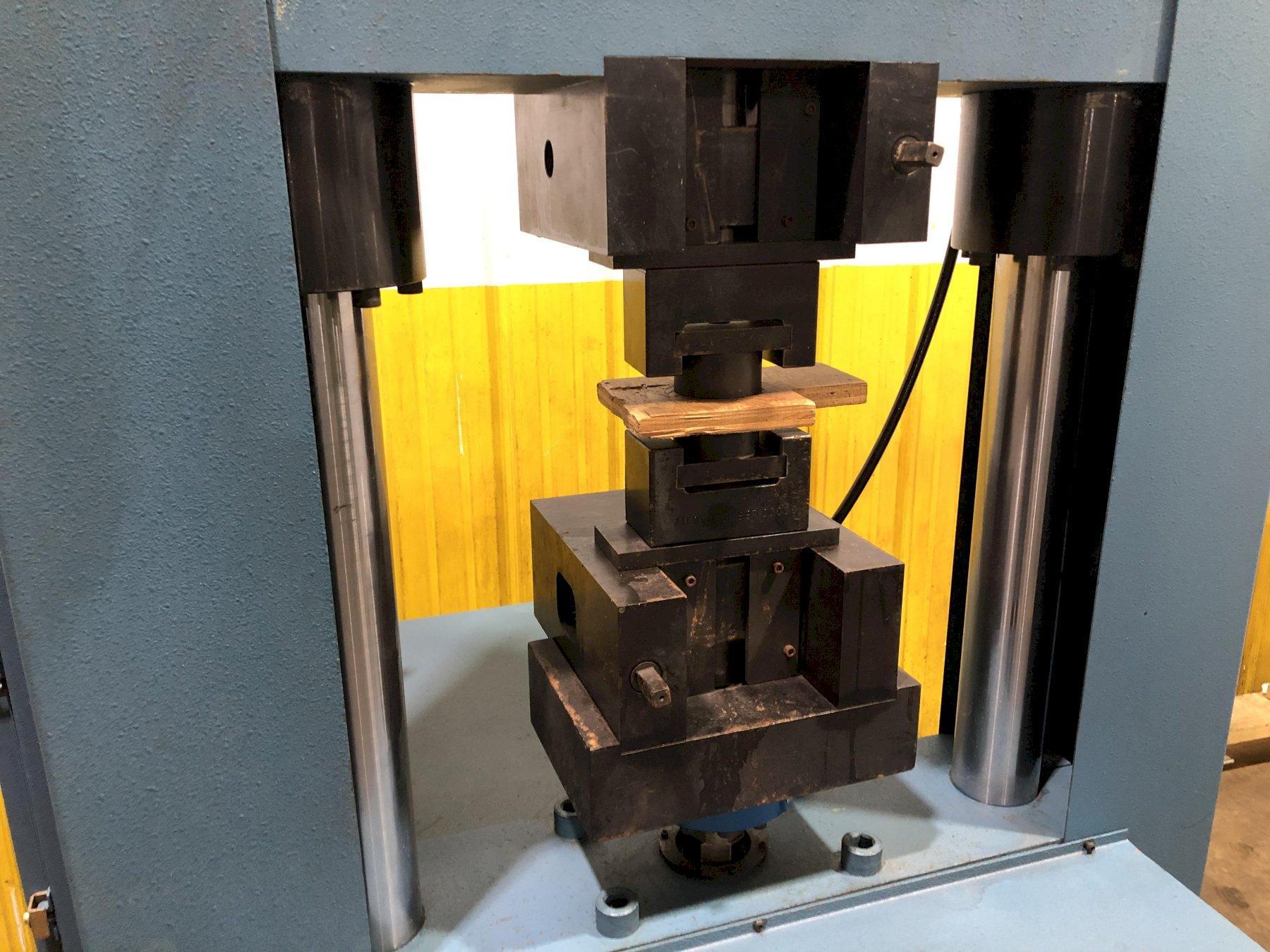

COMPRESSION SPACE ................. 26" W/O FIXTURES
TENSION SPECIMAN .................. 32" MAXIMUM

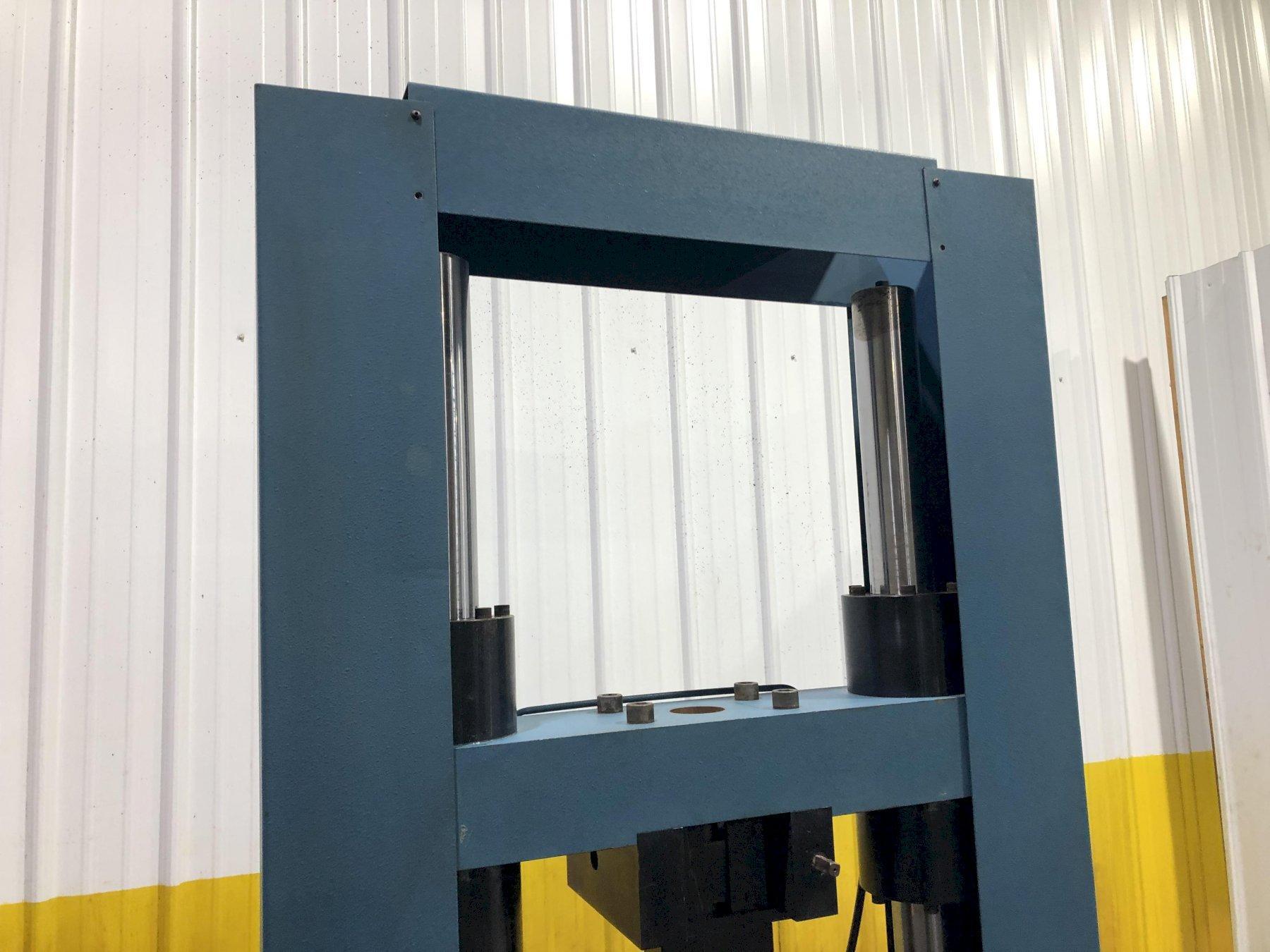

LOAD COLUMNS ...................... 2
HORIZONAL CLEARANCE ............... 22"

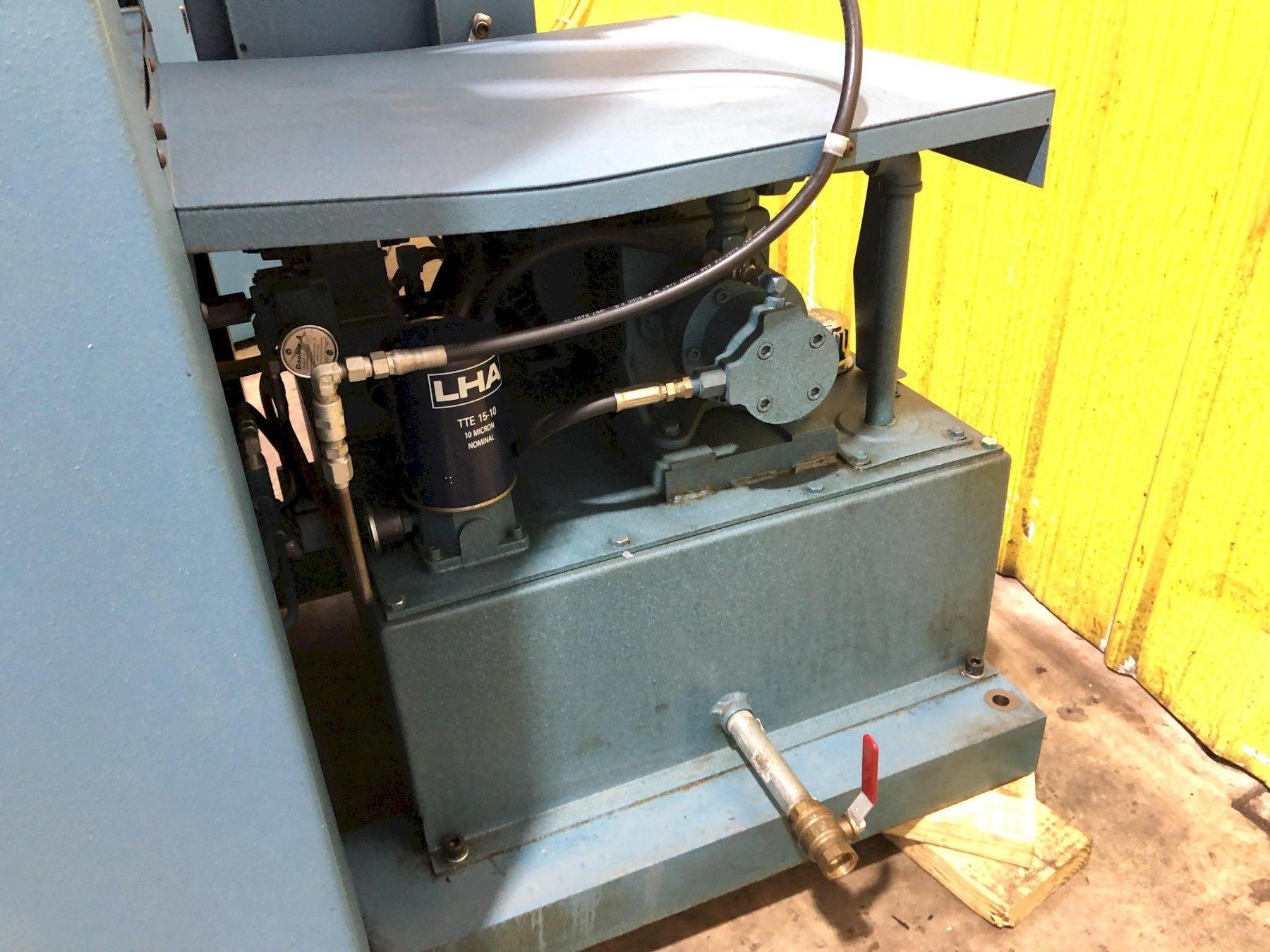

HYDRAULIC LOADING STROKE .......... 6"
UPPER CROSSHEAD ADJUSTMENT SPEED .. 15 IPM

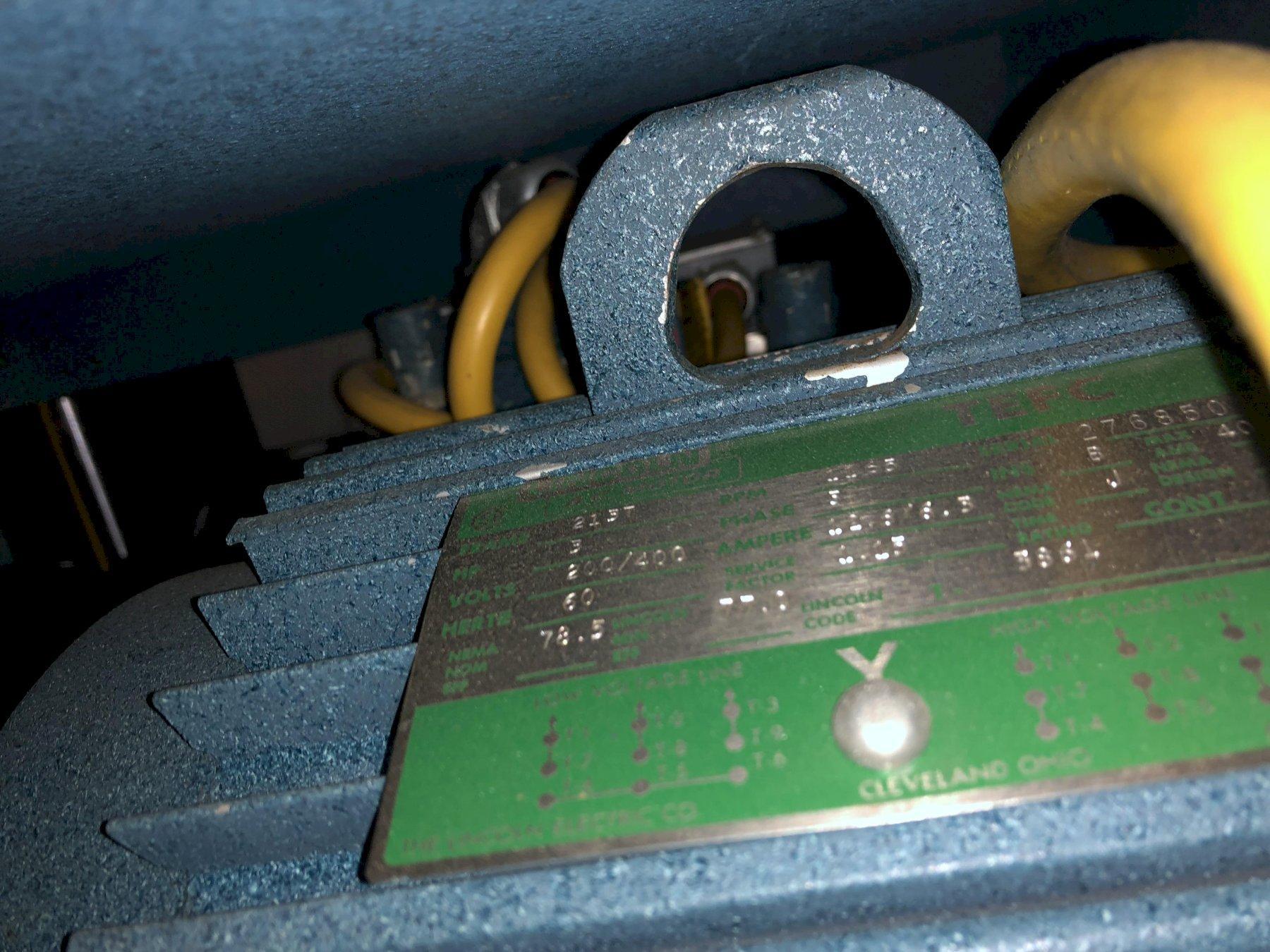

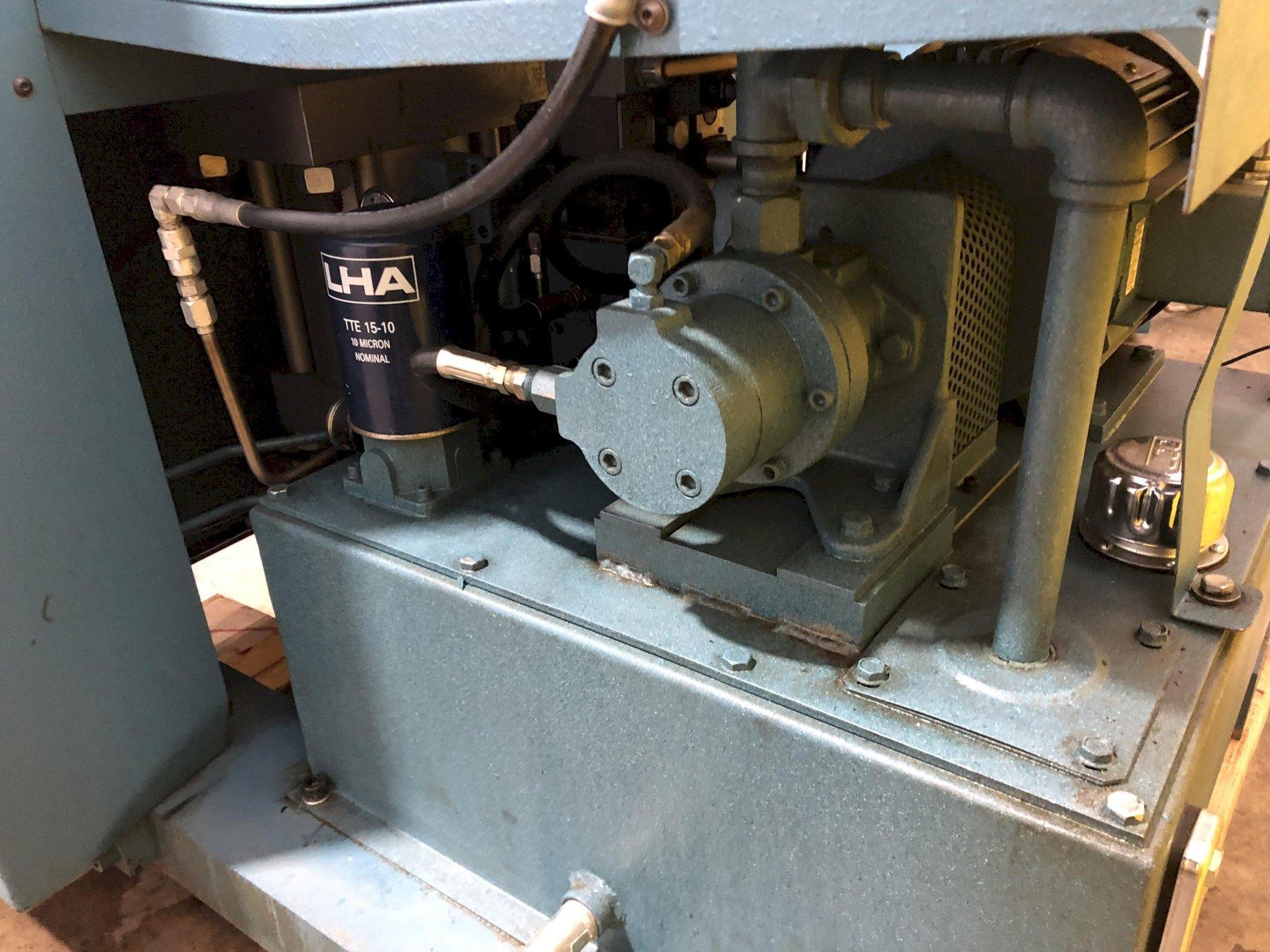

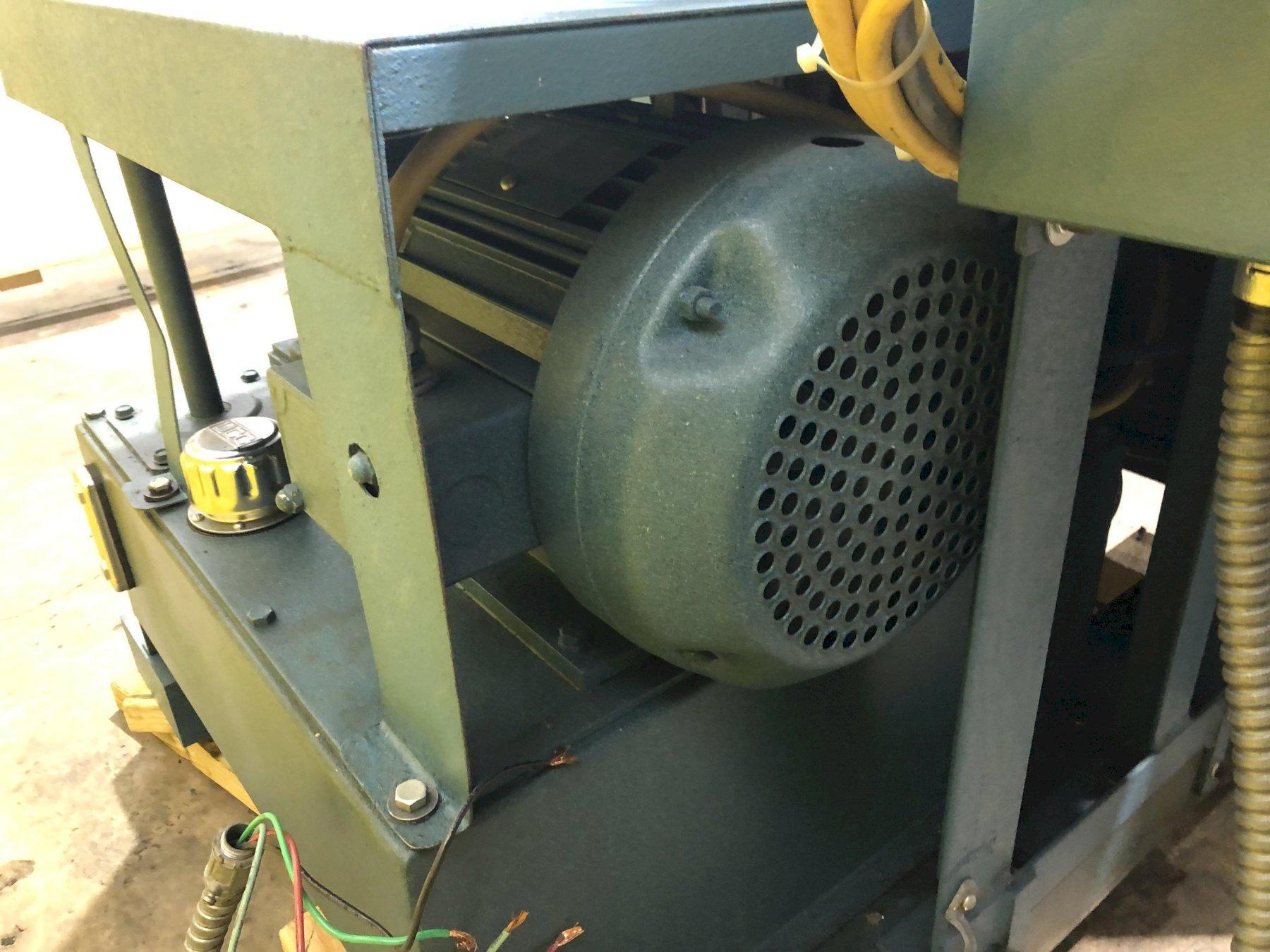

HORSEPOWER ........................ 3

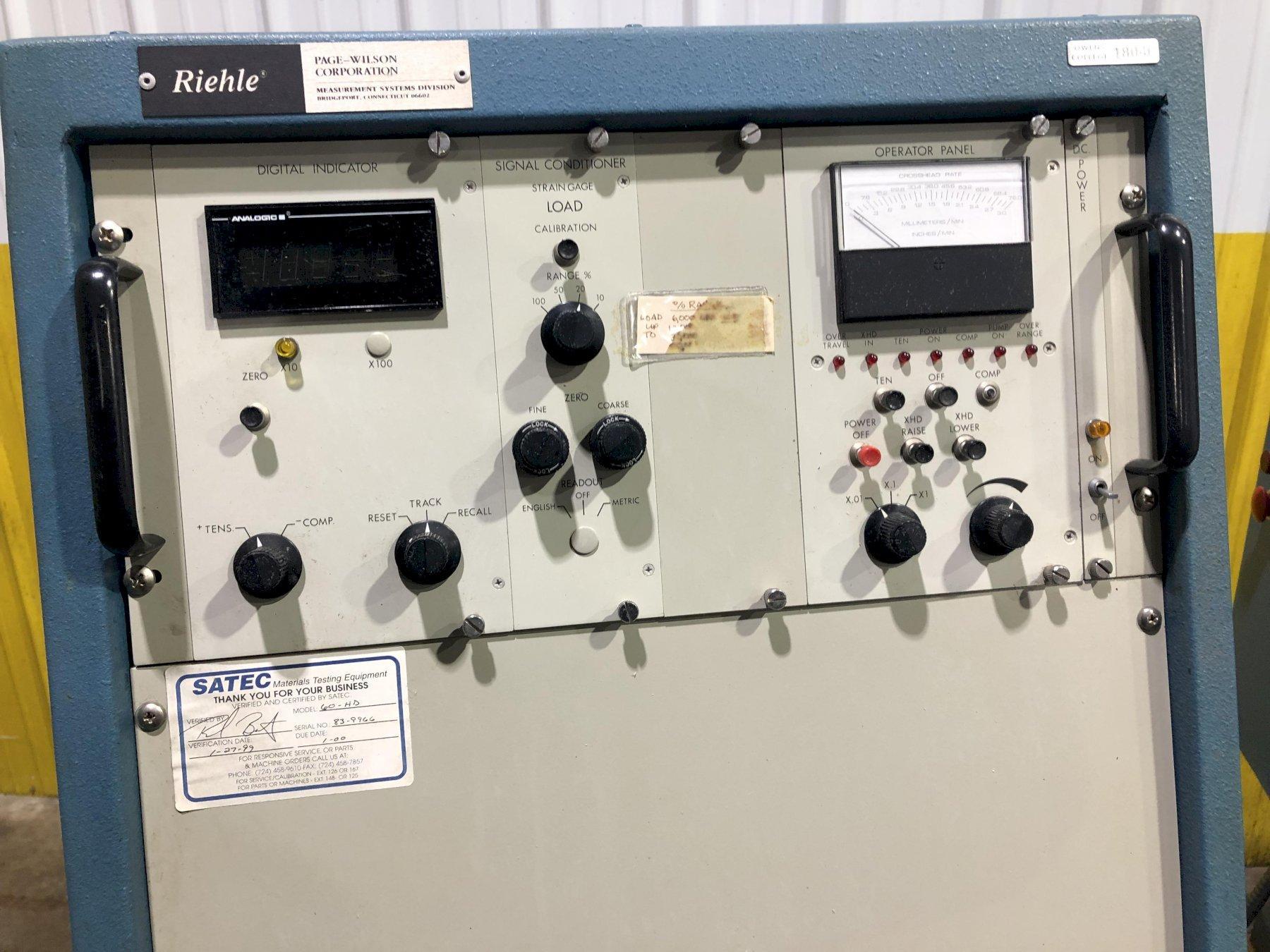

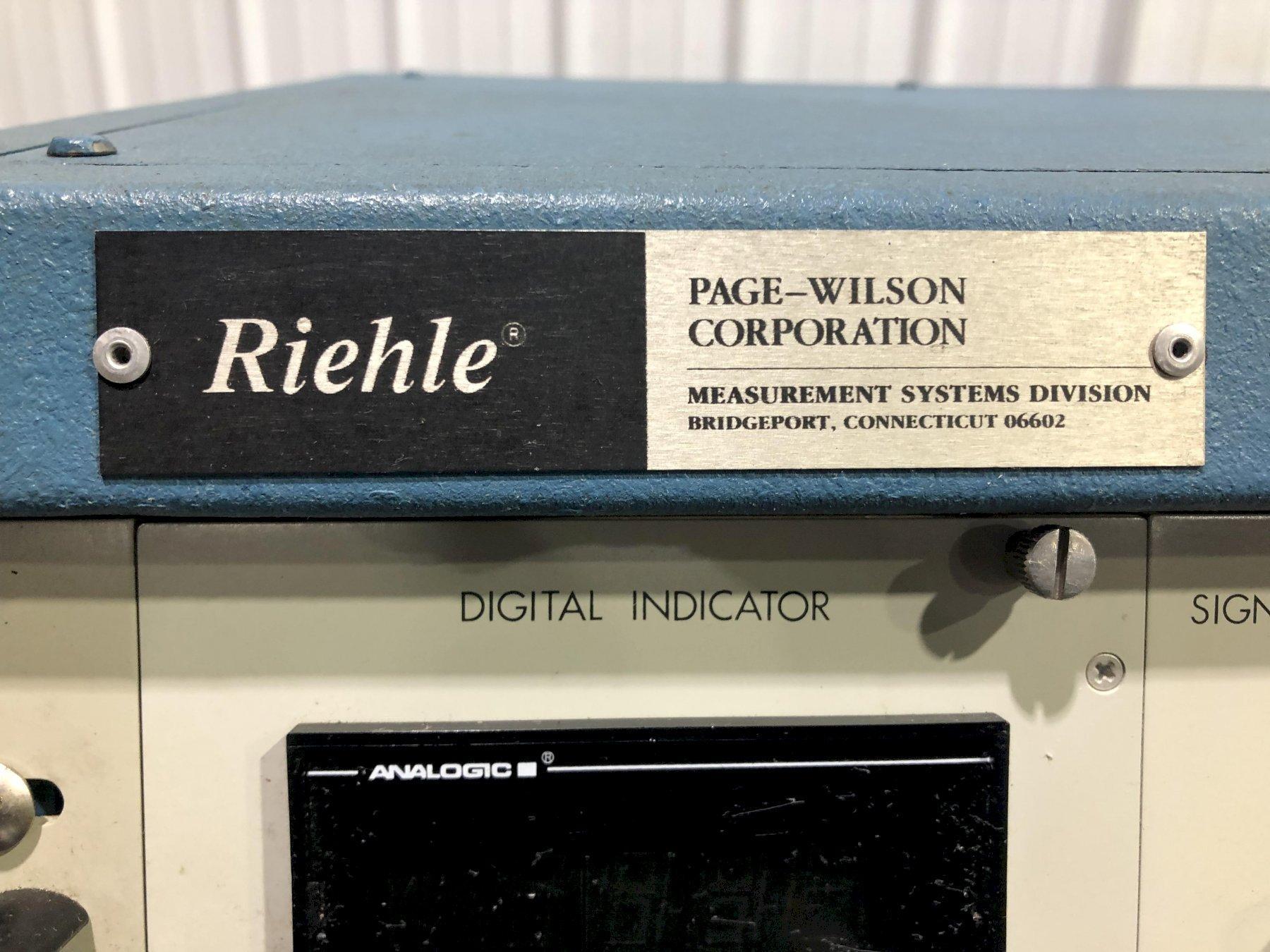

DIGITAL INDICATOR
SIGNAL CONDITOINER

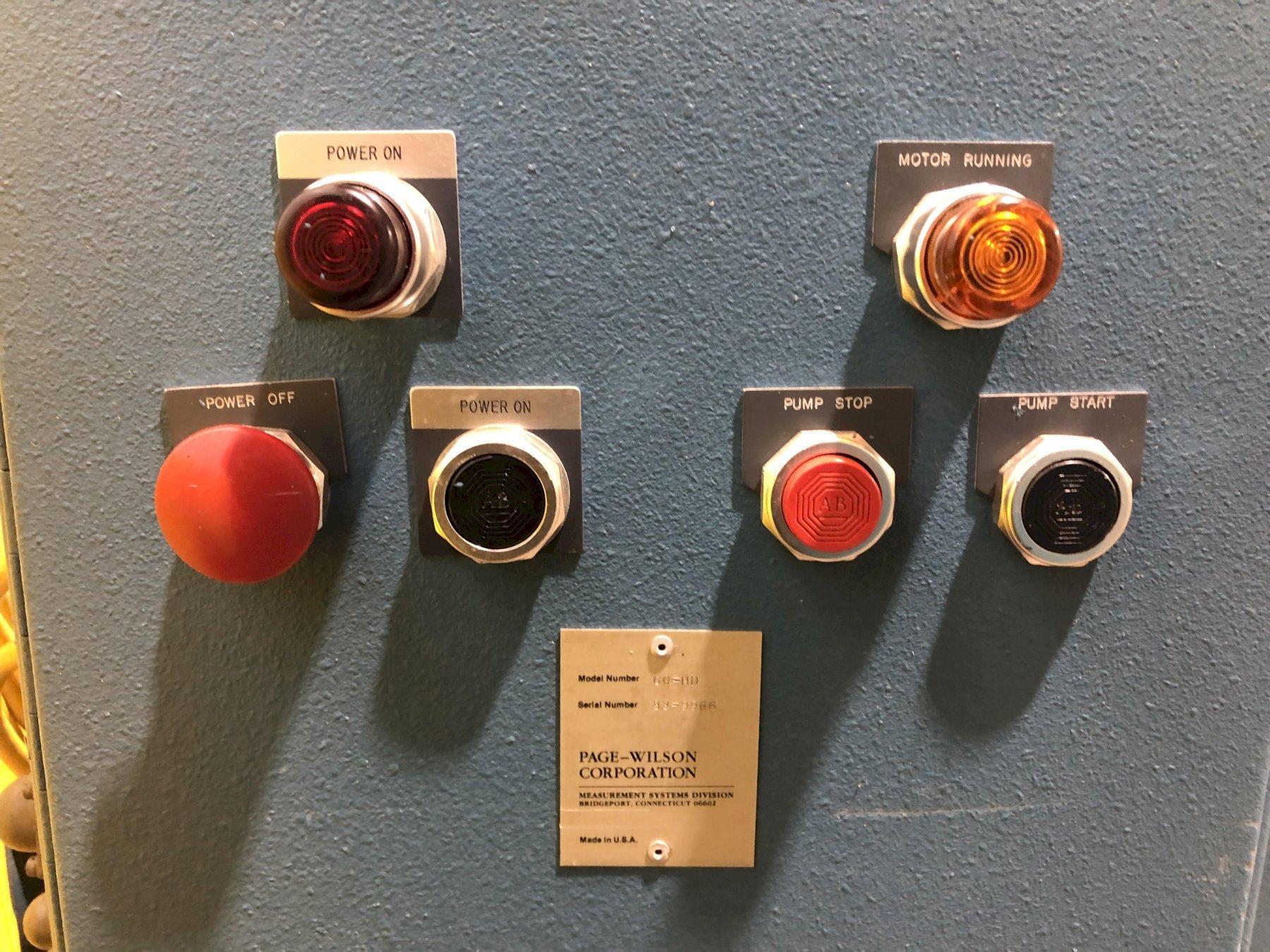

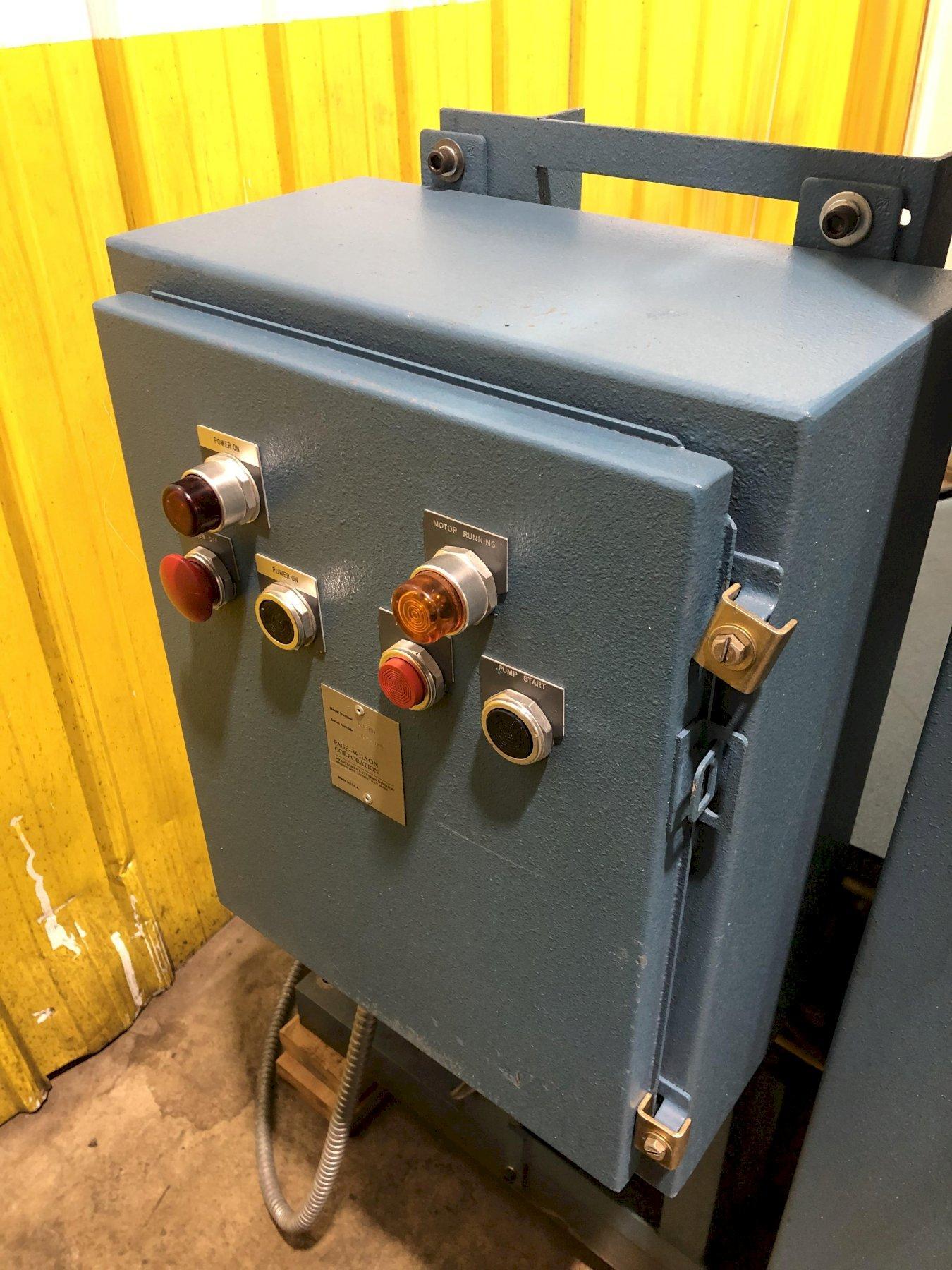

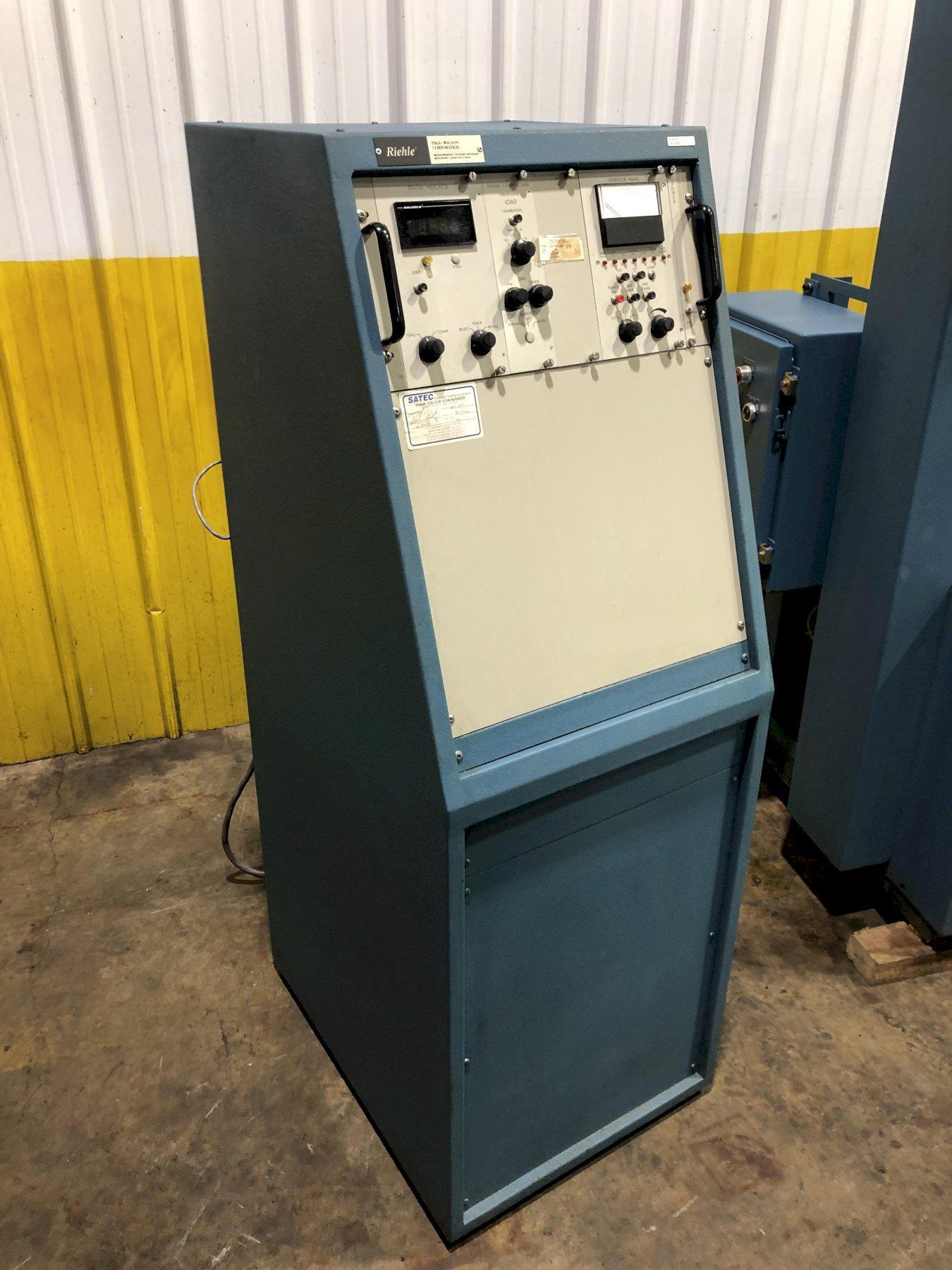

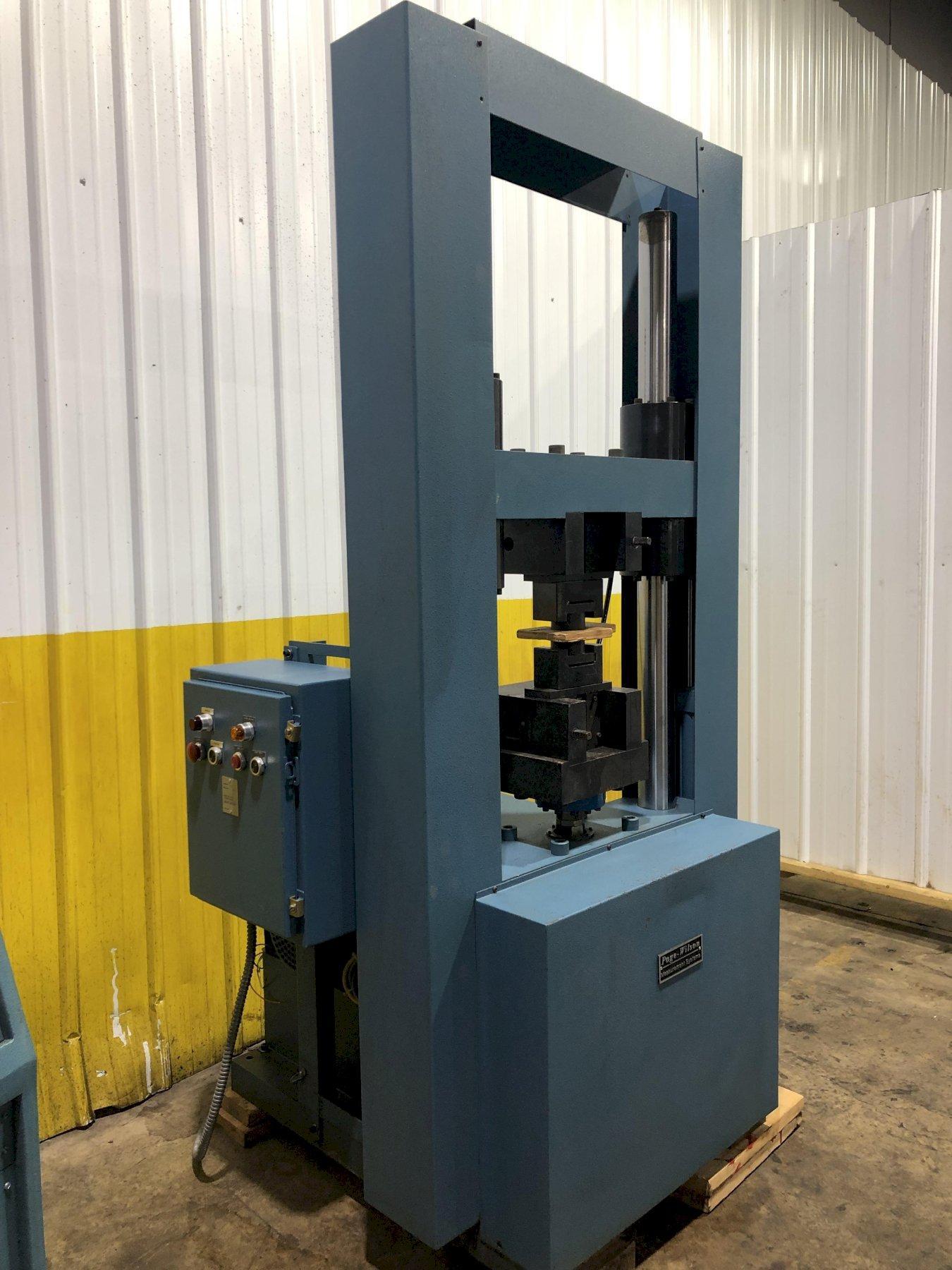

OPERATOR PANEL
