Dorries SDE600 248" Table, 566" Swing, 193" U/R, Openside, Live Spindle, 250 Ton Cap.,150HP, Siemens 840C, #32060

Manufacturer

DORRIES

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32060

Model

SDE600

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32060

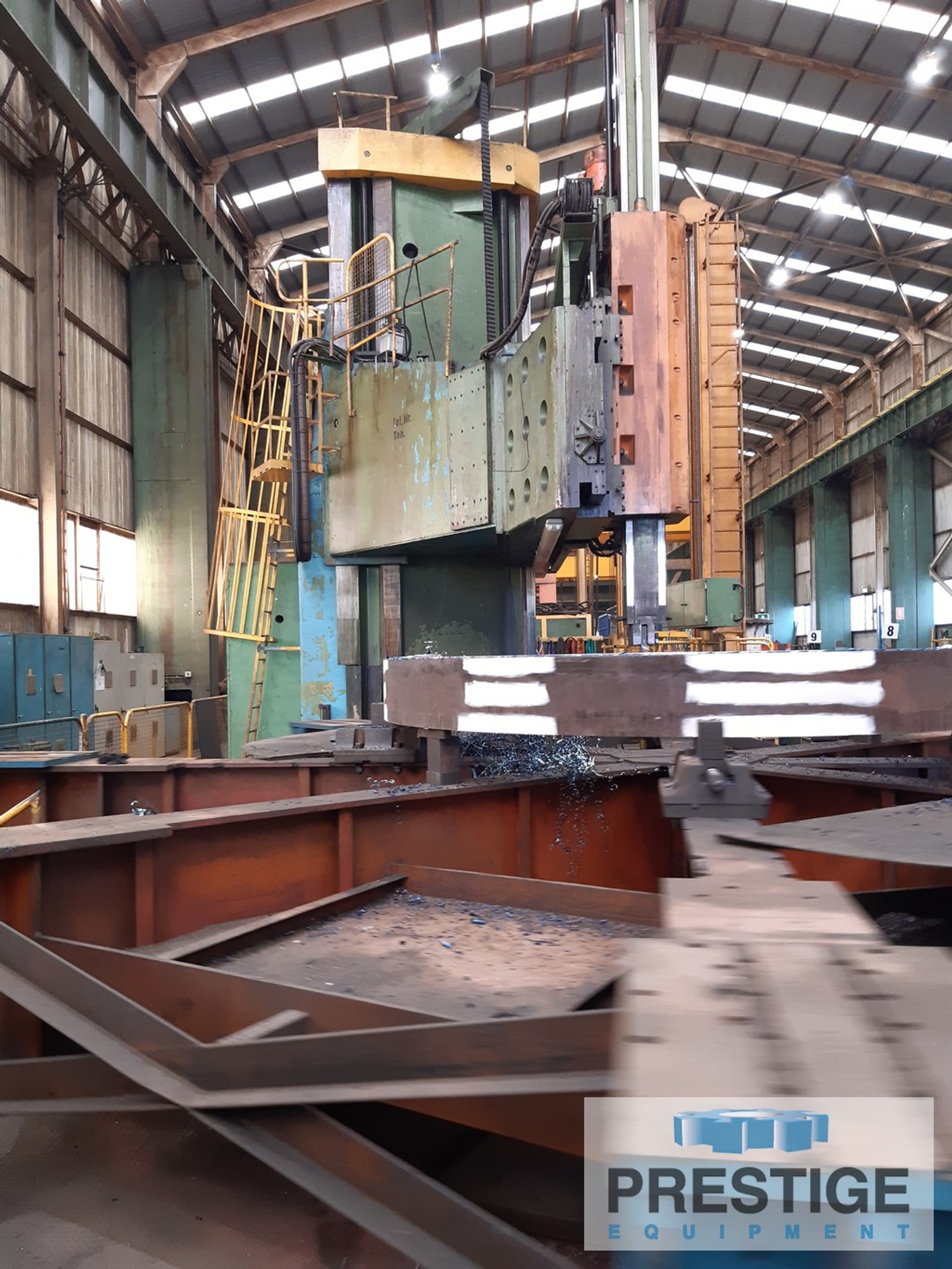

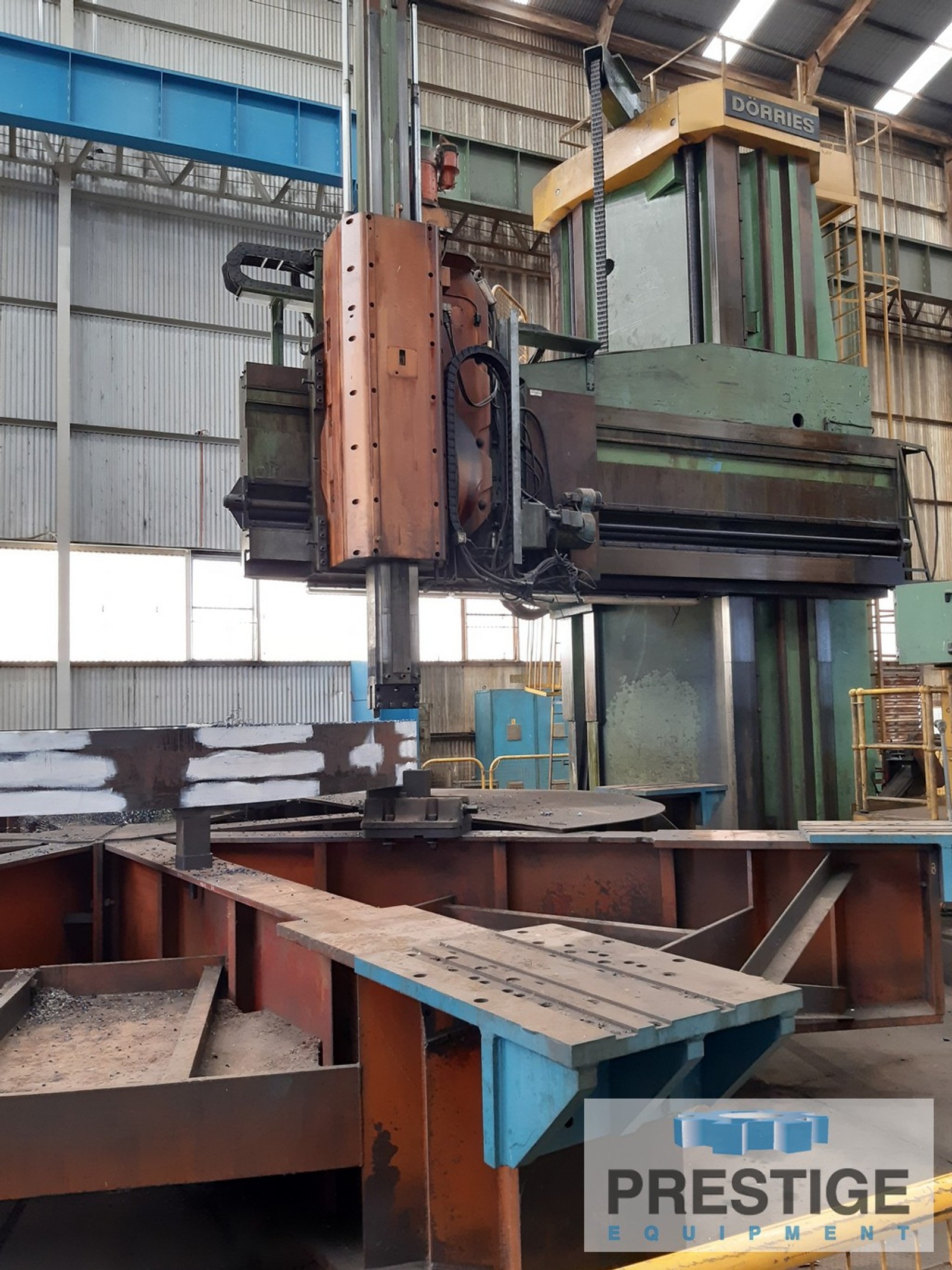

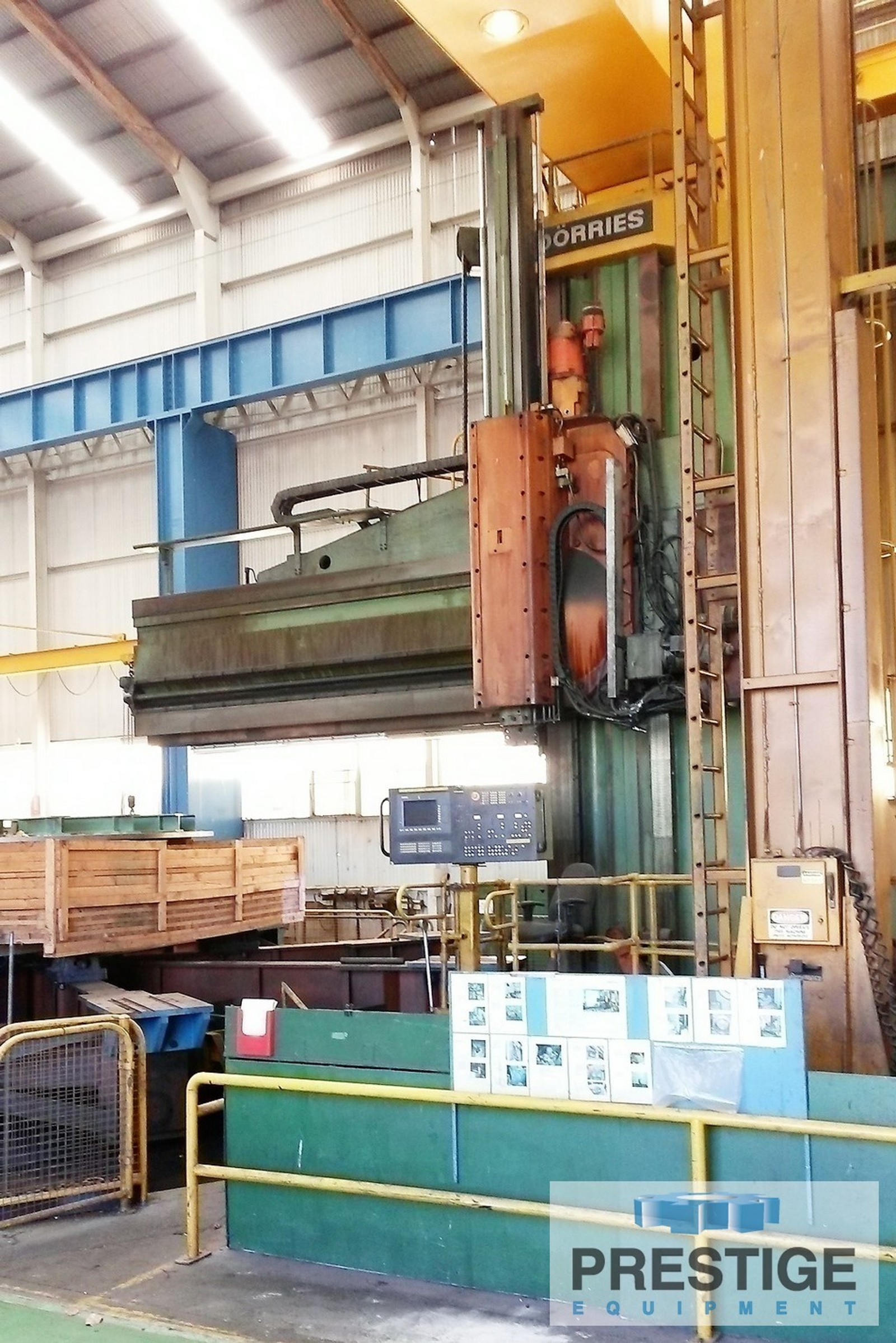

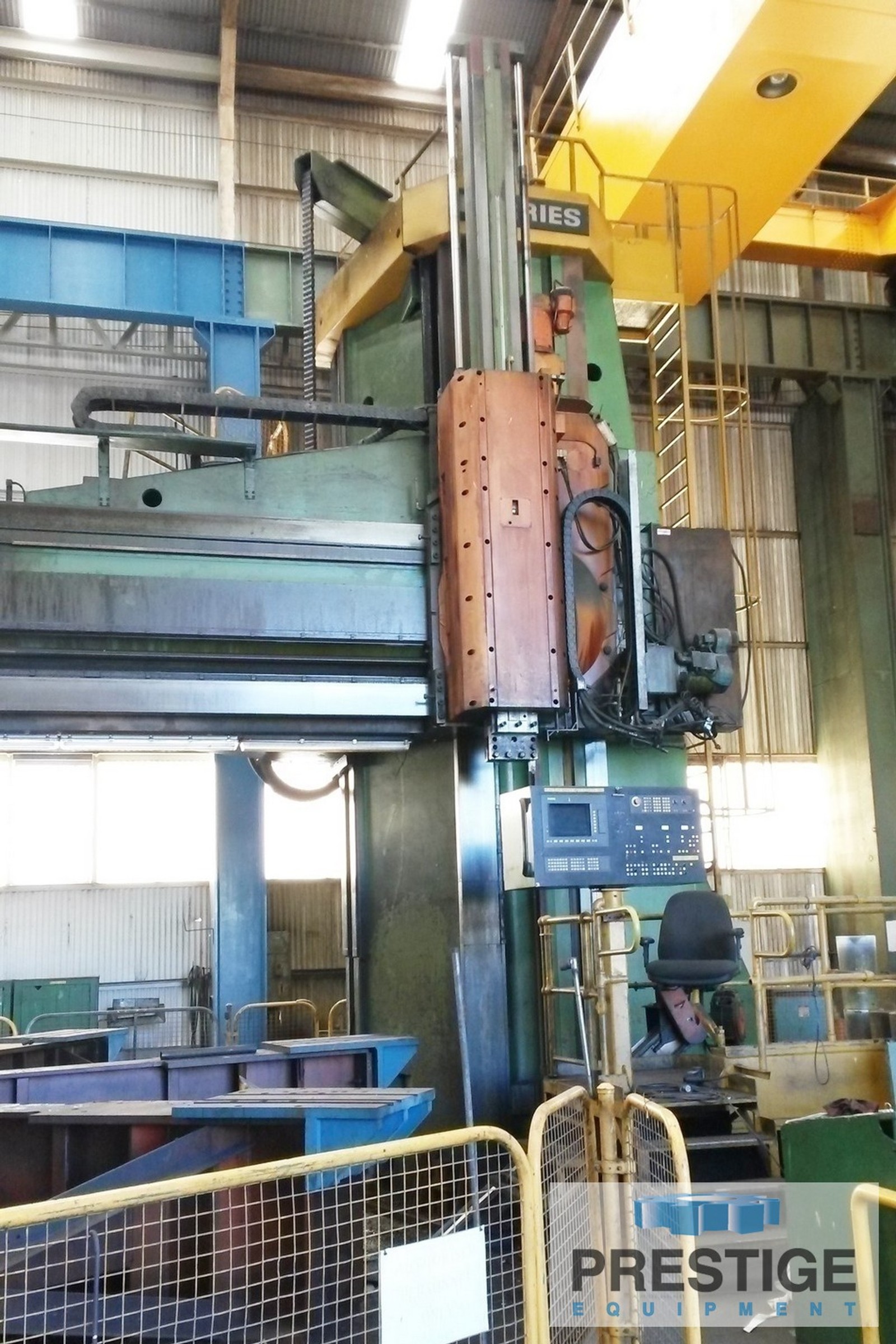

Dorries SDE600 248"/566" CNC Vertical Boring Mill with Milling

FEATURES:
Retrofit With New CNC Controls In 1996

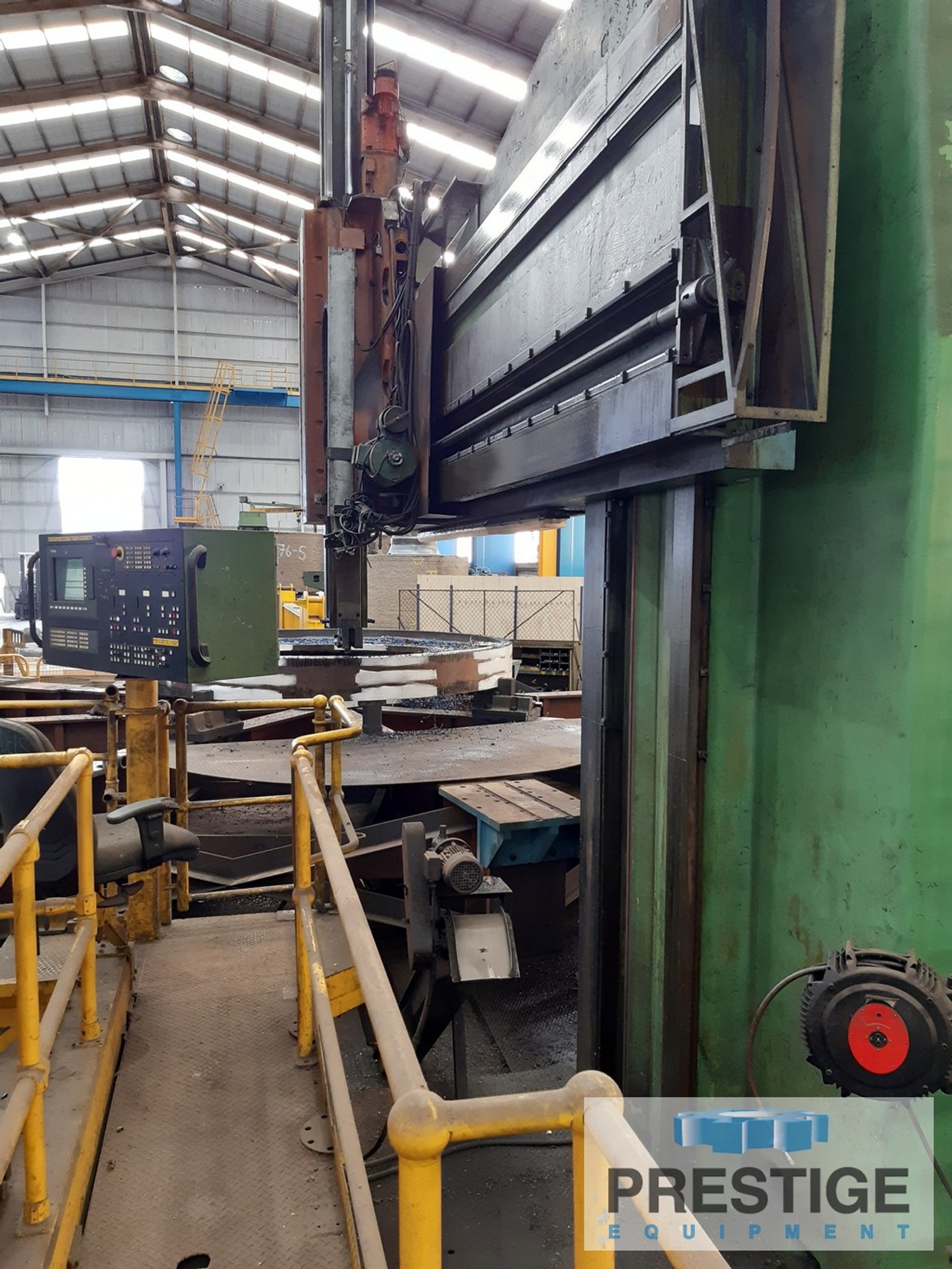

Siemens 840C CNC Control
Openside Design With Sliding Column

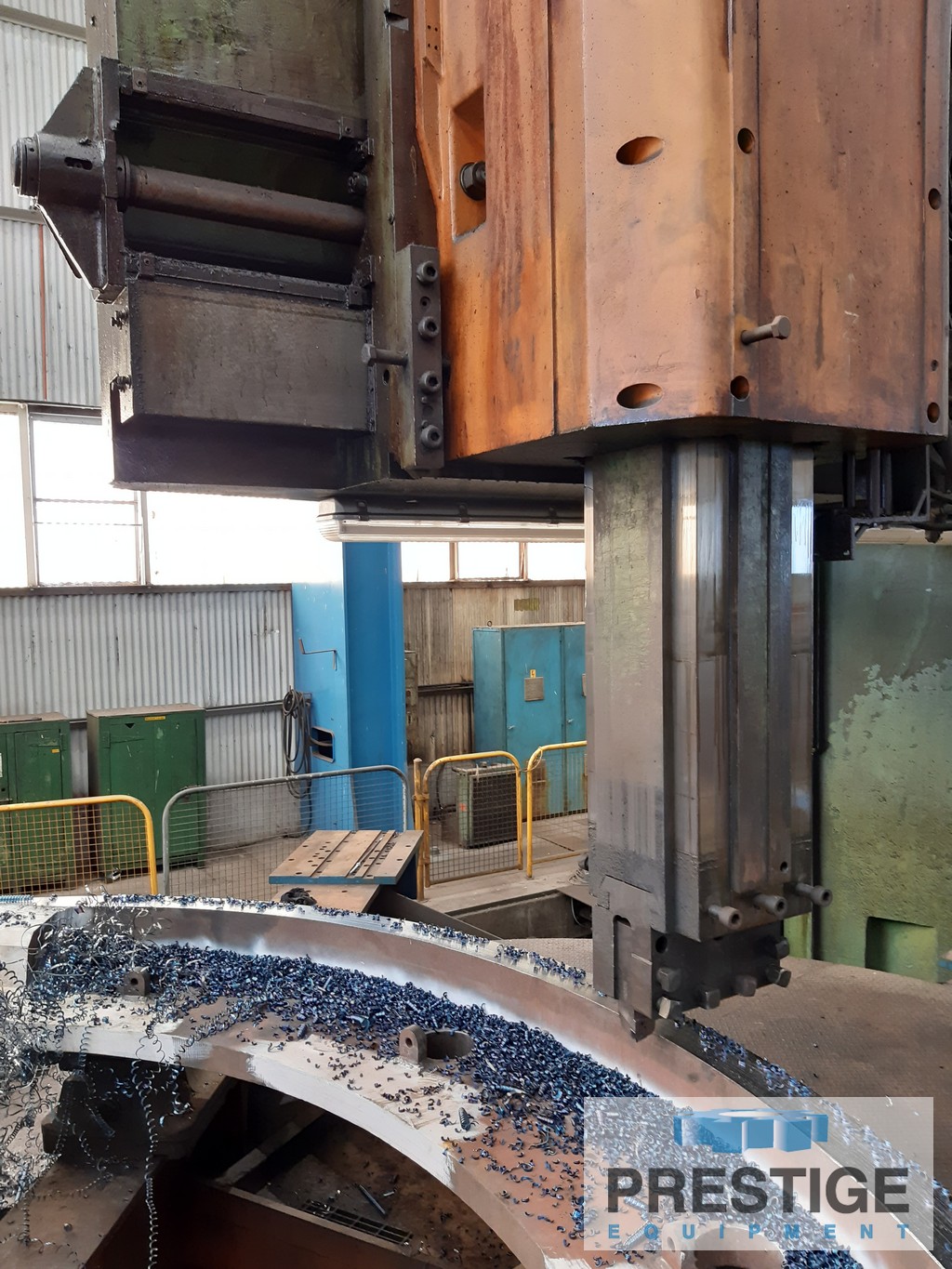

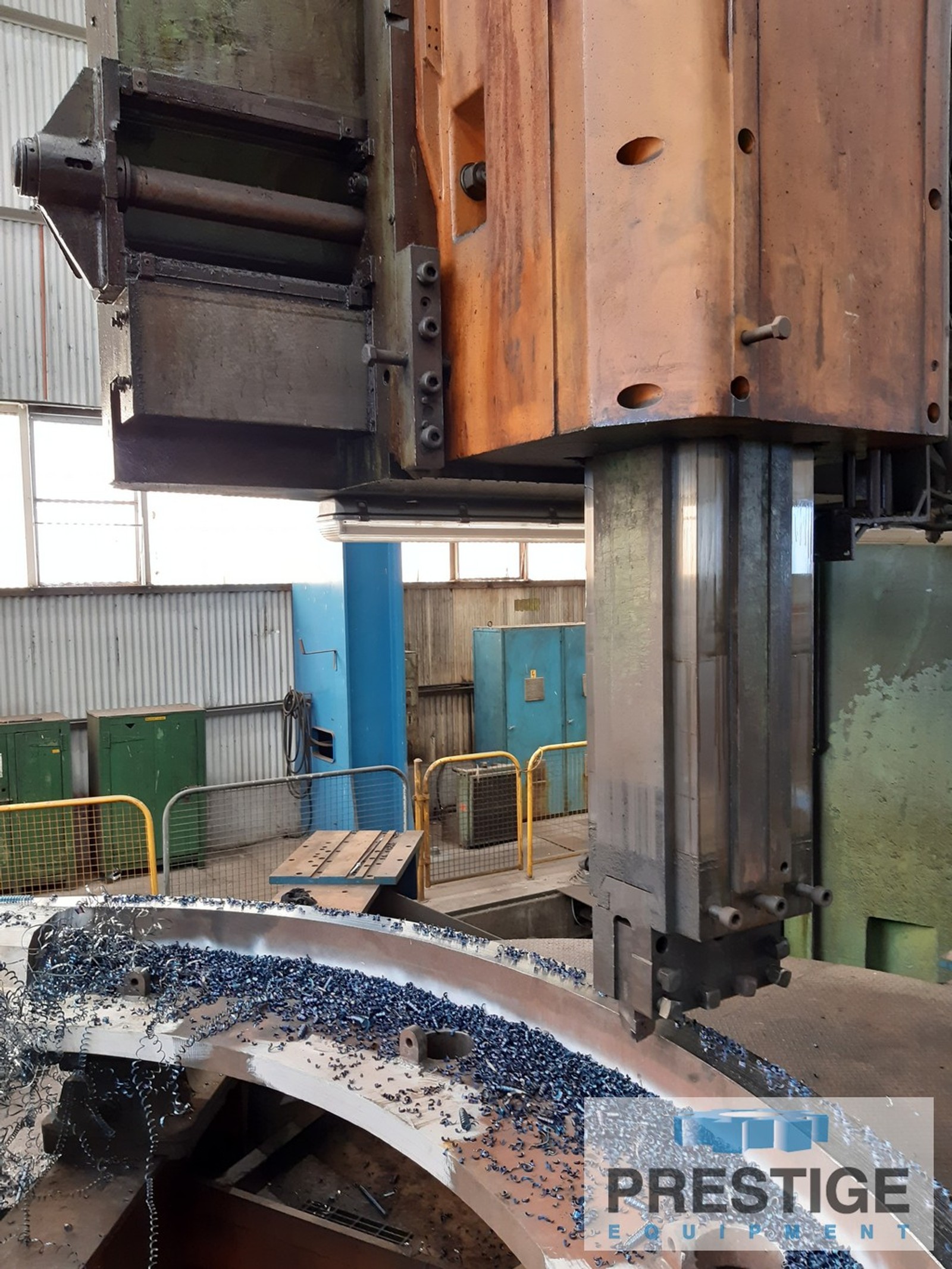

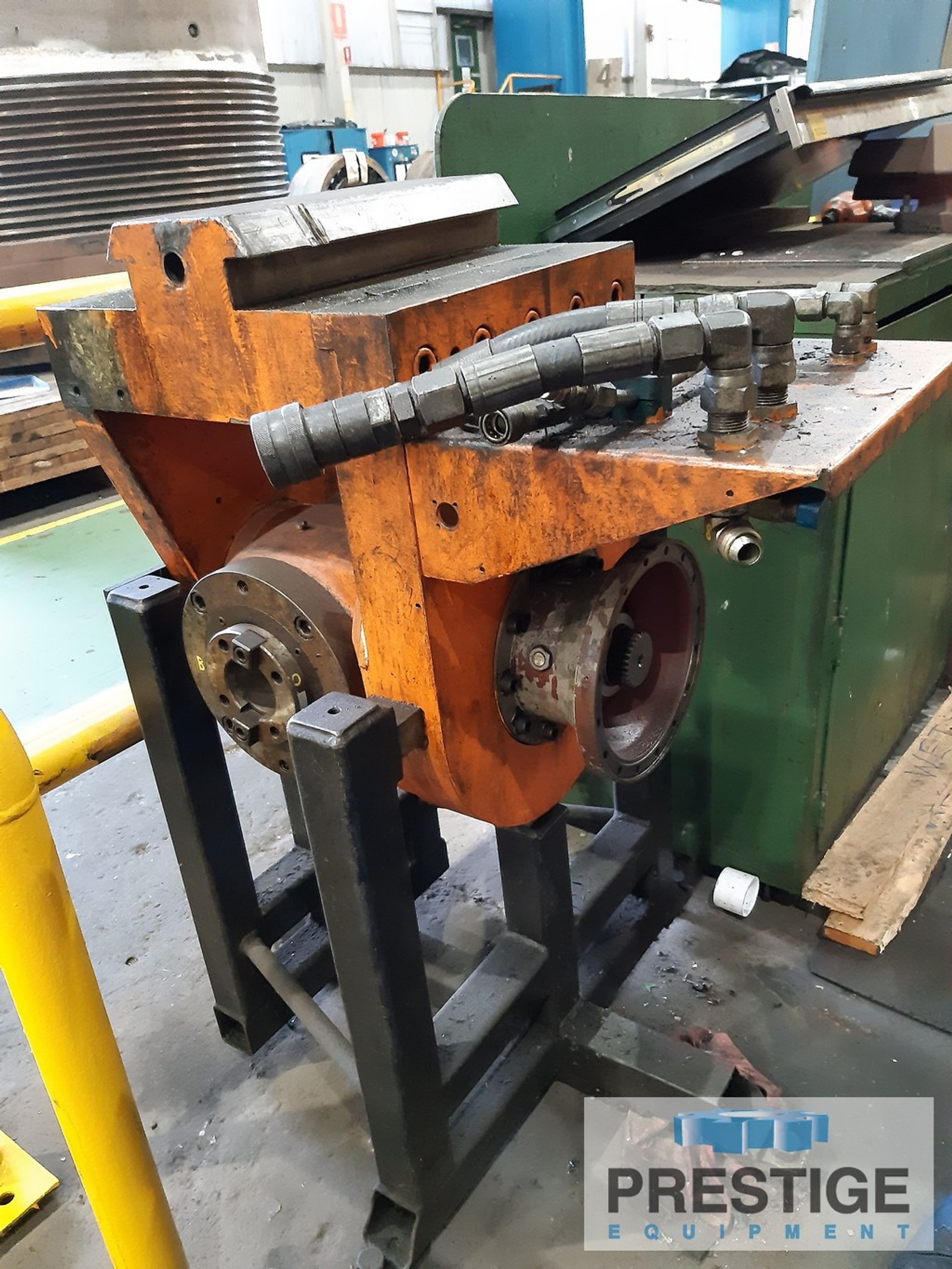

Ram With Milling Attachment
C-Axis Table Indexing For Drilling & Tapping Operations

CAPACITY:
Table Diameter ........................ 248"
Maximum Swing ......................... 566.9"
Maximum Height Under Rail ............. 204.7"
Maximum Turning height ............... 192.91"
Ram Vertical Travel ................... 98.42"
Column Travel ......................... 165.35"
Main Motor ............................ 150 HP
Table Speeds, 3-Ranges ................ 0-25 RPM
Table Weight Capacity ................. 250 Tons
Milling Spindle Motor ................. 29.91 HP (22 KW)
Milling Spindle Speeds ................ 50-400 RPM
Approximate Floor Space ............... 756" x 594"
Approximate Overall Height ............ 315"

EQUIPPED WITH:
Siemens 840C CNC Control, New 1996
248" T-Slotted Table w/ 4-Top Jaws
Ram W/ Milling Attachment
C-Axis Table Indexing For Drilling & Tapping Operations
