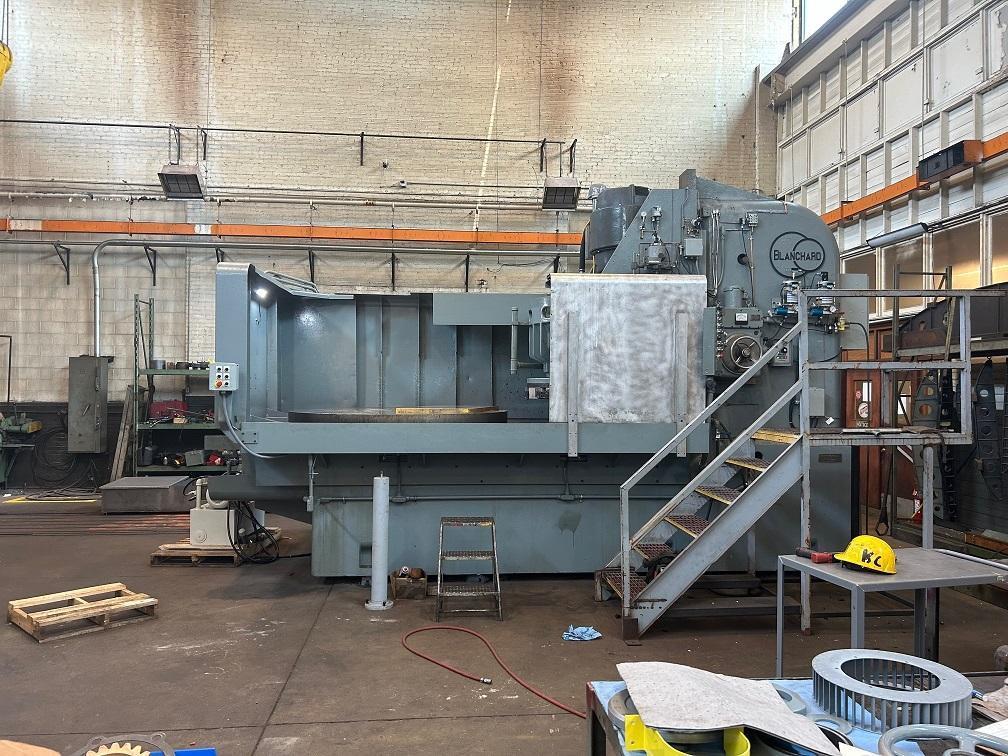

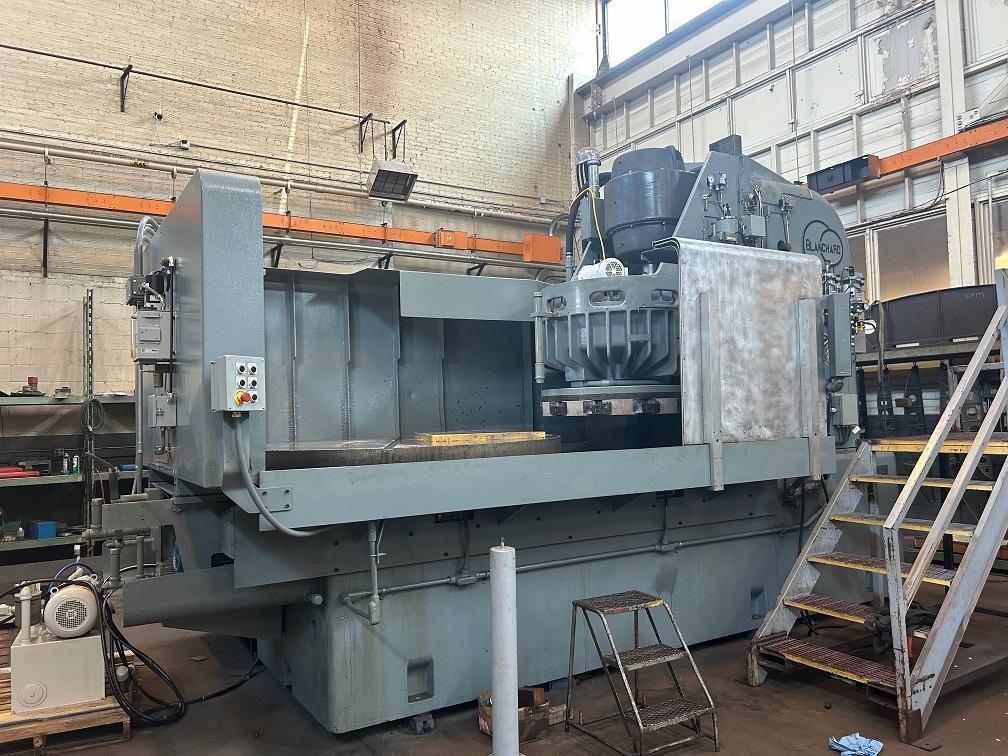

Blanchard #48HD-84, 84" Geared Head 250 HP Vertical Spindle Rotary Surface Grinder, 69' "Certifi

Manufacturer

BLANCHARD

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Vertical Spindle)

Stock

17167

Model

42HD-84

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Chuck Dia. - 84 inches
Under Wheel - 36 inches
Power - 250 horsepower
Swing - 101 inches
Grinding Wheel Dia. - 48 inches
CNC Control - no


Basic Machine Specifications, Subject to Verification
84" Magnetic Chuck (full)
Approximately .500" "Chuck Life"
101" Swing Inside Water Guards
36" Maximum Height Under Wheel
48" Grinding Wheel
250 HP Main Spindle Drive,240/480 Volt, Wired 480 Volt
(4) Table Speeds of 3, 4.8, 7.8, 11.9 RPM
.008" to .096" Per/Min Variable Vertical Down-feeds
Equipped With:
Power Rapid Raise and Lowering of Head
Hardened Bed Ways
Water Guards
Oil Lubrication
Automatic Lubrication
1/2" Magnetic Chuck Life
Wheel Dresser
Cortland Segmented Wheel
Magnetic Chuck Controls
Approximate Dimensions:
Grinder Dimensions (Aprox.) 240.57" L x 108" W x 160" H
Coolant Dimensions (Approx.) 264" L x 96" D x 105" H
Weight Approximately: 75,000 Lbs.

Machine will be sold as "certified", minimum scope of work to be performed:
Convert rack & pinion saddle traverse to hydraulic cylinder traverse
Update and clean up electrical panel
New Dresser Arm Assembly
Install new oil & grease lubrication systems
Install new magnetic chuck controls
Install new telescoping column guards
Repair as necessary water guards (New Aluminum Sliding Operator Doors)
"Dust" grind hardened bed ways
Flake saddle
Inspect cup and table surfaces, flake as needed
Rebuilt Spindle w/ new bearings and seals
Rebuild Main Drive Motor (Windings and Bearings)
Convert spindle internal lube system to external.
Rebuilt Table Drive Transmission w/ new motor
Install new way wipers and lube lines on saddle
Install new coolant lines and ross valve
Clean & Paint
Tram spindle and precision grind magnet flat
Run test parts and document
Machine will ship with ne leveling pads

All above work performed will come with a 90 Day Warranty. The machine itself comes with a standard 30 Day MDNA Return Privilege.

Payment Terms:
30% Down with Purchase Order
70% Due Prior to Shipment

NOTE: Due to rising costs partly by unsteady pricing in purchased goods and supply chain issues, this quote is good for 30 days.  Prices are subject to change, please contact us to confirm price prior to issuing an order.
