Tarus TPTCGD, Traveling Table, 2" Dia Cap, 84" Str., 60" x 96" Tbl, TPI CNC Control, 2001, (2) Available #24586

Manufacturer

TARUS

Category

Drilling Machines

Type

DRILLS, GUN

Stock

24586

Model

TPTCGD-508

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #24586

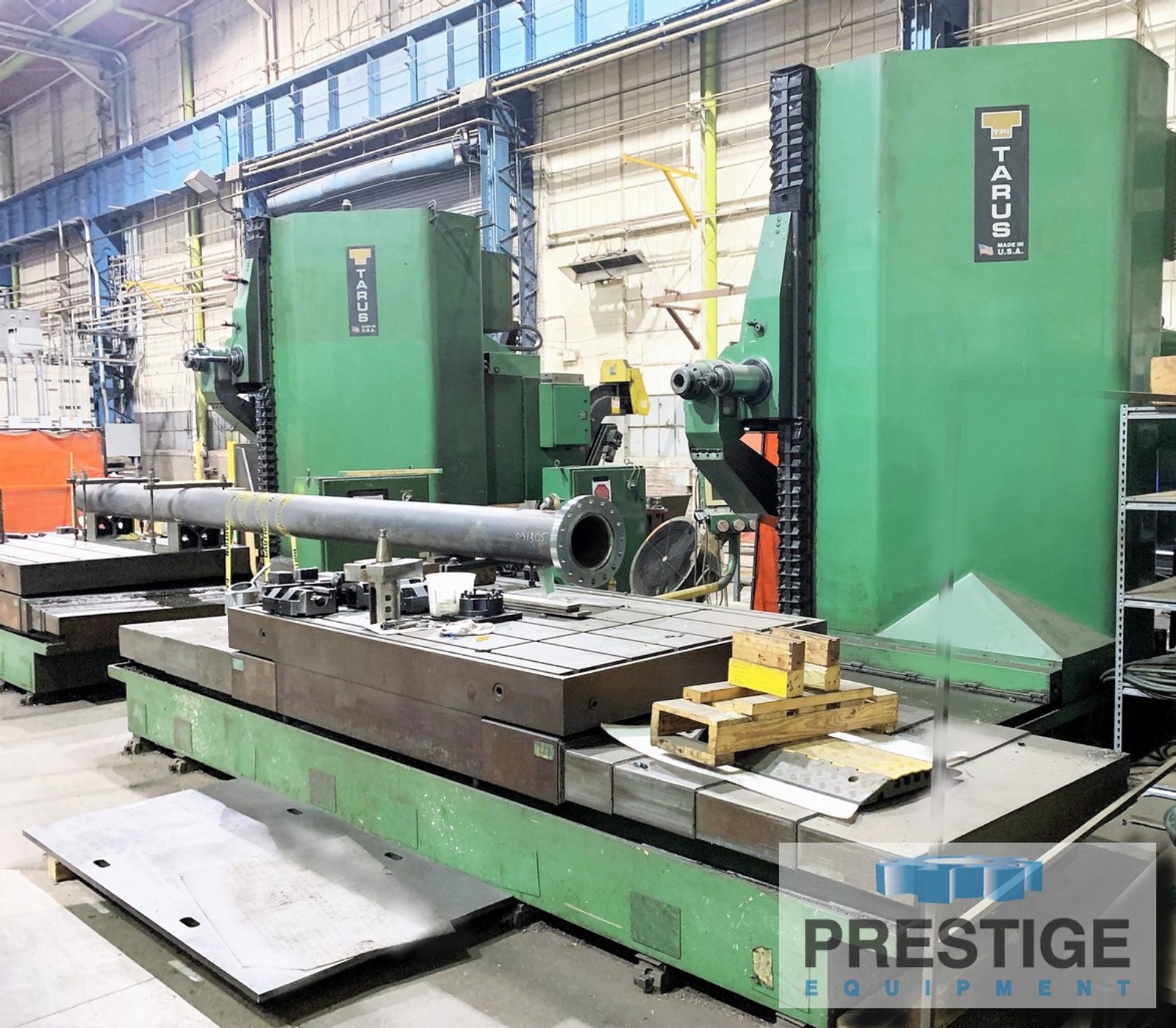

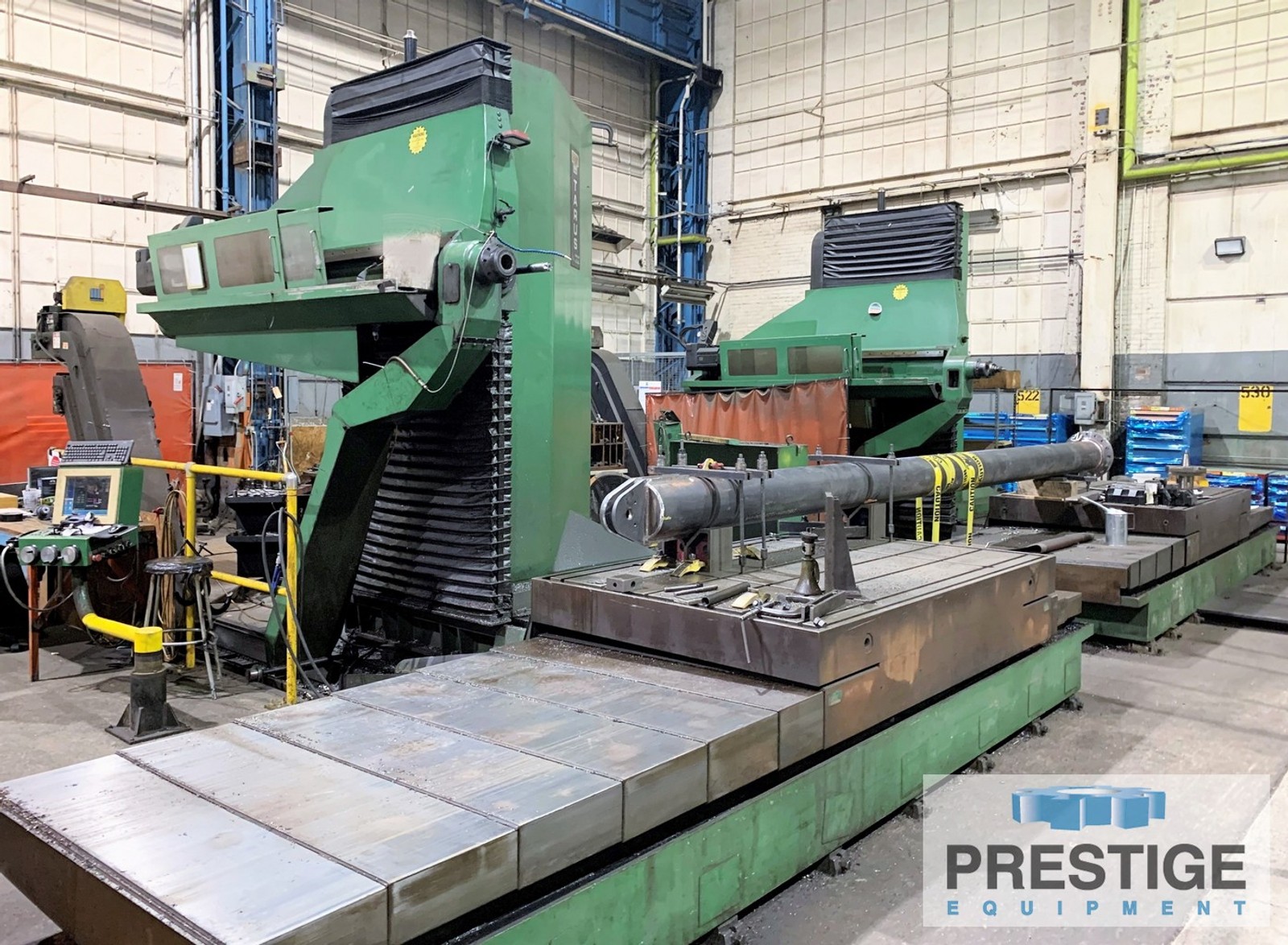

Tarus CNC Traveling Table Type Gun Drilling Machine

CAPACITY:
Maximum Drilling Diameter ............ 2"
Maximum Length ....................... 84"
Minimum Drilling Diameter ............ .125"
Table Travel, X-Axis ................. 96"
Vertical Head Travel, Y-Axis ......... 60"
Drilling Stroke, Z Axis .............. 84"
Column Travel, W-Axis ................ 29.5"
Table Size, T-Slotted ................ 60" x 96"
Table Weight Capacity ................ 80,000 Lbs
Spindle Speeds, Main ................. 50 - 3,400 RPM
Spindle Speeds, Auxiliary ............ 50 - 2,000 RPM
Rapid Traverse ....................... 300 IPM

EQUIPPED WITH:

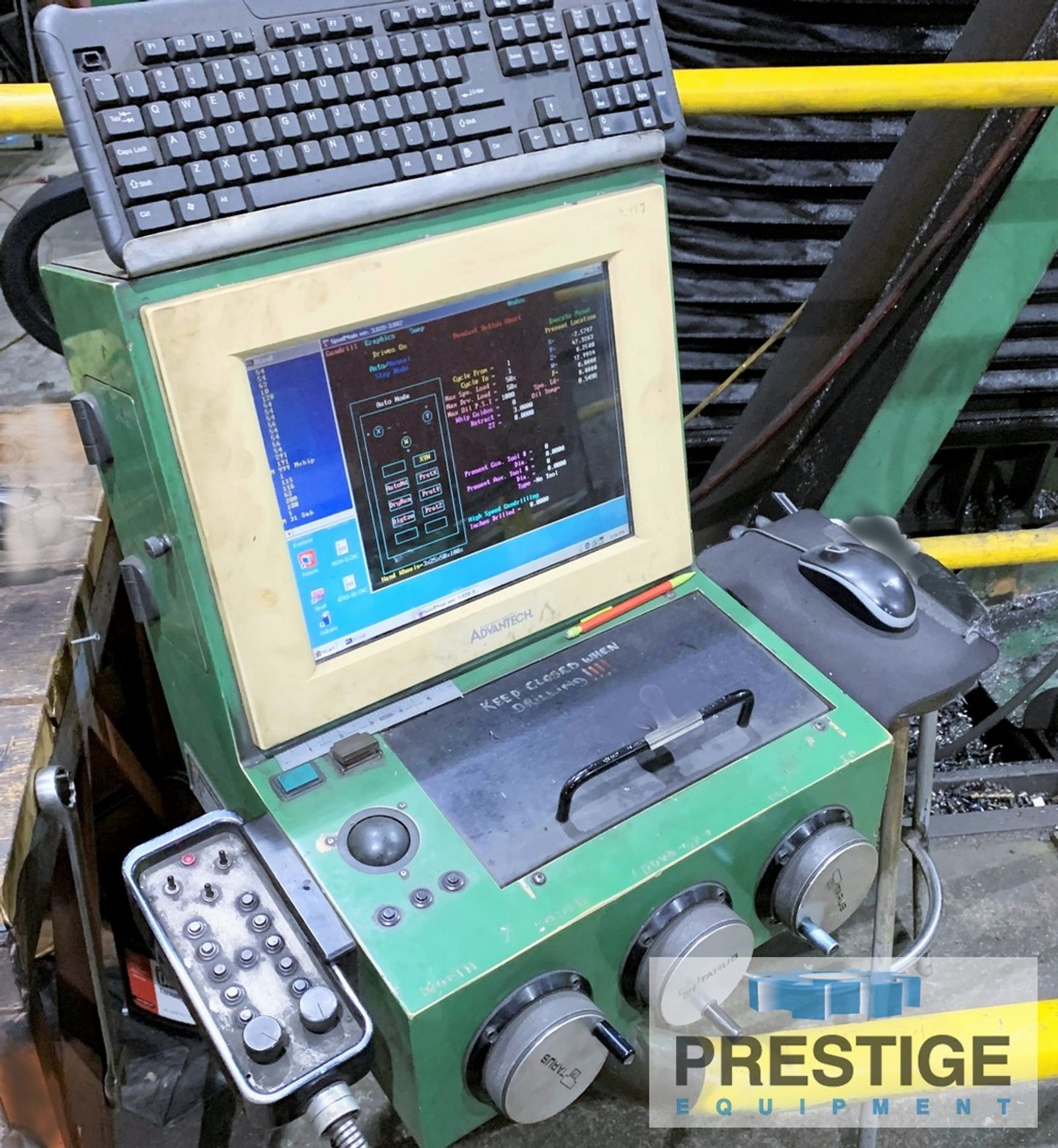

TARUS TPI-2000 CNC Control
Pendant Mounted CRT
Auxiliary Spindle for Tapping & Spot Facing
Coolant & Filtration System
High Pressure Pump Assembly

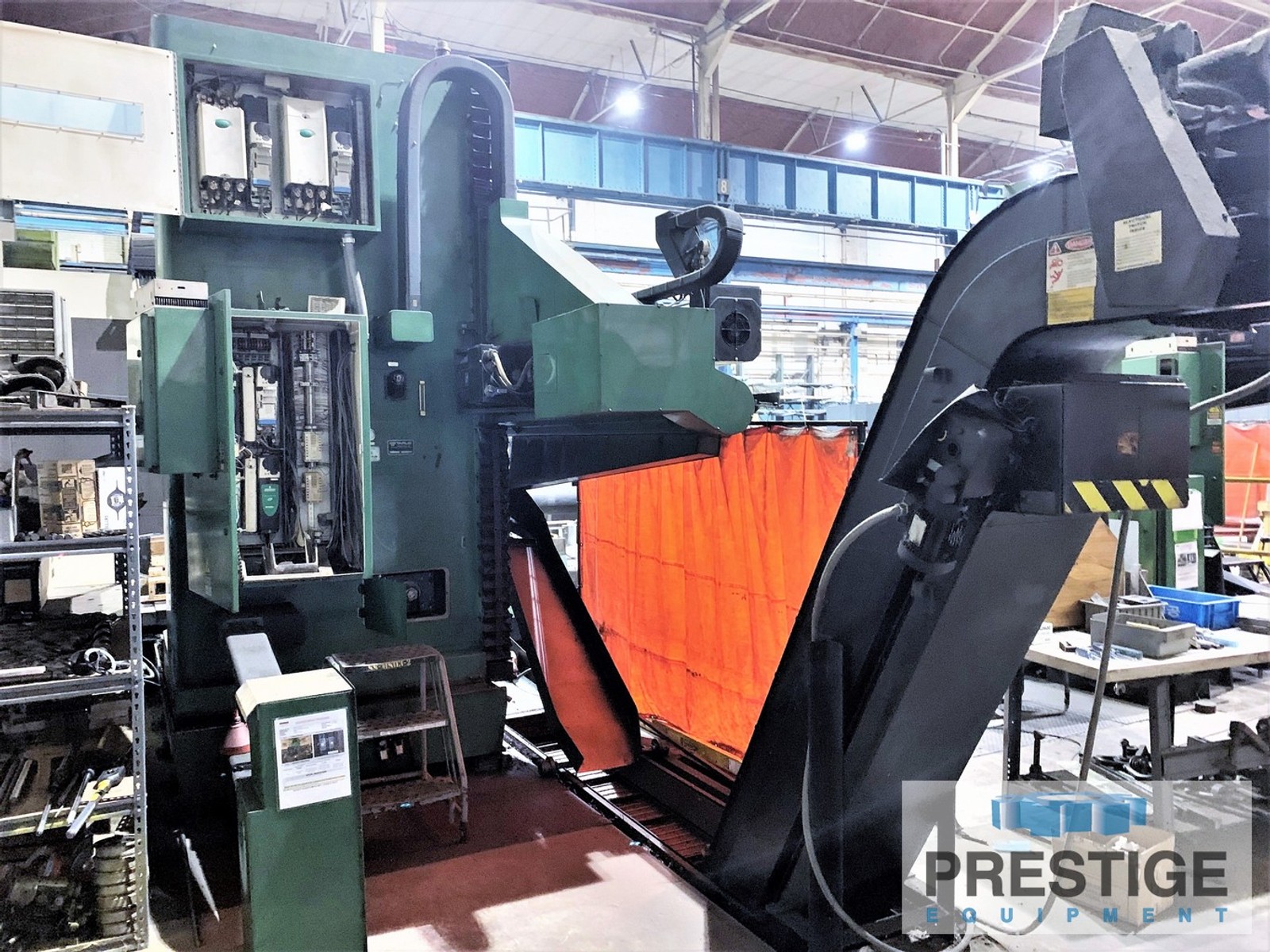

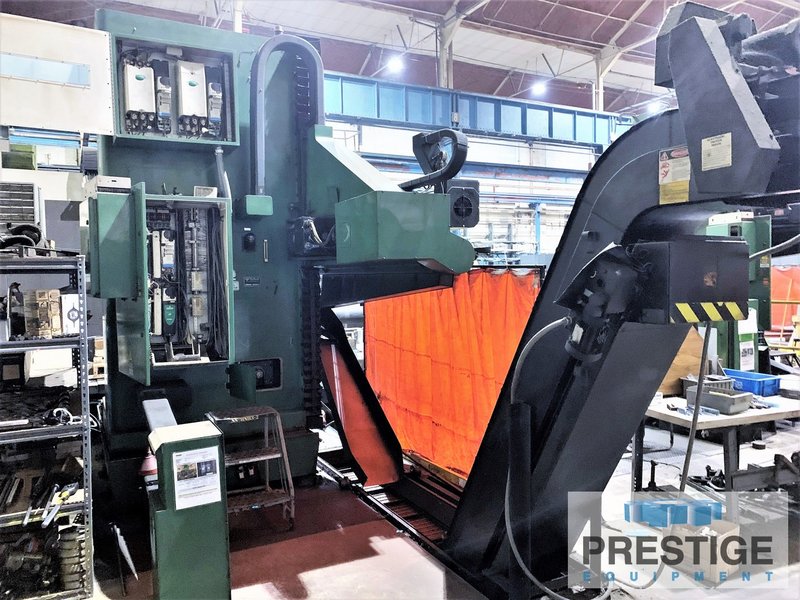

Chip Conveyor
15 HP Spindle Motor

NOTE:
Two Machines available, Cost Is Per Each Machine
