US Industrial 1/4" x 10', 3-Roll Initial Pinch, Hardened Rolls, Cone Rolling, 2018, #31963

Manufacturer

U.S. INDUSTRIAL

Category

Rolls

Type

ROLLS, PLATE BENDING, INIT & DBL PINCH TYPE, (Incl Sheet Metal)

Stock

31963

Model

USR1025

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31963

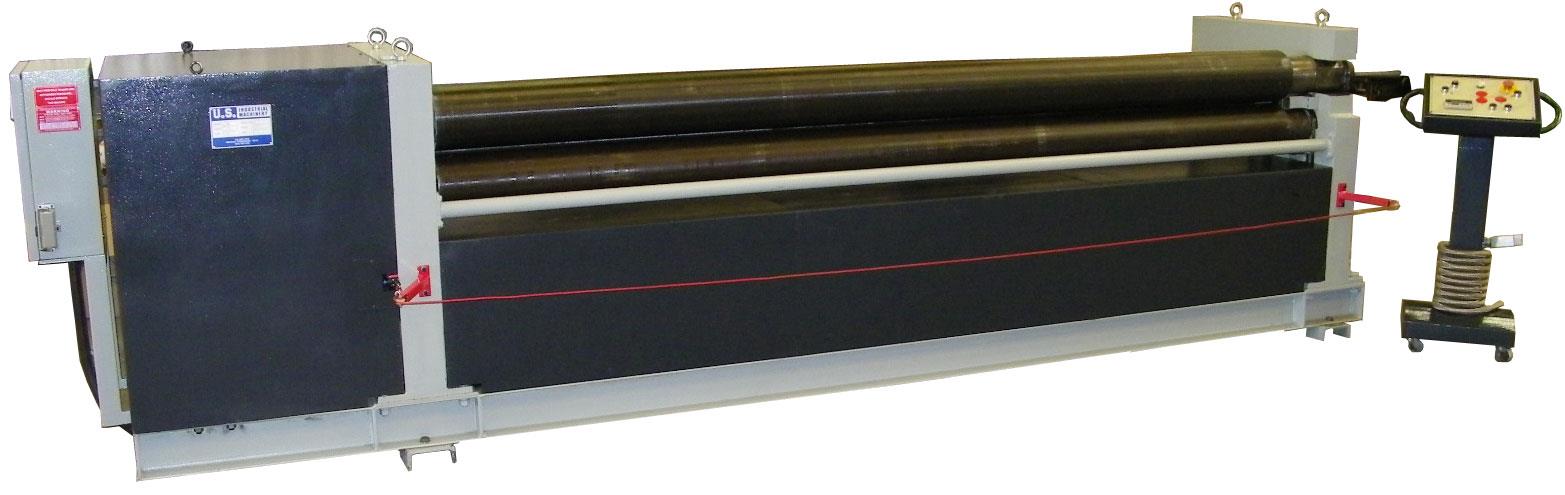

U.S. INDUSTRIAL 10’ x 1/4” INITIAL PINCH PLATE ROLL

FEATURES:
Hardened Rolls
Cone Rolling Attachment
LED Readout w/ Memory

CAPACITY:
Rated Bending Capacity (A-36 Steel) ... 10' x 1/4"
Pre-Bending Capacity .................. 1/4"
Roll Diameter (All 3 Rolls) ........... 7.4"
Speed ................................ 19 FPM
Main Motor (480/3/60) ................. 5.5 HP
Adjustment Motor ..................... 3 HP
Machine Footprint .................... 177" x 54"
Machine Height ....................... 44"
Approximate Shipping Weight ........... 9,250 lbs
Electrics ............................ 220V/440V/3Ph

EQUIPPED WITH (Standard):
Powered Roll Adjustment and Manual Precision Pinch Roll Adjustment
Top Roll Manual Swingout
Emergency Trip Line
Pedestal Control
Quick Roll Adjustment
Roll Position Indicators
Crowned Rolls
Low Voltage Push Button Controls

Included Options:
Hardened Rolls
Cone Rolling Attachment
LED Readout w/ Memory

NOTE:
Almost New, Hardly Ever Used.
