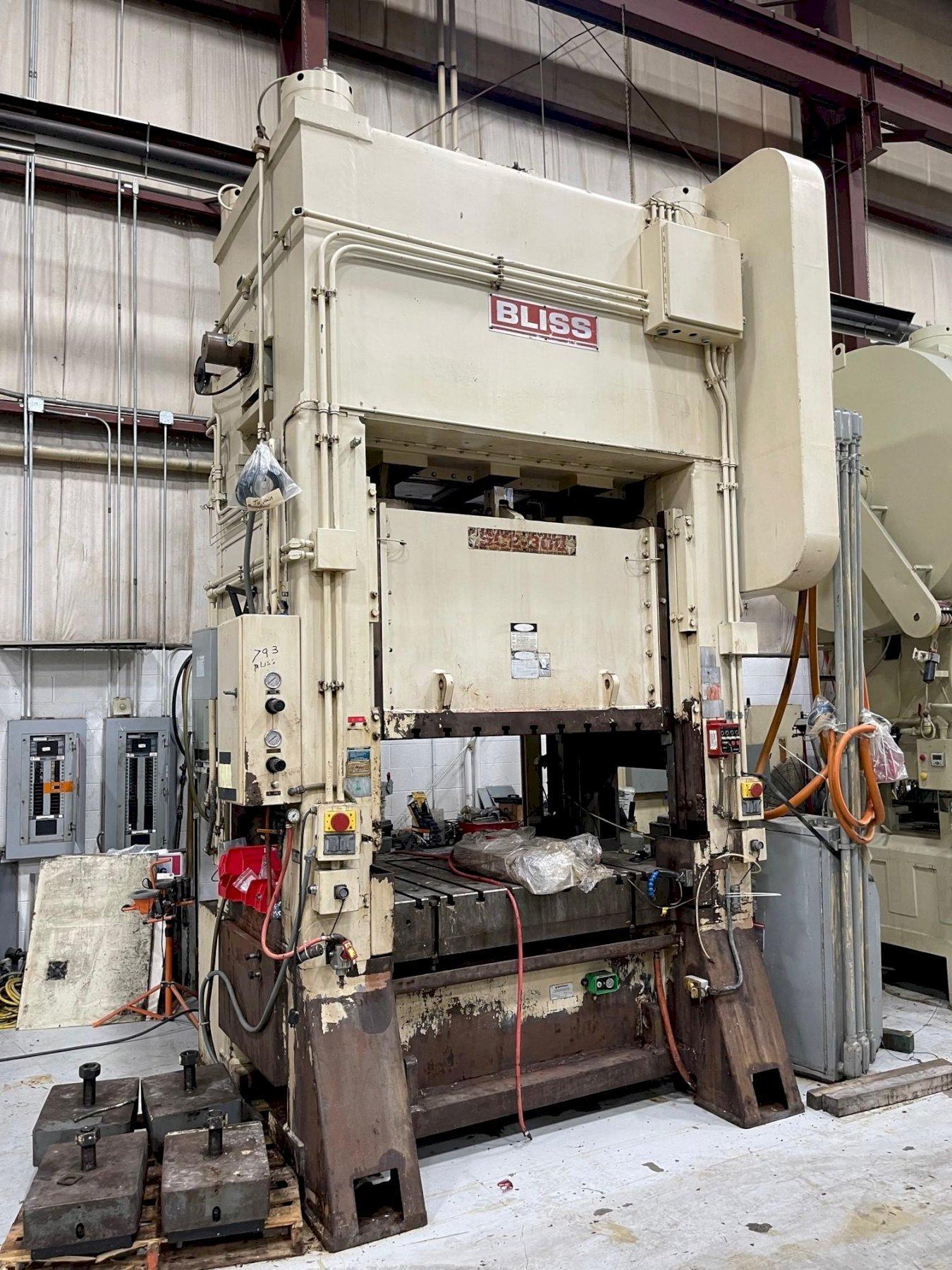

300 ton Bliss SC2-300-60-42 Used Straight Side Mechanical Metal Stamping Press, Year 1997

Stock

2757

Model

SC2-300-60-42 SSDC Press

Dealer Location

Michigan

Spec Sheet

Tonnage - 300
Stroke - 10 inches
Shut Height - 27 inches
Adjustment - 10 inches
Bed Size - 60" x 42"
Ram Area - 60" x 42"
SPM - 25-50 SPM



Standard Specifications
Used Bliss Press Model# SC2-300-60-42
Straight Side Mechanical Press
300 ton Capacity
10" Stroke
27" Shut Height
10" Motorized Adjustment
60" LR x 42" FB Bed Area
60" LR x 42" FB Slide Area
25-50 SPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
7" Bolster Plate
T-Slotted Ram and Bolster
31" Wide Windows
Free Standing Console Control
Wintriss Smart Pak Press Controls
Wintriss Die Pro
Shadow V Light Curtains
Hydraulic Tie Rod Nuts
Vibro-Dynamic Floor Pads
50 HP Eddy Current Drive
Floor Standing

Max. Overall Height 208" Tall
Approx. Overall Weight 72,000 lbs

This Used 300-ton Bliss Mechanical Metal Stamping Press can be seen under power in the S&G Press Livonia Michigan Warehouse!
