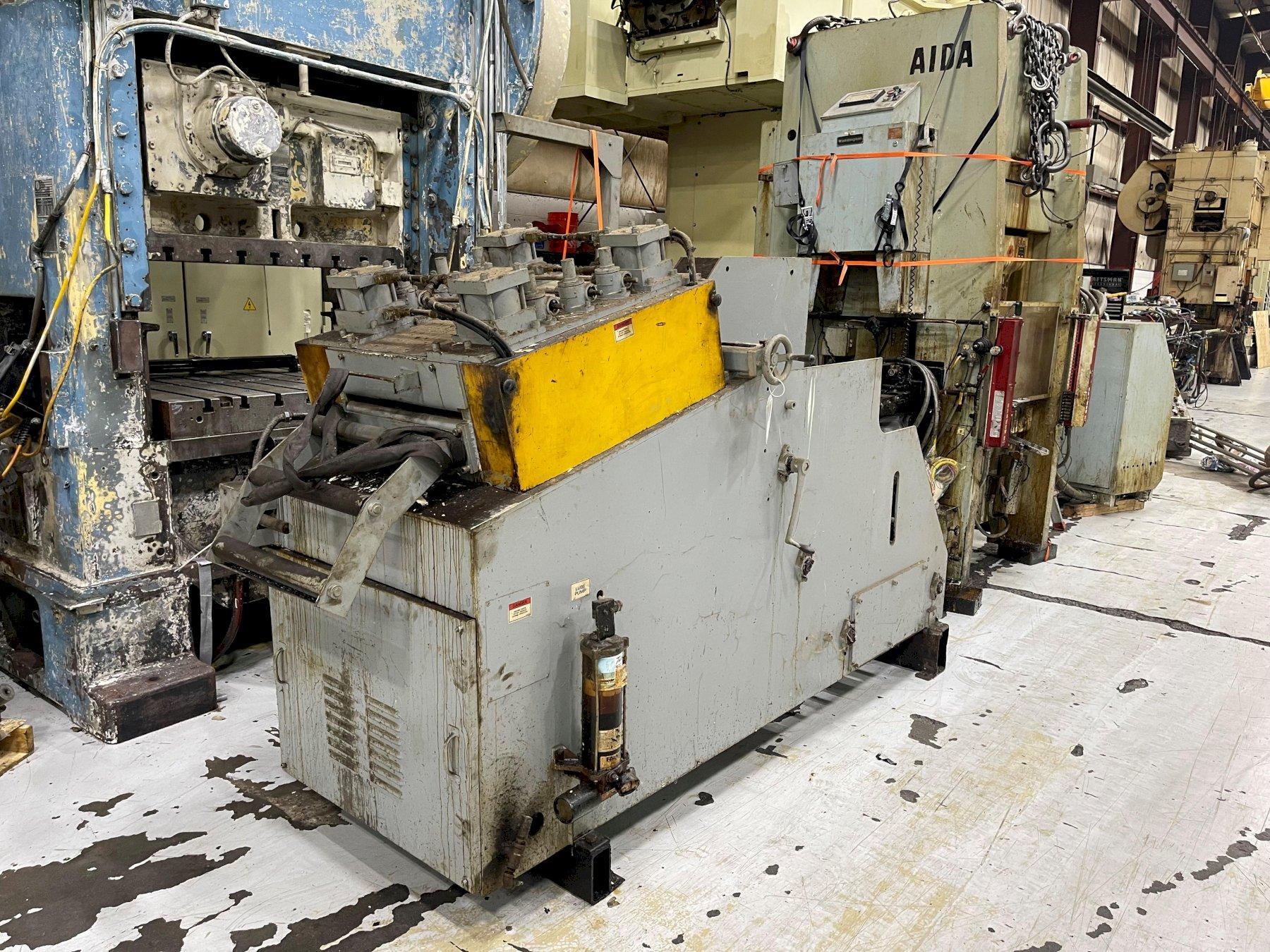

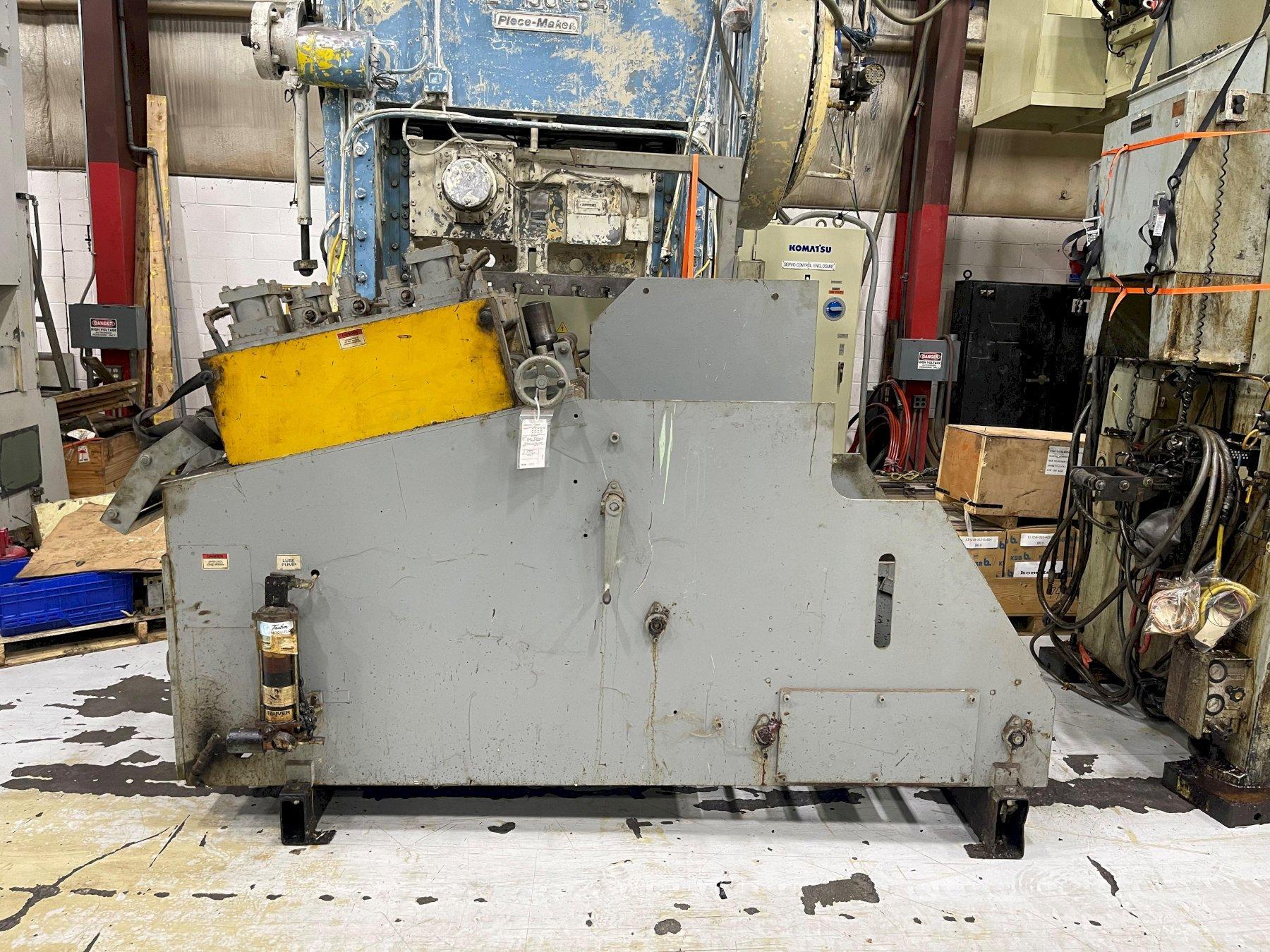

6,000 lbs x 18" Coe Press Equipment Coil Cradle Straightener Model# CPCC-6018

Manufacturer

COE

Category

Coil Processing Equipment

Type

COIL CRADLES & STRAIGHTENERS

Stock

2756

Model

CPCC-6018

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 6000 pounds
Coil Width - 18 inches
Coil Thickness - .125 inches


Coe Press Coil Cradle Straightener Combination Uncoiler Specifications:
Coil weight capacity: 6,000 Lbs.
Coil width capacity: 18"
Stock thickness capacity: .125" x 18" Wide
Stock thickness capacity: .187" x 06" Wide
Coil O.D. capacity: 60"

Coe Press Coil Cradle Straightener Combination Uncoiler Equipment and Features:
Coil cradle straightener entry and exit pinch rolls with air operated adjustments
Seven coil cradle straightening rolls
Individual upper coil cradle straightening roll adjustments via screw jacks
Roll position indicators (Reference Scales)
Inclined coil cradle straightening head
Adjustable stock width edge guides
Exit cascade loop support rollers
Adjustable coil side plates
Outboard air pressure regulators and gauges
Variable speed drive
Operator's control console
Jog forward and reverse
Auto / Run cycle
Loop control
