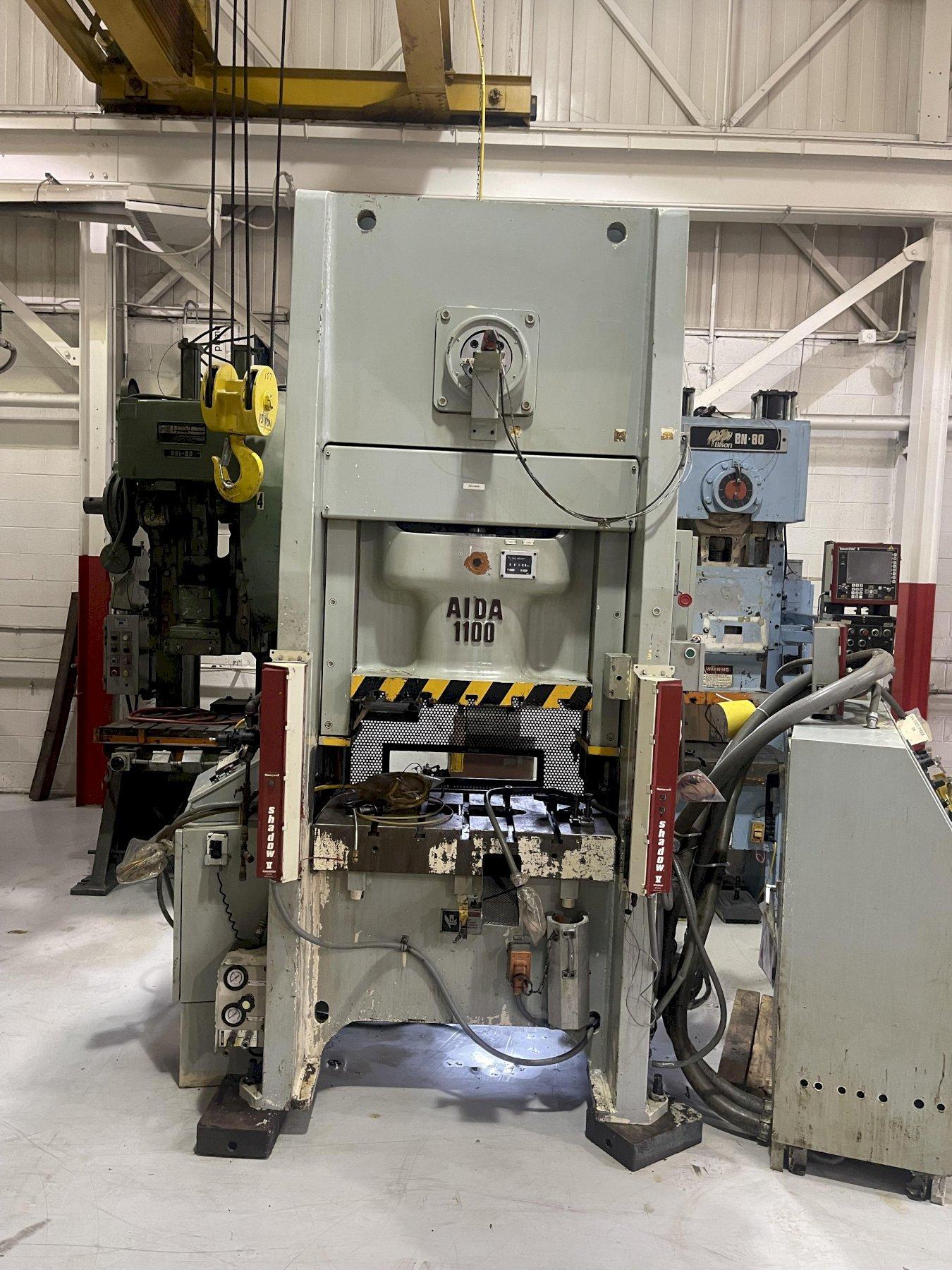

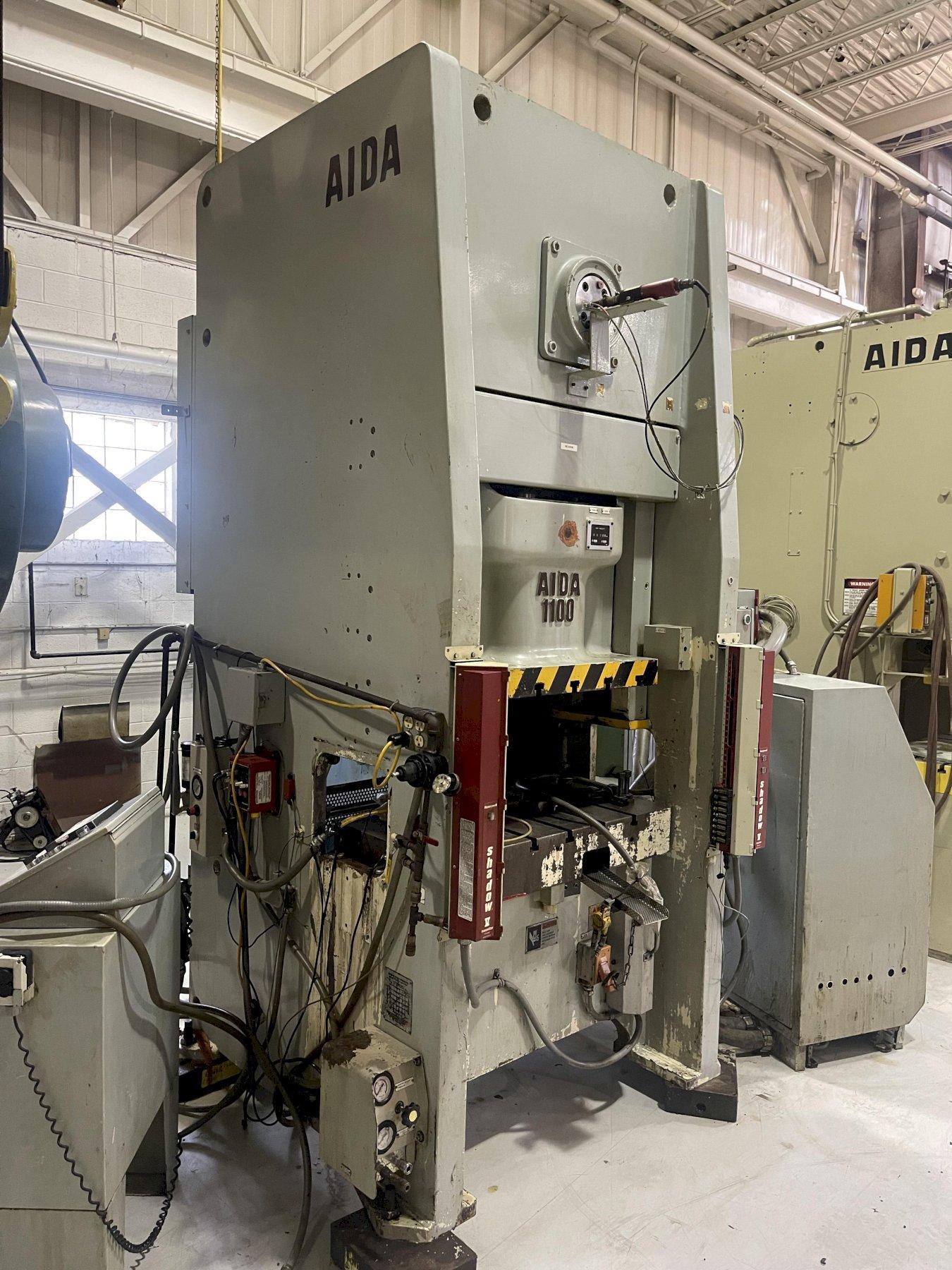

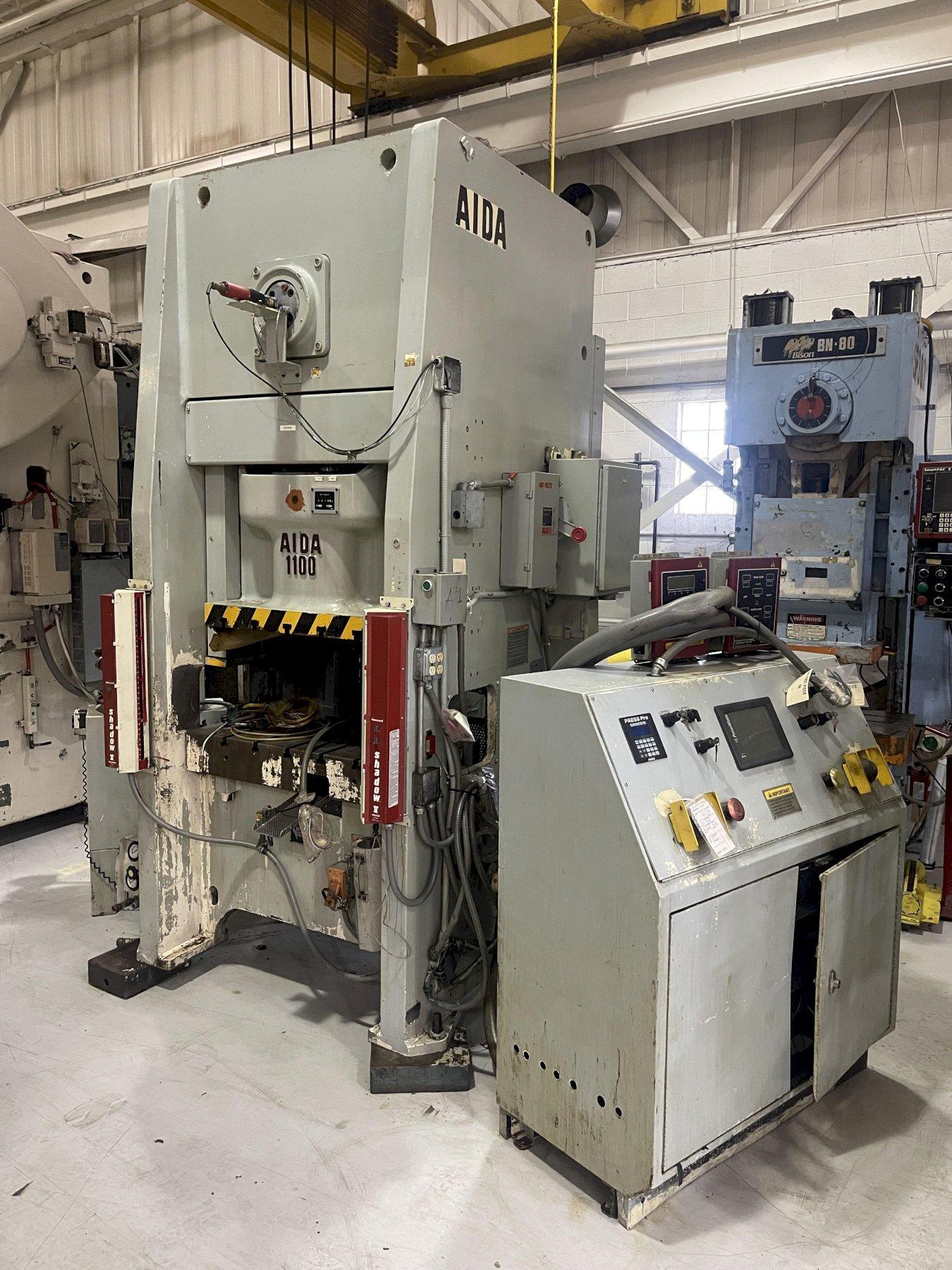

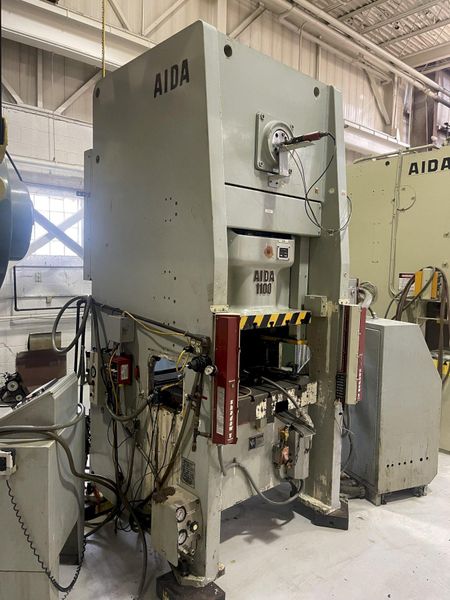

121 ton Aida NS1-1100 Single Point Eccentric Geared Straight Side Mechanical Metal Stamping Pres

Stock

2755

Model

NS1-1100

Dealer Location

Michigan

Spec Sheet

Tonnage - 110
Stroke - 4.33 inches
Shut Height - 18.6 inches
Adjustment - 3.54 inches
Bed Size - 39.4" x 20.5
Ram Area - 31.5" x 20.5
SPM - 50-100


Standard Specifications
110 ton Capacity (Metric)

121 ton Capacity (US Ton)
4.33" Stroke
12.6" Die Height On Bolster
3.54" Motorized Adjustment
39.4" LR x 20.5" FB Bed Area
31.5" LR x 20.5" FB Slide Area
50-100 VSPM

Equipment and Features
Aida Wet Clutch and Brake
Air Counterbalances
Hydraulic Overloads
19.6" Wide Windows
6.1" Thick Bolster Plate
Max Upper Die Weight 770 lbs.
15 HP Main Motor
Floor Standing

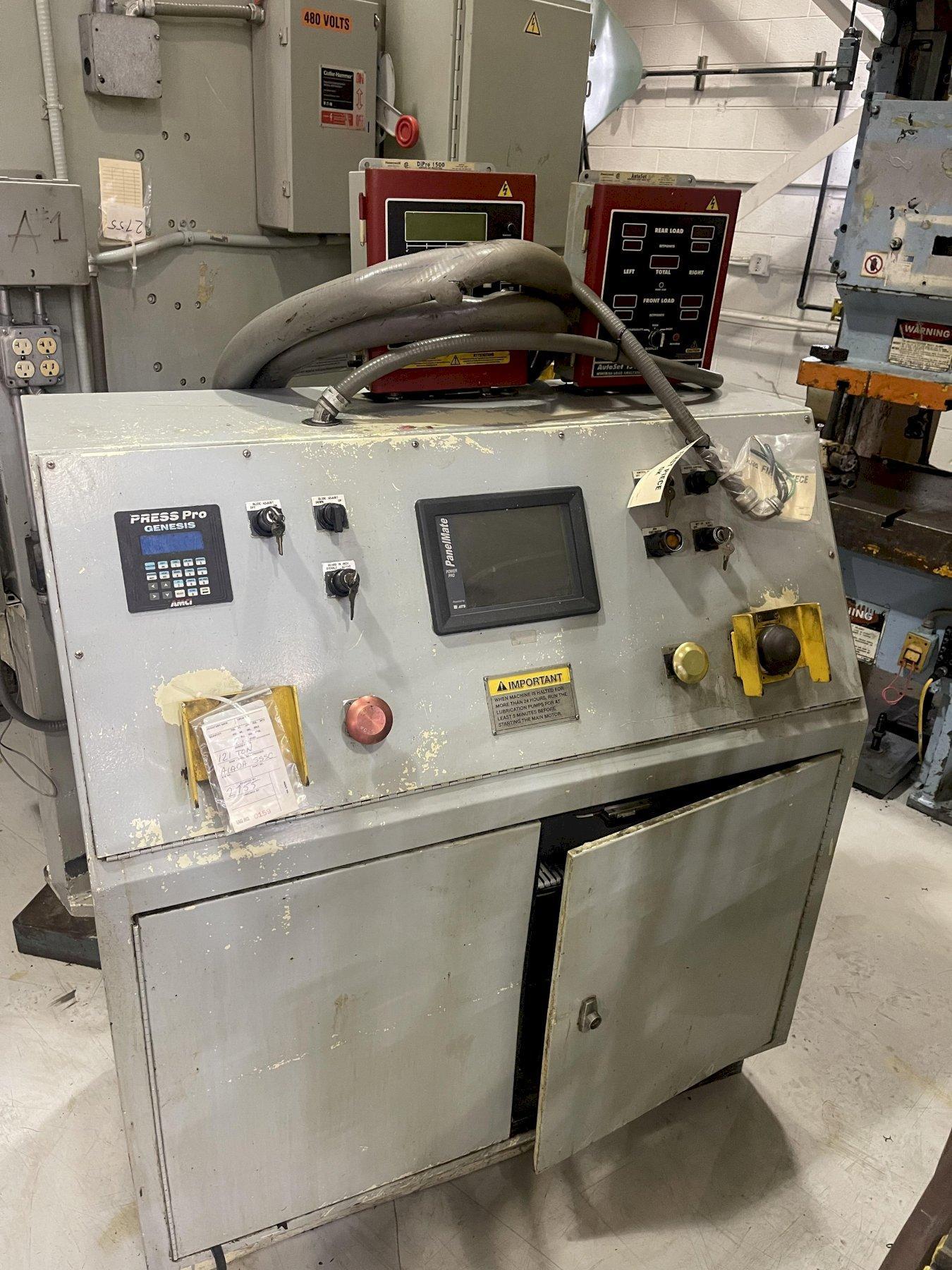

Wintriss Die Pro 1500
Wintriss Autoset 1504 load analyzer
Palm Buttons
Shadow V Light Curtains
