USED, 36" X 120" POREBA HOLLOW SPINDLE LATHE WITH 12.5" SPINDLE BORE

Manufacturer

POREBA

Category

Lathes

Type

LATHES, OIL FIELD & HOLLOW SPINDLE

Stock

19464

Model

TPL-90/3M

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet



SWING OVER BED: 36-1/2"
SWING OVER CARRIAGE: 25-1/2"
DISTANCE BETWEEN CENTERS: 120"
SPINDLE SPEEDS: (18) 5 - 250 RPM
SPINDLE MOTOR: 30 HP

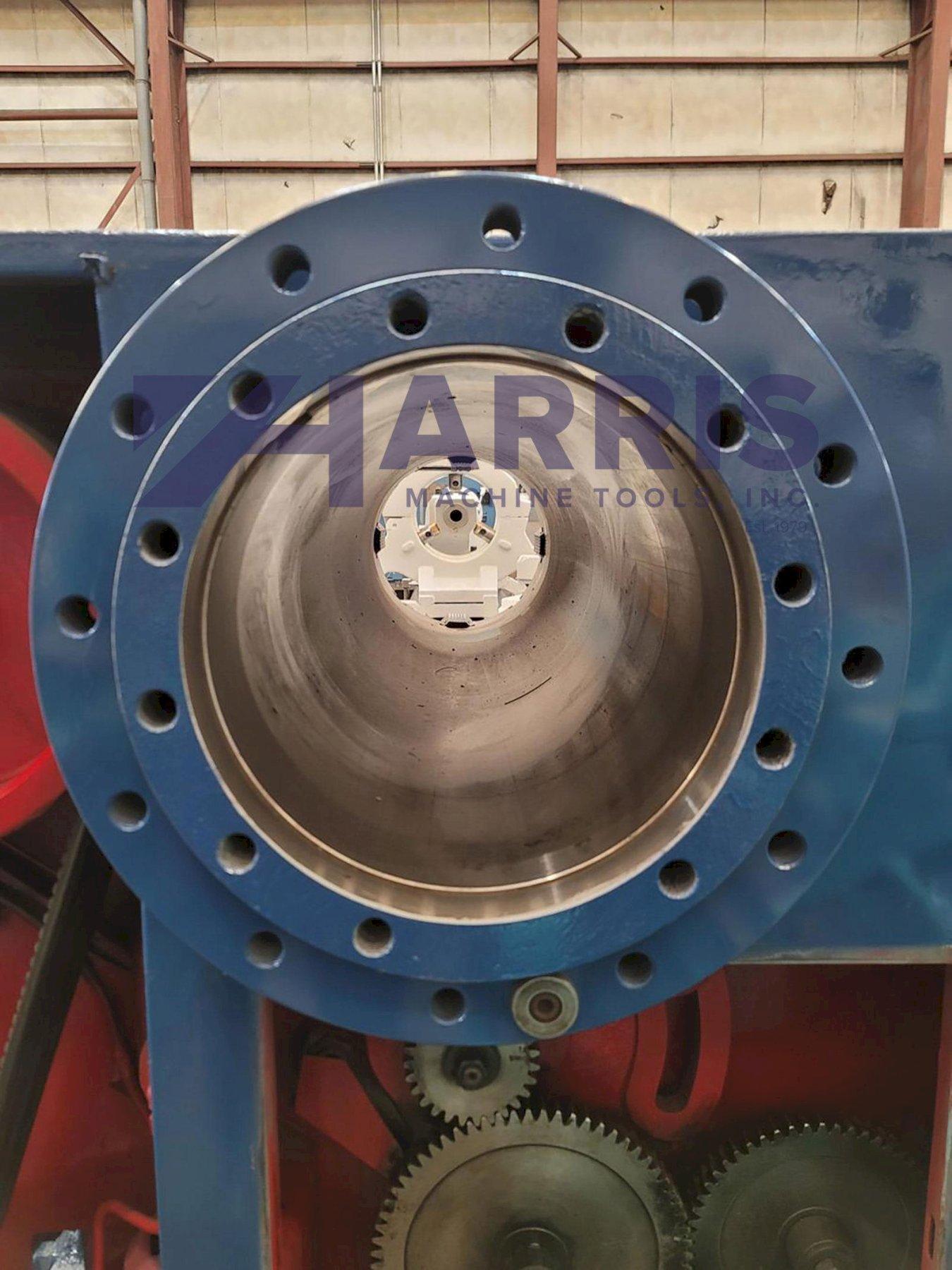

SPINDLE BORE: 12-1/2"
SPINDLE NOSE: A1-20
BED WIDTH: 23"
LONGITUDINAL FEEDS: 0.0043 - 0.248 IPR (0.11 - 6.4 MM IPR)
CROSS FEEDS: 0.0021 - 0.124 IPR (0.05 - 3.20 MM IPR)
TOP SLIDE TRAVEL: 11-3/4"
INCH THREADS: (54) 1/2 - 16 TPI
METRIC THREADS: (72) 1 - 60 MM
D.P. THREADS: 1 - 60
MODULAR THREADS: 0.25 - 15 MM
LEADSCREW DIAMETER X PITCH: 2" X 2 TPI
TAILSTOCK SPINDLE DIAMETER: 5"
TAILSTOCK SPINDLE TRAVEL: 11-3/4" (2 SPEED)
TAILSTOCK SPINDLE TAPER: 6 MT
WEIGHT (APPROXIMATE): 18,000 LBS.
EQUIPPED WITH:

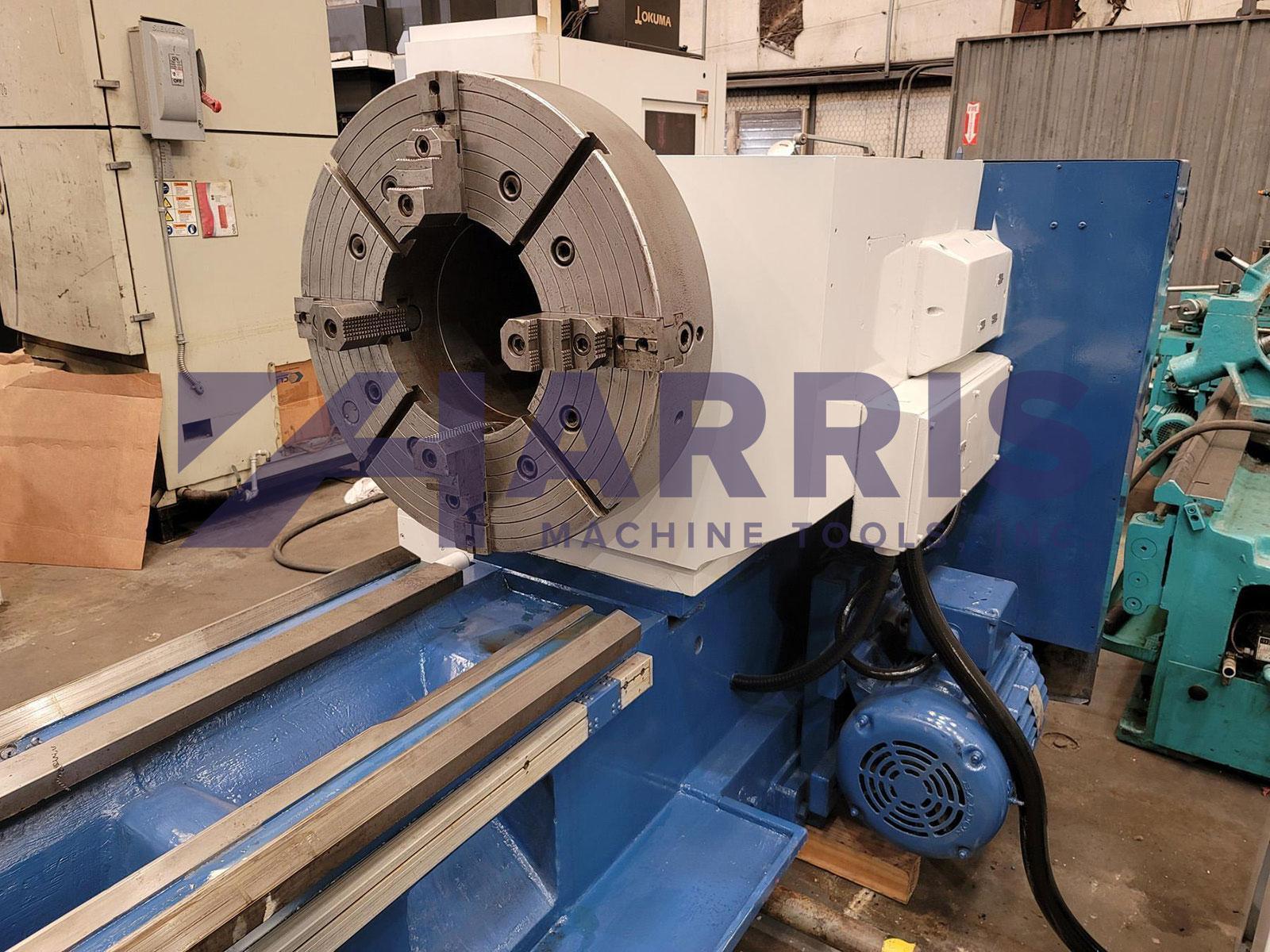

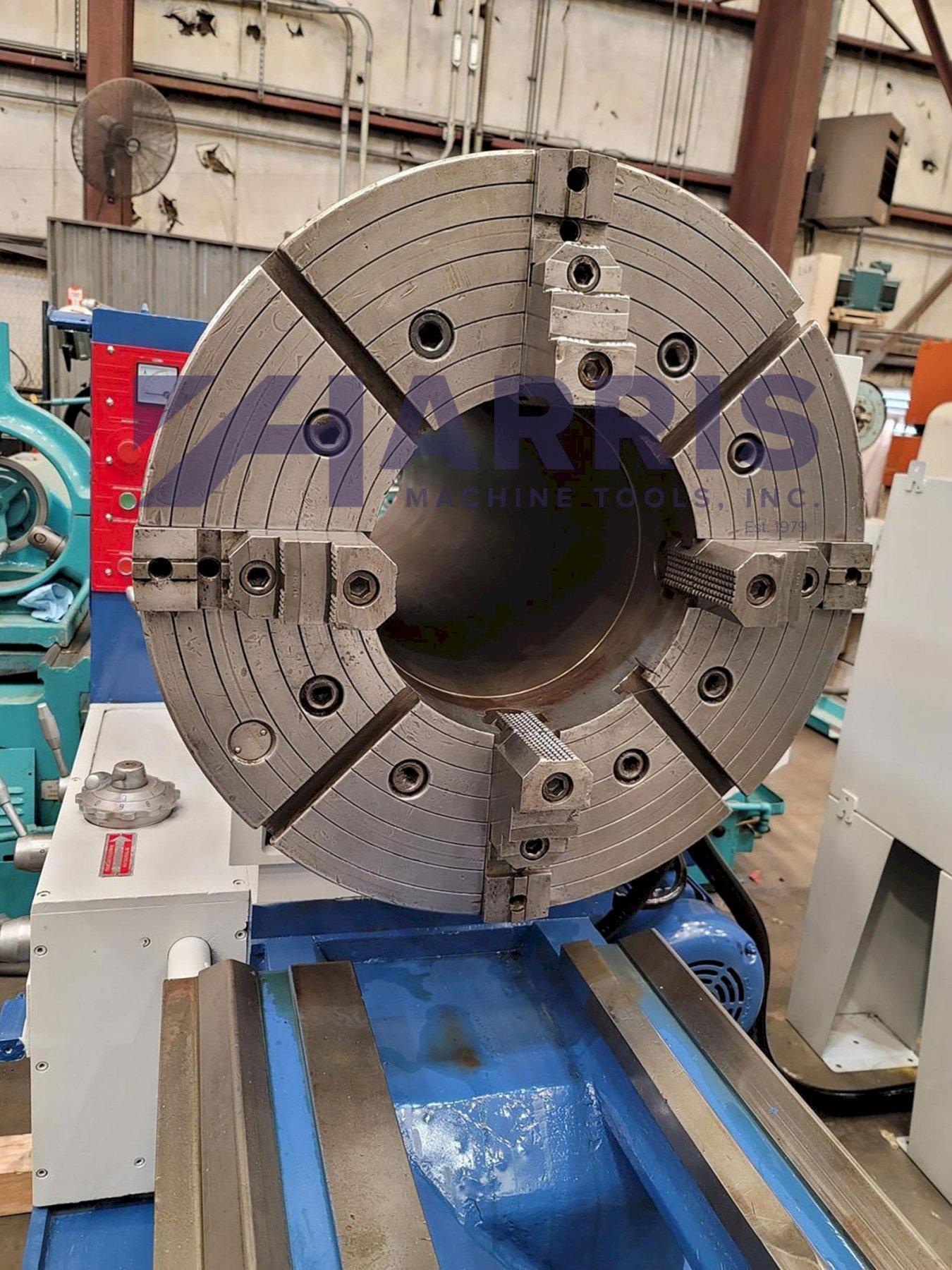

(2) 24" 4-JAW CHUCKS (FRONT & REAR)
TAPER ATTACHMENT
3/4 HP RAPID TRAVERSE MOTOR
HARDENED AND GROUND BEDWAYS
HARDENED AND GROUND HEADSTOCK GEARS

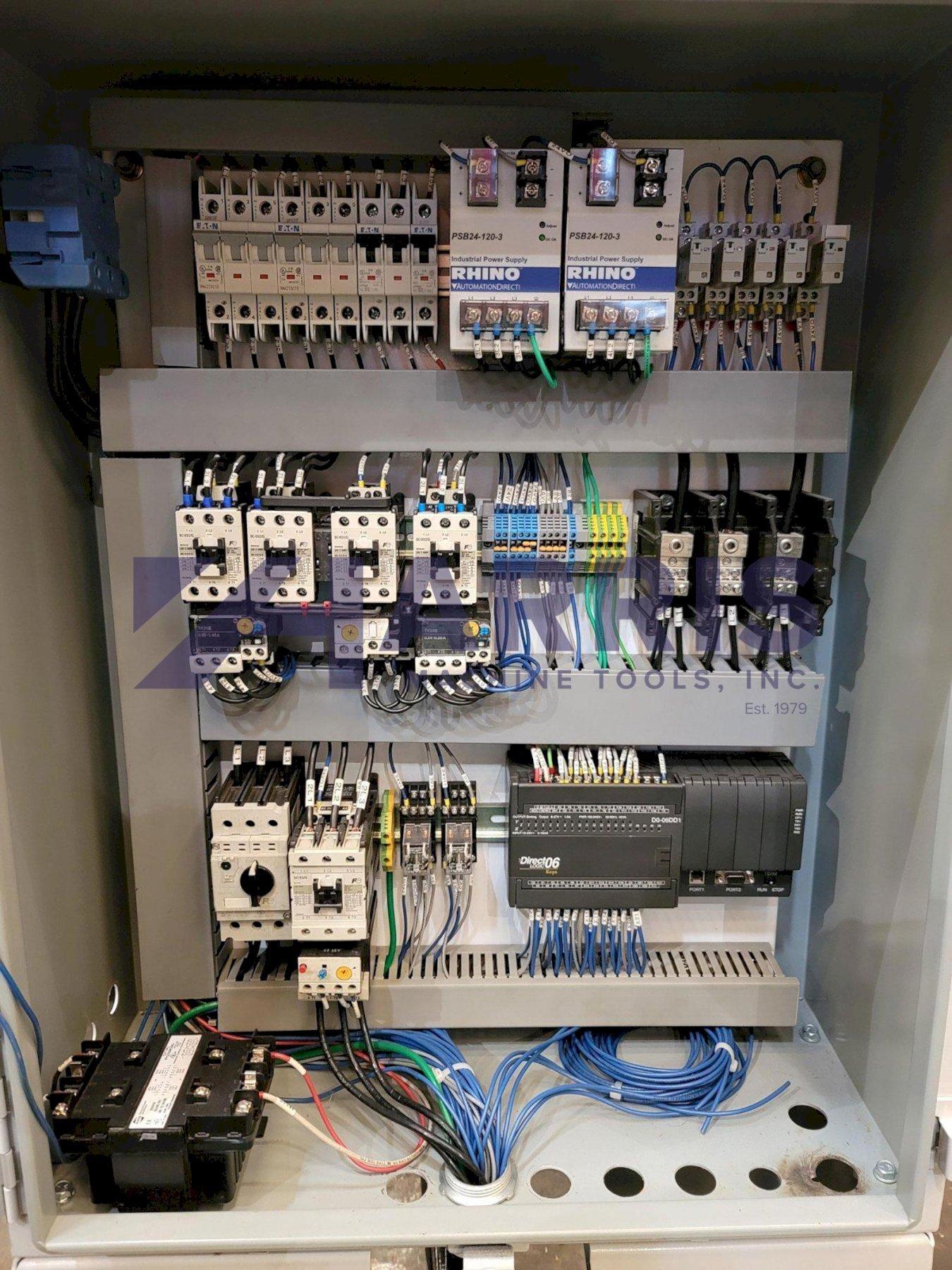

NOTE:  NEW ELECTRICS.
