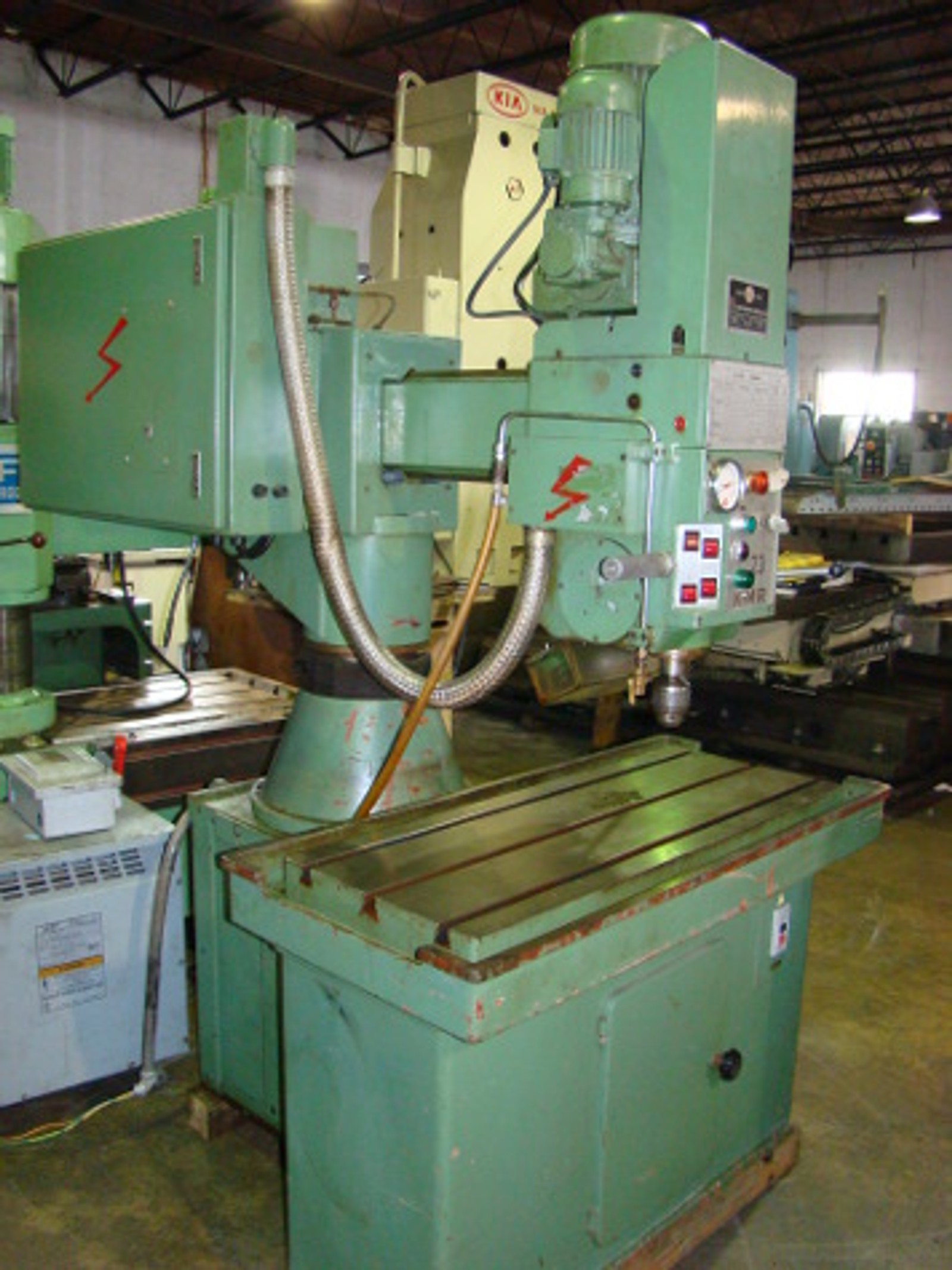

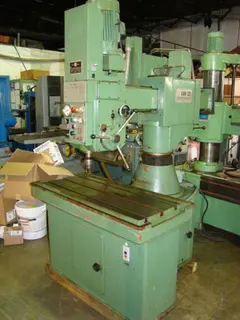

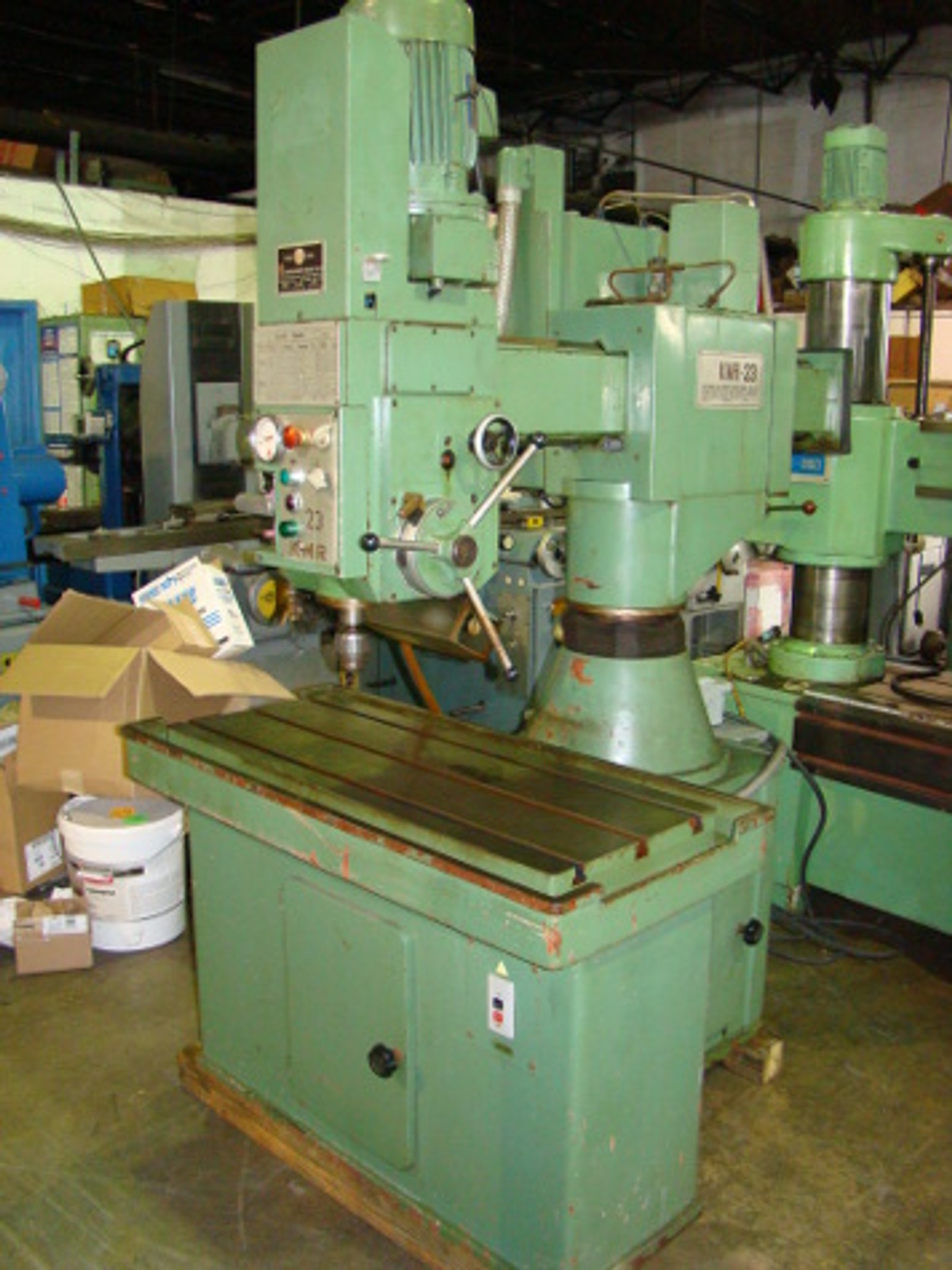

30" KAO MING, 16" x 41" table, 1-1/2" cap, auto downfeed, tapping, 1982

Manufacturer

KAO MING

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

6712

Model

MR23

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

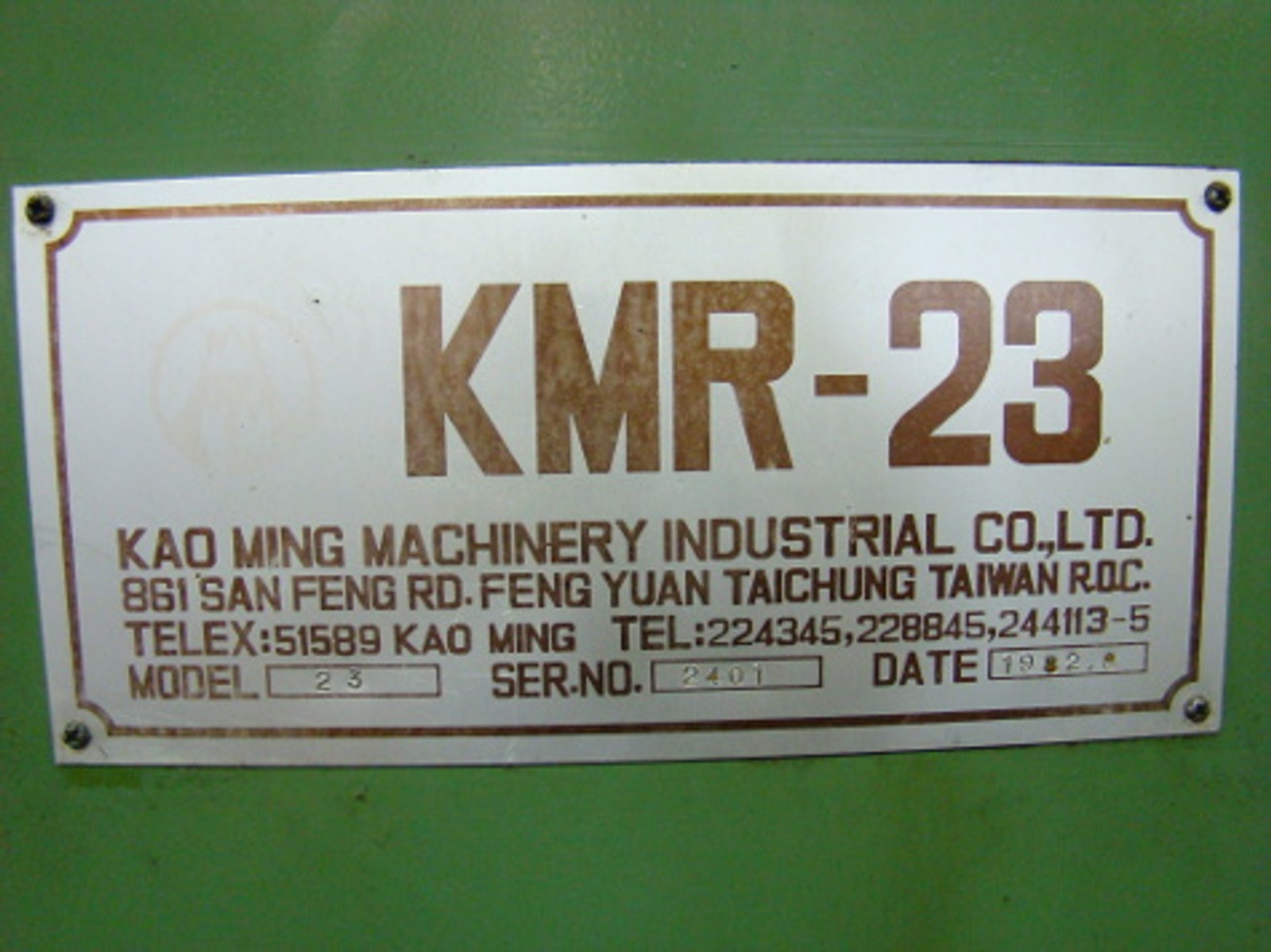

Year of Manufacture 1982
Model number MR23

SPECIFICATIONS:
Drilling capacity--mild steel 1-1/2"
Column to center of drill--max. 35"
--min. 10"
Column diameter 7-3/4"
Maximum height over table 24-3/4"
Table capacity 41-1/2" x 16-1/2"
Quill travel 6"
Quill diameter 3"

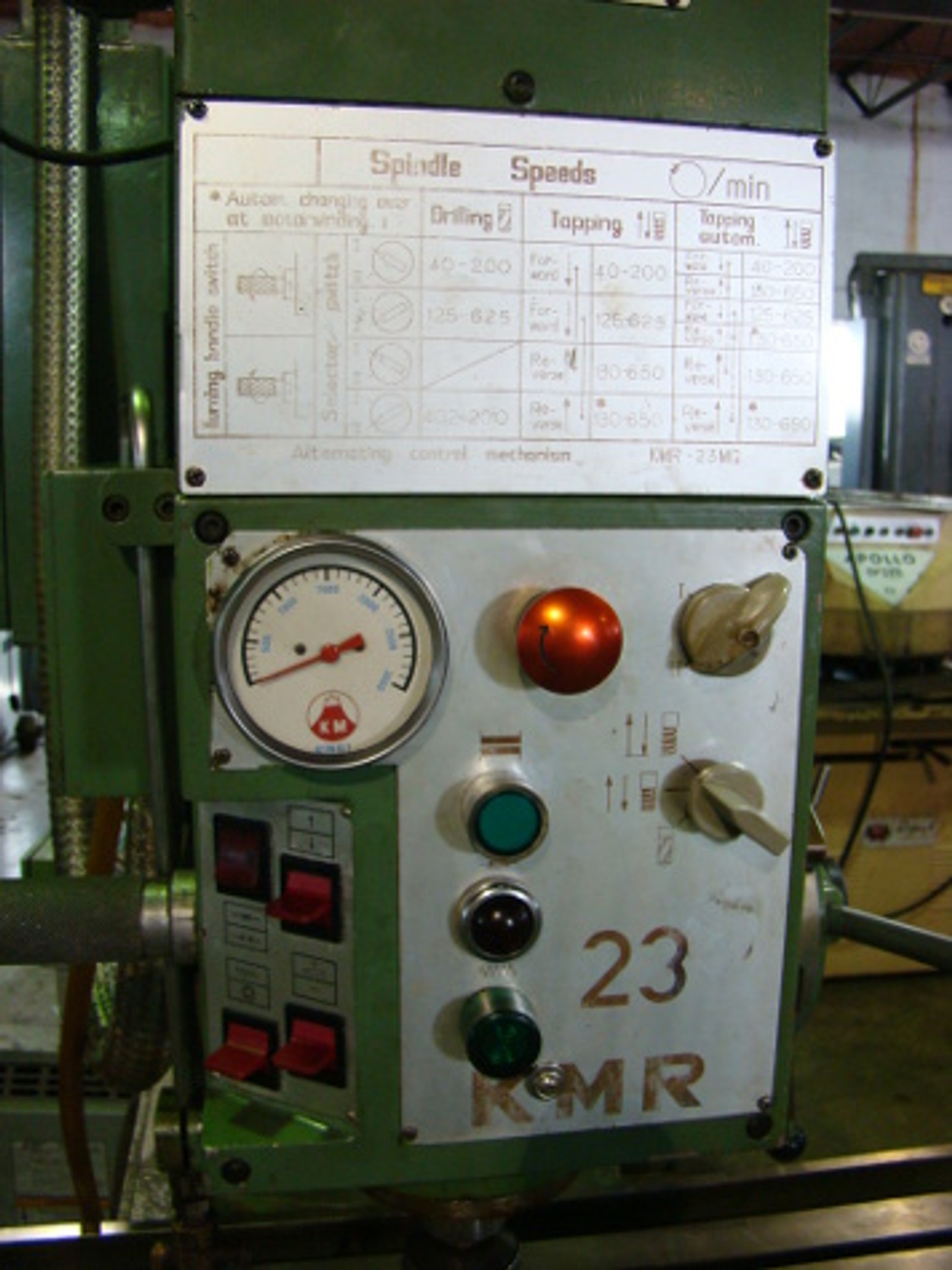

Spindle speeds--number variable speed
--range 40 to 2010 rpm
Spindle taper #3 MT
Spindle motor (2 speed) 0.87/3.5 HP
Electrics 208/3/60
Weight, approx. 2,500 lbs.
Dimensions (L x W x H) 68" x 48" x 84"

EQUIPPED WITH:
Automatic feeds and tapping capability, Worklight
Jacobs 0 to 1/2" drill chuck, Powered column elevation

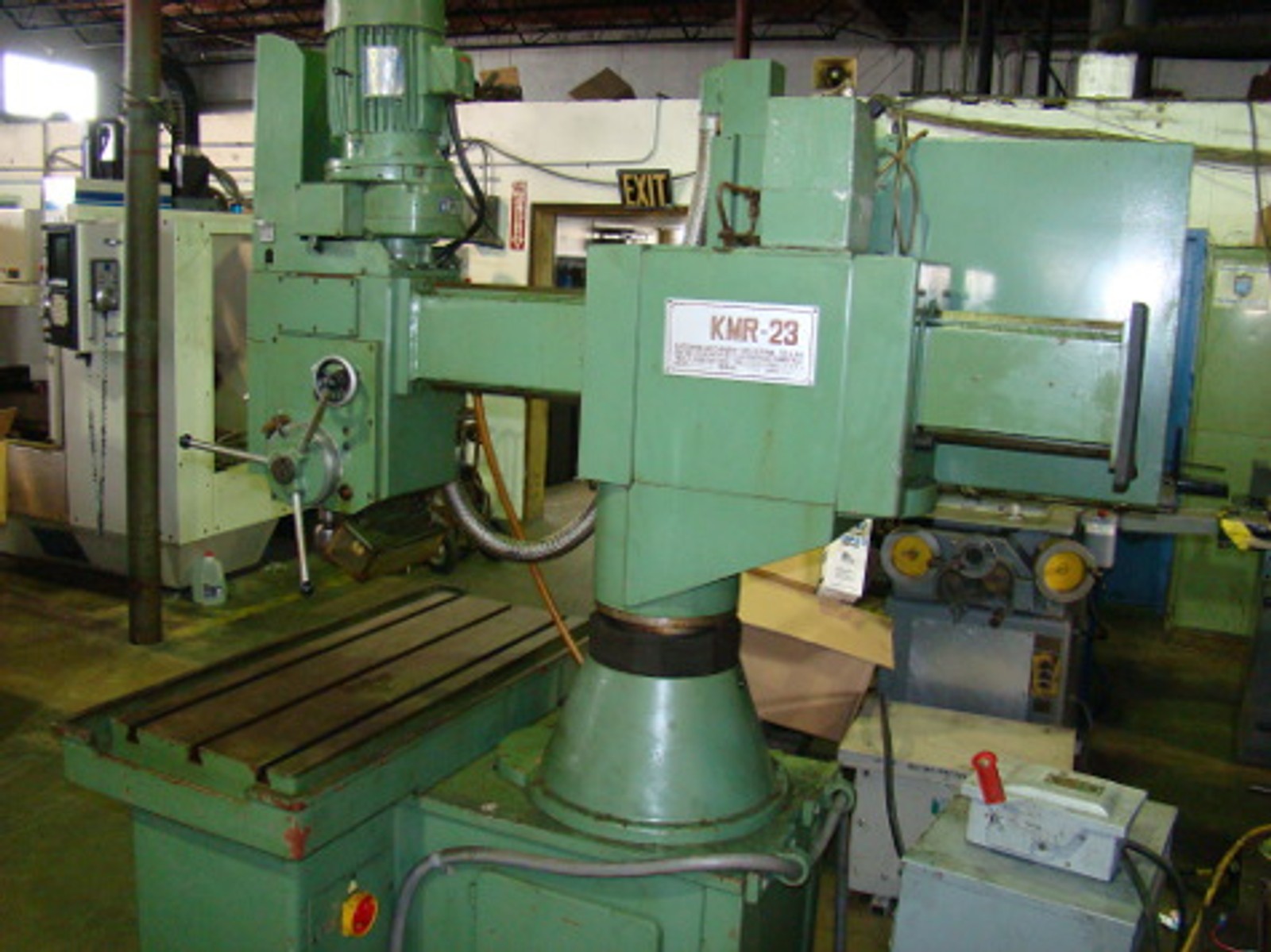

Head, ram, and cradle swing full 360 degrees around column
Large 16-1/2" x 41-1/2" "T" slotted table, Coolant system
