TECHNICA 42" CENTER HOLE GRINDER, REBUILT, SWING DOWN CENTER, ADJUSTABLE VISE, ANGLE DRESSER, EXC. COND.

Manufacturer

TECHNICA

Stock

None

Model

None listed

Dealer Location

Michigan

Spec Sheet

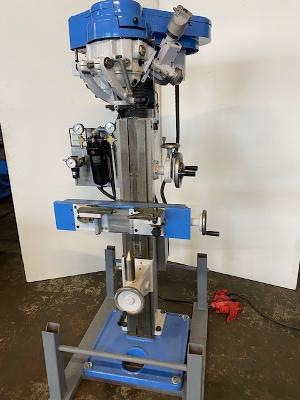

TECHNICA 42" CENTER HOLE GRINDER
SERIAL NO. 26179161 STOCK NO. DH3233

MACHINE HAS BEEN REBUILT

CATALOG SPECIFICATIONS:
WORKPIECE LENGTH: 2" TO 42"
CLEARANCE FROM TAILSTOCK CENTER TO COLUMN: 6.2"
VISE CAPACITY: .060" - 6"
CONE ANGLE OF HOLES GROUND: 60 DEGREES
MAXIMUM CENTER HOLES GROUND: 2"
GRINDING SPINDLE SPEEDS (WITH CORRECT PULLEY): 13,000, 21,500 & 45,000 RPM
PLANETARY DRIVE SPEEDS:330 RPM
OVERALL DIMENSIONS (APPROX.): 40" x 32" x 73" HIGH

EQUIPPED WITH:

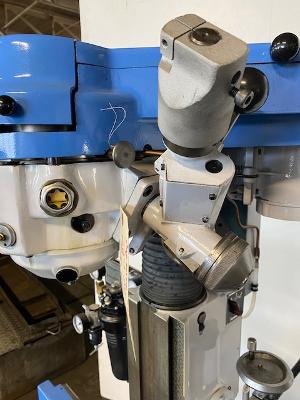

CONE DRESSER

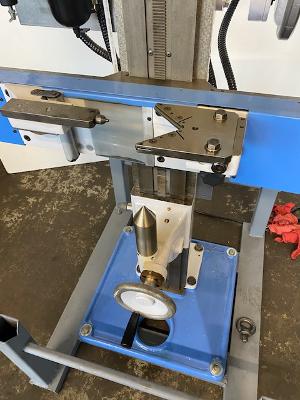

SWING DOWN CENTER
ADJUSTABLE VISE-.060" to 6"
1/2 HP SPINDLE DRIVE MOTOR
OPERATOR'S MANUAL

INSPECT UNDER POWER

ROBERTS MACHINERY SALES, LTD.
930 E. DRAYTON, FERNDALE, MI 48220
TEL: (248)543-4466
E-mail: rmsused@aol.com
Web Site: robertsmachinery.com
