Smart SM1575 VMC, X-59", Y-29.5", Fanoc OiMF CNC, 36 ATC, TSC, Probe, 12,000 RPM, 4th Axis Prep, 2020, #31921

Manufacturer

Smart Machine Tool

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

31921

Model

SM 1575

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31921

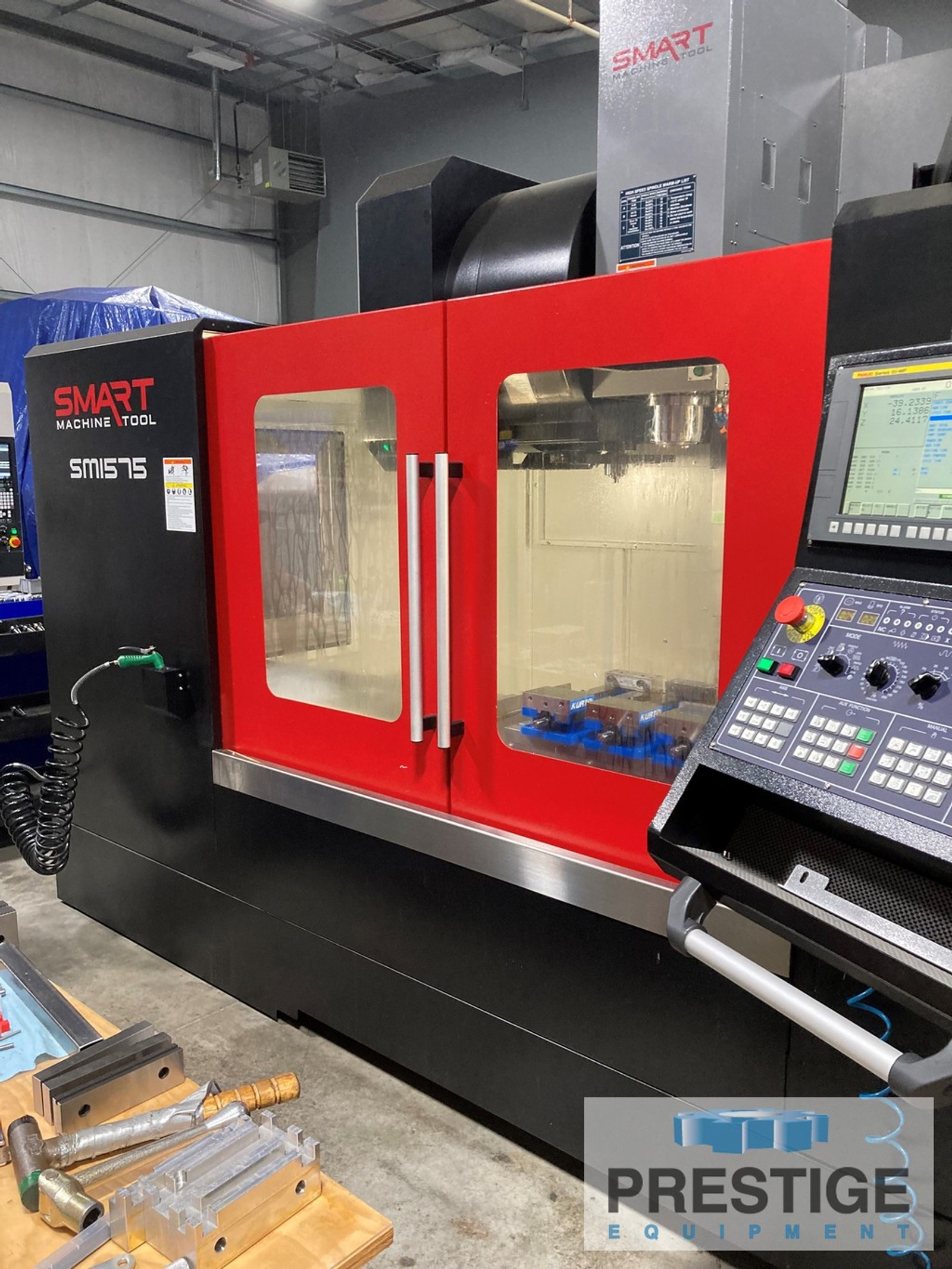

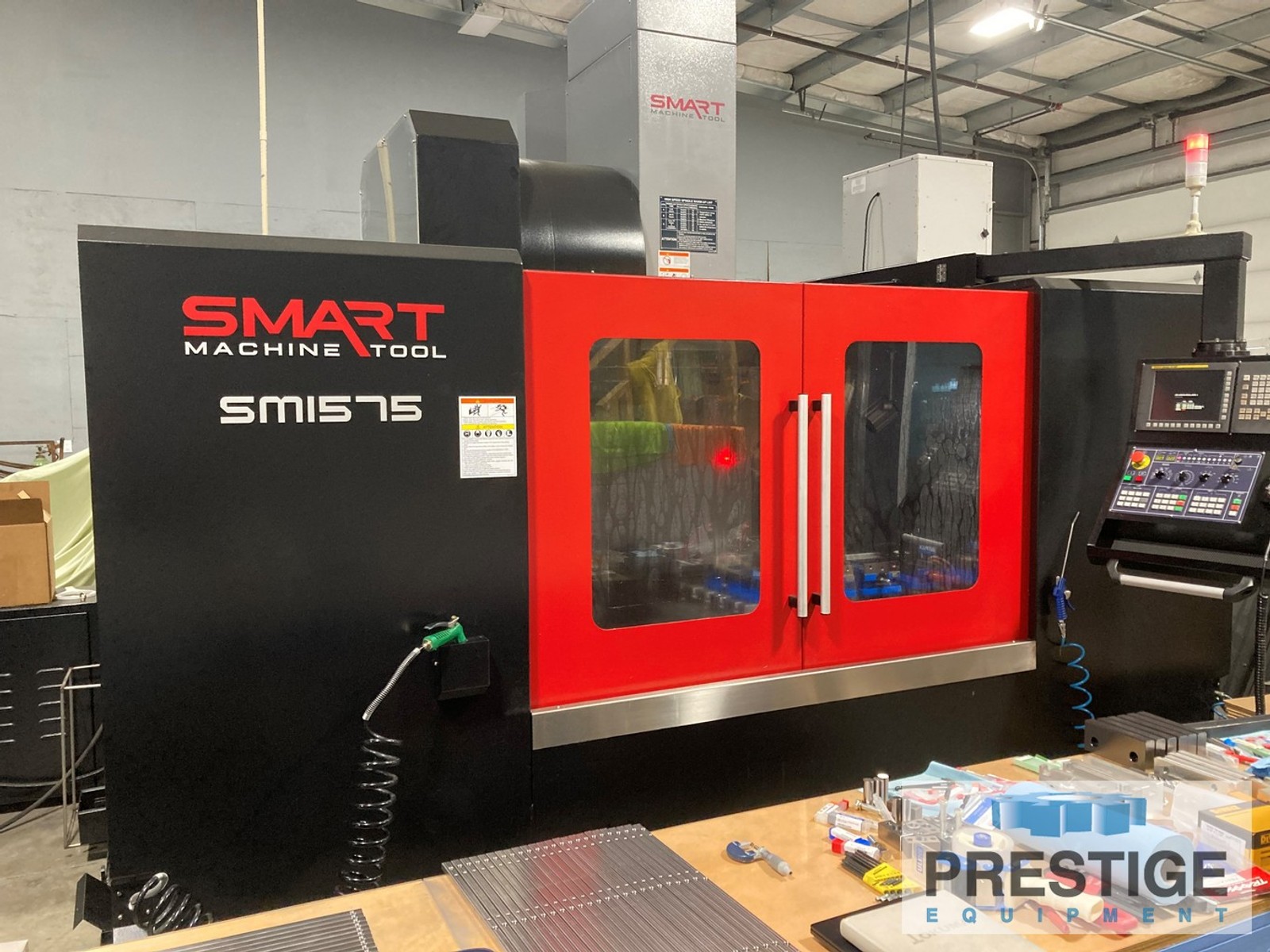

Smart SM1575 CNC Vertical Machining Center

FEATURES:

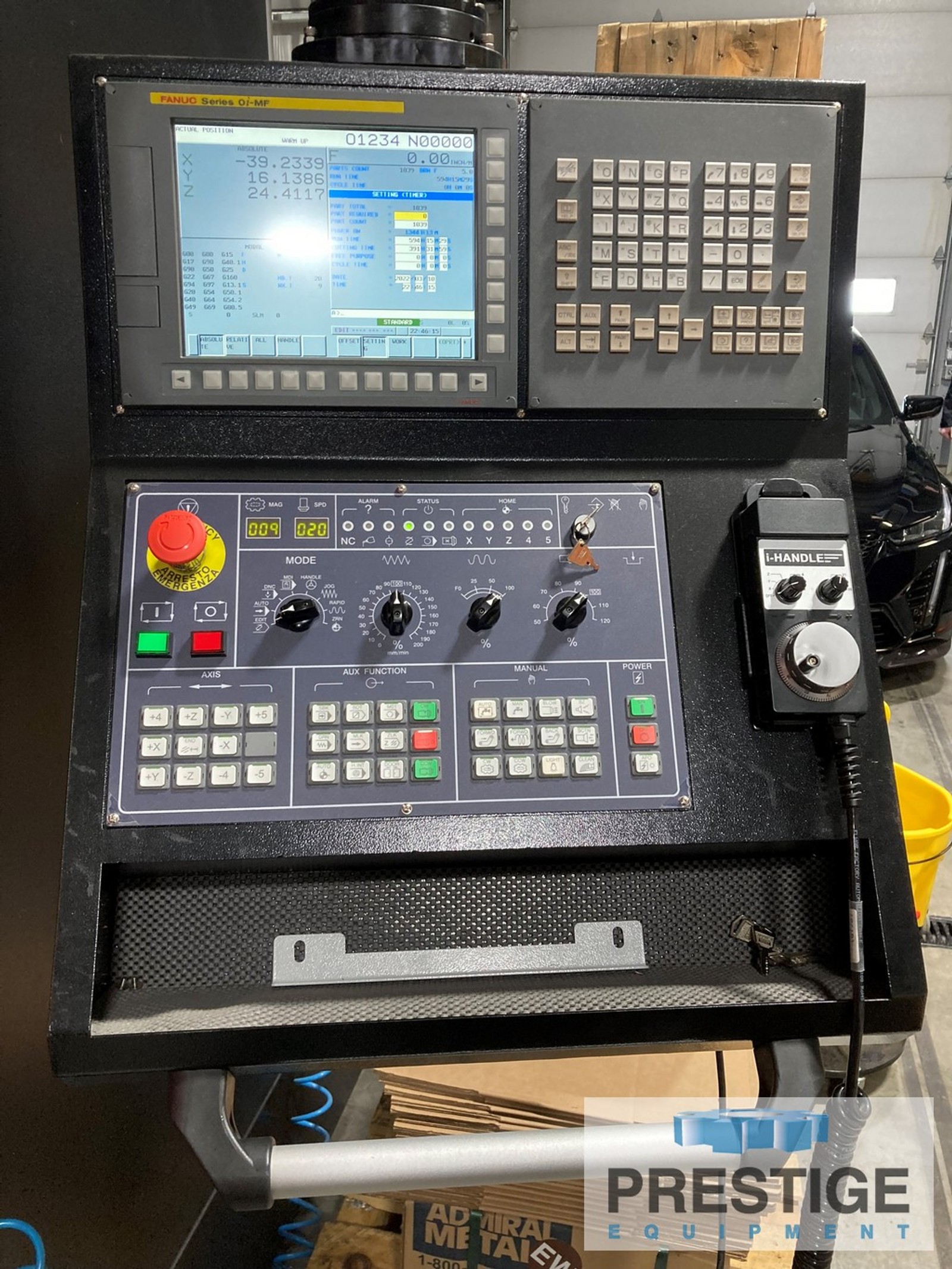

Fanuc Oi-MF CNC Control with 10.4" Color LCD Screen
36-Position Side-Mounted Automatic Tool Changer
Heavy Duty Box Ways
Thru Spindle Coolant (290 PSI)
Prepped for 1,000 PSI
Prepped for 4th Axis
Renishaw Probe Ready Kit (OMI-2T)
Rigid Tapping

CAPACITY:
X-Axis Travel ......................... 59.04"
Y-Axis Travel ......................... 29.50"
Z-Axis Travel ......................... 24.02"

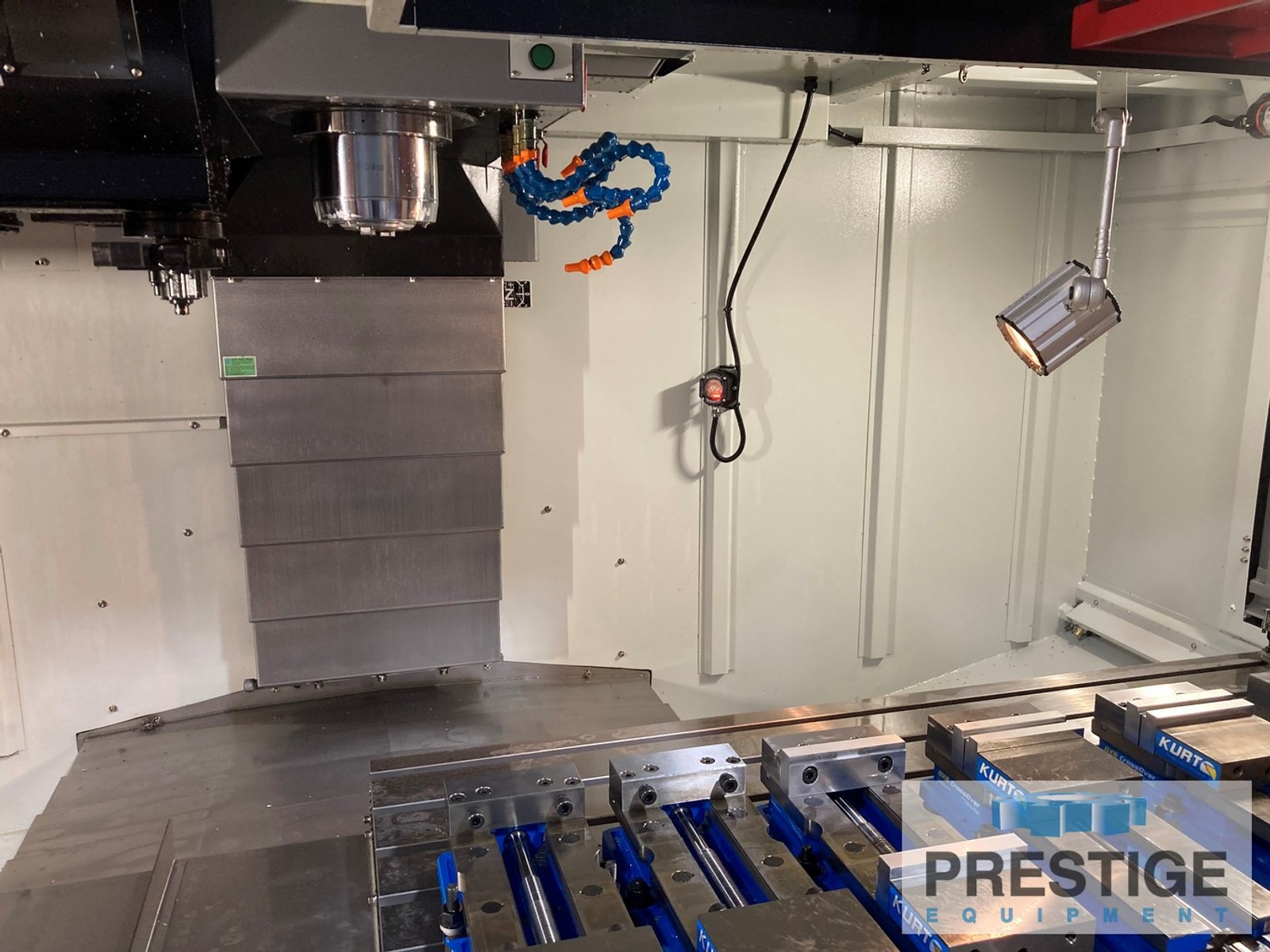

Table Size ............................ 63.121" x 29"
Table Load Capacity ................... 3,190 Lbs.
Dist. From Table Top to Spindle ....... 4.92"-28.93"
Dist. From Column to Spindle Center ... 27.95"
Spindle Speeds ........................ 12,000 RPM
Spindle Motor ......................... 25 HP
Spindle Taper ......................... CAT 40 (Big Plus)
Tool Changer .......................... 36 ATC
Rapid Traverse (X/Y) .................. 1,181 IPM
Rapid Traverse (Z) .................... 945 IPM
Cutting Feed Rate ..................... 590 IPM
Approximate Dimensions ................ 200" x 137" x 125"
Approximate Weight .................... 17,637 Lbs.

EQUIPPED WITH:
Fanuc Oi-MF CNC Control with 10.4" Color LCD Screen
36-Position Side-Mounted Automatic Tool Changer
Heavy Duty Box Ways
High Precision Pre-Tensioned Larger Diameter Ball Screws for all Axes
Thru Spindle Coolant (290 PSI)
Prepped for 1,000 PSI
Oil Skimmer
Prepped for 4th Axis
Renishaw Probe Ready Kit (OMI-2T)
Rigid Tapping
Coolant System with Separeate Coolant Tank
Full Enclosure Splash Guard
Spindle Load Meter
Portable Manual Pulse Generator

NOTE:
Inspect In Plant Under Power

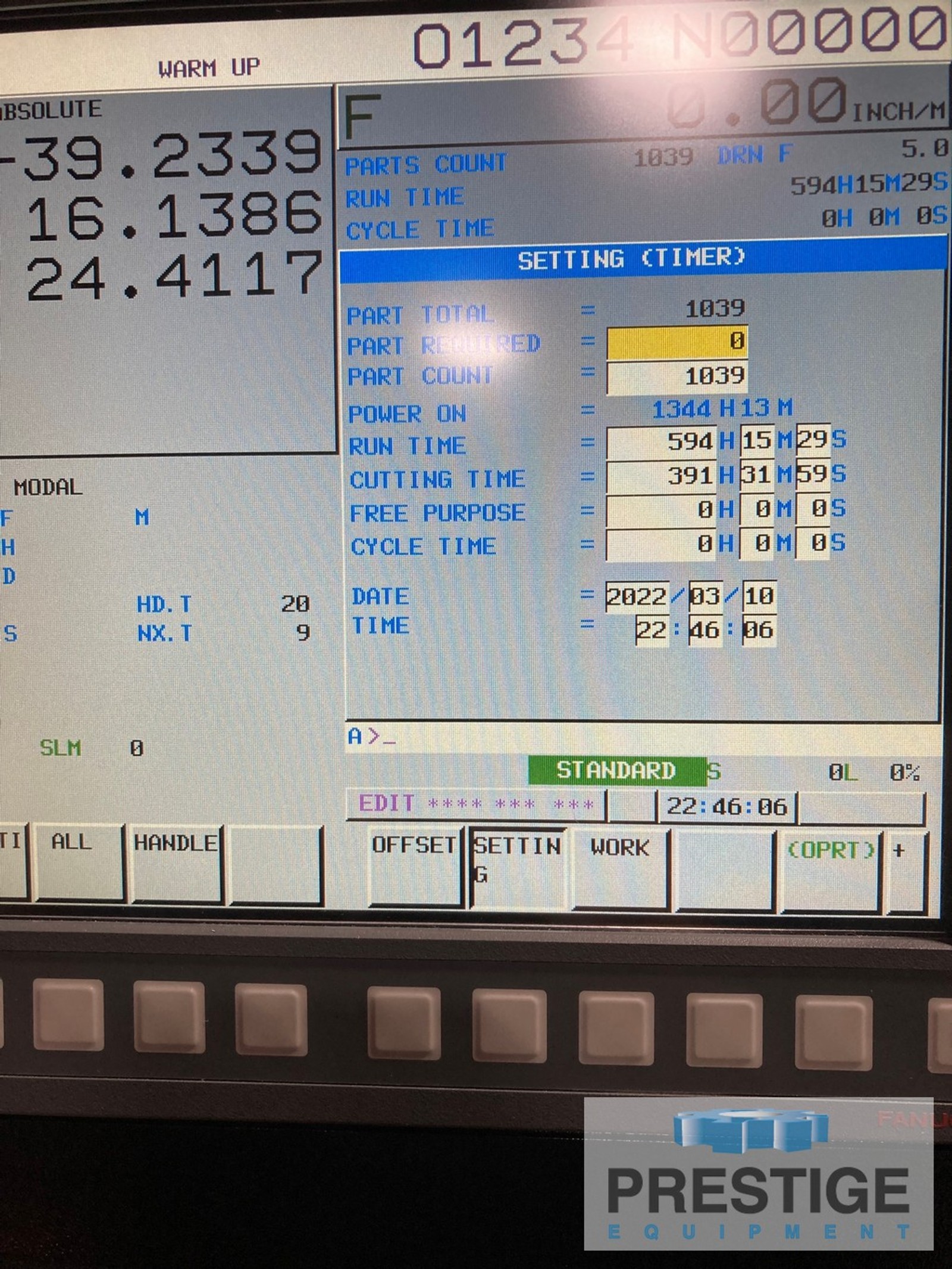

HOURS:
594 Run Hours
391 Cutting Hours
