Baykal APHSH 61440 480 Ton x 20' 8-Axis CNC Press Brake, 6-Axis B.G., CNC Crowning, ESA 660 CNC Ctrl, 2019, #31885

Manufacturer

BAYKAL

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

31885

Model

APHSH 61440

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31885

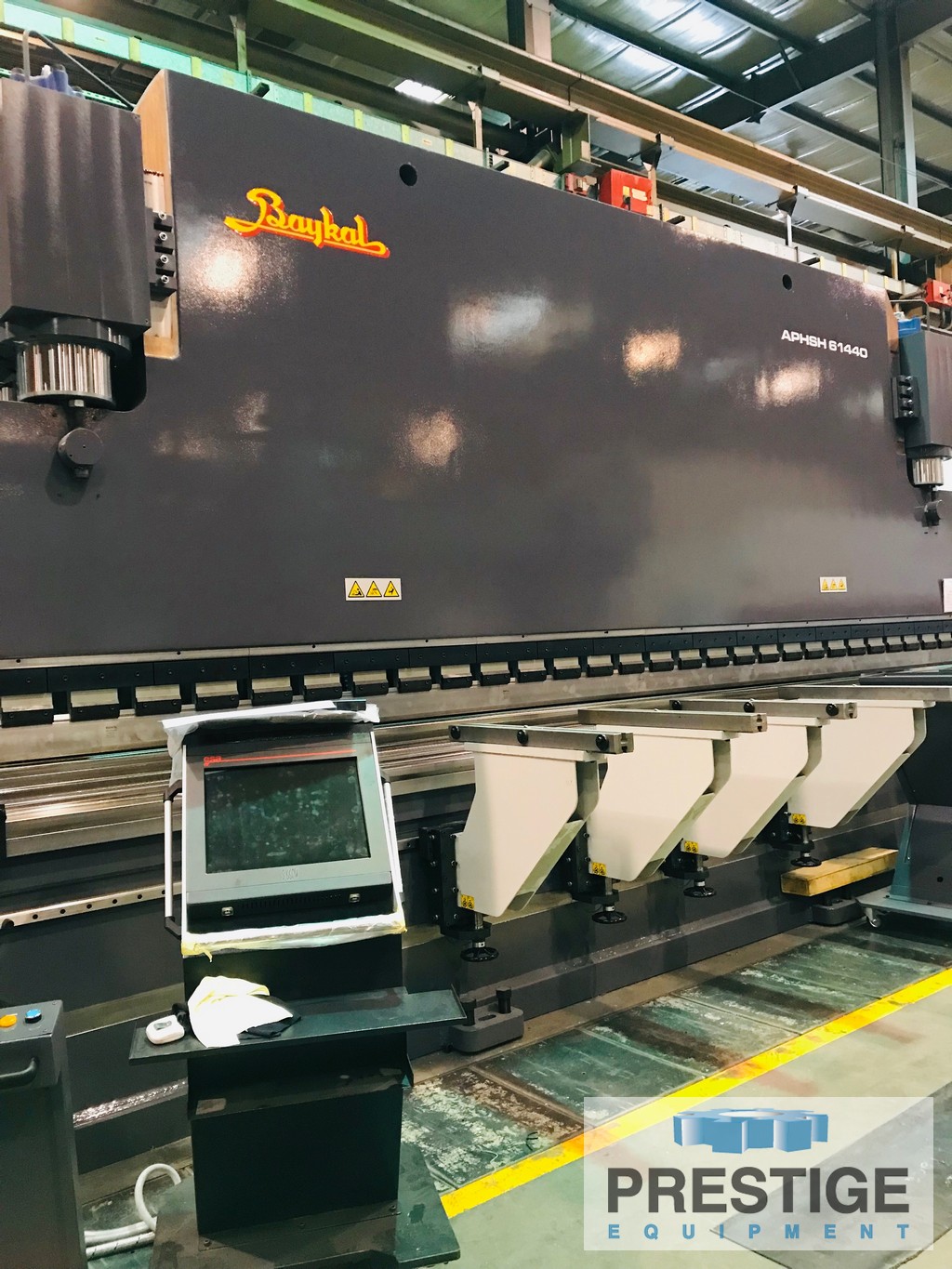

Baykal APHSH 61440 480 Ton x 20' 8-Axis CNC Press Brake

CAPACITY:
Tonnage Capacity ...................... 480 Ton
Maximum Bending Length ................ 240.15"
Distance Between Housings ............. 200.78"
Bed Height ............................ 43.30"
Stroke ................................ 12.59"
Open Height ........................... 22.44"
Throat Depth .......................... 19.68"
Approach Speed ........................ 212.59 IPM
Speed, Working ........................ 18.89 IPM
Speed, Return Traverse ................ 165.35 IPM
Main Motor Power ...................... 40 HP
Approx. Machine Dimensions L x W x H .. 250" x 89"x 147"
Approx. Machine Weight ................ 85,800 Lbs.

EQUIPPED WITH:
ESA 660 8-Axis CNC Control

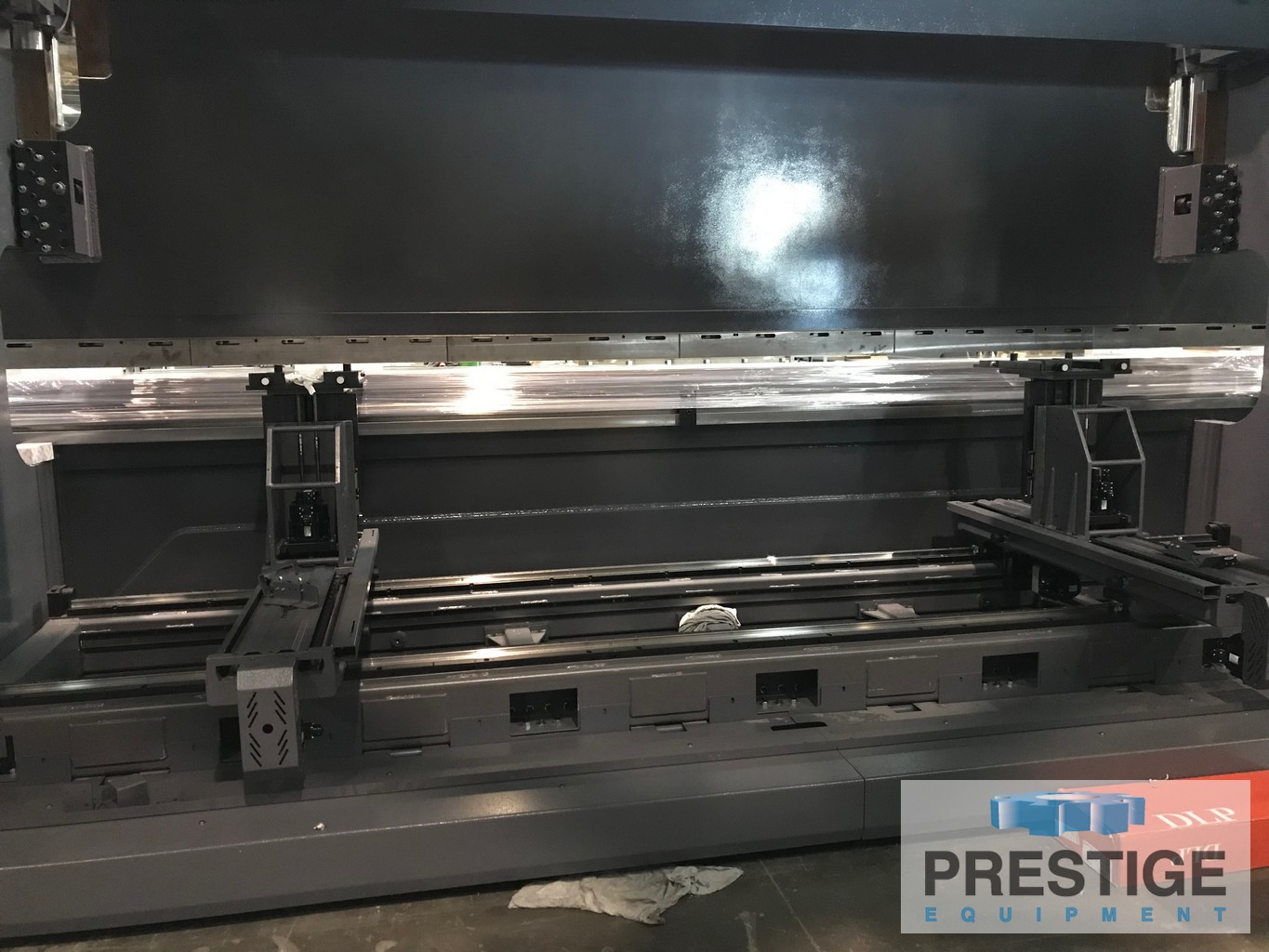

6-Axis CNC Back Gauge, R1,R2,X1,X2,Z1,Z2
2-Axis Programmable Ram
CNC Programmable Crowning
(4) Front Support Arms
Laser Guard AKAS
Flush Floor Mounted

NOTE:
Inspect In Plant Under Power
