6" Giddings & Lewis G60FX, X-408", Y-91", Z-48", 80 ATC, Speeds to 2500 RPM, TSC, 50 HP, G & L 8000B #31859

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

31859

Model

G60-FX

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31859

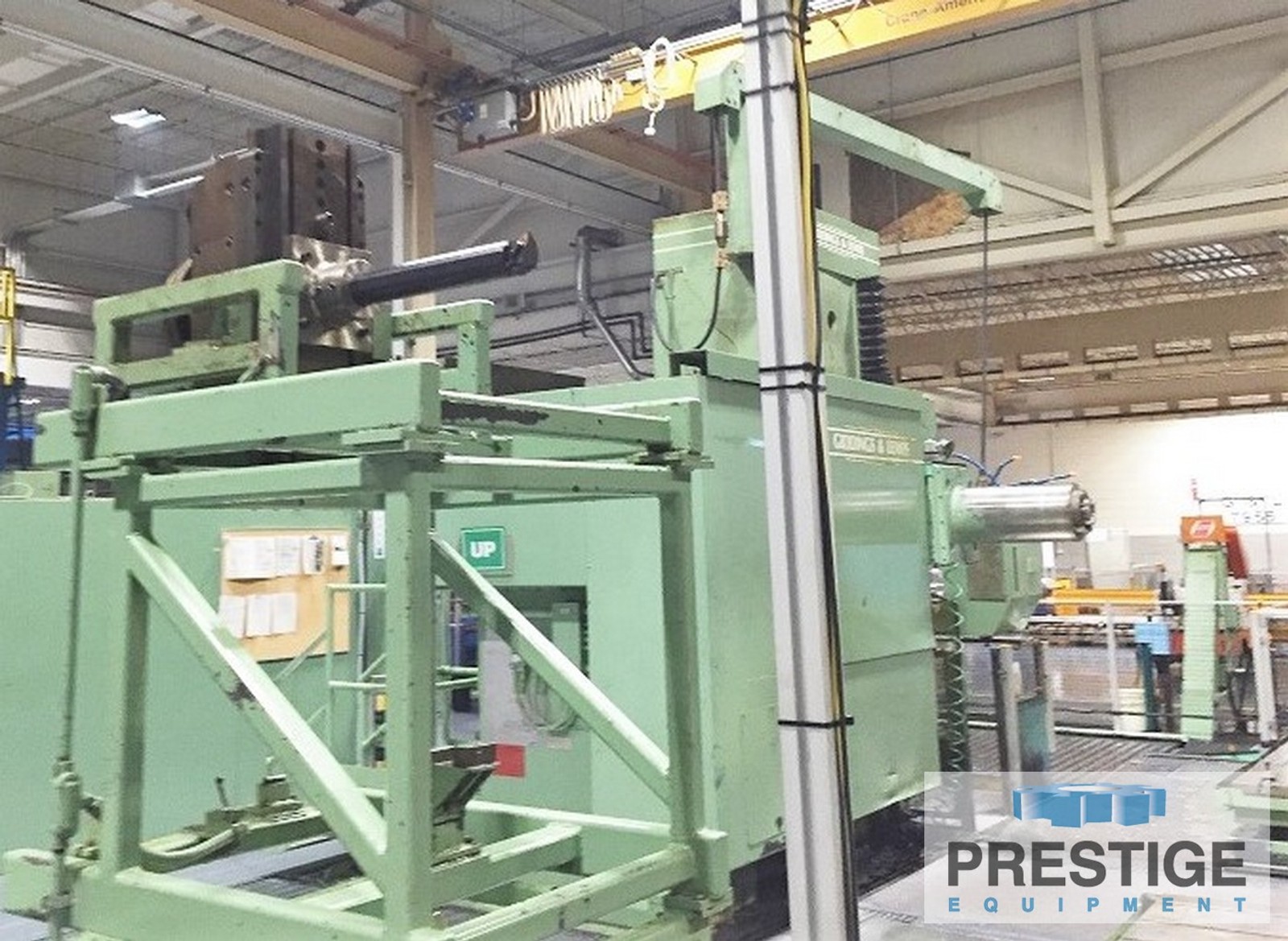

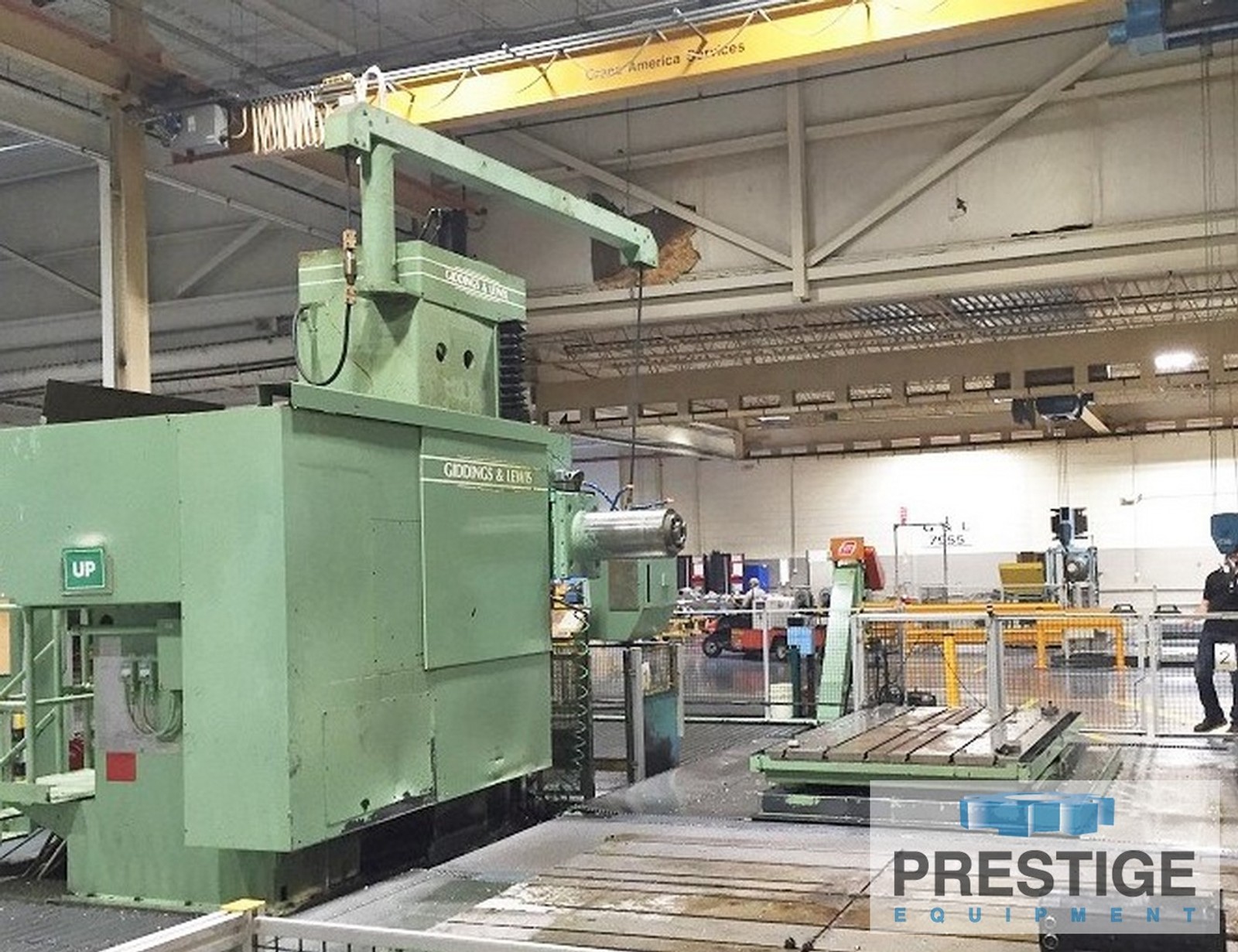

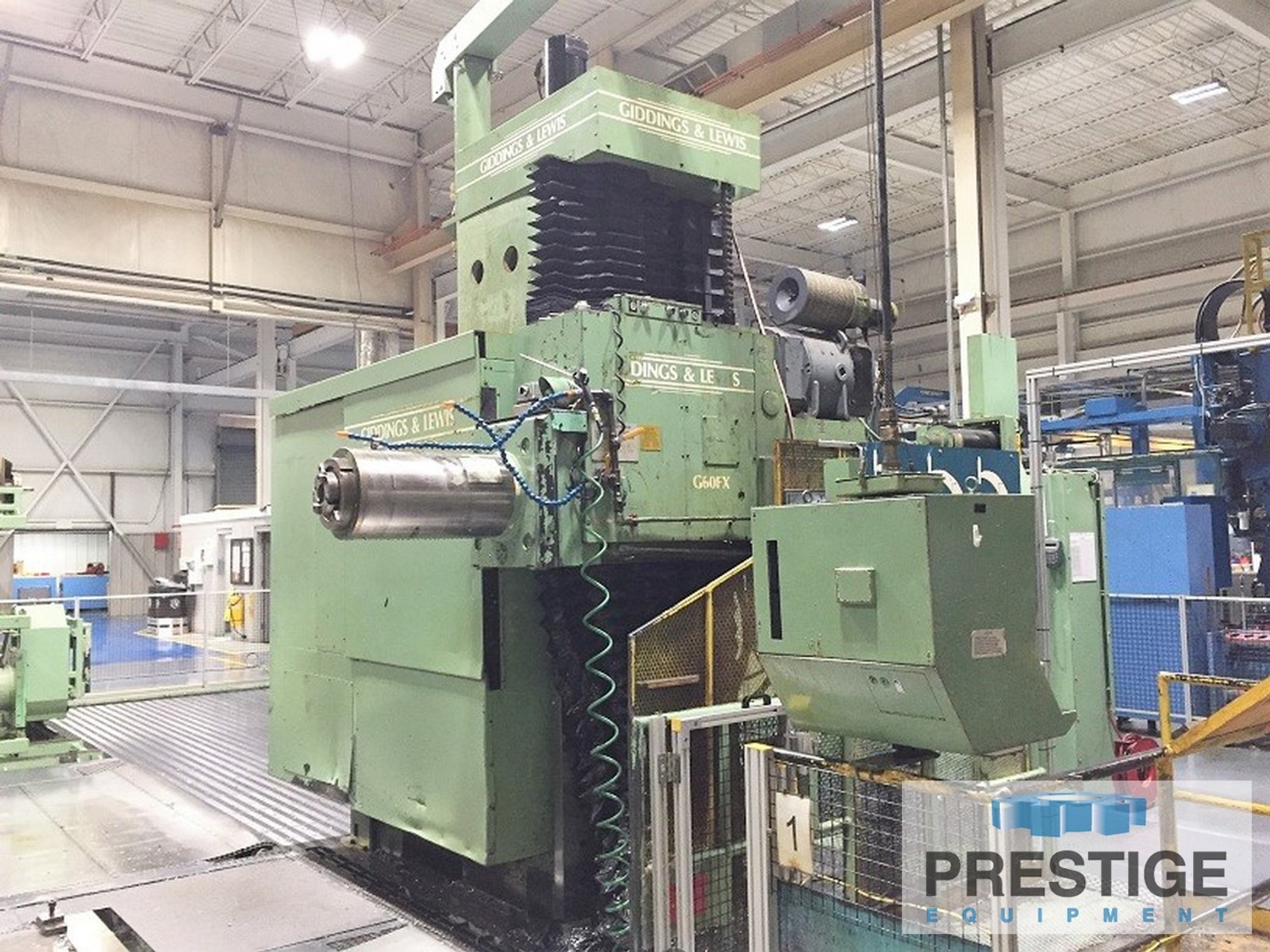

Giddings & Lewis 6" G60-FX CNC Floor Type Horizontal Boring Mill

FEATURES:
Giddings & Lewis 8000B CNC Control
80-Station Automatic Tool Changer

CAPACITY:
Spindle Diameter ...................... 6"
Spindle Taper ......................... No.50 ANSI
X-Axis Column Travel .................. 396"
Y-Axis Vertical Head Travel ........... 156"
Z-Axis Spindle Travel ................. 48"
Spindle Drive Motor ................... 50 HP
Spindle Speed Range, Inf.Variable ..... 12-2500 RPM
Traverse Rate, X-Axis ................. 400 IPM
Traverse Rate, Y-Axis ................. 450 IPM
Feed Rates, X, Y & Z Axes ............. 150 IPM
Electrics ............................. 480V 3Ph 60 Cycle

EQUIPPED WITH:
Giddings & Lewis 8000B CNC Control
80 Tool Automatic Tool Changer
Independent AC Electric Servo Feed Drives
Infinitely Variable Spindle Speeds
Lubricool Chiller Unit for Headstock Lube Oil
Adjustable Pendant Mounted CRT
Thru-Spindle and Flood Coolant
Power Draw Bar, Collet Type
Chip Conveyor and Elevator
Operators Platform
Heavy Duty Meehanite Casting Construction
Non-Metallic Way Liners
Double Motor Pinion Drive on X-Axis Rack
Software for CH-8 Giddings & Lewis CNC Facing Head
Automatic Lubrication of All Machine Ways
50 HP Spindle Drive Motor

NOTE:
Complete Documentation Available

No Video Available
