OKK HM60, X-32", Y-28", Z-31", 25" Pallets, 40 ATC, 12K RPM, TSC, Fanuc 16M, Chip Conveyor, #31872

Manufacturer

OKK

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

31872

Model

HM-60

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31872

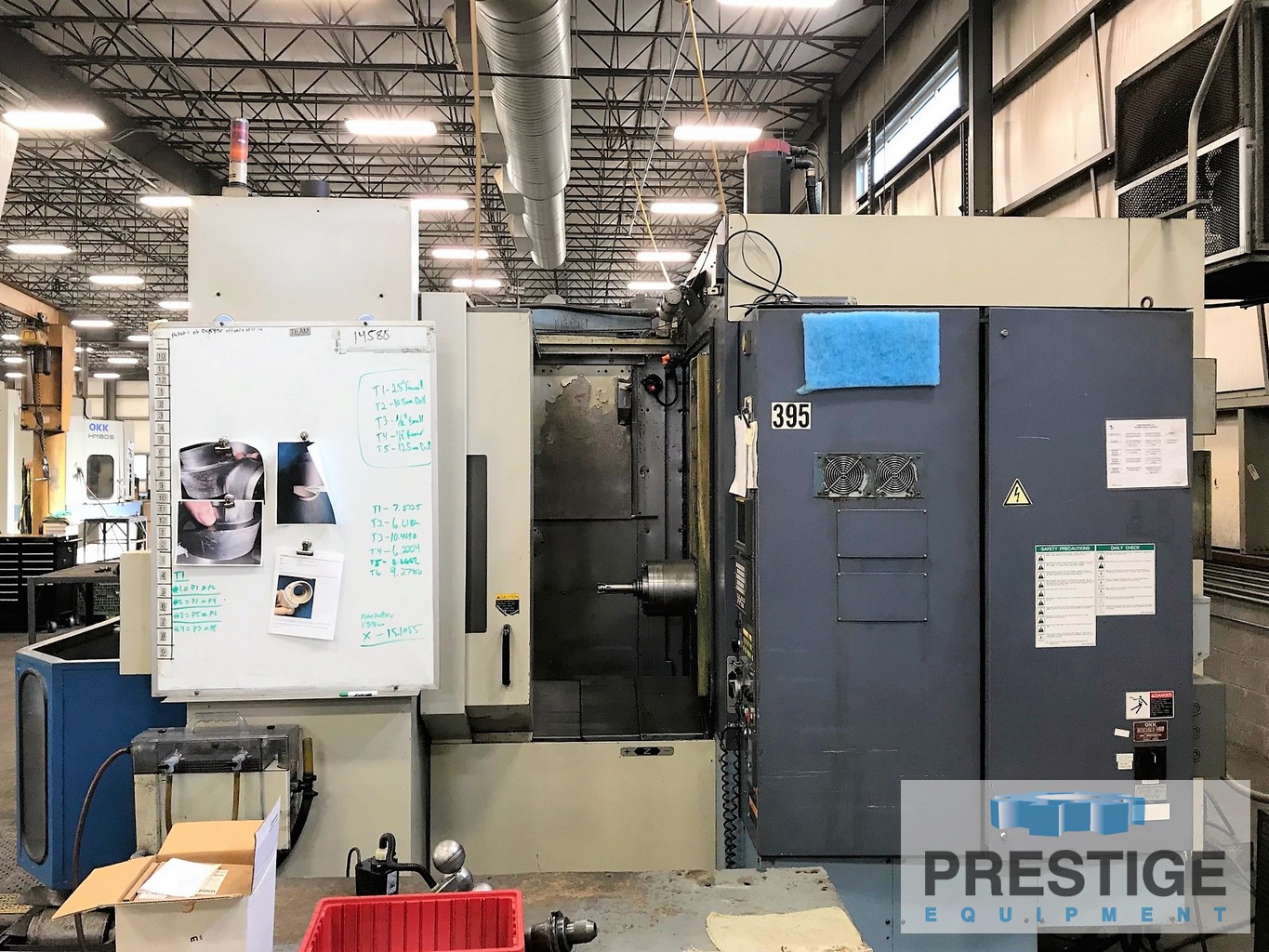

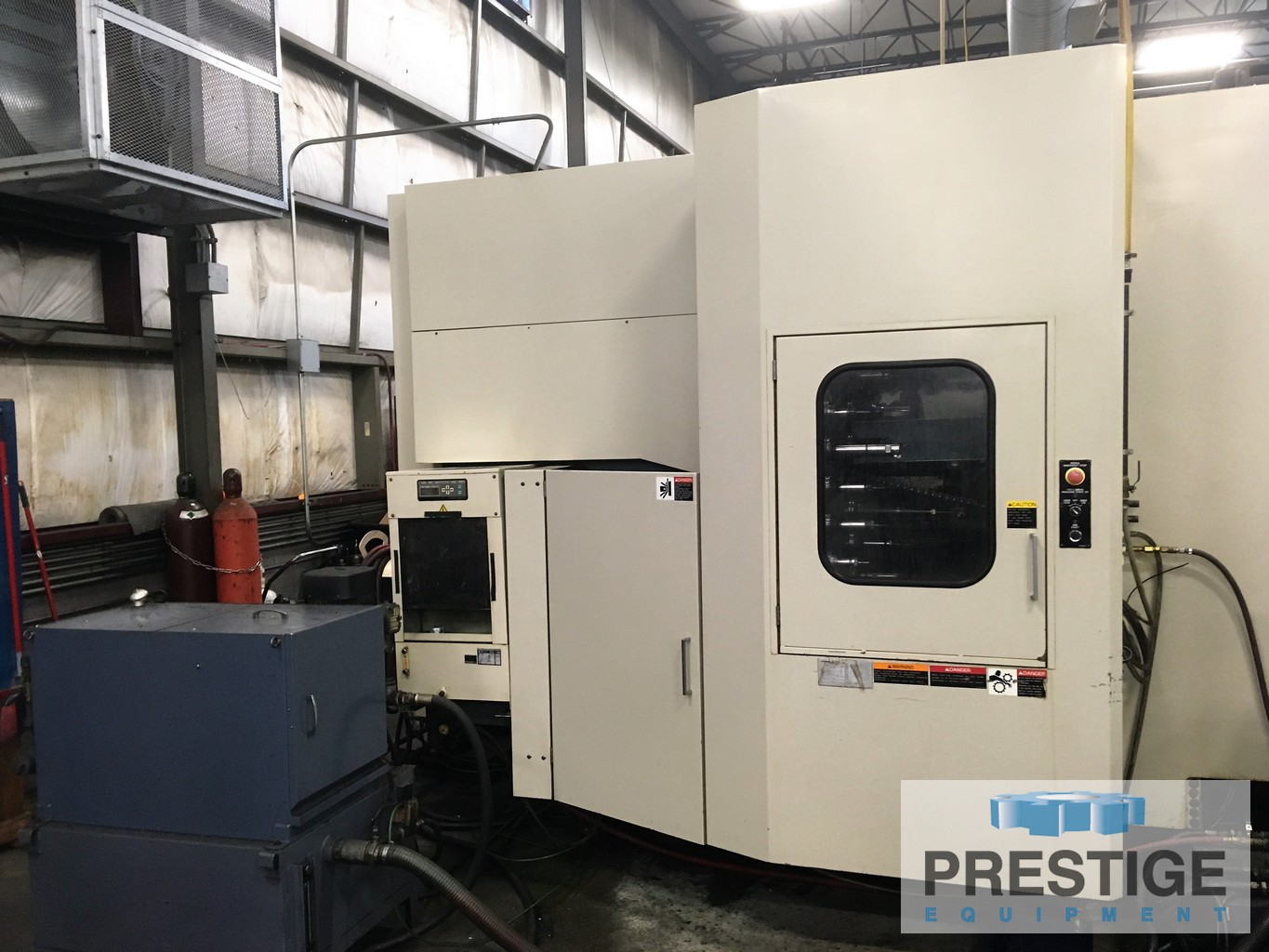

OKK HM-60 CNC Horizontal Machining Center

FEATURES:
Fanuc 16M CNC Control

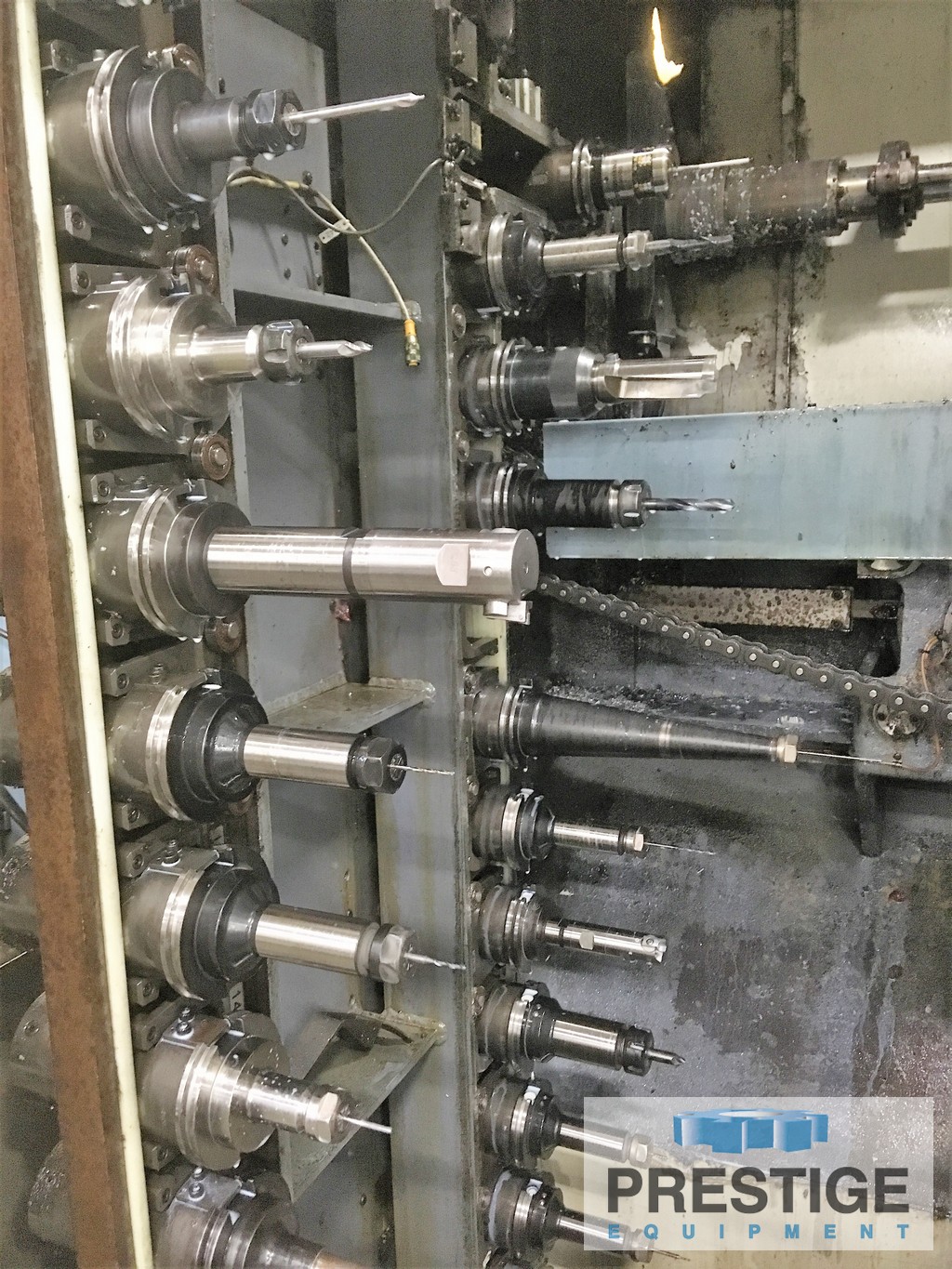

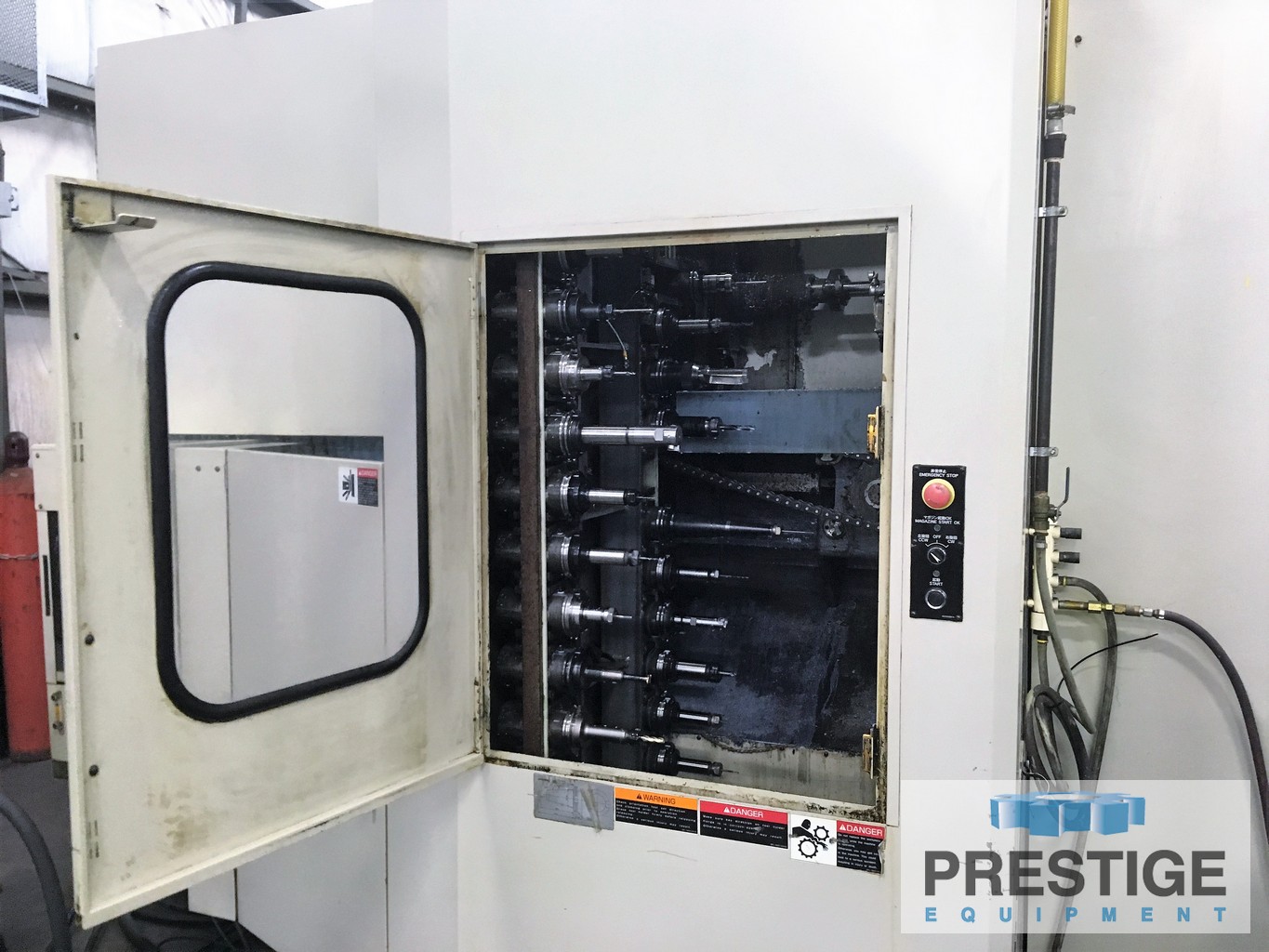

40-Position Automatic Tool Changer
300 PSI High Pressure Coolant Thru Spindle

SPECIFICATIONS:
X-Axis Travel ......................... 31.49"
Y-Axis Travel ......................... 28.74"
Z-Axis Travel ......................... 31"

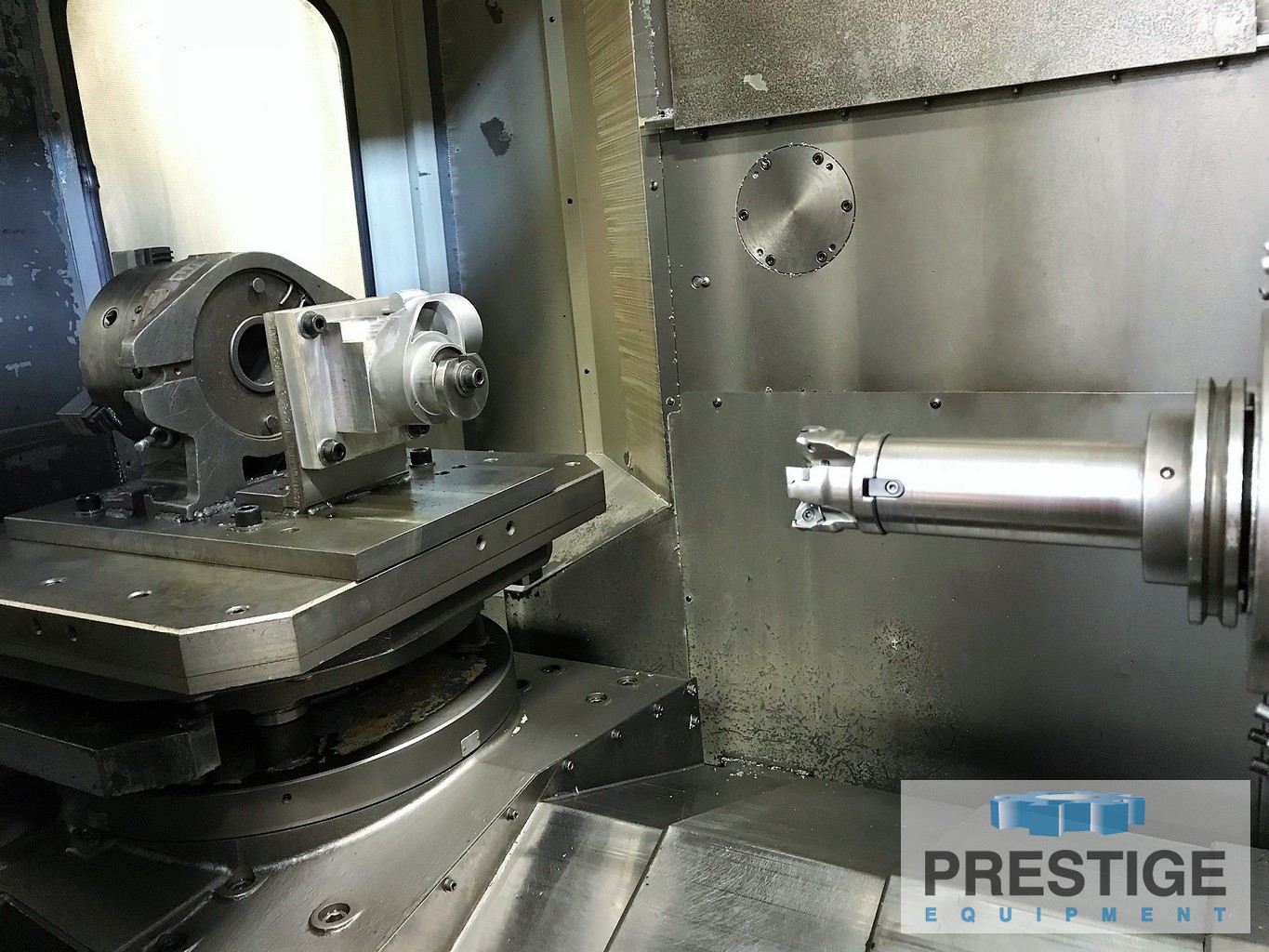

Pallet Size ........................... 24.6" x 24.6"
Number of Pallets ..................... 2
Pallet Indexing ....................... 1 Degree
Work Weight Capacity .................. 1,543 Lbs.

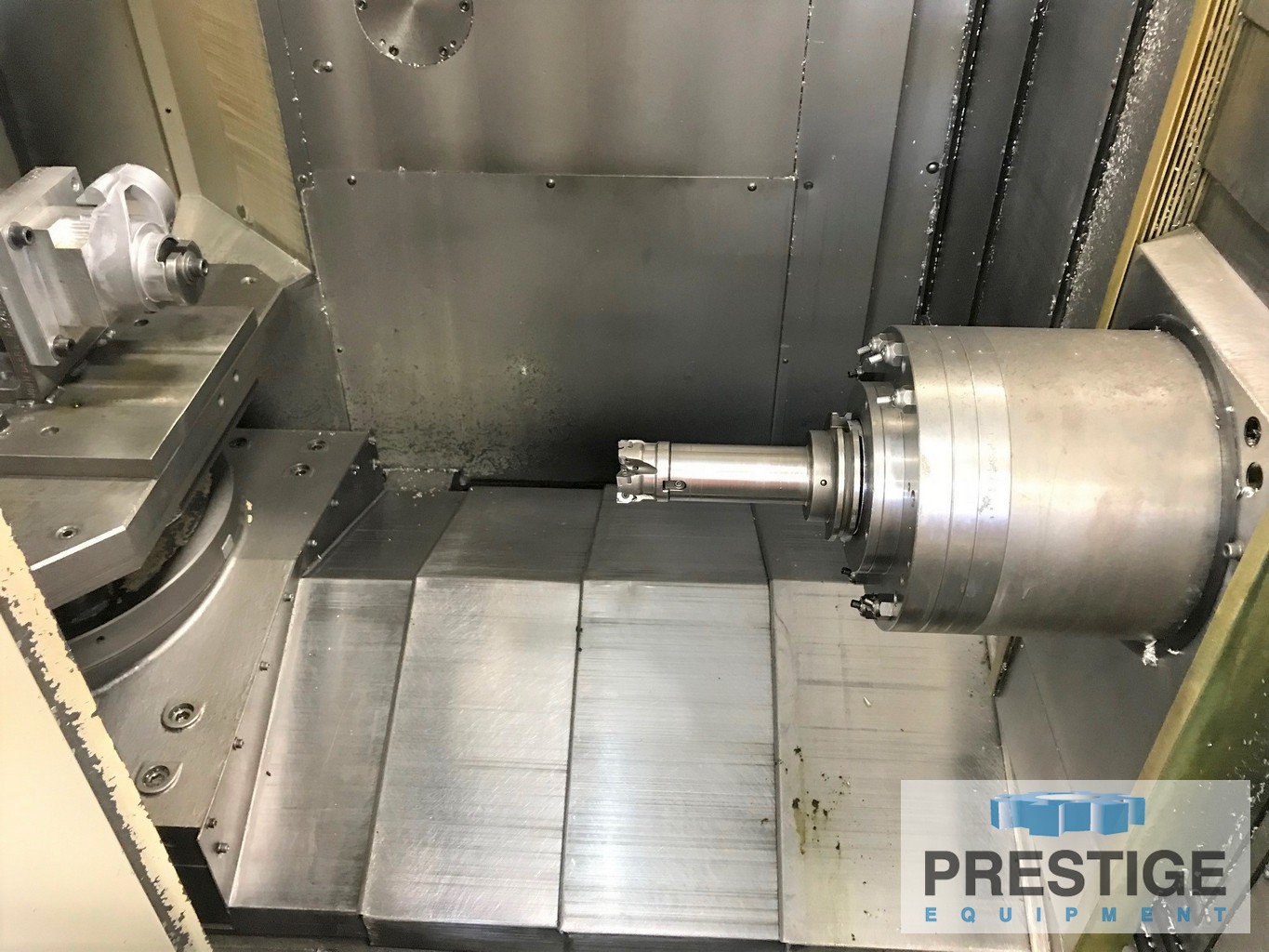

Spindle Taper ......................... CAT-50
Spindle Speeds (Direct Drive) ......... 12,000
Spindle Motor ......................... 30 HP
Table Top to Spinde Center ............ 1.97"-30.7"
Table Center to Spindle Nose .......... 5.91"-37.4"
Rapid Feed Rates ...................... 1574 IPM
Cutting Feed Speed .................... .030-1574 IPM
Machine Height ........................ 123"
Approximate Weight .................... 30,864 Lbs.

EQUIPPED WITH:
Fanuc 16M CNC Control
40-Position Automatic Tool Changer
300 PSI High Pressure Coolant Thru Spindle

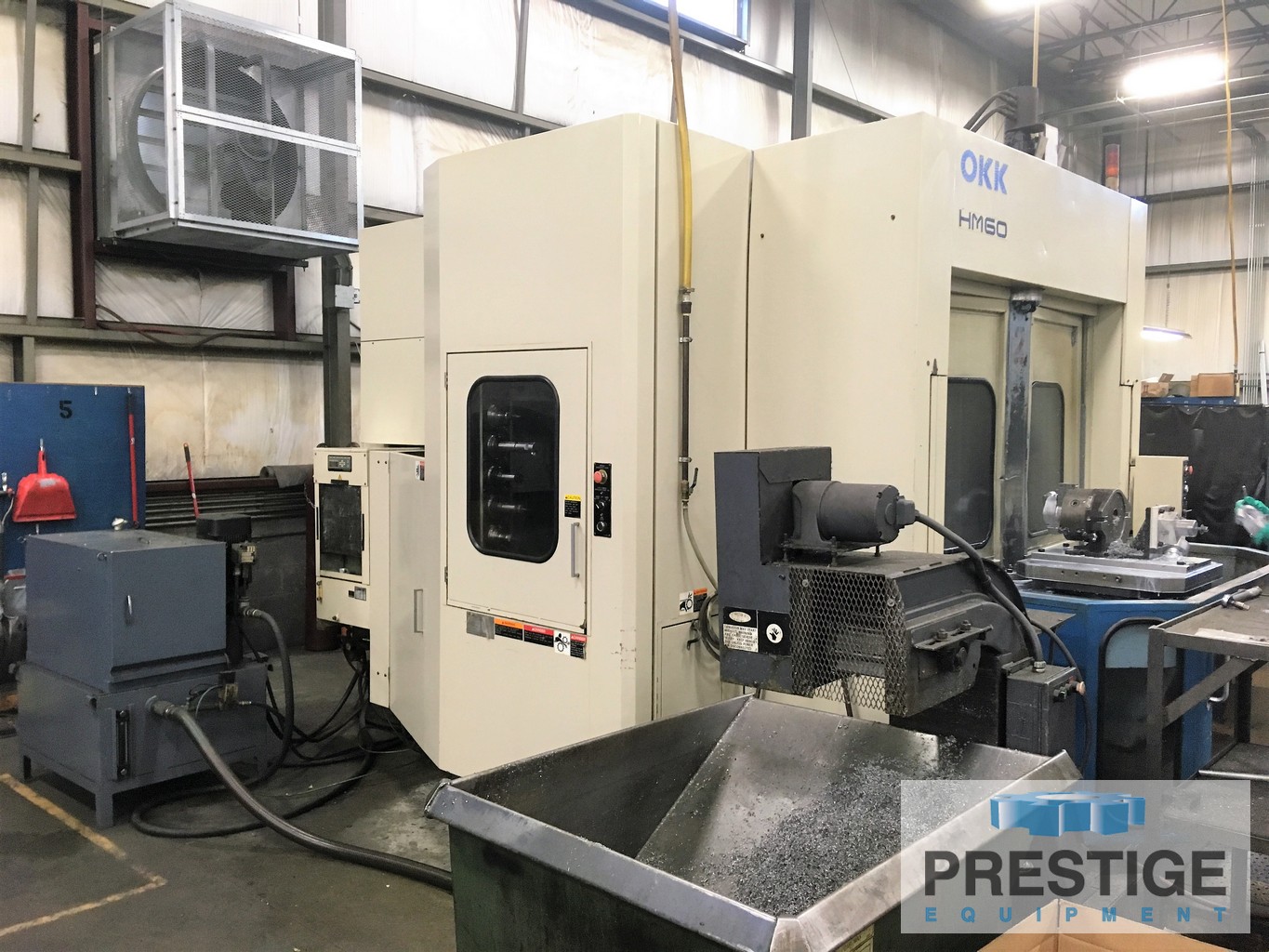

Chip Conveyor
Recirculation & Filtration System
2020 replaced linear bearings & seals on table

NOTE:
Inspect In Plant Under Power in Midwest
