Franklin HD145 x 44, 44" Capacity, 1-9/16" Drill Capacity, Franklin CNC Ctrl, All electronics Upgraded 2016, #31798

Stock

31798

Model

HD145 x 44

Dealer Location

New York

Spec Sheet

Reference #31798

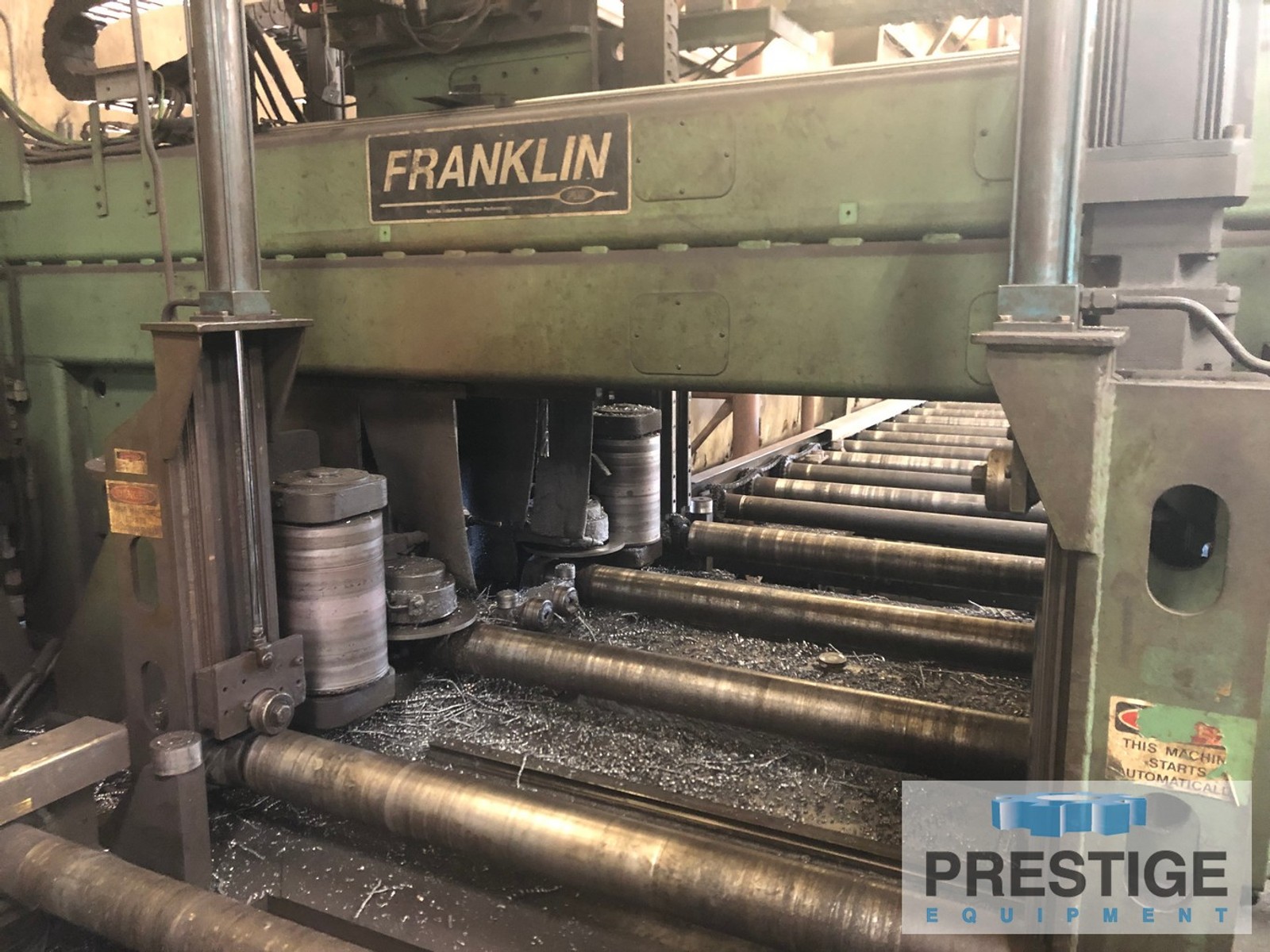

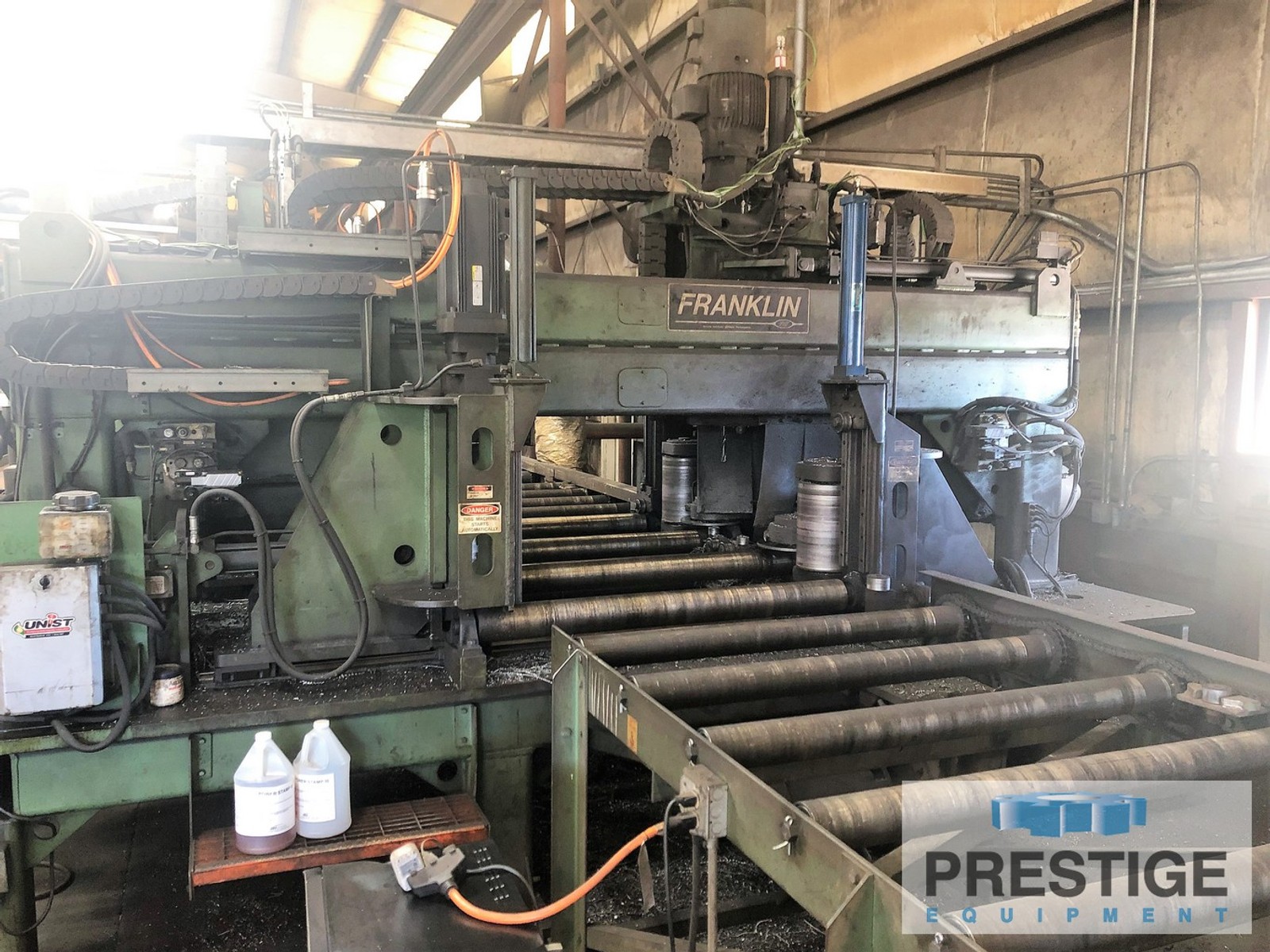

Franklin HD145 x 44 CNC Drill Line

FEATURES:

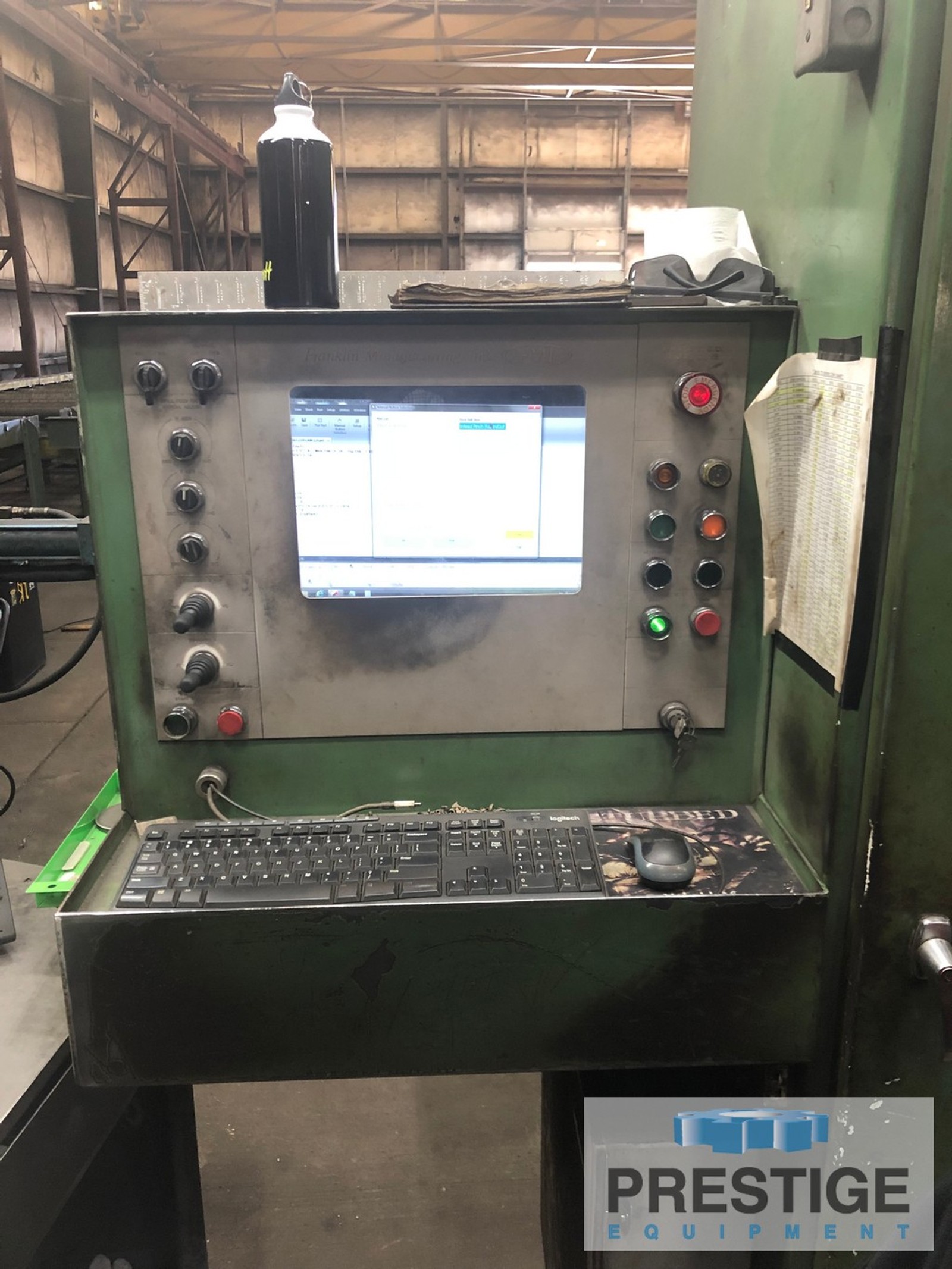

Franklin CNC Control (Upgraded 2016)

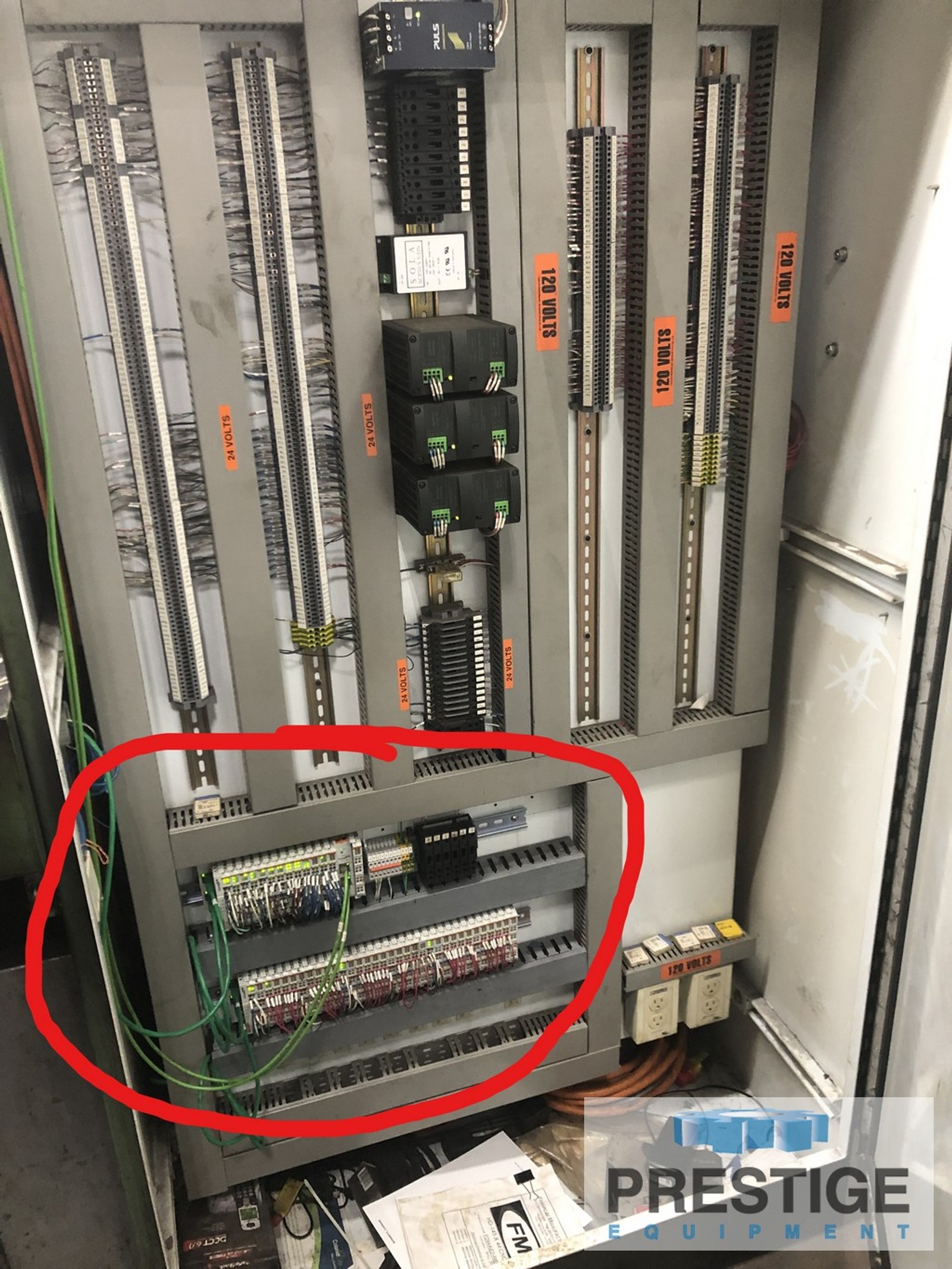

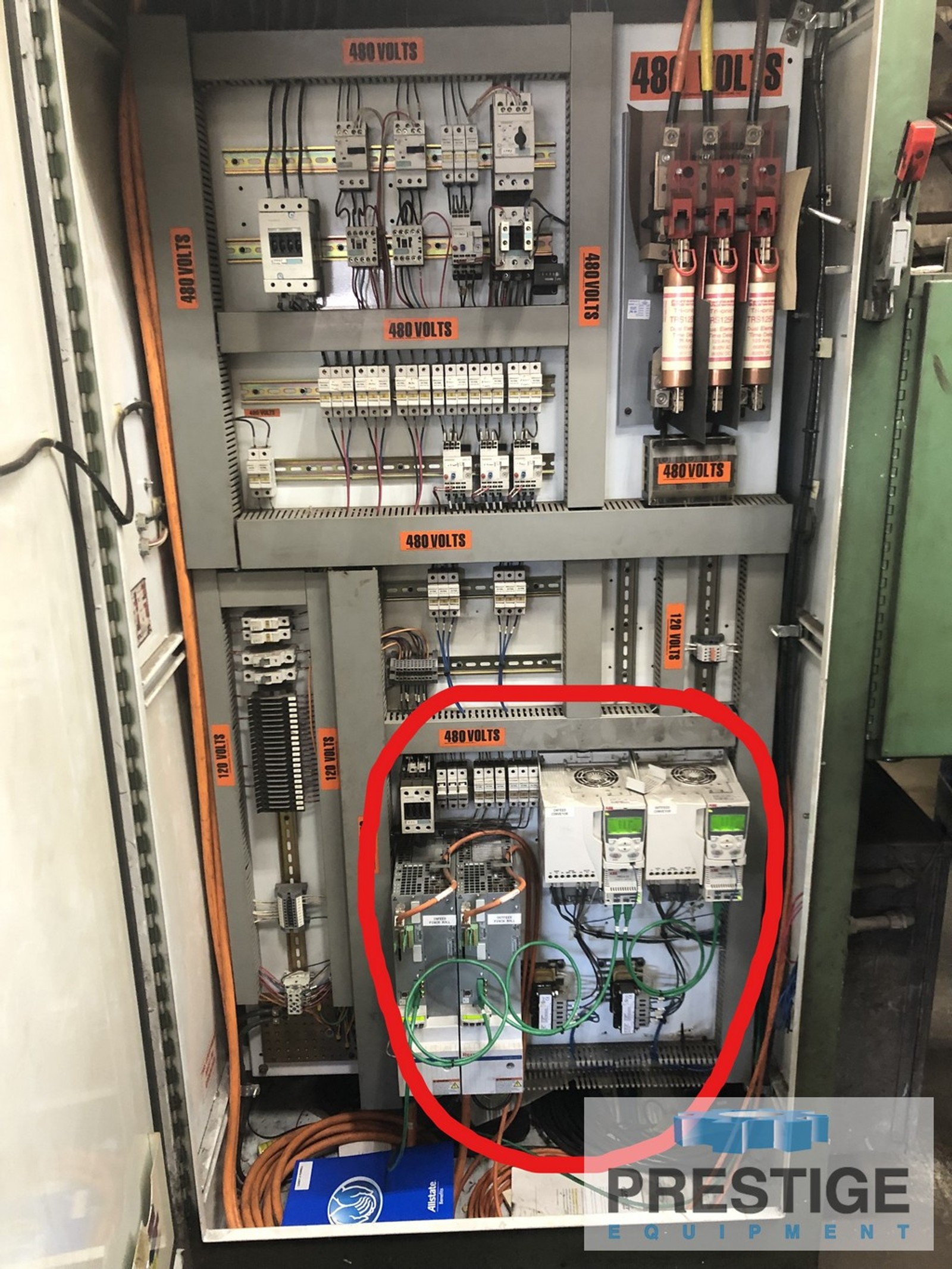

Drives and Electronics (Upgraded in 2016)
Infeed Hydraulic Pinch Roll Drive for Measuring & Driving Lead Section of Material
Pressure Switch Material Detection for Side Clamp

CAPACITY:
Width Capacity ........................ 44"
Beam Capacity ......................... 750 Lbs/Ft.
Flange ................................ 20"
Pass Line from Floor .................. 40"
Spindles .............................. 3
Drill Capacity ........................ 1-9/16"
X-Axis Length Accuracy ................ +/- .30
Maximum Spindle Speed ................. 2,200 RPM
Taper ................................. #4 MT
Approximate Machine Weight ............ 28,000 Lbs.

EQUIPPED WITH:
Franklin CNC Control (Upgraded 2016)
Drives and Electronics (Upgraded in 2016)
Infeed Hydraulic Pinch Roll Drive for Measuring & Driving Lead Section of Material
Pressure Switch Material Detection for Side Clamp
Vertical Hold Down Rolls on Both Sides
Precision Measuring Wheel for Overall X-Axis Length and Hole Location

NOTE:
Control/Drives/Electronics Upgraded in 2016
Inspect in Plant Under Power
Price includes decommission/prep/loading by Franklin

ALSO AVAILABLE FOR ADDITIONAL PRICE:

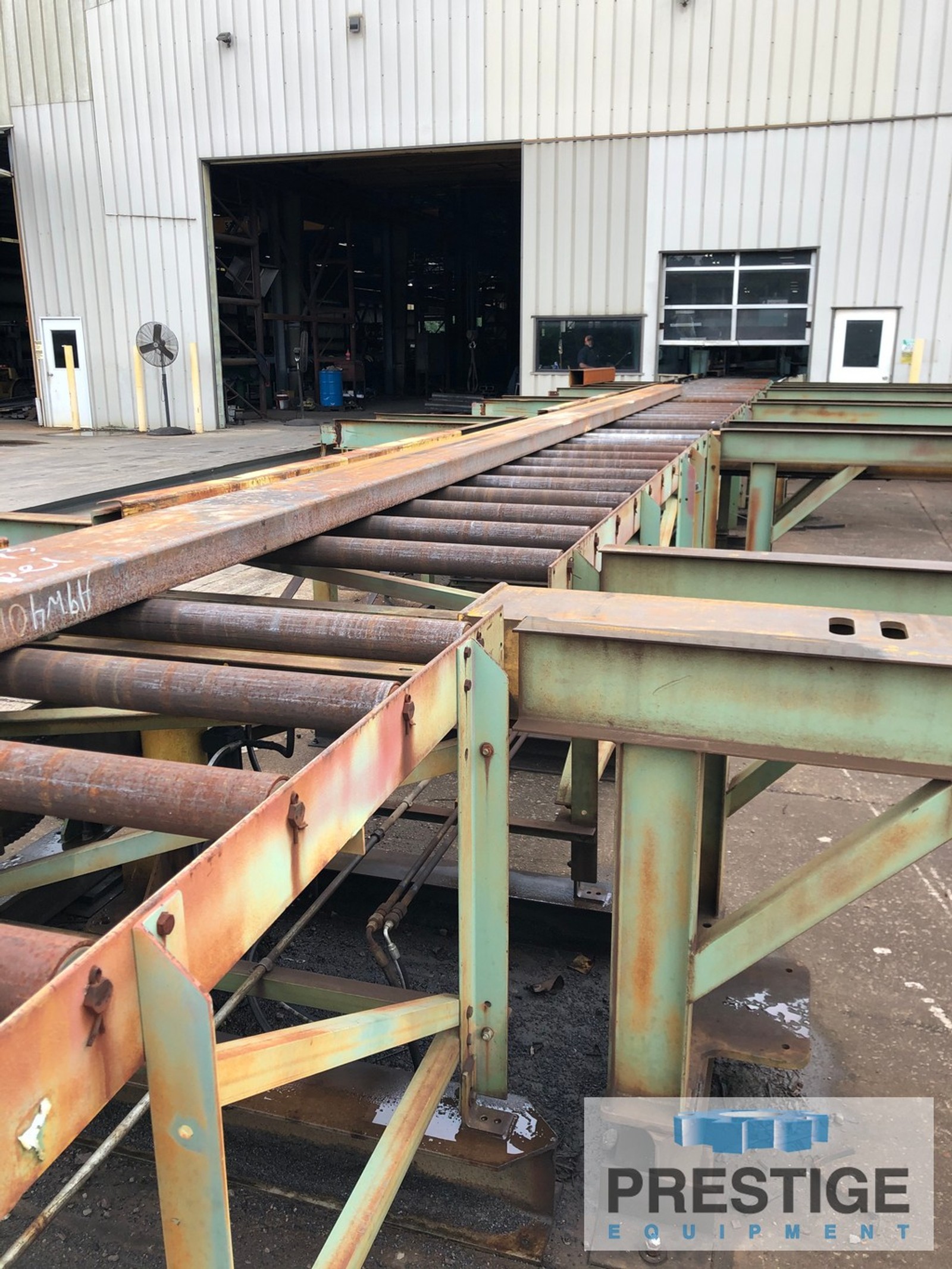

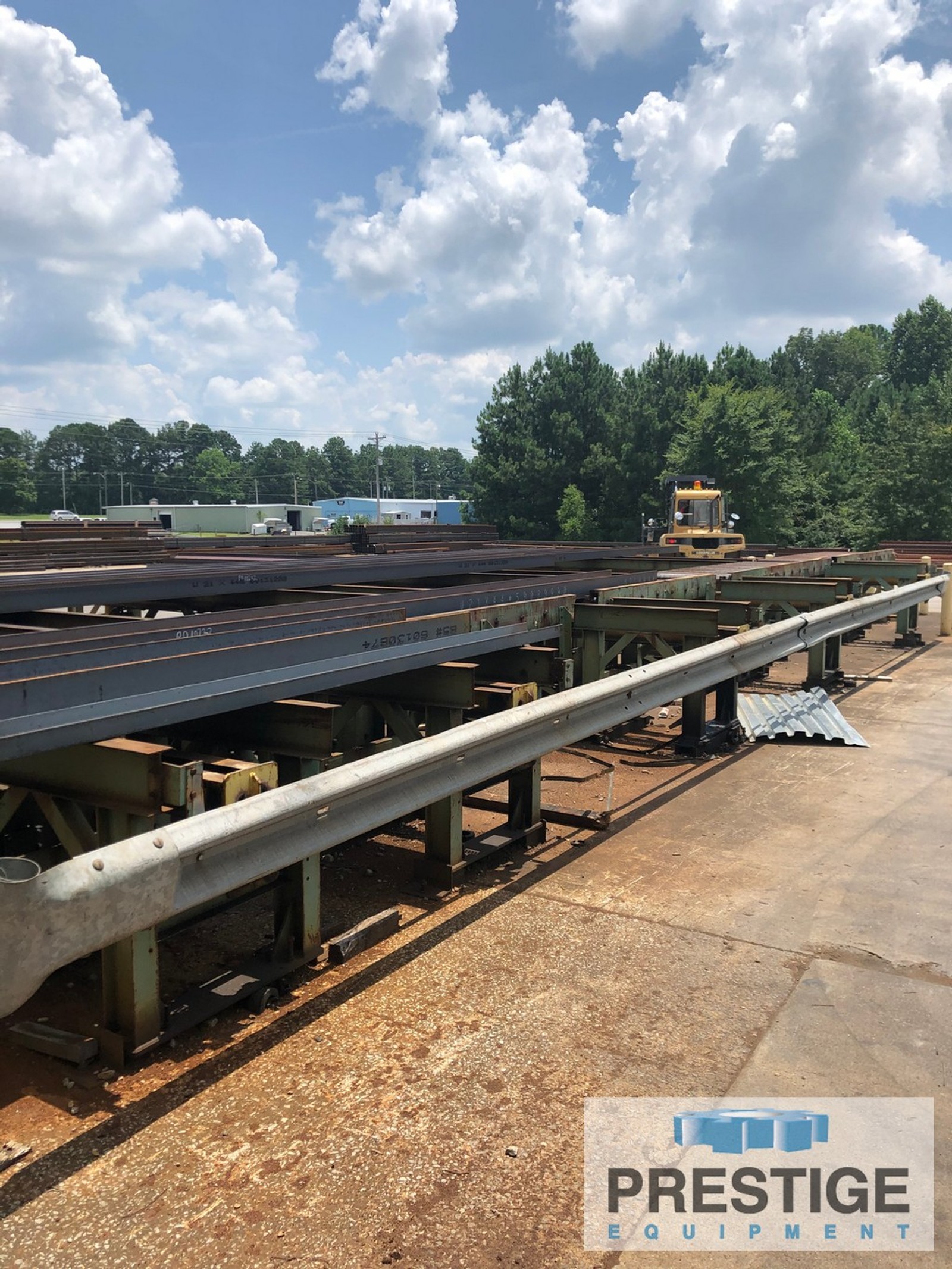

60' Powered Hydraulic Infeed Roller Conveyor and Transfer System (Transfer System Needs Repair)
