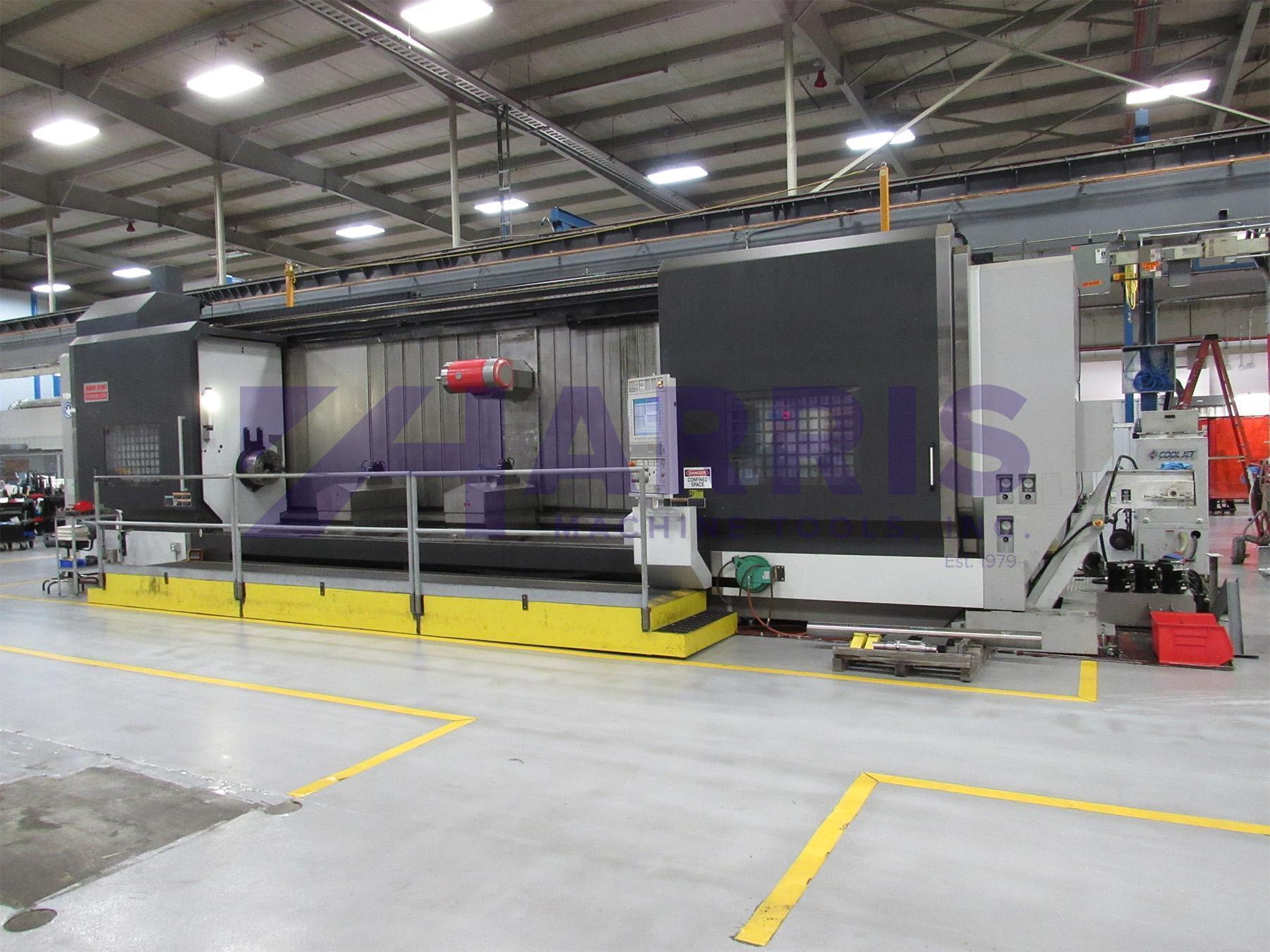

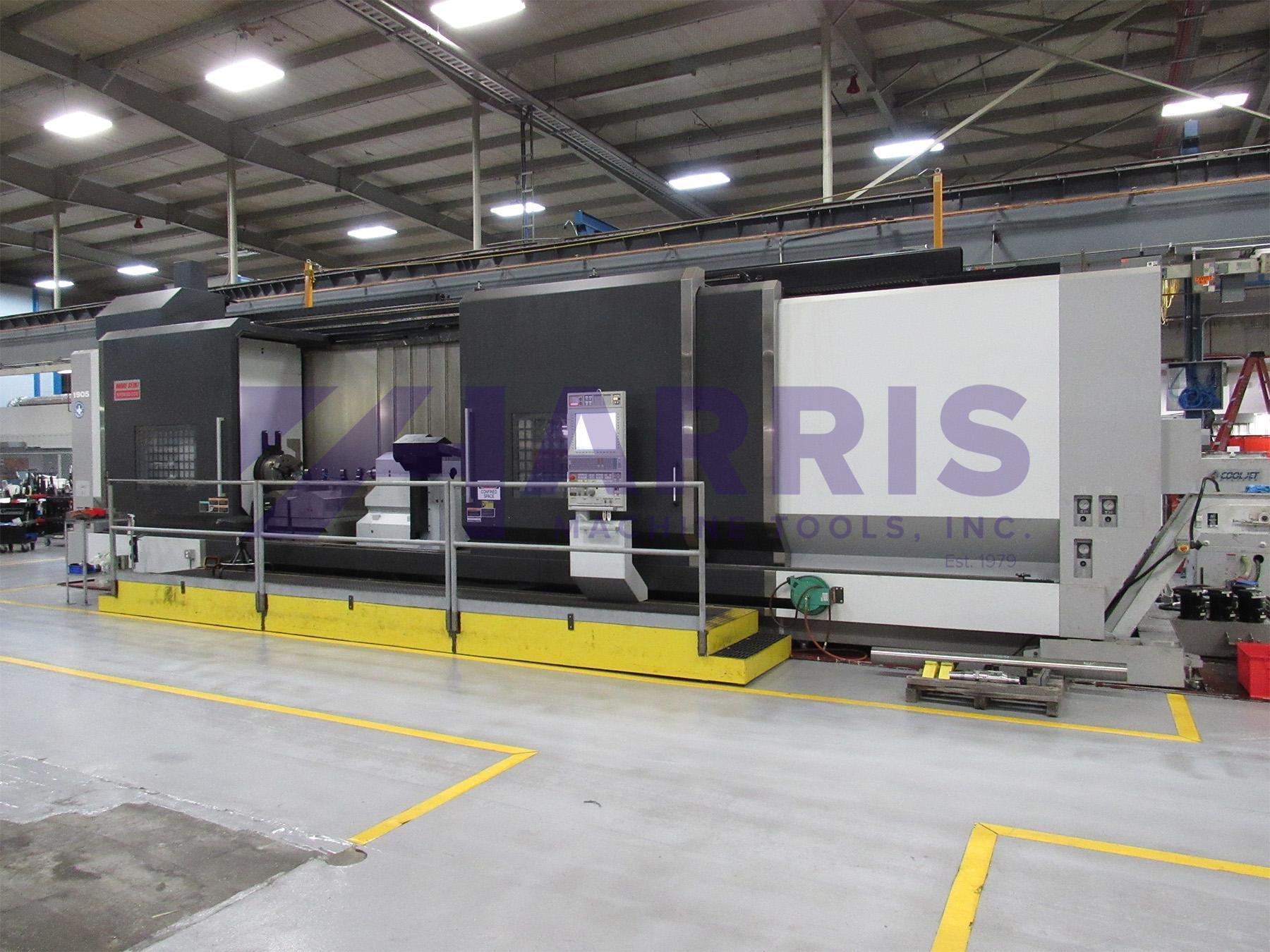

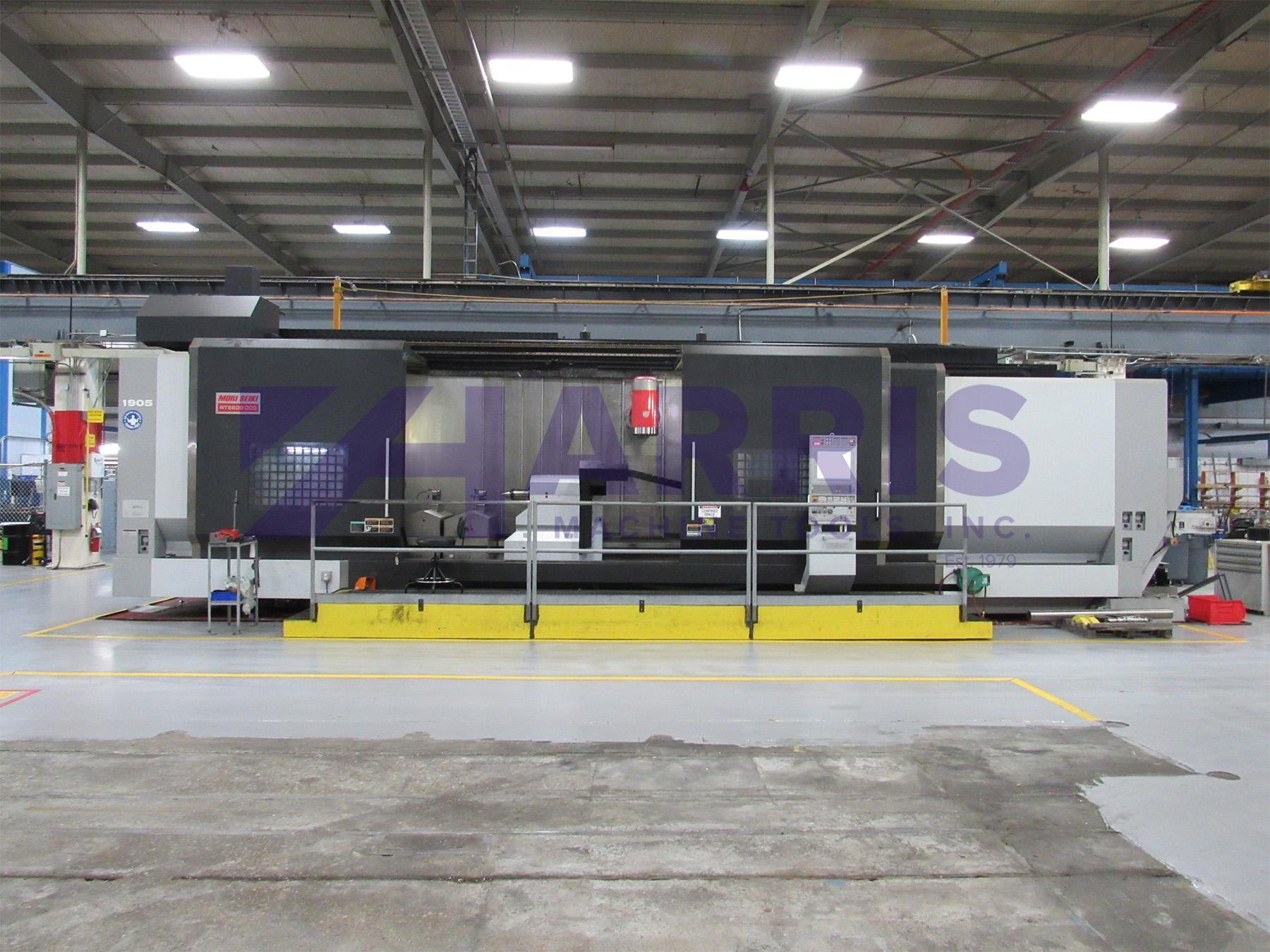

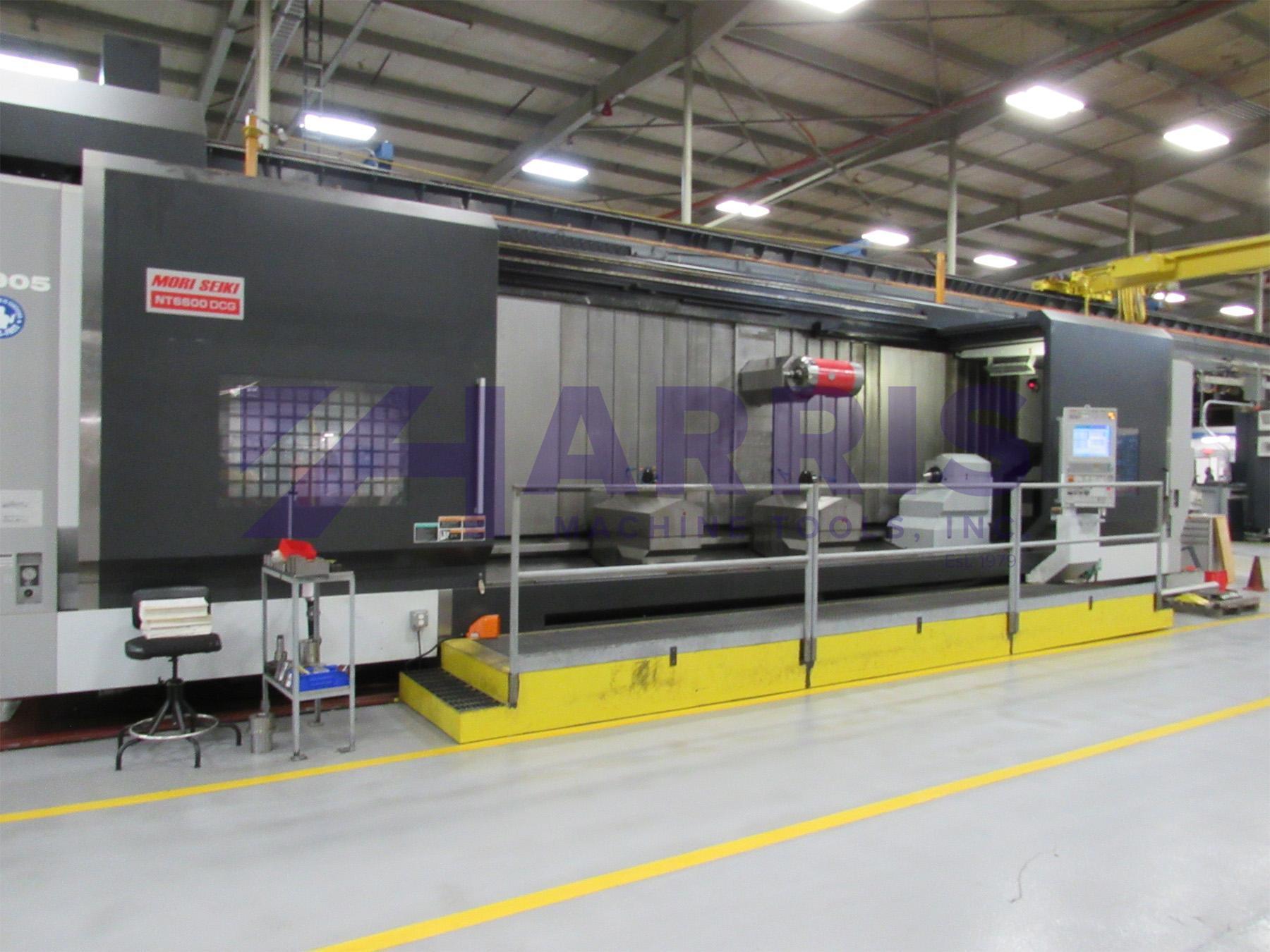

USED, MORI SEIKI NT6600 DCG/6000B CNC INTEGRATED MILL TURN CENTER WITH LIVE MILLING

Manufacturer

MORI SEIKI

Stock

19681

Model

NT6600 DCG/6000B

Dealer Location

Texas

Spec Sheet

CNC Control - yes
Type of CNC Control - FS31iA5 CNC Control
Chuck Size - 20 inches
Swing - 42 inches
Bar Capacity - 6.4 inches
Spindle Bore - 7 inches
X Axis Travel - 41 inches
Z Axis Travel - 242 inches
Y Axis (Yes / No) - yes
Y Axis Travel - 26 inches
B Axis - +/- 120 Deg.
Spindle Speed (RPM) - 1500
Spindle Motor - 40 HP
Sub Spindle Speed (RPM) - 8000
Sub Spindle Motor - 40 HP
Live Milling (Yes / No) - yes
Dimensions - 490" x 182" x 169"H
Hours - 49625
Weight - 120560 pounds


MAXIMUM SWING OVER BED: 42"
MAXIMUM WORK PIECE DIAMETER: 42"

MAXIMUM WORK PIECE LENGTH: 239"
MAXIMUM BAR DIAMETER: 6.4"
SPINDLE BORE: 7"

X AXIS TRAVEL: 41"
Y AXIS TRAVEL: 26"
Z AXIS TRAVEL: 242"
B AXIS: +/- 120 DEG.
MAIN SPINDLE SPEED: 1500 RPM

MAIN SPINDLE MOTOR: 40 HP
MILLING SPINDLE SPEED: 8000 RPM
MILLING SPINDLE MOTOR: 40 HP

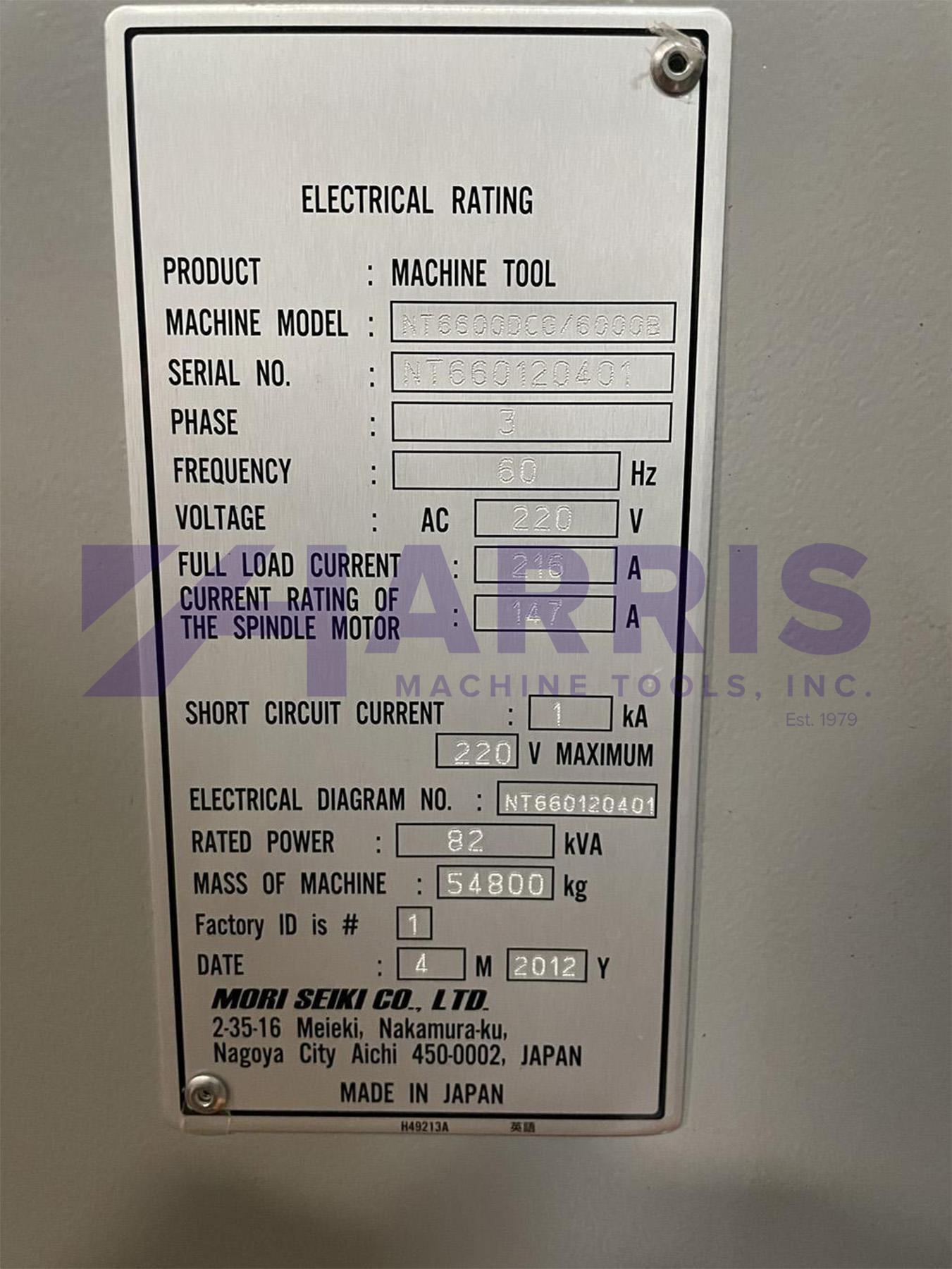

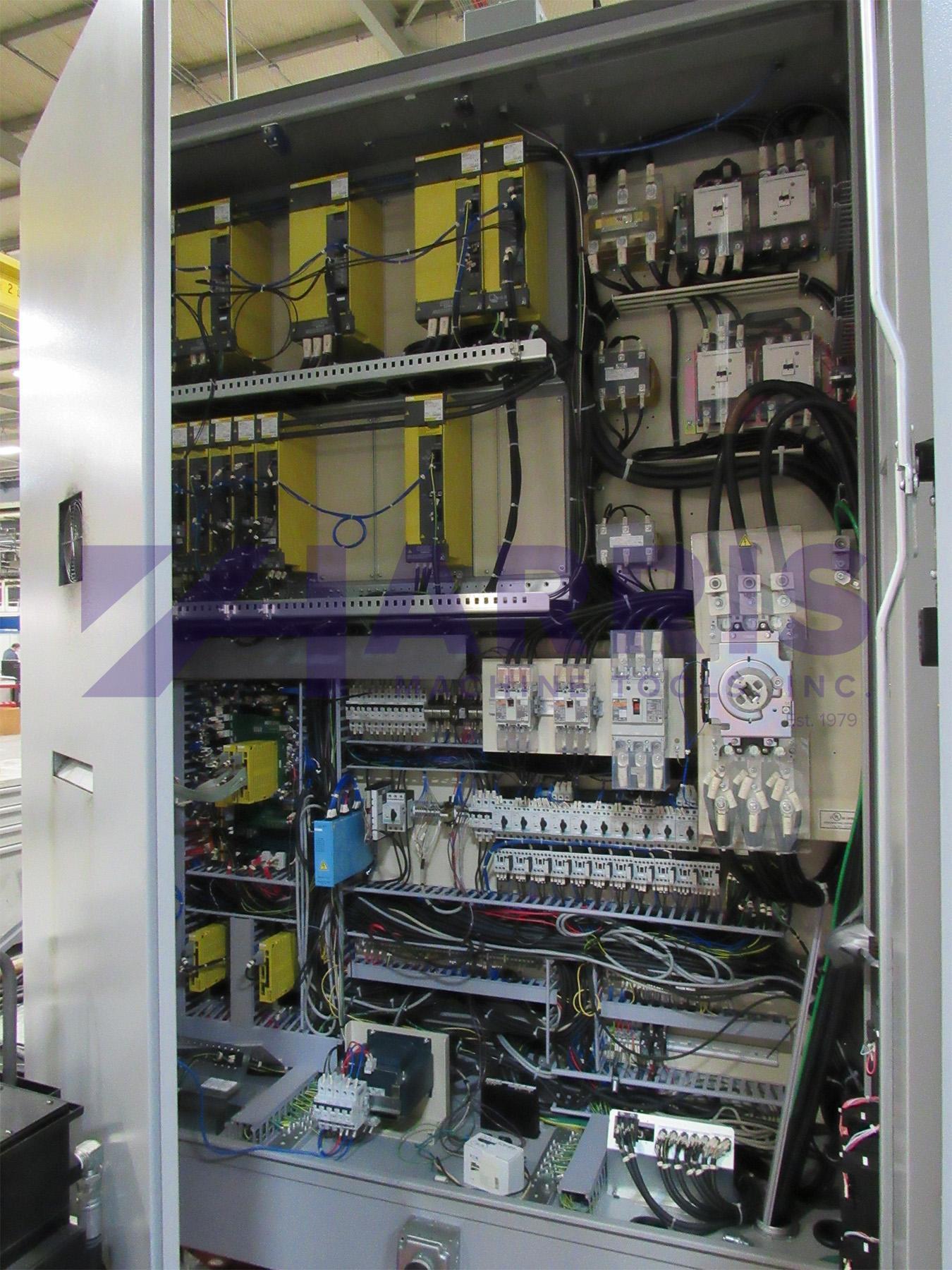

ELECTRICS: 220V/3P/60Hz/216A
OAD (APPROXIMATE): 490" X 182" X 169" HIGH
WEIGHT (APPROXIMATE): 120,560 LBS.
EQUIPPED WITH:
C AXIS

YAXIS
B AXIS
LIVE TOOLING/MILLING

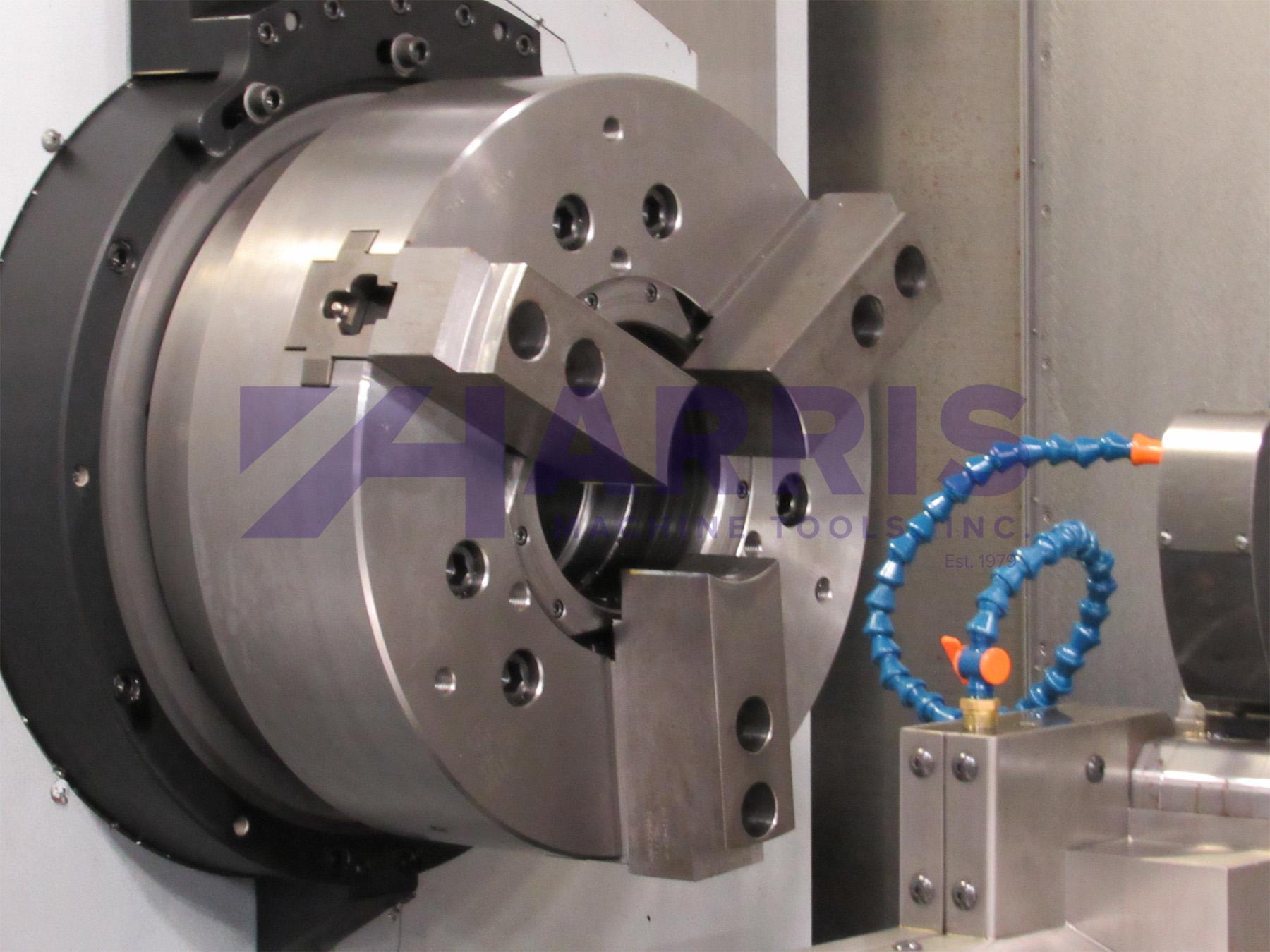

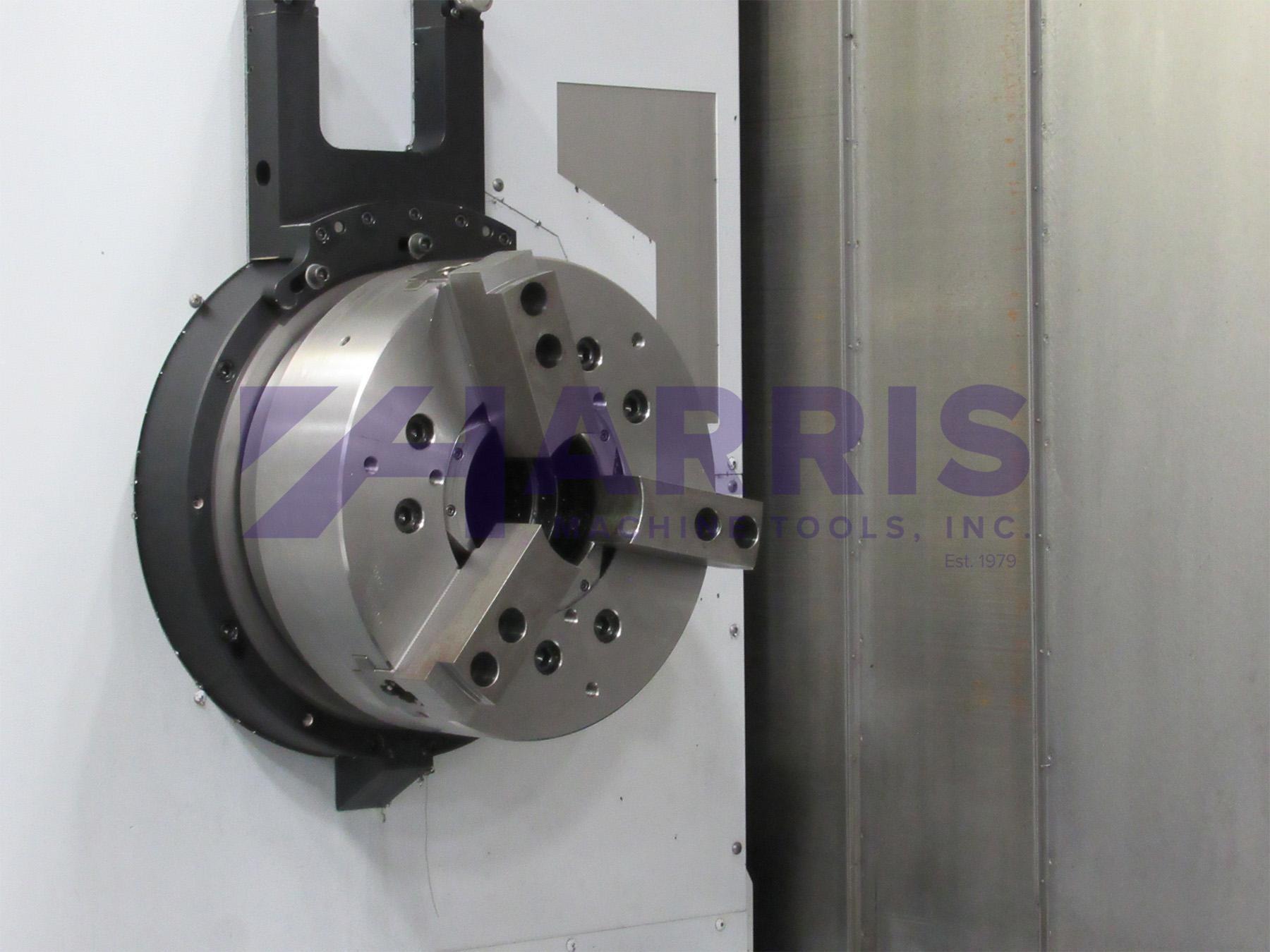

20" HYDRAULIC CHUCK

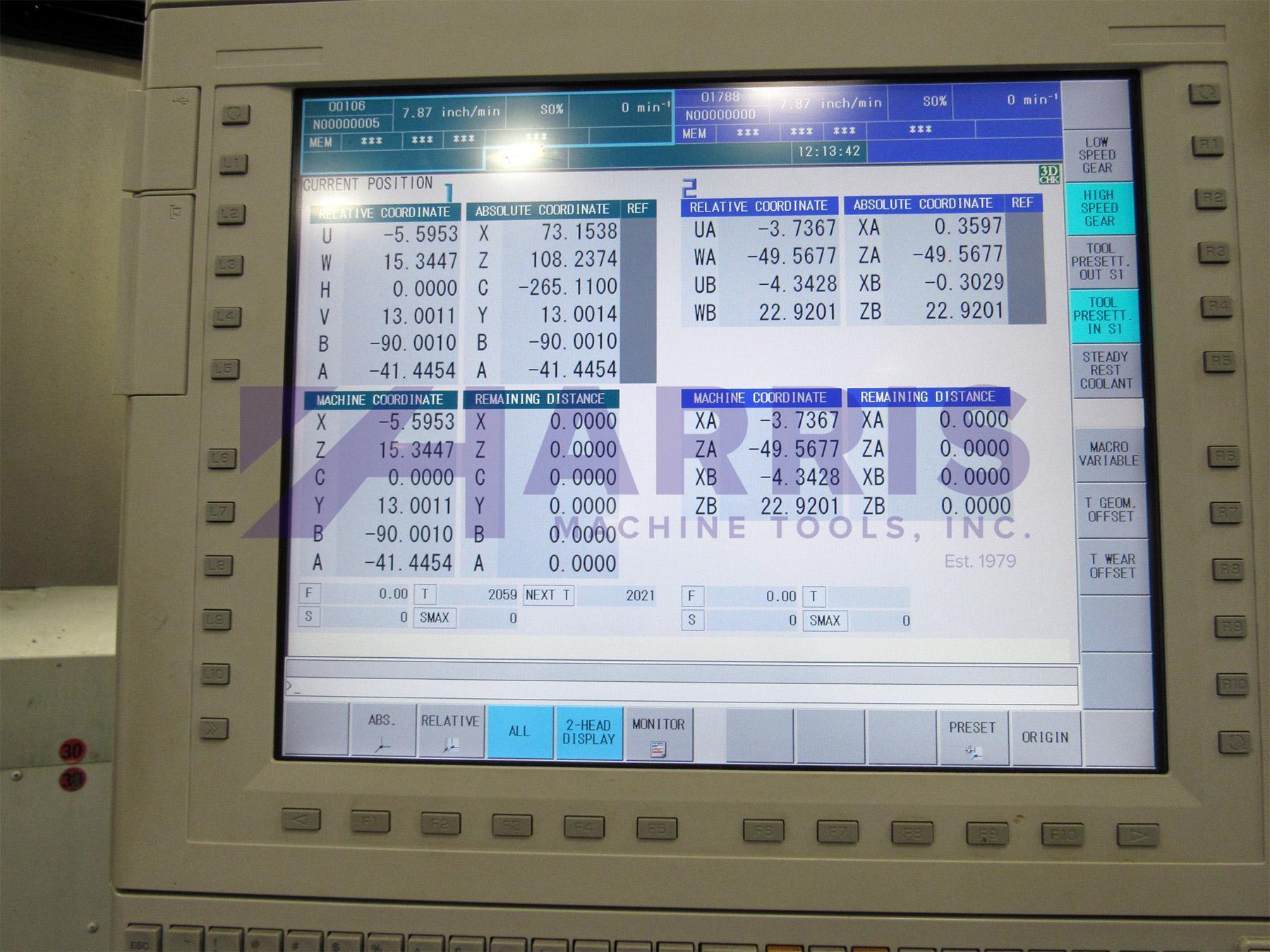

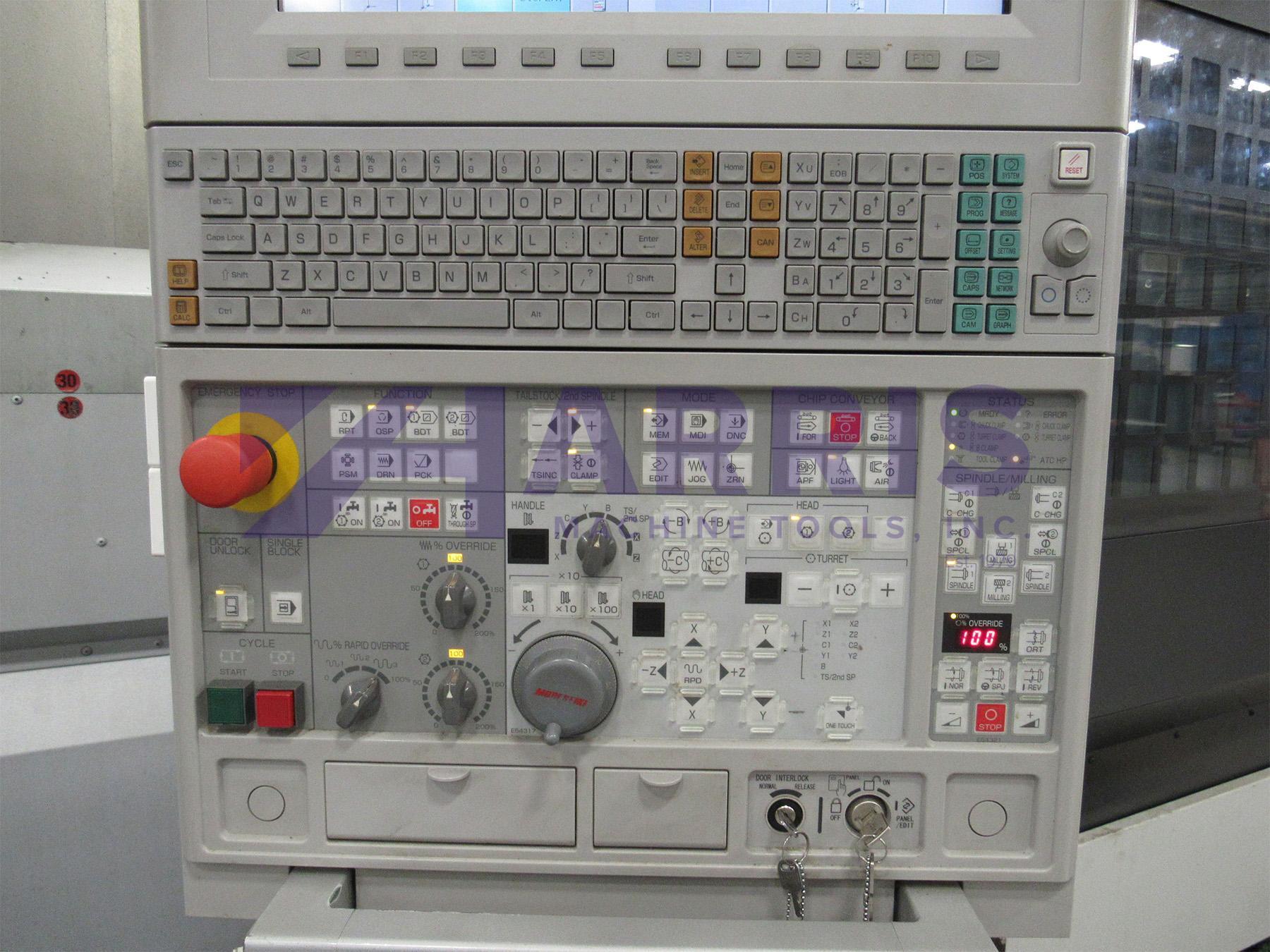

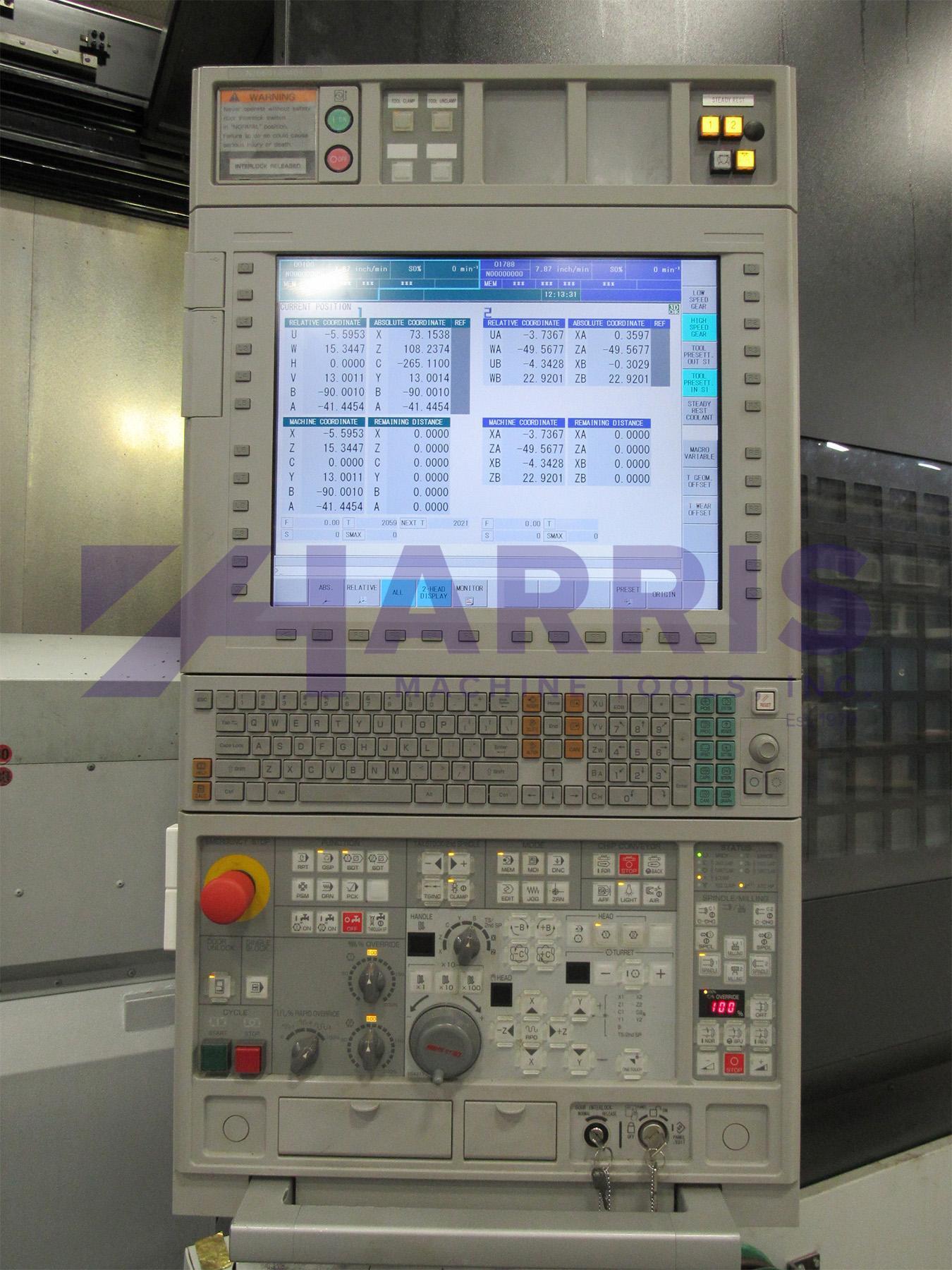

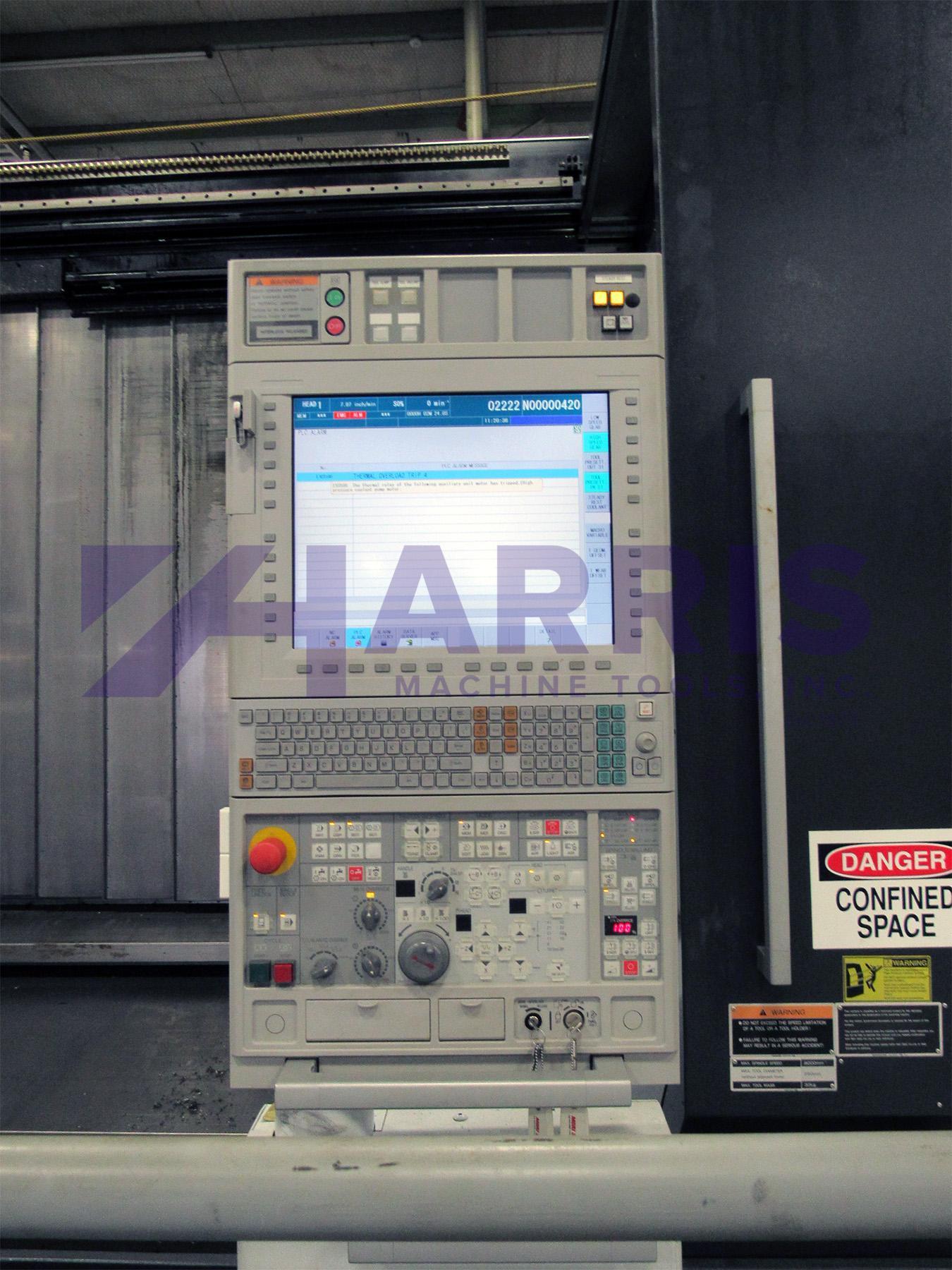

FS-31iA5 CNC CONTROL
140 POSITION AUTOMATIC TOOL CHANGER
PROGRAMMABLE TAILSTOCK

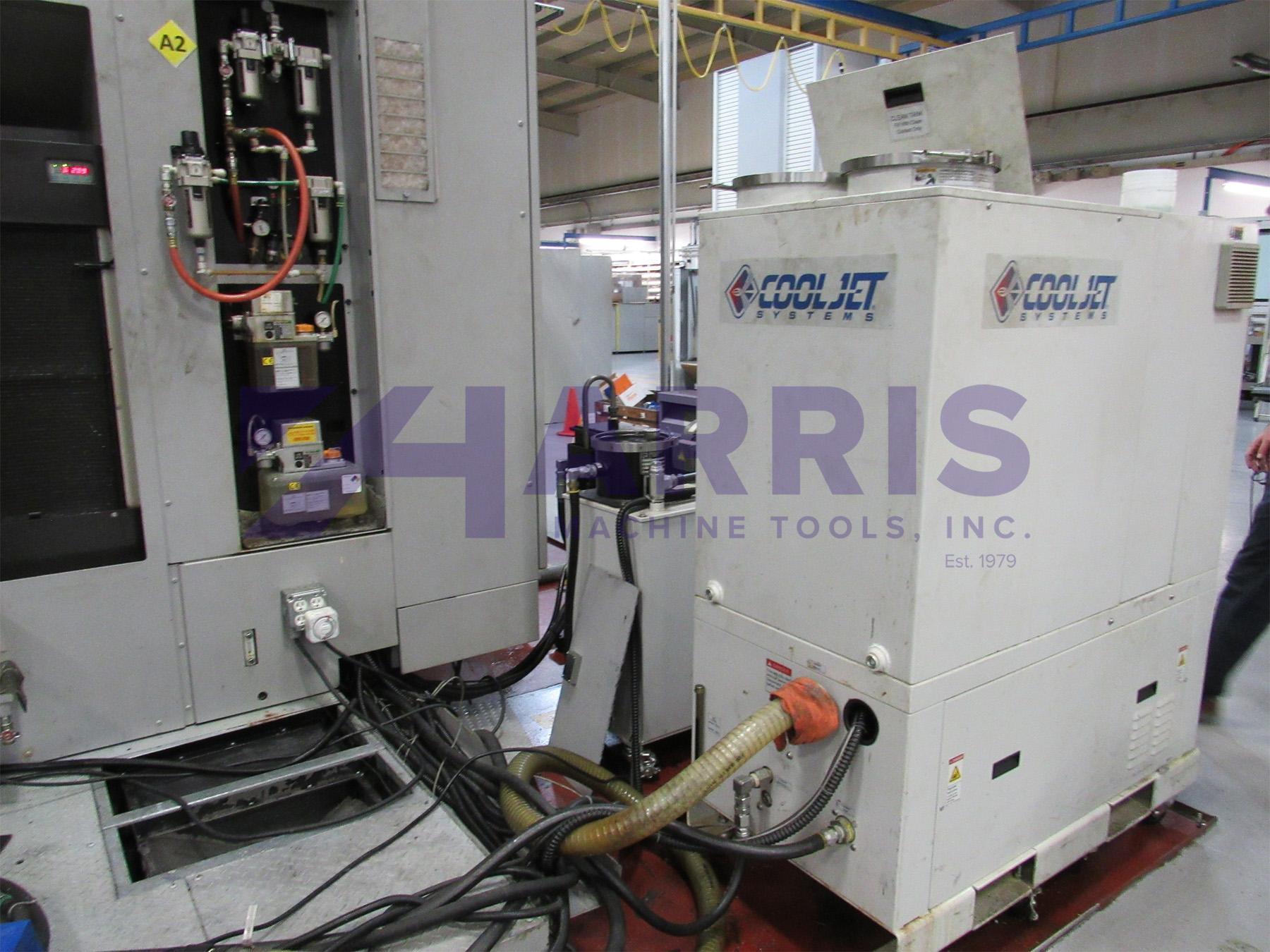

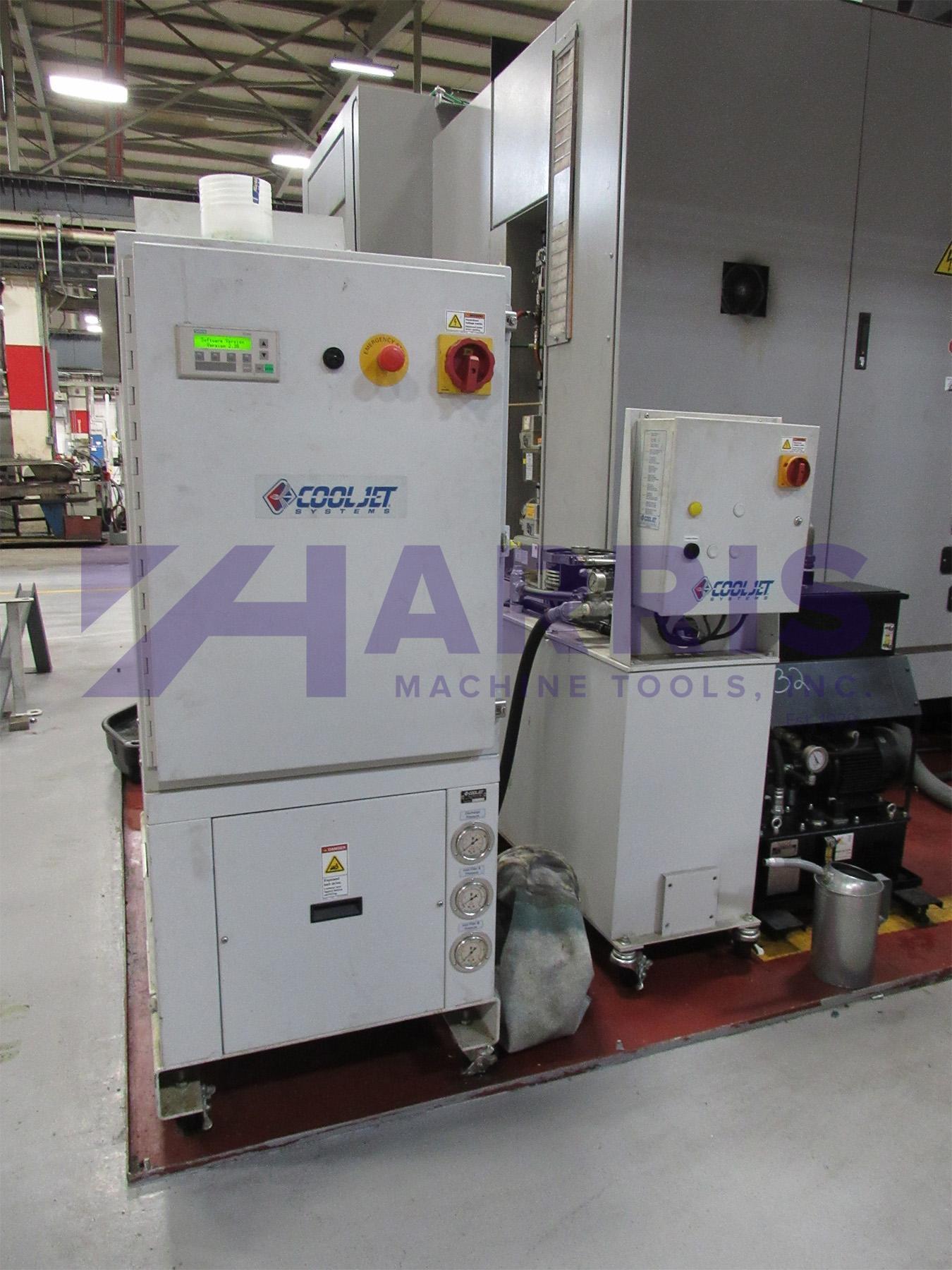

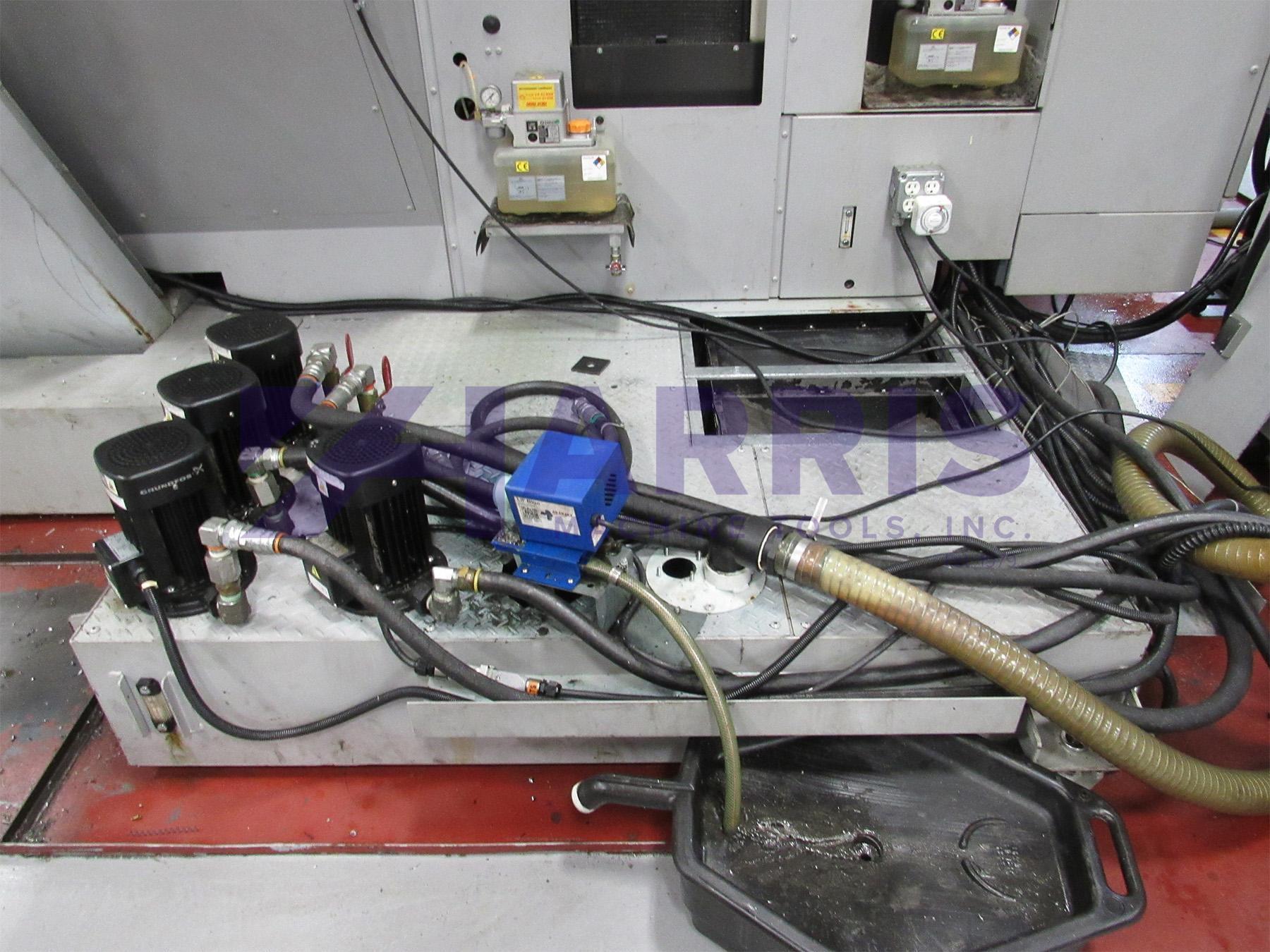

COOLANT THROUGH SPINDLE (HIGH PRESSURE)
CHIP CONVEYOR

Additional Control Options:
Automatic Power Shut-Off
MAPPS 4 System
Part Program Storage: 8mb
Stored Programs: 1000
Remote Communication Function
ATA Flash Memory Card
Programmable Data Input
AI Contour Control

Machine Options:

Tool Presetter
Automatic Tool Length Measurement System

Additional Machine Specs:

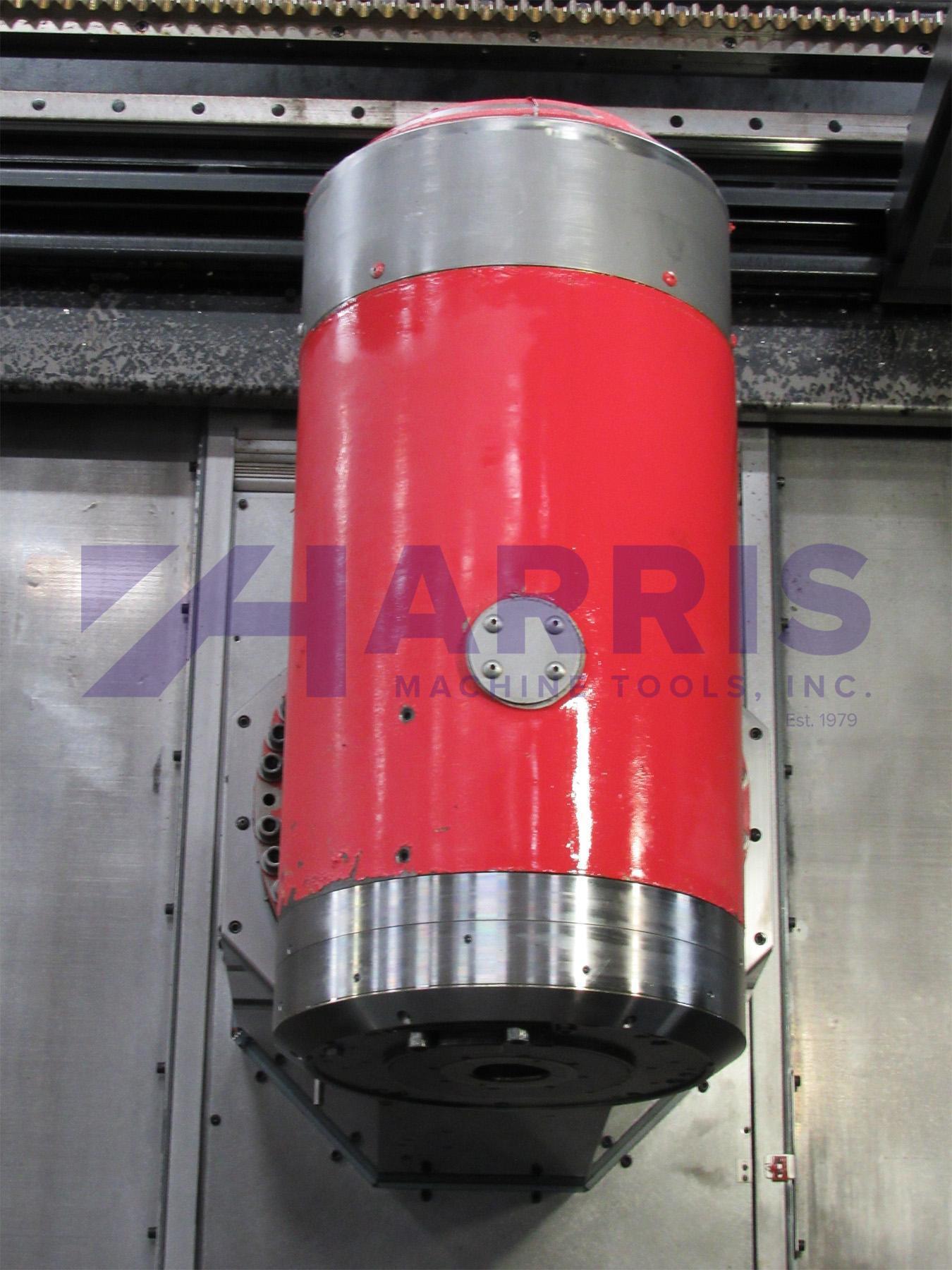

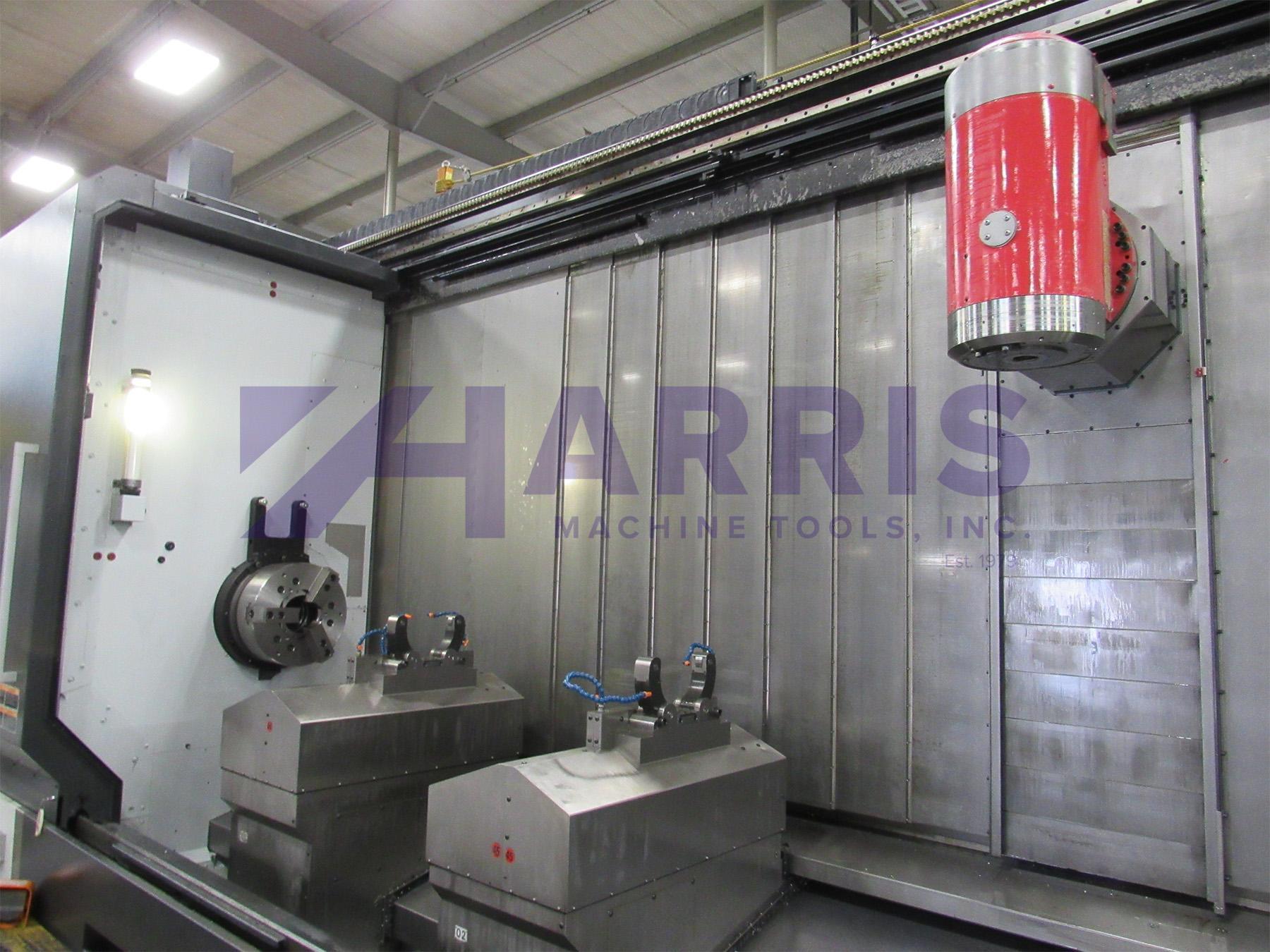

Capto C8 Spindle

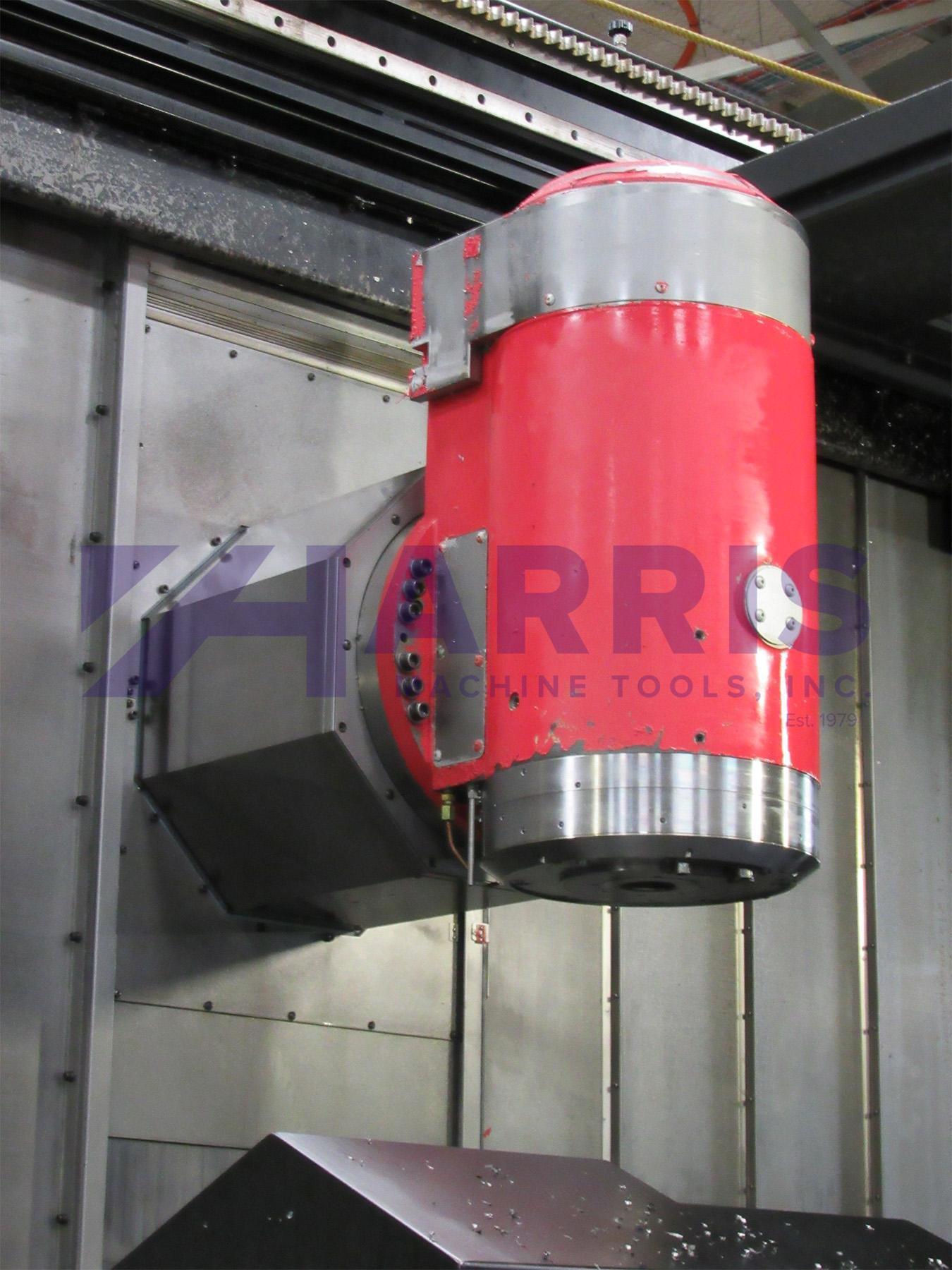

Full B-Axis
Right Hinge-Type Chip Conveyor

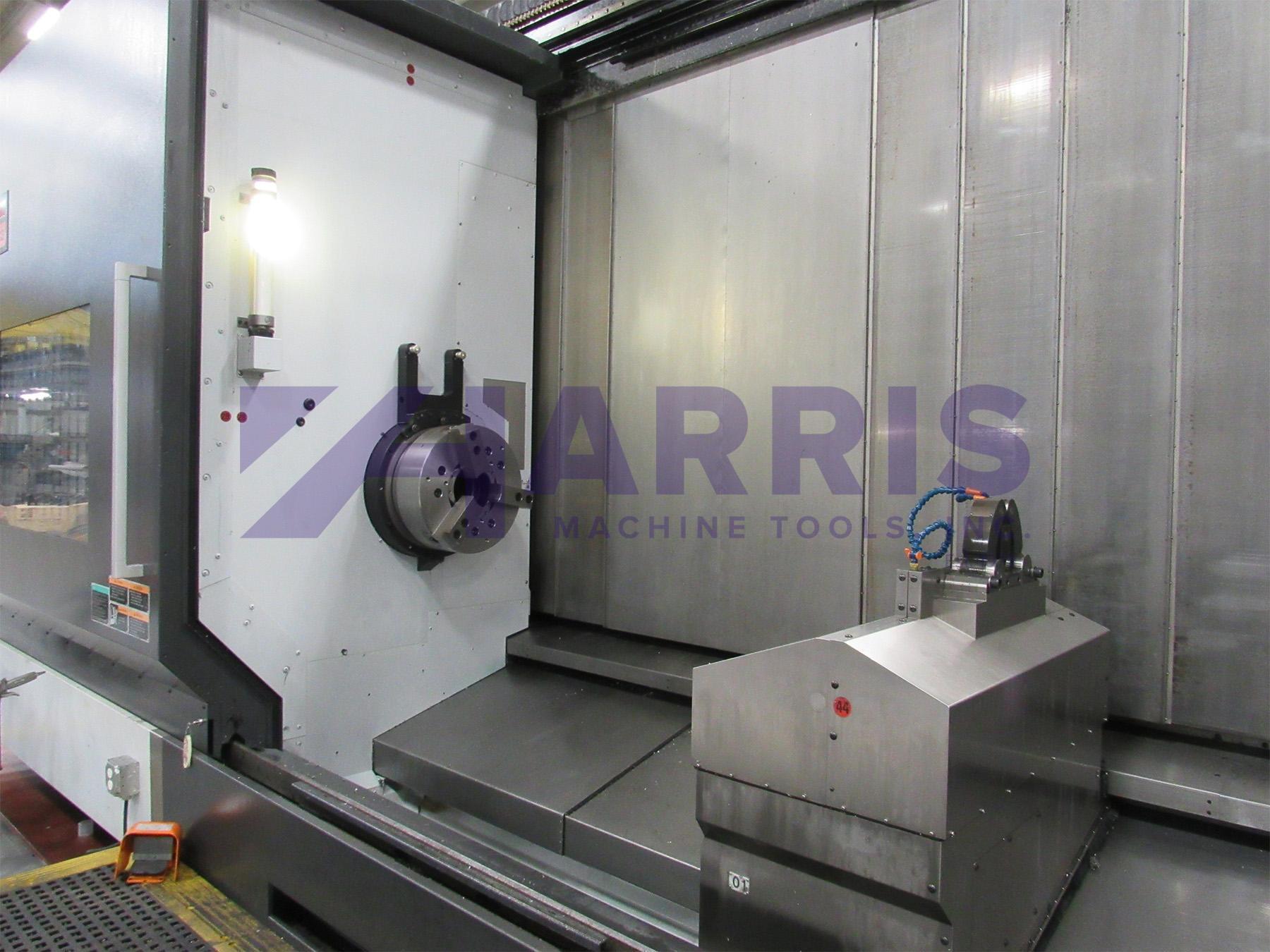

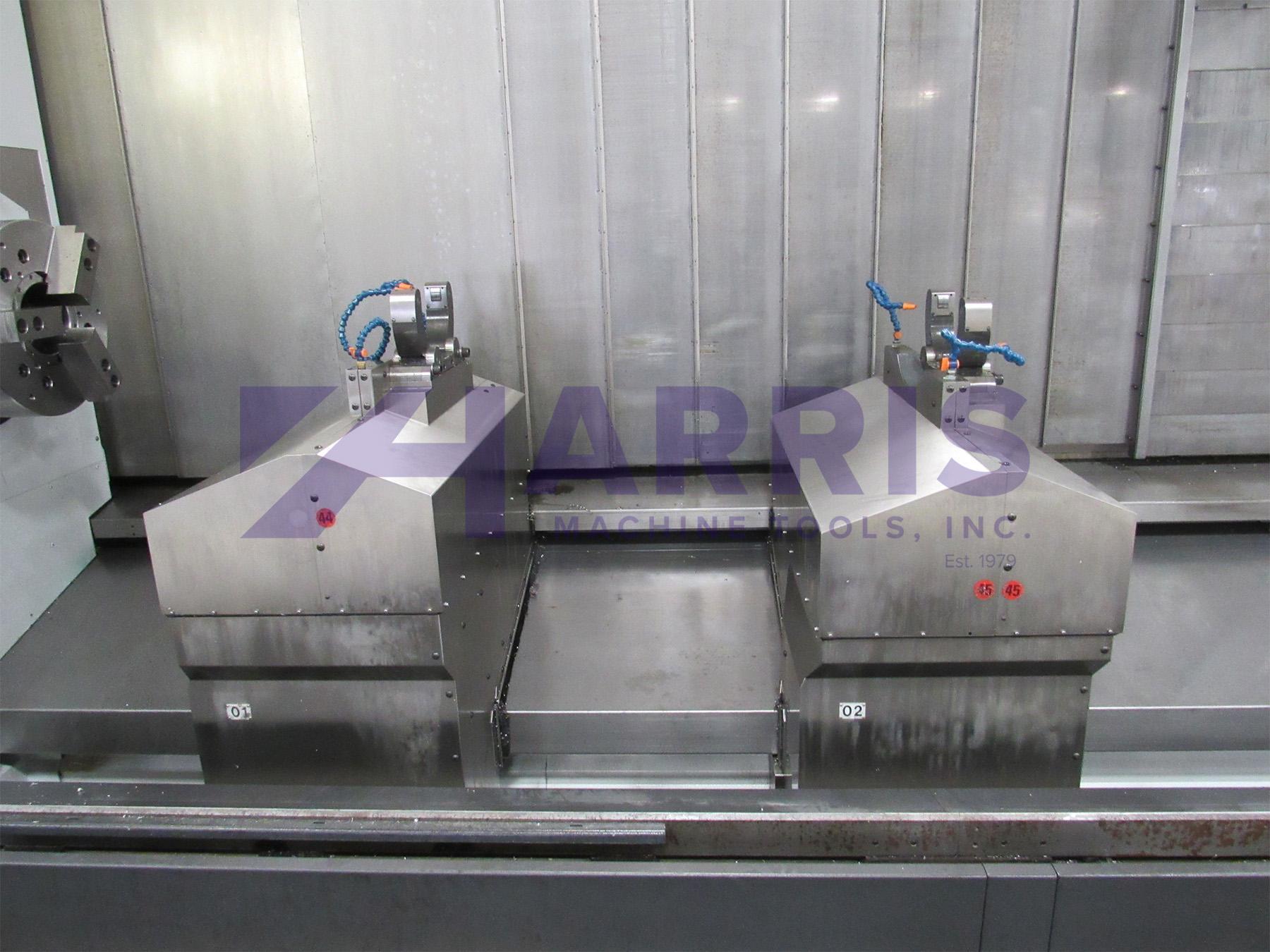

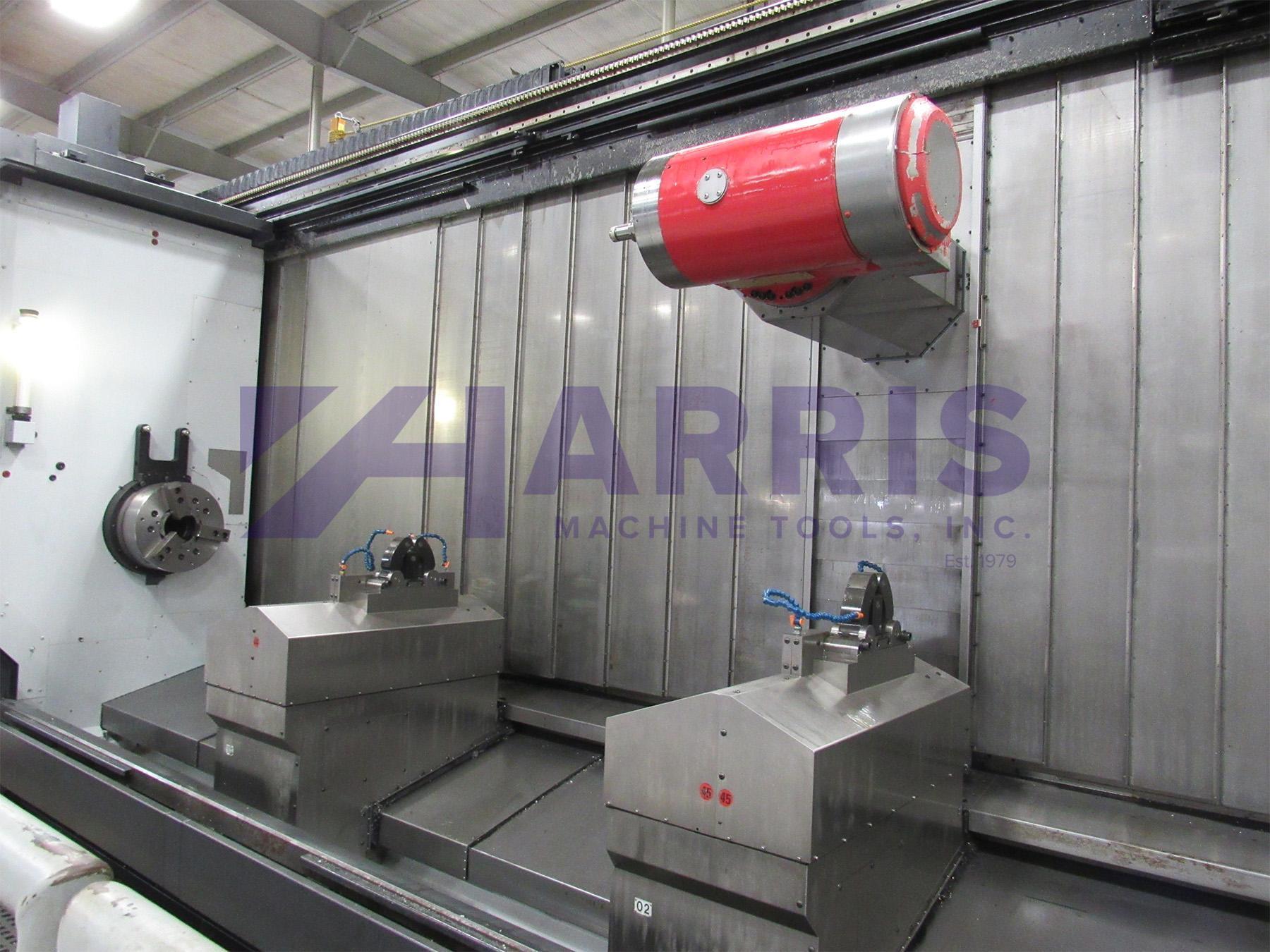

(2) Programmable Automatic Steady Rests (8" capacity)
Simultaneous 5-Axis Control
Tool Center Point Control
Workpiece Setting Error Compensation
Tool Offset Pairs: 240
Tool Offset for 5-Axis Machining
Work Coordinate System Pairs: 6
Tilted Working Plane
Nano Smoothing
Tool Life Management
Load Monitor

Machine Hours: 49,625
Spindle Hours: 4,798

NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
