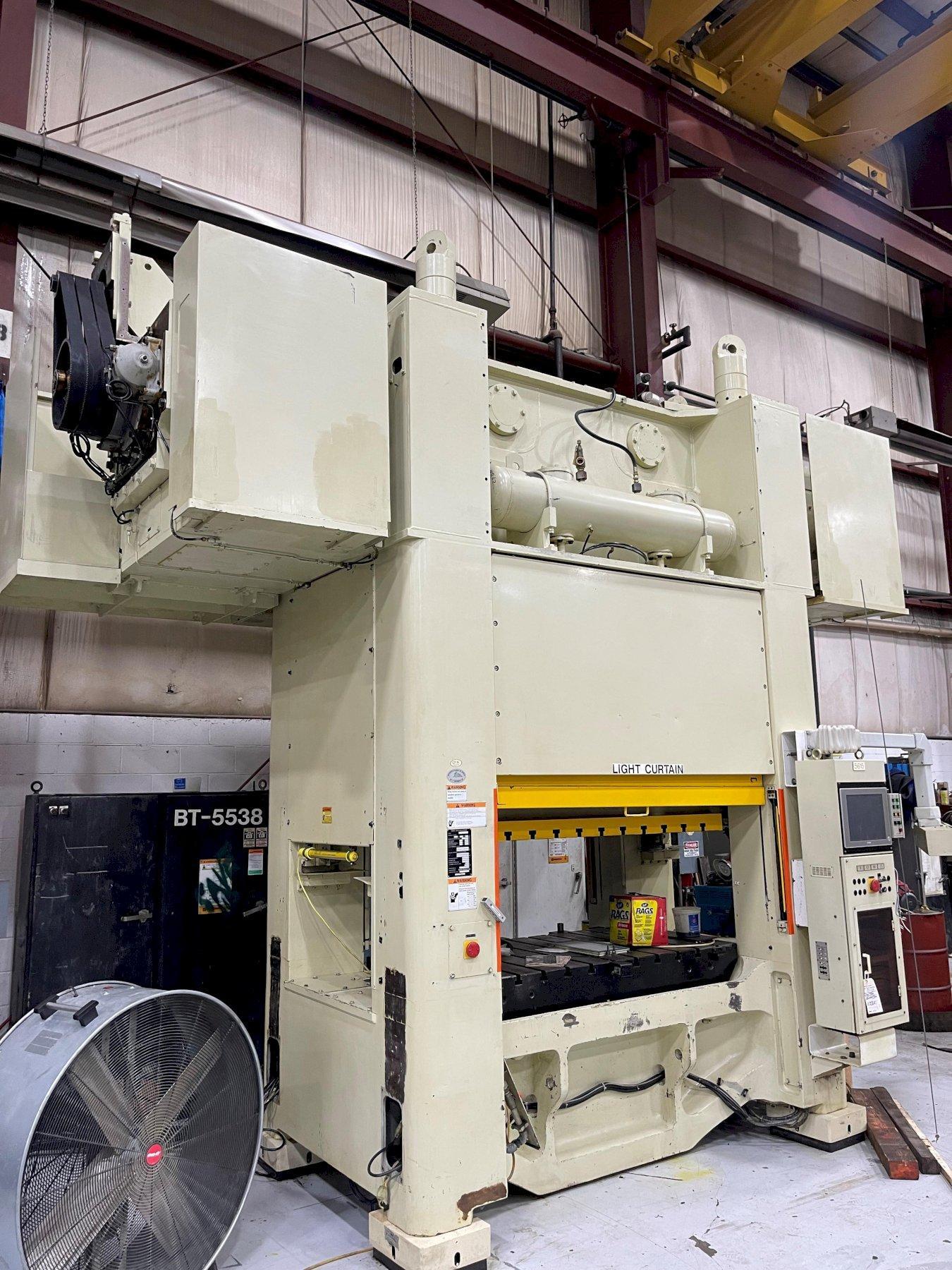

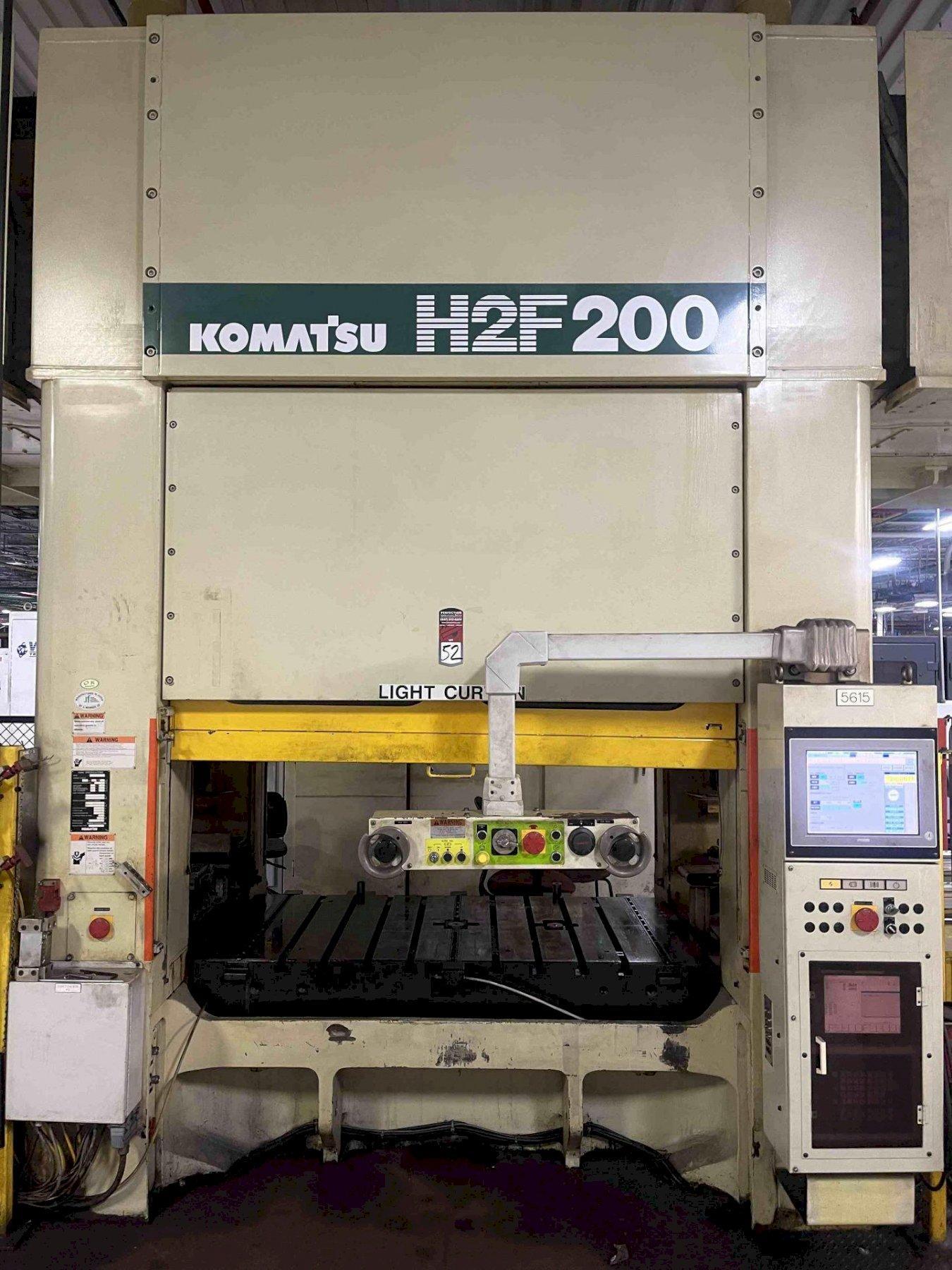

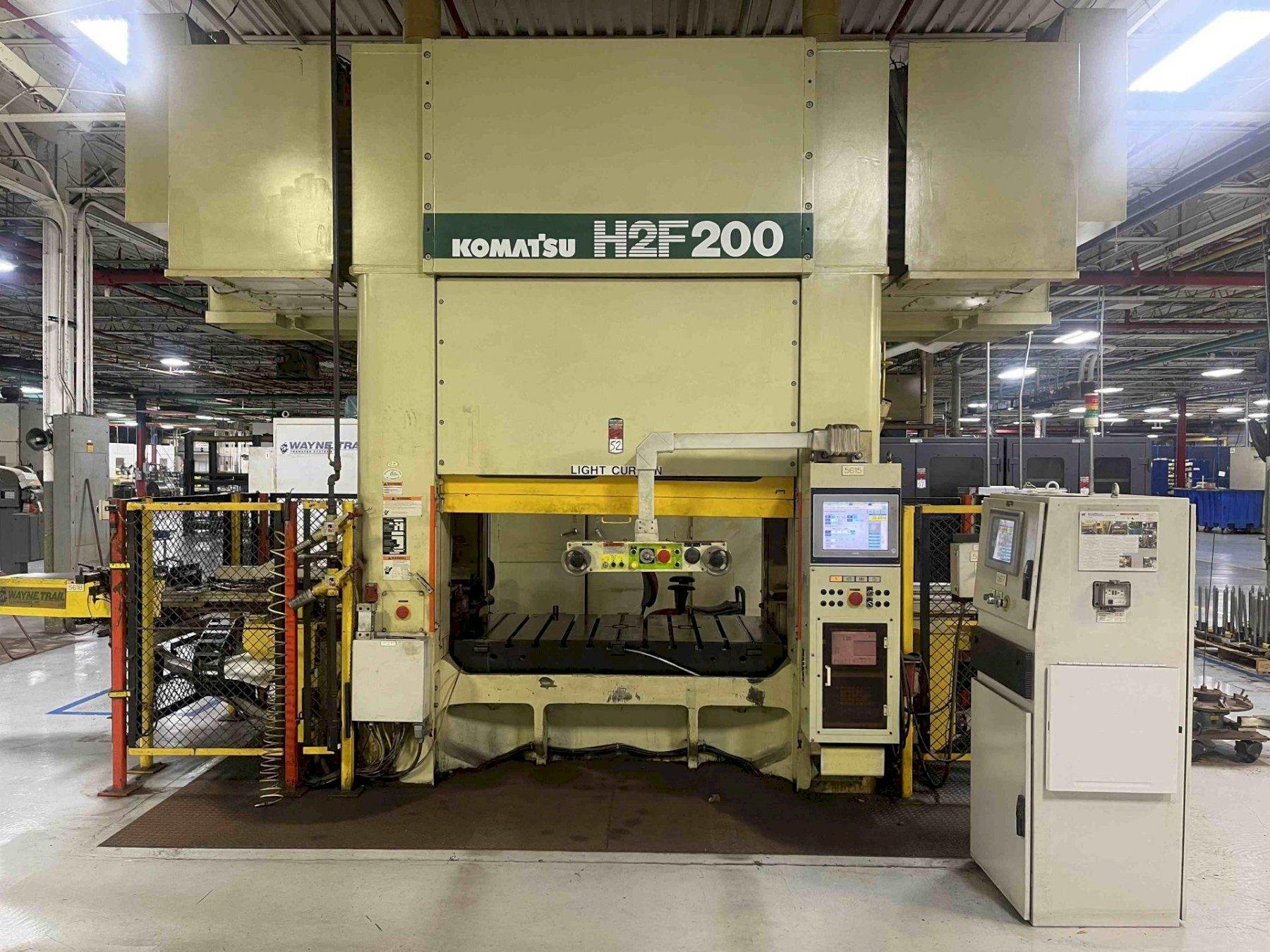

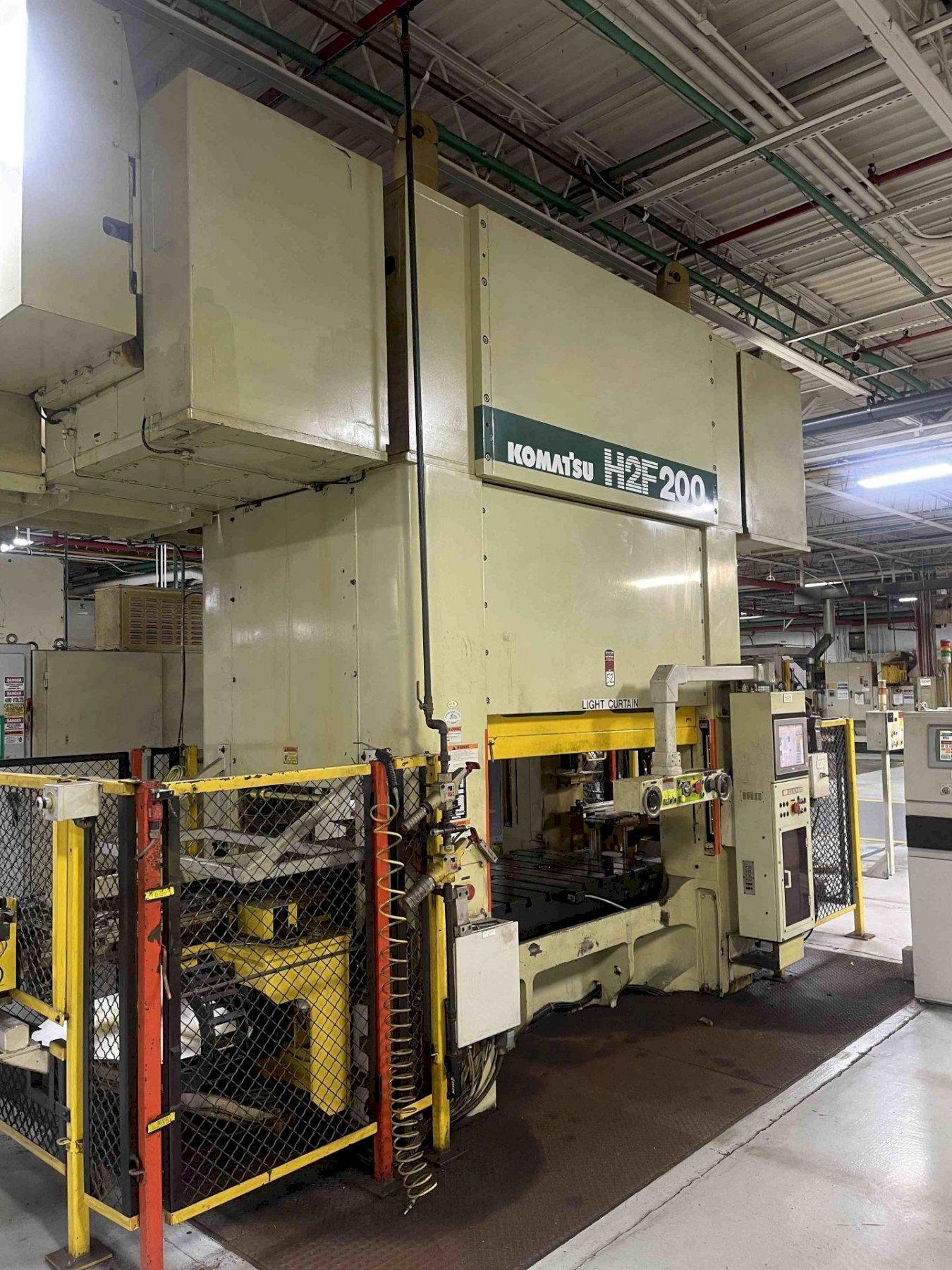

200 ton Komatsu Metal Stamping Servo Press Model H2F200, Year 2003!

Manufacturer

KOMATSU

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2728

Model

H2F200

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 220
Stroke - 7.87 inches
Shut Height - 31.63 inches
Adjustment - 3.94 inches
Bed Size - 72.8 x 37.4
Ram Area - 72.8 x 33.5
SPM - 48-88

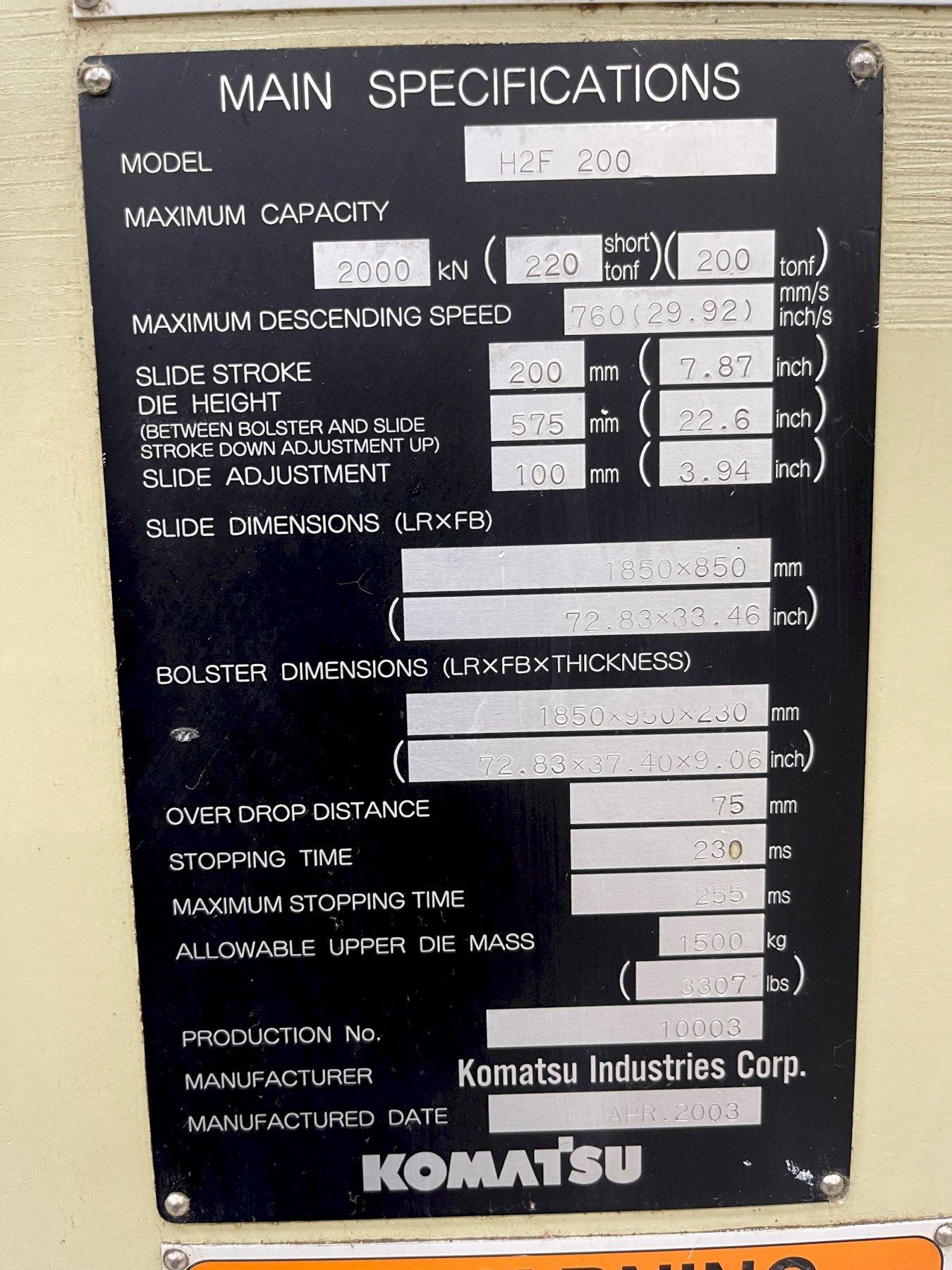

Standard Specifications
Komatsu Servo Press Model H2F200
Servo Metal Stamping Press
200 ton Metric Capacity
220 ton US Capacity
1.3" to 7.87" Variable Stroke
3.94" Motorized Adjustment
31.63" Shut Height Over Bed
22.63" Shut Height Over Bolster
72.83" x 37.4" Bed Area
72.83" x 33.5" Slide Area
48-88 Variable Strokes per Minute

Equipment and Features
Recirculating Lube System
Hydraulic Overloads
Plunger Guided System
High Torque Gear Box with AC Servo Motors
User Friendly press Operation Systems

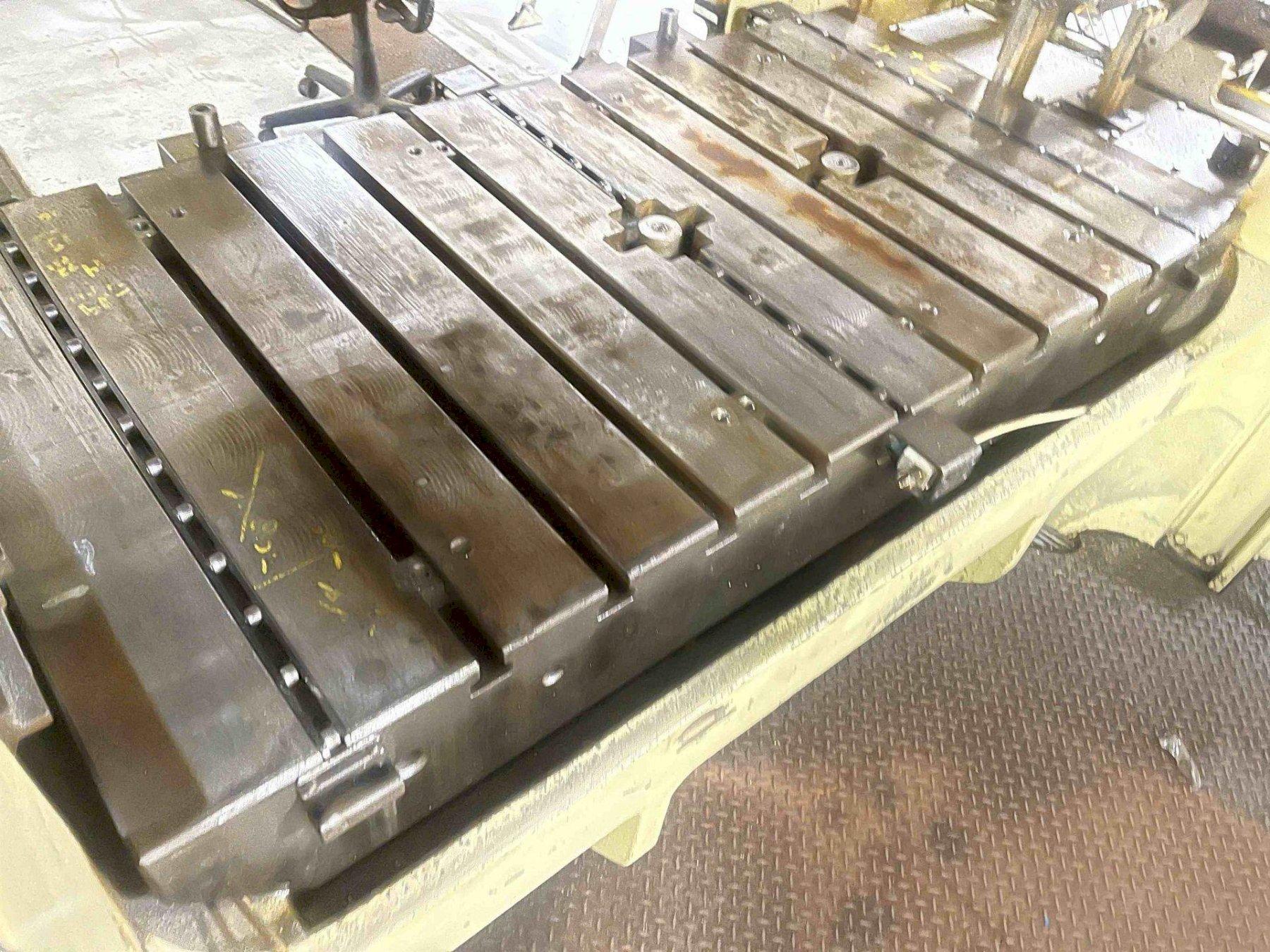

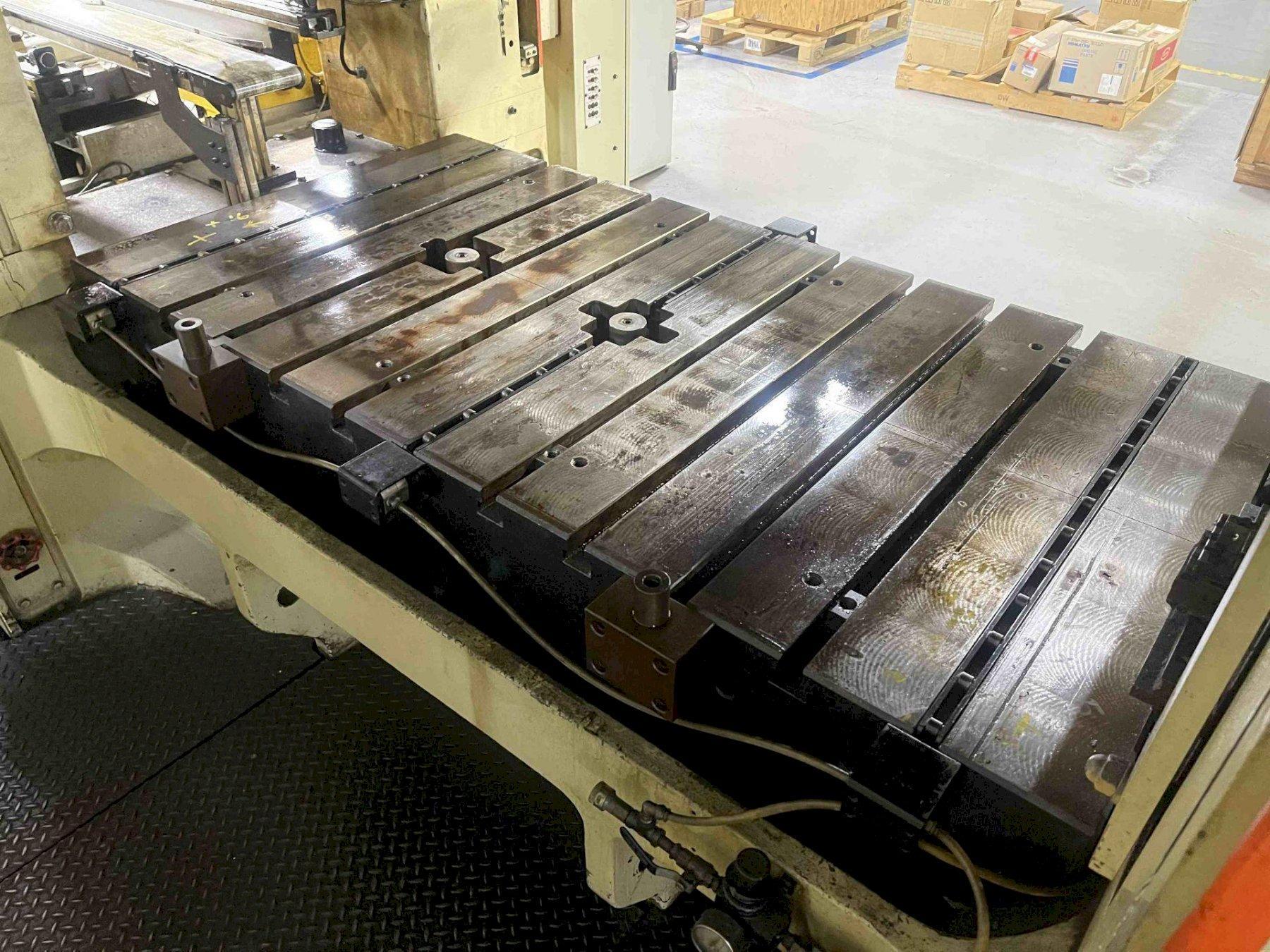

9.06" T-Slotted Bolster
Quick Die Change System
35" Wide Windows
40" Floor to top of bolster
Load Monitor
Job Memory : 100 jobs
Die Protection
Floor Standing

Overall Height 15' 9" Tall
Weight:  88,000 lbs.

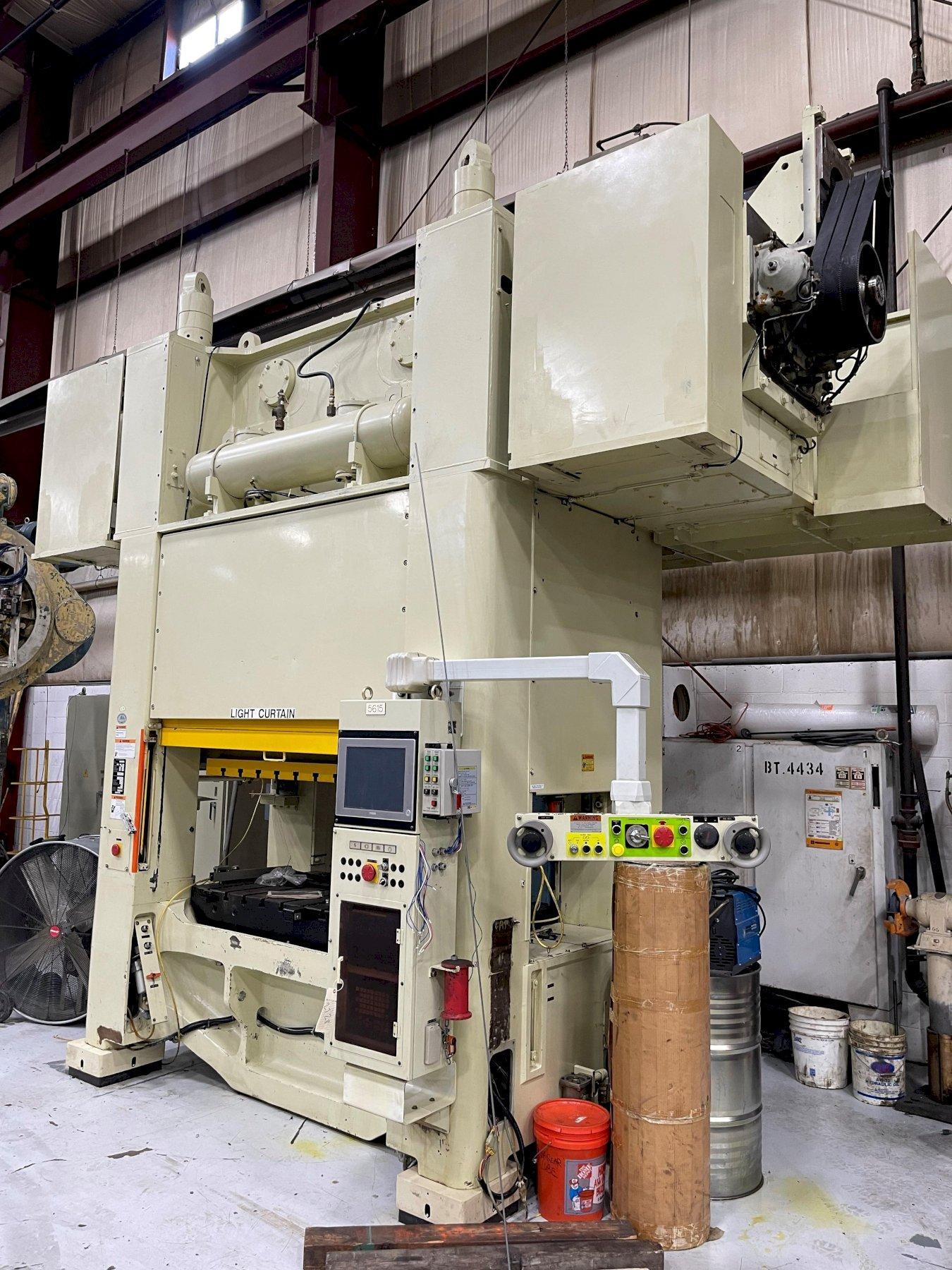

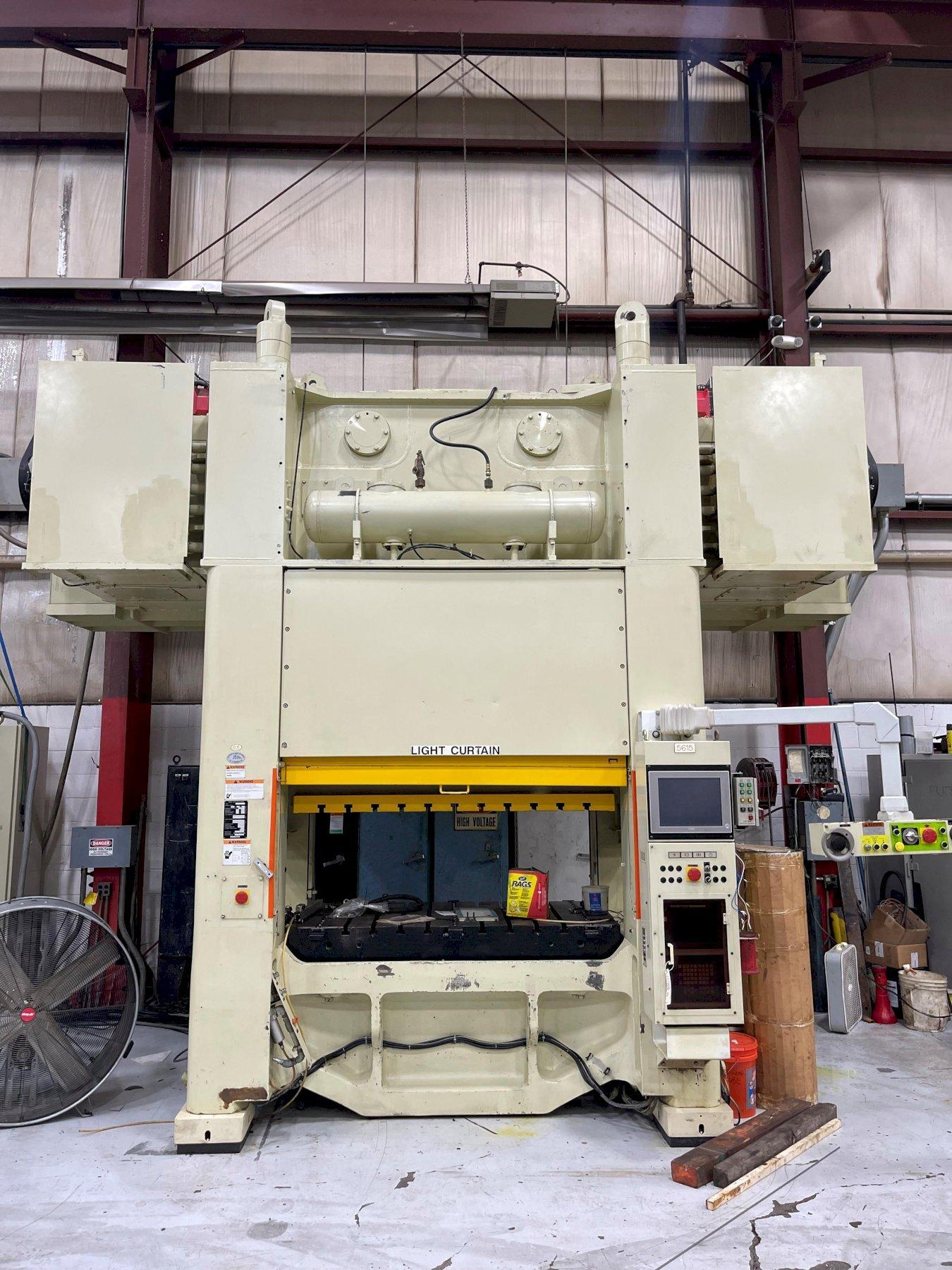

This Komatsu Servo Press is in EXCELLENT CONDITON and Can be seen under power in the S&G Press Warehouse upon request!

200-ton Servo Press For Metal Stamping Operations
