Yama Seiki GTZ-2600Y, (2) 16 Station Turrets with Milling, Y-Axis, Fanuc CNC, 1000 PSI, Probe, 2017, #31769

Manufacturer

YAMA SEIKI

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

31769

Model

GTZ-2600Y

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31769

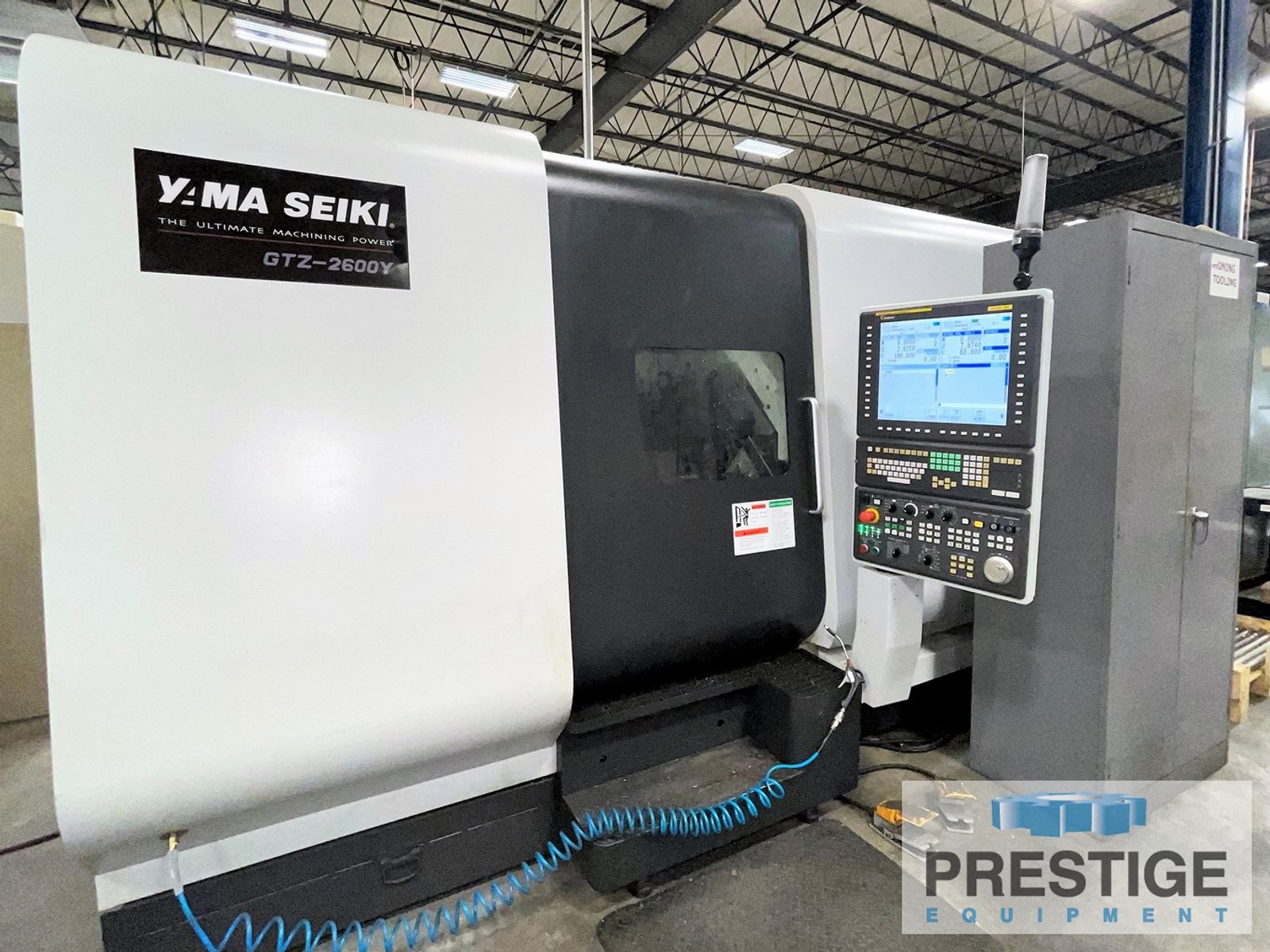

Yama Seiki GTZ-2600Y CNC Turning Center

FEATURES:
Fanuc 31iB GLINC 350 CNC Control

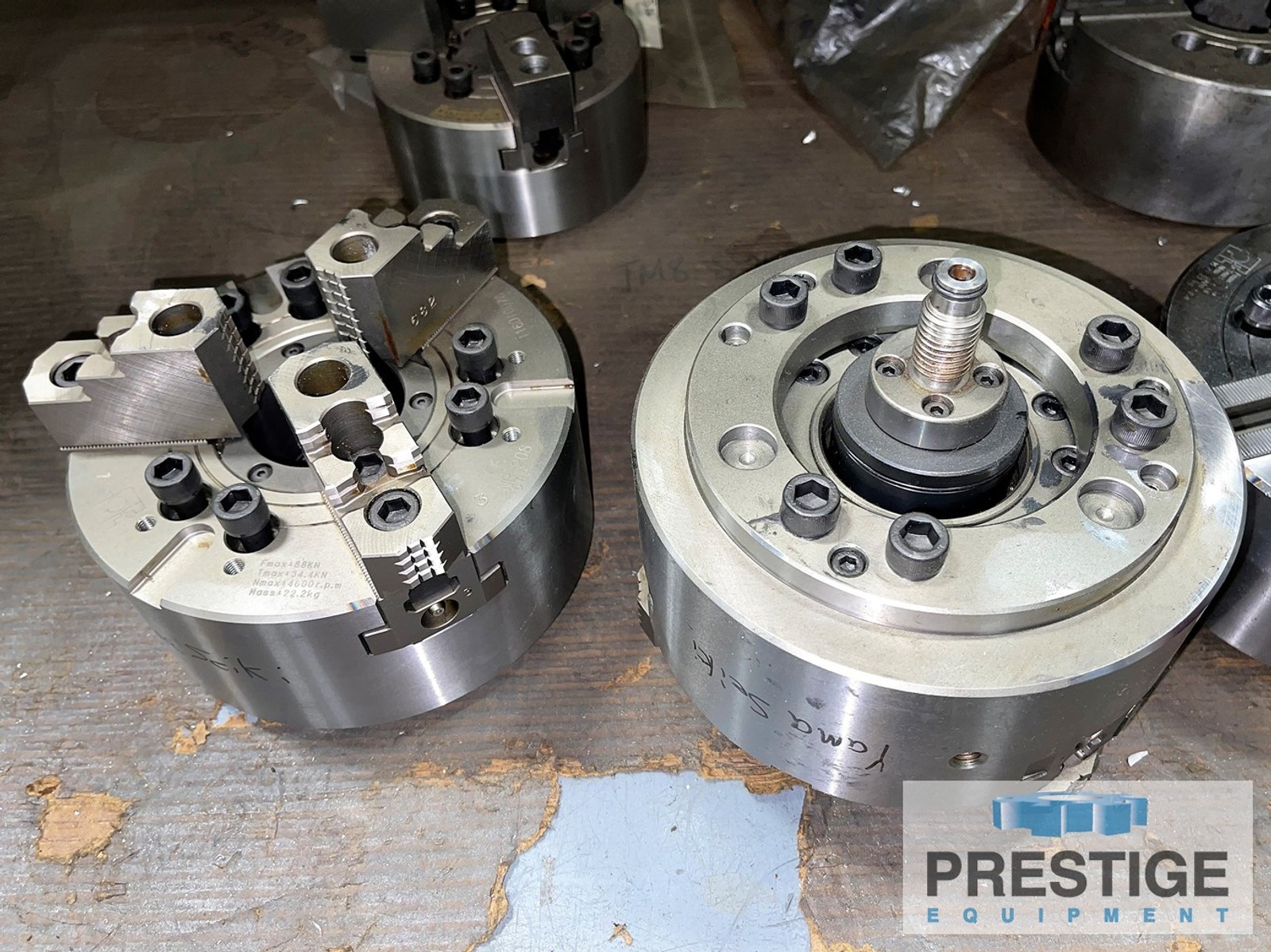

8" Left & Right 3-Jaw Hydraulic Chucks

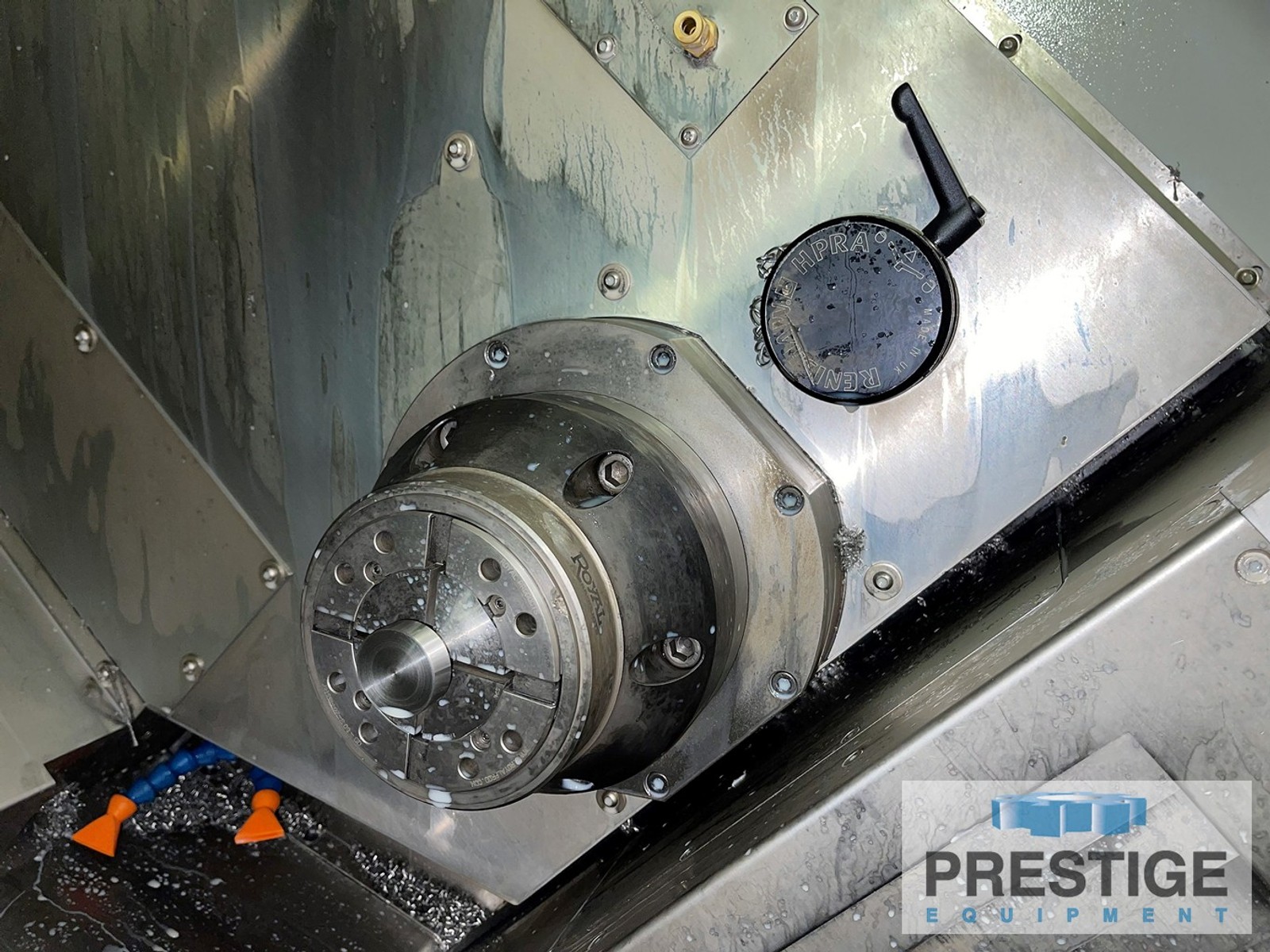

ATS S26 Collet Chuck-Main Spindle
ATS S26 Collet Chuck-Sub Spindle

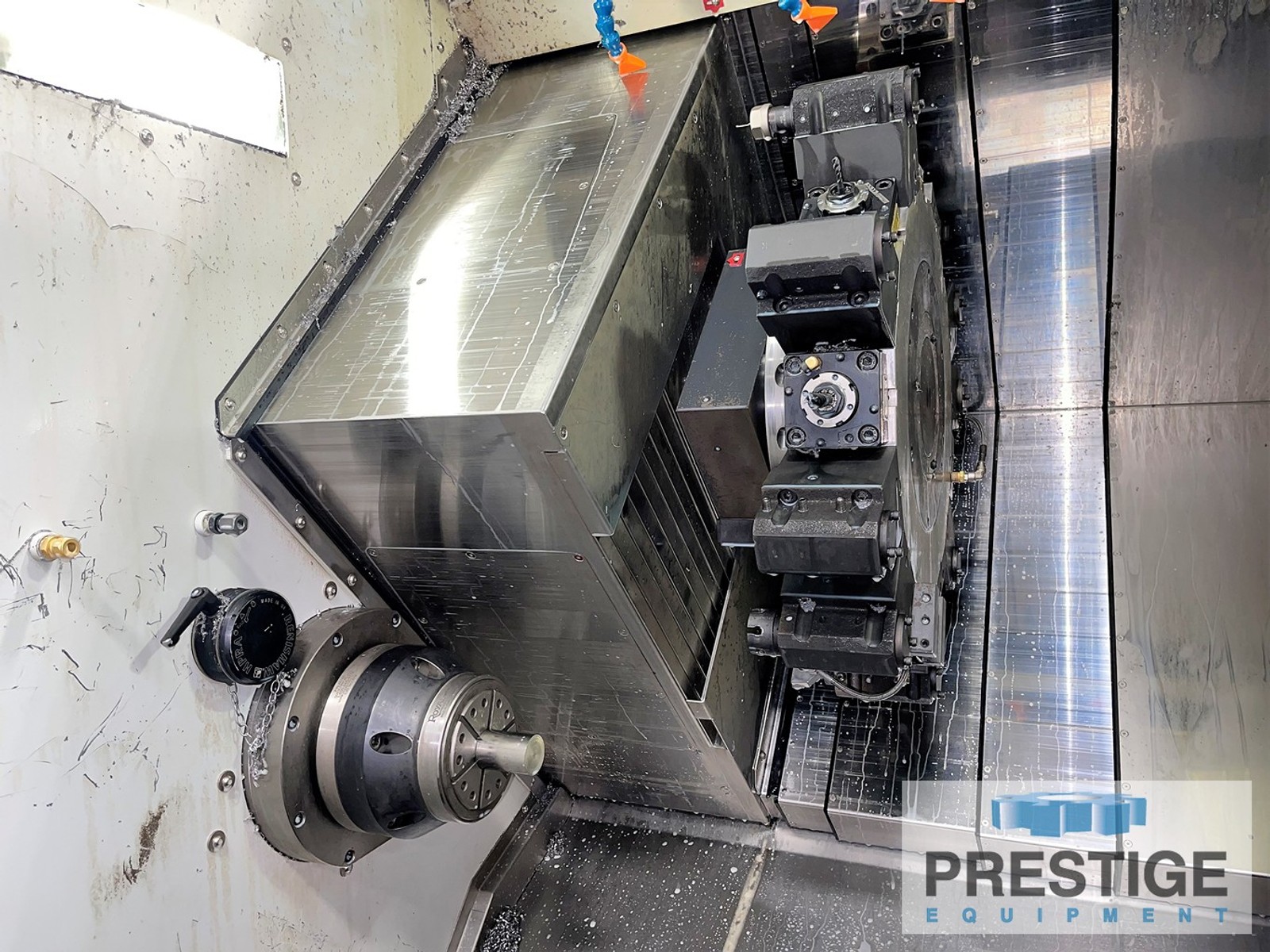

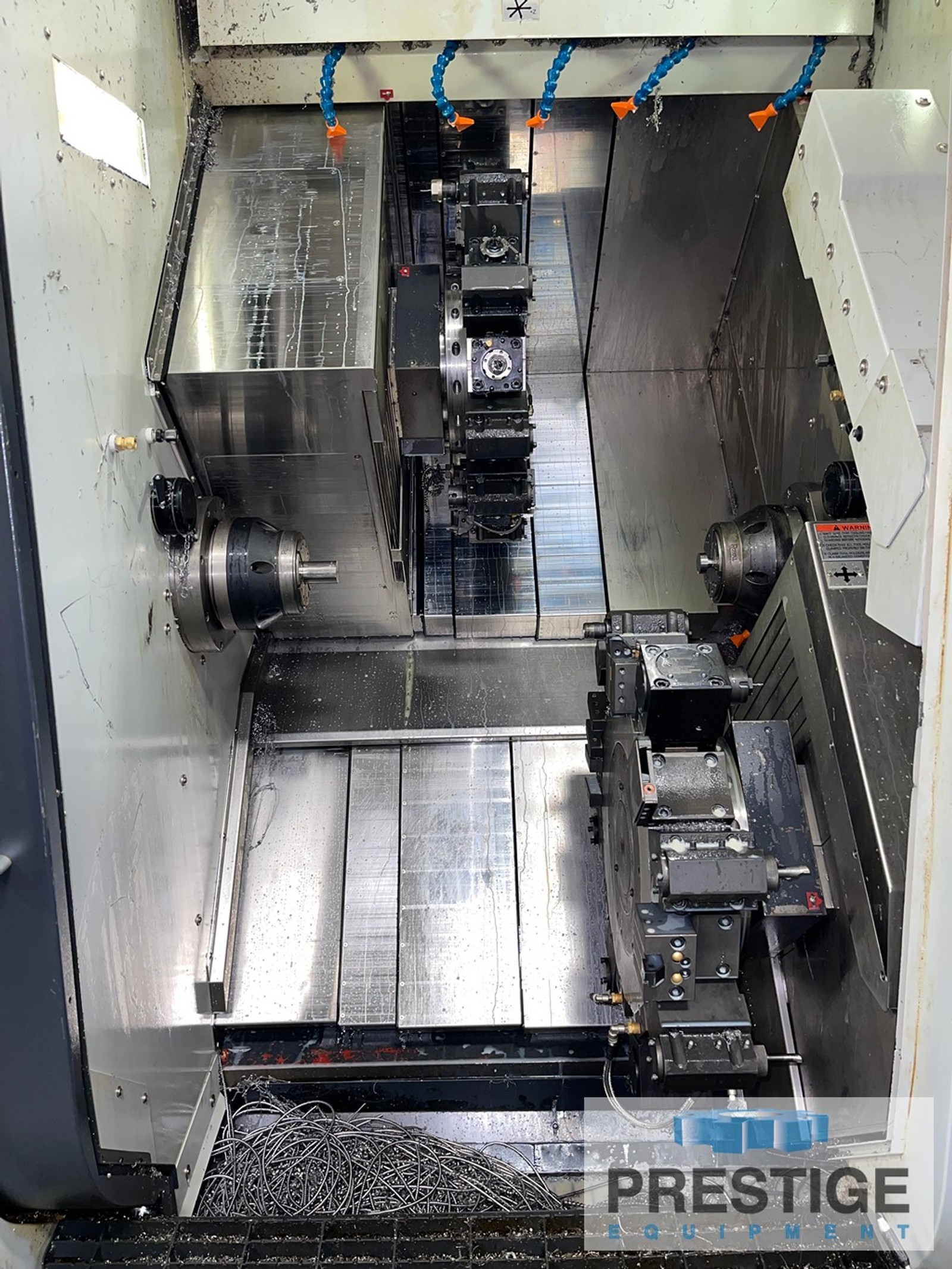

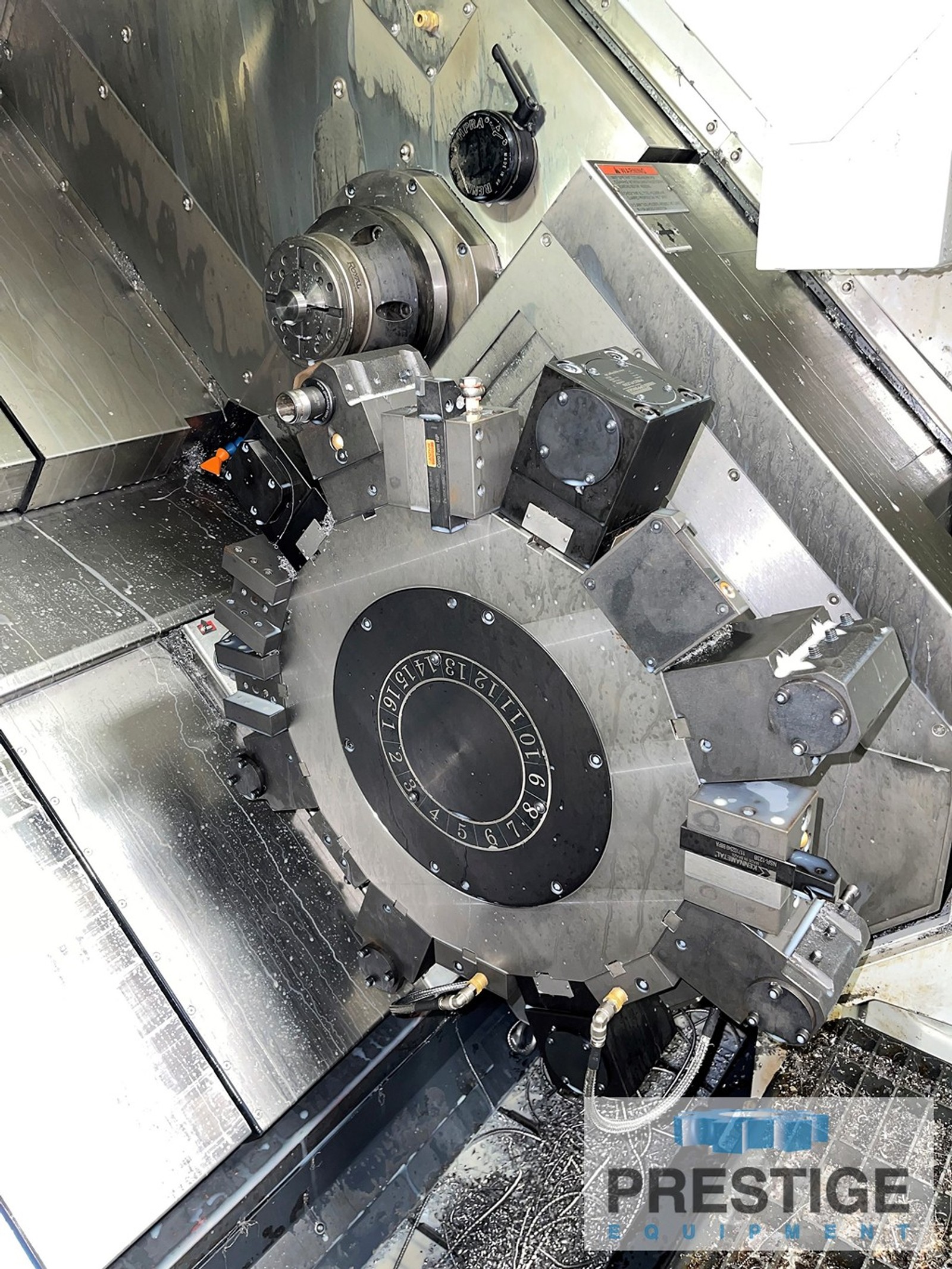

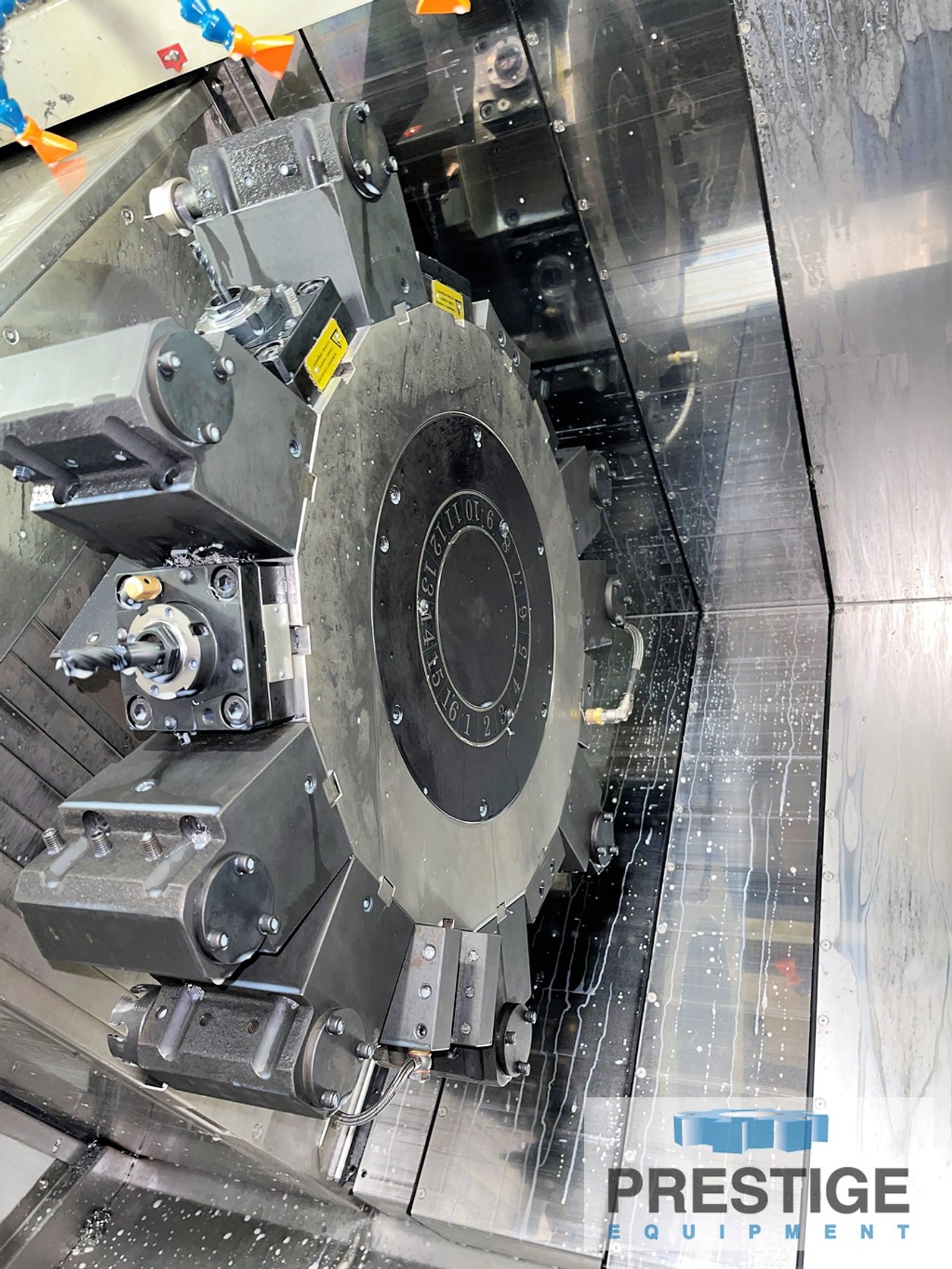

16 Station Upper Turret with Live Tools and Y-Axis
16 Station Lower Turret with Live Tools

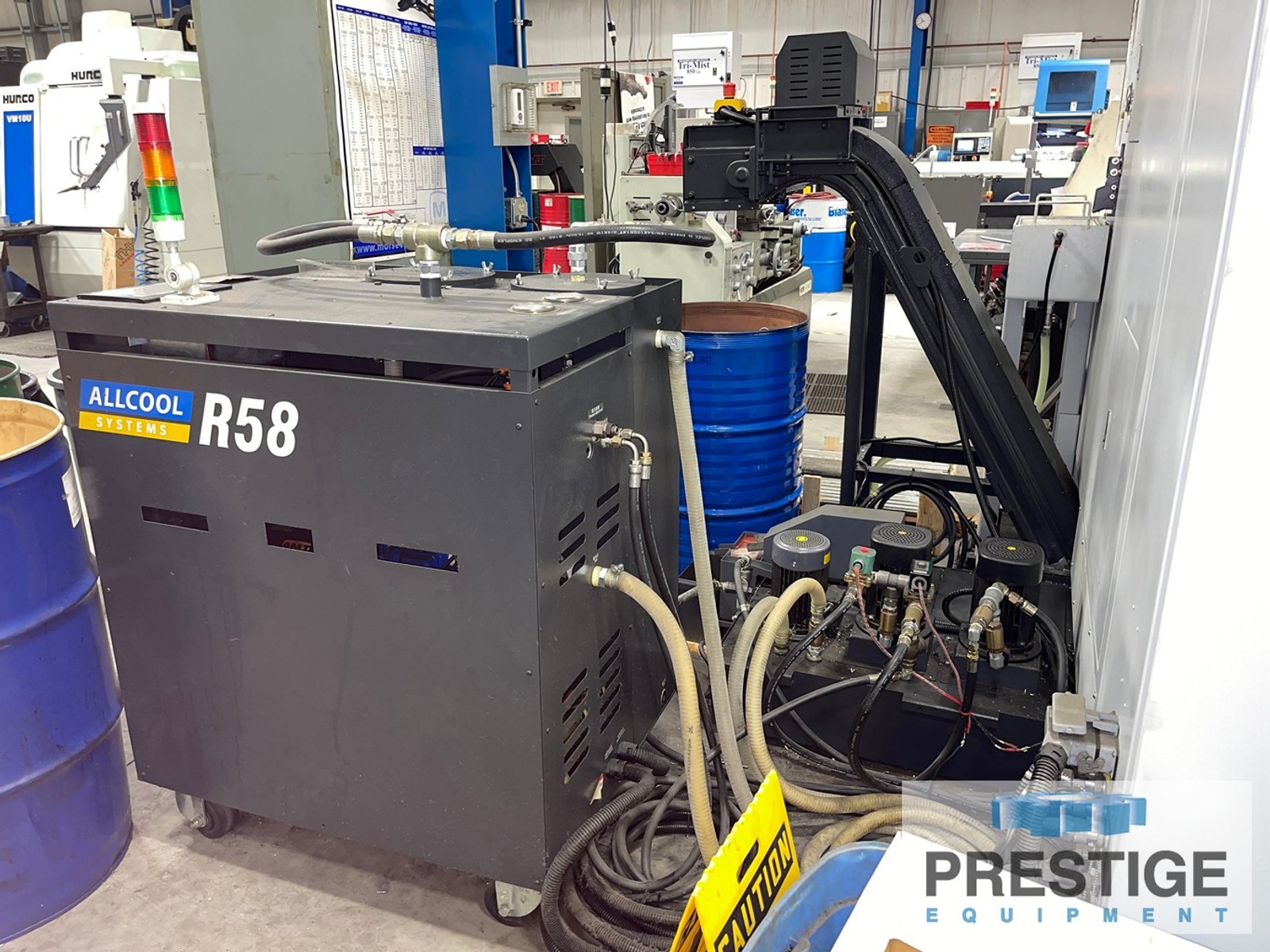

All Cool R58 1,000 PSI High Pressure Coolant System

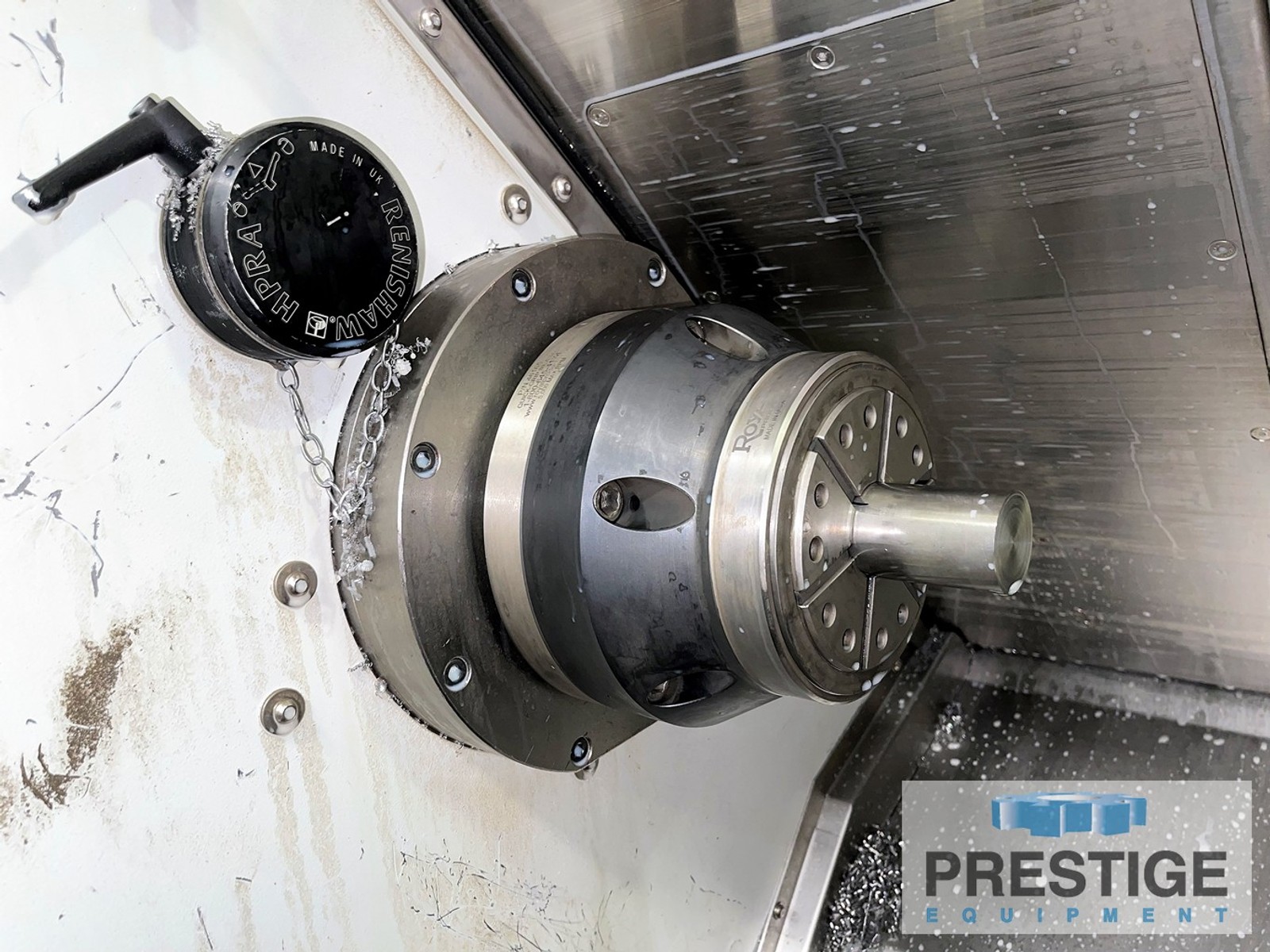

Renishaw Tool Pre-Setter

SPECIFICATIONS:
Maximum Swing Diameter ................ 10.62"
Max. Turning Diameter ................. 9.8"
Max. Turning Length ................... 23.3"
Hole Through Draw Tube................. 2.57"
Hole Through Spindle .................. 2.99"
Spindle Bearing Diameter .............. 4.72"
Spindle Nose .......................... A2-6
Spindle Speeds ........................ 40-4000 RPM
Live Tooling Speeds ................... 6,000 RPM
Spindle Motor ......................... 20 HP / 15 HP
Turret Positions ...................... 16
X1 Travel ............................. 7.67"
X2 Travel ............................. 8.26"
Z1 Travel ............................. 24.39"
Z2 Travel ............................. 24.39"
Maximum ZS Travel ..................... 27.16"
Y-Axis Travel ......................... 3.93"=+/-1.96"
Y-Axis Rapids ......................... 393.69 IPM
Y-Axis Feed Rates ..................... 1-189 IPM
X/Z Axis Rapids ....................... 945 IPM
X/Z Axis Feed Rates ................... 1-1,890 IPM
Approximate Machine Weight ............ 19,800 Lbs.

EQUIPPED WITH:

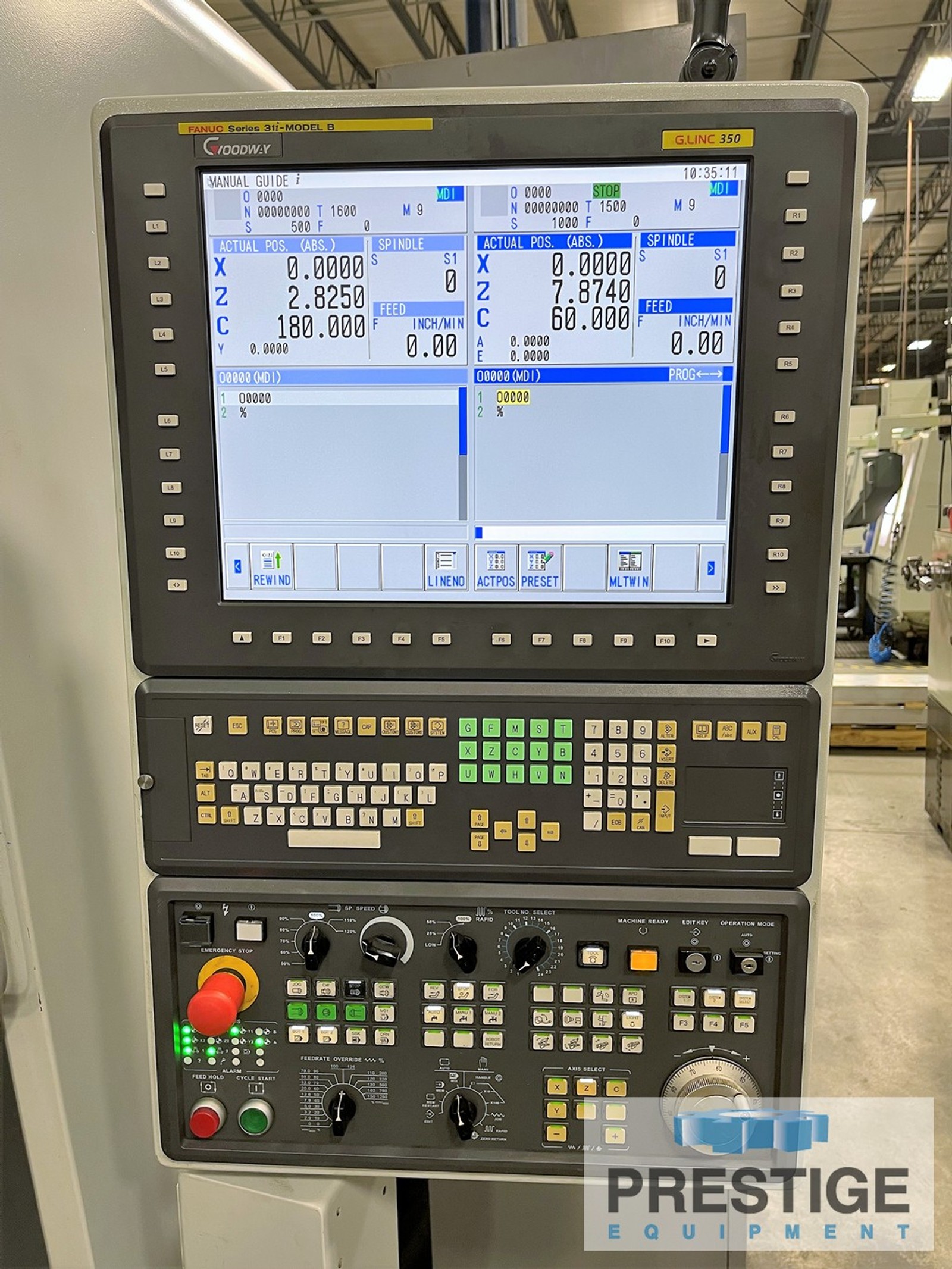

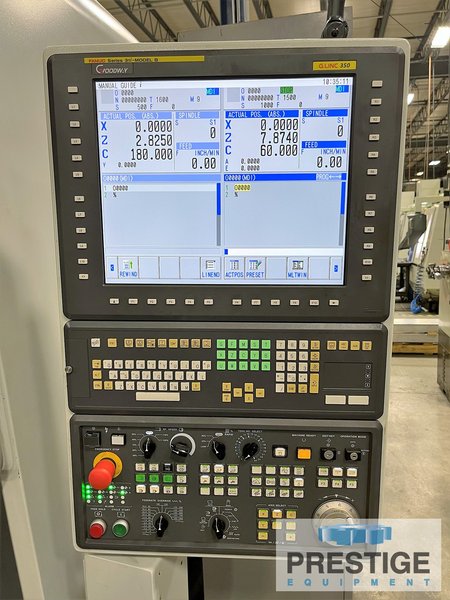

Fanuc 31iB GLINC 350 CNC Control
8" Left & Right 3-Jaw Hydraulic Chucks
ATS S26 Collet Chuck-Main Spindle
ATS S26 Collet Chuck-Sub Spindle
16 Station Upper Turret with Live Tools and Y-Axis
16 Station Lower Turret with Live Tools
30 Degree Slant Bed

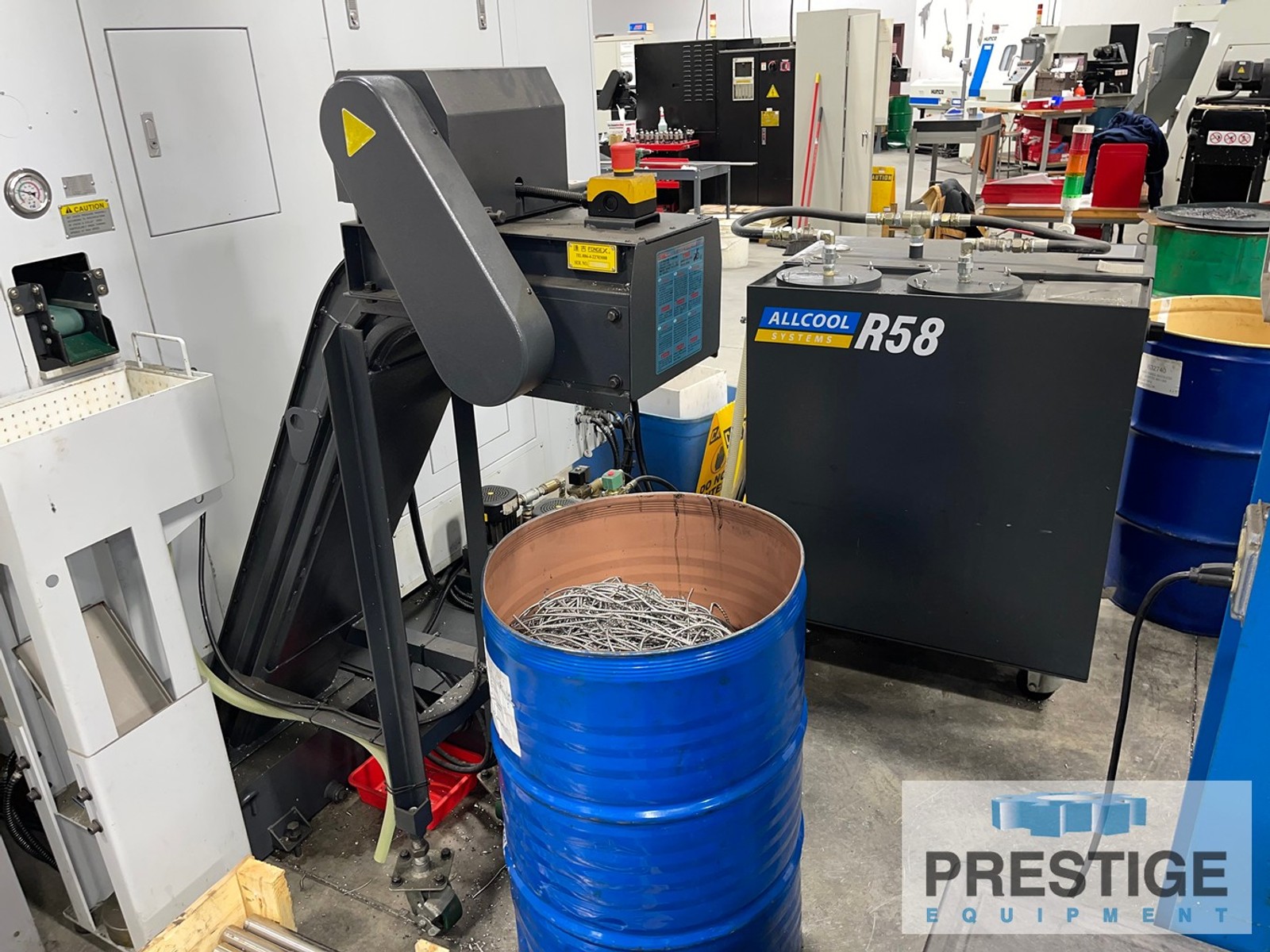

All Cool R58 1,000 PSI High Pressure Coolant System
Renishaw Tool Pre-Setter
Coolant Thru Sub-Spindle
Parts Catcher
Chip Conveyor

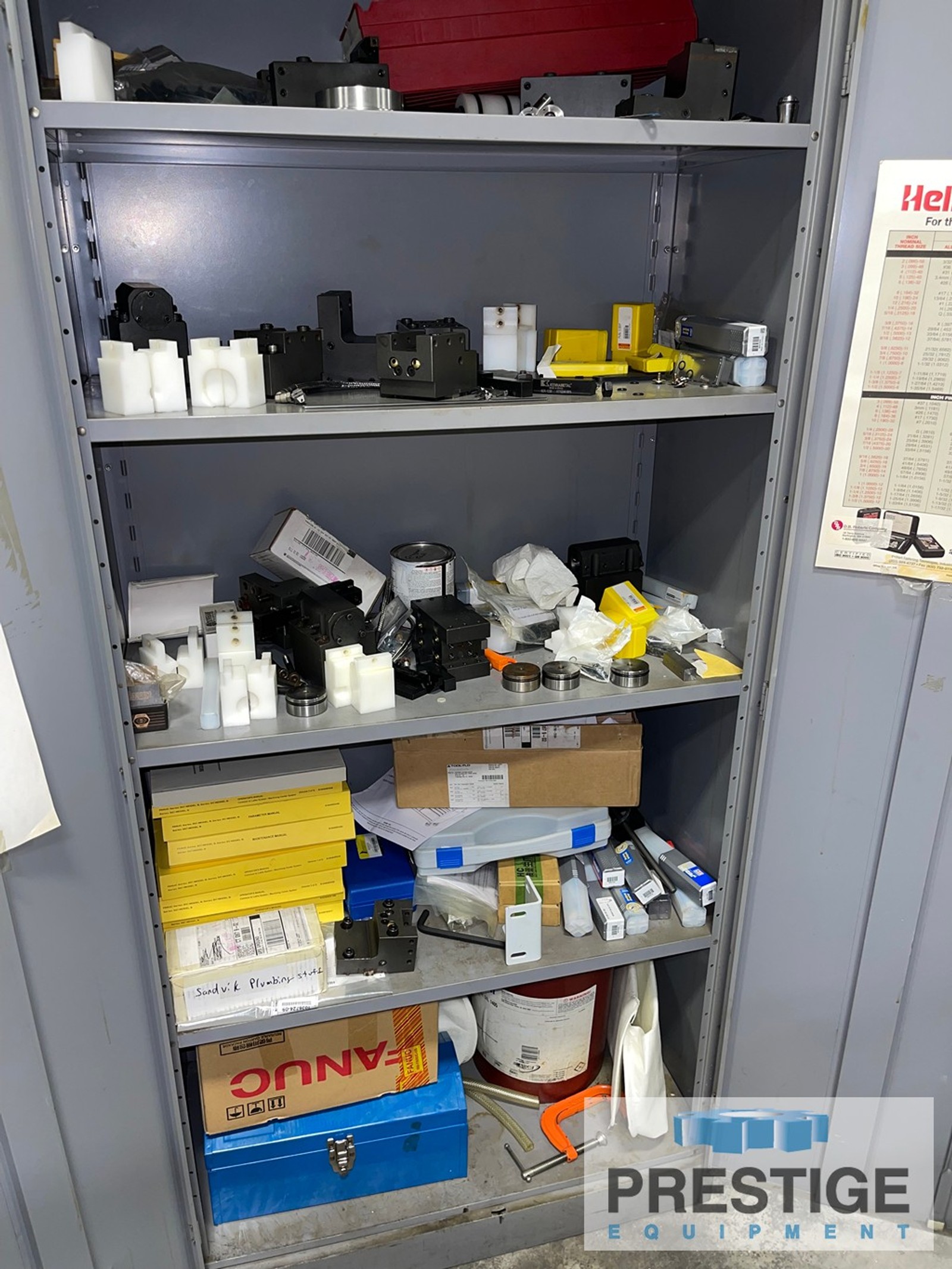

Spare Parts
Bar Feed Interface

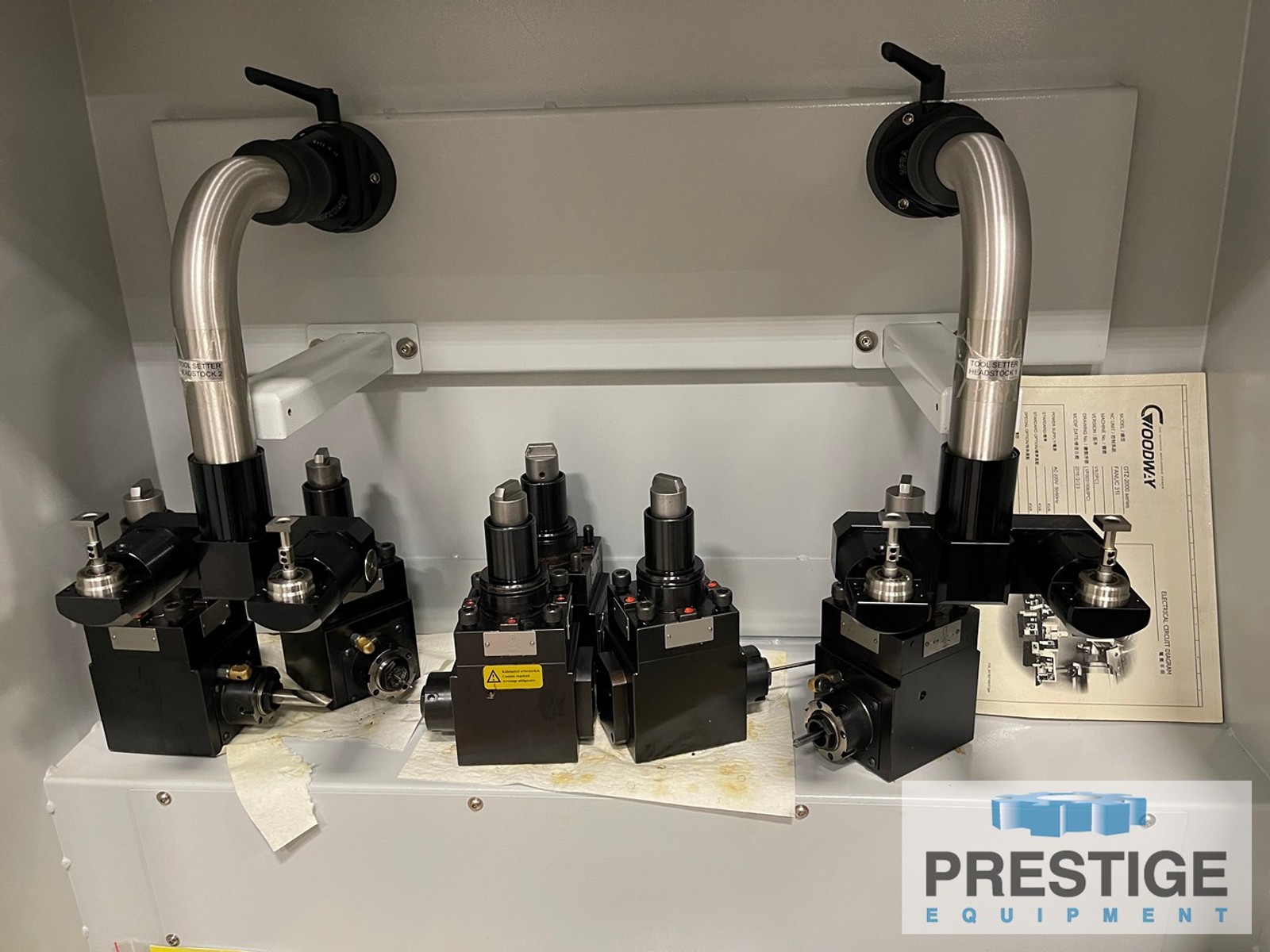

Tooling

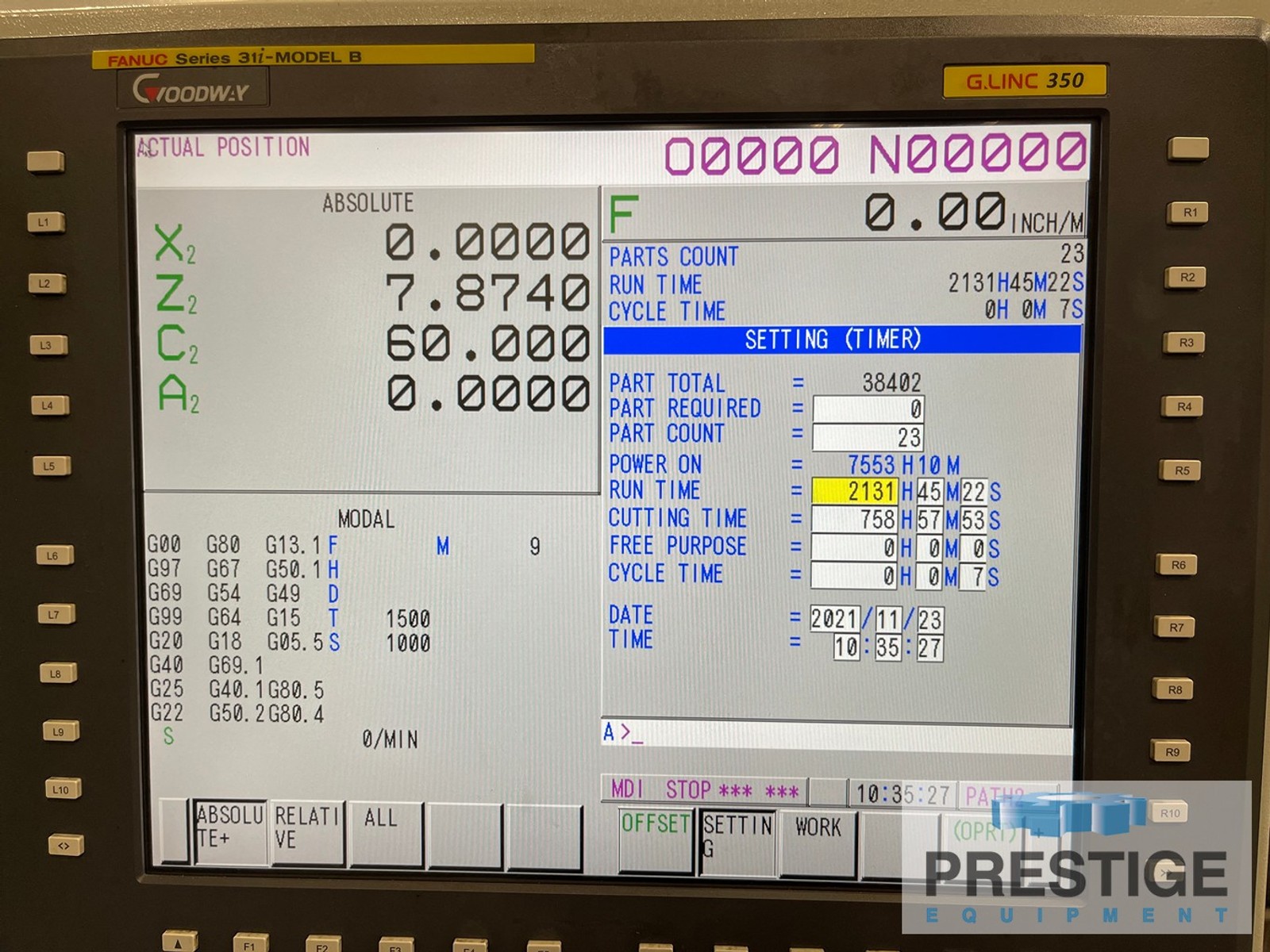

HOURS:
7553 Power on Hours
2131 Run Hours
758 Cutting Hours
