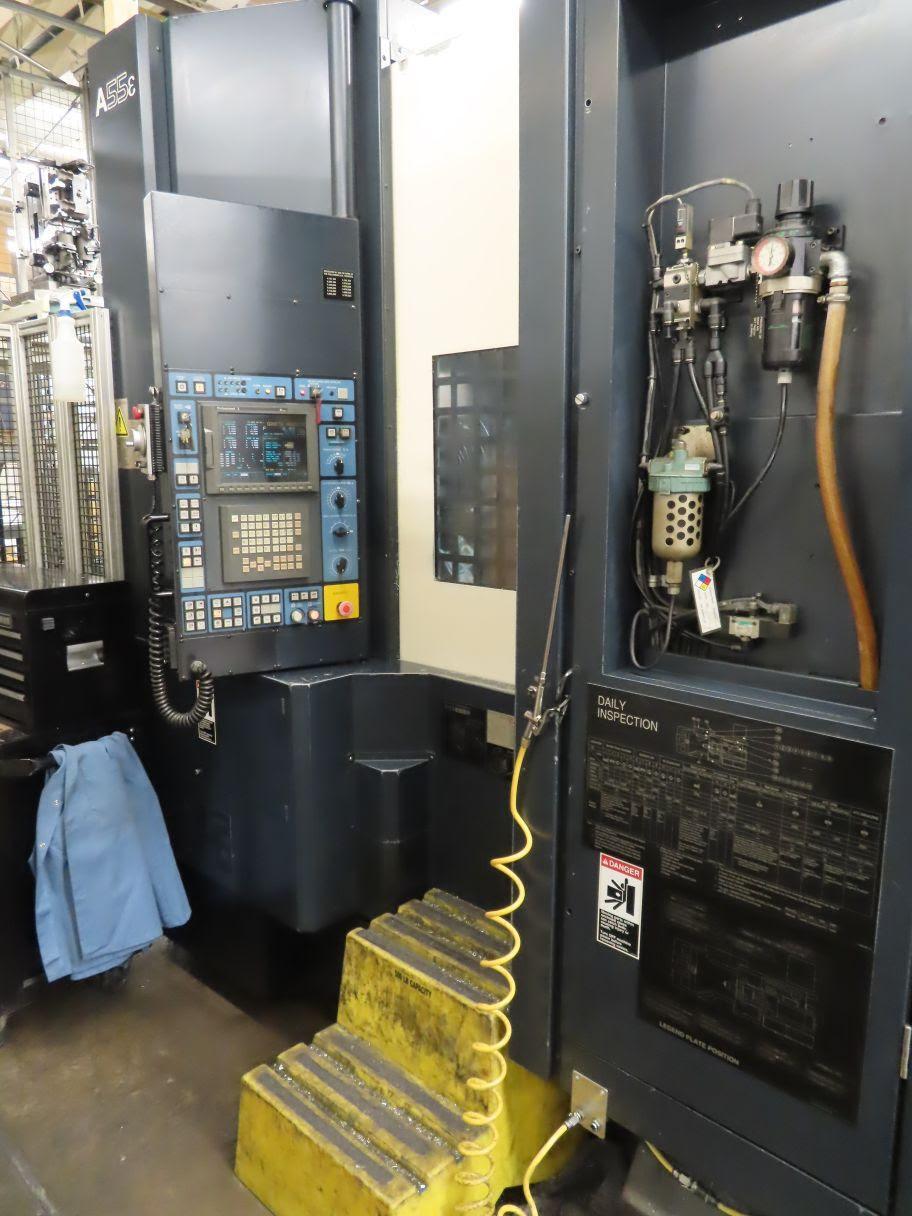

2002 Makino A55-E Horizontal Machining Center (#4299)

Manufacturer

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

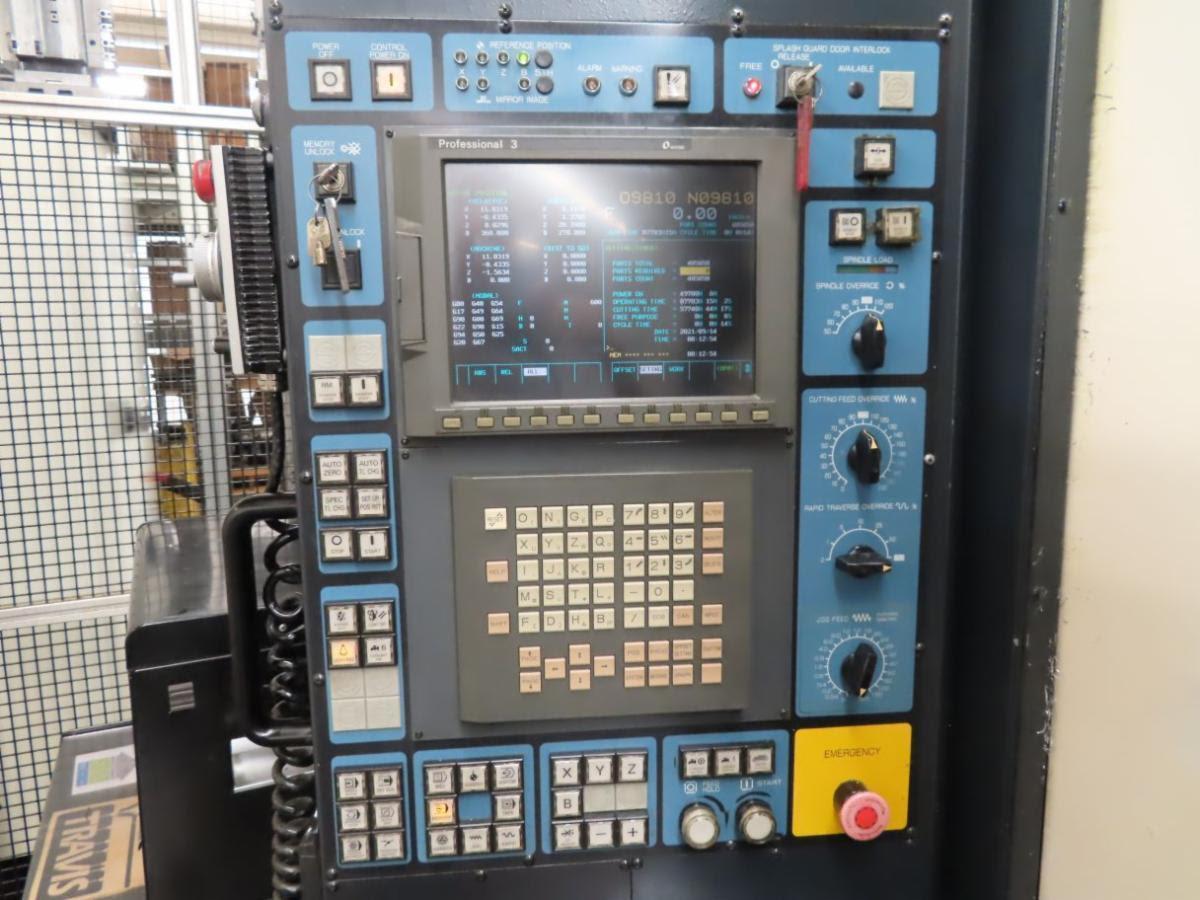

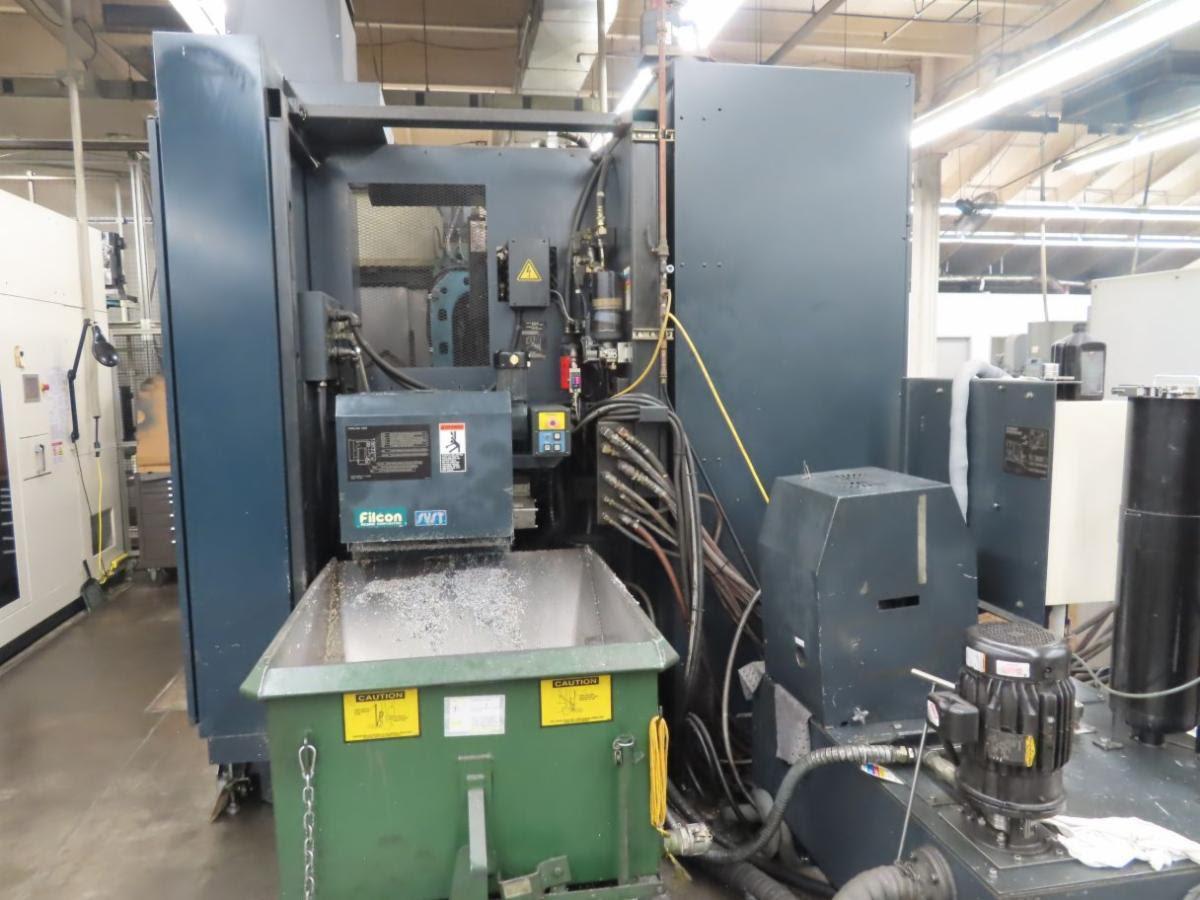

22” X 22” X 23.6” Horizontal Machining Center with CNC Control Professional 3, 2 Pallets, 14,000 RPM, Cat 40 Tooling, 225 Slot Tool Magazine, Oil Temp Regulating System, Chip Conveyor, Dual Filter Coolant System, Through Spindle Coolant, Air Dryer, Scrap Conveyor, Linear Bearings, and Full Set Of Manuals




GENERAL SPECIFICATIONS
Spindle Speed: 14,000 RPM
Spindle Taper: Cat 40
Axis: (4)
Pallets Dimensions: 15.75” X 15.75”
Travels:
X-Axis: 22”
Y-Axis: 22”
Z-Axis: 23.6”
Pallet - Spindle Center: 3.15” - 25.20”
Standard Feedrates: 1,968 IPM
High-Speed Feedrates: (X,Y) - 3,307 IPM (Z) - 3,700 IPM

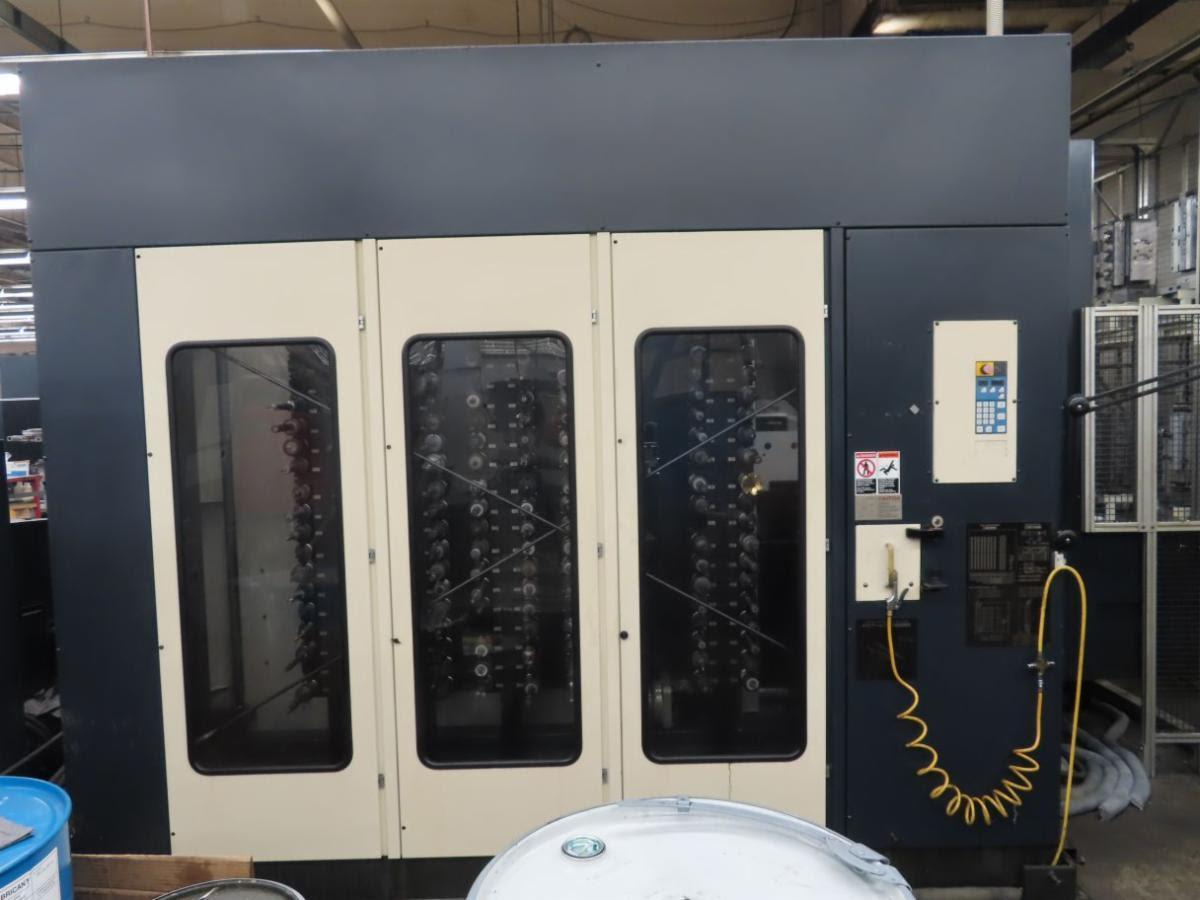

ATC: 225 Slots

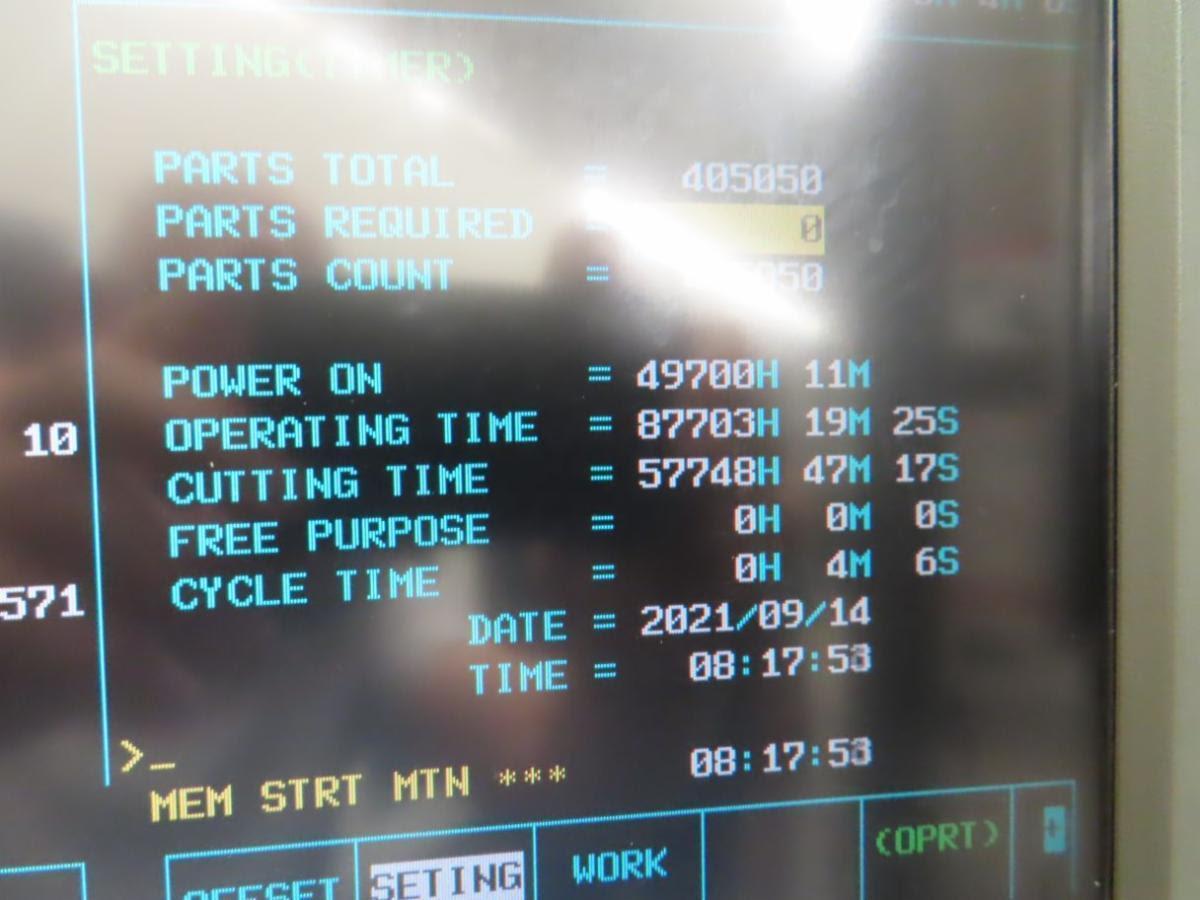

Cutting Hours: 57,748

INCLUDES: CNC Control Professional 3, 2 Pallets, 14,000 RPM, Cat 40 Tooling, 225 Slot Tool Magazine, Oil Temp Regulating System, Chip Conveyor, Dual Filter Coolant System, Through Spindle Coolant, Air Dryer, Scrap Conveyor, Linear Bearings, and Full Set Of Manuals


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
