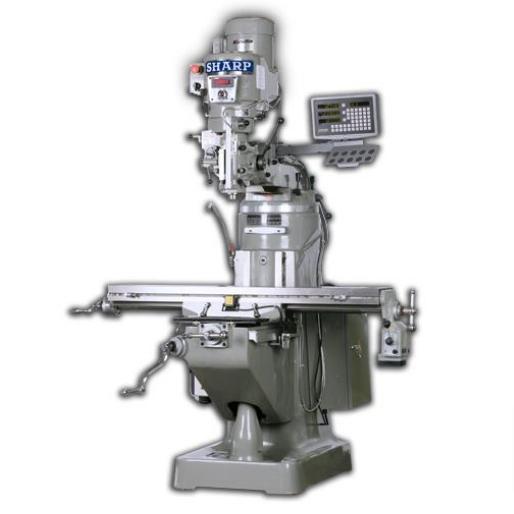

NEW Sharp LMV-49 K-N Manual Mill (#4010)

Manufacturer

Category

Miscellaneous Machines

Type

MISCELLANEOUS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



9” X 49” Mill with Newall NMS 300 3 - Axis Digital Readout, X - Axis Power Feed, Digital Variable Head (DVS) Wire 220 V Only,(Transformer Needed for 440V), Hard - Chrome Ways and Gibbs, Precision Ground and Flaked Table, Unique Double Nut Backlash System, Cutler Hammer On / Off Switch, Front and Rear Way Covers, One Shot Lube

GENERAL SPECIFICATIONS


  • Table: 9” X 49”

  • T - Slots Number and Size: 3 Slots, ⅝”

  • Travels ( X, Y and Z): 36.6” X 12” X 5”

  • Ram Travel: 12”

  • Knee Travel: 16”

  • Spindle To Column (Min - Max): 6-¾” - 18-½”

  • Spindle to Nose Table (Min - Max): 2-⅛” - 1
    8”

  • Spindle Motor: 3 HP

  • Spindle Nose Taper: R8

  • Digital Variable Speed Drive: 65 - 4,500 RPM

  • Quill Feed 3 Speed (IPR): 0.0015,0.003,0.006”

  • Head Swivels: 360°

  • Head Tilt (Left - Right): 45°

  • Head Tilt (Up - Down): 45°

  • Dimensions: 7’ X 6.5’ X 6.75’

  • Weight: 2,100 LBS



OPTIONAL ACCESSORIES
6” “Kurt” Vise with Swivel Base D688 $1,185.00
Auto Lube Pump: $925.00
Right Angle Milling Attachment with Arbor (ACC-10-NT30): $1,820.00
Right Angle Milling Attachment with Arbor (ACC-10LMV-R8): $2,160.00
“Sharp” Power Cross Feed with Safety Handle (Y - Axis): $925.00
“Sharp” Power Knee Feed with Safety Handle (

Z - Axis): $925.00
   -X / Y - Axis Installation: $280.00 (Each)
Drill Chuck & Drill Arbor: $535.00
6” Riser Block: $1,190.00
   -Riser Block Installation: $190.00
Coolant System w/ ChipPan at Base (Pump Included): $900.00
“Maxi Torque Rite” Power Drawbar: $965.00
   -Installation: $200.00
R-8 Collet (Set of 11) - ⅛”-¾” X 1/16”: $260.00
Clamping Kit (52 Pcs. / Steel Rack): $250.00
Halogen Work Light: $265.00
NT 30 Spindle in Lieu of R8: $1,575.00
380V and 575V Transformer: $825.00
UL Components Upgrade with Electrical Box (Factory Order): $3,675.00
UL Compliance Certificate Under State of California: $4,500.00
Upgrade X/Y Axis with Ball Screw (Factory Order): $3,165.00

INCLUDES: Newall NMS 300 3 - Axis Digital Readout, X - Axis Power Feed, Digital Variable Head (DVS) Wire 220 V Only,(Transformer Needed for 440V), Hard - Chrome Ways and Gibbs, Precision Ground and Flaked Table, Unique Double Nut Backlash System, Cutler Hammer On / Off Switch, Front and Rear Way Covers, One Shot Lube


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
