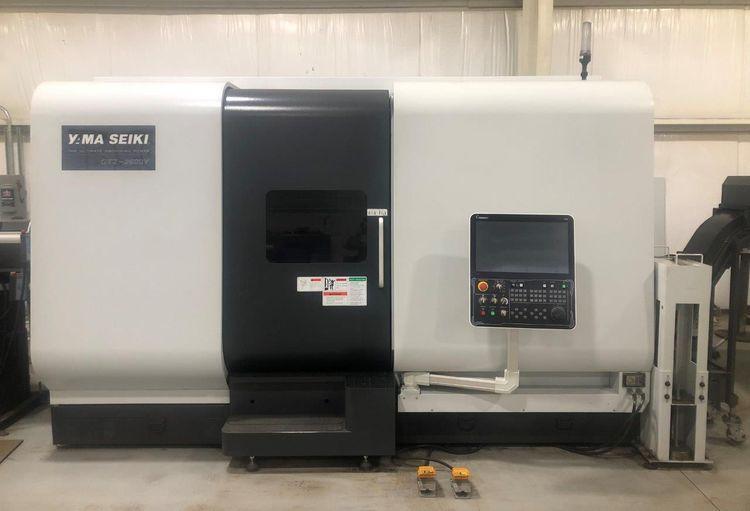

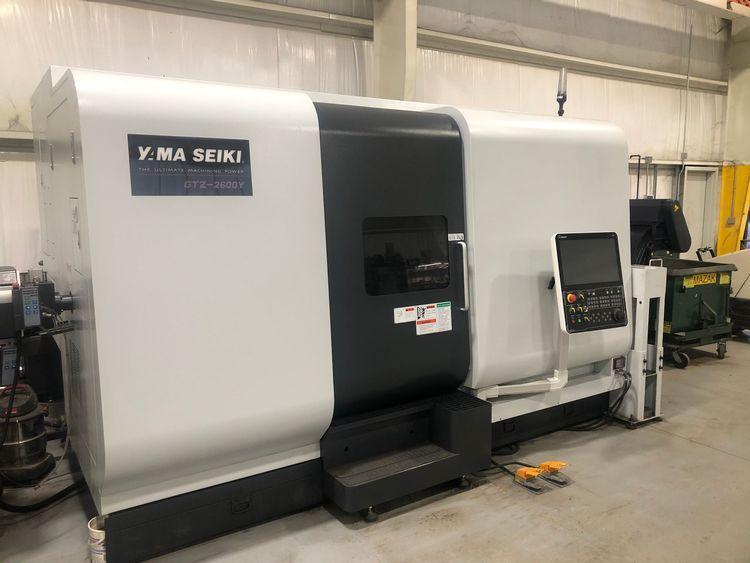

2018 Yama Seiki GTZ-2600Y CNC Lathe (#4078)

Manufacturer

Category

Lathes

Type

LATHES, TURNING

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

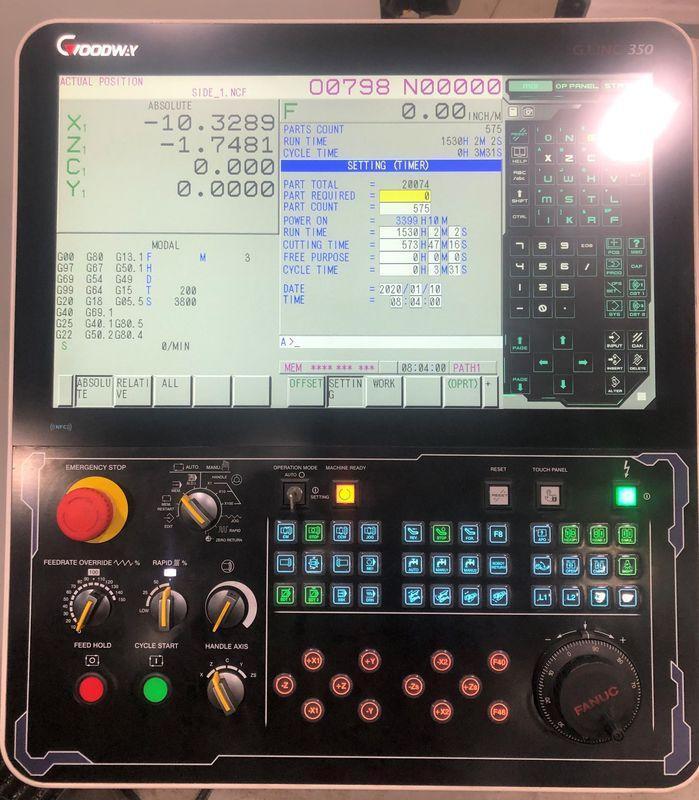

9.84” X 23.3” CNC Lathe with Fanuc 31i Control G.Linc 350, Y - Axis (Upper Turret), C - Axis (Both Spindles), Twin Big Bore Spindles & Twin Turrets, 16 - Station Turret (Upgrade), Max Station Capacity up to 32 Tools, Coolant through Spindle, Renishaw Tool Presetter, (2) Microcentric Collet Chucks, (2) 3 - Jaw 8” Hydraulic Chucks, Long parts Ejector (Sub), Parts Catcher, Parts Conveyor, Chip Conveyor, Barfeed Interface, High Coolant System (1000 PSI), Coolant Flush SlideWay Covers, Roller Type Linear Guide Way and (2) Sets Additional M - Codes

GENERAL SPECIFICATIONS


  • Swing Over Bed: 10.62”

  • Max Cutting Diameter: 9.84”

  • Max Cutting Length: 23.3”

  • X - Axis Travel: 7.67”

  • Y - Axis Travel: 3.93” = ± 1.96″

  • Z - Axis Travel: 24.4”

  • Chuck Size: 8”

  • Bar Capacity: 2.55”

  • Spindle Bore: 2.99”

  • Spindle Nose: A2-6

  • Spindle Motor: 20 HP

  • Spindle Speed: 4,000 RPM

  • Rapid Traverse Rate X - Axis: 945 IPM

  • Rapid Traverse Rate Y - Axis: 394 IPM

  • Rapid Traverse Rate Z - Axis: 945 IPM

  • Sub Spindle: Yes

  • Sub Spindle Chuck Size: 8”

  • Sub Spindle Bar Capacity: 2.55”

  • Sub Spindle Nose: A2-6

  • Sub Spindle Motor: 20 HP

  • Sub Spindle Speed: 4,000 RPM

  • Turret 2 X - Axis Travel: 7.67”

  • Turret 2 Z - Axis Travel: 24.4”

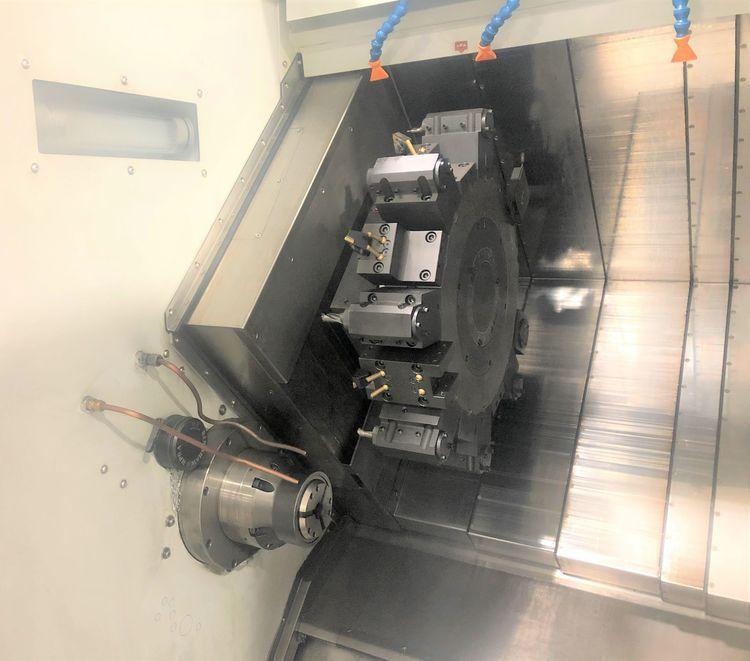

  • Turret Capacity (Stations): 16

  • Live Milling: Yes

  • Live Milling Speed: 6,000 RPM

  • Live Milling Motor: 7.3 HP

  • Turret 2 Capacity (Stations): 16

  • Y - Axis: Yes



INCLUDES: Fanuc 31i Control G.Linc 350, Y - Axis (Upper Turret), C - Axis (Both Turrets), Twin Big Bore Spindles & Twin Turrets, 16 - Station Turret (Upgrade), Max Station Capacity up to 32 Tools, Coolant through Spindle, Renishaw Tool Presetter, (2) Microcentric Collet Chucks, (2) 3 - Jaw 8” Hydraulic Chucks, Long parts Ejector (Sub), Parts Catcher, Parts Conveyor, Chip Conveyor, Barfeed Interface, High Coolant System (1000 PSI), Coolant Flush SlideWay Covers, Roller Type Linear Guide Way and (2) Sets Additional M - Codes


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
