New Bendmak BT-BM 76CNC1 (#4277)

Manufacturer

Category

Tube Machinery

Type

TUBE BENDERS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

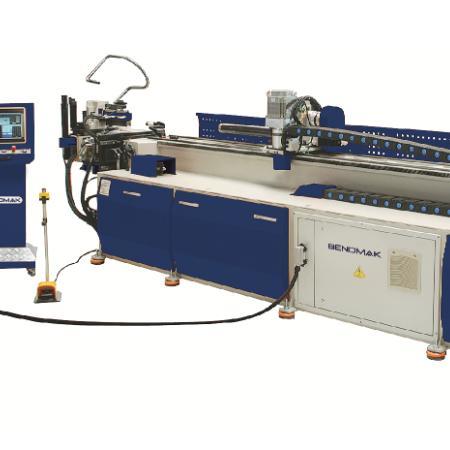

2-1/2" X 0.120" Mandrel Tube Bender with Foot Pedal Control, Servo Controlled Bending, Feeding, Shifting and Turning Axes, Operational Ability With and Without Mandrel, Spiral Bending, Hydraulic Oil Cooler, Automatic Mandrel Lubrication, Motion Controller System, 3D Preview of Entered Bending Program and Programming in YBC Mode

GENERAL SPECIFICATIONS
Max Tube O.D. Bending Capacity: 2-1/2"
Max. Tube Wall Size: 11ga
Max. Bending Radius: 180°
Operation Feeding Speed: 39" / Sec.
Operation Rotation Speed: 200° / Sec.
Operation Bending Speed: Max. 30° / Sec
Working Feeding Tolerance: ±0.004"
Working Rotation Tolerance: ±0.004°
Working Bending Tolerance: ±0.004°
Motor Power: 10 HP
Max. Hydraulic Pressure: 2,610 PSI
Oil Tank Capacity: 31.7 Gal

INCLUDES: 2-1/2" X 0.120" Mandrel Tube Bender with Foot Pedal Control, Servo Controlled Bending, Feeding, Shifting and Turning Axes, Operational Ability With and Without Mandrel, Spiral Bending, Hydraulic Oil Cooler, Automatic Mandrel Lubrication, Motion Controller System, 3D Preview of Entered Bending Program and Programming in YBC Mode


      ***All Price, Location and Specifications Subject to Change without Notice***
