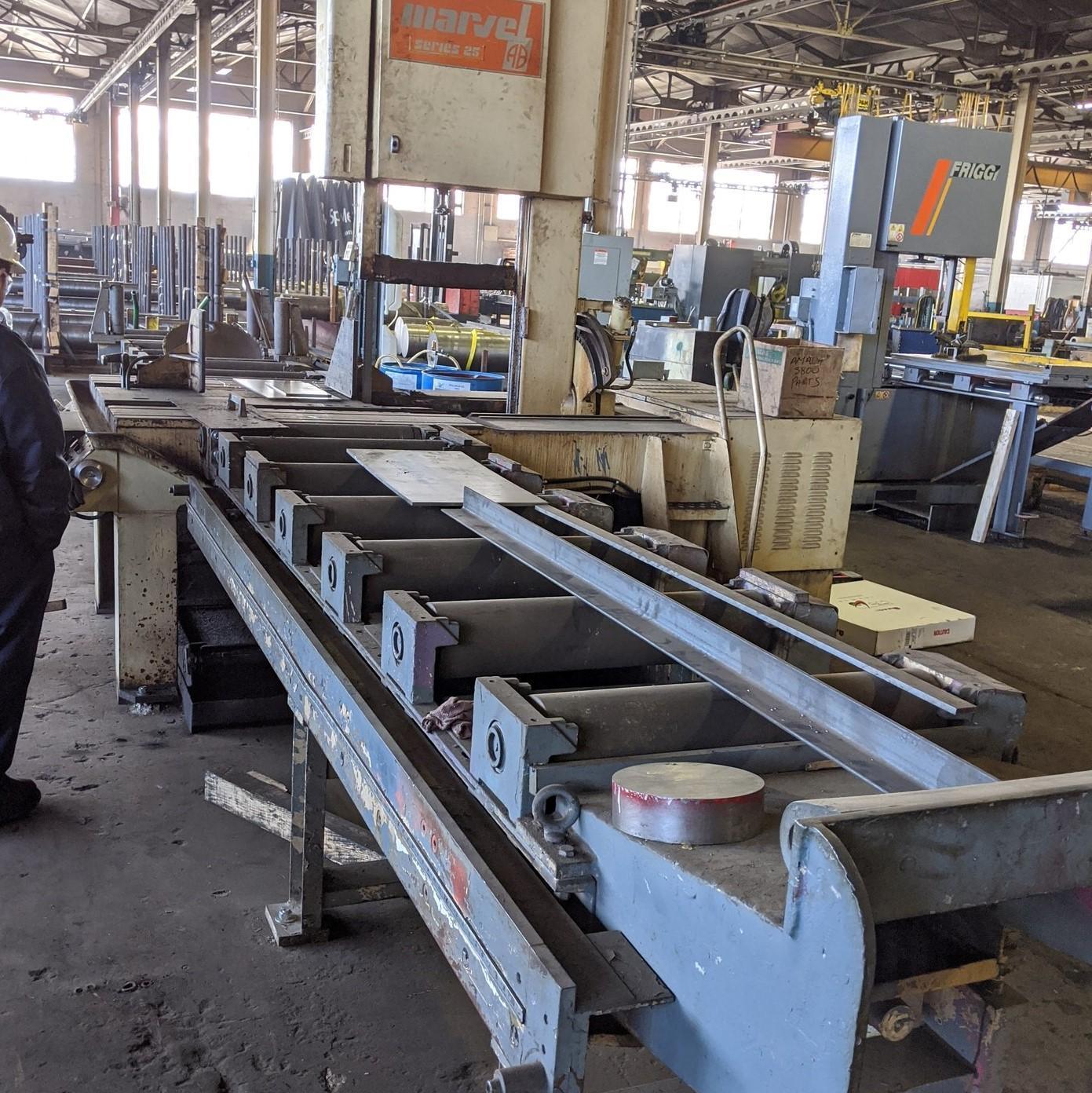

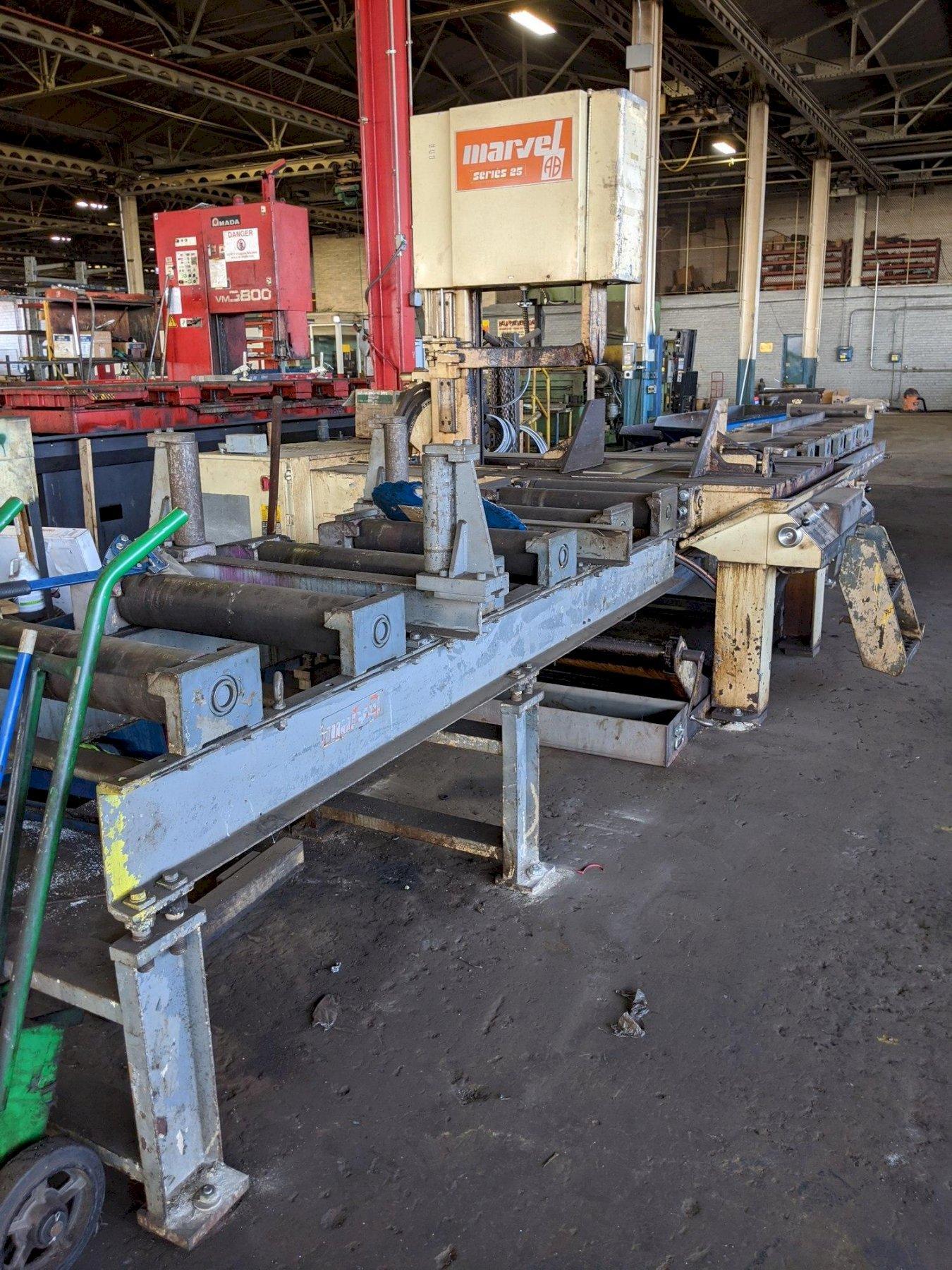

1986 Marvel 25-M Vertical Bandsaw (#4279)

Manufacturer

Stock

None

Model

None listed

Dealer Location

Florida

Spec Sheet



25" X 28" Vertical Bandsaw with 45° Tilt (Left or Right), Hyd. Vise, Power Tilt, Power Blade Guide, Coolant System, Chip Conveyor, Powered 9' Infeed and Powered 9' Exit Roller Tables w/ Inch and Rapid Control, Powered Lift Rollers Left and Right Side of Table and All Available Manuals.

GENERAL SPECIFICATIONS:
Max. Cutting Capacity: 25" X 28"
Blade at 45° Max. Capacity: 25" X 16"
Length and Width of Blade: 244" X 1.5"
Gauge: 0.05"
Working Surface Table: 55" X 53"
Max. Vise Opening: 26.750"
Height (Floor To Table): 41"
Floor Space Required (Saw Only): 107" X 133"
Standard Speed: 55' - 340'/ Min
Motor: 15 Hp
Weight: Approx. 16,000 Lbs w/ Tables
Height: 109"

INCLUDES: 45° Tilt (Left or Right), Hyd. Vise, Power Tilt, Power Blade Guide, Coolant System, Chip Conveyor, Powered 9' Infeed and Powered 9' Exit Roller Tables w/ Inch and Rapid Control, Powered Lift Rollers Left and Right Side of Table and All Available Manuals.

  ***We strongly encourage personal inspection of all pieces of used equipment***
      ***All Price, Location and Specifications Subject to Change without Notice***
