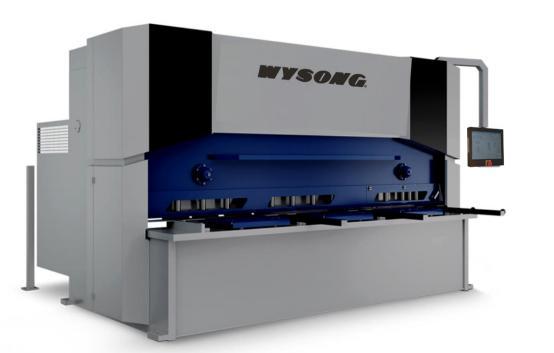

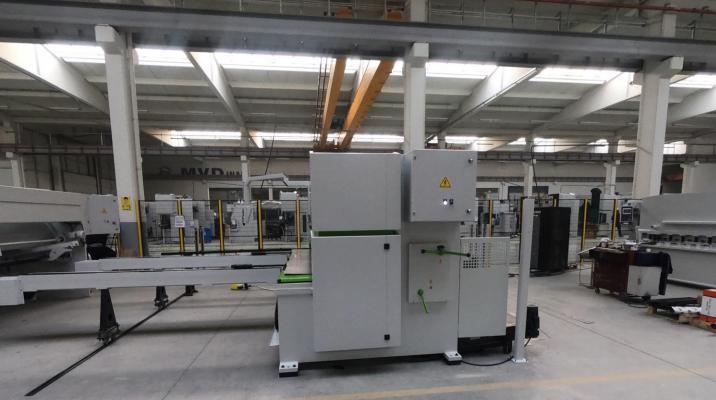

NEW Wysong MVD-B0810 Hydraulic Beam Shear (#3985)

Manufacturer

Category

Miscellaneous Machines

Type

MISCELLANEOUS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

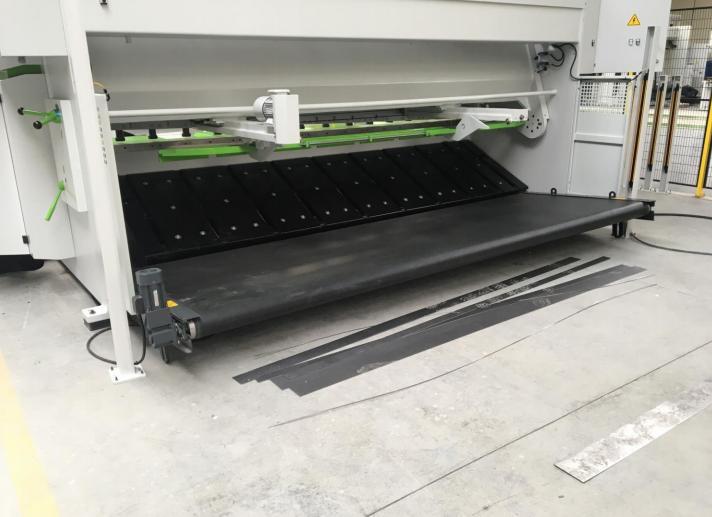

1/4” X 122” Hydraulic Shear with PC - 800 Control, Bosch Rexroth Hydraulic System, Manual Blade gap Adjustment System, Programmable Back Gauge Retract Feature, Transfer Table with Roller Balls, 2 - Edge Upper Blade, 4 Edge Bottom Blade, Patented Dry Ball Joint System (No Grease Necessary), Front Support Arms with Scales, Front and Side Protective Covers, E-Stop Buttons, Shadow Illuminating Cutting Line, Foot Pedal and Special Designed Covers with Movable Controller Arm

GENERAL SPECIFICATIONS


  • Cutting Capacity: ¼”

  • Cutting Length: 10’

  • Cutting Angle: 1.9 Degrees

  • Hold Down Cylinders: 14

  • Distance Between Columns: 131.5”

  • Table Height: 34.25”

  • Table Width: 22.8”

  • Throat Depth: 9.84”

  • Strokes Per Min: Up to 20 In fast Mode

  • Servo Driven Back Gauge: 39” Travel

  • Machine Length: 81”

  • Machine Width: 136.5”

  • Oil Tank: 70 Gallons

  • Motor: 15 Kw

  • Machine Weight: 17,637 LBS



INCLUDES: PC - 800 Control, Bosch Rexroth Hydraulic System, Manual Blade gap Adjustment System, Programmable Back Gauge Retract Feature, Transfer Table with Roller Balls, 2 - Edge Upper Blade, 4 Edge Bottom Blade, Patented Dry Ball Joint System (No Grease Necessary), Front Support Arms with Scales, Front and Side Protective Covers, E-Stop Buttons, Shadow Illuminating Cutting Line, Foot Pedal and Special Designed Covers with Movable Controller Arm


***All Price, Location and Specifications Subject to Change without Notice***
