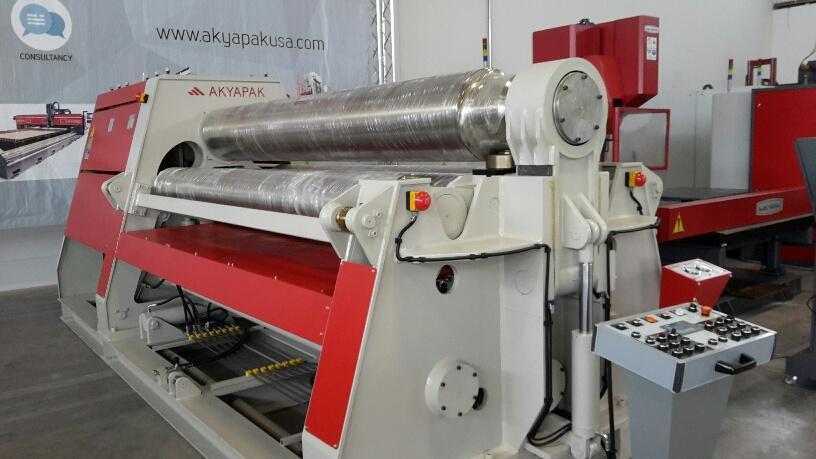

NEW Akyapak AHS 30/28 CNC Plate Roll (#3996)

Manufacturer

Category

Rolls

Type

ROLLS, PINCH

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



1-⅜” X 10’ CNC 4 - Roll with AK 400 CNC Control, Cone Bending Device, Induction Hardened Rolls, Hydraulically Opened / Closed Drop End Control, Variable Speeds, Oil Cooler, Side Supports and Prepared for Top Support.

GENERAL SPECIFICATIONS


  • Working Length: 10’

  • Max. Thickness: 1-⅜”

  • Pre-Bend Thickness: 1-⅛”

  • Top Roll Diameter: 16.9”

  • Bottom Roll Diameter: 15.4”

  • Side Roll Diameter: 13”

  • Motor Power: 30 HP

  • Length: 20’

  • Height: 7.2’

  • Width: 7.2’

  • Weight: 49,780 LBS


INCLUDES: AK 400 CNC Control, Cone Bending Device, Induction Hardened Rolls, Hydraulically Opened / Closed Drop End Control Variable Speeds, Oil Cooler, Side Supports and Prepared for Top Support.


***All Price, Location and Specifications Subject to Change without Notice***
