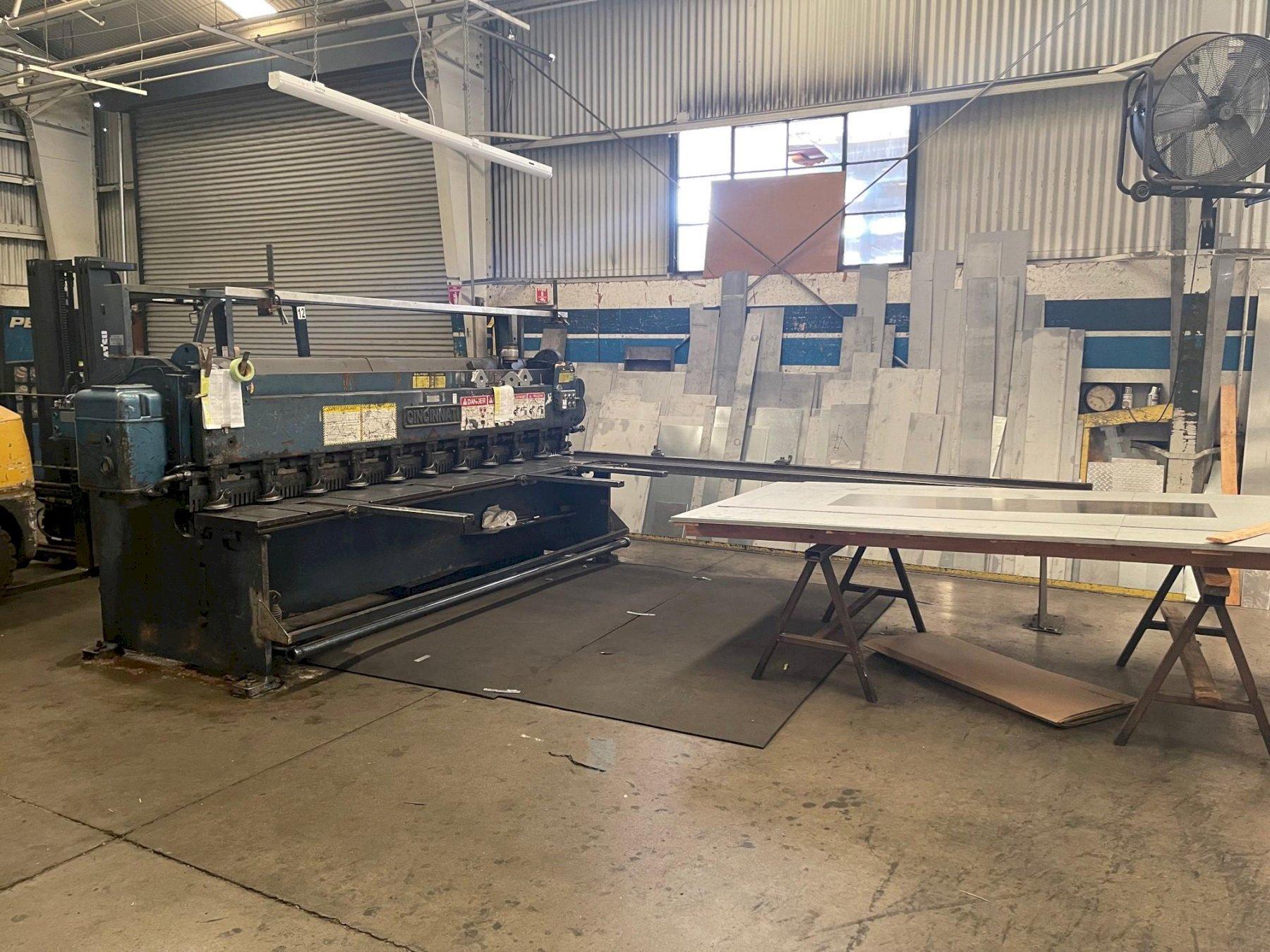

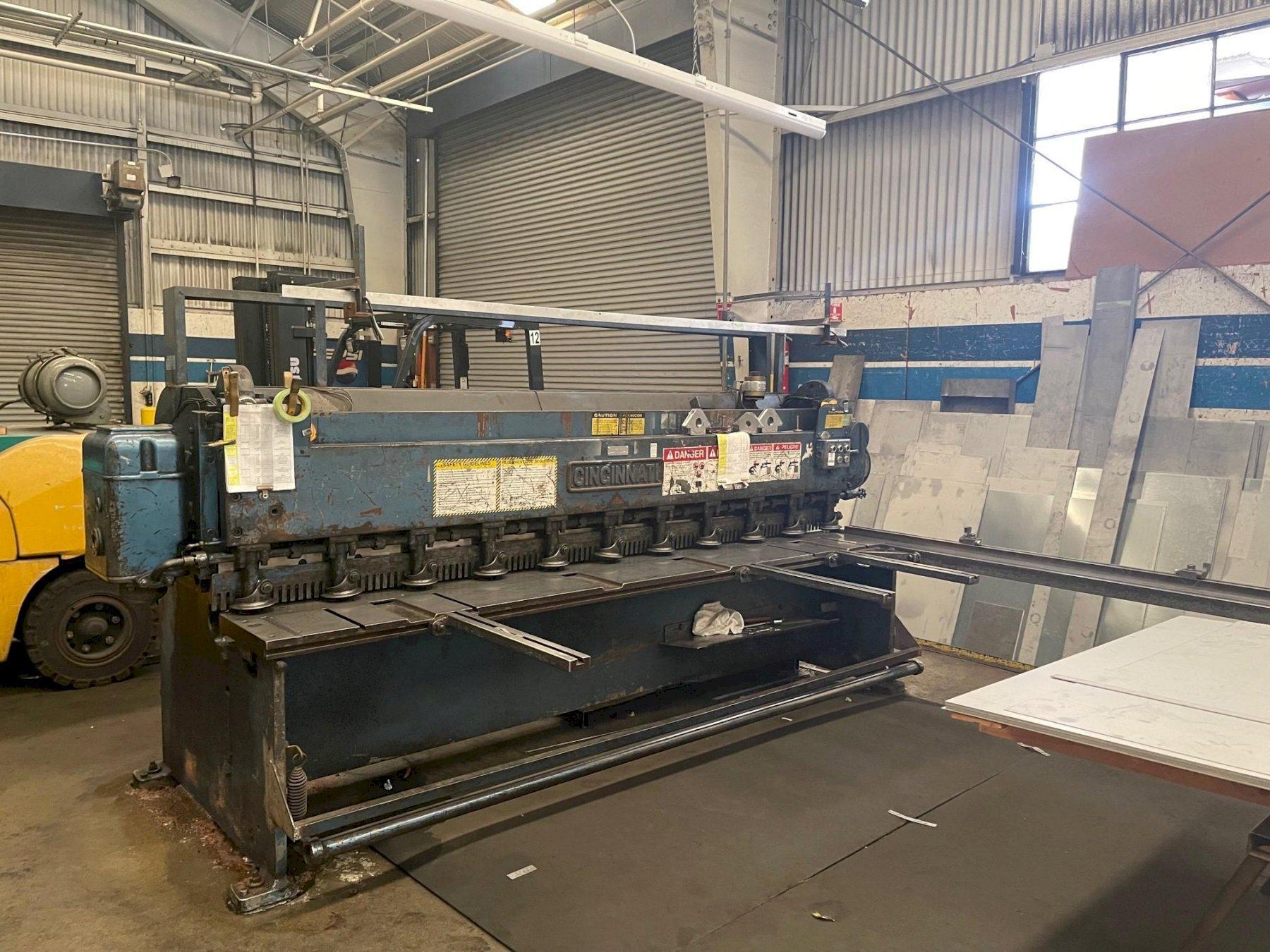

Cincinnati 1010 Mechanical Squaring Shear (#4222)

Manufacturer

Stock

None

Model

None listed

Dealer Location

Florida

Spec Sheet



10 Gauge x 10’ Mechanical Squaring Shear with 24” Front Operated Power Back Gauge, 7.5 HP, Jaw Clutch and Friction Brake, Automatic Pressure Lubrication, Non Float Inclined Ram, 40 SPM and Foot Treadle

GENERAL SPECIFICATIONS:


  • Capacity: 10 Gauge

  • Distance Between Housings: 10’3”

  • Back Gauge Range: 0-36”

  • Back Gauge Speed: 120” Per Minute

  • Rake Taper: 7/32” Per Foot

  • Throat: 4”

  • Strokes Per Minute: 40

  • Hydraulic Hold Downs: 11

  • Distance Under Hold Downs: ¼”

  • Main Drive Motor: 7.5 HP

  • Electrics: 230 Volt 3 Phase

  • Approximate Overall Dimensions: 180” x 81”

  • Approximate Overall Weight: 13200 Lbs


INCLUDES: Jaw Clutch and Friction Brake, Automatic Pressure Lubrication, Non Float Inclined Ram, 40 Strokes Per Minute and Foot Treadle


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
