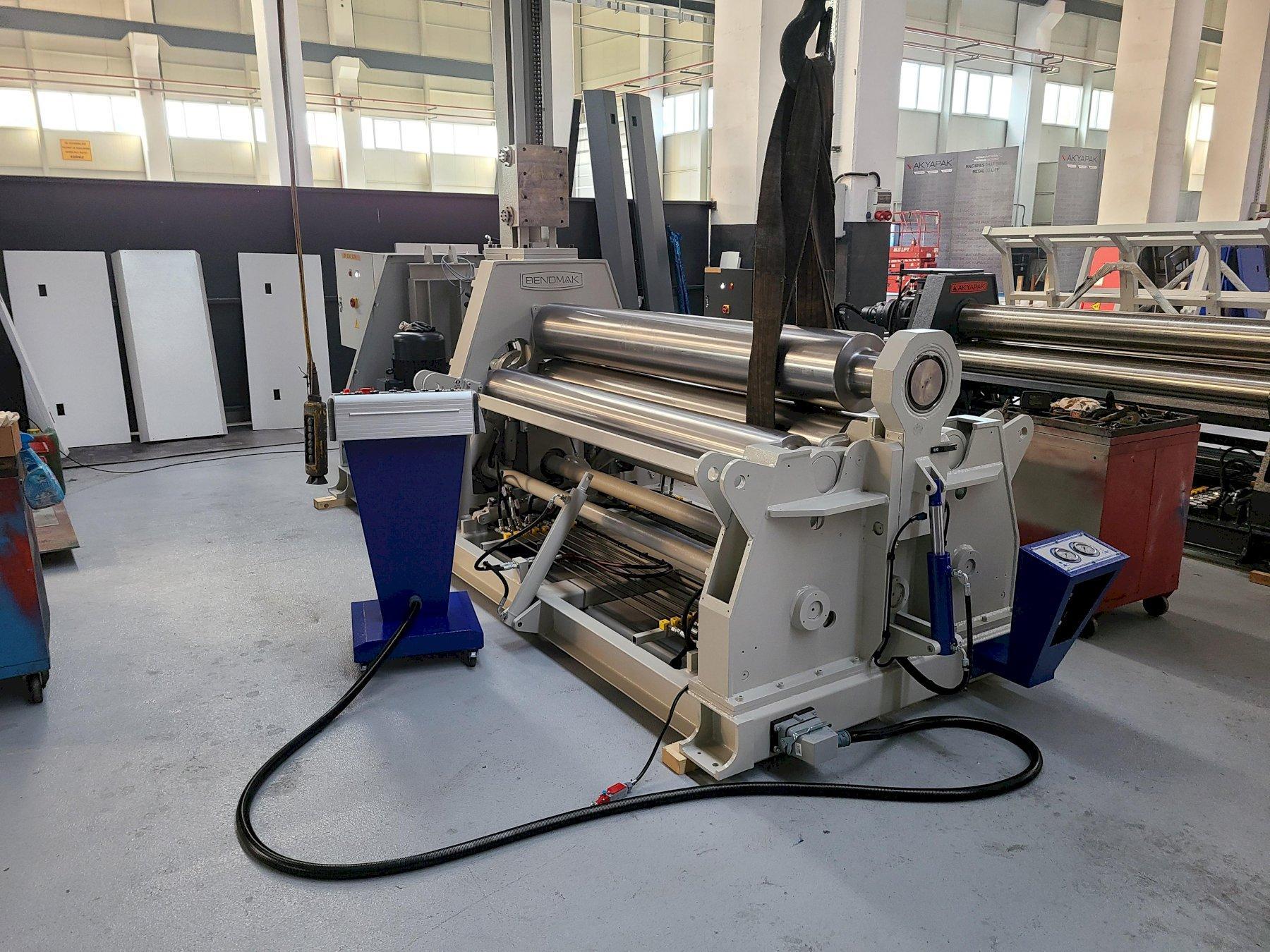

NEW Bendmak CY4R-HHS 300-25/16 4-Roll Plate Roll (#4011)

Manufacturer

Category

Rolls

Type

ROLLS, PINCH

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

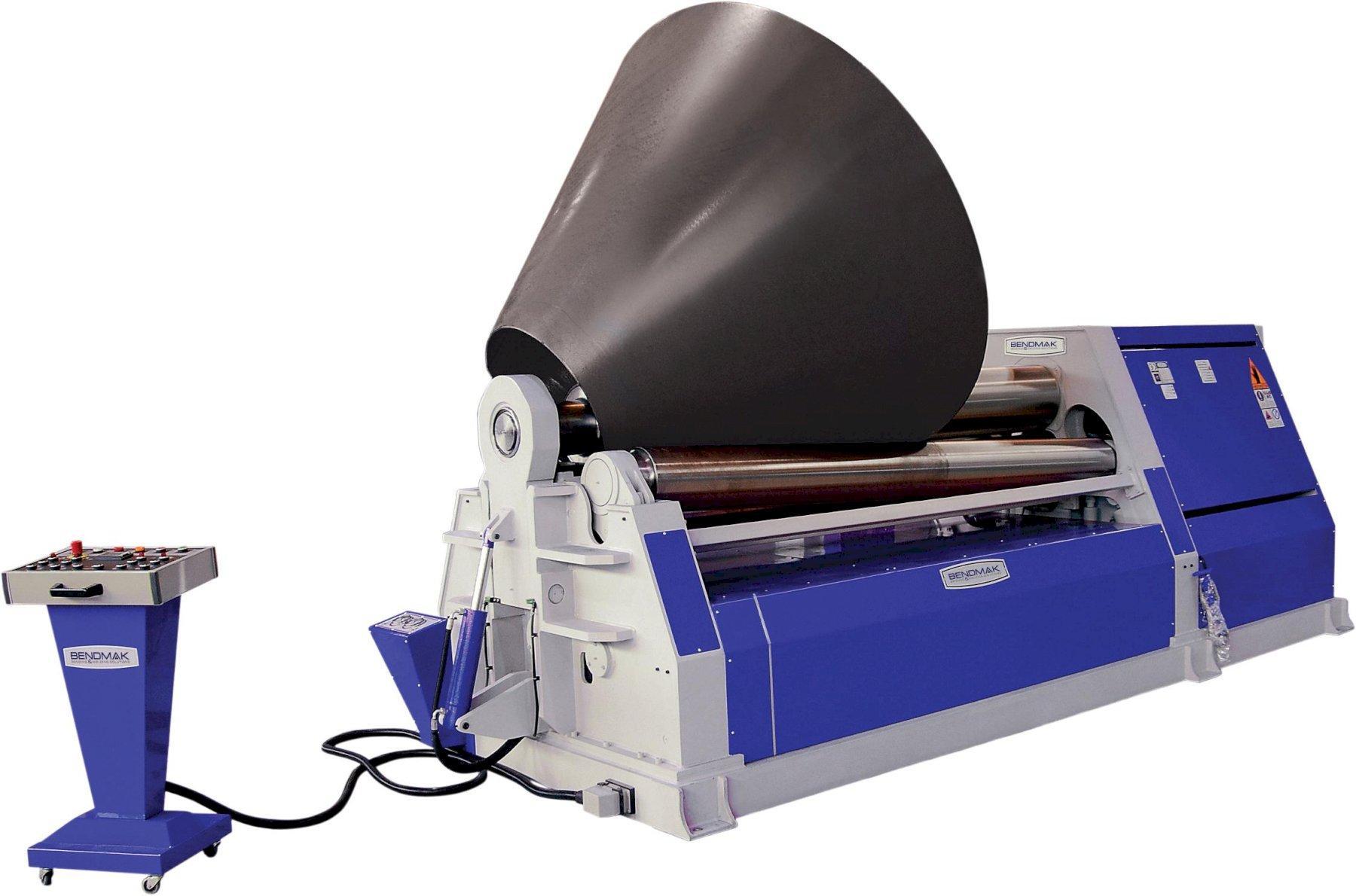

5/8" X 8’ Plate Roll with Separate Movable Control Panel, Digital Readout for Side Rolls, Steel (St-52) Construction Body, Cone Bending Device, Top and Pinch Rolls Driven by Hydraulic Motors and Planetary Gear Reducers and Induction Hardened Rolls.

GENERAL SPECIFICATIONS


  • Working Length: 8”

  • Max Thickness: ⅝”

  • Pre-Bend Thickness: ½”

  • Top Roll Diameter: 11.8”

  • Bottom Roll Diameter: 10.6”

  • Side Roll Diameter: 8.3”

  • Motor Power: 15 HP

  • Length: 16.5’

  • Height: 4.9’

  • Width: 5.7’

  • Weight: 17,857 LBS



INCLUDES: Separate Movable Control Panel, Digital Readout for Side Rolls, Steel (St-52) Construction Body, Cone Bending Device, Top and Pinch Rolls Driven by Hydraulic Motors and Planetary Gear Reducers and Induction Hardened Rolls.


***All Price, Location and Specifications Subject to Change without Notice***
