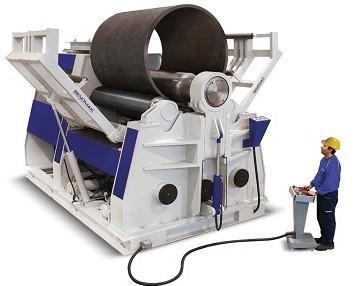

NEW Bendmak CY4R-HHS 540-30/50 Plate Roll (#3997)

Manufacturer

Category

Rolls

Type

ROLLS, PINCH

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



1-½” X 10’ 4 Roll Plate Roll with Induction Hardened Rolls, Cone Bending Device, Digital Display For Side Rolls, Fully Welded Steel Construction Body, Separate Moving Control Panel, Two Rolling Speeds, Electro-Hydraulic Calibration, All Rolls Mounted in Spherical Roller Bearings, Safety Equipment Around Machine, Central Rolls Driven by Hydraulic motors and Planetary Gearboxes

GENERAL SPECIFICATIONS


  • Working Length: 10’

  • Max. Thickness: 1-½”

  • Pre-Bend Thickness: 1-9/16”

  • Top Roll: 21.3”

  • Bottom Roll: 20”

  • Side Roll Diameter: 17.3”

  • Motor Power: 74 HP

  • Length: 22’

  • Height: 9.8’

  • Width: 9.8’

  • Weight: 88,185



INCLUDES: Induction Hardened Rolls, Cone Bending Device, Digital Display For Side Rolls, Fully Welded Steel Construction Body, Separate Moving Control Panel, Two Rolling Speeds, Electro-Hydraulic Calibration, All Rolls Mounted in Spherical Roller Bearings, Safety Equipment Around Machine, Central Rolls Driven by Hydraulic motors and Planetary Gearboxes


***All Price, Location and Specifications Subject to Change without Notice***
