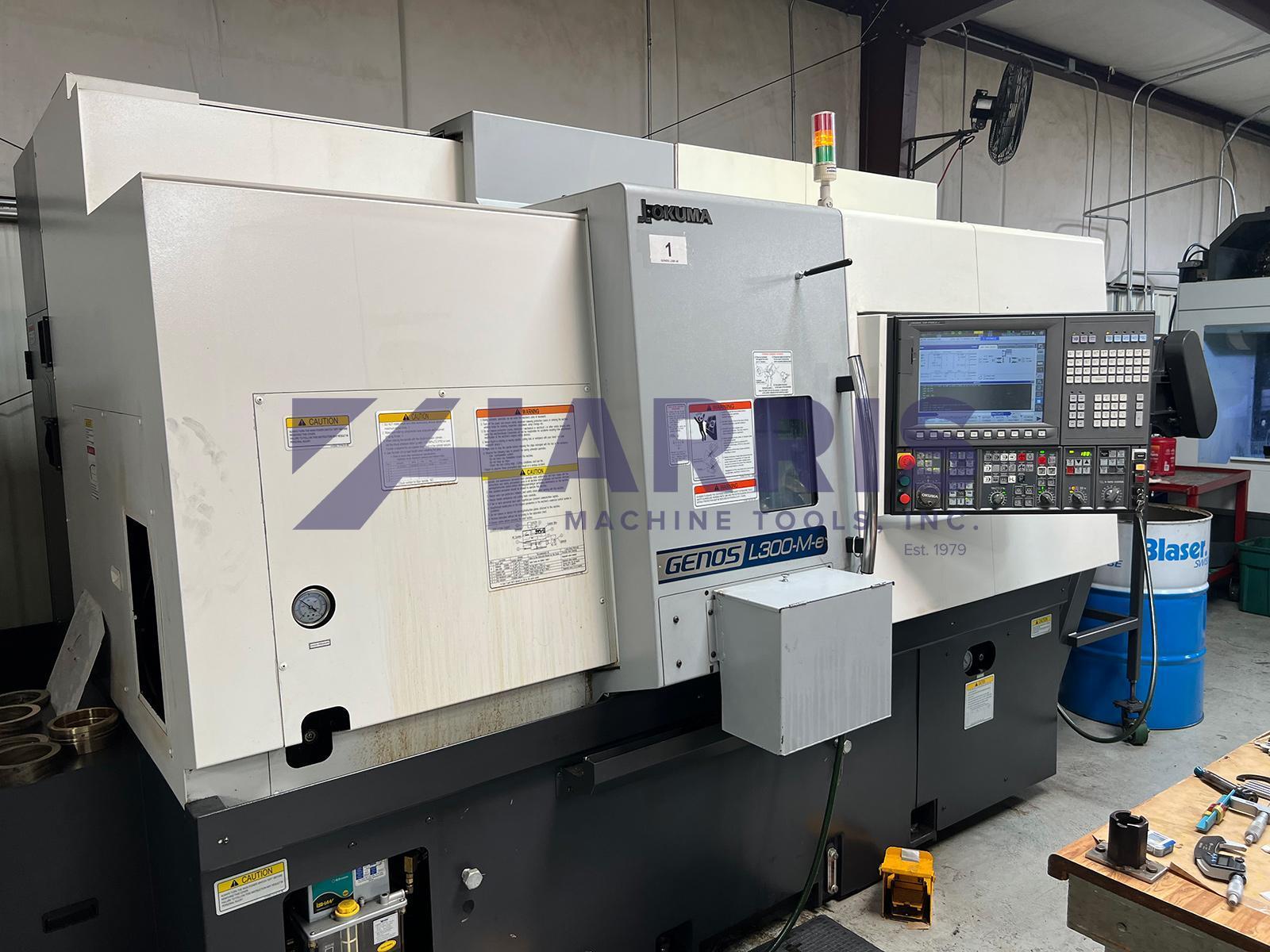

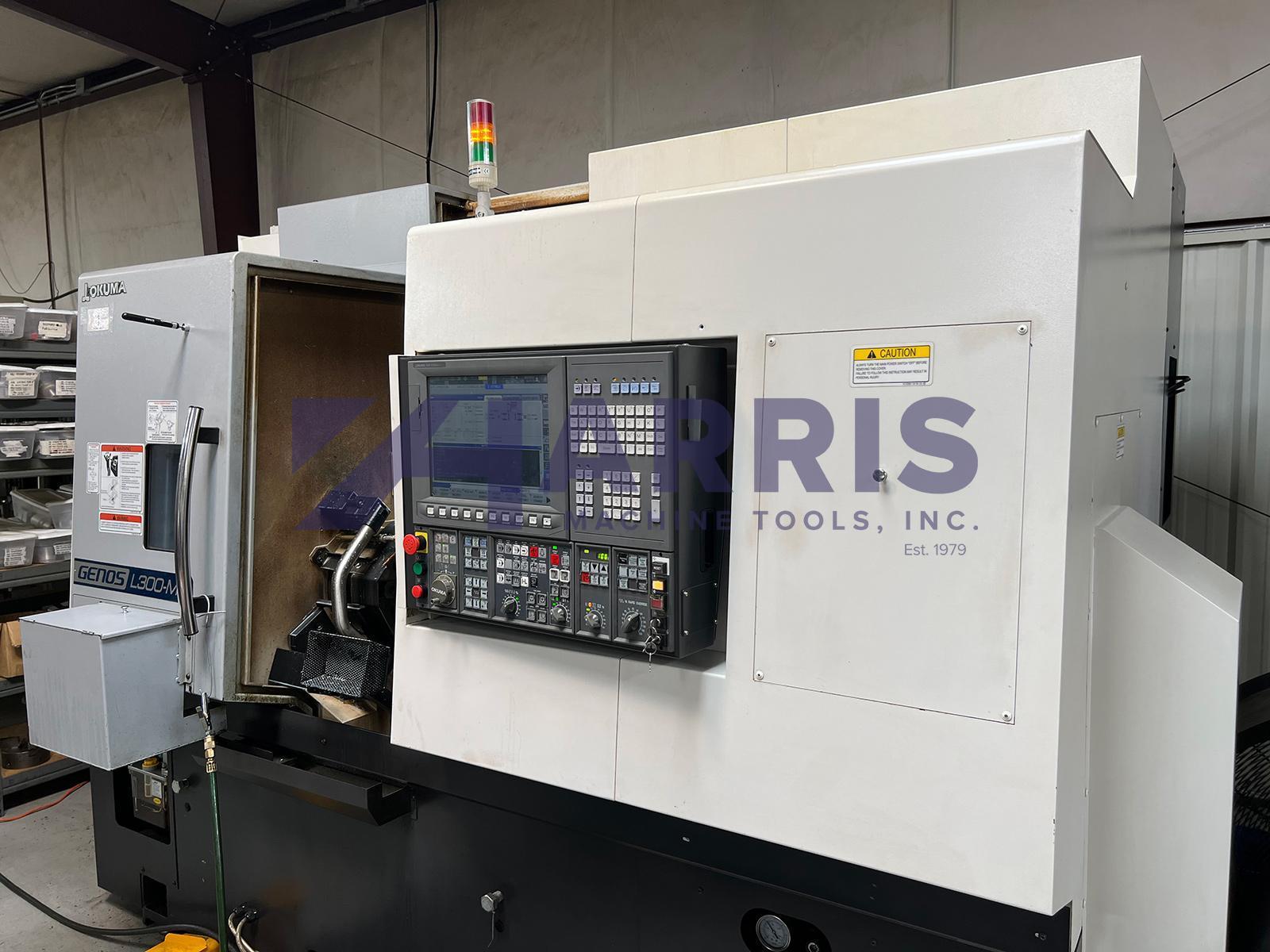

USED, OKUMA GENOS L300MYW CNC LATHE

Manufacturer

OKUMA

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

19648

Model

GENOS L300-MYW-e X 500

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

Tailstock (Yes/No) - yes


MAXIMUM TURNING DIAMETER: 11.81"
MAXIMUM BAR CAPACITY: 2.75"
X AXIS TRAVEL: 20.47"
Y AXIS TRAVEL: 3.94"
Z AXIS TRAVEL: 18.11"
W AXIS TRAVEL: 20.47"
SPINDLE SPEEDS: 3000 RPM
SPINDLE MOTOR: 20 HP
SPINDLE NOSE: A2-8
SUB SPINDLE SPEED: 6000 RPM
SUB SPINDLE MOTOR: 10 HP
LIVE MILLING SPEED: 6000 RPM
LIVE MILLING MOTOR: 7.5 HP
WEIGHT (APPROXIMATE): 13,700 LBS.
EQUIPPED WITH:

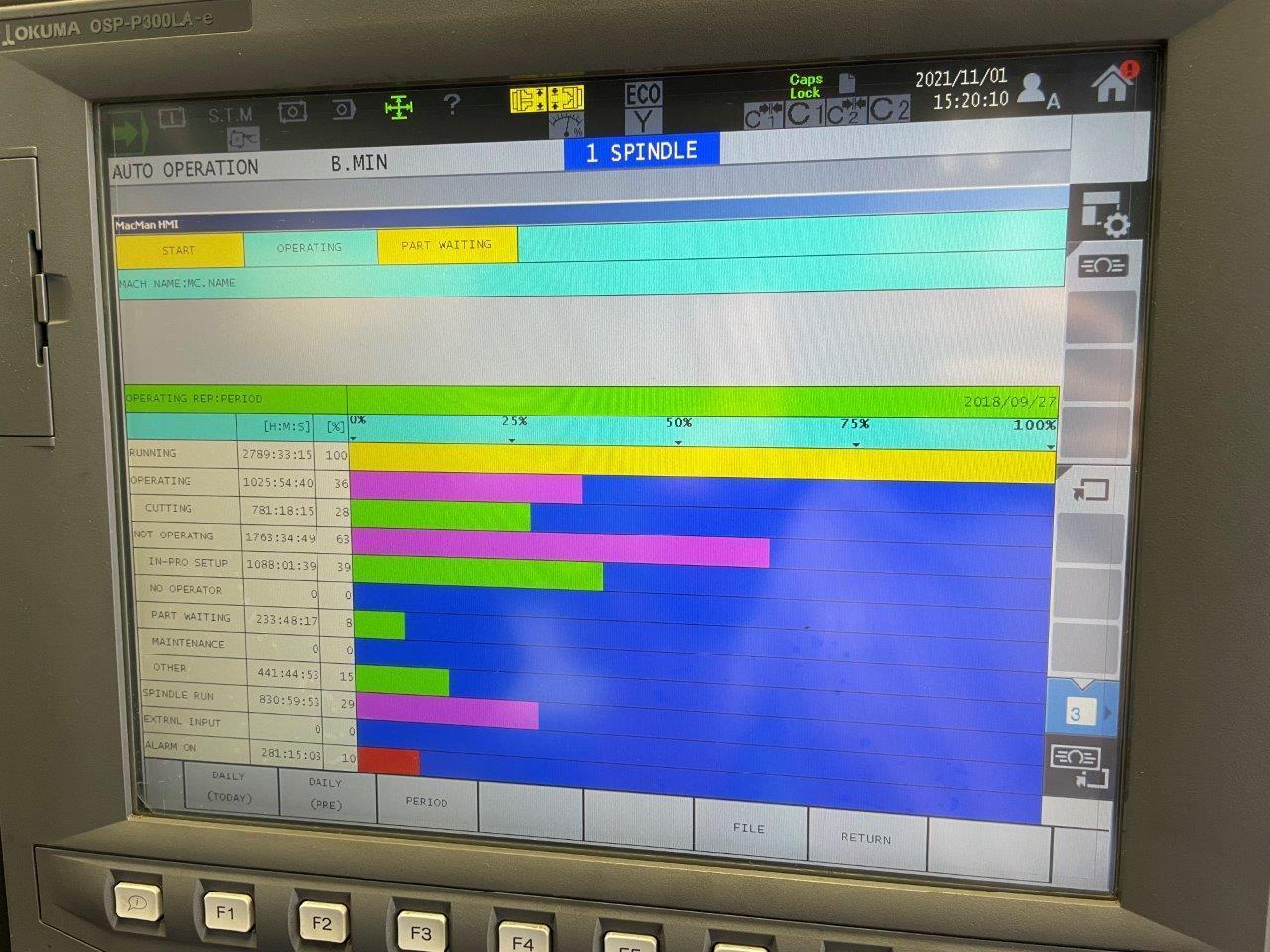

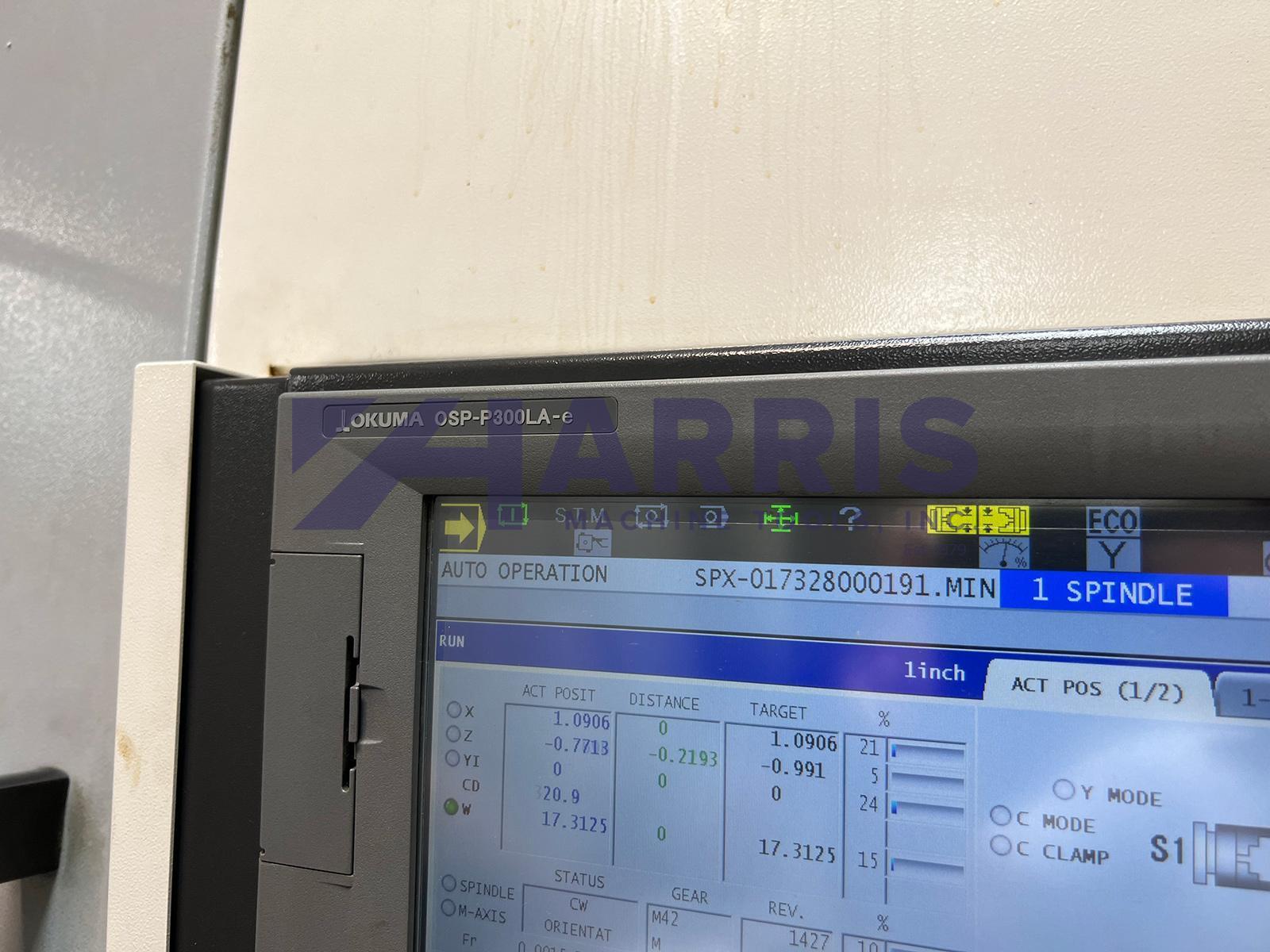

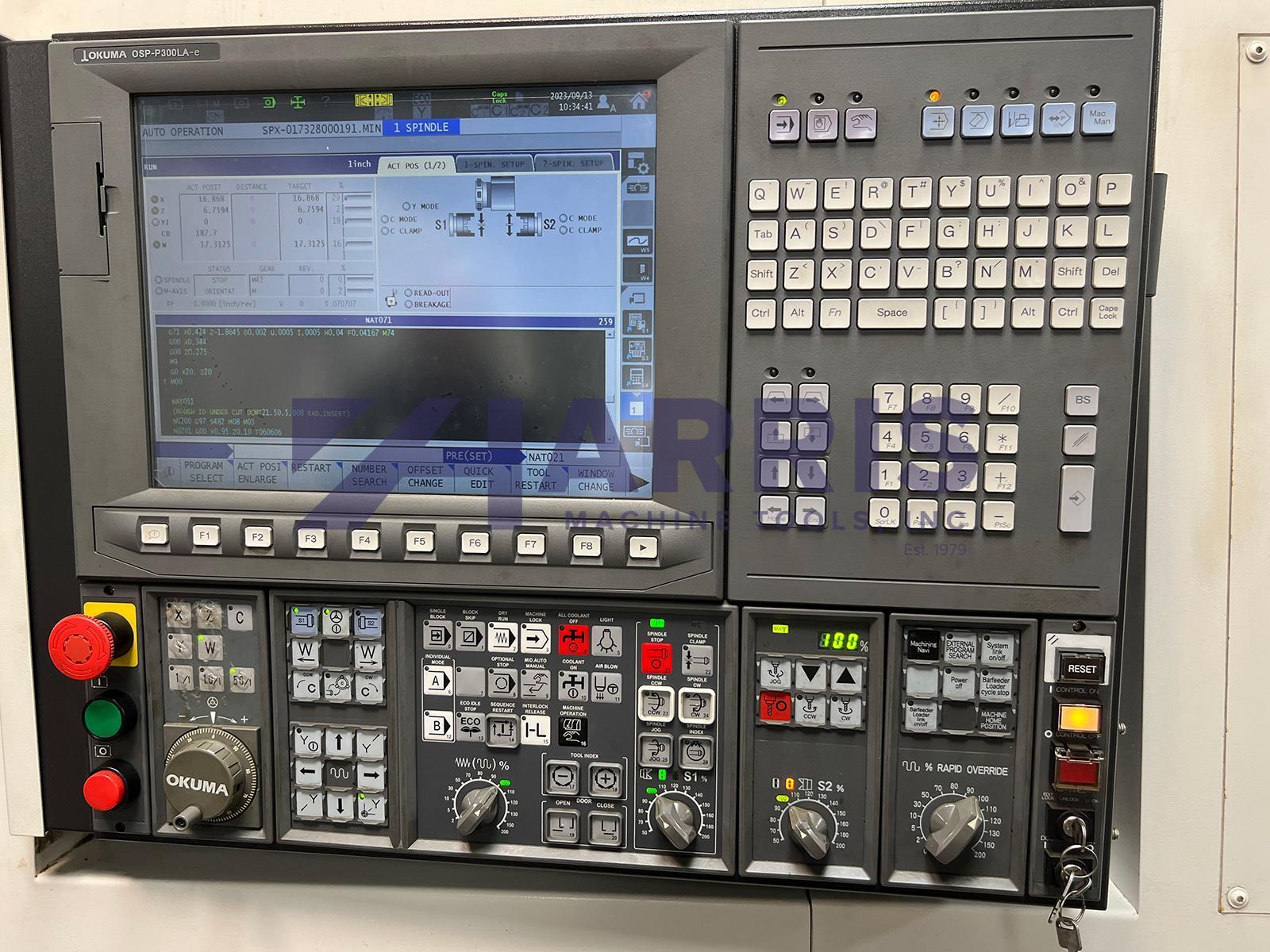

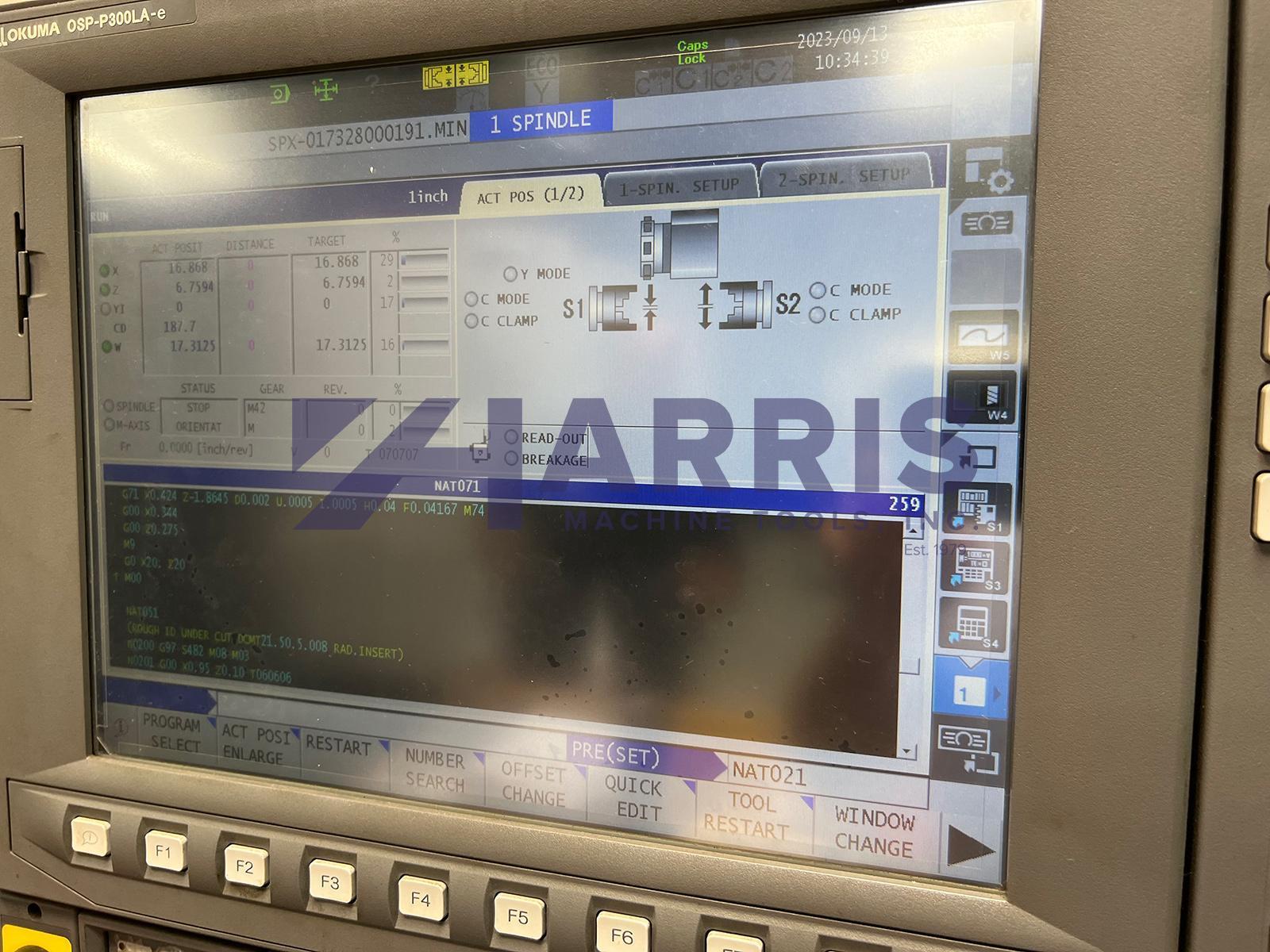

OSP P300LA CNC CONTROL

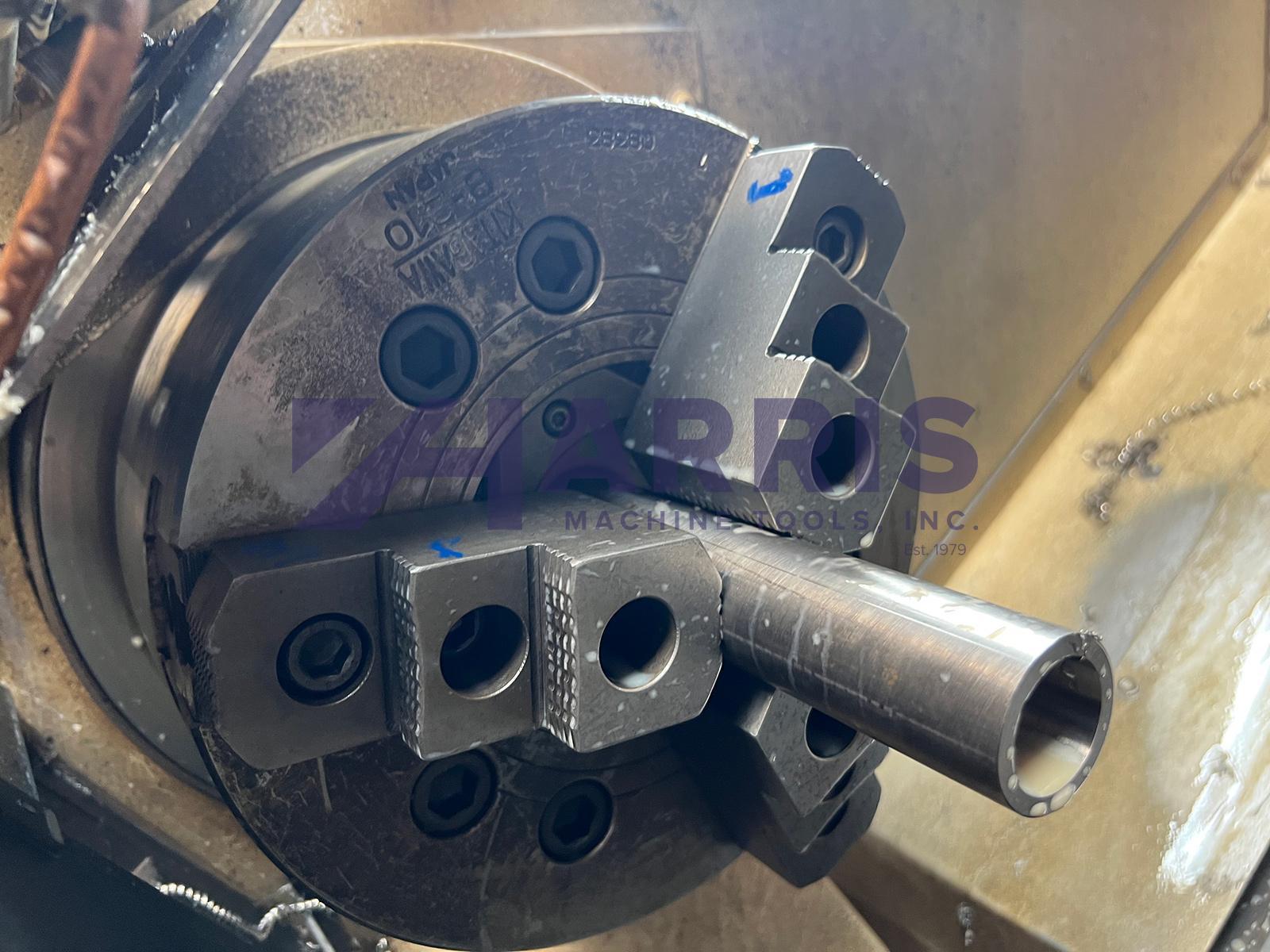

10" CHUCK

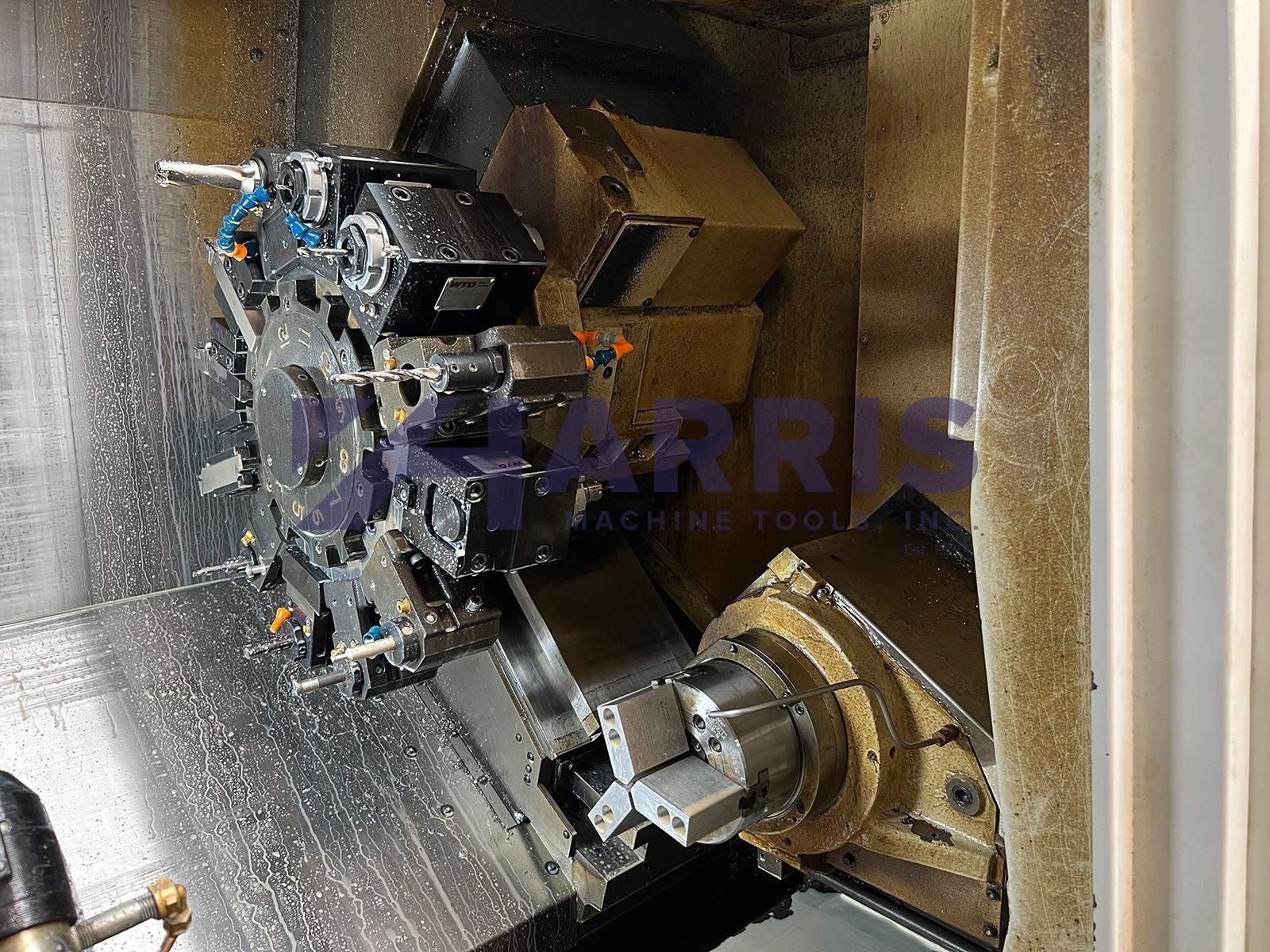

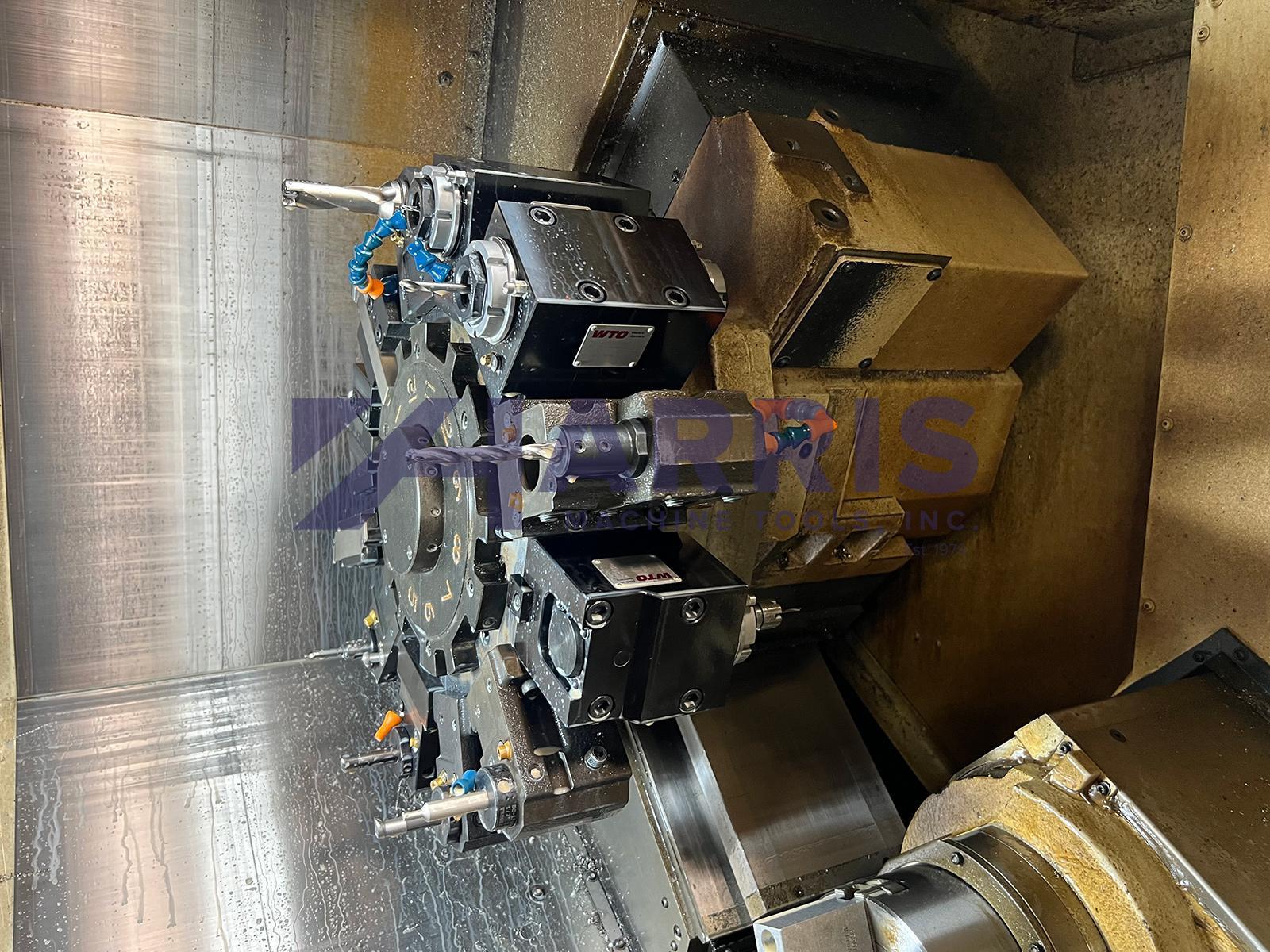

12 STATION TOOL TURRET
C-AXIS MILLING
SUB SPINDLE

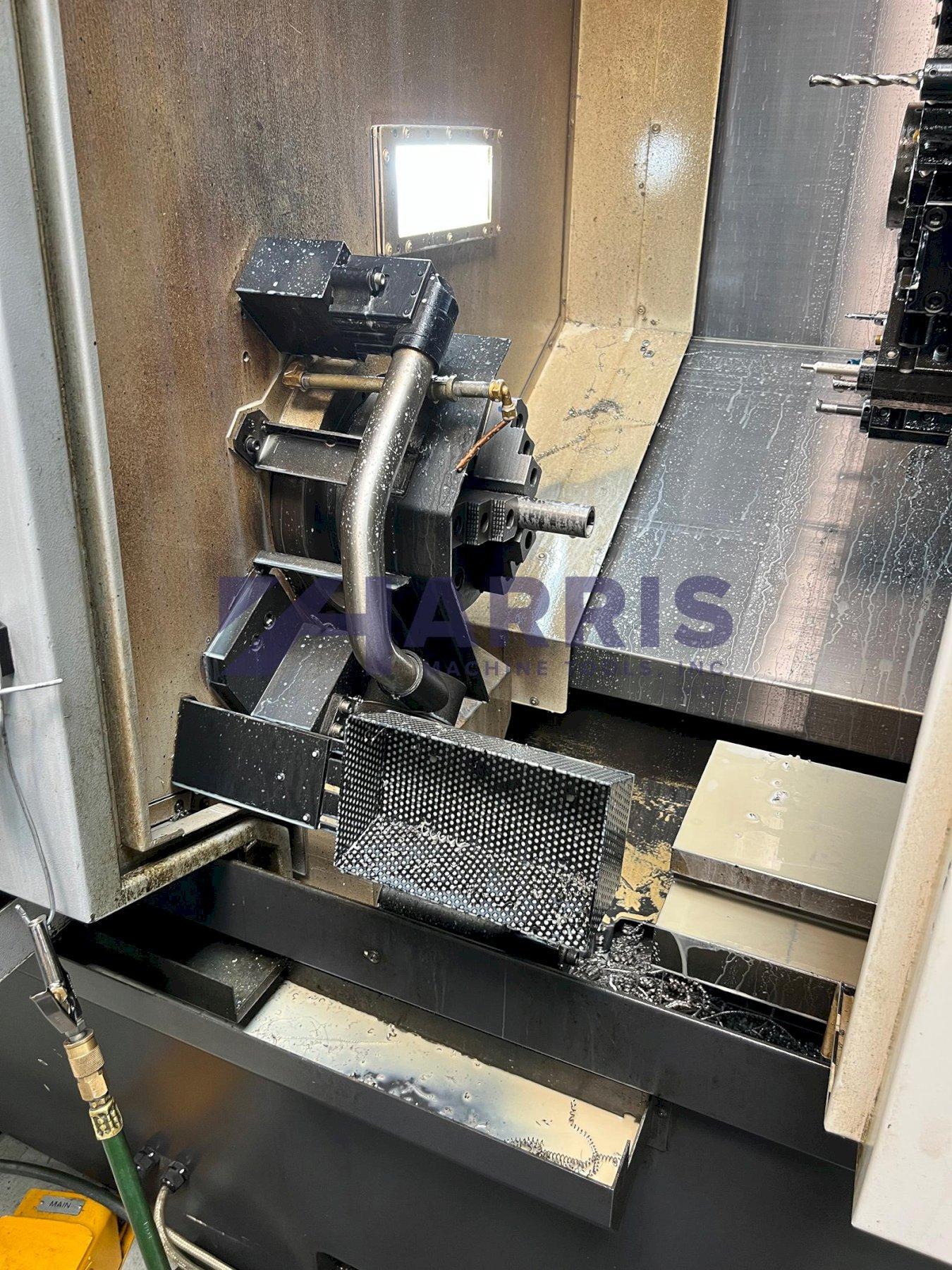

PARTS CATCHER
TOOL SETTER
COLLET CHUCK ON MAIN SPINDLE

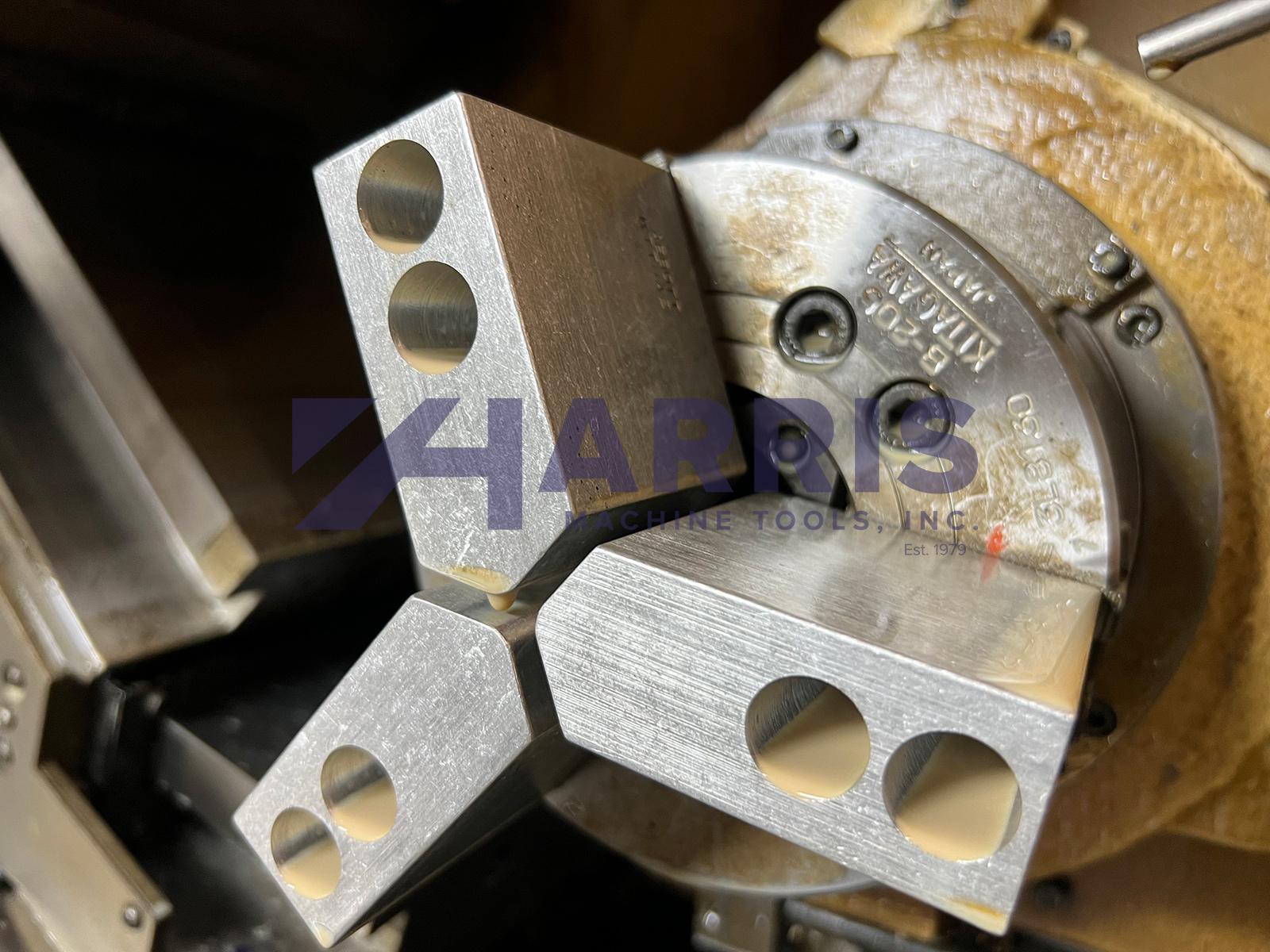

3-JAW CHUCK ON SUB SPINDLE
MISC. TOOL HOLDERS (CURRENTLY INSTALLED ON TURRET)
BAR FEED INTERFACE (UNIVERSAL TYPE)
AOT IGF P3-INC M/W/Y
HELICAL CUTTING FOR X, C AND Z AXES
OFF-CENTER TURNING FUNCTION
RAPID TRAVERSE OVERRIDE SWITCH

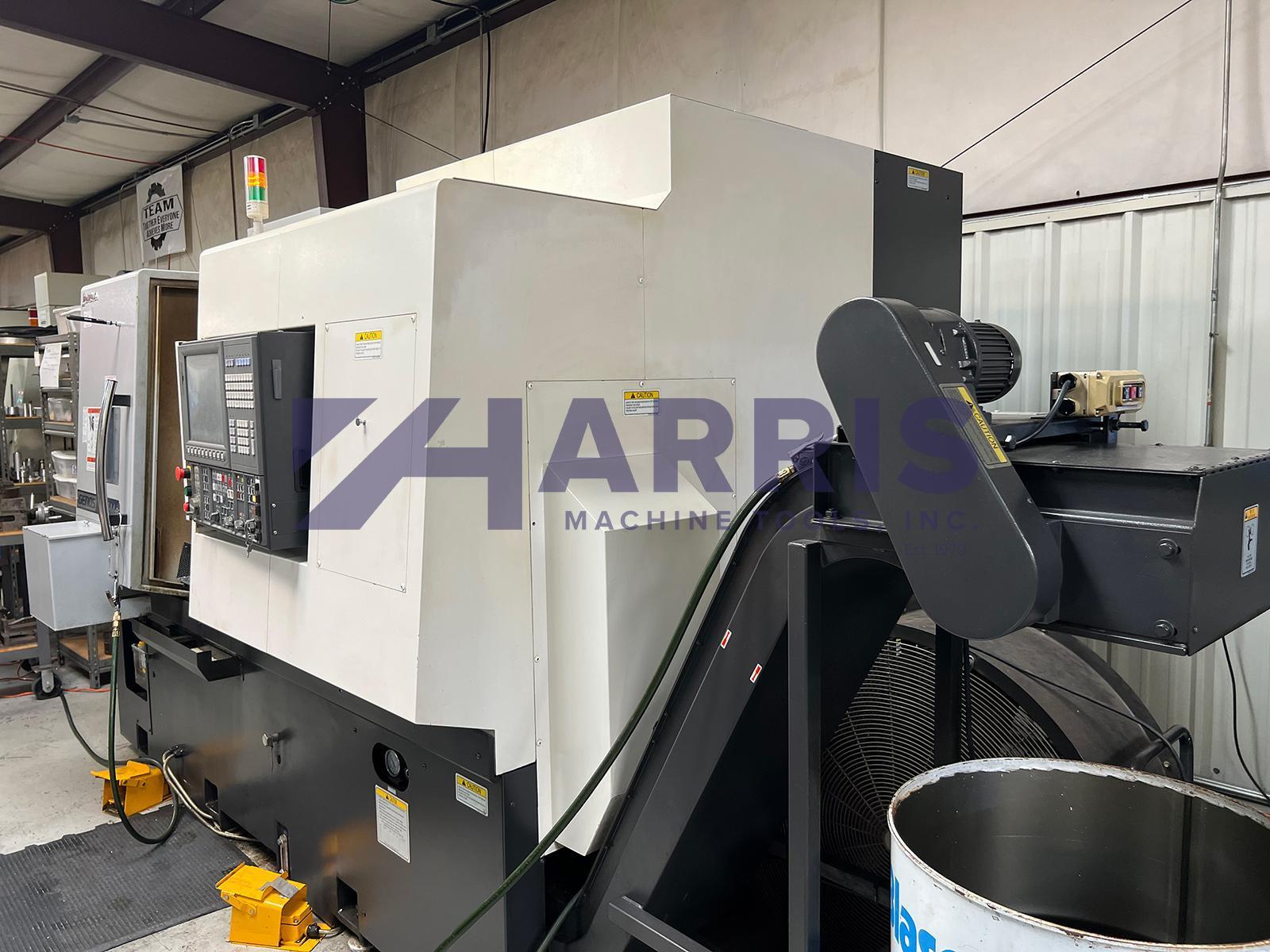

CHIP CONVEYOR
NOTE: LOW CUTTING HOURS - LESS THAN 1000
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION

ADDITIONAL TOOLING INCLUDED: (Most new & in box)
WTO EXTERNAL COOLANT RADIAL LIVE TOOL (QTY 4)
WTO EXTERNAL COOLANT AXIAL LIVE TOOL, SINGLE (QTY 3)
WTO EXTERNAL COOLANT AXIAL LIVE TOOL, DOUBLE (QTY 2)
WTO ER32 X ER32 EXTENSION ADAPTER (QTY 3)
WTO ER32 TOOL (QTY 1)
LYNDEX-NIKKEN STATIC DOUBLE O.D. TOOL HOLDER (QTY 2)
O.D. TOOLS (QTY 5)
FACE GROOVE TOOL (QTY 1)
I.D. BORING BARS (QTY 3)
